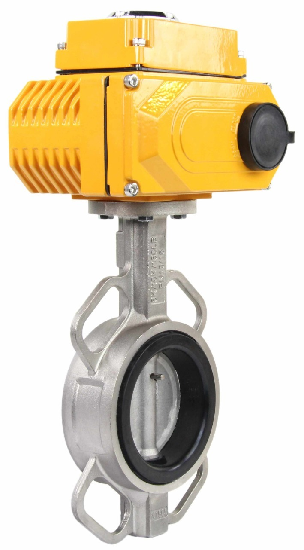

Water Butterfly Valve Elephant 316L-316L-EPDM body material

Description

Butterfly valves are designed to be used as shut-off or control valves for managing flows in heating systems, water supply systems, and technological processes in the food, chemical, oil and gas, pulp and paper, and other industries.
Quarter-turn electric actuators of the Elephant QT series are designed for remote and local control of the rotation of the shut-off element from 0° to 270°, for types such as ball valves, etc. They are widely used in various sectors of the economy: gas, oil, metallurgy, food industry, housing, and utilities, etc.
The electric actuators are installed directly on pipeline fittings. The installation dimensions comply with the international standard ISO 05211 / DIN3337. Four micro switches are used to limit the stroke of the output shaft at the end positions of the working element of the fittings. The electric actuators are designed to operate in an intermittent duty cycle S2.

Specifications

Country of origin

China
Body material

Stainless steel AISI 316
Maximum allowable temperature

248 °F / 120 °C
Connection type

Compact flanged
Control type

Electric actuator
Nominal pressure

16 bar
Type of seal

EPDM
Disc material

Stainless steel AISI 316L/1.4404
Voltage

220V
Actuator cycle time

30s
Valve feedback

Limit switches
Explosion-proof

No
Thermal protection

Yes
Torque

80 Nm
Electropneumatic positioner

No
Pneumatic actuator

No
Manual override

No
Limit switches

No
