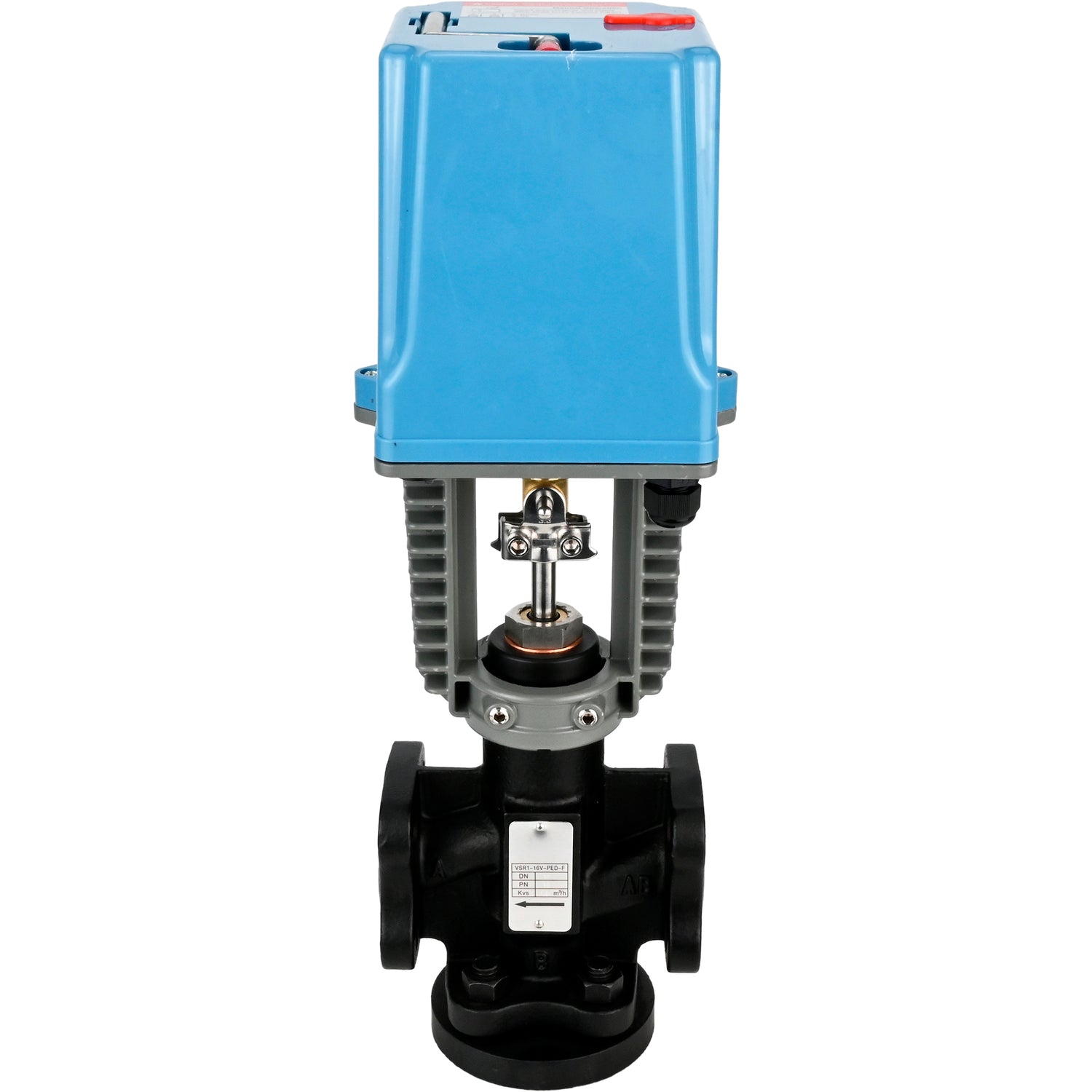

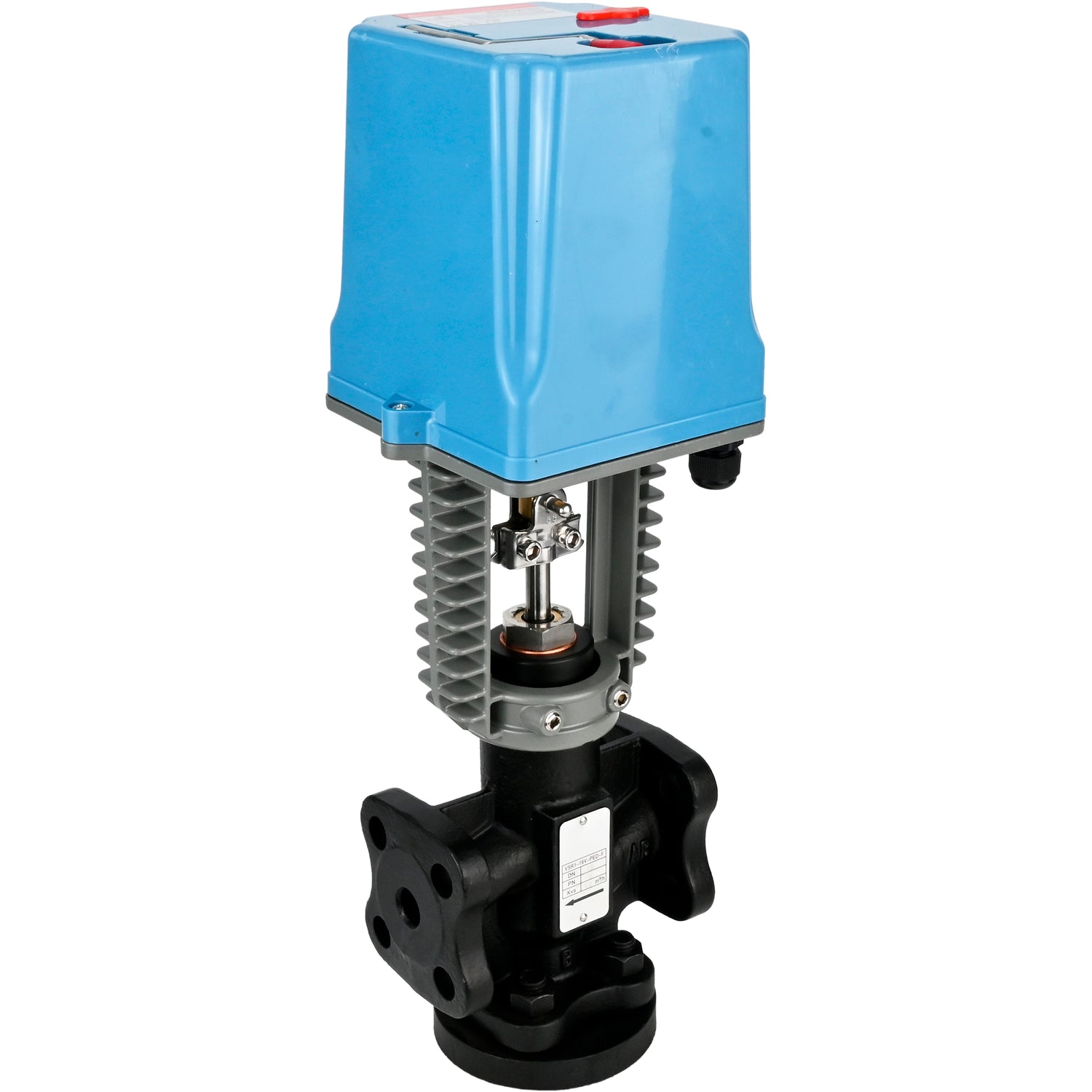

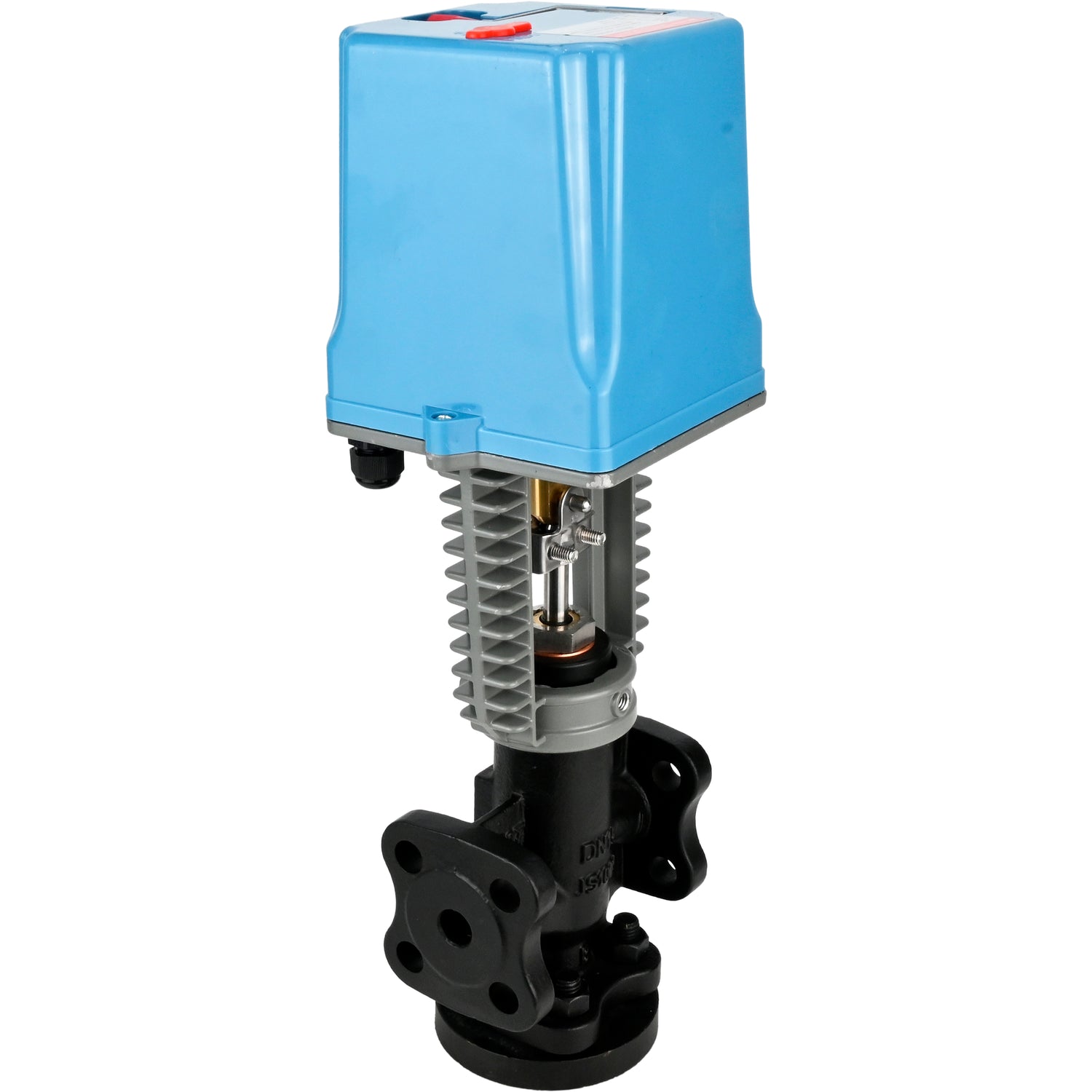

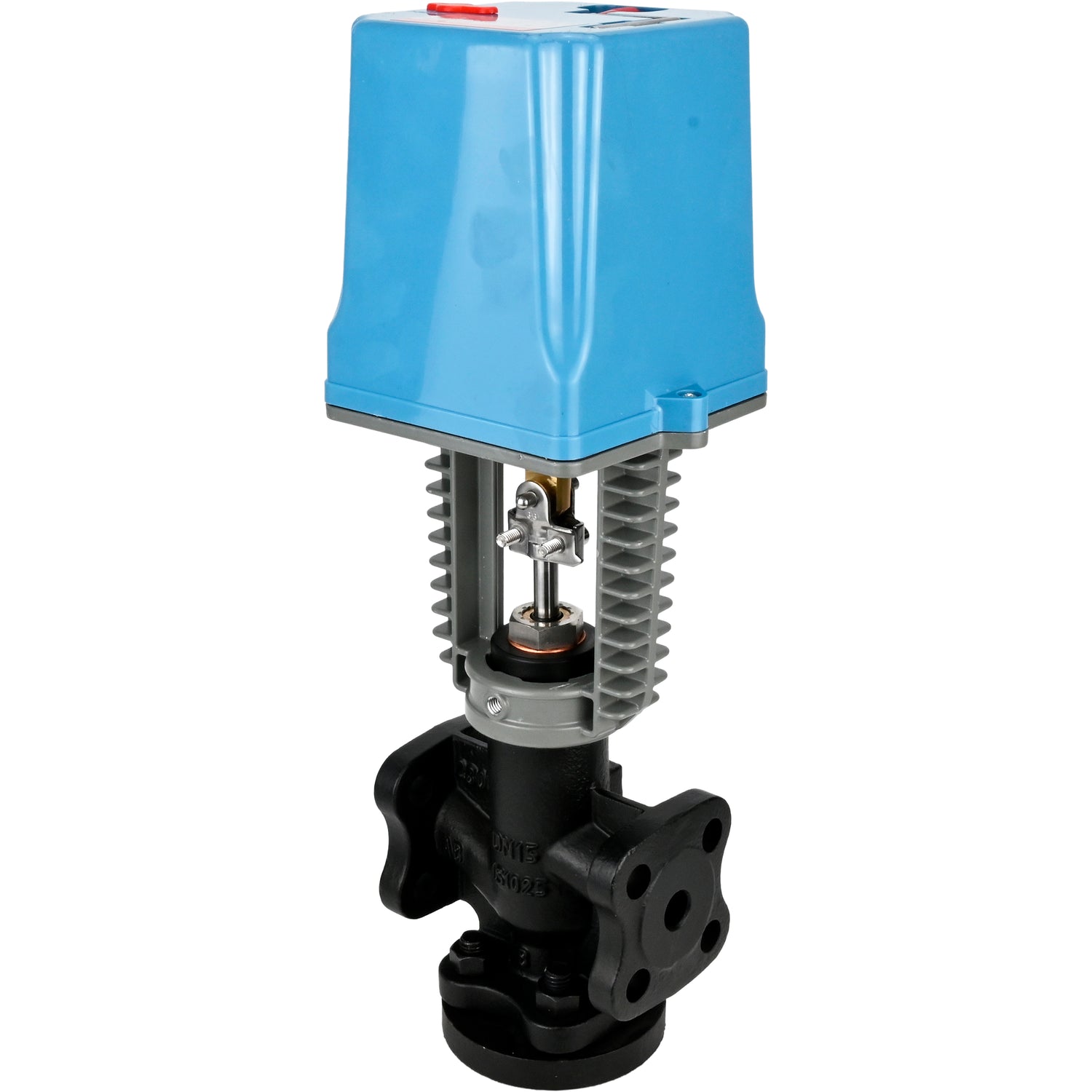

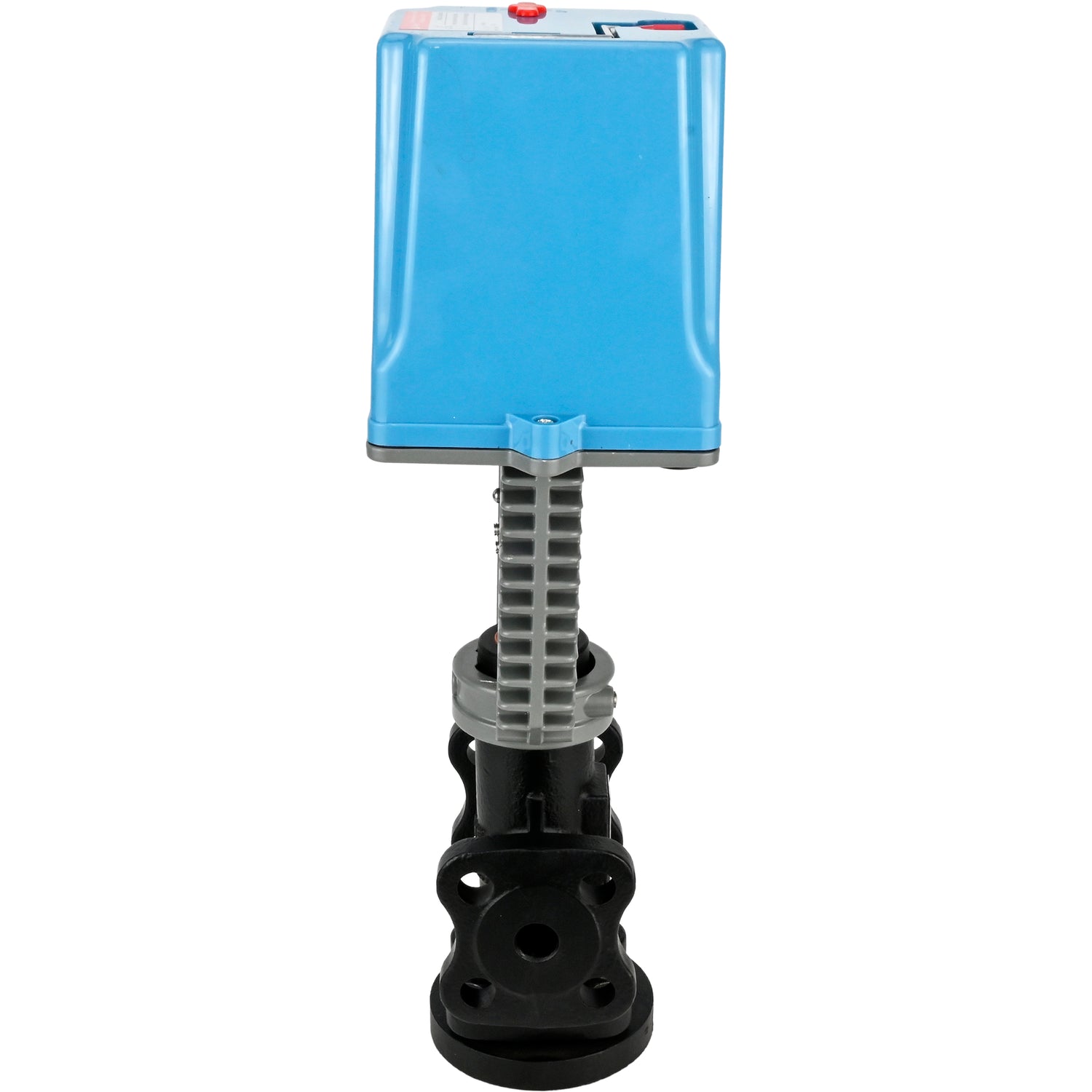

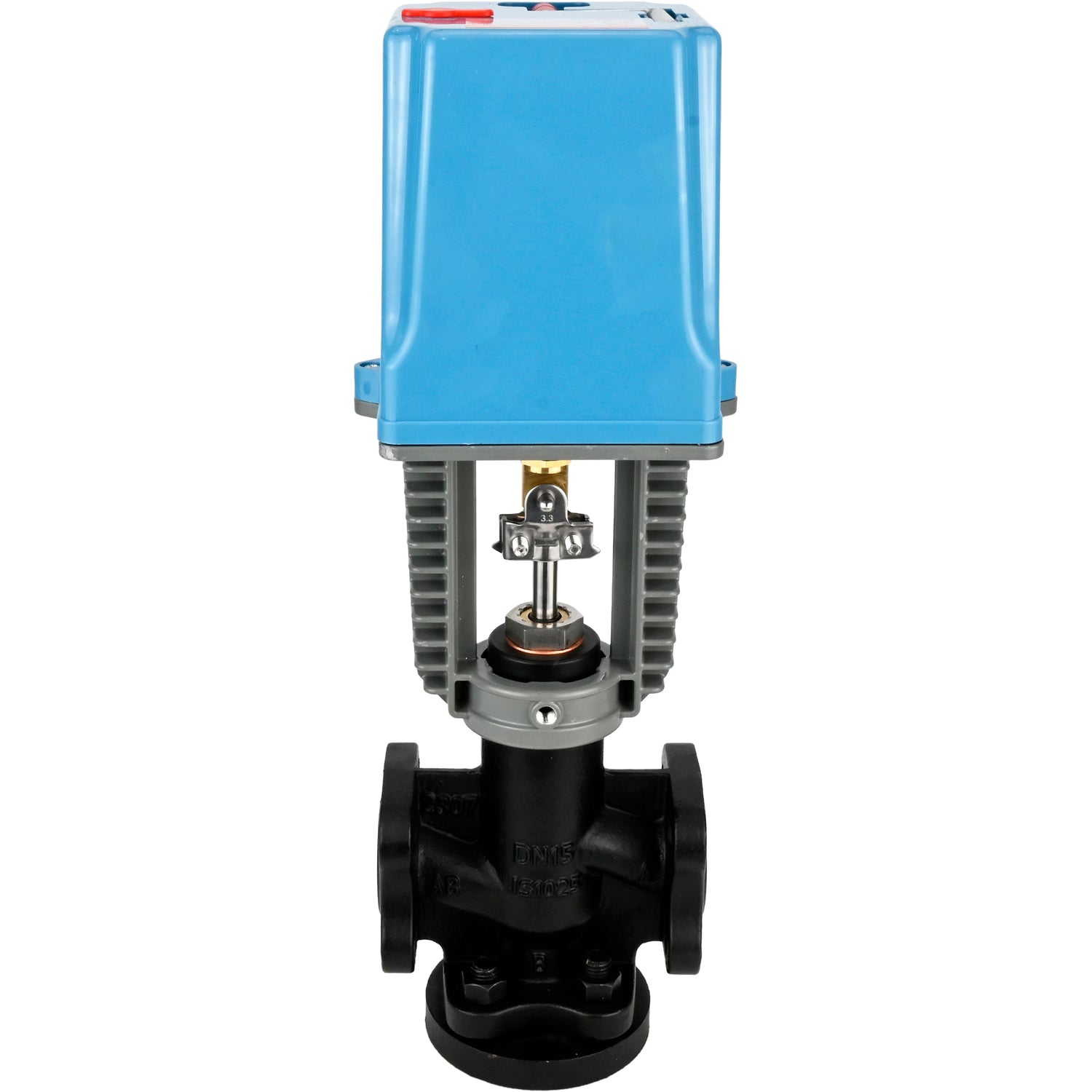

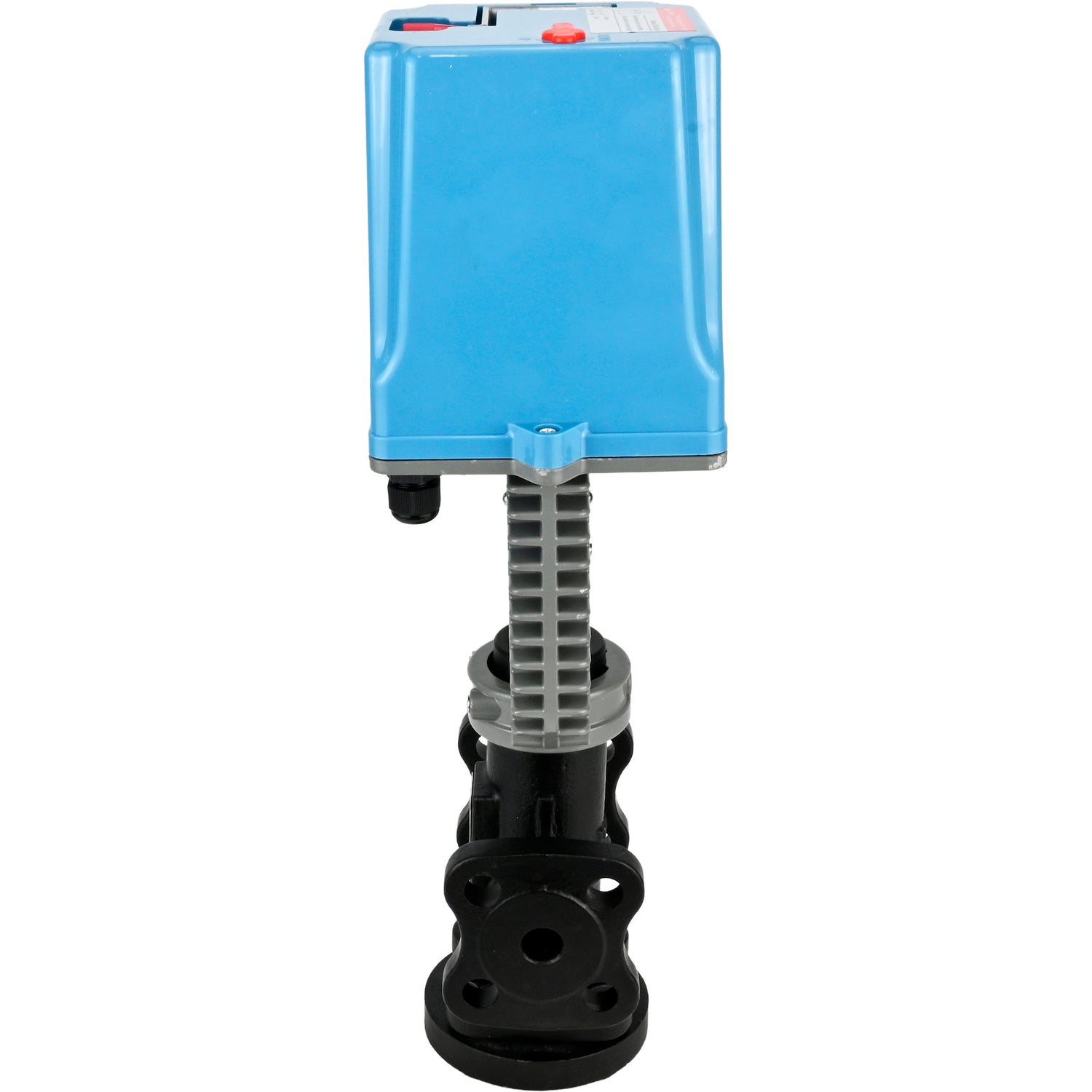

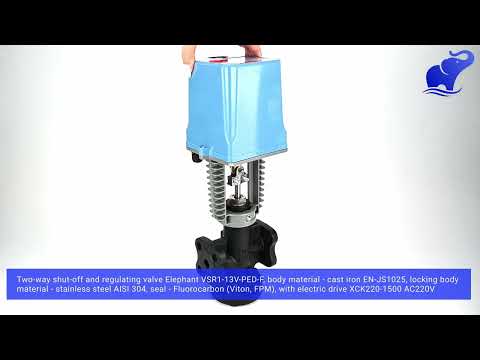

Two-way shut-off and regulating valve Elephant VSR1-13V-PED-F, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V

€575,21
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Shut-off and regulating valves are designed for hermetic shut-off or changing the flow rate of the working medium in the pipeline.





Main technical characteristics of Elephant VSR1-13V-PED-F two-way stop and control valves, body material - cast iron EN-JS1025, body material - stainless steel AISI 304, sealing - fluorocarbon (Viton, FPM), with electric actuator XCK220-1500 AC220V:

Nominal diameter DN, mm 15÷150
Nominal pressure PN, bar 16
Temperature of working medium t, ⁰C from 0 to +150
Working medium non-flammable, explosion-proof, non-toxic, chemically neutral to the materials of the parts liquids and gases, water, aqueous solutions of ethylene glycol and propylene glycol with a concentration of up to 60%;

the working environment should not contain mechanical impurities with a particle size of more than 70 microns. If the particle size exceeds 70 microns, then the installation of a filter in front of the valve is mandatory.
Direction of working medium supply arrow on the valve body
Ambient temperature, ⁰C from -5 to +55
Relative humidity of the environment, % 30÷80
Connection to the pipeline flanged
Design of mating flanges B
Voltage of the electric drive, V 220
Models of the electric drive DN15÷65 – XCK220-1500 (where 1500 is the developed drive torque, N);

DN80 – XCK220-2500 (where 2500 is the developed drive torque, N); DN100÷150 – XCK220-3000 (where 3000 is the developed drive torque, N);
Body material cast iron EN-JS1025
Seal material in the valve fluororubber
Flow characteristic equal percentage
Product type two-way
Valve design DN15÷25 – non-pressure-balanced
DN32÷150 – pressure-balanced

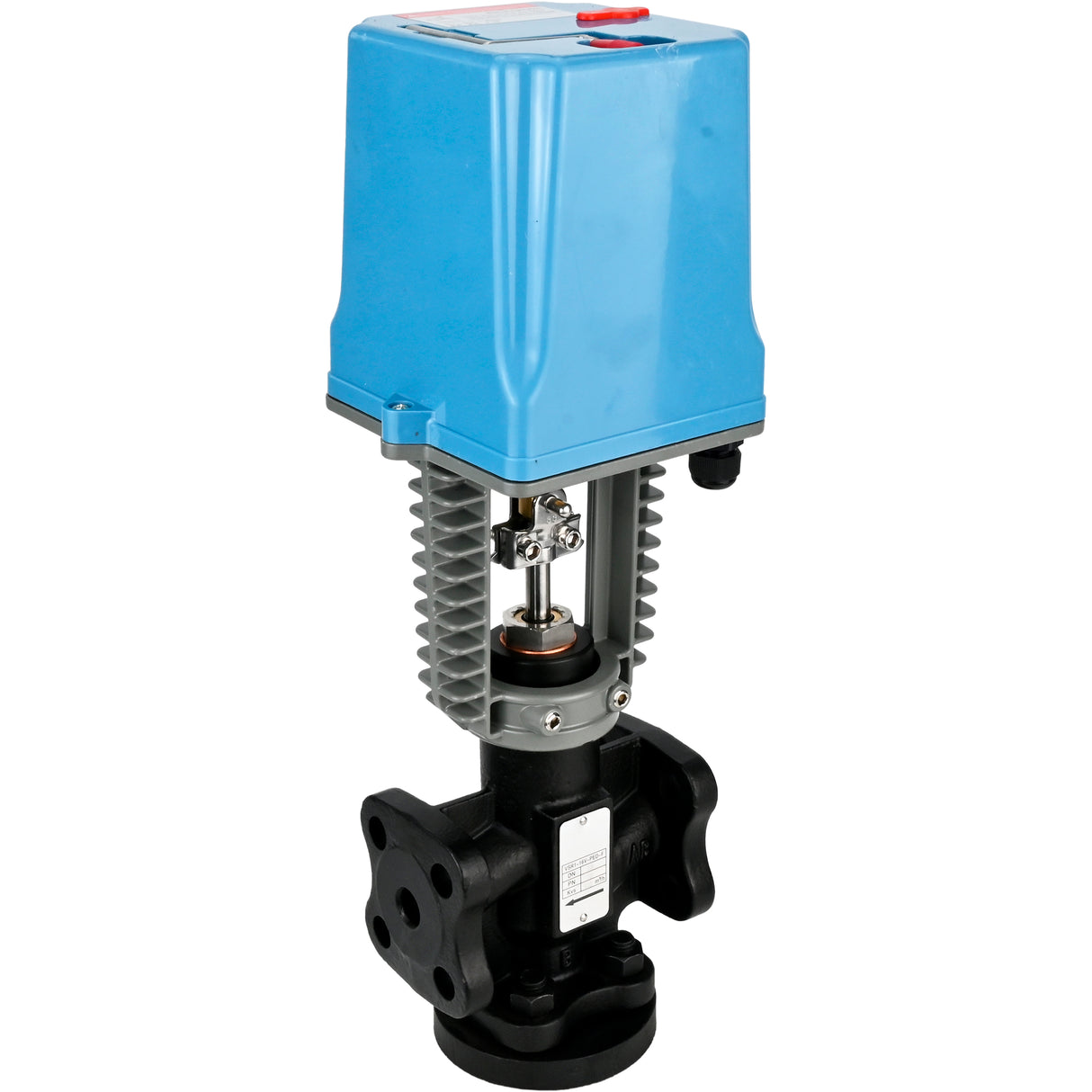

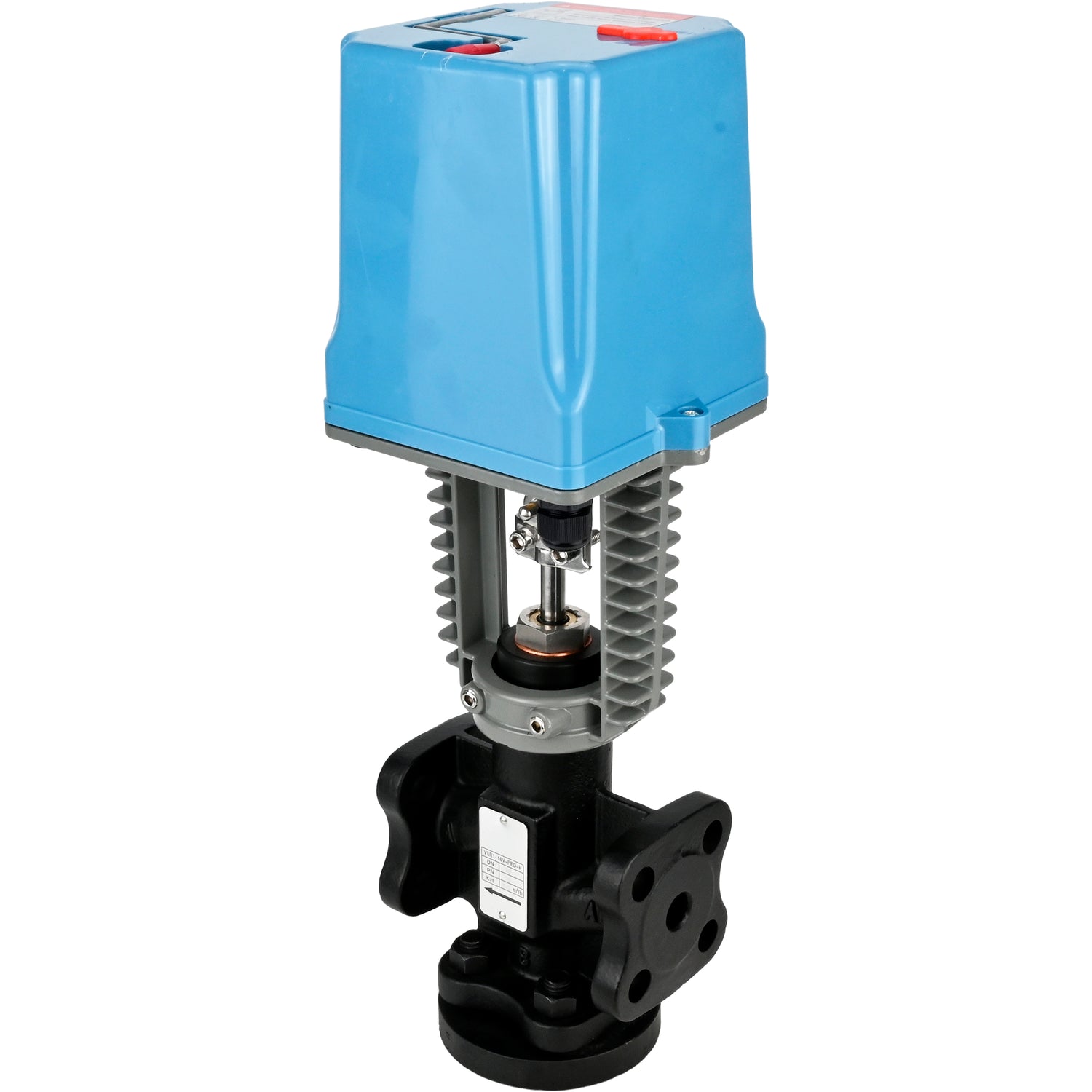

Two-way shut-off and regulating valve Elephant VSR1-13V-PED-F, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V





Dimensions and dimensions Elephant VSR1-13V-PED-F two-way stop and control valves, body material - cast iron EN-JS1025, body material - stainless steel AISI 304, sealing - fluorocarbon (Viton, FPM), with electric actuator XCK220-1500 AC220V:

Parameter DN, mm
15 20 25 32 40 50 65
L, mm 130 150 160 180 200 230 290
A, mm 82 92 96 110 120 135 165
B, mm 64 62 64 45 50 100 115
H, mm 139 137 139 120 125 175 190
D, mm 95 105 115 140 150 165 185
ØPCD, mm 65 75 85 100 110 125 145
N-ØPo 4–14 4–14 4–14 4–19 4–19 4–19 4–19
Weight (with drive), kg 6.1 6.9 7.7 9.2 10.5 13.7 17.2

Sketch of dimensions and dimensions Elephant VSR1-13V-PED-F two-way control valves, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V





Parameter DN, mm
80 100 125 150
L, mm 310 350 400 480
A, mm 175 186 220 262
B, mm 116 146 160 185
H, mm 191 221 235 260
D, mm 200 220 250 285
ØPCD, mm 160 180 210 240
N-ØPo 8–19 8–19 8–19 8–23
Weight (with drive), kg 27.5 33.7 40.6 56.6

Sketch of dimensions and dimensions Elephant VSR1-13V-PED-F two-way control valves, body material - cast iron EN-JS1025, locking body material - stainless steel AISI 304, seal - Fluorocarbon (Viton, FPM), with electric drive XCK220-1500 AC220V





Parts and materials table Elephant VSR1-13V-PED-F two-way stop and control valves, body material - cast iron EN-JS1025, body material - stainless steel AISI 304, sealing - fluorocarbon (Viton, FPM), with electric actuator XCK220-1500 AC220V:

№ Part Name Material
1 Housing cast iron EN-JS1025
2 Plunger stainless steel AISI 304
3 Plunger Seal fluororubber
4 Valve Shaft stainless steel AISI 304
5 Valve Cover steel Q235
6 Gasket graphite
7 Plug Assembly stainless steel AISI 304 + VITON + PTFE

Specifications
  • Country of origin
    China
  • Body material
    cast iron QT450
  • Maximum allowable temperature
    150 °C
  • Connection type
    flanged
  • Control type
    electric drive
  • Operating environment
    Water, Ethylene glycol, Neutral media, Propylene glycol
  • Applications
    Water supply, Heating systems, Ventilation
  • Type of seal
    Fluorocarbon
  • Locking material
    stainless steel AISI 304
  • Supply voltage
    220V
  • Type of control valve
    two-way

Reviews (0)

Documentation
nullTwo-way shut-off and regulating valve ELEPHANT VSR1-16V-PED-F DN15-150 16 bar
