Elephant  |  SKU: D130-02306

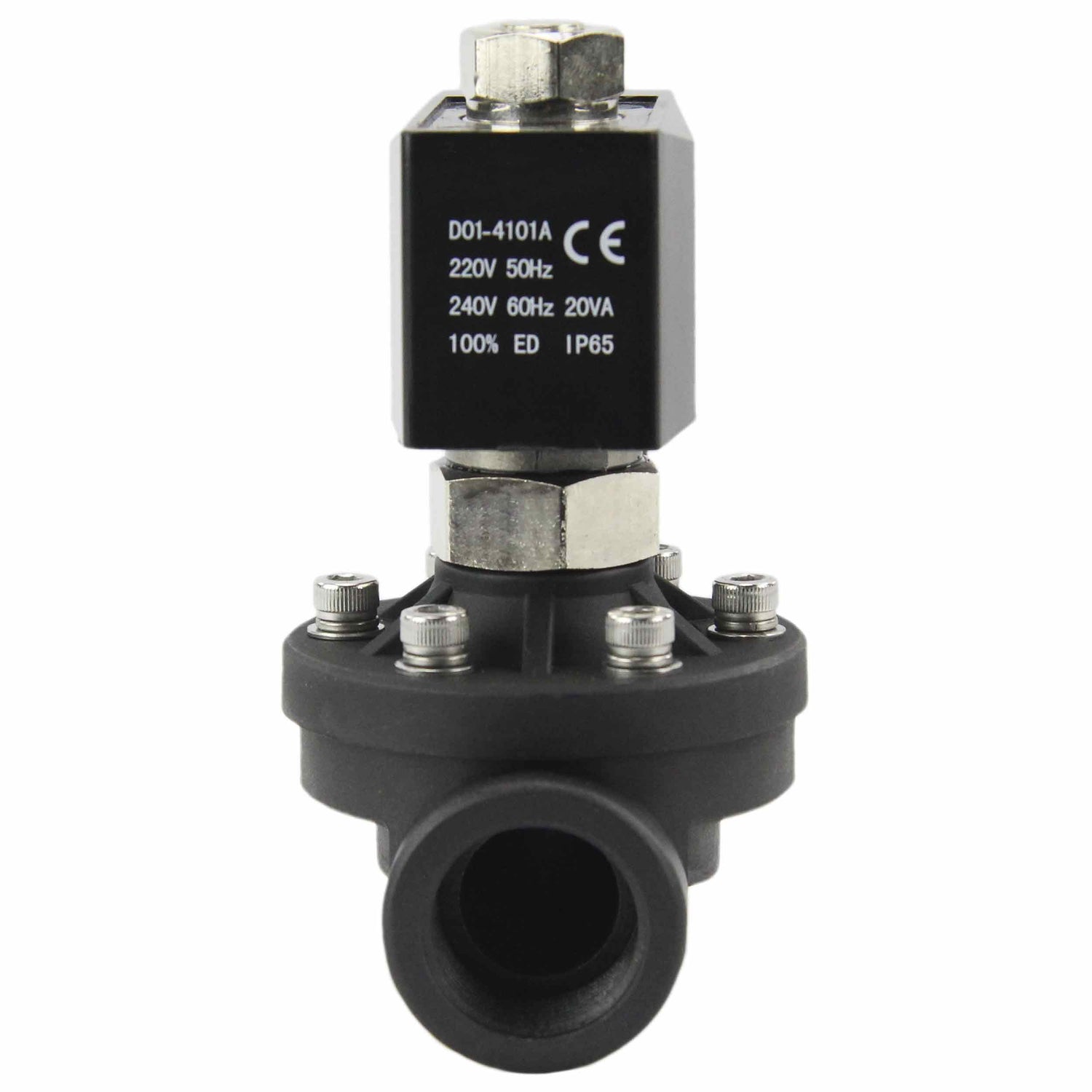

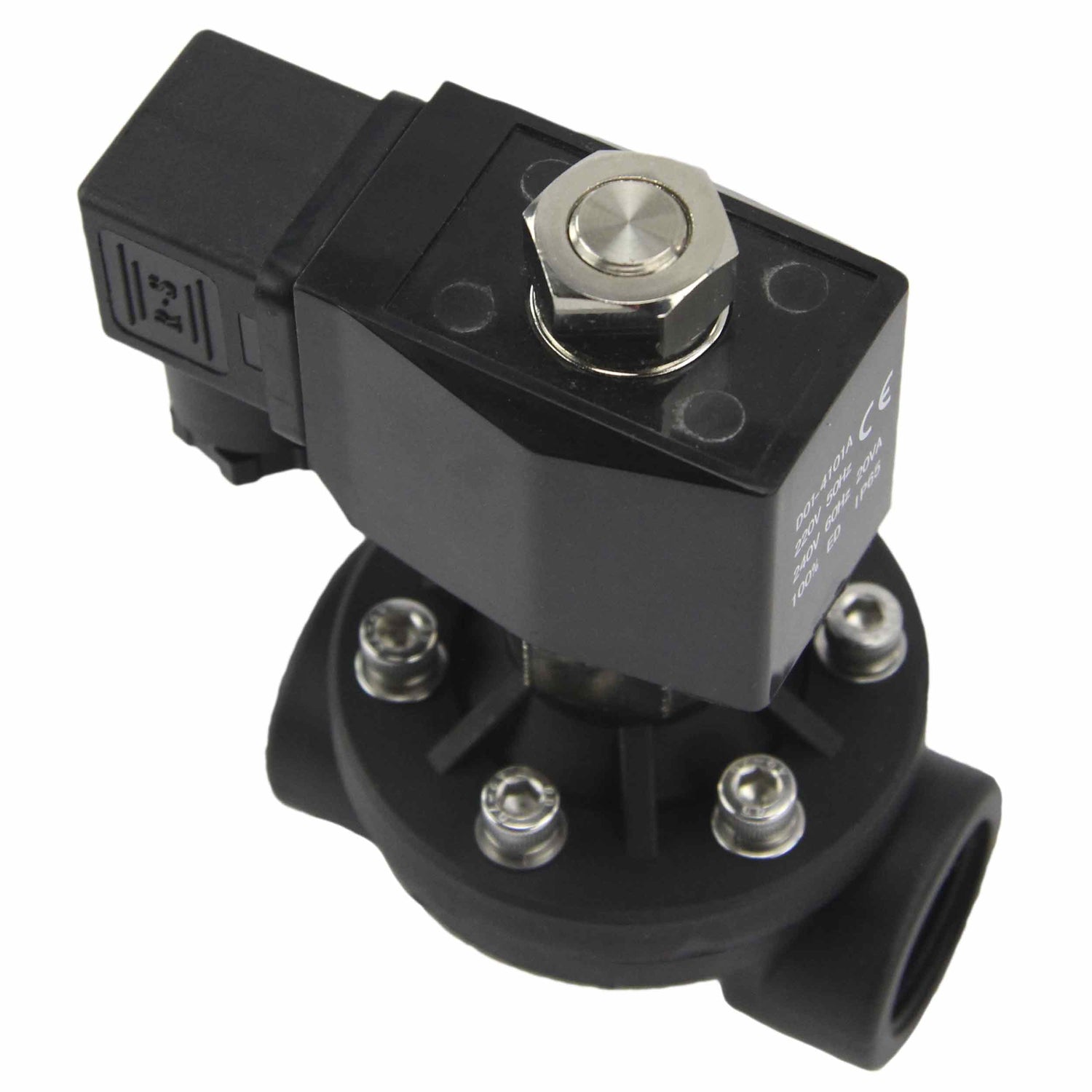

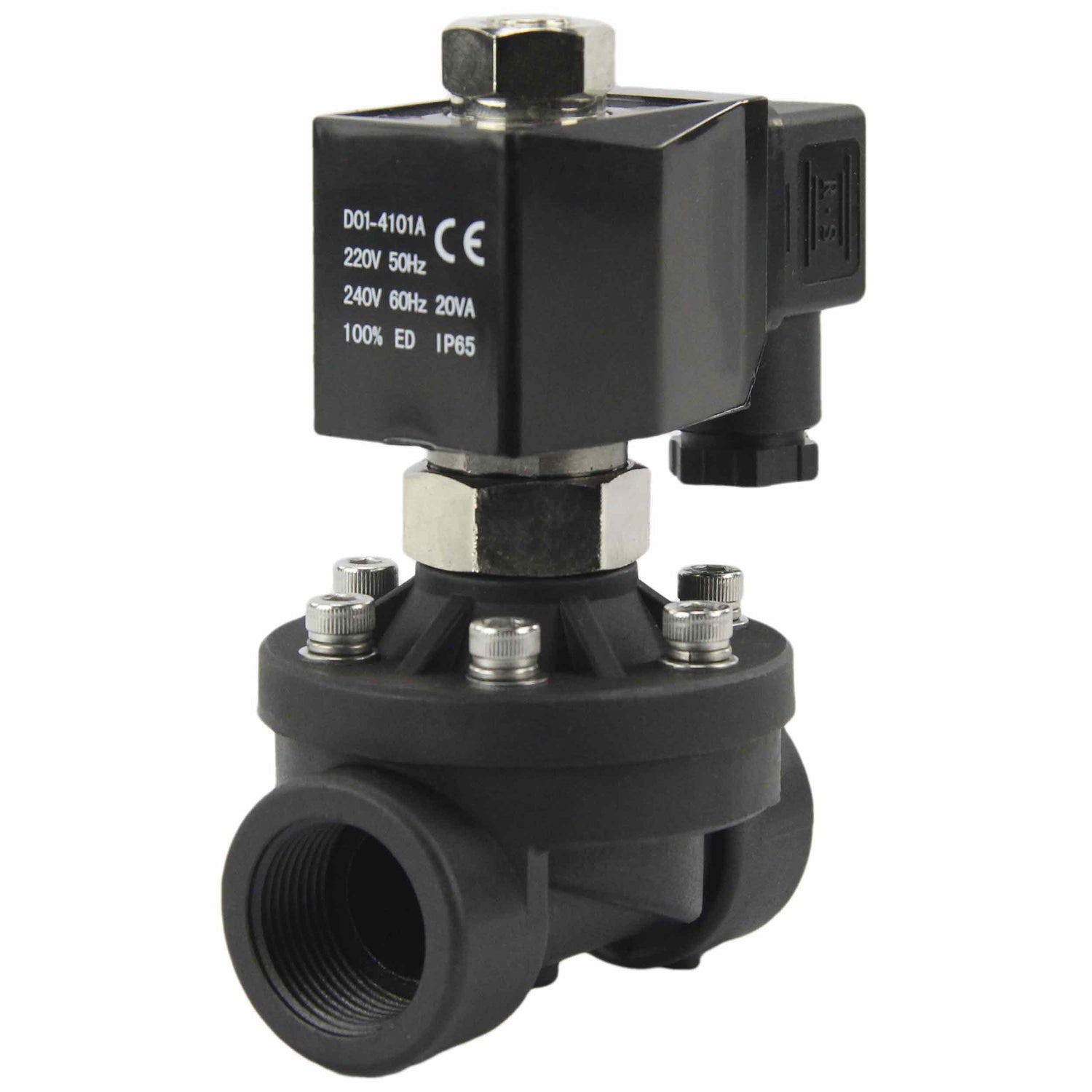

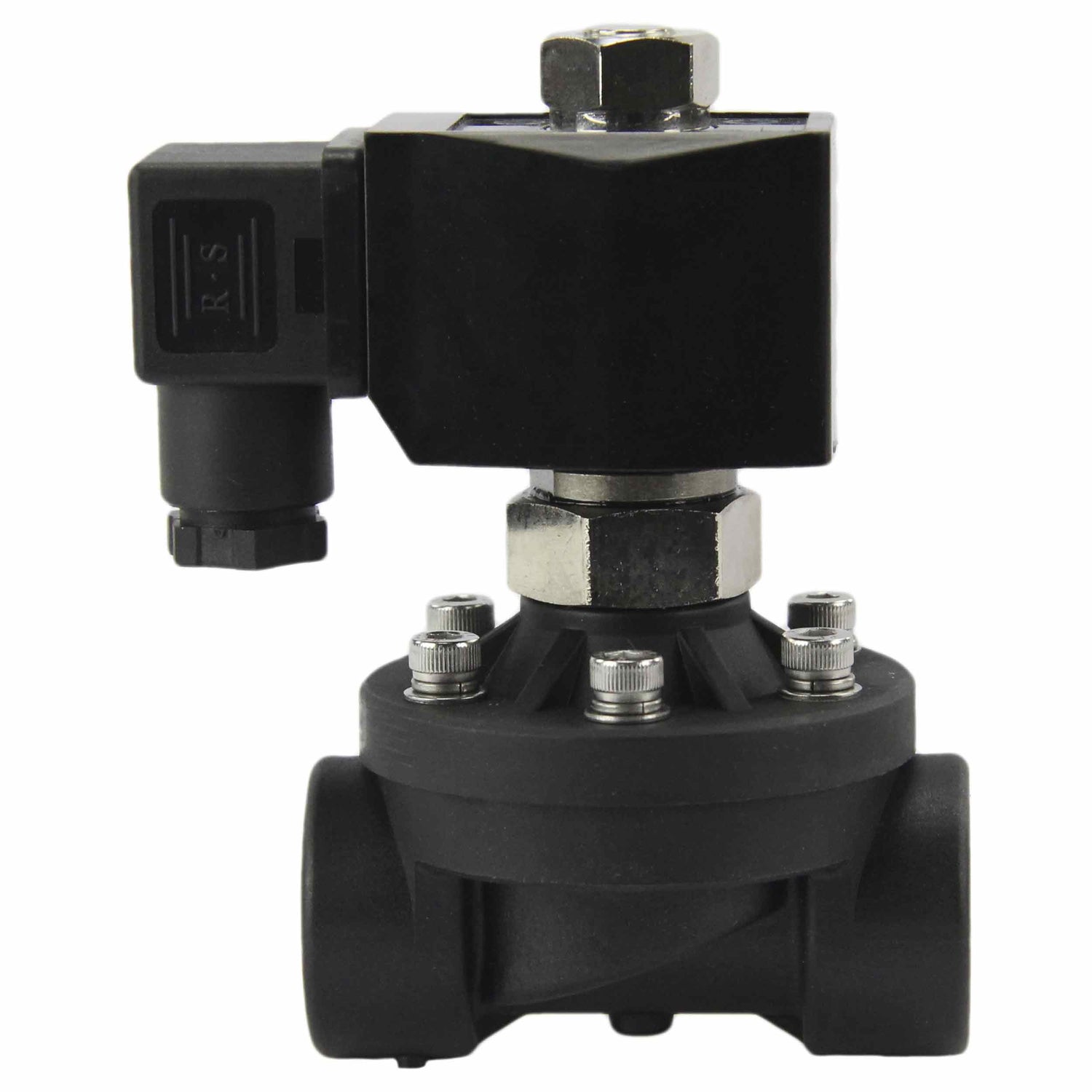

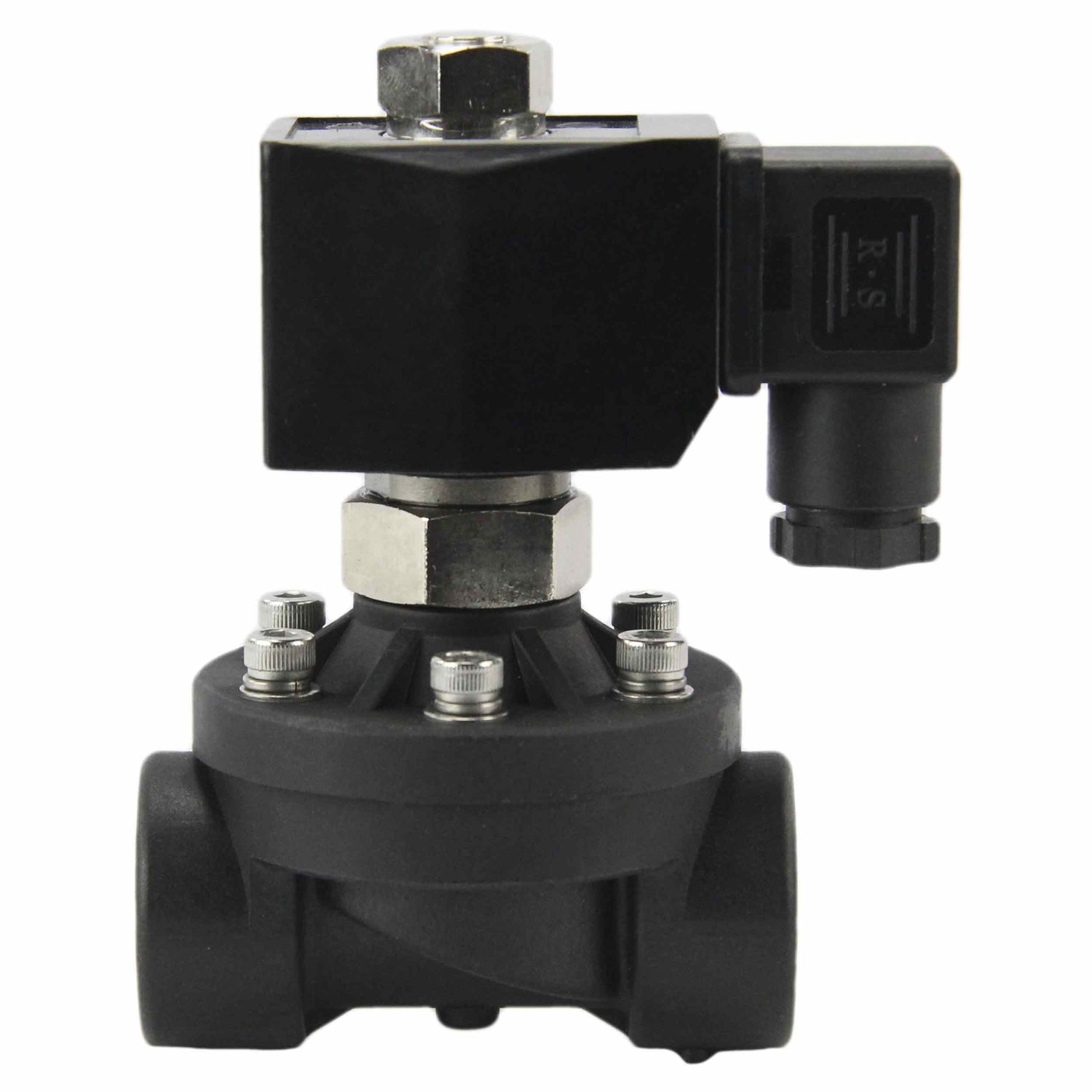

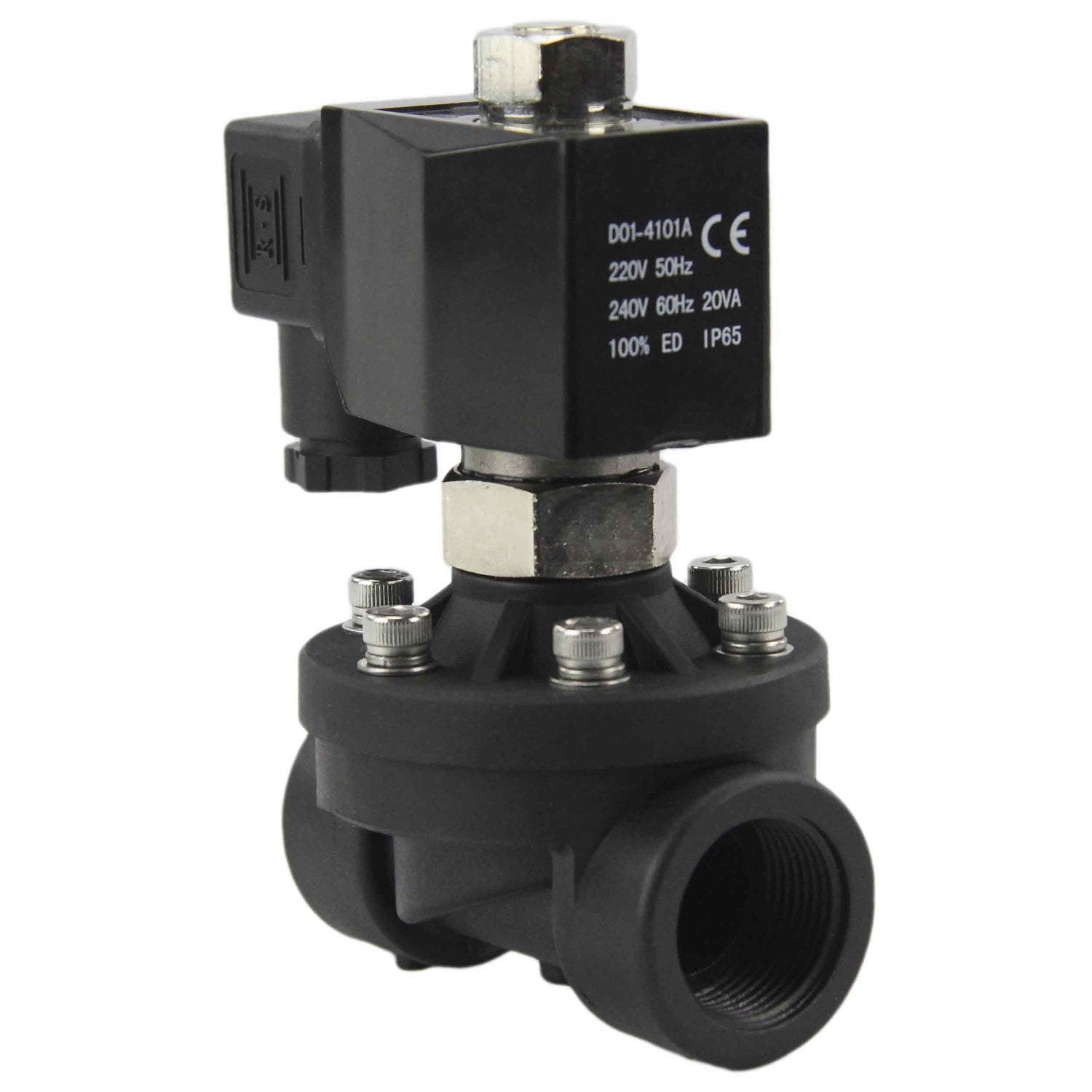

Two way normally open Semi-direct acting electric solenoid valve Elephant DW-51-NO VITON G 110/220V, body material - Nylon 66, seal - Viton

€173,13
Tax included Shipping calculated at checkout.

Two way normally open Semi-direct acting electric solenoid valve Elephant DW-51-NO VITON G 110/220V, body material - Nylon 66, seal - Viton - DN15 / 6 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A solenoid valve is a specialized device designed to conveniently control the flow of a working fluid. This process occurs in a pipeline under pressure.

In a normally open solenoid valve, until control voltage is applied, the valve is open and the working fluid flows unimpeded. When voltage is applied to the coil, the valve closes.





Overall and installation dimensions of electromagnetic valves Elephant DW-51-NO VITON G 220V

DN Passage diameter Hole diameter A B C Weight
15 1/2" 15 76 68 107 0.5
20 3/4" 20 80 68 111 0.5
25 1" 25 107 82 117 0.6
32 1 1/4" 32 140 112 160 1.2
40 1 1/2" 40 140 112 170 1.3
50 2" 50 159 130 190 1.5

Sketch of the electromagnetic valve Elephant DW-51-NO VITON G 220V

Specifications
  • Body material
    Nylon 66
  • Maximum allowable temperature
    150 °C
  • Connection type
    Threaded NPT/BSP
  • Operating environment
    Water, Air, Liquid Medium
  • Applications
    Heating Systems, Irrigation Systems, Ventilation Systems
  • Nominal pressure
    6 bar
  • Type of seal
    VITON
  • Locking material
    VITON
  • Solenoid valve type
    Normally open
  • Solenoid valve working principles
    Semi-direct acting
  • Voltage
    110/220V AC

Reviews (0)

Documentation
nullTwo-way solenoid solenoid valve ELEPHANT-DW51 with zero differential pressure DN15-DN50

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D130-02306DN156 bar €173,13 0 In stock
    D130-02307DN206 bar €173,13 0 In stock
    D130-02308DN256 bar €214,94 0 In stock
    D130-02309DN324 bar €423,87 0 In stock
    D130-02310DN404 bar €423,87 0 In stock
    D130-02311DN504 bar €493,49 0 In stock
