Two way normally closed indirect acting electric solenoid valve Elepha – Valve Elephant
Elephant  |  SKU: D130-02413

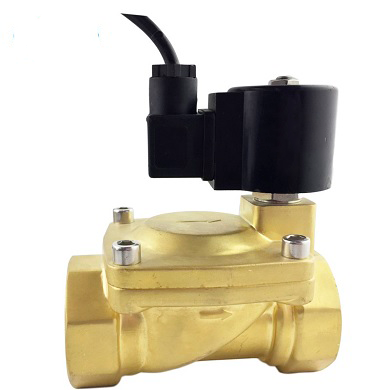

Two way normally closed indirect acting electric solenoid valve Elephant DHDF21 normally closed 24V, body material - brass, seal - Viton

€222,86
Tax included Shipping calculated at checkout.

Two way normally closed indirect acting electric solenoid valve Elephant DHDF21 normally closed 24V, body material - brass, seal - Viton - DN10 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The DHDF21 fountain solenoid valve is designed specifically for controlling water jets in dynamic fountains. IP 68 protection class allows for installation directly inside the water feature without the need to move it to a dry location. The solenoid valve is a functional and reliable pipeline valve. Its special solenoid coils have a service life of up to 1 million activations. The average response time of a diaphragm solenoid valve ranges from 30 to 500 milliseconds, depending on diameter, pressure, and design. Solenoid valves can be used as remote control shutoff devices or for safety purposes, such as shutoff, switching, or shutoff solenoid valves. The valve is normally closed. In the static position, there is no voltage on the coil – the solenoid valve is closed. The shutoff element (diaphragm or piston, depending on the valve type) is hermetically pressed against the seat by the force of a spring and the pressure of the working medium. The pilot channel is closed by a spring-loaded plunger. The pressure in the upper chamber of the valve (above the diaphragm) is maintained through a bypass hole in the diaphragm (or through a channel in the piston) and is equal to the pressure at the valve inlet. The solenoid valve remains closed until the coil is energized.





Overall and installation dimensions of electromagnetic valves Elephant DHDF21 normally closed 24V

DN Passage diameter Hole diameter A B H Weight
10 3/8" 13 66 48 107 0.92
15 1/2" 13 66 48 107 0.89
20 3/4" 20 75 58 112 1.05
25 1" 25 96 70 131 1.13
32 1 1/4" 32 131 96 146 2.65
40 1 1/2" 40 131 96 146 2.55
50 2" 50 165 120 167 4.3

Sketch of electromagnetic valve Elephant DHDF21 normally closed 24V

Specifications

  • Body material
    Brass
  • Maximum allowable temperature
    80 °C
  • Connection type
    Threaded NPT/BSP
  • Operating environment
    Water, Air, Liquid Medium
  • Applications
    Heating Systems, Irrigation Systems, Ventilation Systems
  • Nominal pressure
    16 bar
  • Type of seal
    VITON
  • Solenoid valve type
    Normally closed
  • Solenoid valve working principles
    Indirect acting
  • Voltage
    24V DC

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D130-02413DN1016 bar €222,86 0 In stock
    D130-02414DN1516 bar €222,86 0 In stock
    D130-02415DN2016 bar €252,70 0 In stock
    D130-02416DN2516 bar €326,37 0 In stock
    D130-02417DN3216 bar €577,11 0 In stock
    D130-02418DN4016 bar €577,11 0 In stock
    D130-02419DN5016 bar €845,70 0 In stock
