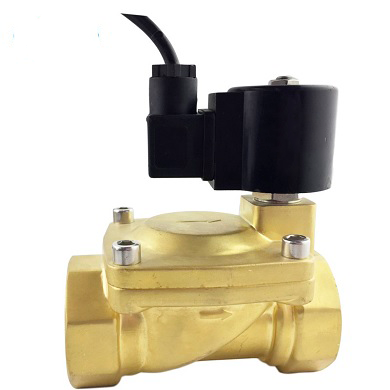

Two way normally closed indirect acting electric solenoid valve Elephant DHDF21 normally closed 110/220V, body material - brass, seal - Viton
Two way normally closed indirect acting electric solenoid valve Elephant DHDF21 normally closed 110/220V, body material - brass, seal - Viton - DN10 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The DHDF21 fountain solenoid valve is designed specifically for controlling water jets in dynamic fountains. IP 68 protection class allows for installation directly inside the water feature without the need to move it to a dry location. The solenoid valve is a functional and reliable pipeline valve. Its special solenoid coils have a service life of up to 1 million activations. The average response time of a diaphragm solenoid valve ranges from 30 to 500 milliseconds, depending on diameter, pressure, and design. Solenoid valves can be used as remote control shutoff devices or for safety purposes, such as shutoff, switching, or shutoff solenoid valves. The valve is normally closed. In the static position, there is no voltage on the coil – the solenoid valve is closed. The shutoff element (diaphragm or piston, depending on the valve type) is hermetically pressed against the seat by the force of a spring and the pressure of the working medium. The pilot channel is closed by a spring-loaded plunger. The pressure in the upper chamber of the valve (above the diaphragm) is maintained through a bypass hole in the diaphragm (or through a channel in the piston) and is equal to the pressure at the valve inlet. The solenoid valve remains closed until the coil is energized.
Overall and installation dimensions of electromagnetic valves Elephant DHDF21 normally closed 220V
| DN | Passage diameter | Hole diameter | A | B | H | Weight |
| 10 | 3/8" | 13 | 66 | 48 | 107 | 0.92 |
| 15 | 1/2" | 13 | 66 | 48 | 107 | 0.89 |
| 20 | 3/4" | 20 | 75 | 58 | 112 | 1.05 |
| 25 | 1" | 25 | 96 | 70 | 131 | 1.13 |
| 32 | 1 1/4" | 32 | 131 | 96 | 146 | 2.65 |
| 40 | 1 1/2" | 40 | 131 | 96 | 146 | 2.55 |
| 50 | 2" | 50 | 165 | 120 | 167 | 4.3 |
Sketch of electromagnetic valve Elephant DHDF21 normally closed 220V
Specifications
Specifications
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environmentWater, Air, Liquid Medium
-
ApplicationsHeating Systems, Irrigation Systems, Ventilation Systems
-
Nominal pressure
-
Type of seal
-
Solenoid valve type
-
Solenoid valve working principles
-
Voltage
