Two way normally closed indirect acting electric solenoid valve Elepha – Valve Elephant
Elephant  |  SKU: D130-02204

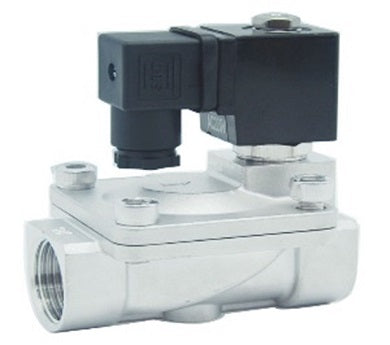

Two way normally closed indirect acting electric solenoid valve Elephant DHD31-S normally closed EPDM G 0543 24V, body material - stainless steel AISI 316, seal - EPDM

€222,86
Tax included Shipping calculated at checkout.

Two way normally closed indirect acting electric solenoid valve Elephant DHD31-S normally closed EPDM G 0543 24V, body material - stainless steel AISI 316, seal - EPDM - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A solenoid valve is a specialized device designed to conveniently control the flow of a working fluid. This process occurs in a pipeline under pressure.

A normally closed solenoid valve remains closed unless control voltage is applied to its induction coil. When voltage is applied to the coil, the normally closed valve opens and allows the working fluid to flow through it. When the control voltage is removed, the valve automatically closes, blocking the flow of the working fluid in the pipeline.





Overall and installation dimensions of electromagnetic valves Elephant DHD31-S normally closed EPDM G 0543 24V

DN Passage diameter Hole diameter A B C H1 L1 K Weight of brass Weight steel
10 3/8" 13 66 48 107 42.3 39 30 0.72 0.62
15 1/2" 13 66 48 107 42.3 39 30 0.69 0.59
20 3/4" 20 75 58 112 42.3 39 30 0.85 0.75
25 1" 25 96 70 131 42.3 39 30 1.11 1.01
32 1 1/4" 32 131 96 146 42.3 39 30 2.45 2.35
40 1 1/2" 40 131 96 146 42.3 39 30 2.35 2.25
50 2" 50 165 120 167 42.3 39 30 4.1 3.96
Клапаны электромагнитные соленоидные двухходовые DN.ru-DHD31-S пилотного действия (НЗ) Ду15-50 (1/2-2 дюйм) Ру16, резьба G, корпус - сталь 316, уплотнение - EPDM, с катушкой 0543 24В
Sketch of the electromagnetic valve Elephant DHD31-S normally closed EPDM G 0543 24V

Specifications

  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    120 °C
  • Connection type
    Threaded NPT/BSP
  • Operating environment
    Water, Air, Liquid Medium
  • Applications
    Heating Systems, Irrigation Systems, Ventilation Systems
  • Nominal pressure
    16 bar
  • Type of seal
    EPDM
  • Locking material
    EPDM
  • Solenoid valve type
    Normally closed
  • Solenoid valve working principles
    Indirect acting
  • Voltage
    24V DC

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D130-02204DN1516 bar €222,86 0 In stock
    D130-02205DN2016 bar €262,64 0 In stock
    D130-02206DN2516 bar €362,16 0 In stock
    D130-02207DN3216 bar €644,76 0 In stock
    D130-02208DN4016 bar €644,76 0 In stock
    D130-02209DN5016 bar €921,34 0 In stock
