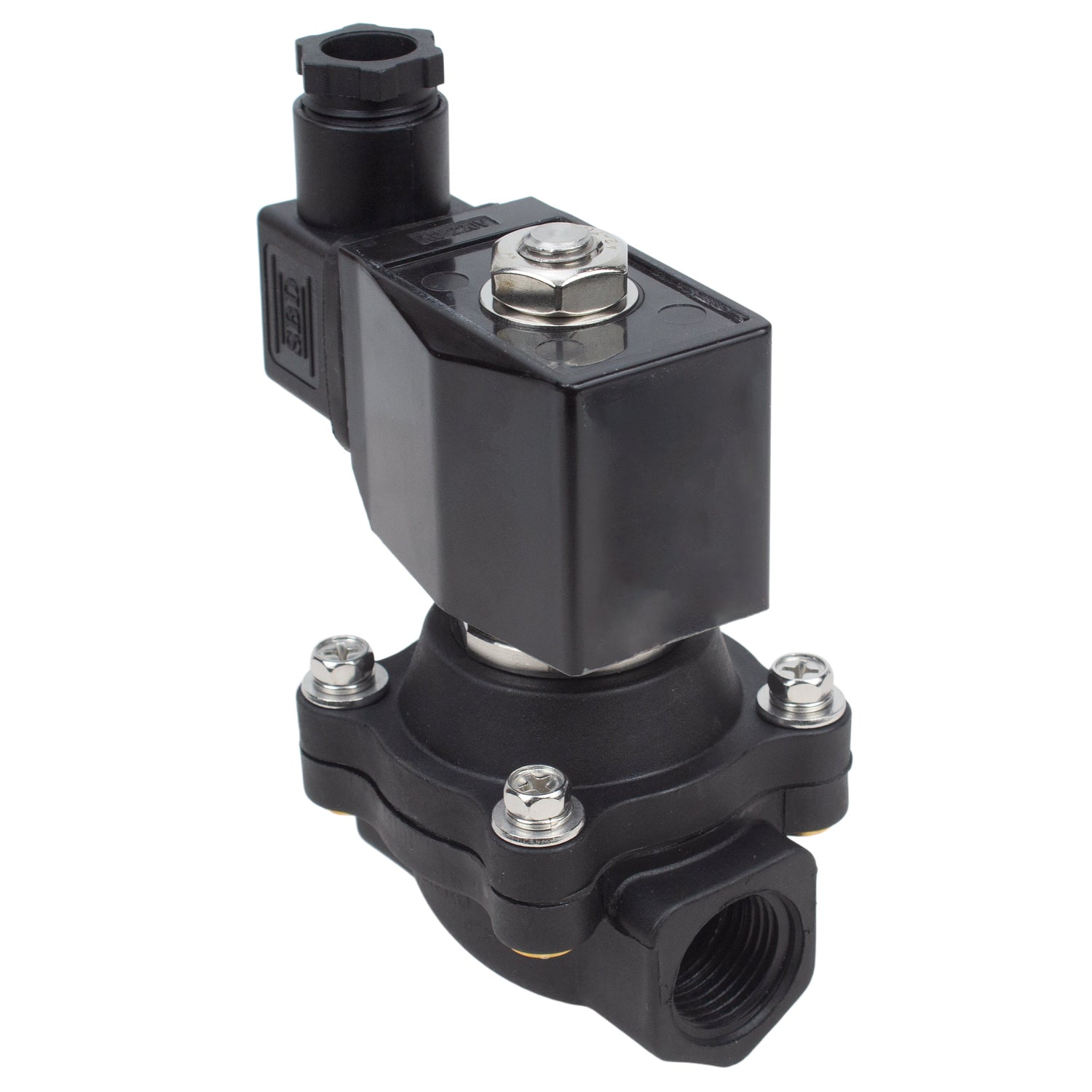

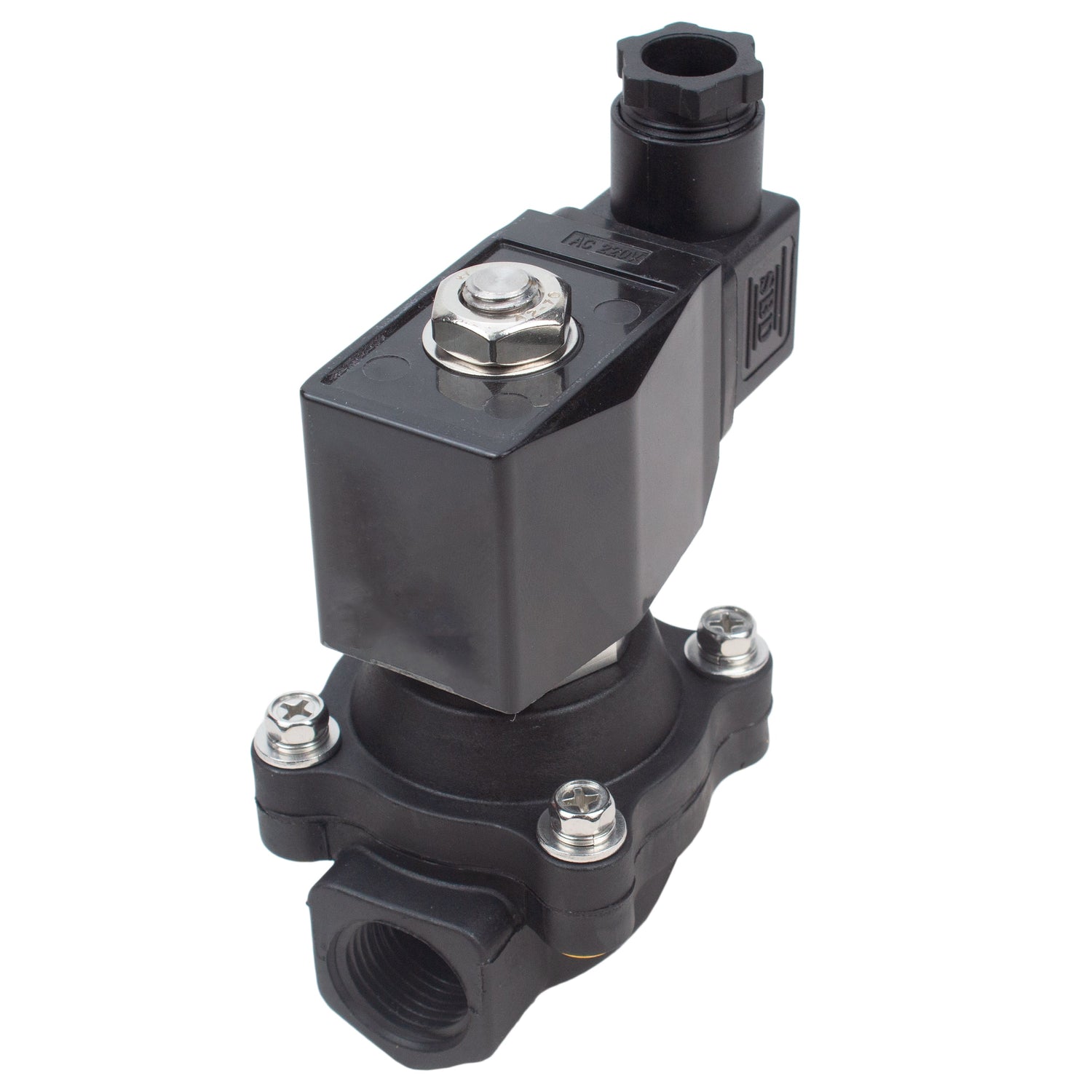

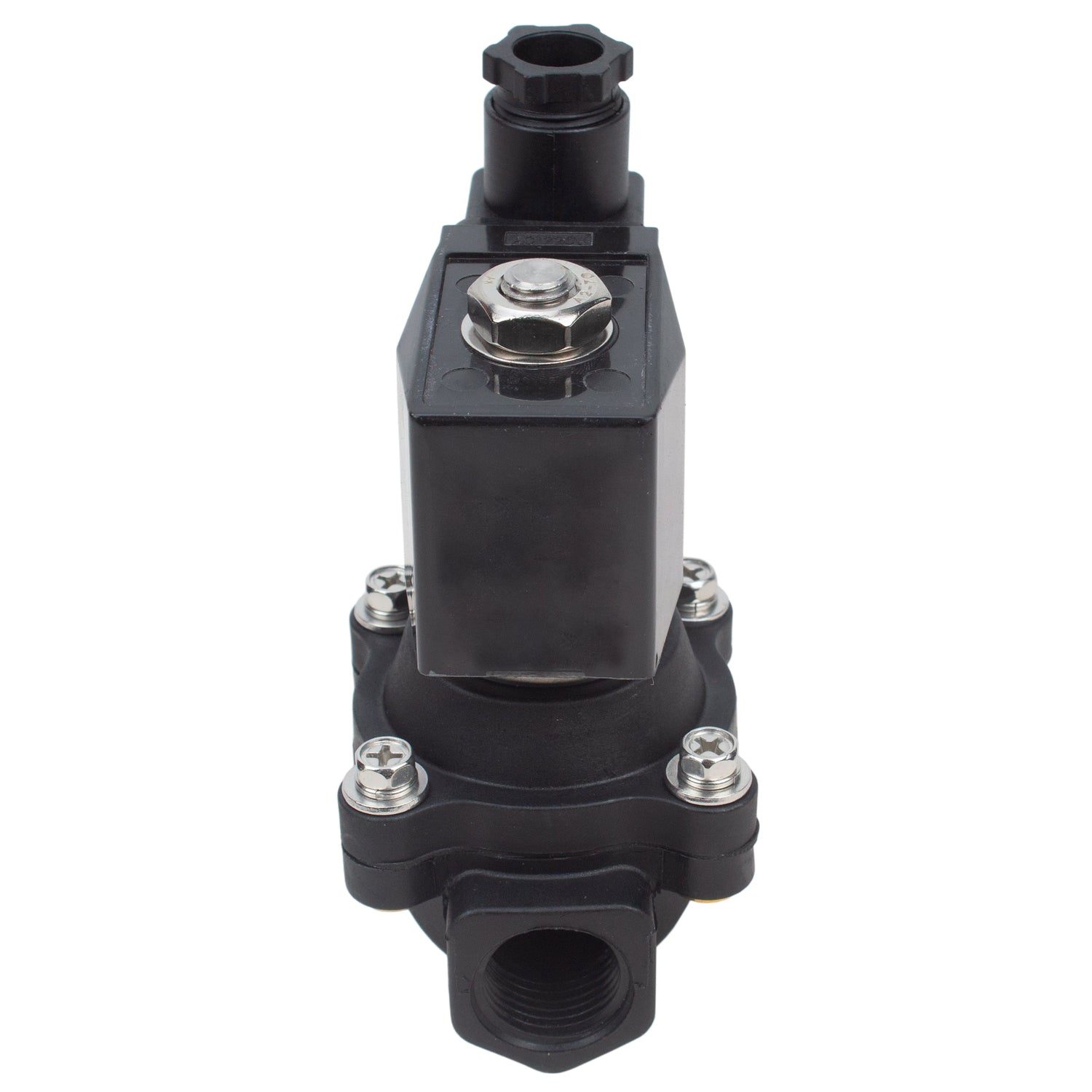

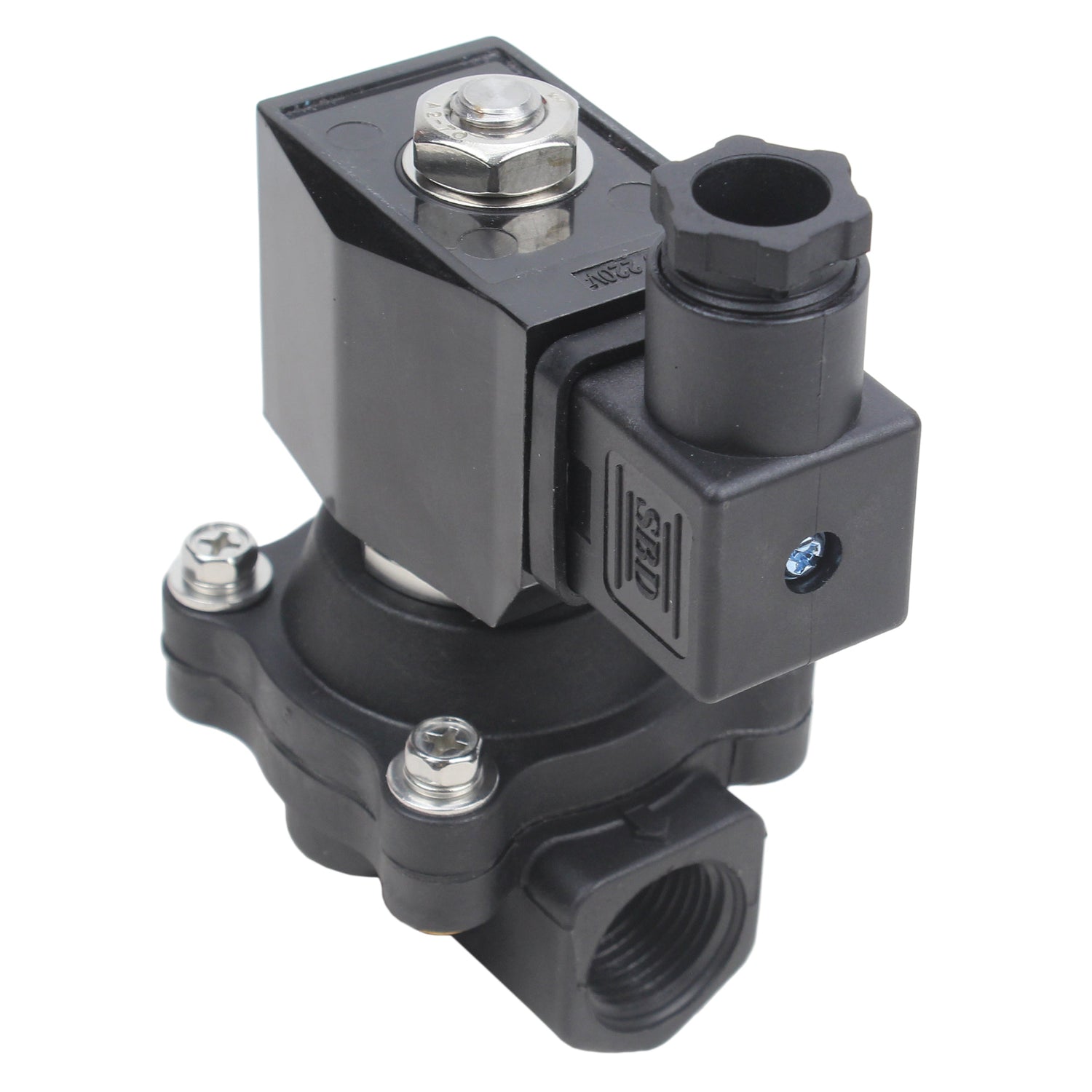

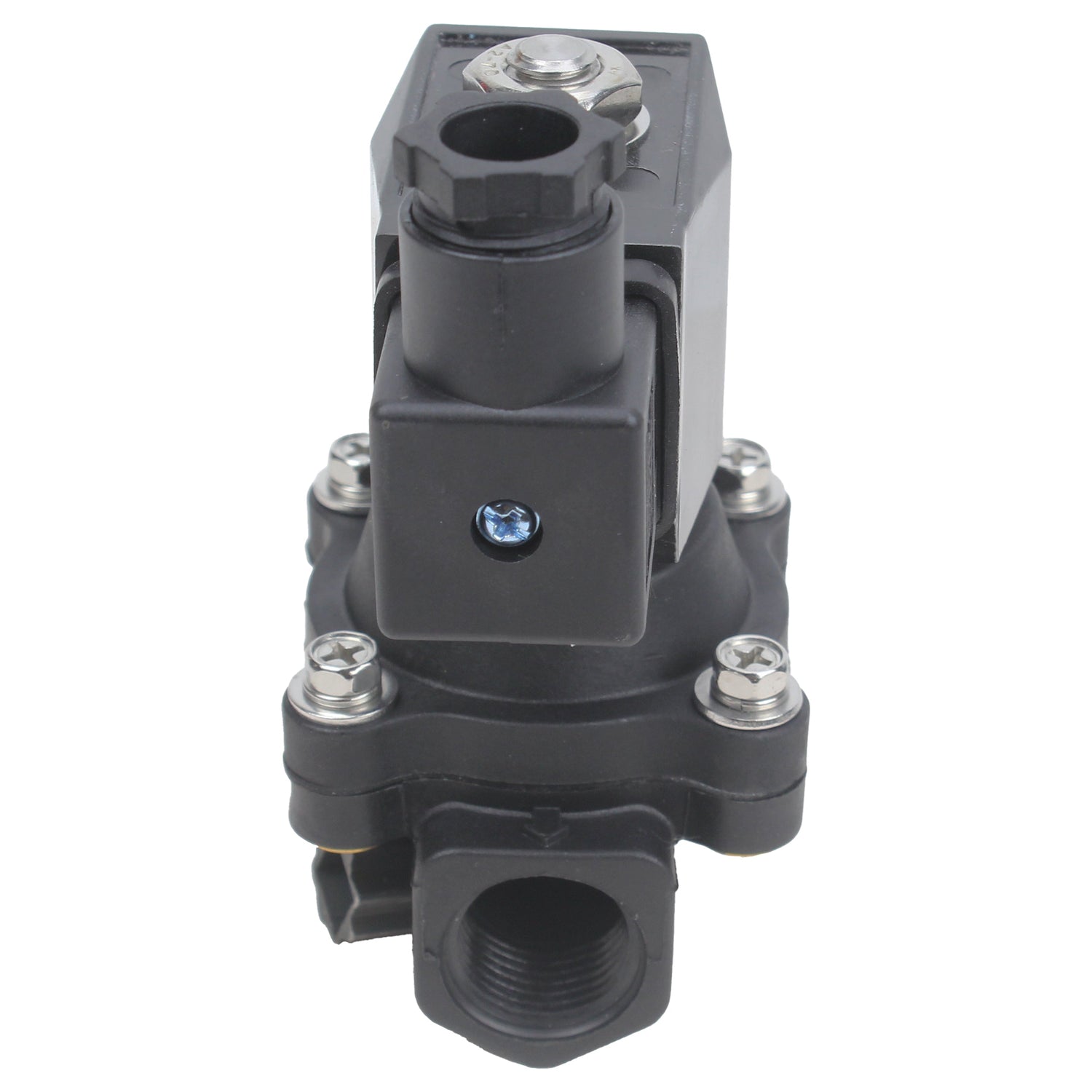

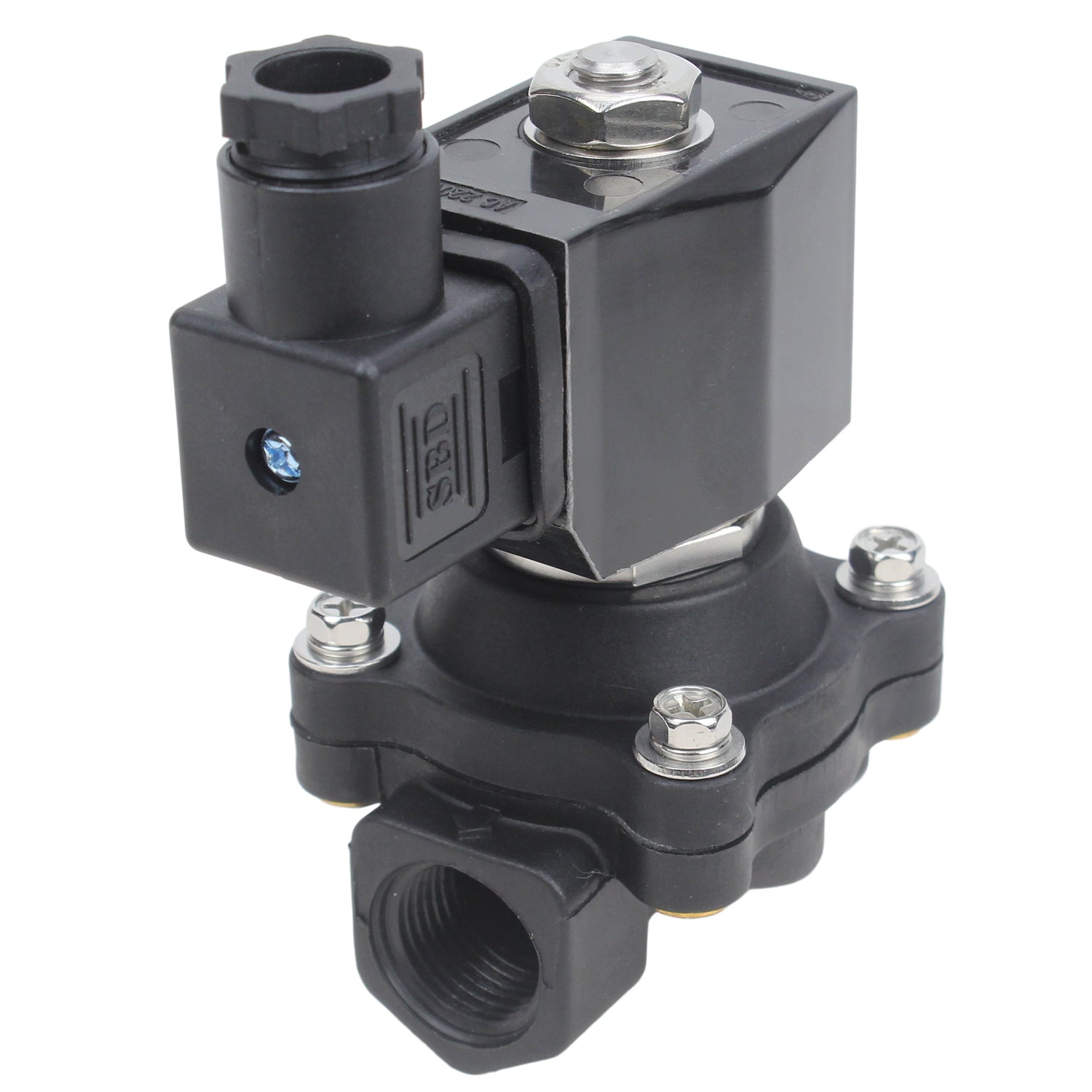

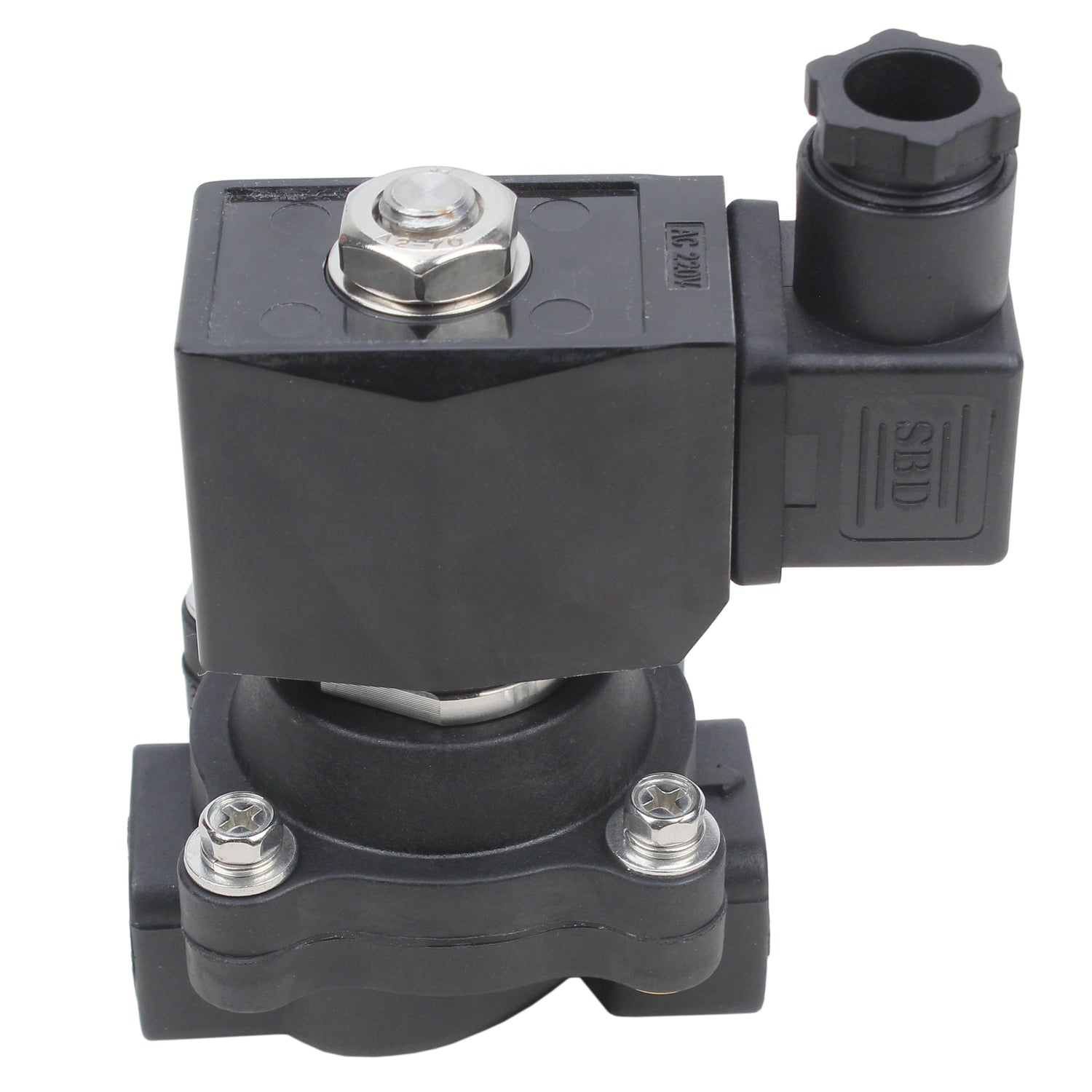

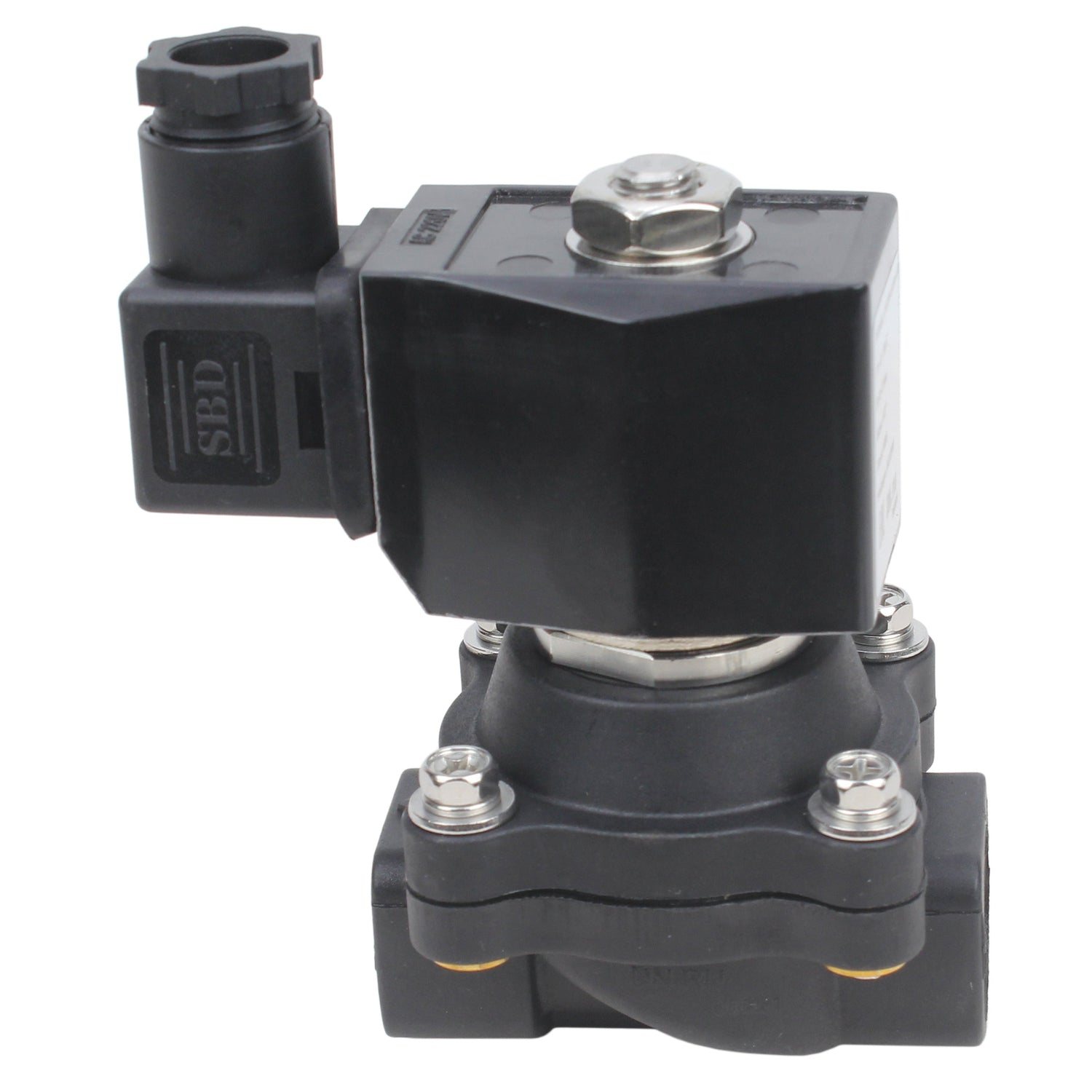

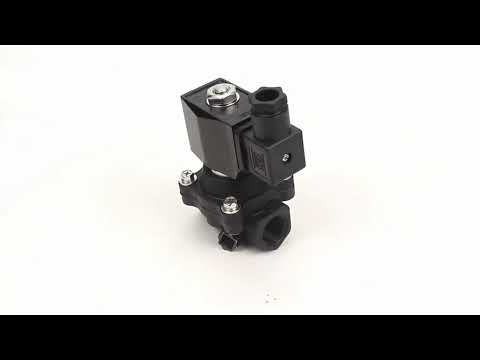

Two way normally closed direct acting electric solenoid valve Elephant VS2W-503N-NC G NBR 220V, body material - polyamide PA66, seal - NBR
Two way normally closed direct acting electric solenoid valve Elephant VS2W-503N-NC G NBR 220V, body material - polyamide PA66, seal - NBR - DN15 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
An electric solenoid valve is a type of valve that uses an electromagnetic solenoid coil to control the flow of fluids or gases. When an electric current is applied to the solenoid coil, it generates a magnetic field that moves a plunger or a valve stem, allowing or stopping the flow of the fluid through the valve. Electric solenoid valves are commonly used in various applications such as irrigation systems, HVAC (heating, ventilation, and air conditioning) systems, industrial automation, and control systems, where remote control of fluid flow is necessary.
General technical specifications Elephant VS2W-503N-NC G NBR 220V, body material - polyamide PA66, seal - NBR:
| Nominal diameter, DN | 15-50 |
| Minimum pressure drop, bar | 0 |
| Working environment | water, liquid, gas |
| Working environment temperature, °C | NBR: from -5 to +80; VITON: from -10 to +150; EPDM: from -5 to +90 |
| Ambient temperature, °C | from -20 to +65 |
| Compaction | NBR, VITON, EPDM |
| Accession | threaded |
| Body material | Polyamide PA66 |
| Valve type | direct action |
| Coil power voltage, V | 220VAC - AC voltage 220V 24VDC - constant voltage 24V 24VAC - AC voltage 24V |
| Valve execution | normally closed /normally open |
| Coil structure | with DIN43650A standard connectors |
| Coil protection | IP65 |
| Coil insulation | H |
| Kinematic viscosity of the working medium, cSt | ≤20 |
| Average resource, open/close cycles | 200 000 (with non-aggressive medium and mean pressure and temperature) |
Nominal pressure PN of valves:
| DN | Nominal pressure valve PN, bar | ||
| for normally closed type valve (NC) | for normally open type valve (NO) | ||
| AC220V | DC24V, AC24V | ||
| 15 | 7 | 6 | 6 |
| 20 | 7 | 6 | 6 |
| 25 | 7 | 6 | 6 |
| 32 | 6 | 5 | 4 |
| 40 | 6 | 5 | 4 |
| 50 | 6 | 5 | |
Dimensions and installation dimensions of solenoid valves Elephant VS2W-503N-NC G NBR 220V
| DN | G | A | B | C | weight, kg |
| 15 | 1/2" | 76 | 68 | 107 | 0.5 |
| 20 | 3/4" | 80 | 68 | 111 | 0.5 |
| 25 | 1" | 107 | 82 | 117 | 0.6 |
| 32 | 1 1/4" | 140 | 112 | 160 | 1.2 |
| 40 | 1 1/2" | 140 | 112 | 170 | 1.3 |
| 50 | 2" | 159 | 130 | 190 | 1.5 |
Sketch of solenoid valve Elephant VS2W-503N-NC G NBR 220V
Technical parameters and electrical circuits
| DN | Thread connection, inch | Cross-section, mm | Valve flow rate, Cv | Coil power | ||
| AC220V, VA | AC24V, VA | DC24V, W | ||||
| 15 | 1/2" | 15 | 4.8 | 20 | 38 | 20 |
| 20 | 3/4" | 20 | 7.6 | 20 | 38 | 20 |
| 25 | 1" | 25 | 12 | 40 | 38 | 30 |
| 32 | 1 1/4" | 32 | 22 | 30 | 30 | 38 |
| 40 | 1 1/2" | 40 | 30 | 30 | 30 | 38 |
| 50 | 2" | 50 | 48 | |||
Specifications
Specifications
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environmentWater, Liquid, Gas
-
ApplicationsHeating Systems, Irrigation Systems, Ventilation Systems
-
Type of seal
-
Locking material
-
Solenoid valve type
-
Solenoid valve working principles
-
Voltage
