Two way normally closed direct acting electric solenoid valve Elephant – Valve Elephant
Elephant  |  SKU: D130-02362

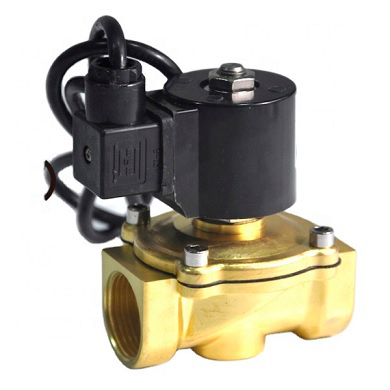

Two way normally closed direct acting electric solenoid valve Elephant DHDF11 normally closed F 110/220V, body material - brass, seal - NBR

€171,17
Tax included Shipping calculated at checkout.

Two way normally closed direct acting electric solenoid valve Elephant DHDF11 normally closed F 110/220V, body material - brass, seal - NBR - DN10 / 6 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The DHDF11 electromagnetic fountain solenoid valve is designed specifically for controlling water jets in dynamic fountains. IP 68 protection class allows for installation directly inside the water feature without the need to move it to a dry location. The electromagnetic solenoid valve is a functional and reliable pipeline valve. Its special electromagnetic coils have a service life of up to 1 million activations. The actuation time of the membrane solenoid valve averages 30 to 500 milliseconds, depending on the diameter, pressure, and design. Electromagnetic valves can be used as remote control shutoff devices or for safety, such as shutoff, switching, or isolating solenoid valves. A normally open valve operates by maintaining the valve open while static and closing it when voltage is applied to the coil. To maintain the normally open valve in the closed position, voltage must be applied to the coil continuously.





Overall and installation dimensions of electromagnetic valves Elephant DHDF11 normally closed F 220V

DN Passage diameter Hole diameter A B C
15 1/2" 15 68 56 117
20 3/4" 20 73 56 123
25 1" 25 100 74 135
32 1 1/4" 32 110 85 154
40 1 1/2" 40 120 90 162
50 2" 50 185 112 185
Клапаны электромагнитные соленоидные двухходовые DN.ru-DHDF11-NO нормально-открытые Ду15-50 (1/2 - 2 дюйм) Ру6, погружные фонтанные, быстрого реагирования, корпус - латунь, с катушкой серии F 24В

Sketch of electromagnetic valve Elephant DHDF11 normally closed F 220V

Specifications

  • Body material
    Brass
  • Maximum allowable temperature
    80 °C
  • Connection type
    Threaded NPT/BSP
  • Operating environment
    Water, Air, Liquid Medium
  • Applications
    Heating Systems, Irrigation Systems, Ventilation Systems
  • Nominal pressure
    6 bar
  • Type of seal
    NBR
  • Solenoid valve type
    Normally closed
  • Solenoid valve working principles
    Direct acting
  • Voltage
    110/220V AC

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D130-02362DN106 bar €171,17 0 In stock
    D130-02363DN156 bar €171,17 0 In stock
    D130-02364DN206 bar €183,08 0 In stock
    D130-02365DN256 bar €242,75 0 In stock
    D130-02366DN326 bar €587,05 0 In stock
    D130-02367DN406 bar €646,73 0 In stock
    D130-02368DN506 bar €925,34 0 In stock
