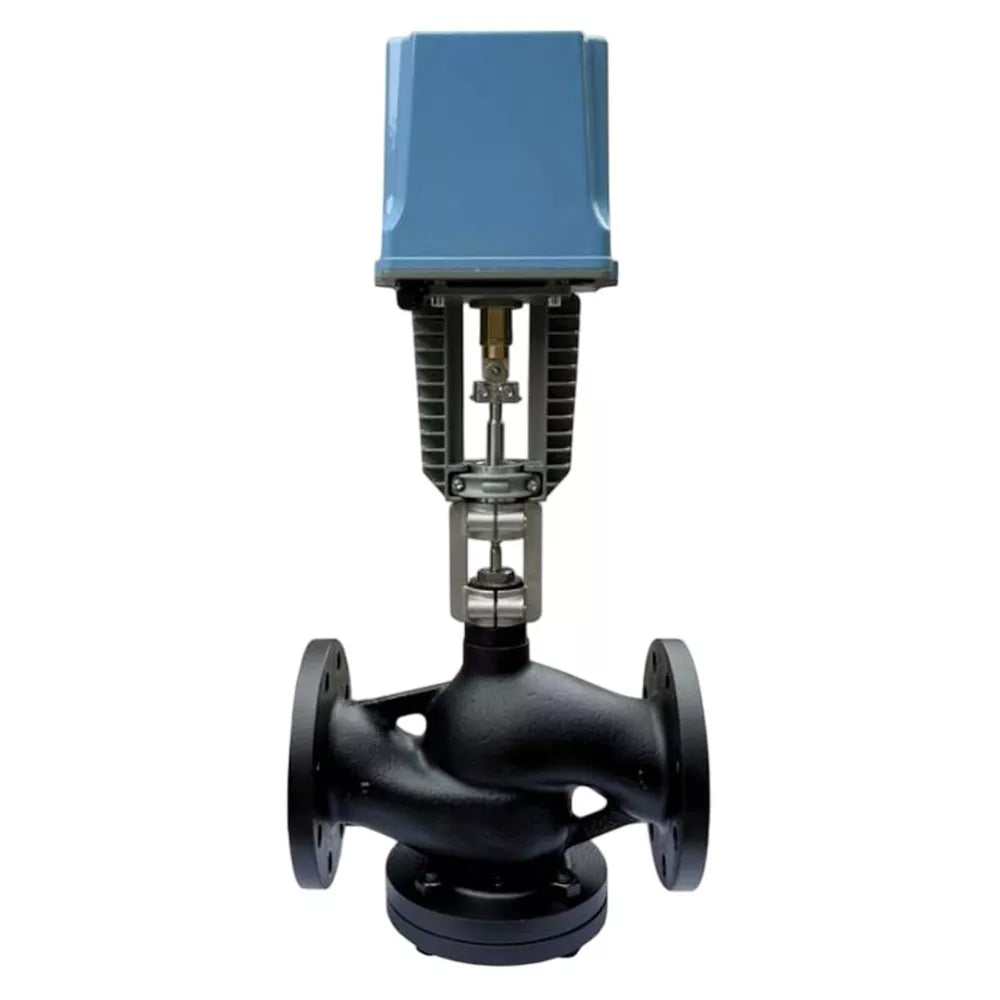

Two-way control valve Elephant VRgH1-34M-PED-F, body material - carbon – Valve Elephant
Elephant  |  SKU: D230-10898

Two-way control valve Elephant VRgH1-34M-PED-F, body material - carbon steel A216, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 24V

€1.731,27
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The control valve is designed to regulate the flow rate of the working medium flowing through the pipeline. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow rate of the working medium.





Technical parameters of Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 24V:

Name Significance
Valve type Regulating
Nominal pressure PN, bar 25
Medium Water, Ethylene Glycol, Neutral media, Propylene Glycol
Application Water supply, Heating systems, Ventilation
Working medium temperature, °C +1 to +300
Ambient temperature, °C +1 to +50
Connection type flanged
Type of control valve two-way
Service life, years 10
Manufacturer's country China

Two-way control valve Elephant VRgH1-34M-PED-F, body material - carbon steel A216, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 24V





Dimensions and dimensions Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, shut-off body material - stainless steel AISI 304, seal - metal, with electric actuator DAV 24V:

DN L, mm
15 130
20 150
25 160
32 180
40 200
50 230
65 290
80 310
100 350
125 400
150 480
200 495

Sketch of dimensions and dimensions Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, shut-off body material - stainless steel AISI 304, seal - metal, with electric actuator DAV 24V





Parts and materials table Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, shut-off body material - stainless steel AISI 304, seal - metal, with electric actuator DAV 24V:

Details Materials
Body 25L steel
Stem stainless steel AISI 304
Valve core stainless steel AISI 304
Valve seat stainless steel AISI 304
Seal EPDM and VITON

Specifications
  • Country of origin
    China
  • Body material
    carbon steel A216
  • Maximum allowable temperature
    300 °C
  • Connection type
    flanged
  • Control type
    electric drive
  • Operating environment
    Water, ethylene glycol, neutral media, propylene glycol
  • Applications
    Water supply,Heating systems,Ventilation
  • Nominal pressure
    25 bar
  • Type of seal
    metal
  • Locking material
    stainless steel AISI 304
  • Manual override
    Yes
  • Type of electric actuator
    Straight-through
  • Supply voltage
    24V
  • Type of control valve
    two-way
  • Regulator Type
    control valve

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D230-10898DN100 160m3/h DAV-410-3000/170-42-24V-IP5425 bar €1.731,27 Out of stock
    D230-10899DN100 160m3/h DAV-430-3000/170-42-24V-IP5425 bar €1.841,78 Out of stock
    D230-10902DN125 250m3/h DAV-410-3000/170-42-24V-IP5425 bar €2.836,20 Out of stock
    D230-10903DN125 250m3/h DAV-430-3000/170-42-24V-IP5425 bar €2.946,72 Out of stock
    D230-10906DN150 400m3/h DAV-410-3000/170-42-24V-IP5425 bar €3.253,71 Out of stock
    D230-10907DN150 400m3/h DAV-430-3000/170-42-24V-IP5425 bar €3.364,22 Out of stock
    D230-10849DN15 1.6m3/h DAV-130-1500/170-22-24V-IP5425 bar €712,14 Out of stock
    D230-10846DN15 1.6m3/h DAV-130-1500/35-22-24V-IP5425 bar €749,03 Out of stock
    D230-10852DN15 1.6m3/h DAV-430-1500/80-25-24V-IP5425 bar €773,57 Out of stock
    D230-10850DN15 2.5m3/h DAV-130-1500/170-22-24V-IP5425 bar €712,14 Out of stock
    D230-10847DN15 2.5m3/h DAV-130-1500/35-22-24V-IP5425 bar €749,03 Out of stock
    D230-10853DN15 2.5m3/h DAV-430-1500/80-25-24V-IP5425 bar €773,57 Out of stock
    D230-10851DN15 4m3/h DAV-130-1500/170-22-24V-IP5425 bar €712,14 Out of stock
    D230-10848DN15 4m3/h DAV-130-1500/35-22-24V-IP5425 bar €749,03 Out of stock
    D230-10854DN15 4m3/h DAV-430-1500/80-25-24V-IP5425 bar €773,57 Out of stock
    D230-10912DN200 450m3/h DAV-130-5000/400-44-24V-IP5425 bar €4.653,28 Out of stock
    D230-10911DN200 450m3/h DAV-410-5000/170-42-24V-IP5425 bar €4.567,48 Out of stock
    D230-10913DN200 450m3/h DAV-430-5000/170-42-24V-IP5425 bar €4.653,28 Out of stock
    D230-10861DN20 6.3m3/h DAV-130-1500/170-22-24V-IP5425 bar €719,52 Out of stock
    D230-10860DN20 6.3m3/h DAV-130-1500/35-22-24V-IP5425 bar €756,41 Out of stock
    D230-10862DN20 6.3m3/h DAV-430-1500/80-25-24V-IP5425 bar €780,95 Out of stock
    D230-10867DN25 10m3/h DAV-130-1500/170-22-24V-IP5425 bar €761,22 Out of stock
    D230-10866DN25 10m3/h DAV-130-1500/35-22-24V-IP5425 bar €798,11 Out of stock
    D230-10868DN25 10m3/h DAV-430-1500/80-25-24V-IP5425 bar €822,65 Out of stock
    D230-10873DN32 16m3/h DAV-130-1500/170-22-24V-IP5425 bar €798,11 Out of stock
    D230-10874DN32 16m3/h DAV-430-1500/80-25-24V-IP5425 bar €859,54 Out of stock
    D230-10879DN40 25m3/h DAV-130-1500/170-22-24V-IP5425 bar €859,54 Out of stock
    D230-10878DN40 25m3/h DAV-130-1500/35-22-24V-IP5425 bar €896,44 Out of stock
    D230-10880DN40 25m3/h DAV-430-1500/80-25-24V-IP5425 bar €920,98 Out of stock
    D230-10885DN50 40m3/h DAV-130-1500/170-22-24V-IP5425 bar €933,16 Out of stock
    D230-10884DN50 40m3/h DAV-130-1500/35-22-24V-IP5425 bar €970,05 Out of stock
    D230-10886DN50 40m3/h DAV-430-1500/80-25-24V-IP5425 bar €994,59 Out of stock
    D230-10891DN65 63m3/h DAV-130-1500/170-22-24V-IP5425 bar €1.191,08 Out of stock
    D230-10890DN65 63m3/h DAV-130-1500/35-22-24V-IP5425 bar €1.227,97 Out of stock
    D230-10892DN65 63m3/h DAV-430-1500/80-25-24V-IP5425 bar €1.252,51 Out of stock
    D230-10895DN80 100m3/h DAV-130-2500/240-44-24V-IP5425 bar €1.596,22 Out of stock
    D230-10872DN32 16m3/h DAV-130-1500/35-22-24V-IP5425 bar €835,01 Out of stock
