Two-way control valve Elephant VRgH1-34M-PED-F, body material - carbon – Valve Elephant
Elephant  |  SKU: D230-10897

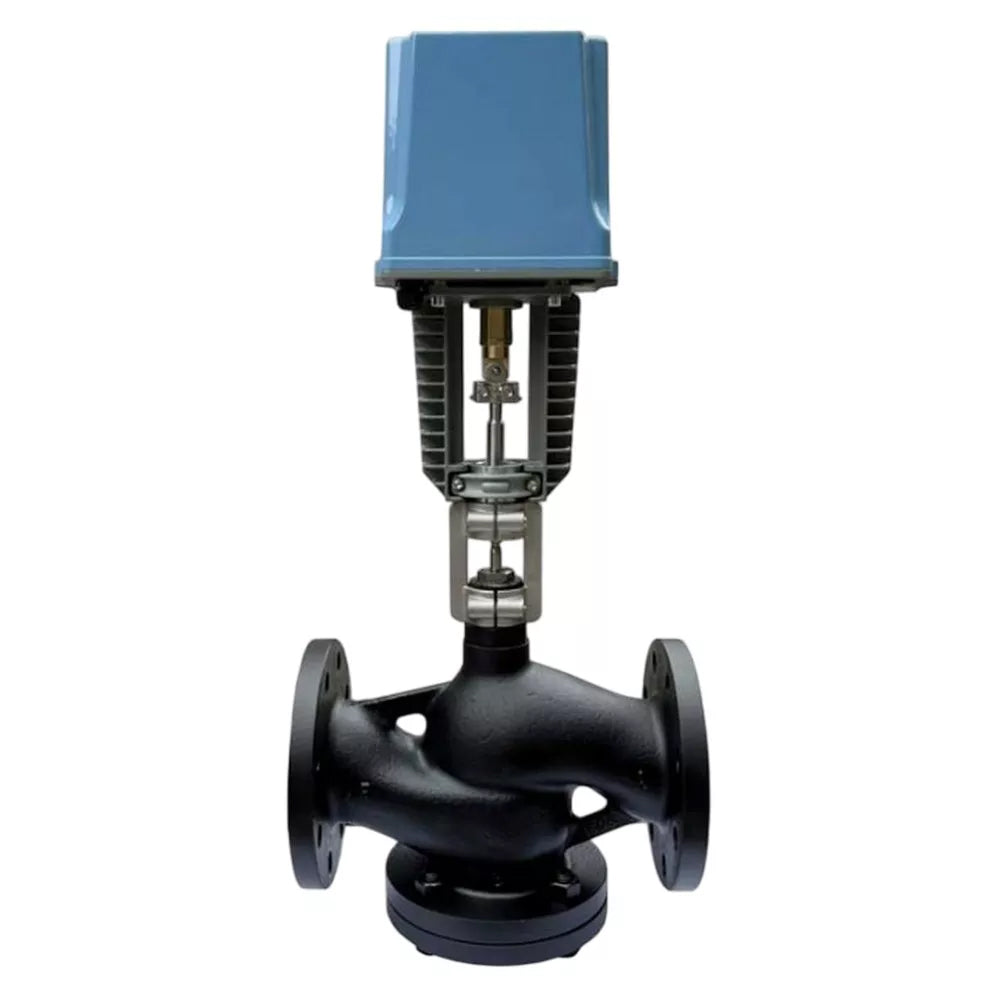

Two-way control valve Elephant VRgH1-34M-PED-F, body material - carbon steel A216, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V

€1.731,27
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The control valve is designed to regulate the flow rate of the working medium flowing through the pipeline. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow rate of the working medium.





Technical parameters of Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V:

Name Significance
Valve type Regulating
Nominal pressure PN, bar 25
Medium Water, Ethylene Glycol, Neutral media, Propylene Glycol
Application Water supply, Heating systems, Ventilation
Working medium temperature, °C +1 to +300
Ambient temperature, °C +1 to +50
Connection type flanged
Type of control valve two-way
Service life, years 10
Manufacturer's country China

Two-way control valve Elephant VRgH1-34M-PED-F, body material - carbon steel A216, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V





Dimensions and dimensions Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, shut-off body material - stainless steel AISI 304, seal - metal, with electric actuator DAV 220V:

DN L, mm
15 130
20 150
25 160
32 180
40 200
50 230
65 290
80 310
100 350
125 400
150 480
200 495

Sketch of dimensions and dimensions Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, shut-off body material - stainless steel AISI 304, seal - metal, with electric actuator DAV 220V





Parts and materials table Elephant VRgH1-34M-PED-F two-way control valves, body material - carbon steel A216, shut-off body material - stainless steel AISI 304, seal - metal, with electric actuator DAV 220V:

Details Materials
Body 25L steel
Stem stainless steel AISI 304
Valve core stainless steel AISI 304
Valve seat stainless steel AISI 304
Seal EPDM and VITON

Specifications
  • Country of origin
    China
  • Body material
    carbon steel A216
  • Maximum allowable temperature
    300 °C
  • Connection type
    flanged
  • Control type
    electric drive
  • Operating environment
    Water, ethylene glycol, neutral media, propylene glycol
  • Applications
    Water supply,Heating systems,Ventilation
  • Nominal pressure
    25 bar
  • Type of seal
    metal
  • Locking material
    stainless steel AISI 304
  • Manual override
    Yes
  • Type of electric actuator
    Straight-through
  • Supply voltage
    220V
  • Type of control valve
    two-way
  • Regulator Type
    control valve

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D230-10897DN100 160m3/h DAV-410-3000/170-42-220V-IP5425 bar €1.731,27 Out of stock
    D230-10900DN100 160m3/h DAV-430-3000/170-42-220V-IP5425 bar €1.841,78 Out of stock
    D230-10901DN125 250m3/h DAV-410-3000/170-42-220V-IP5425 bar €2.836,20 Out of stock
    D230-10904DN125 250m3/h DAV-430-3000/170-42-220V-IP5425 bar €2.946,72 Out of stock
    D230-10905DN150 400m3/h DAV-410-3000/170-42-220V-IP5425 bar €3.253,71 Out of stock
    D230-10908DN150 400m3/h DAV-430-3000/170-42-220V-IP5425 bar €3.364,22 Out of stock
    D230-10840DN15 1.6m3/h DAV-110-1500/170-22-220V-IP5425 bar €648,82 Out of stock
    D230-10843DN15 1.6m3/h DAV-110-1500/35-22-220V-IP5425 bar €699,78 Out of stock
    D230-10855DN15 1.6m3/h DAV-430-1500/80-25-220V-IP5425 bar €773,57 Out of stock
    D230-10841DN15 2.5m3/h DAV-110-1500/170-22-220V-IP5425 bar €648,82 Out of stock
    D230-10844DN15 2.5m3/h DAV-110-1500/35-22-220V-IP5425 bar €699,78 Out of stock
    D230-10856DN15 2.5m3/h DAV-430-1500/80-25-220V-IP5425 bar €773,57 Out of stock
    D230-10842DN15 4m3/h DAV-110-1500/170-22-220V-IP5425 bar €648,82 Out of stock
    D230-10845DN15 4m3/h DAV-110-1500/35-22-220V-IP5425 bar €699,78 Out of stock
    D230-10857DN15 4m3/h DAV-430-1500/80-25-220V-IP5425 bar €773,57 Out of stock
    D230-10909DN200 450m3/h DAV-410-5000/170-42-220V-IP5425 bar €4.567,48 Out of stock
    D230-10910DN200 450m3/h DAV-410-6500/40-40-220V-IP5425 bar €5.156,75 Out of stock
    D230-10914DN200 450m3/h DAV-430-5000/170-42-220V-IP5425 bar €4.653,28 Out of stock
    D230-10864DN25 10m3/h DAV-110-1500/170-22-220V-IP5425 bar €697,90 Out of stock
    D230-10858DN20 6.3m3/h DAV-110-1500/170-22-220V-IP5425 bar €656,20 Out of stock
    D230-10859DN20 6.3m3/h DAV-110-1500/35-22-220V-IP5425 bar €707,16 Out of stock
    D230-10863DN20 6.3m3/h DAV-430-1500/80-25-220V-IP5425 bar €780,95 Out of stock
    D230-10865DN25 10m3/h DAV-110-1500/35-22-220V-IP5425 bar €748,86 Out of stock
    D230-10869DN25 10m3/h DAV-430-1500/80-25-220V-IP5425 bar €822,65 Out of stock
    D230-10870DN32 16m3/h DAV-110-1500/170-22-220V-IP5425 bar €734,79 Out of stock
    D230-10871DN32 16m3/h DAV-110-1500/35-22-220V-IP5425 bar €785,76 Out of stock
    D230-10875DN32 16m3/h DAV-430-1500/80-25-220V-IP5425 bar €859,54 Out of stock
    D230-10876DN40 25m3/h DAV-110-1500/170-22-220V-IP5425 bar €796,22 Out of stock
    D230-10877DN40 25m3/h DAV-110-1500/35-22-220V-IP5425 bar €847,19 Out of stock
    D230-10881DN40 25m3/h DAV-430-1500/80-25-220V-IP5425 bar €920,98 Out of stock
    D230-10882DN50 40m3/h DAV-110-1500/170-22-220V-IP5425 bar €869,84 Out of stock
    D230-10883DN50 40m3/h DAV-110-1500/35-22-220V-IP5425 bar €920,81 Out of stock
    D230-10887DN50 40m3/h DAV-430-1500/80-25-220V-IP5425 bar €994,59 Out of stock
    D230-10888DN65 63m3/h DAV-110-1500/170-22-220V-IP5425 bar €1.127,76 Out of stock
    D230-10889DN65 63m3/h DAV-110-1500/35-22-220V-IP5425 bar €1.178,72 Out of stock
    D230-10893DN65 63m3/h DAV-430-1500/80-25-220V-IP5425 bar €1.252,51 Out of stock
    D230-10894DN80 100m3/h DAV-110-2500/240-44-220V-IP5425 bar €1.424,28 Out of stock
    D230-10896DN80 100m3/h DAV-430-3000/170-42-220V-IP5425 bar €1.620,76 Out of stock
