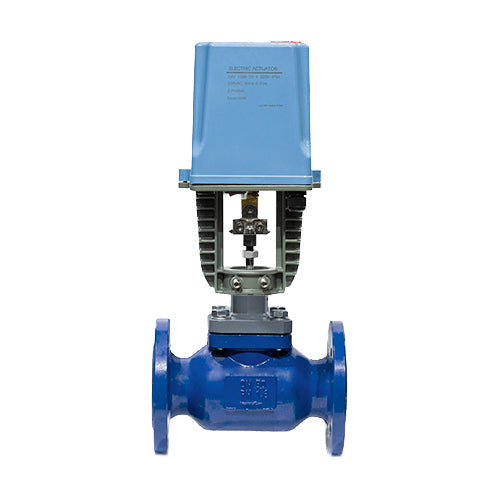

Two-way control valve Elephant 232 PSI gray cast iron GC20, flanged with electric actuator DAV 2500 - 110/220V

€595,83
Tax included Shipping calculated at checkout.

Two-way control valve Elephant 232 PSI gray cast iron GC20, flanged with electric actuator DAV 2500 - 110/220V - DN65 / 16 bar / 25 is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Control valve Elephant with pressure-relieved stem single-seat bore with electric actuator DAV 2500 - 220V is used as an actuator to complete automatic control systems in heating, ventilation and hot water supply circuits, individual heating stations and other heat supply facilities. Control valves Elephant are designed for hermetic shut-off or change of flow rate of working medium flowing through the pipeline at pressure not more than 1.6 MPa (16 atm) and medium temperature from +5°C to +150°C.
The body of Elephant single-seat bore valve is made of gray cast iron.
The actuator is an electric actuator DAV 2500 - 220V.
The valve body has a nameplate with basic information about the product.
Connection to the pipeline is flanged.
The Elephant control valve with electric actuator is used for cold and hot water, ethylene glycol solution and other media not aggressive to body materials, temperature value of which does not exceed 150°C and nominal pressure up to 1.6 MPa.
The valve is controlled by electric actuator DAV 2500 - 220V. The force developed by the actuator is transferred through the stem to the plug, which, moving up or down, changes the area of the passage section in the gate and regulates the flow rate of the working medium.
Electric actuator of control valve DAV-2500 is a direct-acting electric actuator designed to control two-way and three-way valves. It is used to control the position of the gate, stem or other regulating body. It makes it possible to regulate the main indicators of the working medium.






Parameters of two-way control valve Elephant 232 PSI gray cast iron GC20, flanged with electric actuator DAV 2500 - 110/220V:

Parameter

Value

Type of design

With pressure-relieved stem

Type of valve

Two-way regulating valve

Throttling unit

Plunger unit

Actuator model

 DAV 2500 - 220V

Type of electric actuator

Direct drive

Nominal diameter, mm

 65 / 80

Nominal pressure, bar

16

Conditional flow capacity Kvs, m³/h

25 - 160

Type of connection

Flanged

Body material

Cast iron

Working medium temperature, °C

From +5°C to +150°C

Ambient temperature, °C

From -15°C to +50°C

Relative humidity

30% – 80%

Average service life

8 years


Technical characteristics of two-way control valve Elephant 232 PSI gray cast iron GC20, flanged with electric actuator DAV 2500 - 110/220V:

DN, mm

15

20

25

32

40

50

65

80

100

Conditional flow capacity Kvs, m3/h

0,2
0,3
0,4
0,6
1
1,6
2,5
3,2
4,0

1,6
2,5
4,0

1,6
2,5
4,0
5,0
6,3
6,3
8
10,0

6,3
10,0
16,0

10
16
25

10
12,5
16
25
32
40

16
25
32
40
50
63

40
63
80
100

63
80
100
125
160

Stroke of stem, mm, ± 5%

10

10

20

20

20

25/15

32/25

32

40

Characterization of regulation

Linear

Cavitation onset coefficient, Z

0.6

0.55

0.5

0.45

0.4





Weight and installation parameters of two-way control valve Elephant 232 PSI gray cast iron GC20, flanged with electric actuator DAV 2500 - 110/220V:

Parameter

DN, mm

65

80

100

L, mm

290

310

350

H, mm

575

585

630

H1, mm

480

485

515

Weight, kg

26.3

30

45.2


Mounting holes

DN, mm

65

80

100

Number of holes, pcs

4

8

8

Diameter of holes d, mm

16

16

16





Materials of two-way control valve Elephant 232 PSI gray cast iron GC20, flanged with electric actuator DAV 2500 - 110/220V:

№

Part name

Material

1

Body

Gray cast iron

2

Plunger

Steel

3

Sealing ring

-

4

Seat

Steel

5

Stem

Stainless steel

6

Unloading piston

-

7

Valve cover

Gray cast iron

8

Cover seal

Metal-to-metal

9

Stem seal

Rubber-fluoroplastic

10

Actuator body and parts

Forged brass

Actuator stem

Stainless steel

Actuator seals

EPDM, V-ring seal, spring self-compensation

14

Nut

-

15

Support ring

-

16

Piston seal

-

17

Support bushing

-

18

Unloading chamber

-





Technical data of the actuator DAV 2500 - 220V:

Parameter

Value

Actuator model

DAV 2500 - 220V

Supply voltage

230 V

Nominal pressure

2 MPa

Shut-off pressure

0.4–1 MPa

Power consumption

16 VA

Nominal force

2500 N

Actuator stem travel

44 mm

Operating speed

0.24 mm/s

Motor

Synchronous AC motor

Maximum stroke

22 mm

Feedback signal

0–10 V, 4–20 mA

Ambient temperature

From -5°C to +55°C

Operating humidity

10%–90%

Housing protection rating

IP54

Actuator weight

4.7 kg





Weight and dimensional parameters of the actuator DAV 2500:

L, mm 190
l, mm 166
H, mm 327
h, mm 158
h1, mm 150
c, mm 44
Actuator weight, kg 4.7





Materials of actuator DAV 2500 - 220V:

Part

Material

Body

Forged brass

Working parts

Forged brass

Bracket

Cast aluminum

Stem

Stainless steel

Gears

Steel

Seals

EPDM, V-ring seal, spring self-compensation

Specifications
  • Body material
    Cast iron
  • Maximum allowable temperature
    150 °C
  • Connection type
    Flanged
  • Control type
    Electric actuator
  • Operating environment
    Air, Water, Steam, Ethylene Glycol Solution Up To 60%
  • Applications
    Ventilation And Stationary Air Conditioning, Water Supply, Heat Supply
  • Nominal pressure
    16 bar
  • Type of seal
    Metal
  • Type of control valve
    Two-way
  • Regulator Type
    Control valve
