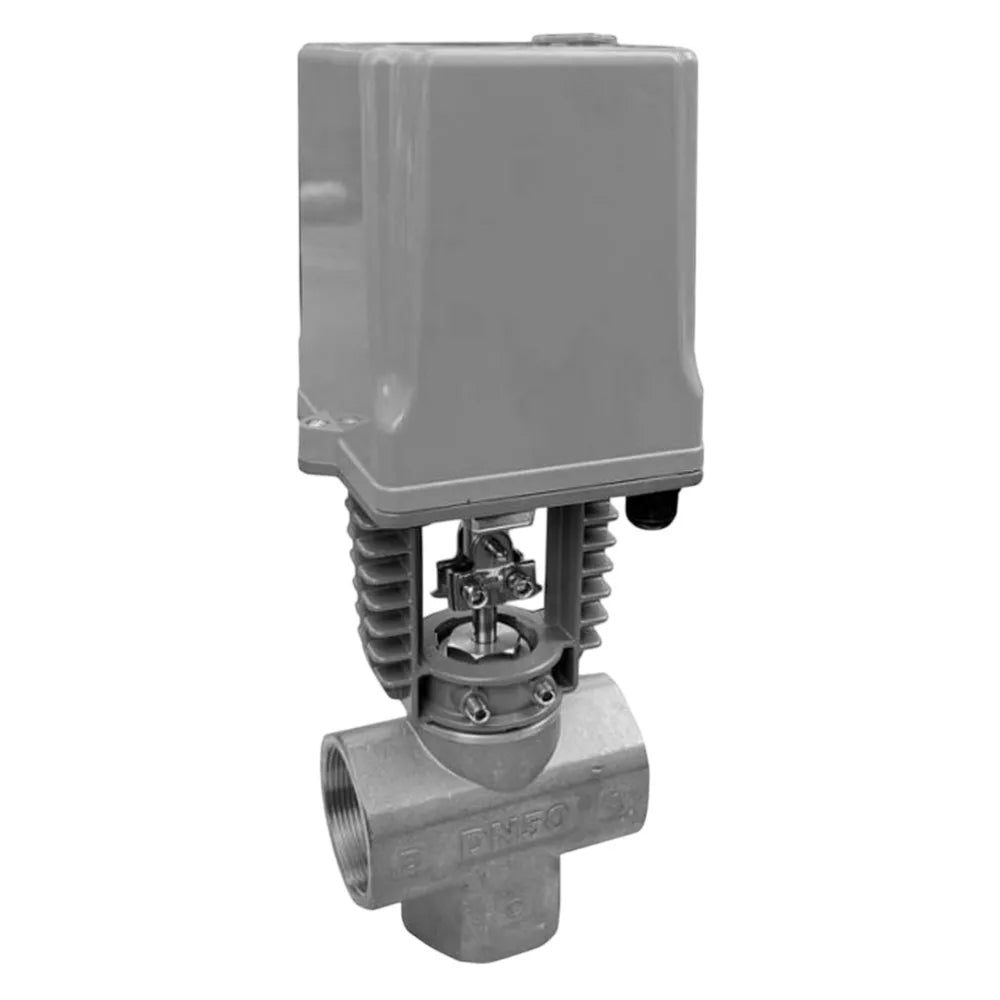

Three-way control valve Elephant VRg3M/S-31M-LED-T, body material - st – Valve Elephant
Elephant  |  SKU: D230-10804

Three-way control valve Elephant VRg3M/S-31M-LED-T, body material - stainless steel AISI 304, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V

€472,07
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The three-way mixing/separating control valve is designed to regulate the flow of working media that are not aggressive to the materials of the regulating body by mixing or separating them. The valve is controlled by means of an electric actuator (electric actuator (EIM)). The force developed by the actuator is transmitted through the stem to the plug, which, moving up or down, changes the cross-sectional area in the gate and regulates the flow of the working medium.





Technical parameters of Elephant VRg3M/S-31M-LED-T three-way control valves, body material - stainless steel AISI 304, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V:

Name Significance
Valve type Regulating
Nominal pressure PN, bar 25
Medium water, ethylene glycol, neutral media, Propylene glycol
Application Water supply, Heating systems, Ventilation
Working medium temperature, °C +1 to +300
Ambient temperature, °C +1 to +50
Connection type coupling (threaded)
Type of control valve three-way
Service life, years 10
Manufacturer's country China

Two-way control valve Elephant VRg3M/S-31M-LED-T, body material - stainless steel AISI 304, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V





Dimensions and dimensions Elephant VRg3M/S-31M-LED-T three-way control valves, body material - stainless steel AISI 304, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V:

DN L, mm H, mm
15 85 60
20 85 60
25 90 60
32 105 61
40 120 70.5
50 140 78.5

Sketch of dimensions and dimensions Elephant VRg3M/S-31M-LED-T, body material - stainless steel AISI 304, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V





Parts and materials table Elephant VRg3M/S-31M-LED-T three-way control valves, body material - stainless steel AISI 304, locking body material - stainless steel AISI 304, seal - metal, with electric drive DAV 220V:

Details Materials
Body stainless steel AISI 304
Rod stainless steel AISI 304
Plunger stainless steel AISI 304
Stem seal EPDM
Stem guides PTFE

Specifications
  • Country of origin
    China
  • Body material
    stainless steel AISI 304
  • Maximum allowable temperature
    150 °C
  • Connection type
    threaded
  • Control type
    electric drive
  • Operating environment
    Water, ethylene glycol, neutral media, propylene glycol
  • Applications
    Water supply,Heating systems,Ventilation
  • Nominal pressure
    25 bar
  • Type of seal
    metal
  • Locking material
    stainless steel AISI 304
  • Manual override
    Yes
  • Type of electric actuator
    Straight-through
  • Supply voltage
    220V
  • Type of control valve
    three-way
  • Regulator Type
    control valve

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D230-10804DN15 4m3/h DAV-110-1500/170-22-220V-IP5425 bar €472,07 Out of stock
    D230-10805DN15 4m3/h DAV-110-1500/35-22-220V-IP5425 bar €523,04 Out of stock
    D230-10809DN15 4m3/h DAV-430-1500/80-25-220V-IP5425 bar €596,82 Out of stock
    D230-10810DN20 6.3m3/h DAV-110-1500/170-22-220V-IP5425 bar €476,88 Out of stock
    D230-10811DN20 6.3m3/h DAV-110-1500/35-22-220V-IP5425 bar €527,84 Out of stock
    D230-10815DN20 6.3m3/h DAV-430-1500/80-25-220V-IP5425 bar €601,63 Out of stock
    D230-10816DN25 8m3/h DAV-110-1500/170-22-220V-IP5425 bar €494,21 Out of stock
    D230-10817DN25 8m3/h DAV-110-1500/35-22-220V-IP5425 bar €545,17 Out of stock
    D230-10821DN25 8m3/h DAV-430-1500/80-25-220V-IP5425 bar €618,96 Out of stock
    D230-10822DN32 12m3/h DAV-110-1500/170-22-220V-IP5425 bar €538,31 Out of stock
    D230-10823DN32 12m3/h DAV-110-1500/35-22-220V-IP5425 bar €589,27 Out of stock
    D230-10828DN40 20m3/h DAV-110-1500/170-22-220V-IP5425 bar €575,20 Out of stock
    D230-10829DN40 20m3/h DAV-110-1500/35-22-220V-IP5425 bar €626,17 Out of stock
    D230-10833DN40 20m3/h DAV-430-1500/80-25-220V-IP5425 bar €699,96 Out of stock
    D230-10834DN50 30m3/h DAV-110-1500/170-22-220V-IP5425 bar €611,93 Out of stock
    D230-10835DN50 30m3/h DAV-110-1500/35-22-220V-IP5425 bar €662,89 Out of stock
    D230-10839DN50 30m3/h DAV-430-1500/80-25-220V-IP5425 bar €736,68 Out of stock
