Swing check valve Elephant VCD1313E-F body material - cast iron GGG50, – Valve Elephant
Elephant  |  SKU: D100-03700

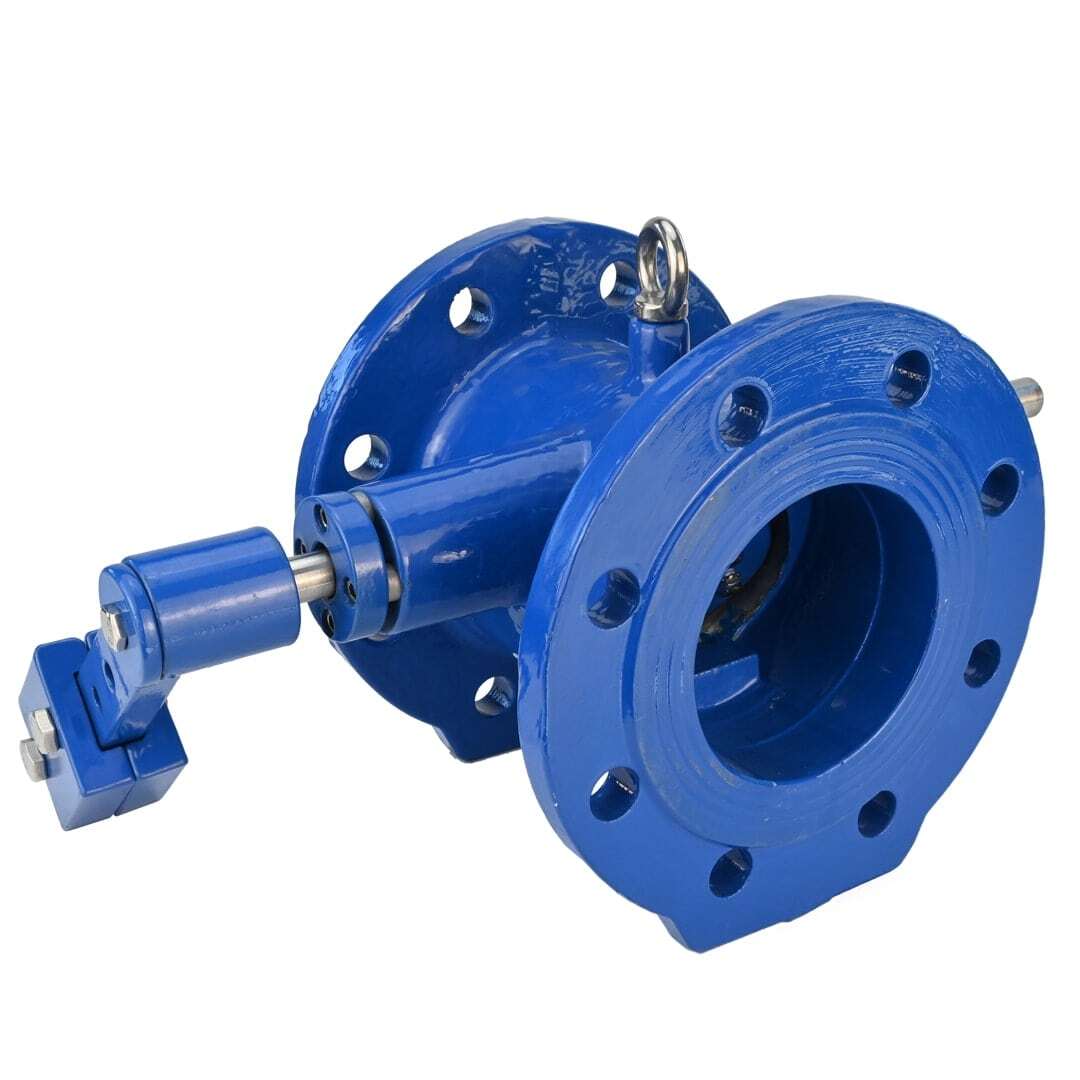

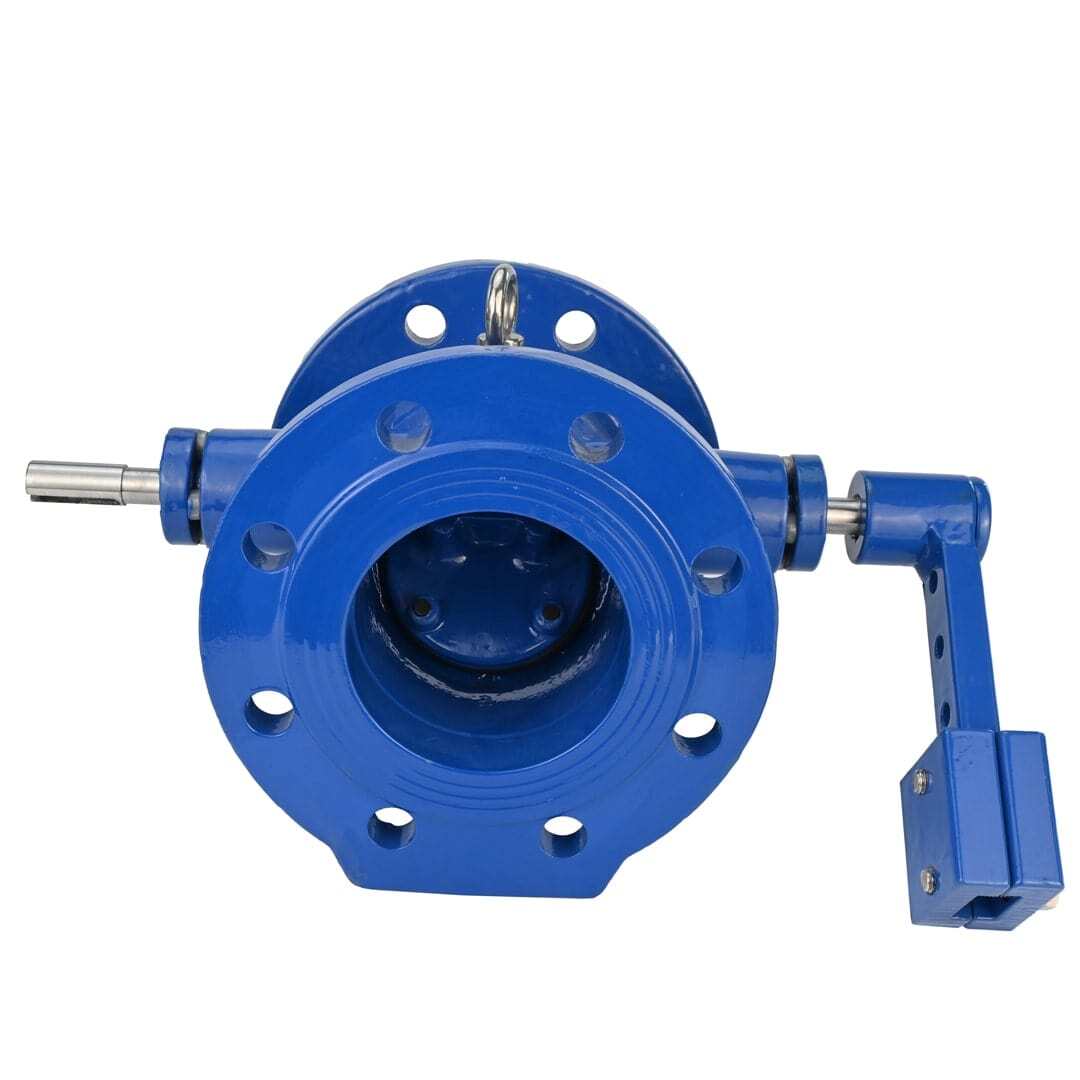

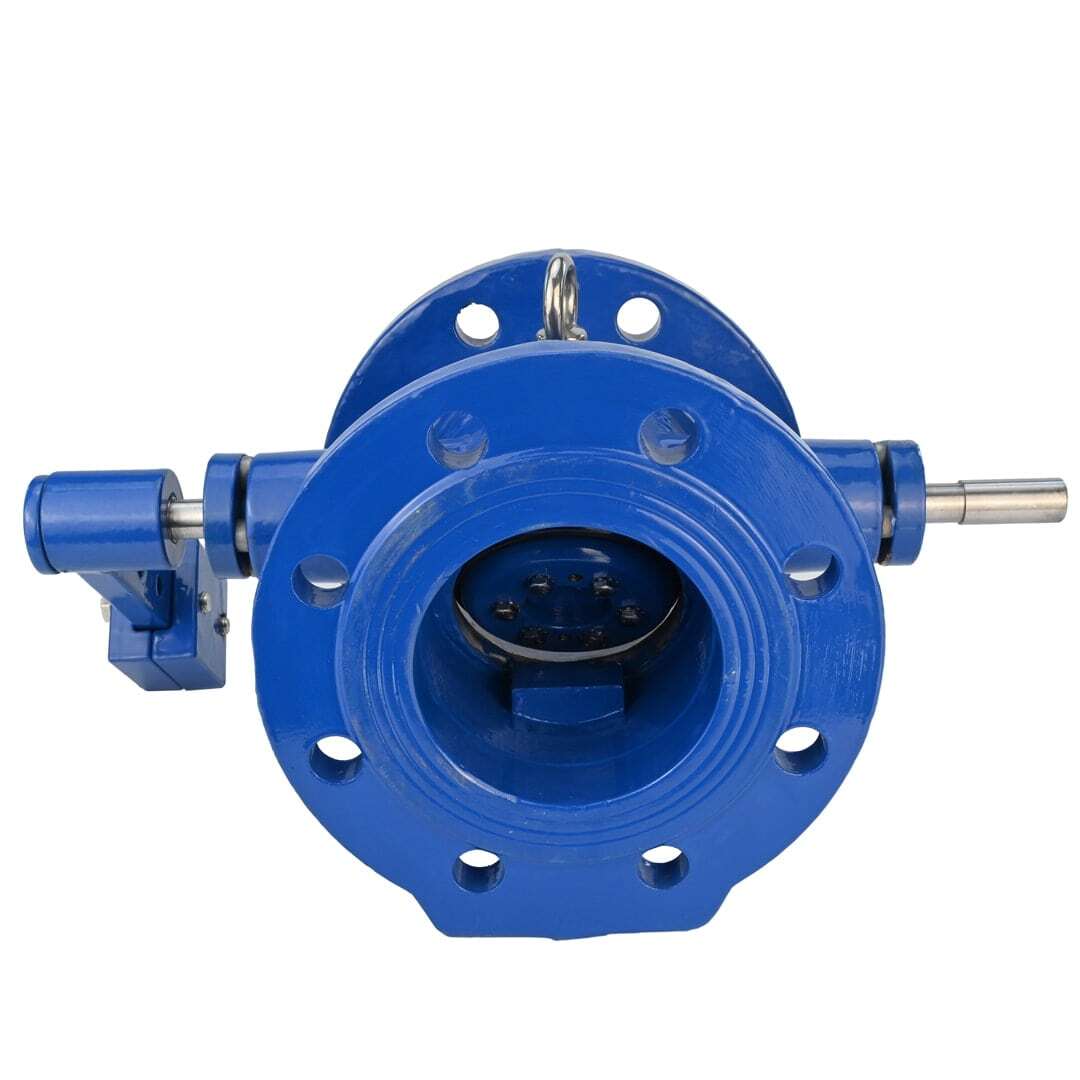

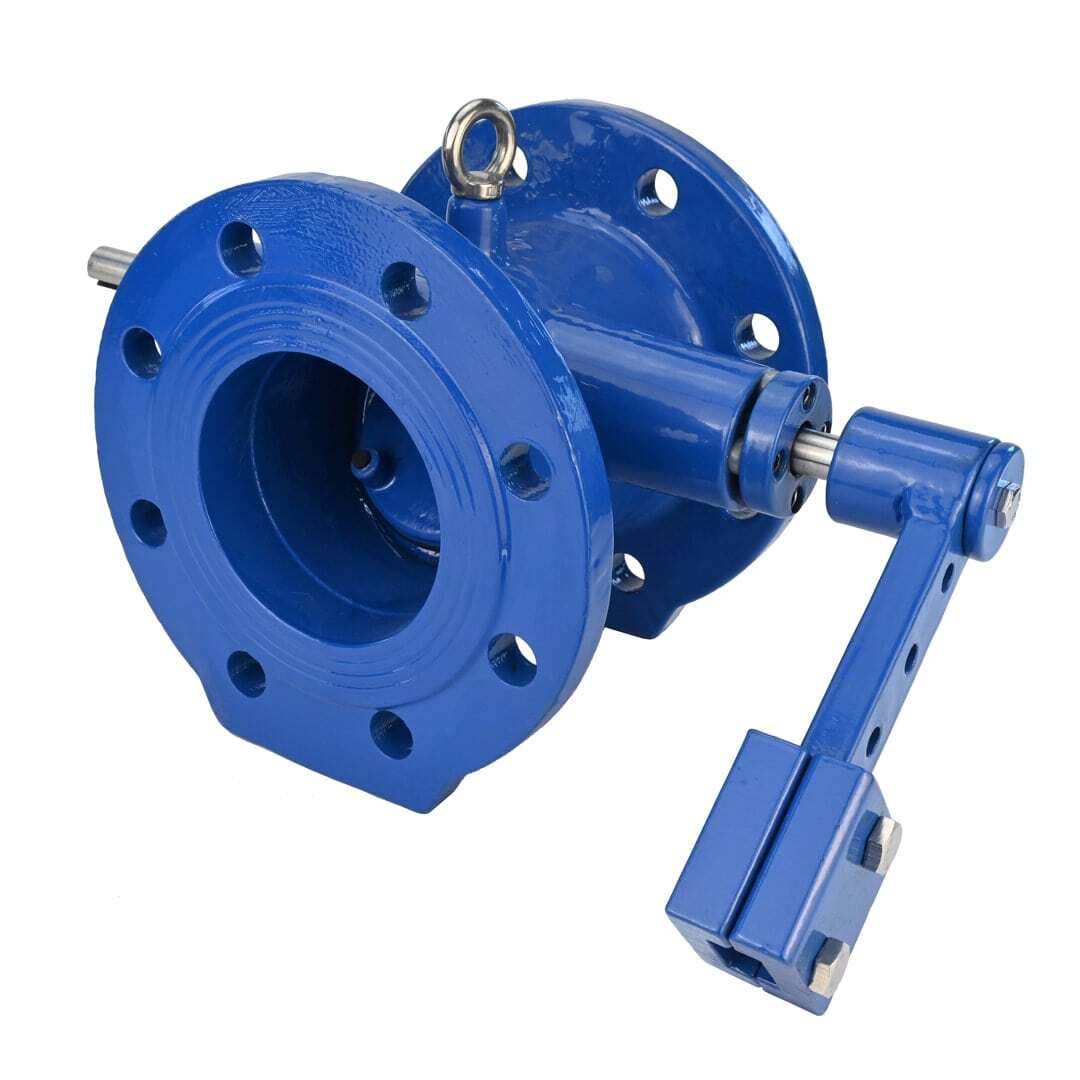

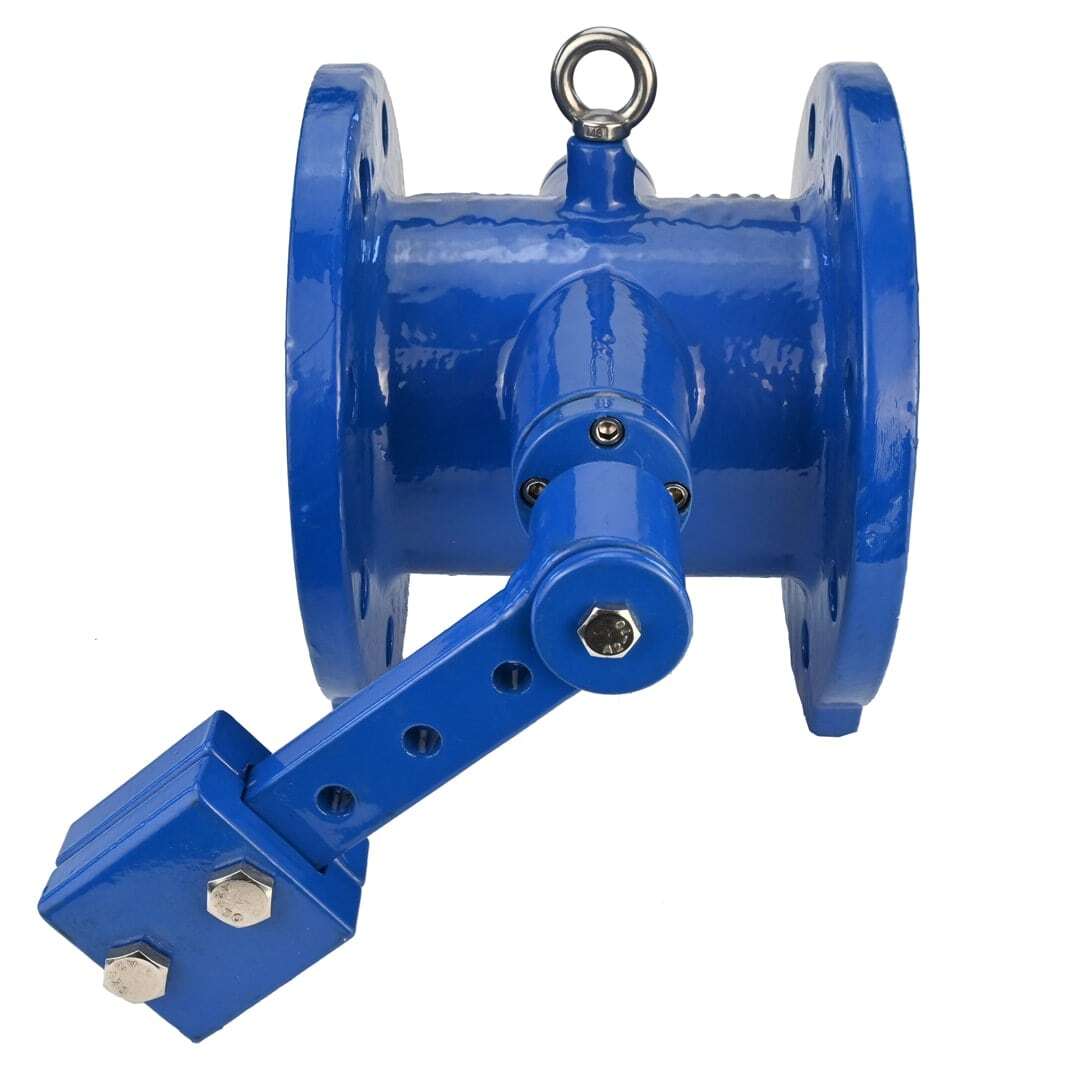

Swing check valve Elephant VCD1313E-F body material - cast iron GGG50, seal - EPDM, disc - cast iron GGG50, flanged, with swashplate and counterweight

€943,25
Tax included Shipping calculated at checkout.

Swing check valve Elephant VCD1313E-F body material - cast iron GGG50, seal - EPDM, disc - cast iron GGG50, flanged, with swashplate and counterweight - DN100 / 10 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Check valves Elephant VCD1313E-F are designed to prevent changes in the direction of flow of the working medium in the pipeline in the opposite direction. The check valve disk is fixed on an axis located with eccentricity relative to the horizontal axis of symmetry. When the medium is supplied in the direction under the disk, the valve opens, while the disk is held in the “open” position due to the lifting force arising from the high-speed pressure of the flow. After the supply of medium is stopped, the disk smoothly closes under the influence of its own weight, which creates a closing moment due to the displacement of the center of gravity of the disk valve relative to the axis of rotation. The counterweight keeps the disc fully open, reducing flow resistance, and also promotes better sealing when closed at low pressure. Fast closing helps to avoid damage to the pump due to backflow, slow closing helps to avoid the effect of water hammer, which protects the pipeline.



General mass and dimensional parameters of check valves Elephant VCD1313E-F DN100-300 10 bar

DN Pressure L D D1 N, piece – Ød Weight, kg
100 10 190 220 180 8 – 19 18
150 10 210 285 240 8 – 23 26
200 10 230 340 295 8 – 23 47
250 10 250 405 350 12 – 23 76
300 10 270 460 400 12 – 23 96



General mass and dimensional parameters of check valves Elephant VCD1313E-F DN200-300 16 bar

DN Pressure L D D1 N, piece – Ød Weight, kg
200 16 230 340 295 12 – 23 47
250 16 250 405 355 12 – 28 76
300 16 270 460 410 12 – 28 96

Клапаны обратные DN.ru VCD1413E-F Ду100-300 Ру10-16 поворотные, корпус - чугун GGG50, диск - чугун GGG50, уплотнение - EPDM, присоединение - фланцевое, с наклонным диском и противовесом

Dimensional sketch of check valves Elephant VCD1313E-F





General parts and materials of check valves Elephant VCD1313E-F body material - cast iron GGG50, seal - EPDM, disc - cast iron GGG50, flanged, with swashplate and counterweight

Name Material
1 Case cast iron GGG50
2 Disk cast iron GGG50
3 Counterweight carbon steel
4 Axis steel 2Cr13
5 Disk seal EPDM
6 Shaft sleeve self-lubricating SF sliding bushing (steel + sintered bronze + PTFE)

Клапаны обратные DN.ru VCD1413E-F Ду100-300 Ру10-16 поворотные, корпус - чугун GGG50, диск - чугун GGG50, уплотнение - EPDM, присоединение - фланцевое, с наклонным диском и противовесом

Detail sketch of check valves Elephant VCD1313E-F body material - cast iron GGG50, seal - EPDM, disc - cast iron GGG50, flanged, with swashplate and counterweight





Specifications

  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    120 °C
  • Connection type
    Flanged
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply
  • Nominal pressure
    10 bar
  • Type of seal
    EPDM
  • Locking material
    Cast iron GGG50/EN-GJS-500-7
  • Check valve type
    Swing
