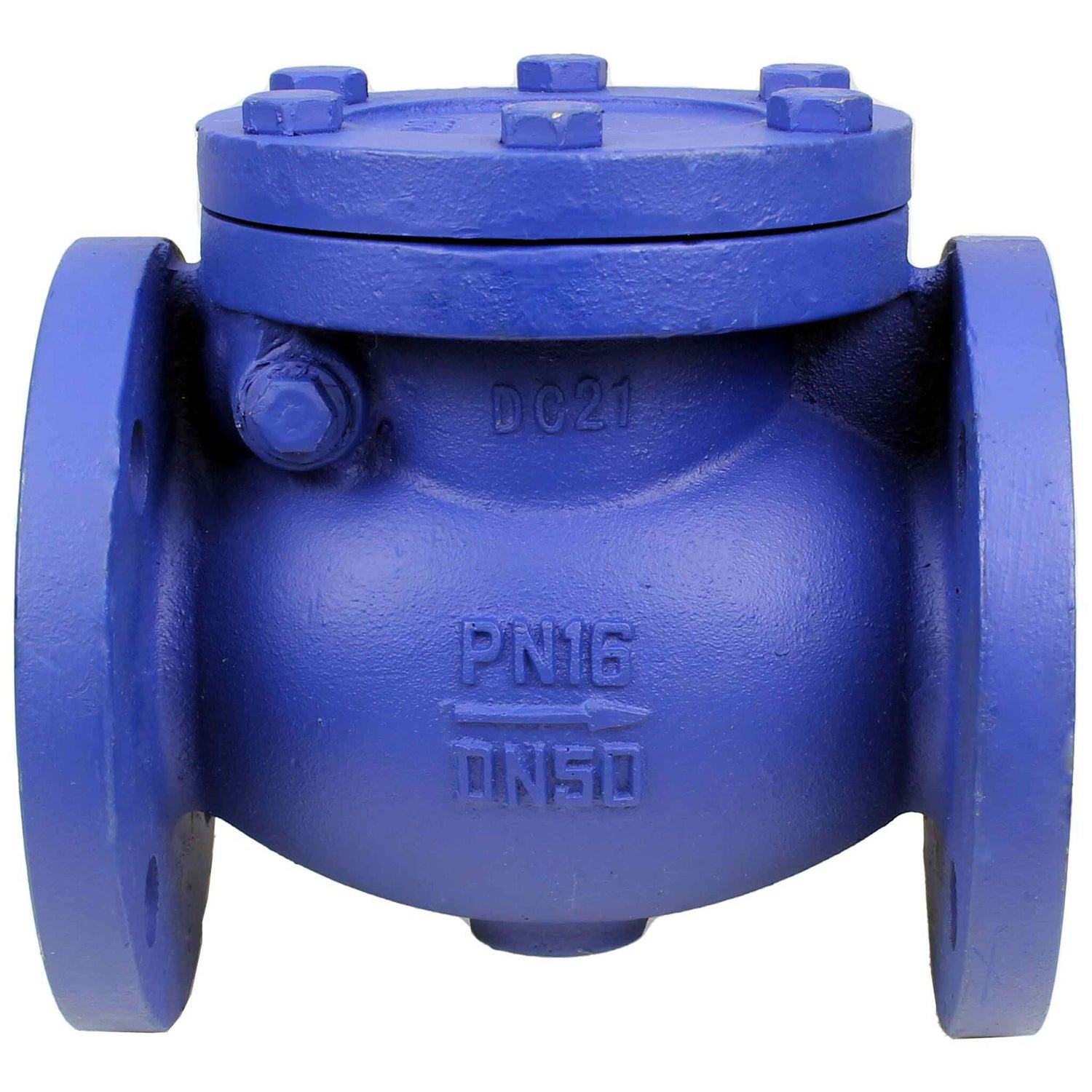

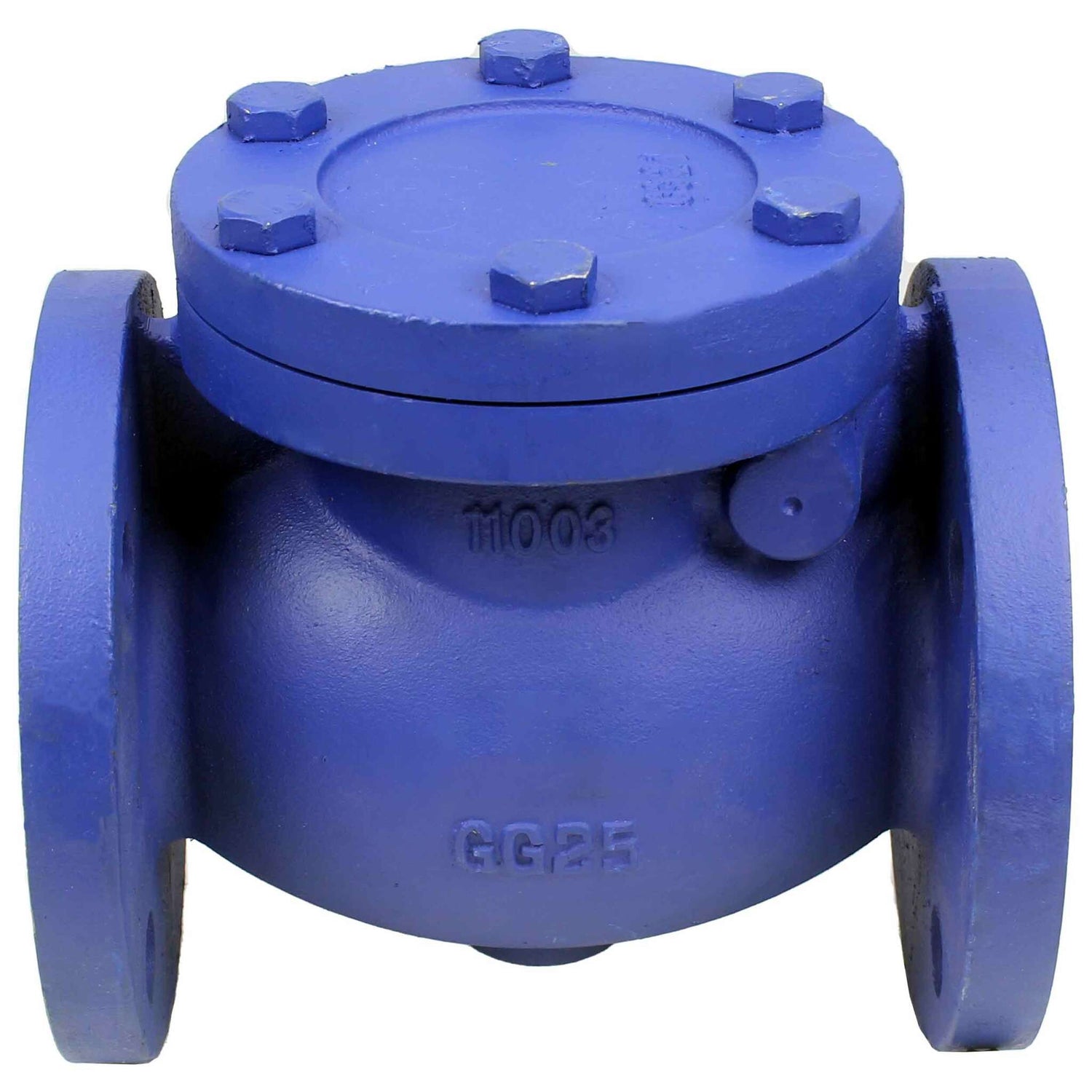

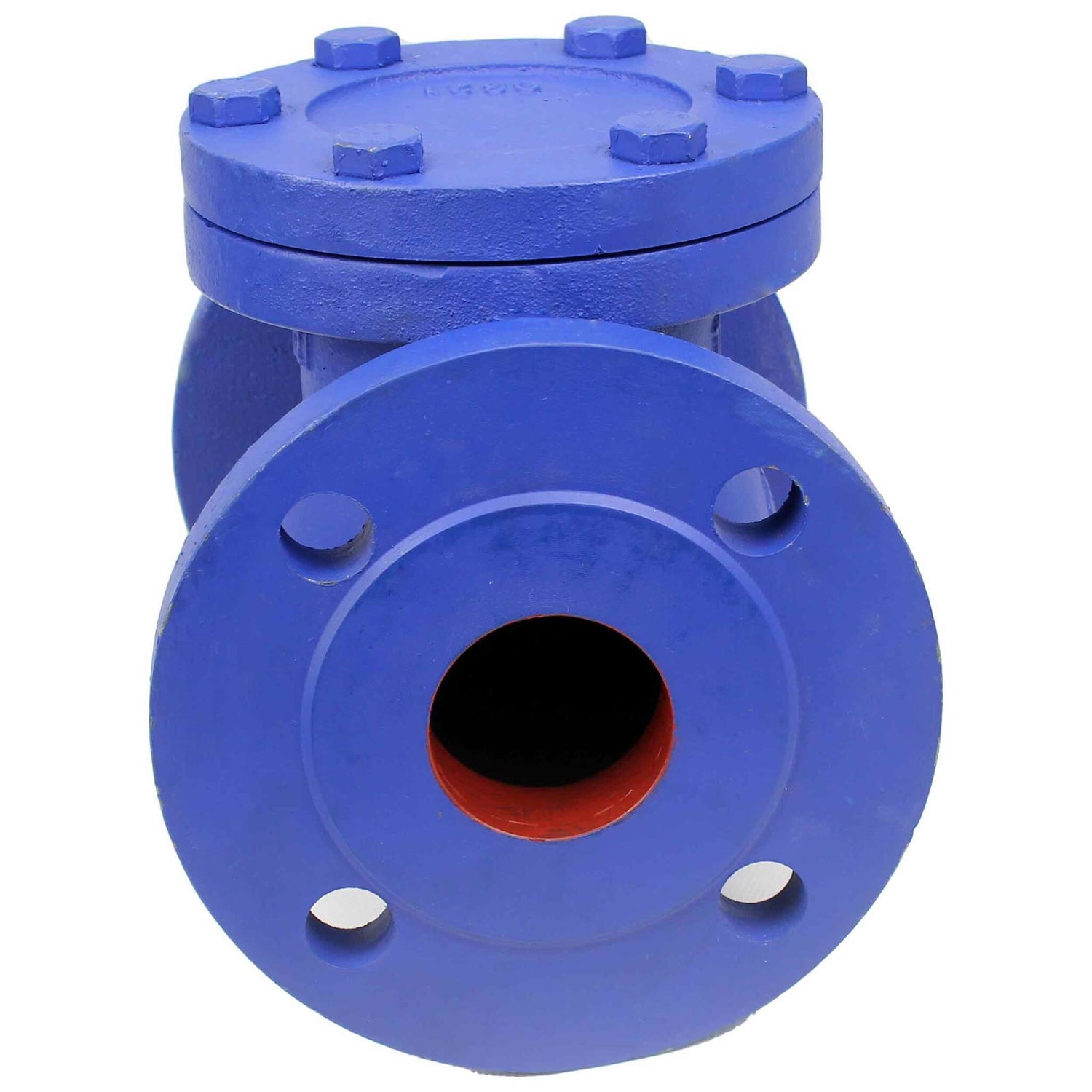

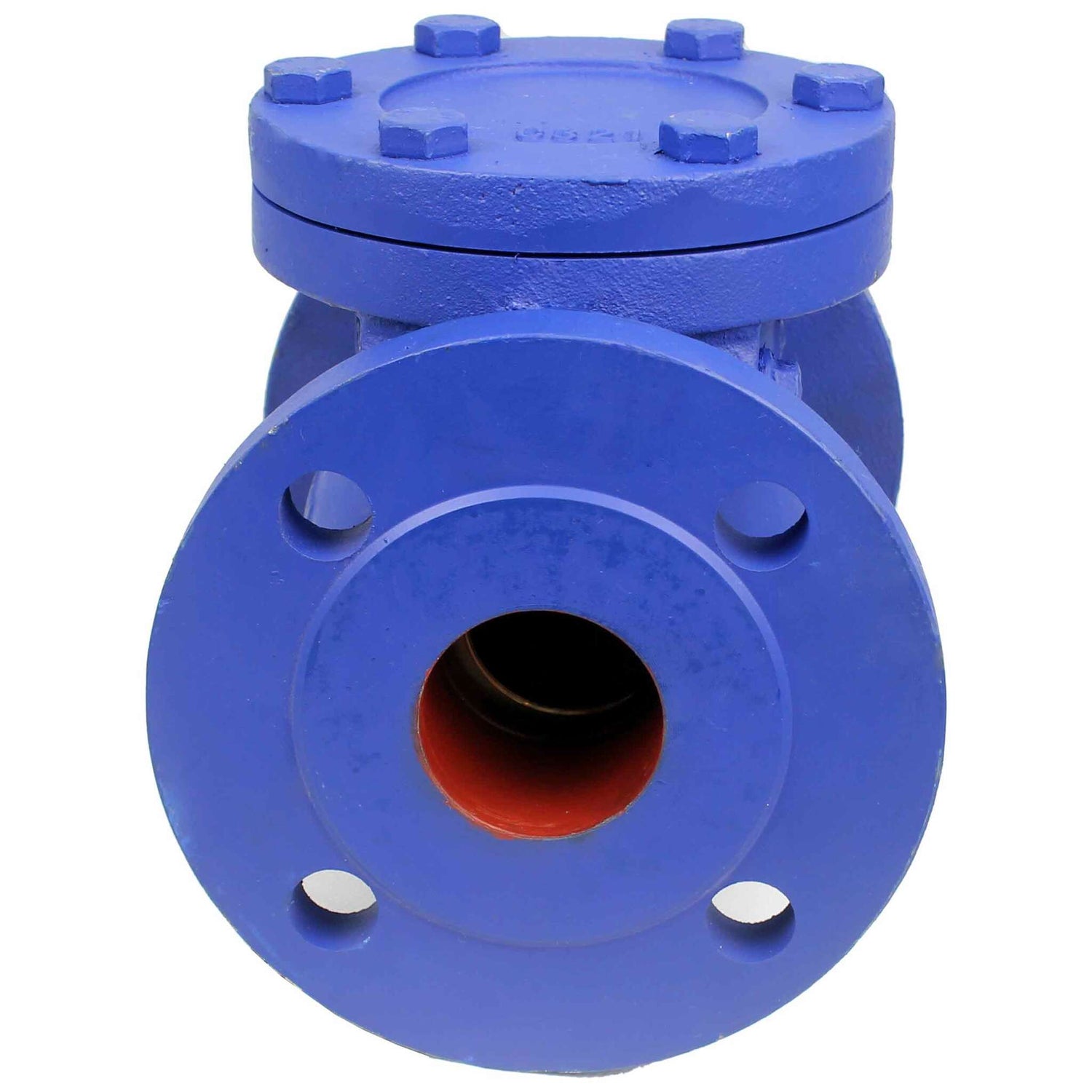

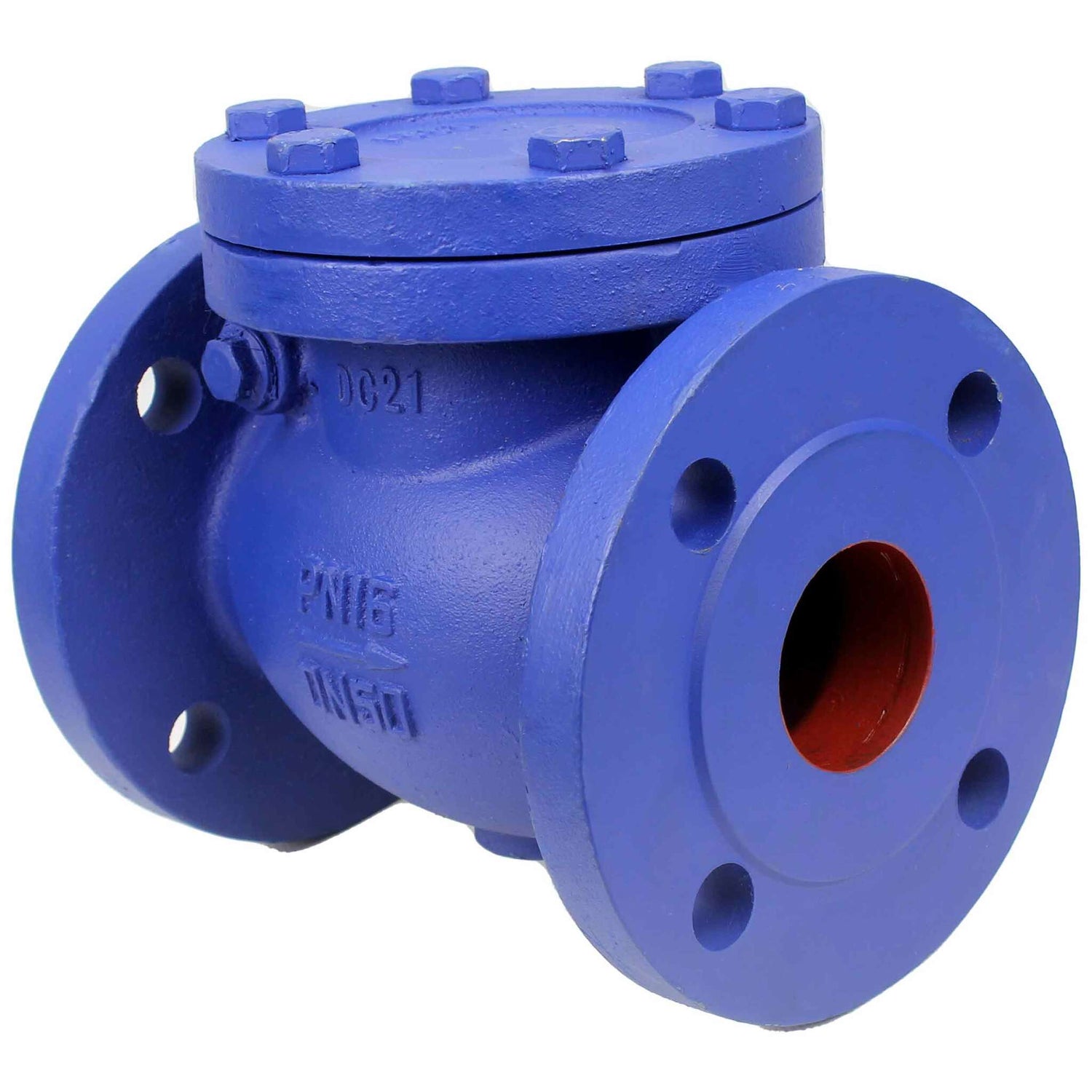

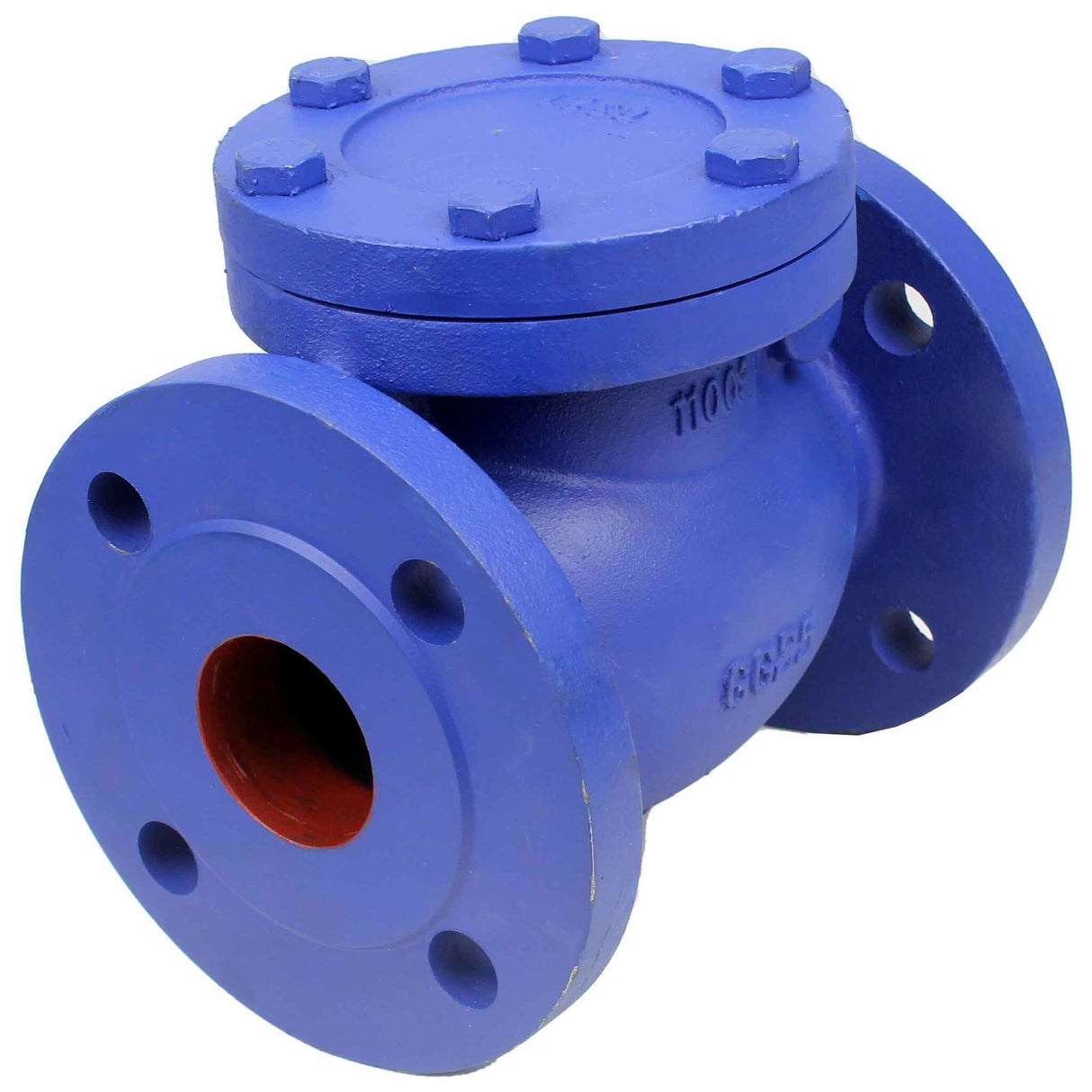

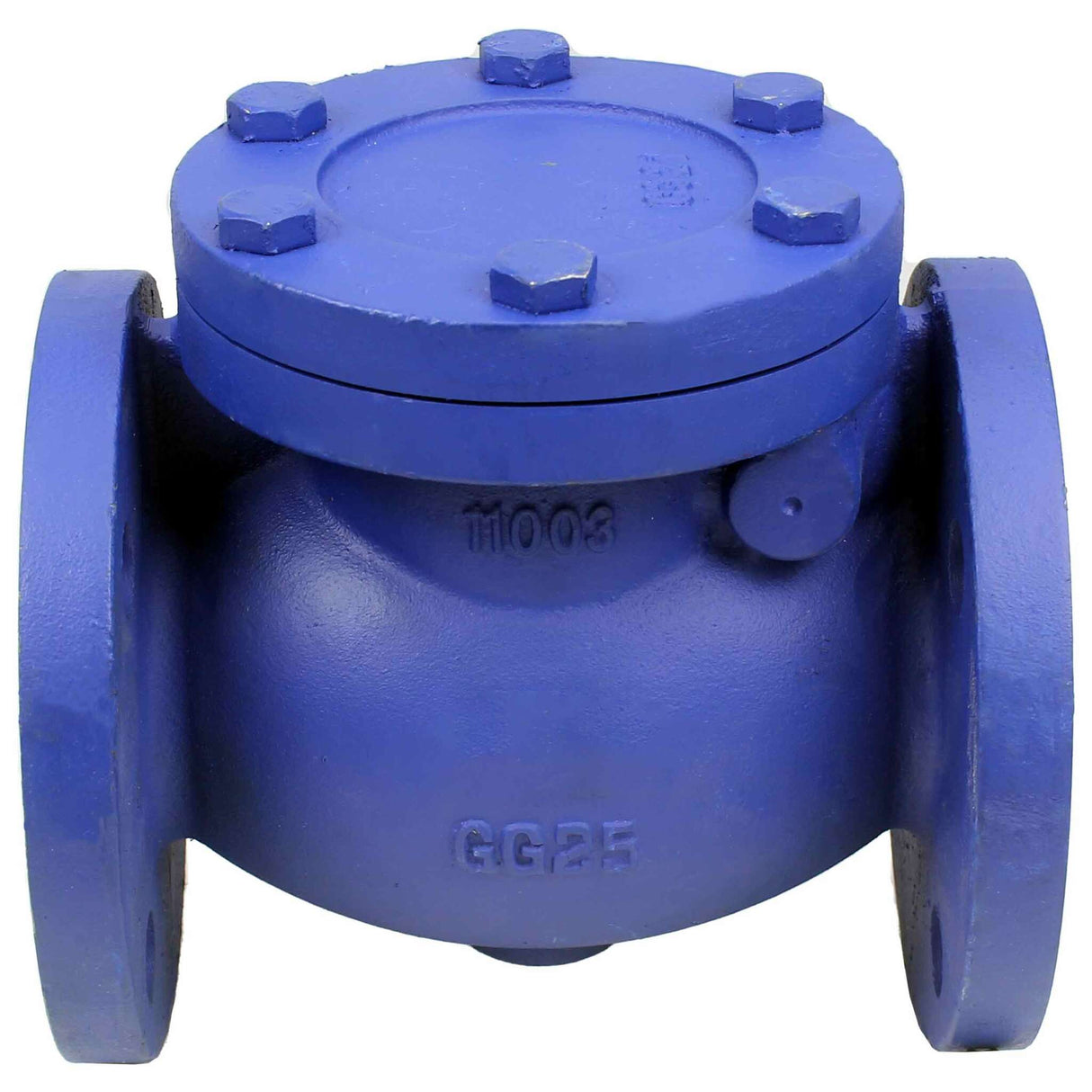

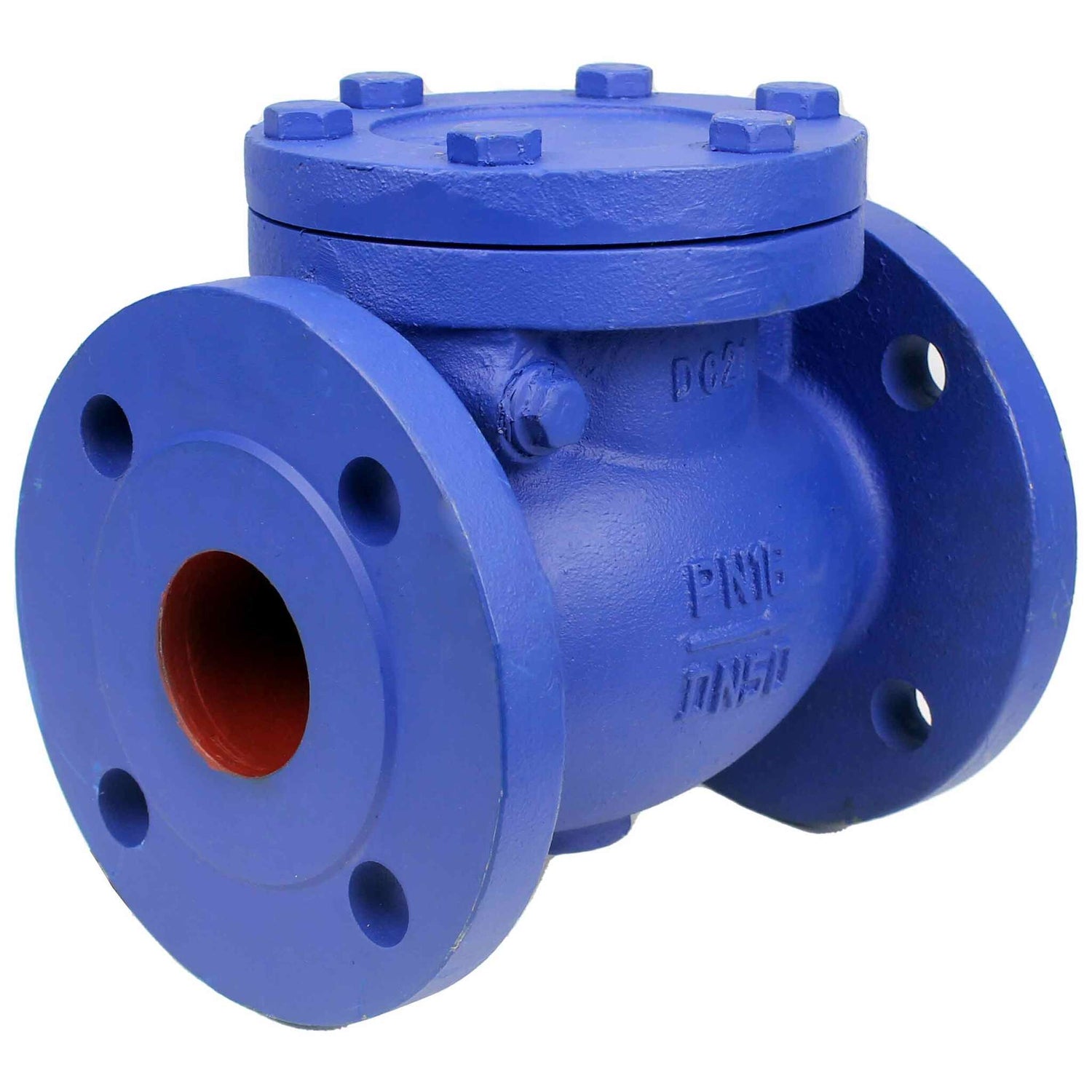

Swing check valve Elephant 302A, body material - cast iron GG25, closure element material - stainless steel AISI 420, seal - stainless steel
Swing check valve Elephant 302A, body material - cast iron GG25, closure element material - stainless steel AISI 420, seal - stainless steel - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Swing check valve Elephant 302A, body material - cast iron GG25, cl...
Description
Description
Check valve is a device in a pipeline that allows fluids or gases to flow in only one direction. When the pressure of the fluid or gas in the pipeline exceeds a certain value, the valve opens, allowing the substance to pass through. However, when the pressure drops or tries to move in the opposite direction, the valve closes, preventing backflow. Check valves are widely used in various industrial and commercial applications to ensure safety and control the flow in pipeline systems.
Dimensions of the check valve Elephant 302A
Dimensional sketch of check valve Elephant 302A, body material - cast iron GG25, closure element material - stainless steel AISI 420, seal - stainless steel
| DN | L, mm | D, mm | D1, mm | D2, мм | B - f, mm | Z - Ød | Weight,kg |
| 50 | 200±2 | 165 | 125 | 99 | 20-2 | 4 – Ø19 | 13,00 |
| 65 | 240±2 | 185 | 145 | 118 | 20-2 | 4 – Ø19 | 17,40 |
| 80 | 260±2 | 200 | 160 | 132 | 22-2 | 8 – Ø19 | 24,40 |
| 100 | 300±2 | 220 | 180 | 156 | 24-2 | 8 – Ø19 | 33,20 |
| 125 | 350±2 | 250 | 210 | 184 | 26-2 | 8 – Ø19 | 52,00 |
| 150 | 400±2 | 285 | 240 | 211 | 26-2 | 8 – Ø23 | 75,20 |
| 200 | 500±2 | 340 | 295 | 266 | 30-2 | 12 – Ø23 | 121,00 |
Materials of the check valve parts Elephant 302A
Material sketch of check valve Elephant 302A, body material - cast iron GG25, closure element material - stainless steel AISI 420, seal - stainless steel
| № | Part name | Material |
| 1 | Body | cast iron HT250(GG25) |
| 2 | Saddle | ZHMn58-2-2 (CuZn40Mn) / ZG2Cr13 (G-X20Cr14) |
| 3 | Gate sealing ring | ZHMn58-2-2 (CuZn40Mn) / ZG2Cr13 (G-X20Cr14) |
| 4 | Shutter | cast iron HT250(GG25) |
| 5 | Gasket | steel 35 |
| 6 | Bolt | steel 35 |
| 7 | Bracket | cast iron QT450-10 |
| 8 | Gasket | steel 08 + thermally expanded graphite |
| 9 | Cover | cast iron HT250(GG25) |
| 10 | Bolt | steel 35 |
| 11 | Cylindrical pin with female thread | steel 304 (G-X6CrNi189) |
| 12 | Flat washer | PTFE |
| 13 | screw plug | steel 25 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
-
Check valve type
