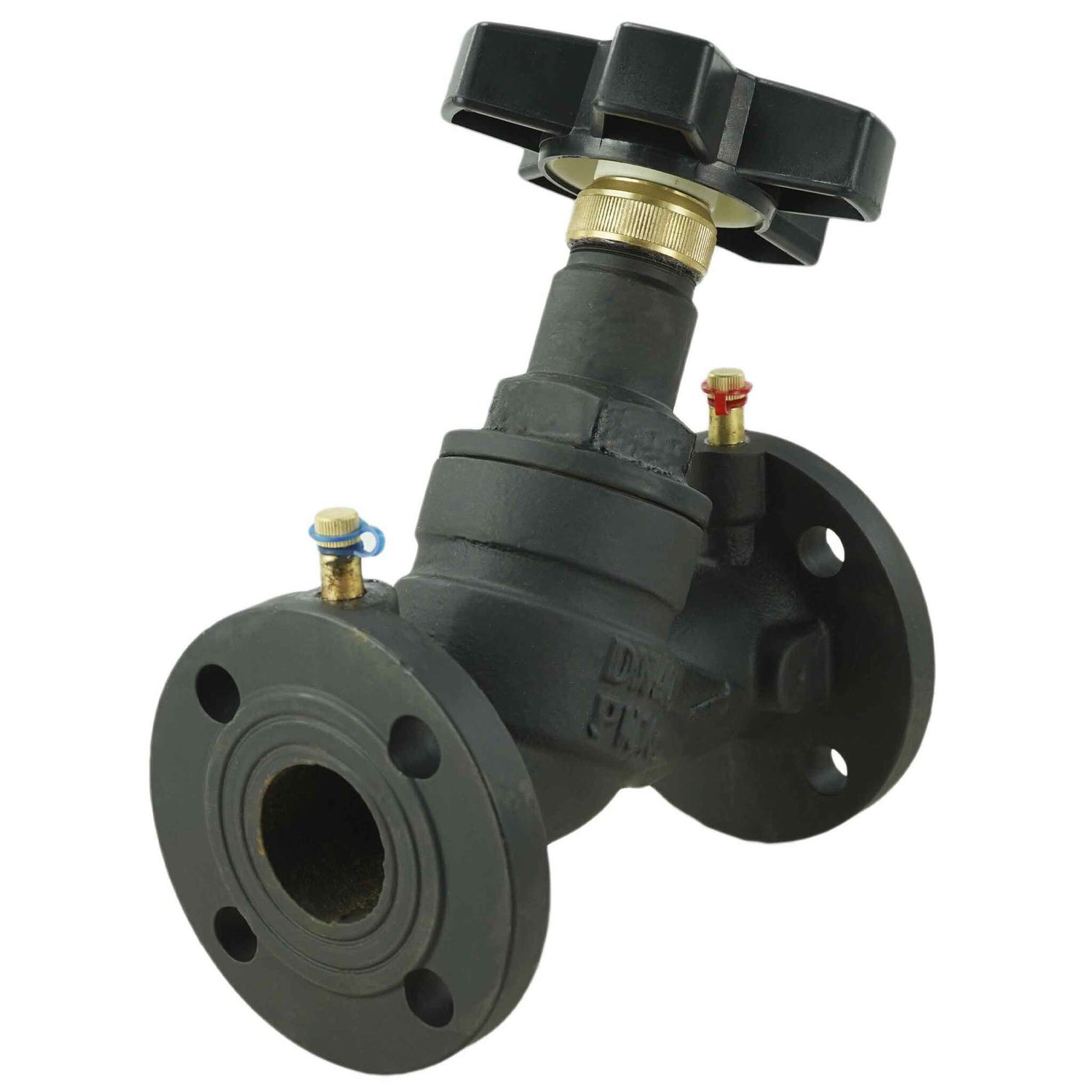

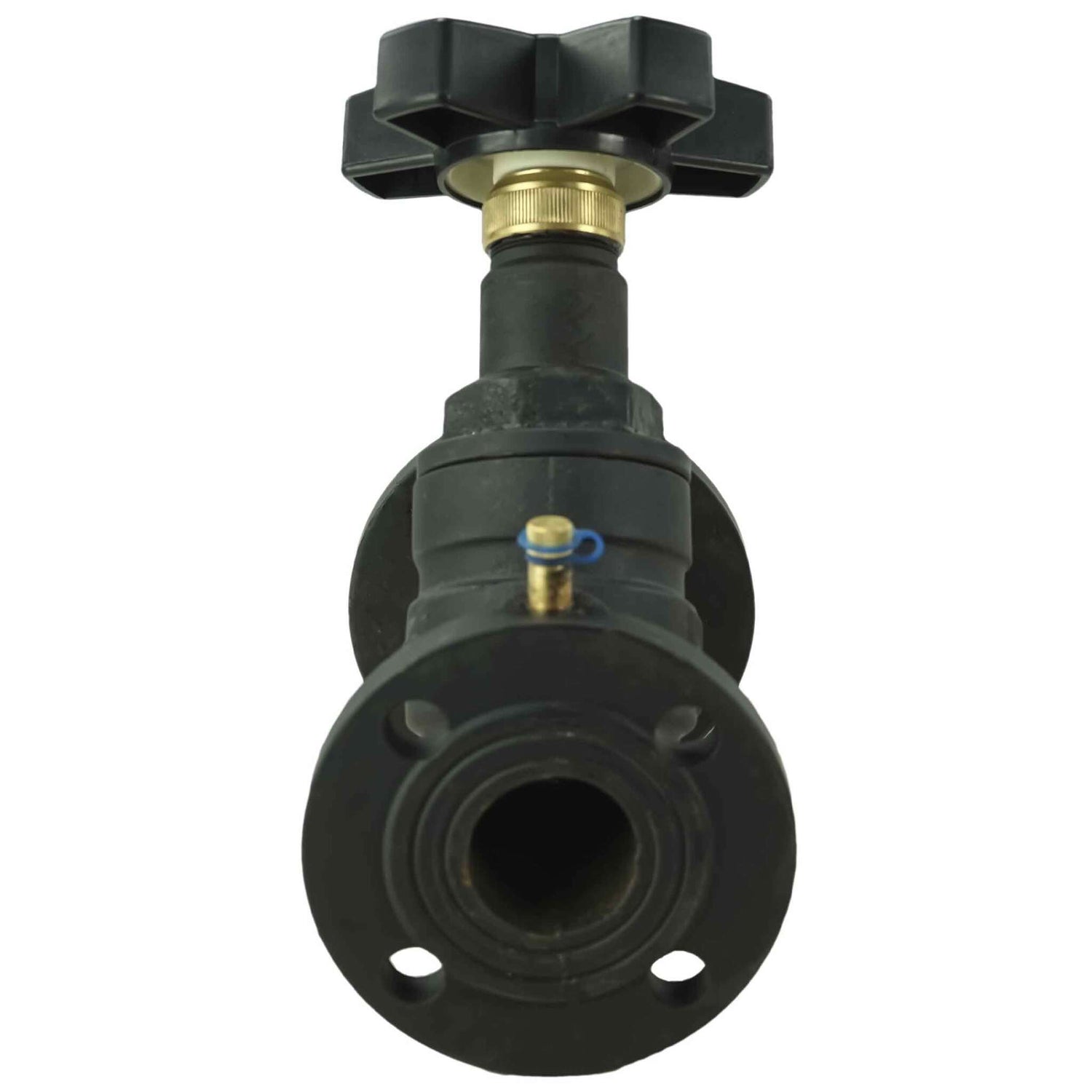

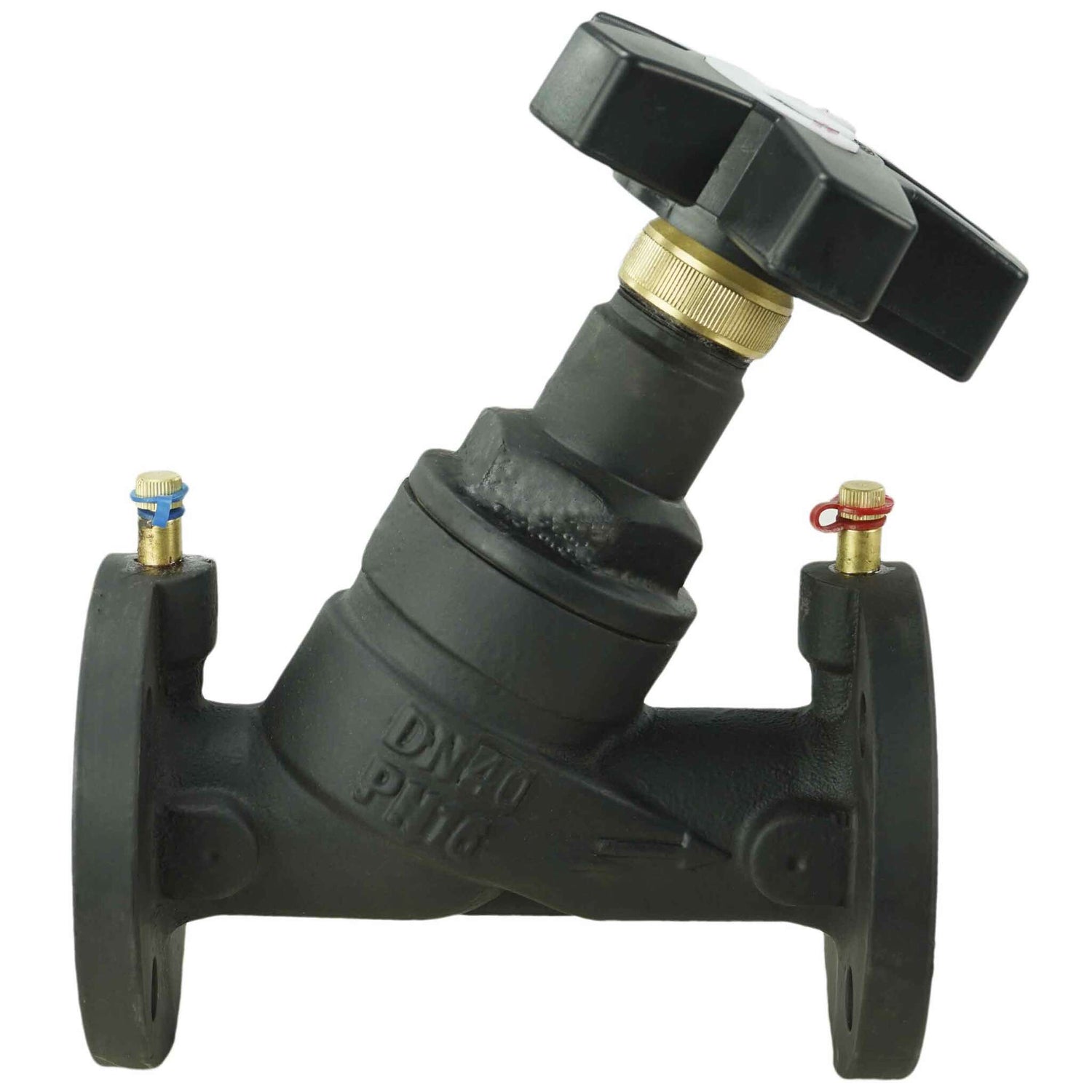

Static balancing valve Elephant VB1431V-F 16 bar, cast iron, flanged connection with nipples

€195,66
Tax included Shipping calculated at checkout.

Static balancing valve Elephant VB1431V-F 16 bar, cast iron, flanged connection with nipples - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Balancing valves are used for hydraulic balancing, regulation and limitation of coolant flow in heating, refrigeration and air conditioning systems.





Basic technical data of flanged balancing valve Elephant VB1431V-F

Parameter Value
Nominal Diameter (DN), mm 15 – 300
Nominal Pressure, bar 16
Medium Temperature, °C from -5 to +150
Ambient Temperature, °C from 0 to +50
Working Medium Water, ethylene-propylene glycol 50%
Connection Type Flanged
Valve Type Balancing valve
Body Material Ductile iron GGG50
Stem Material Stainless steel AISI 304
Disc Material Stainless steel AISI 304
Sealing Material Viton
Application Fields Heating, cooling, and air conditioning systems
Leakage class IV
Average Service Life, years 6



Overall and installation dimensions of the flanged balancing valve Elephant VB1431V-F

DN A B C D E F H G Weight
15 150 95 65 20 15 14 135 20 3
20 150 105 75 25 15 14 135 25 3,5
25 182 116 85 30 15 14 165 30 4
32 182 140 100 35 15 18 165 35 4,5
40 232 145 110 50 17 18 245 50 10
50 232 155 125 50 17 18 245 50 10
65 294 180 145 65 18 18 250 65 12
80 310 195 160 80 20 18 255 80 16
100 345 215 180 100 21 18 290 100 22
125 395 245 210 125 21 18 310 125 33
150 480 280 240 150 23 23 340 150 50
200 530 335 295 200 21 23 470 200 91
250 555 405 355 250 24 26 490 250 118
300 600 455 410 300 25 27 530 300 155



Detail sketch of flanged balancing valve Elephant VB1431V-F





Throughput values depending on the handle revolutions

DN Handle revolutions
1 2 3 4 5 6 7 8 9
Flow capacity, Kv (m3/h)
15 0,16 0,37 0,87
20 0,28 0,64 1,52 3,5
25 0,36 0,82 1,91 4,5
32 0,96 1,82 3,58 7,1 14
40 1,71 3,25 6,4 12,7 25
50 2,97 5,17 9,15 16,5 31 50
65 5,1 8,29 14,4 22,24 35,8 58 95
80 7,56 12,2 21,2 32,7 52,7 85,4 140
100 10,7 15,6 22,8 33,26 48,3 70,3 102 147,7 220
125 17 24,9 36,3 52,9 76,8 112 163 235 350
150 21,1 27,9 38 49,8 64,9 87,8 116 153 209
200 44 58 79 104 135 183 241 320 435
250 57,2 75,5 103 135 176 238 314 416 566
300 88 116 158 208 270 336 482 640 870

Specifications

  • Country of origin
    China
  • Body material
    Cast iron
  • Connection type
    Flanged
  • Operating environment
    Water, Ethylene Propylene Glycol 50%
  • Applications
    Heat Supply, Refrigeration
  • Nominal pressure
    16 bar
  • Type of seal
    Fluorine rubber
  • Locking material
    VITON
  • Balancing valve type
    Static
