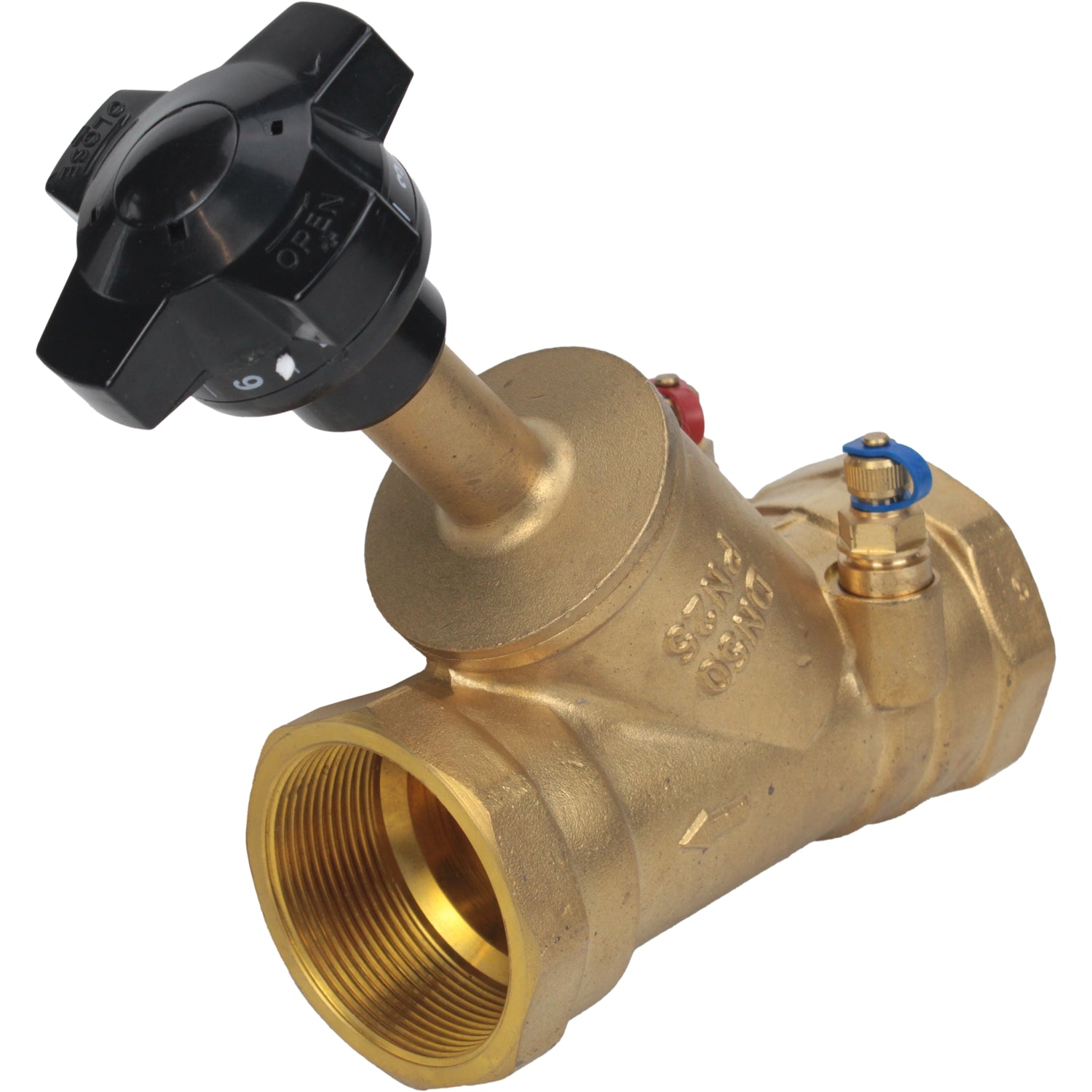

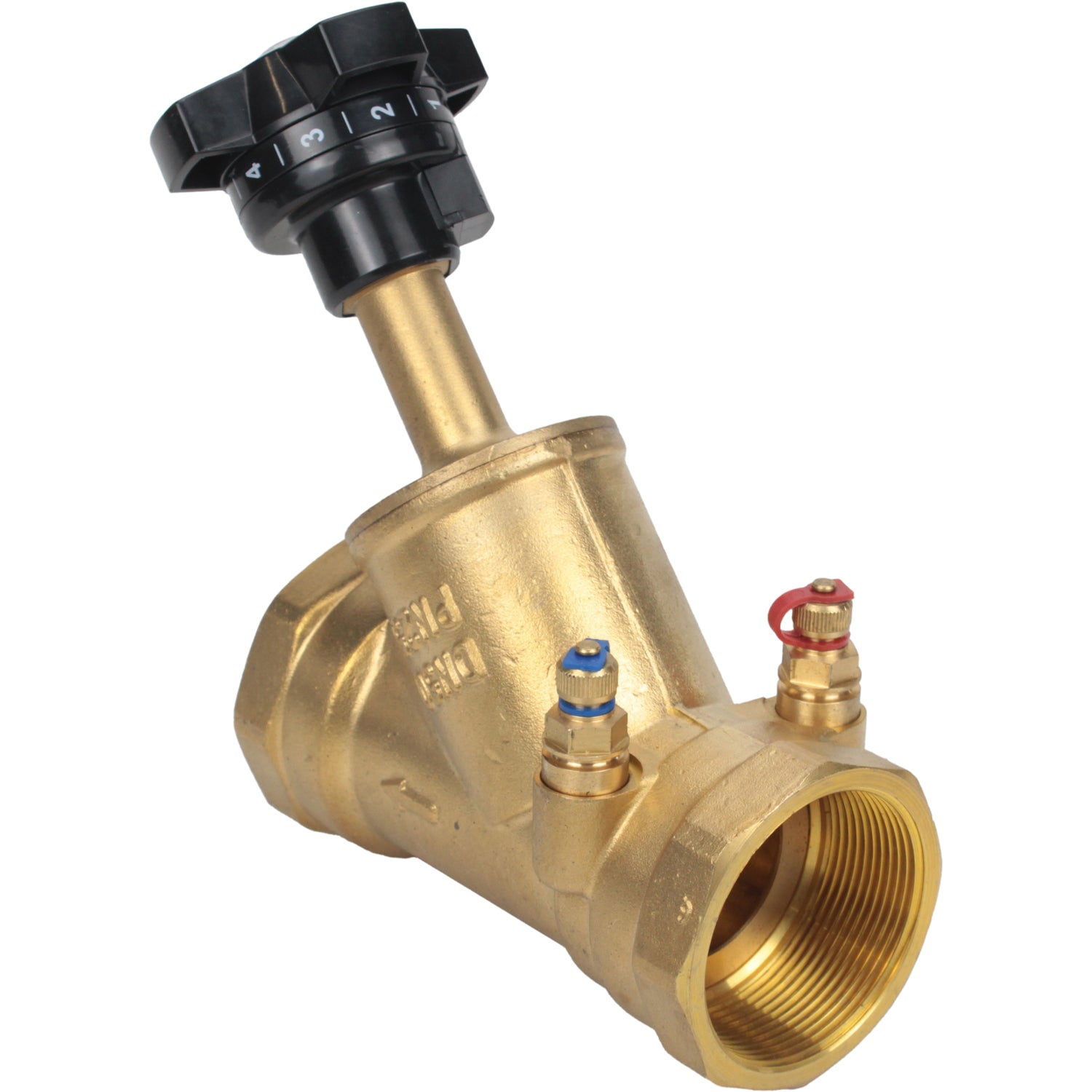

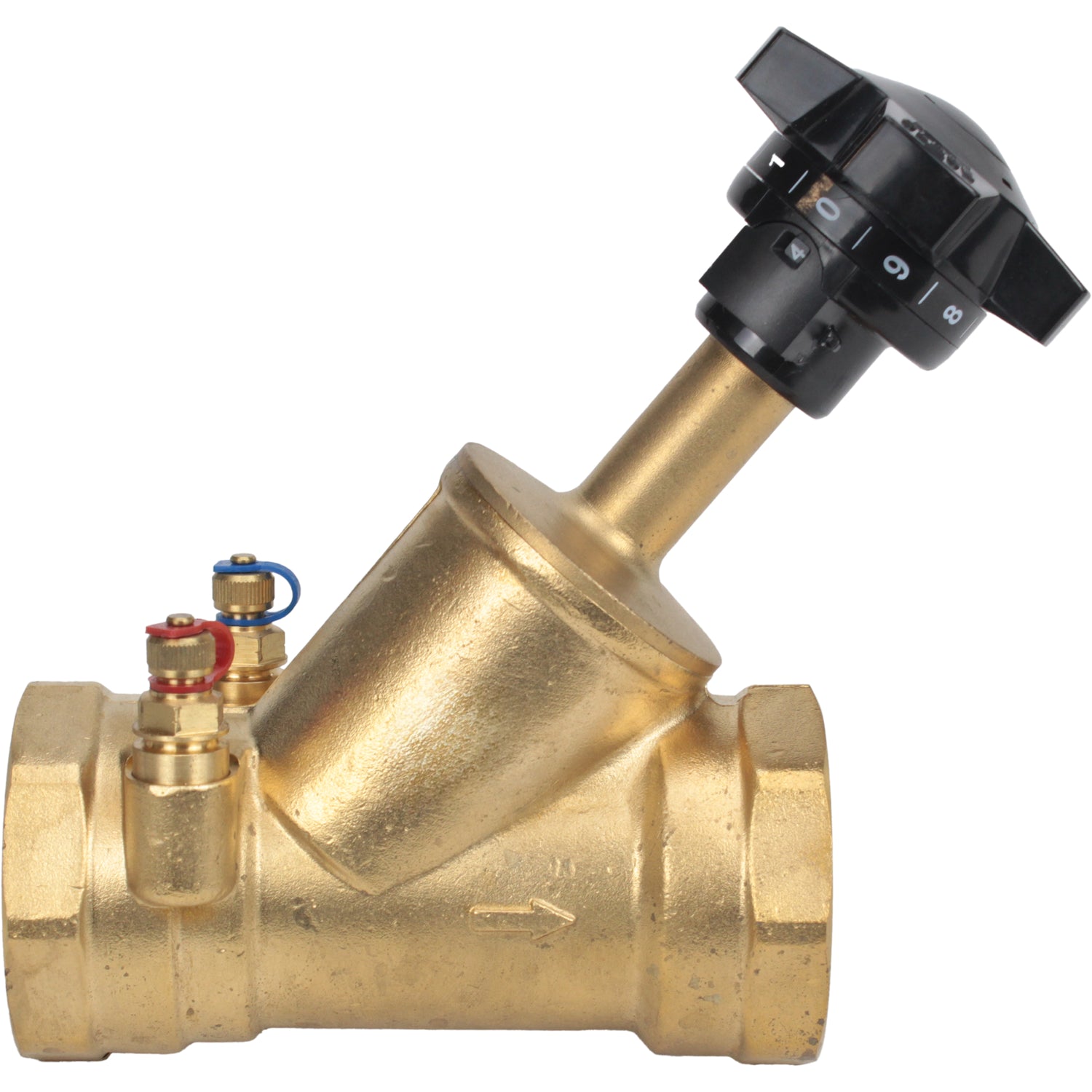

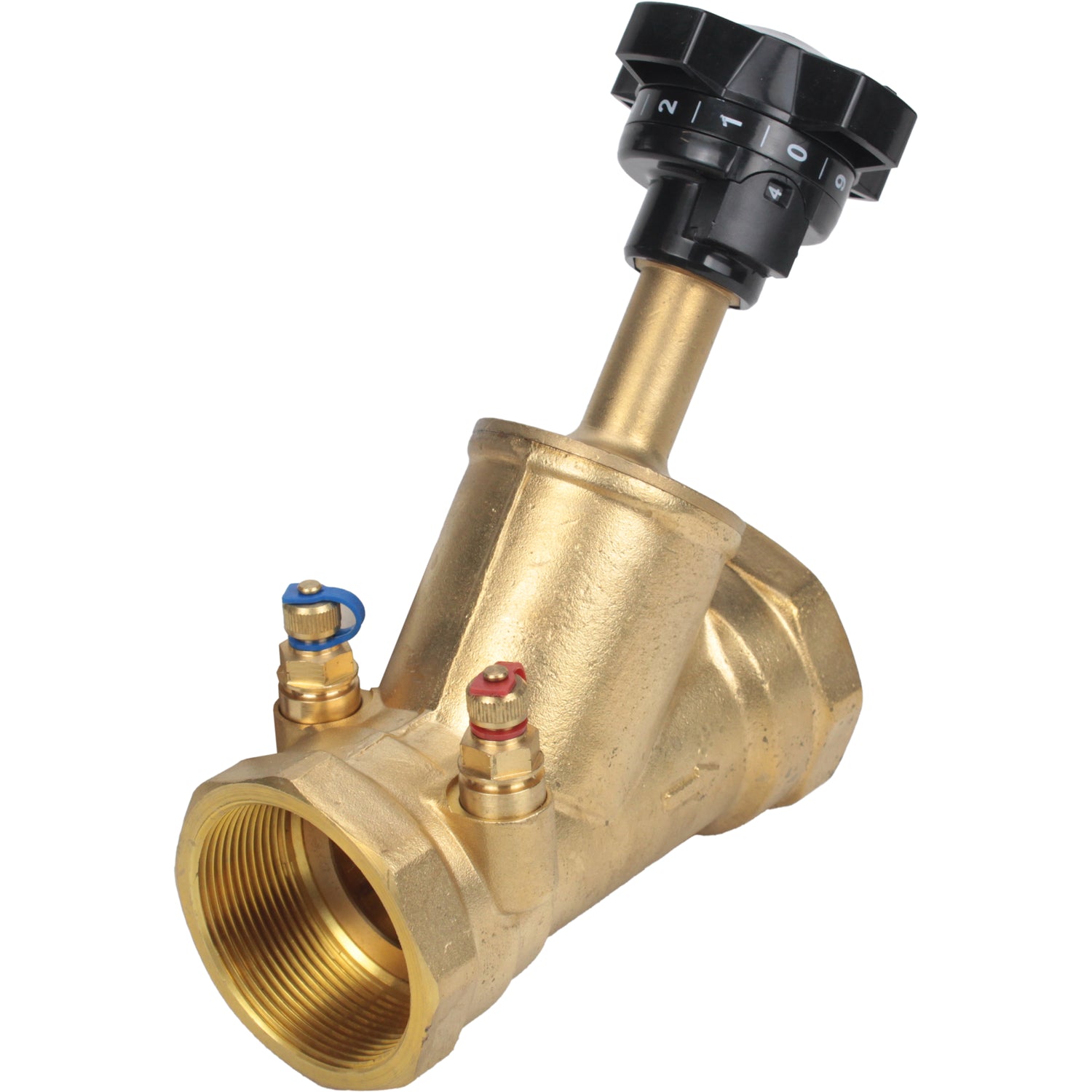

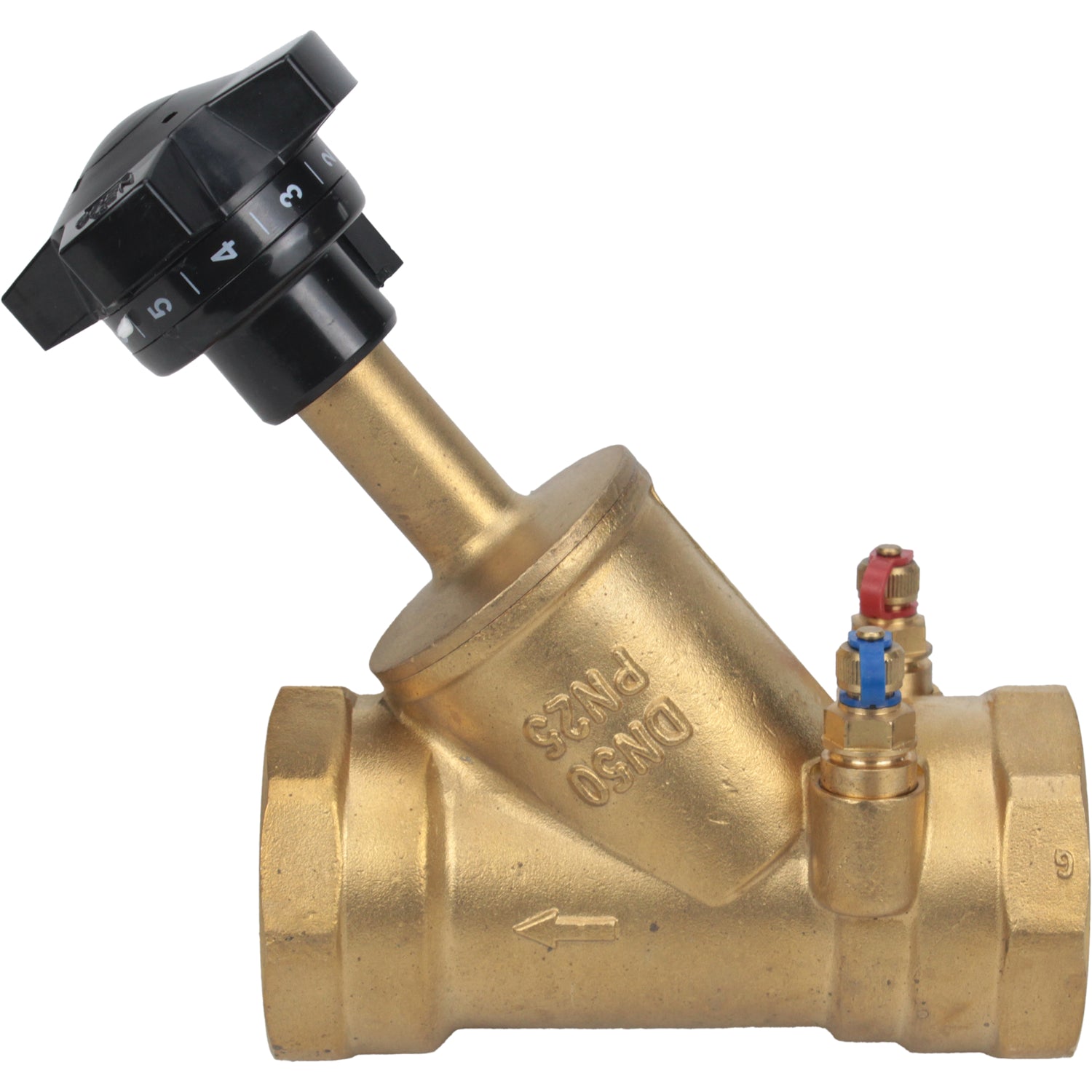

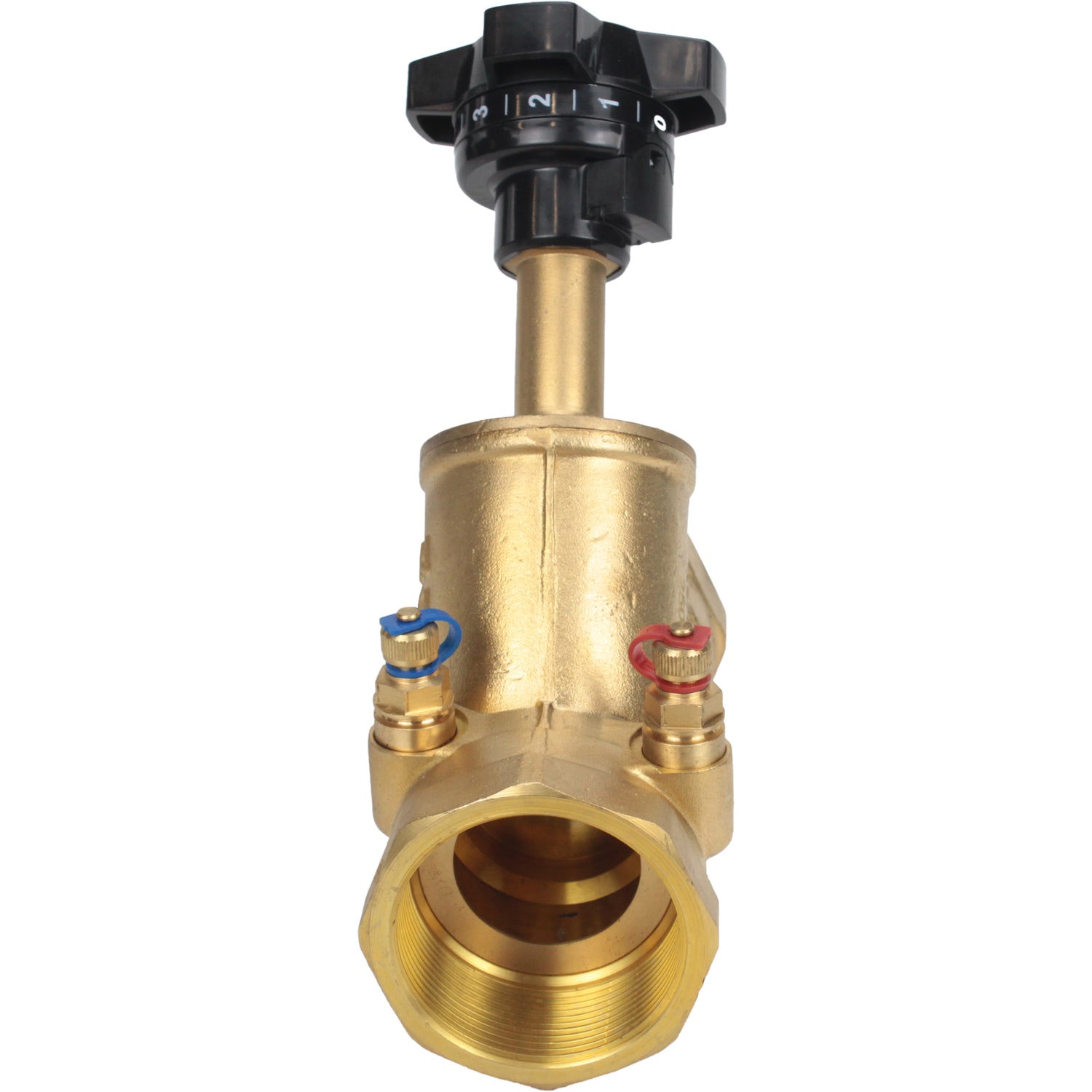

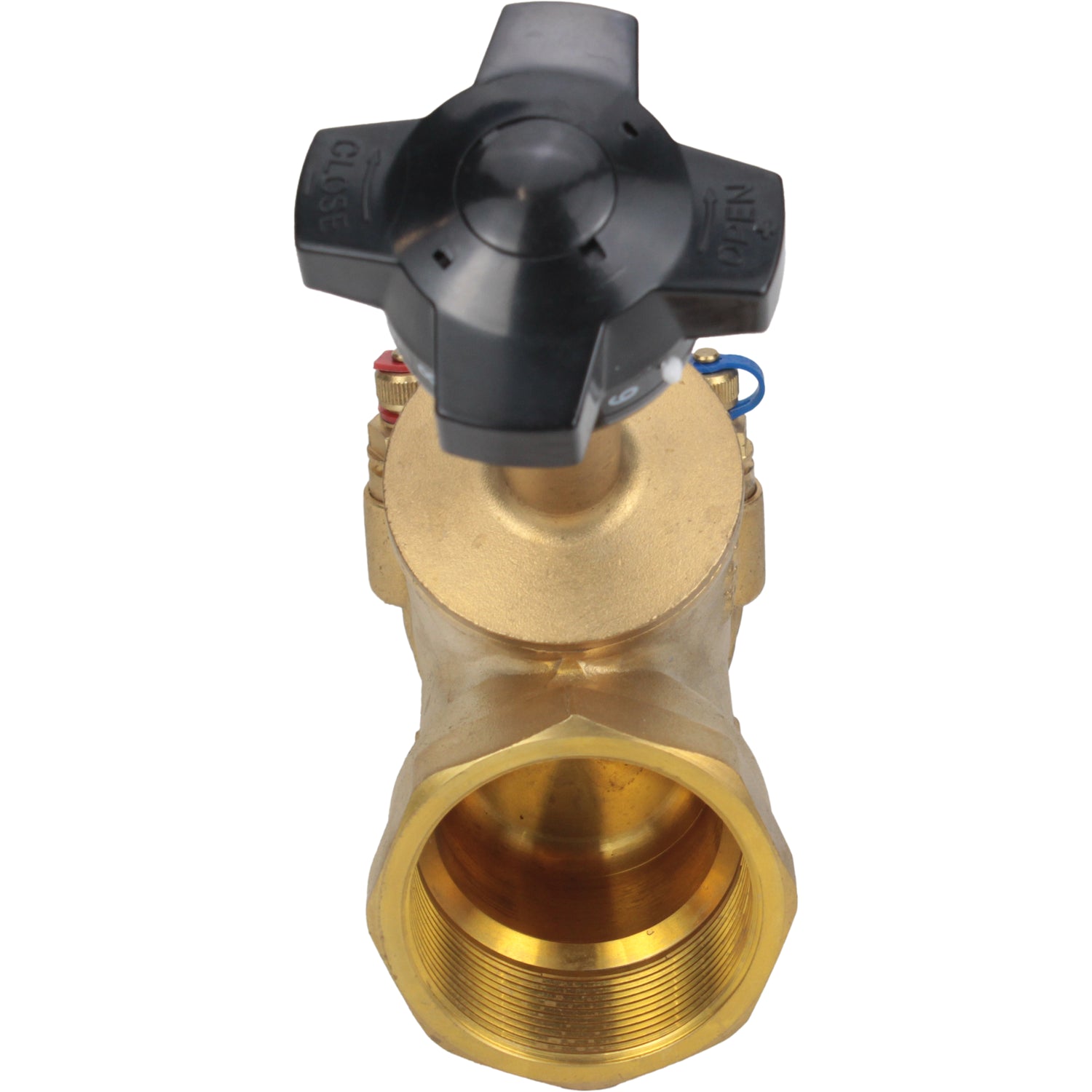

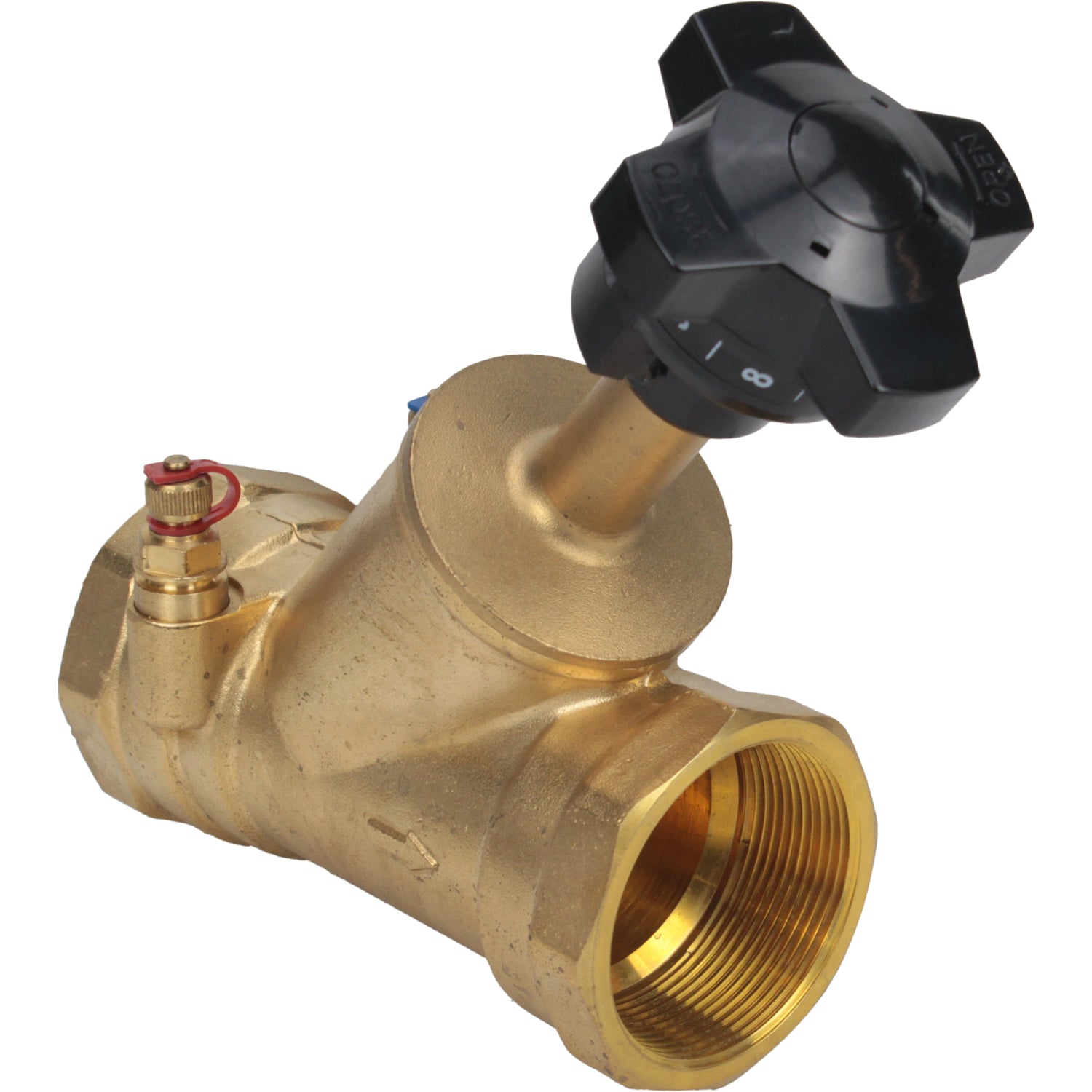

Static balancing valve Elephant VB0000P-T 25 bar brass, Threaded NPT/BSP connection with nipples
Static balancing valve Elephant VB0000P-T 25 bar brass, Threaded NPT/BSP connection with nipples - DN15 / 25 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The balancing valve is used for hydraulic balancing, regulating and limiting the flow rate in heating, cooling and air-conditioning systems with water or aqueous ethylene glycol solution with a concentration not exceeding 50%. And can also fulfil the function of a shut-off valve.
The valve design is a valve-type device. The differential pressure is set according to the setting chart or table by moving the stem with the help of a handle. Nipples for connection of a differential pressure gauge allow measuring the flow rate of the heating medium with an accuracy of ±5%.
Dimensions of balancing valves Elephant VB0000P-T brass, threaded, with nipples
| Size | L | L1 | H | B | Weigh |
| DN15 | 87 | 143 | 112 | 12 | 0.49 |
| DN20 | 96 | 142 | 108 | 15 | 0.58 |
| DN25 | 100 | 153 | 125 | 20 | 0.84 |
| DN32 | 114 | 163 | 129 | 25 | 1 |
| DN40 | 124 | 177 | 142 | 32 | 1.2 |
| DN50 | 145 | 190 | 154 | 40 | 1.9 |
Sketch of balancing valves Elephant VB0000P-T brass, threaded, with nipples
Part materials of balancing valves DN.ru VB0000P-T brass, Threaded NPT/BSP connection with nipples
| № | Part name | Material |
| 1 | Case | DZR brass |
| 2 | Stem | DZR brass |
| 3 | Spool gasket | PTFE |
| 4 | Gland rings | EPDM |
| 5 | nipple | DZR brass |
| 6 | Handle | ABS-plastic |
Material sketch of balancing valves Elephant VB0000P-T brass, Threaded NPT/BSP connection with nipples
Specifications
Specifications
-
Country of origin
-
Body material
-
Connection type
-
Operating environment
-
Nominal pressure
-
Type of seal
-
Locking material
-
Balancing valve type
