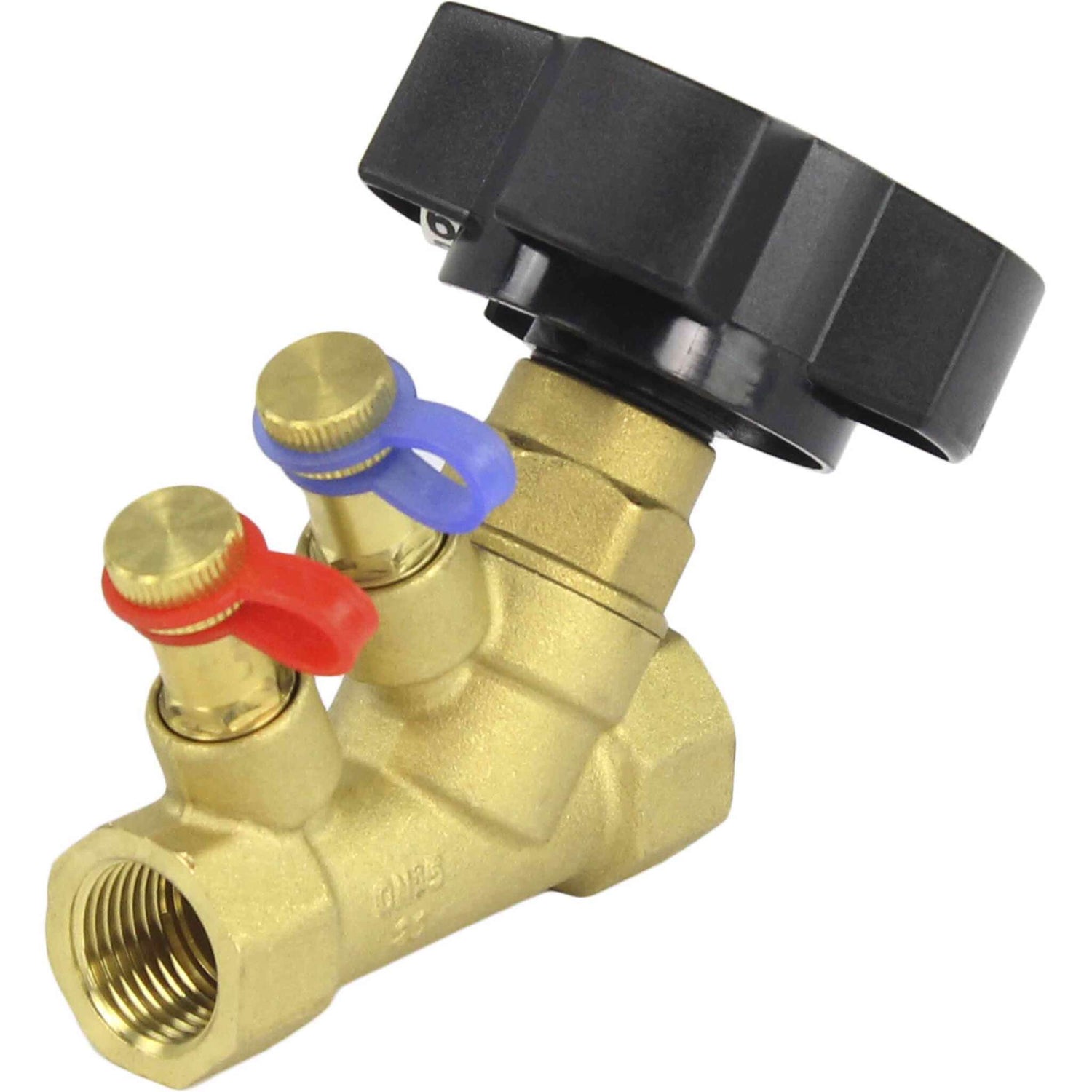

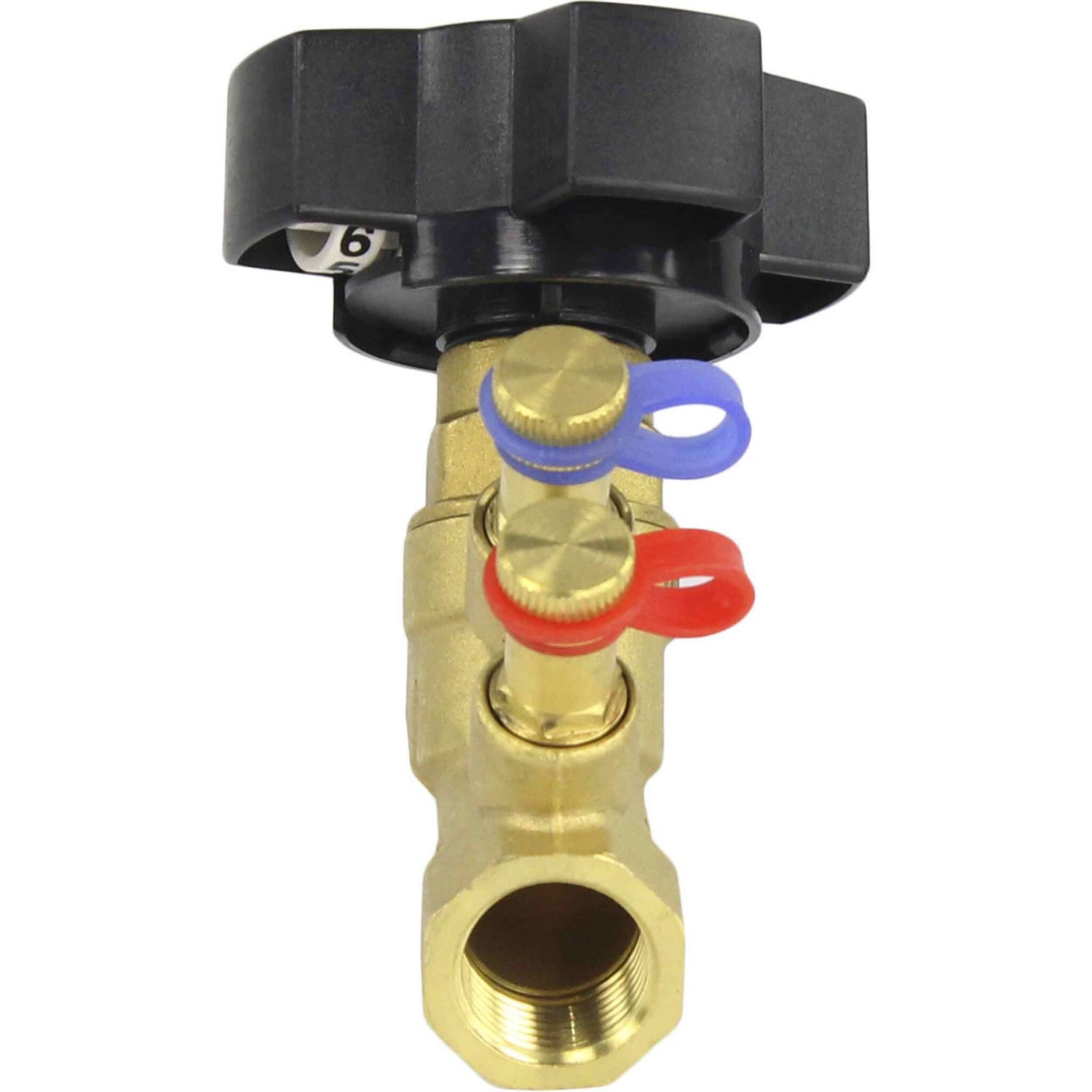

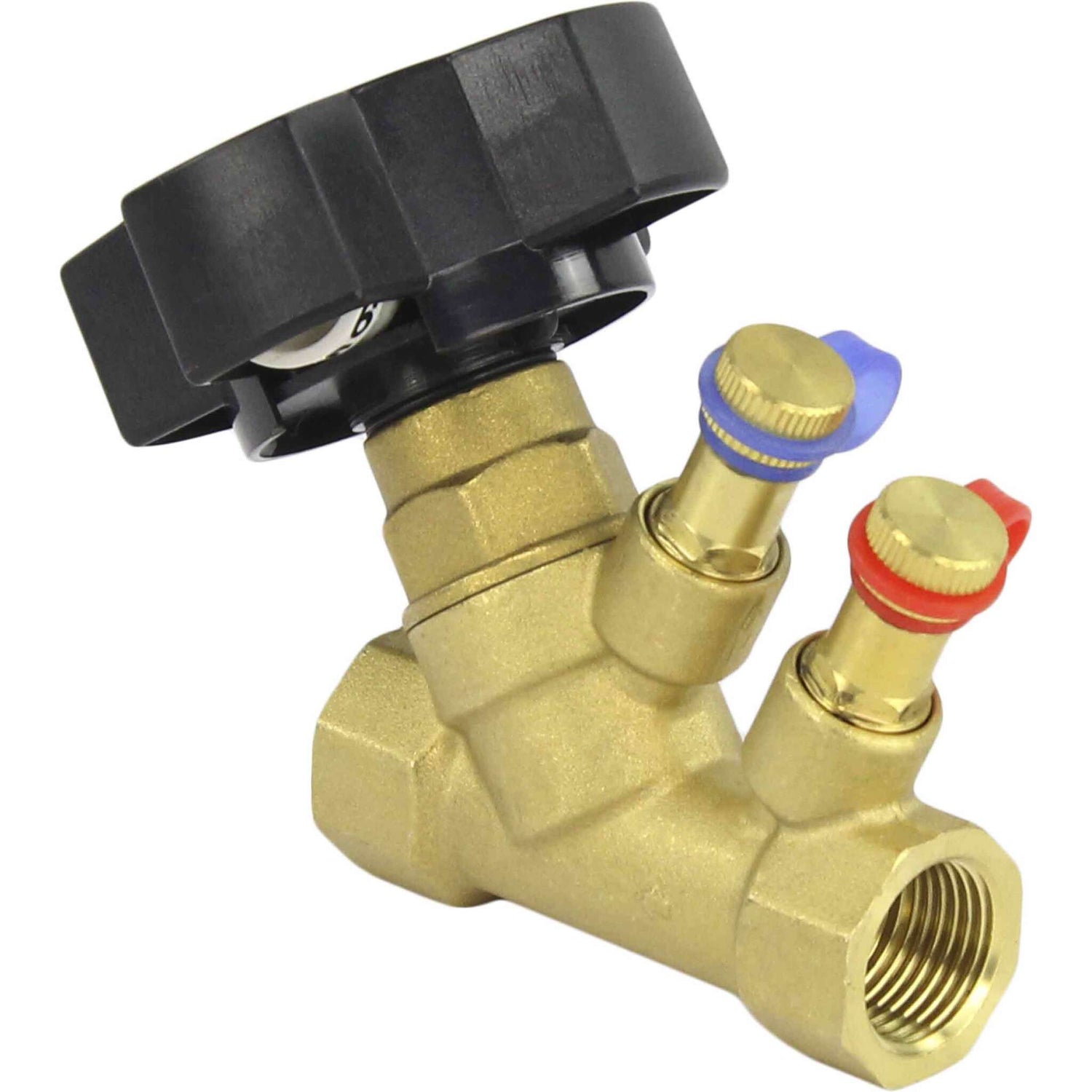

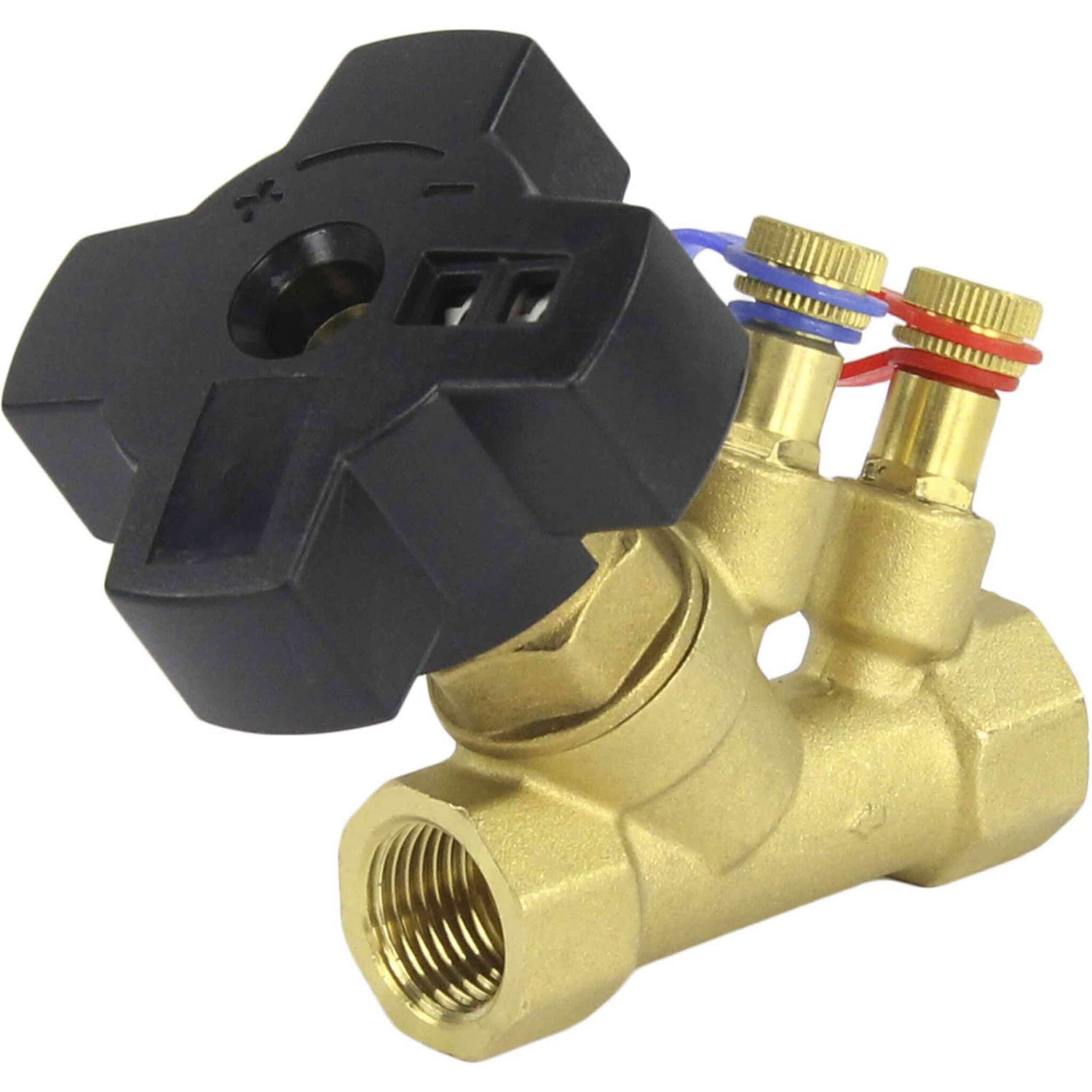

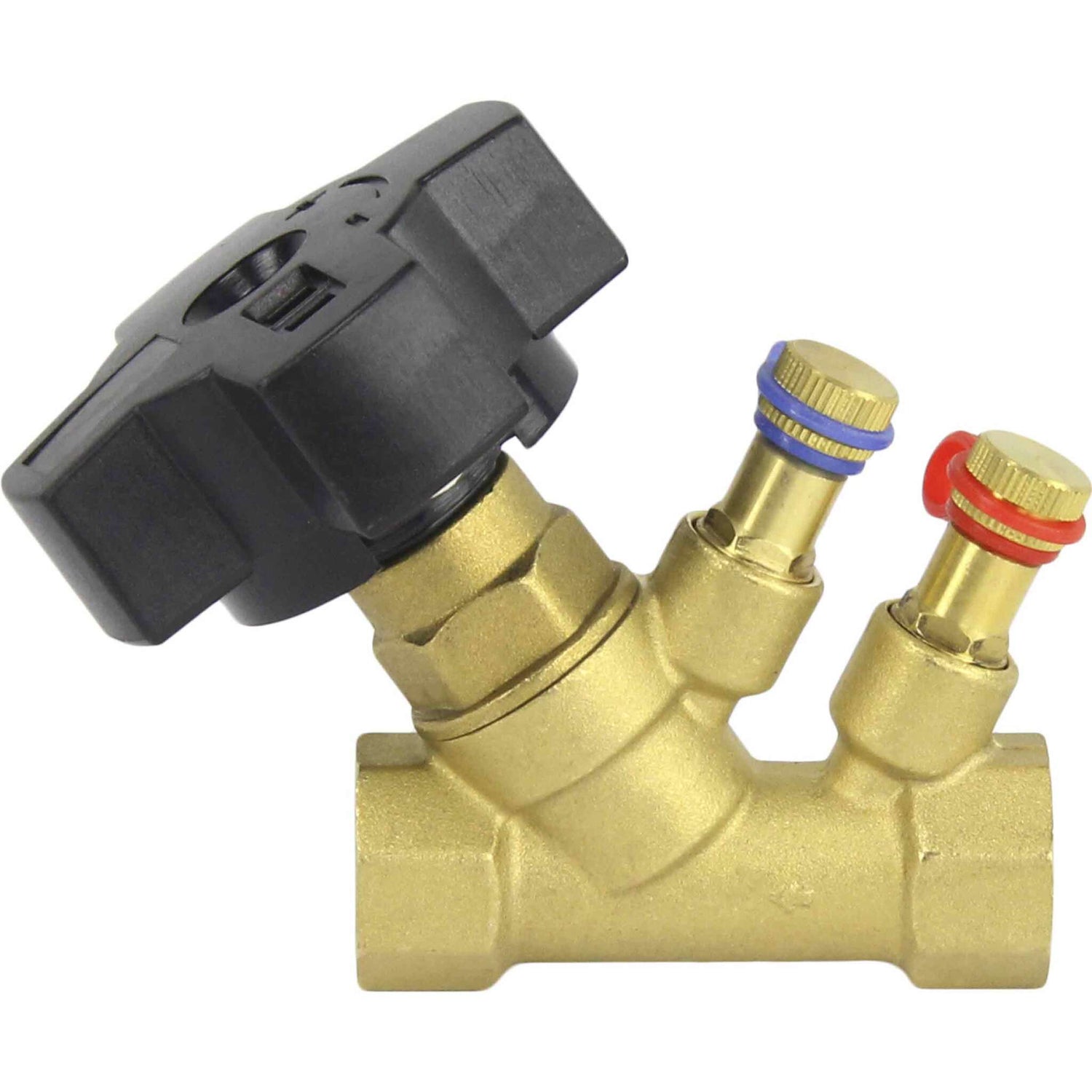

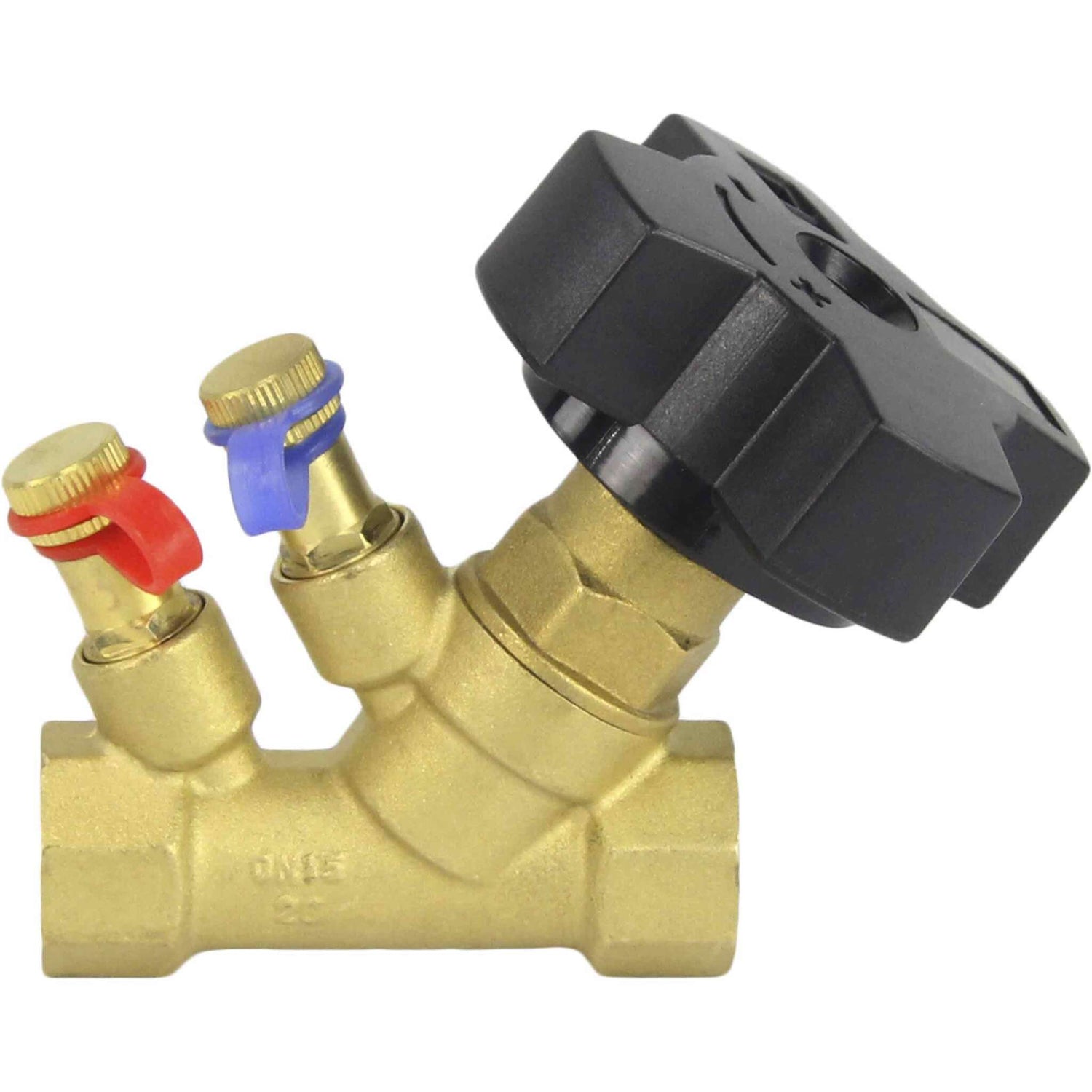

Static balancing valve Elephant PSI 232 brass, Threaded NPT/BSP connection
Static balancing valve Elephant PSI 232 brass, Threaded NPT/BSP connection - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
The balancing valve is designed for hydraulic balancing, regulation and limitation of the flow of the working medium in heating and cooling systems. The valve can effectively solve the problem of uneven distribution of temperature and heat in the heating system. At the same time, the balancing valve will allow you to accurately adjust the pressure drop and flow rate for accurate balancing of the working medium in the pipeline network system.
Overall dimensions of the socket balancing valve Elephant PSI 232 brass
Sketch of coupling balancing valve Elephant PSI 232 brass, Threaded NPT/BSP connection
| DN | L | Weight |
| mm | kg | |
| 15 | 76 | 0.36 |
| 20 | 80 | 0.415 |
| 25 | 88 | 0.54 |
| 32 | 95 | 0.73 |
| 40 | 105 | 0.98 |
| 50 | 118 | 1.47 |
Materials of parts of the socket balancing valve Elephant PSI 232 brass, Threaded NPT/BSP connection
Detailed sketch of socket balancing valve Elephant PSI 232 brass, Threaded NPT/BSP connection
| № | Name | Quantity | Material |
| 1 | Pressure plate gasket | 1 | PTFE |
| 2 | Washer | 1 | PTFE |
| 3 | Pressure plate | 1 | Brass |
| 4 | Plug | 1 | Brass |
| 5 | Valve stem | 1 | Brass |
| 6 | Spindle | 1 | Brass |
| 7 | Setting blocker | 1 | Brass |
| 8, 9 | O-ring - black | 3 | EPDM |
| 10 | locking ring | 1 | 15XM steel |
| 11 | Body | 1 | Brass |
| 12 | Exhaust valve locking cap | 2 | Brass |
| 13 | O-ring gasket | 2 | EPDM |
| 14 | Measuring nipple | 2 | Brass |
| 15 | Blue connecting tape | 1 | EPDM |
| 16 | Nipple cover | 2 | Brass |
| 17 | Cover gasket | 2 | EPDM |
| 18 | Red connecting tape | 1 | EPDM |
| 19 | Stop screw | 1 | Brass |
| 20 | Flywheel plug | 1 | PA66 plastic |
| 21 | Flywheel | 1 | PA66 plastic |
Specifications
Specifications
-
Country of origin
-
Body material
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
-
Balancing valve type
