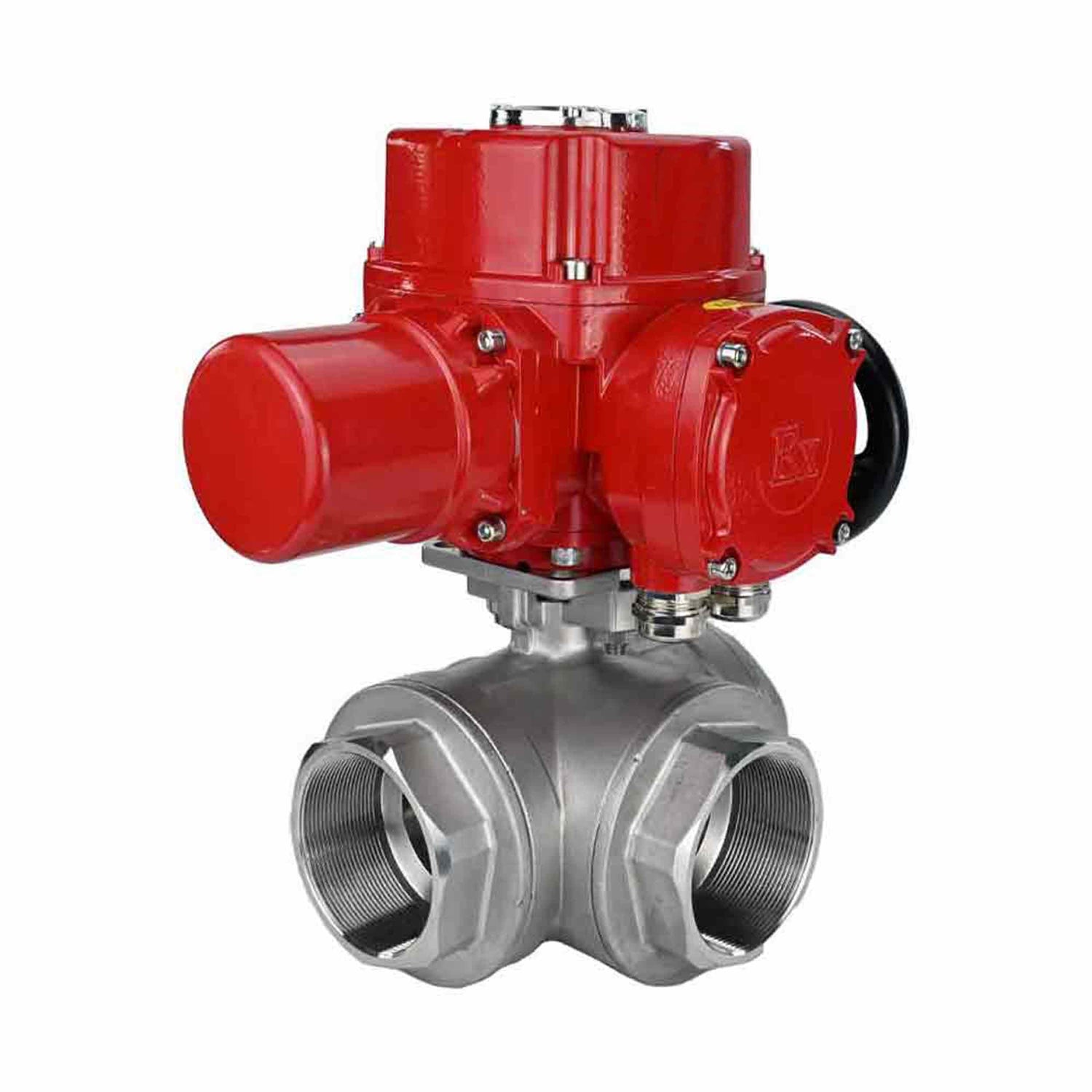

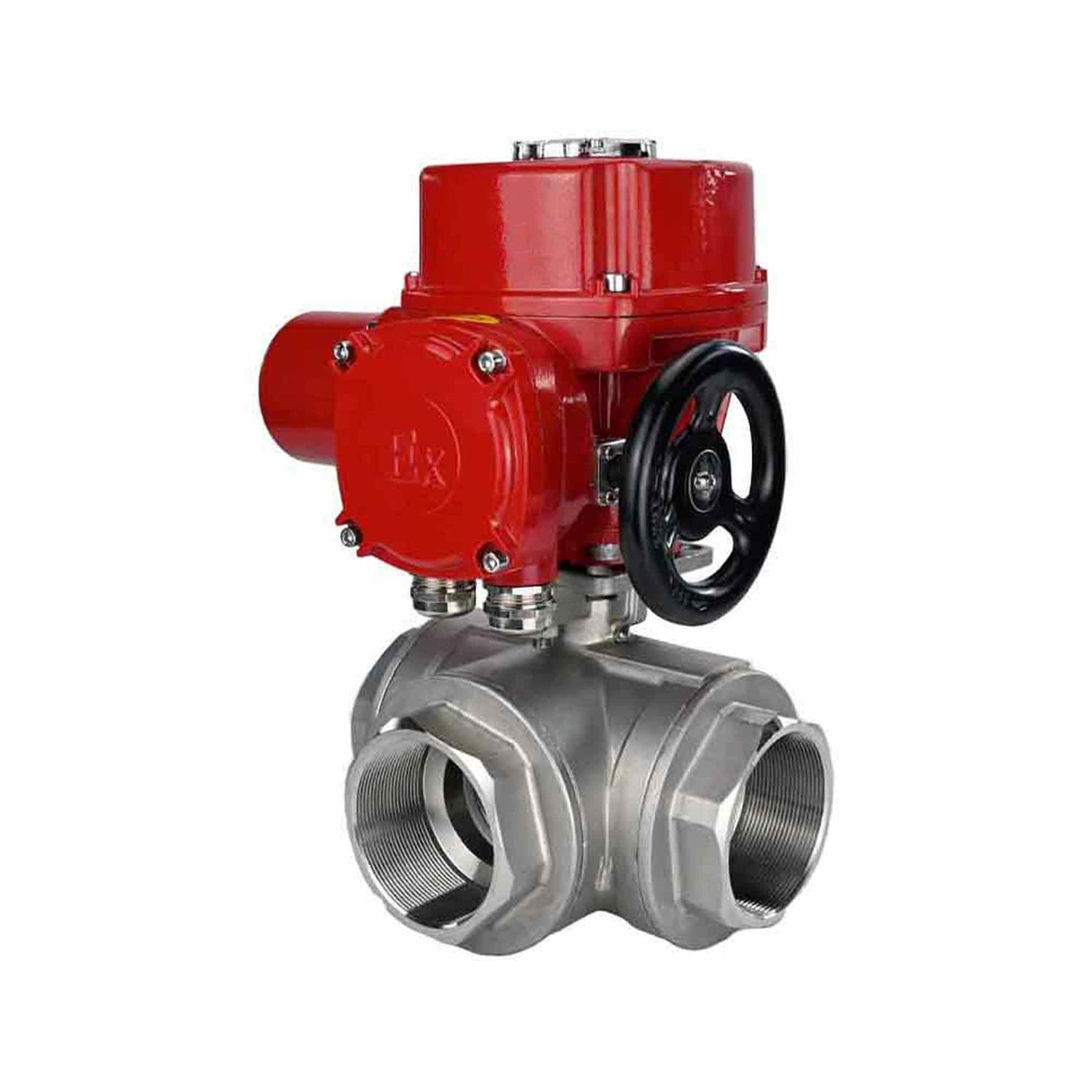

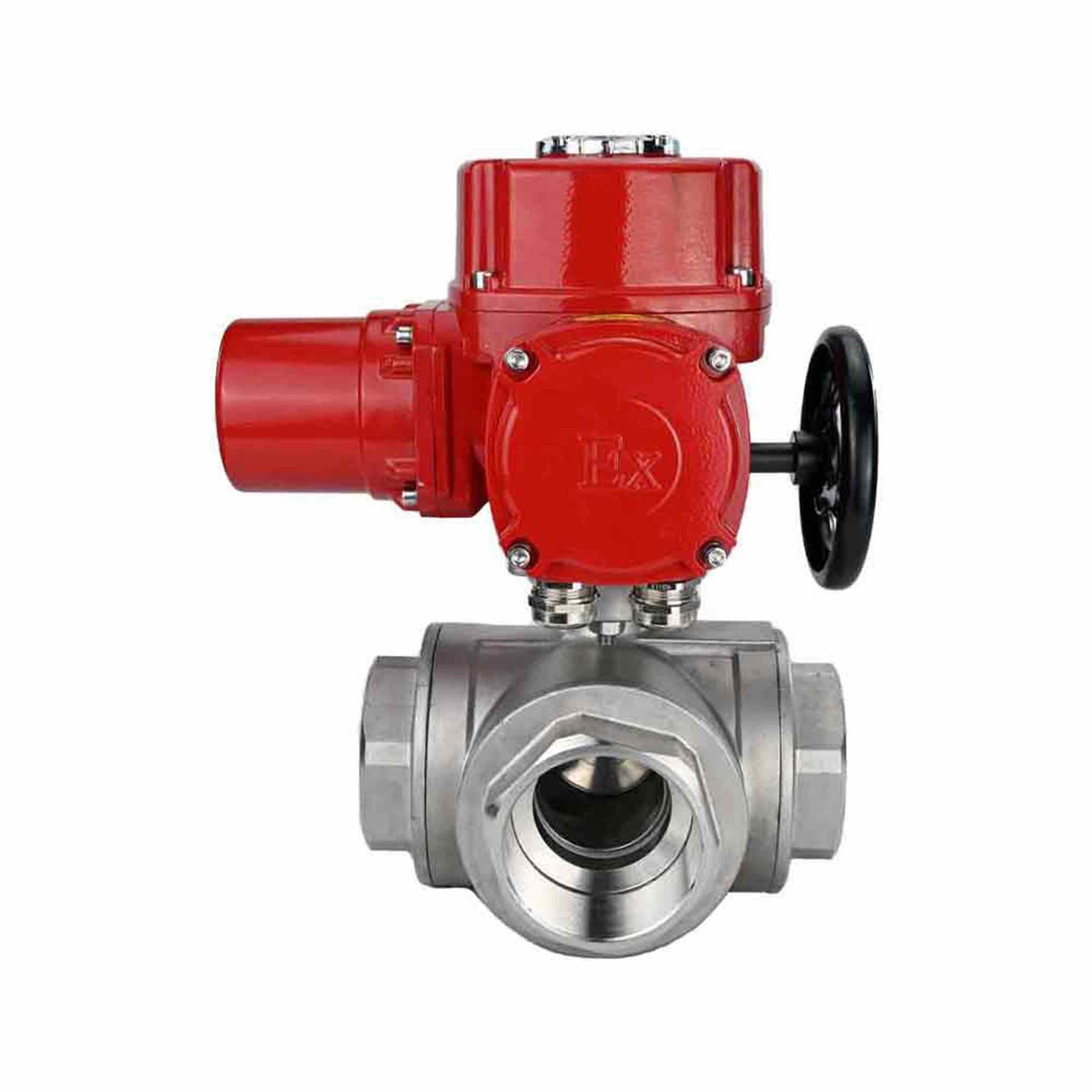

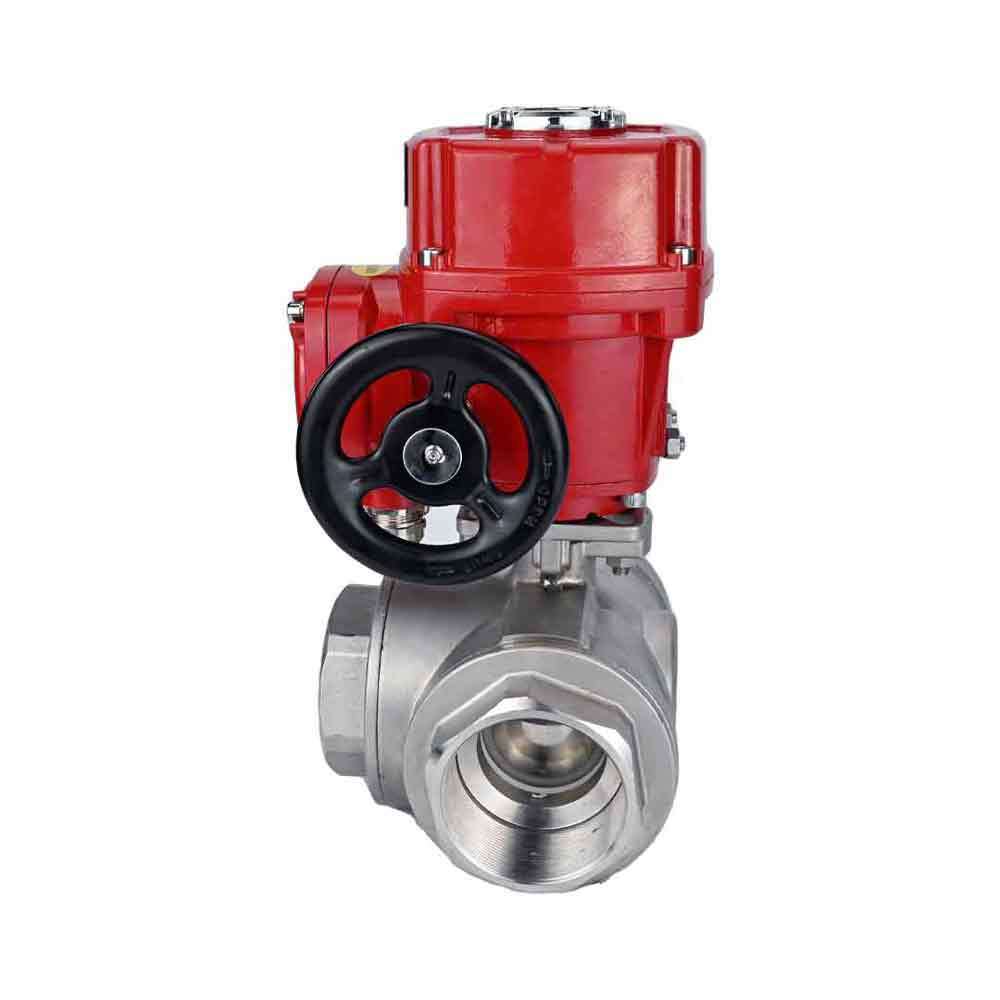

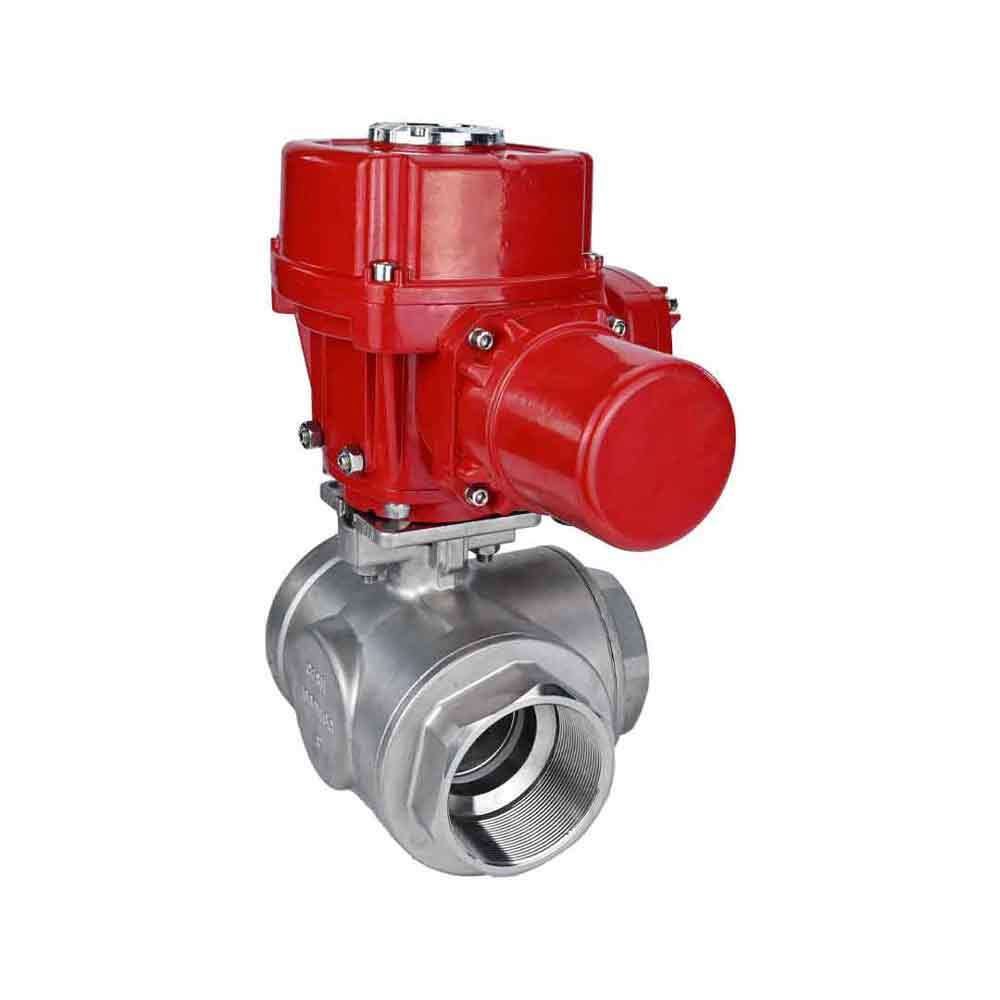

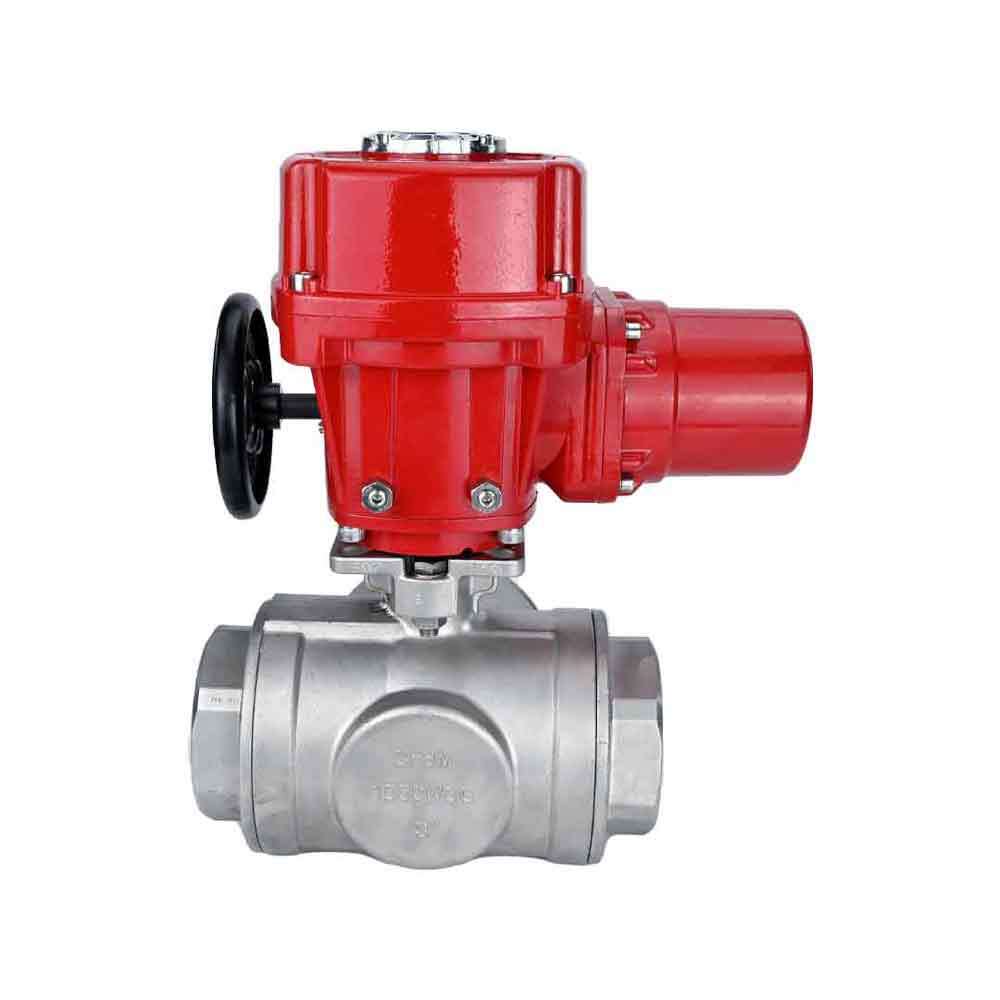

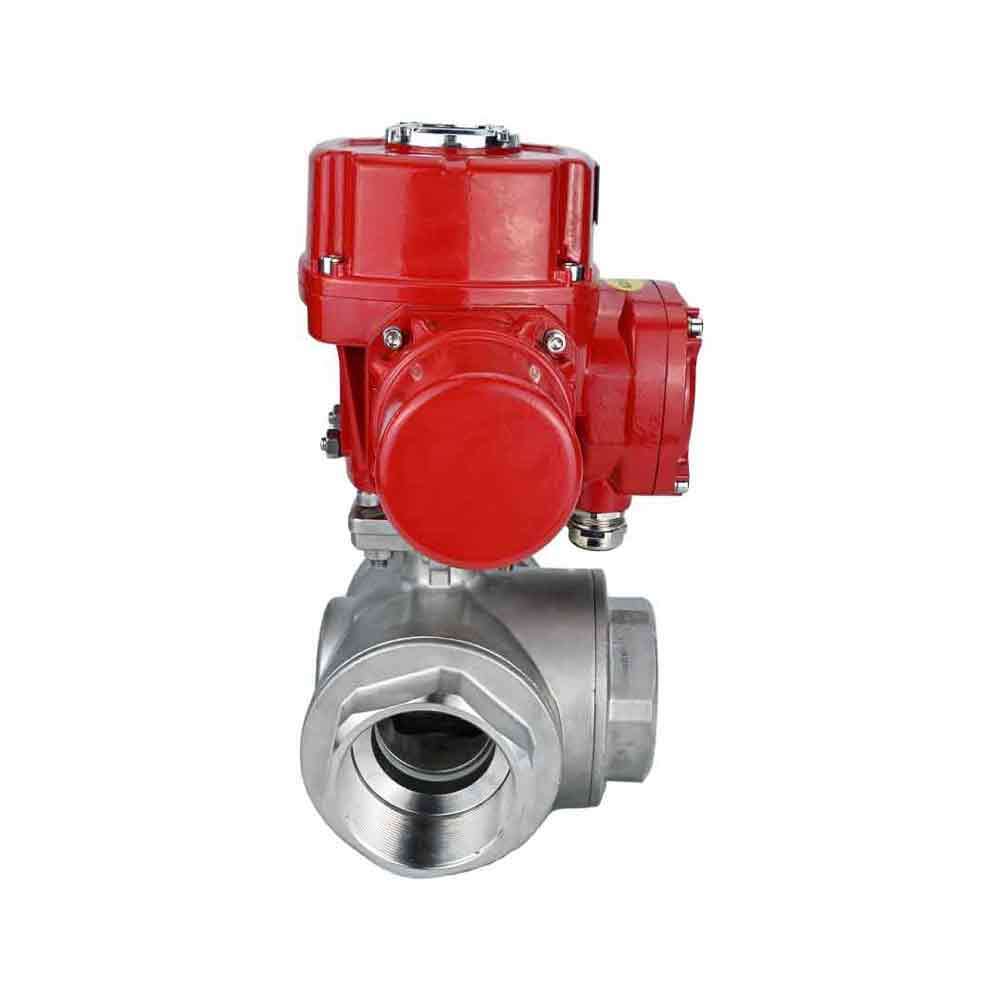

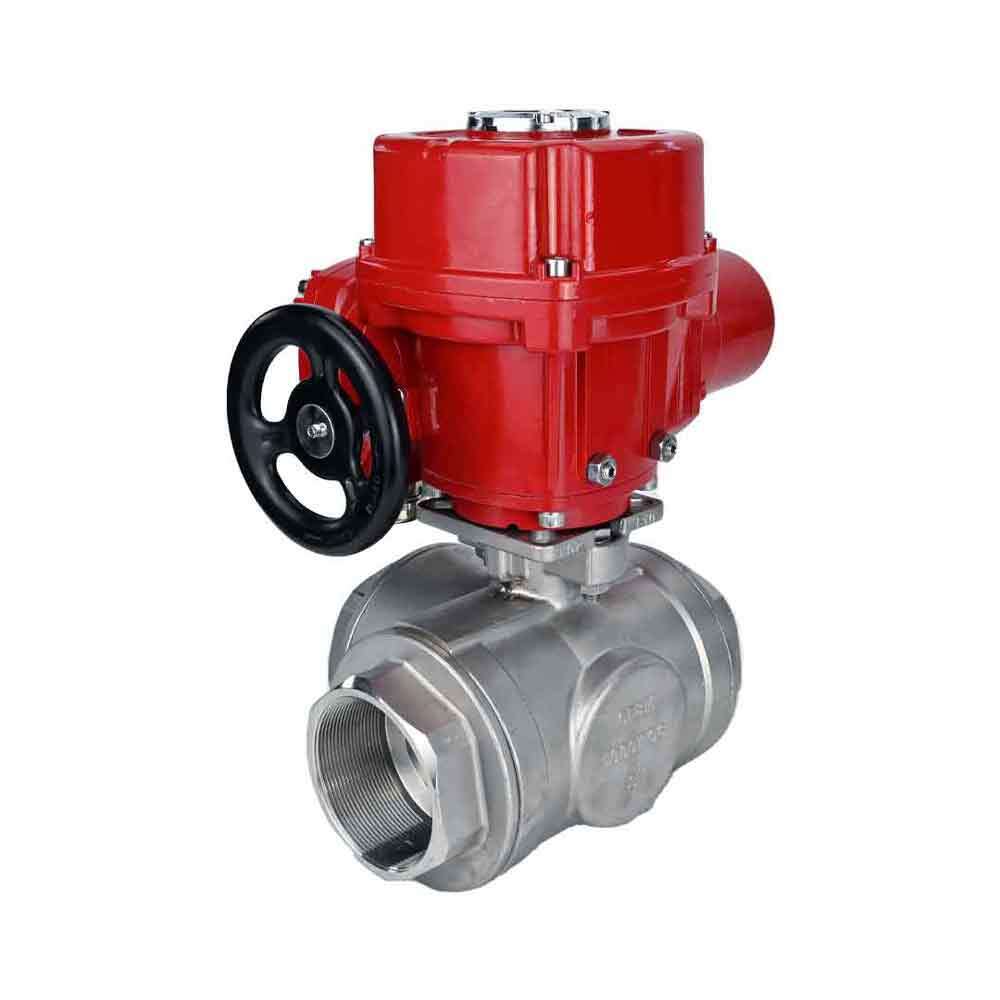

Stainless steel ball valve Elephant RP.SS316.200.MM.ISO 63 bar threaded, standard port, three way, L-type, body material - stainless steel AISI 316, with quater-turn electric actuator Elephant QT-W (M) EX 380V
Stainless steel ball valve Elephant RP.SS316.200.MM.ISO 63 bar threaded, standard port, three way, L-type, body material - stainless steel AISI 316, with quater-turn electric actuator Elephant QT-W (M) EX 380V - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.
Technical data of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H QT-EX-M-O2-380VAC-U1
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63/40 |
| Temperature of working environment t, ⁰C | from -20 to +200 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | threaded |
| Type of flow section | standard pass |
Sketch of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H QT-EX-M-O2-380VAC-U1
Overall and installation dimensions of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H QT-EX-M-O2-380VAC-U1
| D.N. | Drive model | L±1.5, mm | D, mm | H, mm | L1, mm |
| DN10 | QT-W(M)-005 | 71 | 10 | 281 | 215 |
| DN15 | QT-W(M)-005 | 71 | 12 | 281 | 215 |
| DN20 | QT-W(M)-005 | 82 | 15 | 281 | 215 |
| DN25 | QT-W(M)-005 | 98 | 18 | 281 | 215 |
| DN32 | QT-W(M)-005 | 118 | 25 | 281 | 215 |
| DN40 | QT-W(M)-005 | 122 | 32 | 281 | 215 |
| DN50 | QT-W(M)-005 | 150 | 38 | 281 | 215 |
| DN65 | QT-W(M)-005 | 178 | 50 | 281 | 215 |
| DN80 | QT-W(M)-010 | 202 | 64 | 281 | 215 |
| DN100 | QT-W(M)-010 | 231 | 78 | 281 | 215 |
Detail sketch of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H QT-EX-M-O2-380VAC-U1
Materials of parts of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H QT-EX-M-O2-380VAC-U1
| Item No. | Part name | Material | Quantity |
|---|---|---|---|
| 1 | Lid | SS316 | 3 |
| 2 | Saddle rings | PPL | 4 |
| 3 | Laying the connection | PTFE/RPTFE | 3 |
| 4 | Thrust washer | PTFE/RPTFE | 1 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS304 | 1 |
| 8 | Ball valve | S304/S316 | 1 |
| 9 | Frame | SS316 | 1 |

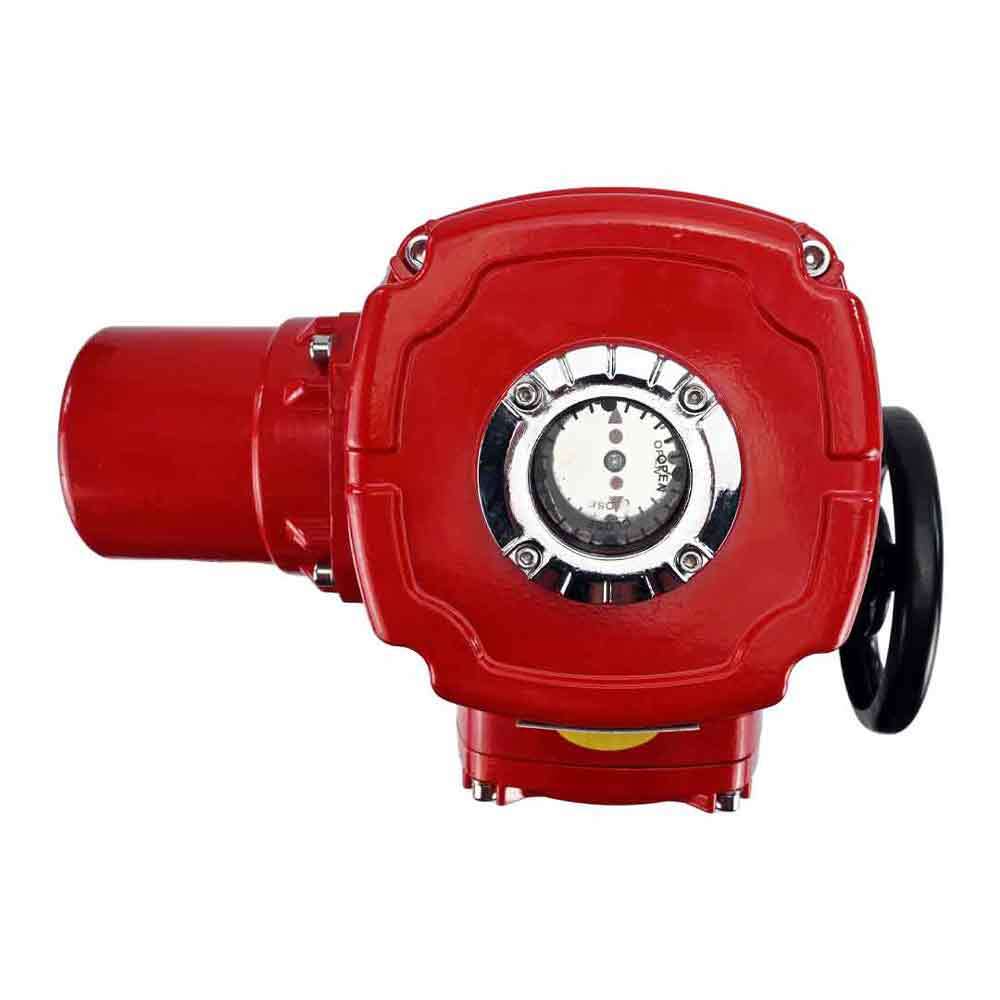

Characteristics of QT-EX-M-0-380VAC actuators
| Parameter | Value |
| Enclosure protection class | IP67 |
| Control type | ON / OFF |
| Rotation angle, ° | 90±10 |
| Power supply voltage | 220 VAC, 380 VAC, 24 VDC |
| Motor type | Asynchronous motor with squirrel cage rotor |
| Limit switches | 1xOpen/Close, SPDT, 250VAC 10A |
| Auxiliary limit switches | 1xOpen/Close, SPDT, 250VAC 10A |
| Torque switch | 1xOpen/Close, SPDT, 250VAC 10A (except QT-EX-010EM-O2-x-U1) |
| Internal thermal protection | Off at 115°C ±5°C, on at 97°C ±5°C |
| Visual position indicator | Available |
| Manual override | Handwheel |
| Electric actuator position self-locking | Self-locking by worm gear mechanism |
| Mechanical limit stops | Two external adjustable stops |
| Cable entry | M20×1.5 and M36×2 |
| Ambient temperature, °C | from -20 to +70 |
| Lubrication | Aluminum-based (EP type) |
| Explosion-proof standard | ExdIICT4 |
| Enclosure | Aluminum alloy with powder epoxy anti-corrosion coating |
| Max ambient humidity, % | 90 (non-condensing) |
| Average number of open/close cycles | 60 |
Wiring diagram for actuator QT-EX-M-0-380VAC
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsWater Supply, Heat Supply
-
Voltage
-
Actuator cycle time
-
Explosion-proof
-
Torque
-
Type of electric actuator
-
Control signal
-
Rated current consumption
-
Power consumption
Reviews (0)
Reviews (0)
Ball valve ELEPHANT BV32xP 4pc -SP-3x-T-ISO-H
Electric quarter-turn actuator ELEPHANT QT-EX-xEM-O2-x-U1 explosion-proofPayment & Security
