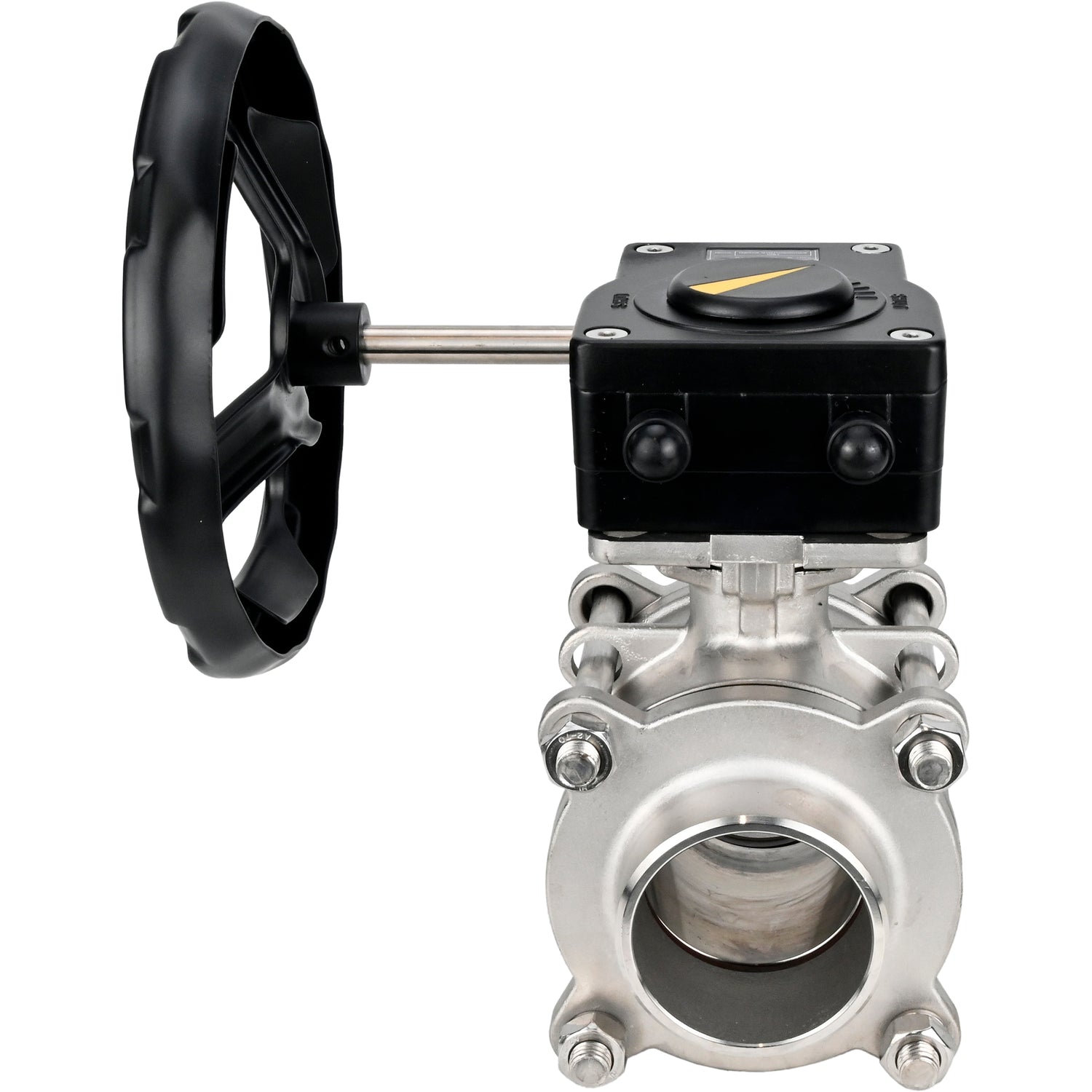

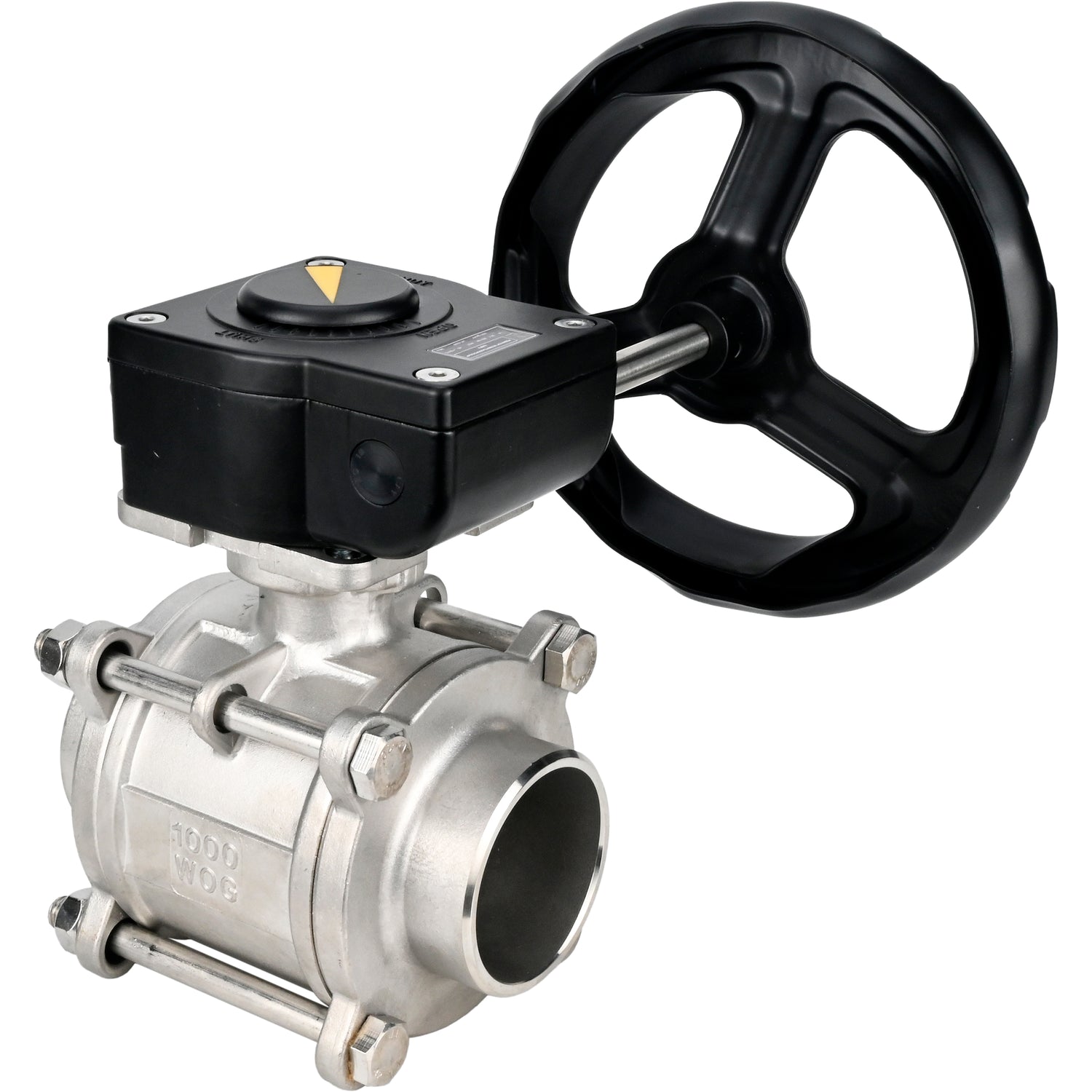

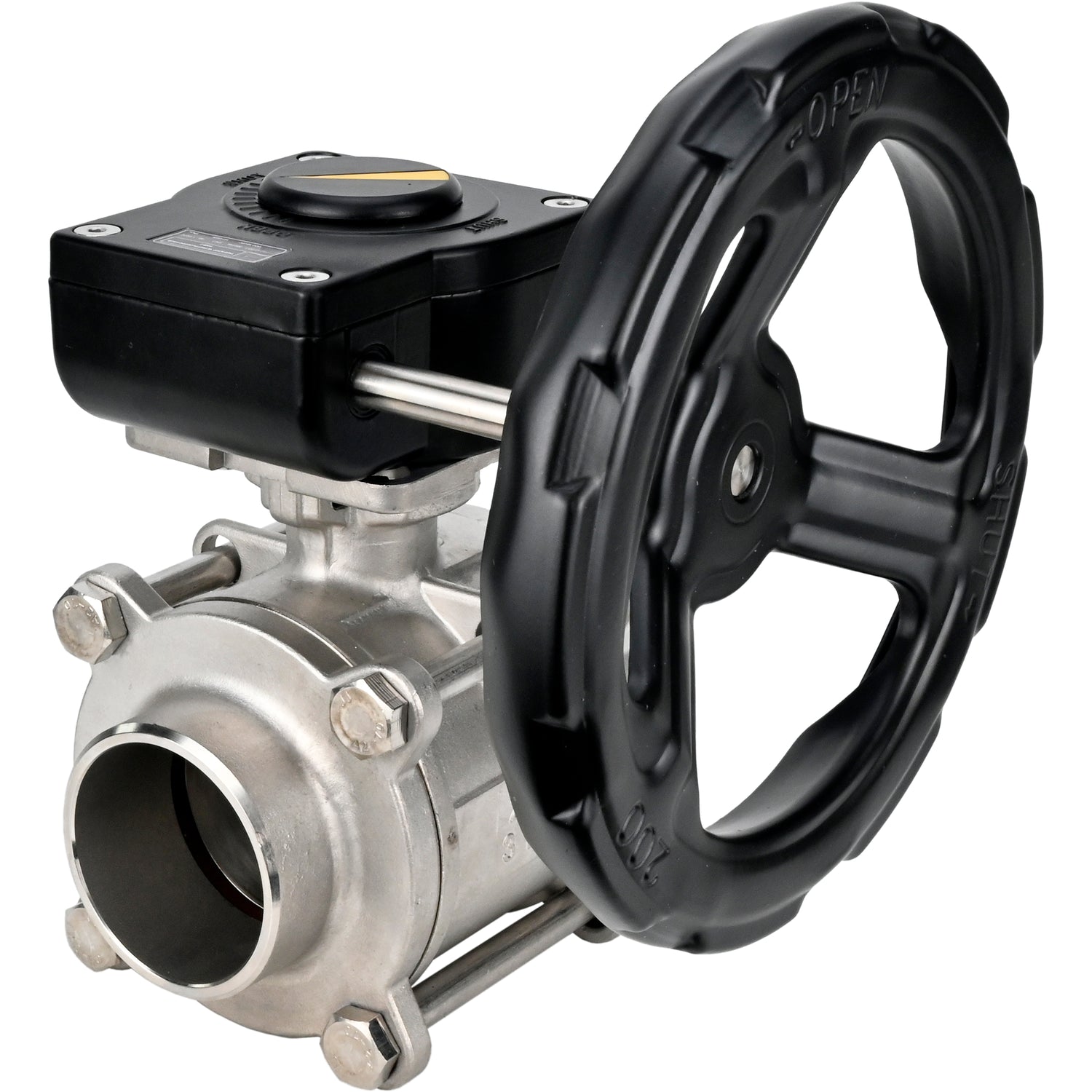

Stainless steel ball valve Elephant kshpp-316200-iso_ham, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, handle operated

€120,14

Tax included Shipping calculated at checkout.

Connection size

Pressure

Product variants

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

Technical data of ball valves Elephant BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with HAM reducer

Nominal diameter DN, mm	10-100
Working pressure PN, bar	63
Temperature of working environment t, ⁰C	from -20 to +200
Working environment	water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline	welding/welding
Type of flow section	full bore
Control type	manual (handle)
Addition	installation of electric or pneumatic drive is possible (ISO 5211-2001)

Overall and installation dimensions of ball valves Elephant BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with gearbox HGBF

DN	L	D	H	W
DN	mm
10	66	10	50	100
15	65	19	52	100
20	74	22	60	100
25	82	27	78	160
32	99	35	88	160
40	108	40	95	190
50	132	53	100	190
65	161	64	120	210
80	196	79	130	215
100	245	103	160	253

Sketch of ball valves Elephant BV3232P-FP-W-ISO Du10-100 RU63, body SS316 with gearbox HAM

Materials of parts of ball valves Elephant BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with gearbox HAM

No.	Part Name	Material
1	Cover	Stainless Steel AISI 316
2	Seat Seal	PTFE
3	Ball	Stainless Steel AISI 316
4	Stem	Stainless Steel AISI 316
5	O-Ring	PTFE
6	Body	Stainless Steel AISI 316
7	Seal	PTFE
8	Gland	Stainless Steel AISI 304
9	Handle	Stainless Steel SS 201
10	Nut	Stainless Steel AISI 304
11	Screw	Stainless Steel AISI 304
12	Nut	Stainless Steel AISI 304

Detail sketch of ball valves Elephant BV3232P-FP-W-ISO DN10-100 RU63, body SS316 with gearbox HAM

Main technical data and characteristics HAM RQNx-xZ-x gearboxes:

Ambient temperature, ⁰C	30 to +120 °C
Enclosure protection class	IP67
Application	for various industries where fluid flow control is required
Mounting	horizontal/vertical
Stroke adjustment	0 - 90° (adjustable ±5°)
Connection standard	ISO 5211

HAM gearboxes

Basic materials of HAM gearbox components:

№	Name	Material
1	Bolt	stainless steel 304
2	Index	ABS plastic
3	Cover	aluminum alloy
4	Sealing ring	NBR70
5	Pin	black steel
6	Worm gear	ductile iron
7	Seal	NBR70
8	Housing	aluminum alloy
9	Adjusting bolt	black steel
10	Gasket	stainless steel 304
11	Adjusting nut	stainless steel 304
12	Nut cover	NBR70
13	Bearing	powder steel
14	Worm shaft	steel 45
15	Seal	NBR70
16	Drive shaft	stainless steel 304
17	Handwheel	polyester coated carbon steel
18	Pin	black steel

HAM sketch RQNx-xZ-x

Overall and mounting dimensions of HAM RQNx-xZ-x gearboxes:

Model	HAM RQN1-180Z-T40	HAM RQN2-300Z- T37	HAM RQN3-540Z- T36	HAM RQN4-675Z- T36	HAM RQN5-1500Z- T50
D, mm	80	100	120	142	175
D1, mm	70	90	102	125	140
D2, mm	50	70	70	102	102
n-M1	4-M6x10	4-M8x12	4-M8x10	4-M8x10	4-M8x10
n-M2	4-M8x12	4-M10x12	4-M10x15	4-M12x18	4-M16x24
S, mm	17x17	17x17	22x22	24x24	27x27
L, mm	115	130	150	180	220
L1, mm	50	58	65	80	95
L2, mm	42	50	60	60	78
H, mm	48	58	58	74	84
H1, mm	19	18	18	21	51
d1, mm	20	20	20	20	25
L3, mm	160	160	215	225	325
W, mm	140	200	250	300	400

HAM sketch RQNx-xZ-x

Technical data of HAM RQNx-xZ-x gearboxes:

Model	HAM RQN1-180Z-T40	HAM RQN2-300Z- T37	HAM RQN3-540Z- T36	HAM RQN4-675Z- T36	HAM RQN5-1500Z- T50
Gear ratio	40:1	37:1	36:1	36:1	50:1
Torque, Nm	180	300	540	675	1500
ISO flange type	F05/F07	F07/F09	F07/F10	F10/F12	F10/F14
Weight, kg	1.2	2

Specifications

Country of origin

China
Port opening

Full Port
Configuration

Two-way
Body material

Stainless steel AISI 316
Material ball

Stainless steel AISI 316
Material ball seal

PTFE
Maximum allowable temperature

200 °C
Connection type

For welding
Control type

Gear
Operating environment

Water, Air, Oil Products
Applications

Water Supply, Heat Supply
Explosion-proof

No
Torque

180 Nm

Reviews (0)

Documentation

Quarter turn gearbox ELEPHANT HAM RQNx-xZ-x
