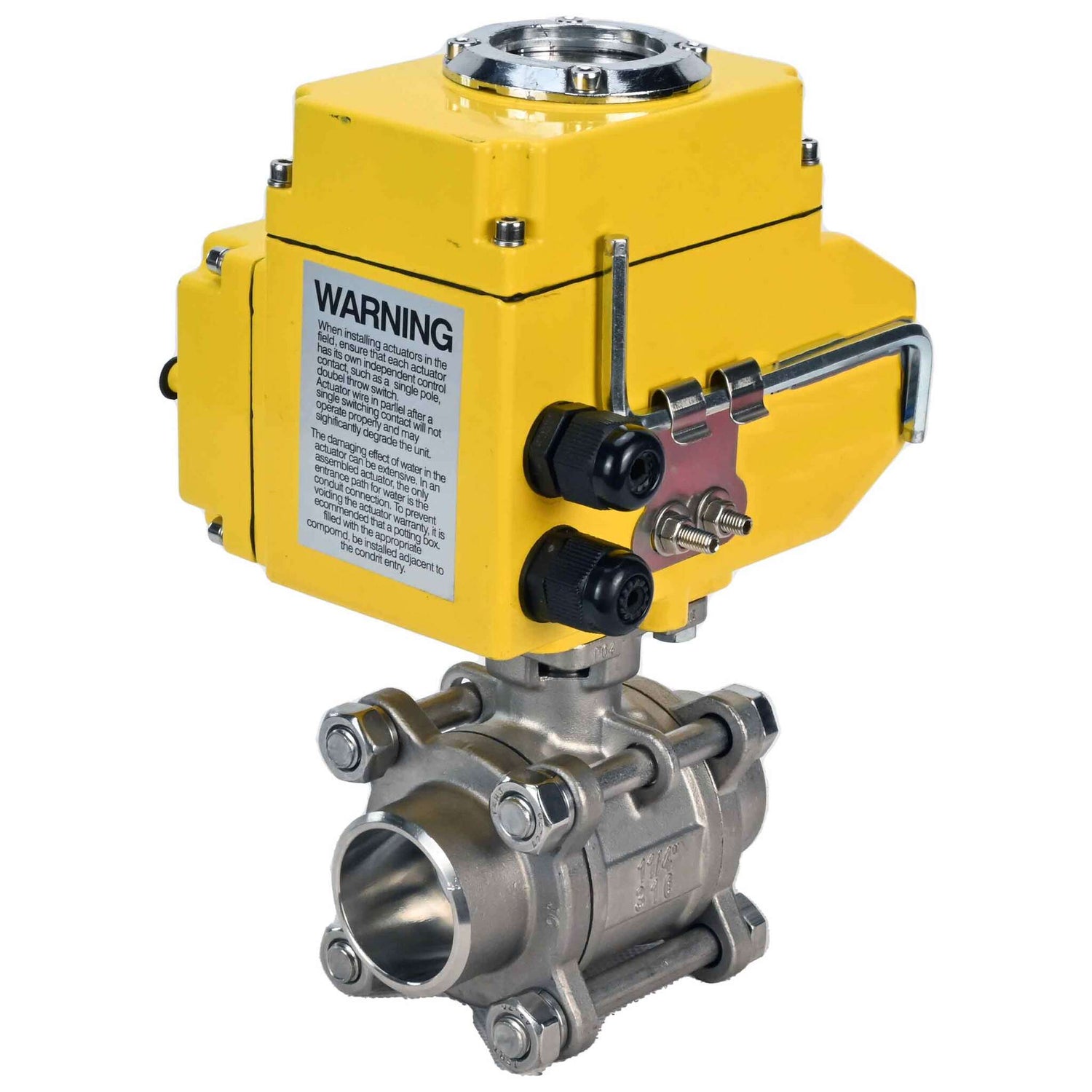

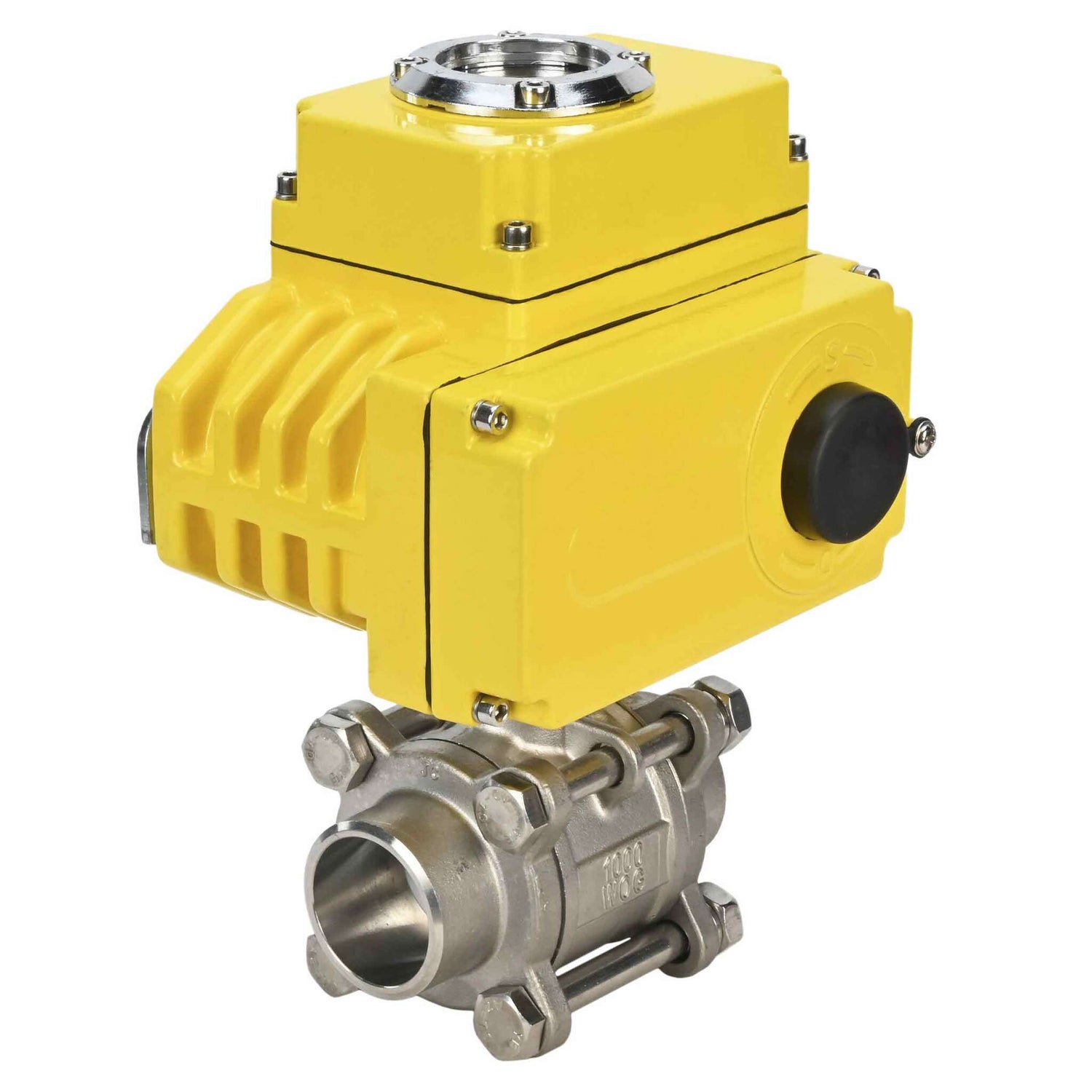

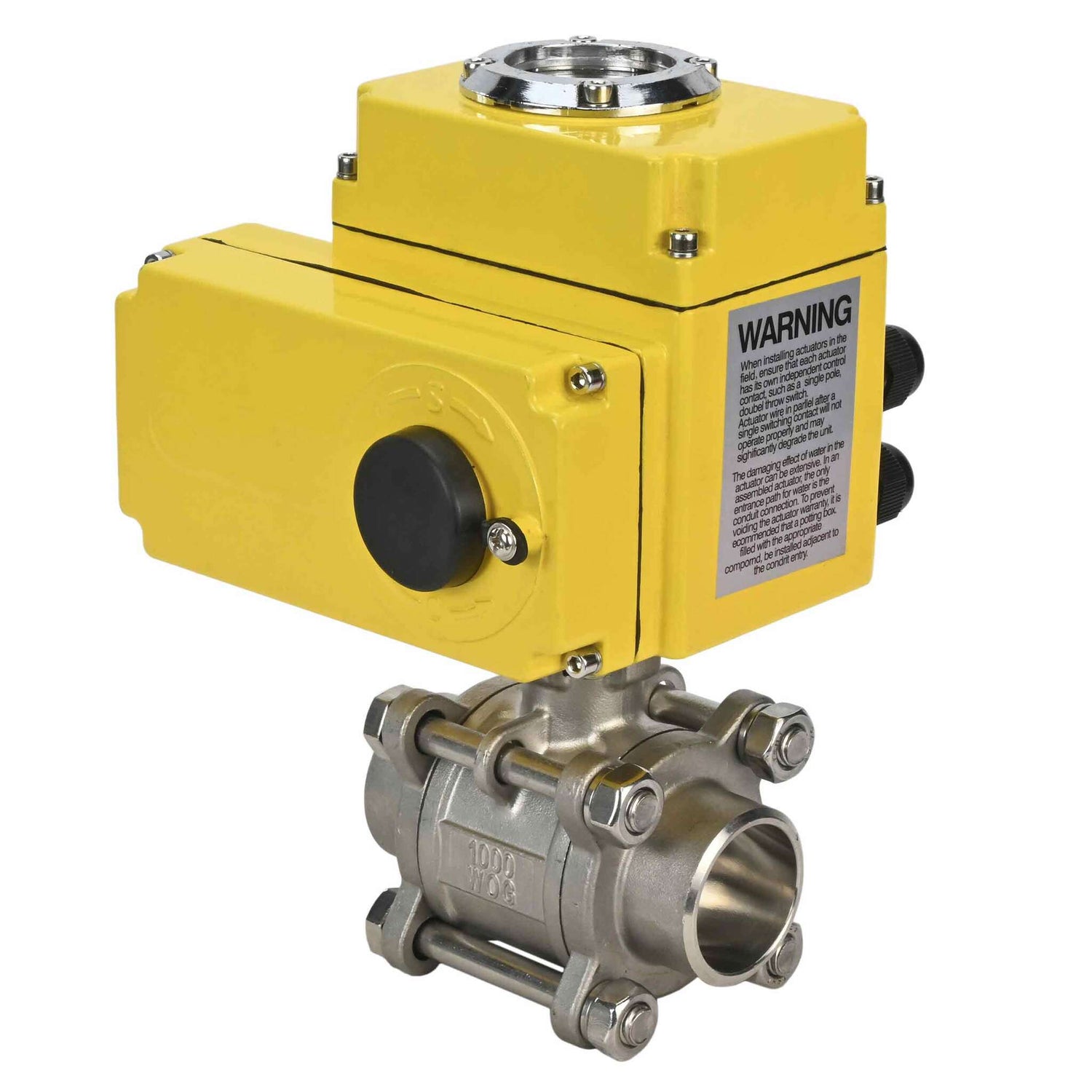

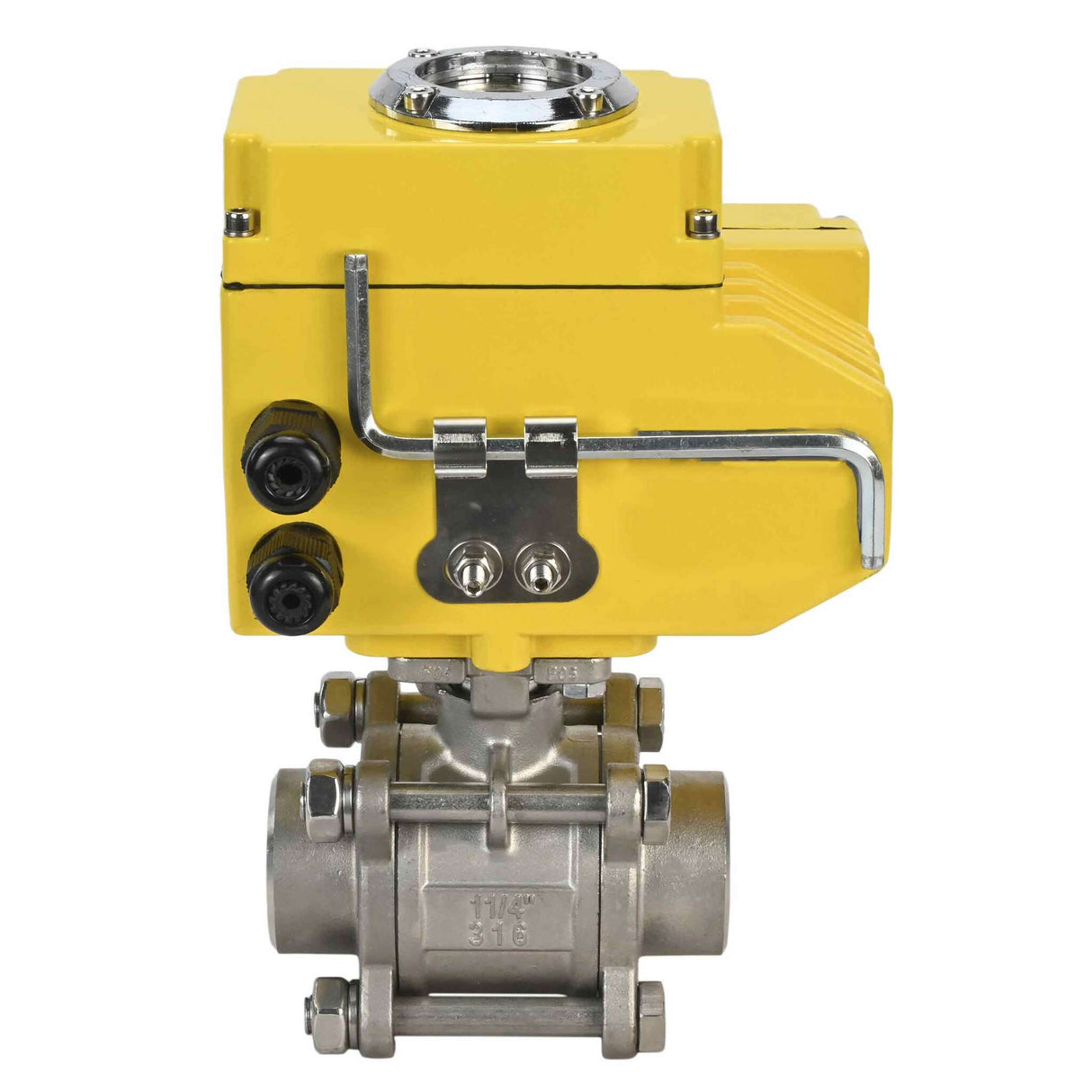

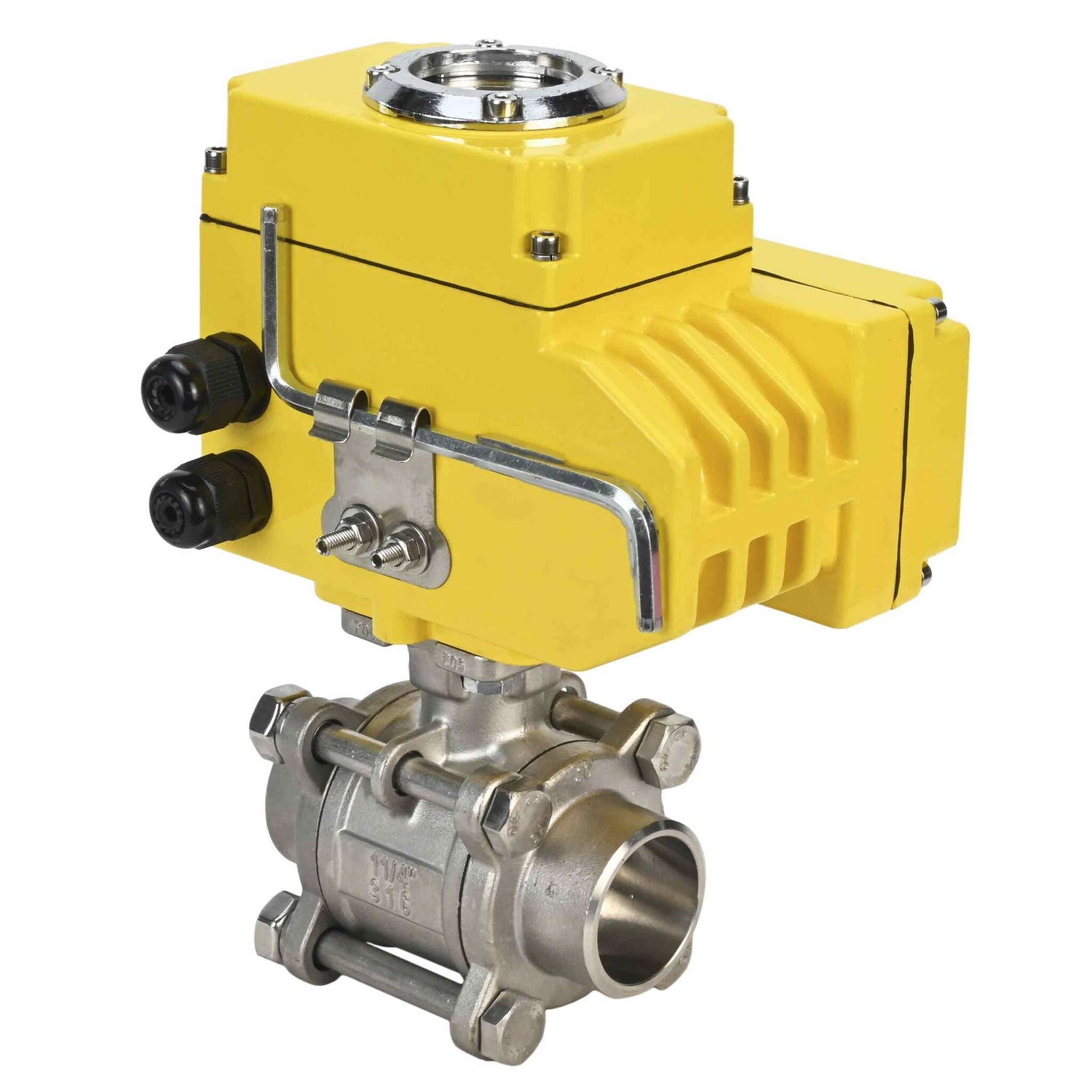

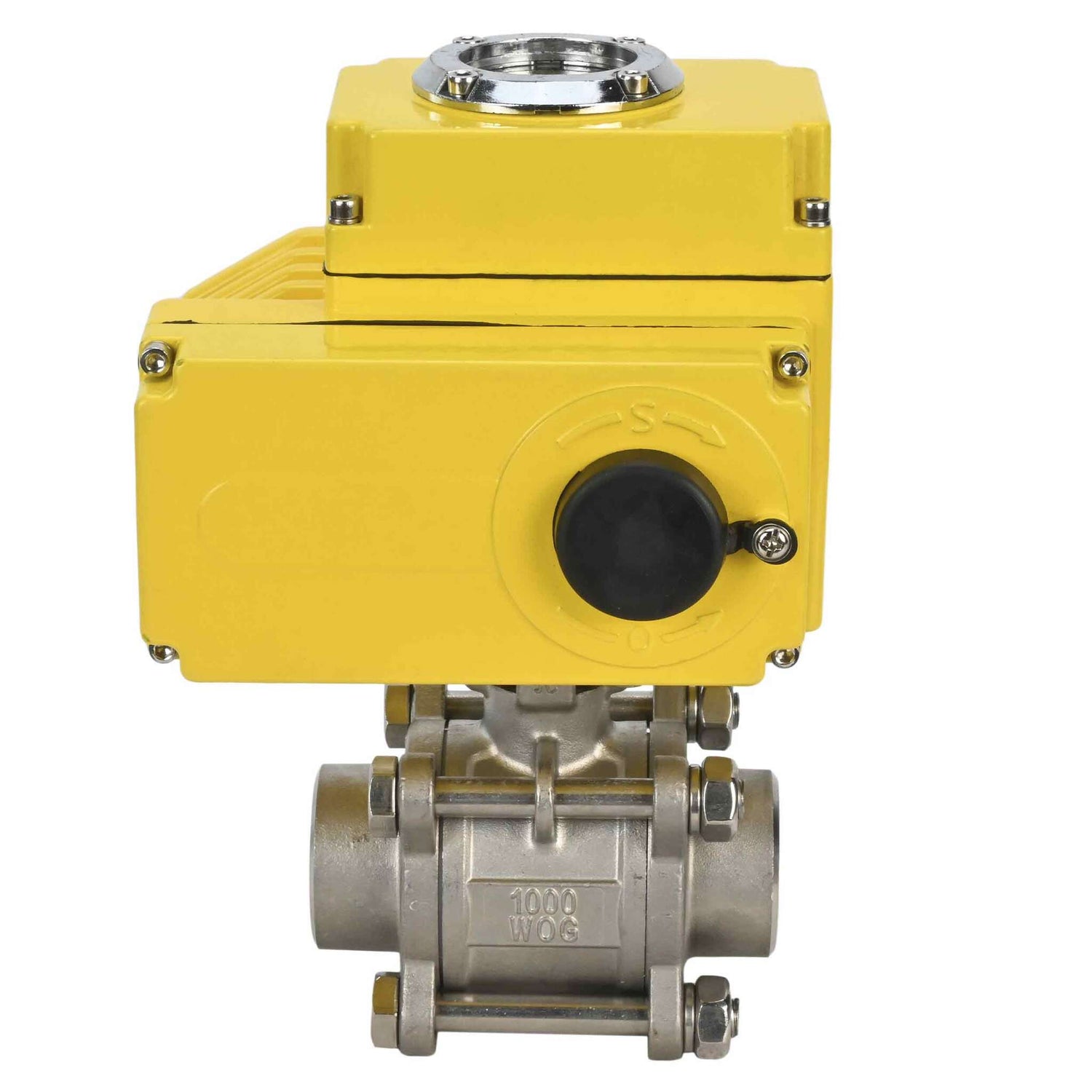

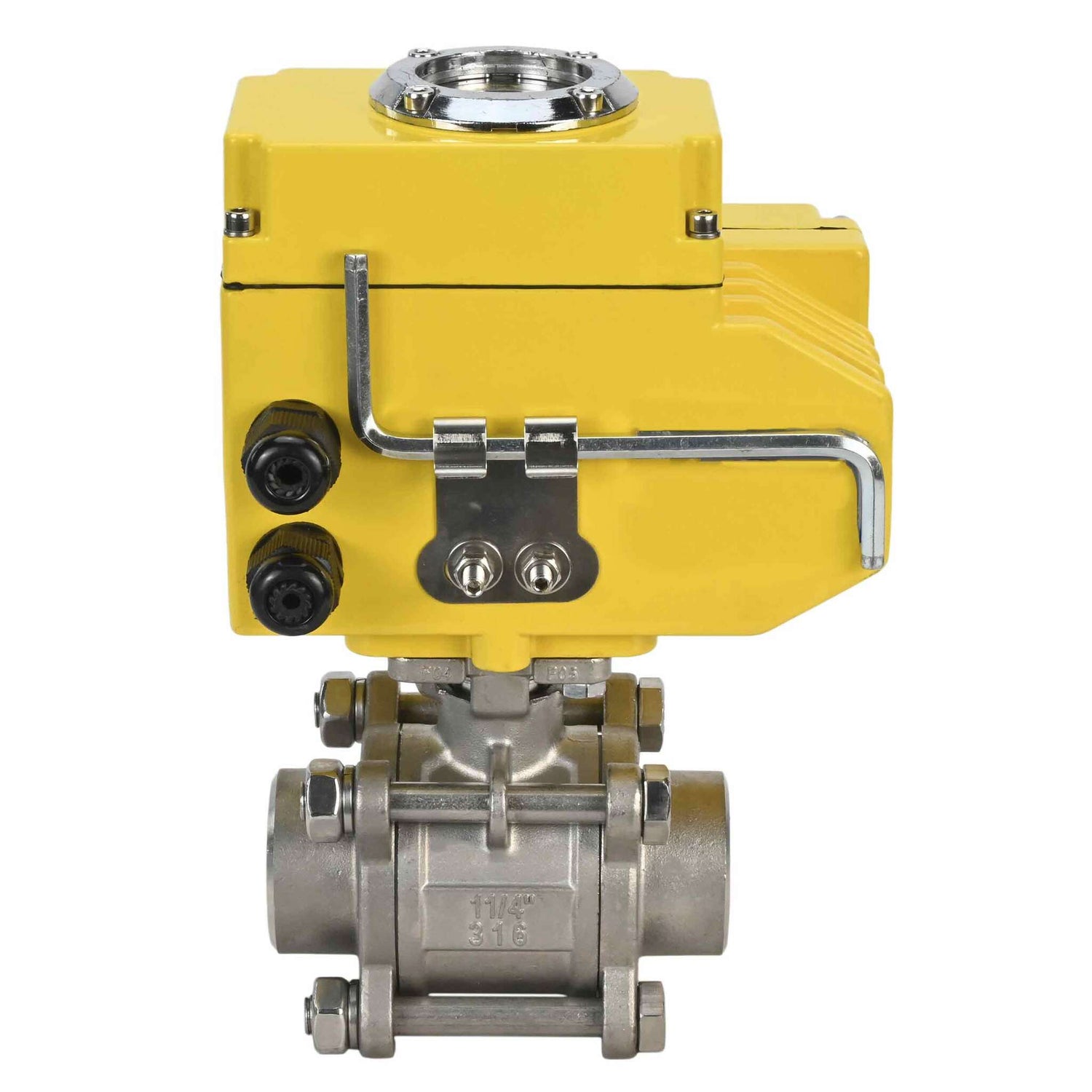

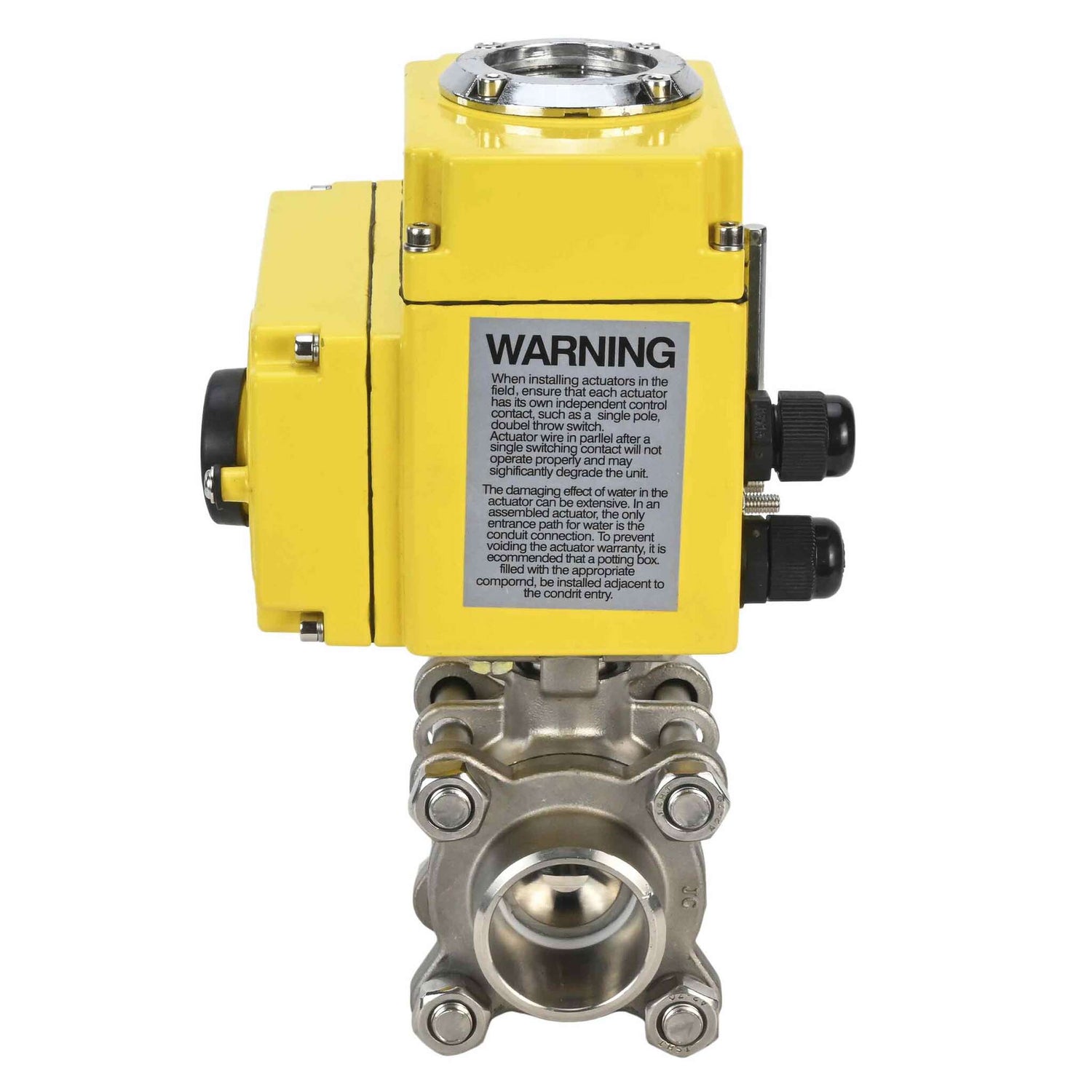

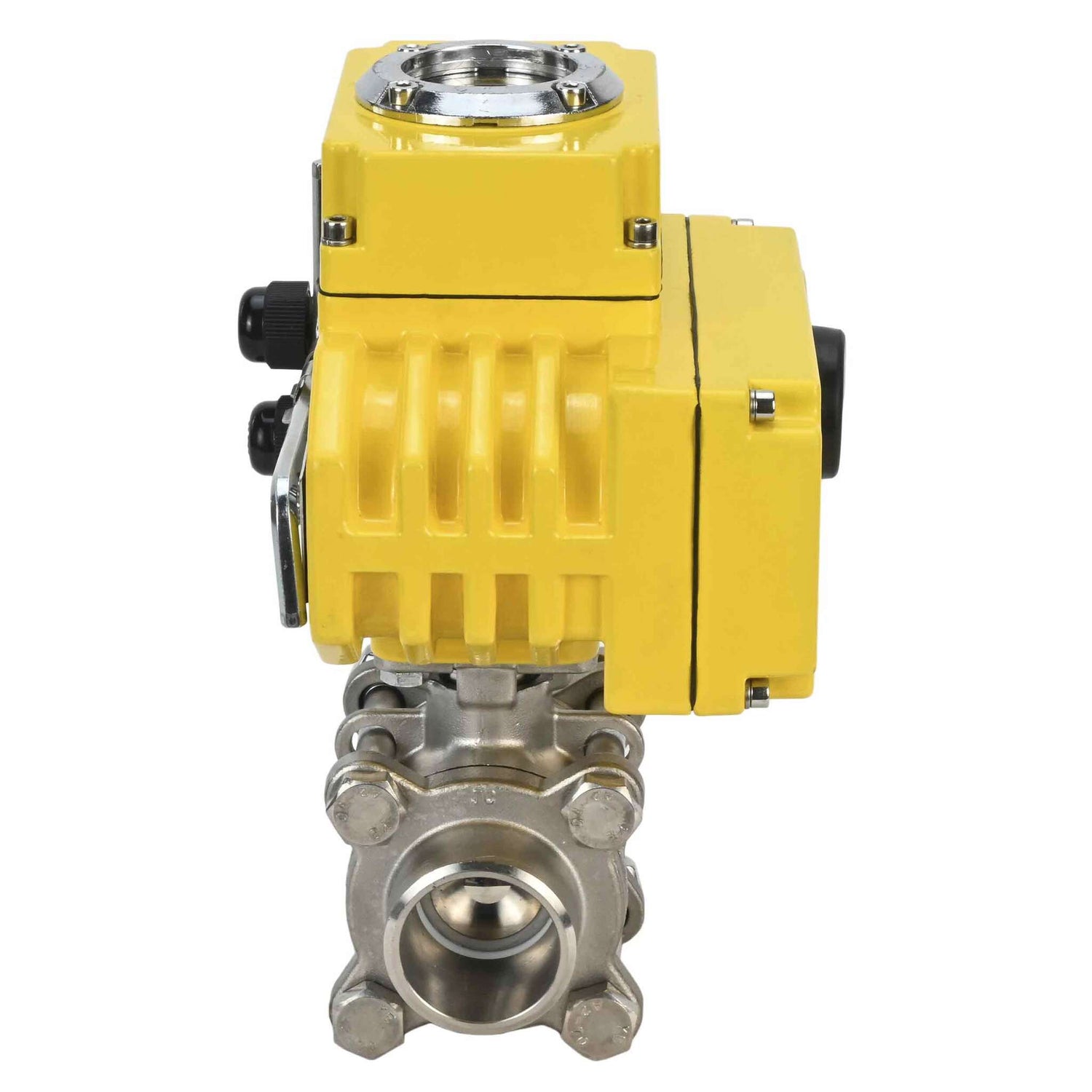

Stainless steel ball valve Elephant kshpp-316200-elephant-380v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, electric actuator operated

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

The ball valve Elephant is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to valve materials. The actuators are mounted directly on the pipeline valves. The mounting dimensions comply with international standard ISO 05211 / DIN3337. Four microswitches are used to limit the travel of the output shaft to the end positions of the valve actuator. The actuators are designed for operation in nominal short-time mode S2.

Technical data of ball valves Elephant BV3232P-FP-W-ISO

Overall and installation dimensions of ball valves BV3232P(3pc)-FP-W-ISO-H Rou63/40/25 QT-N-EM-O1-24VDC-U1

Sketch of ball valves BV3232P(3pc)-FP-W-ISO-H RU63/40/25 QT-N-EM-O1-24VDC-U1

Materials of parts for ball valves Elephant BV3232P-FP-W-ISO

Detail sketch of ball valves Elephant BV3232P-FP-W-IS

Characteristics of actuators
