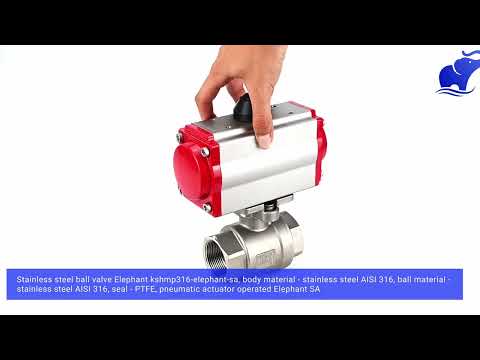

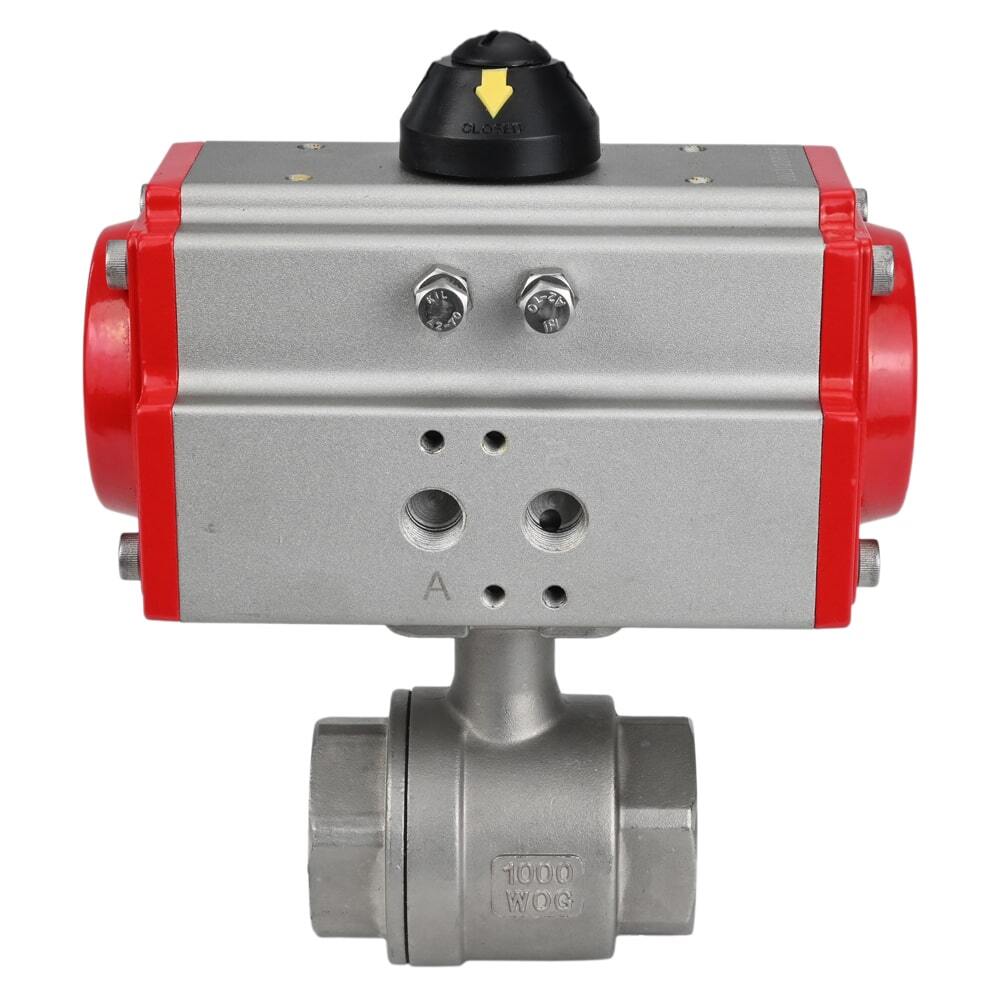

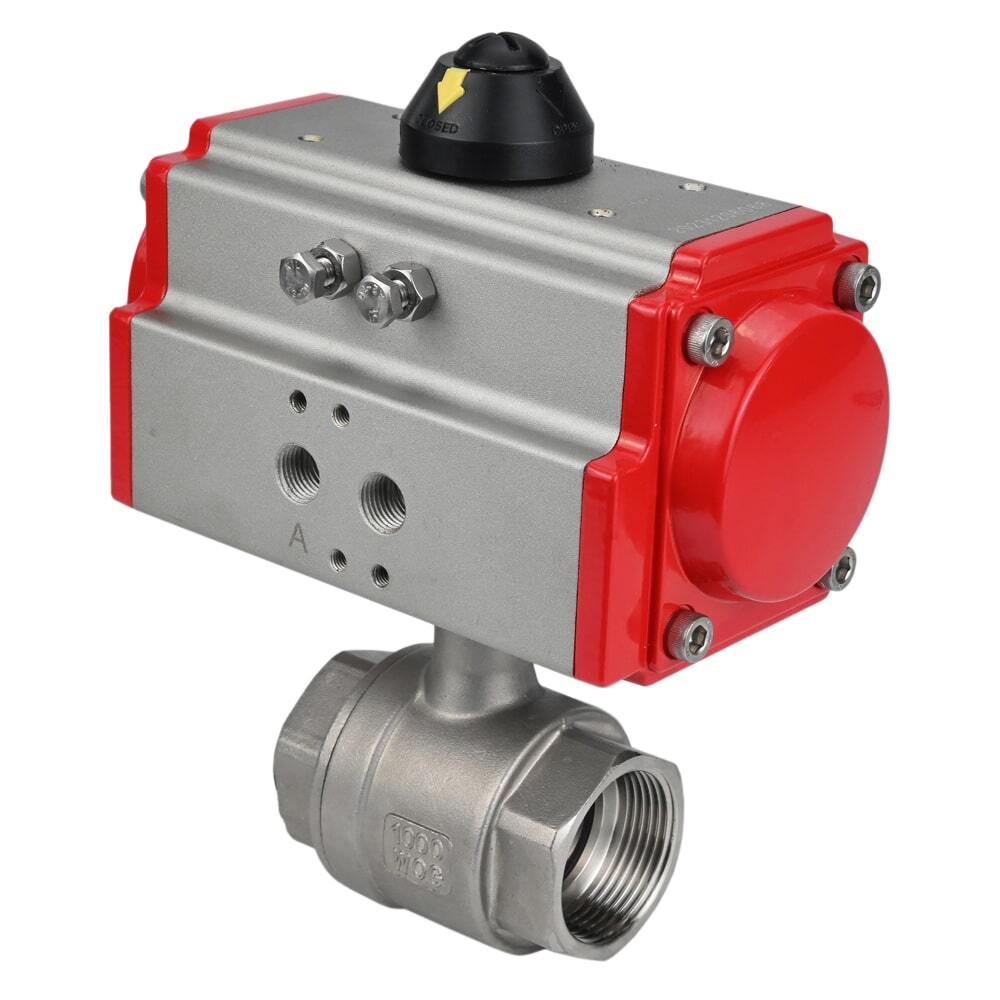

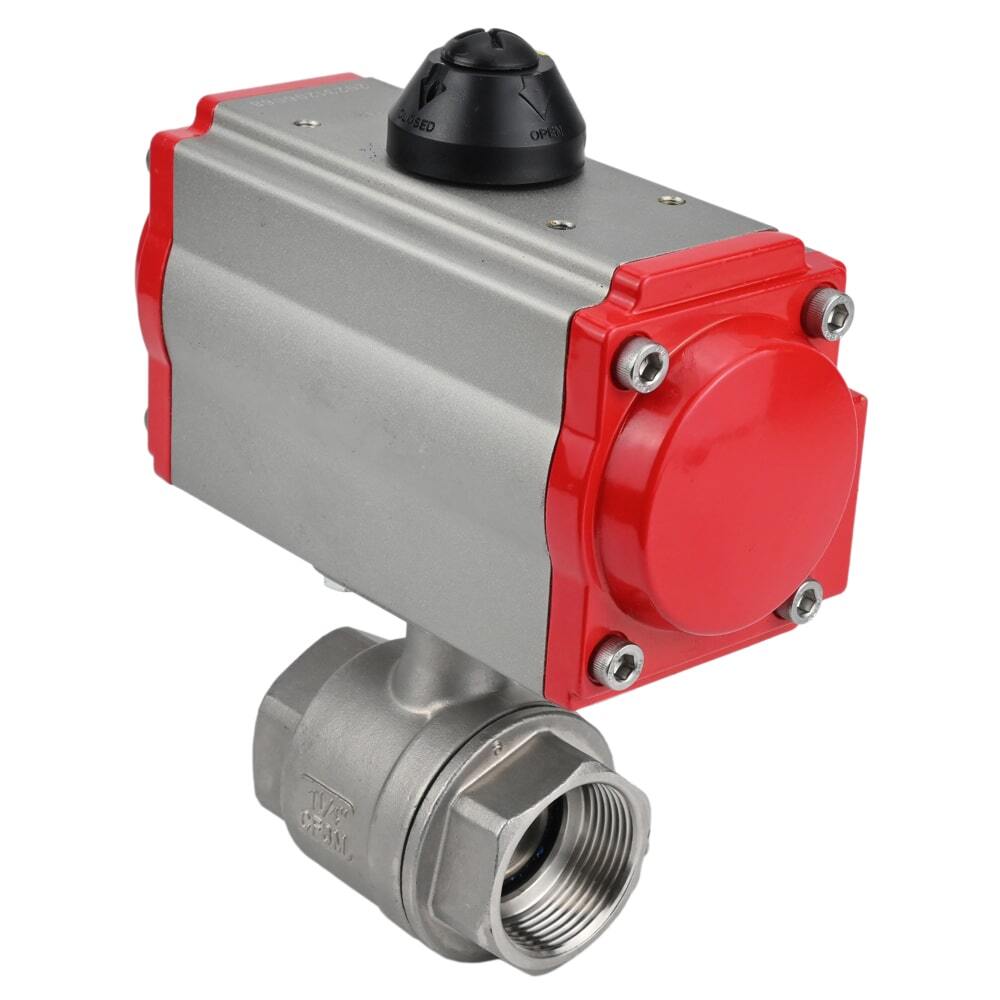

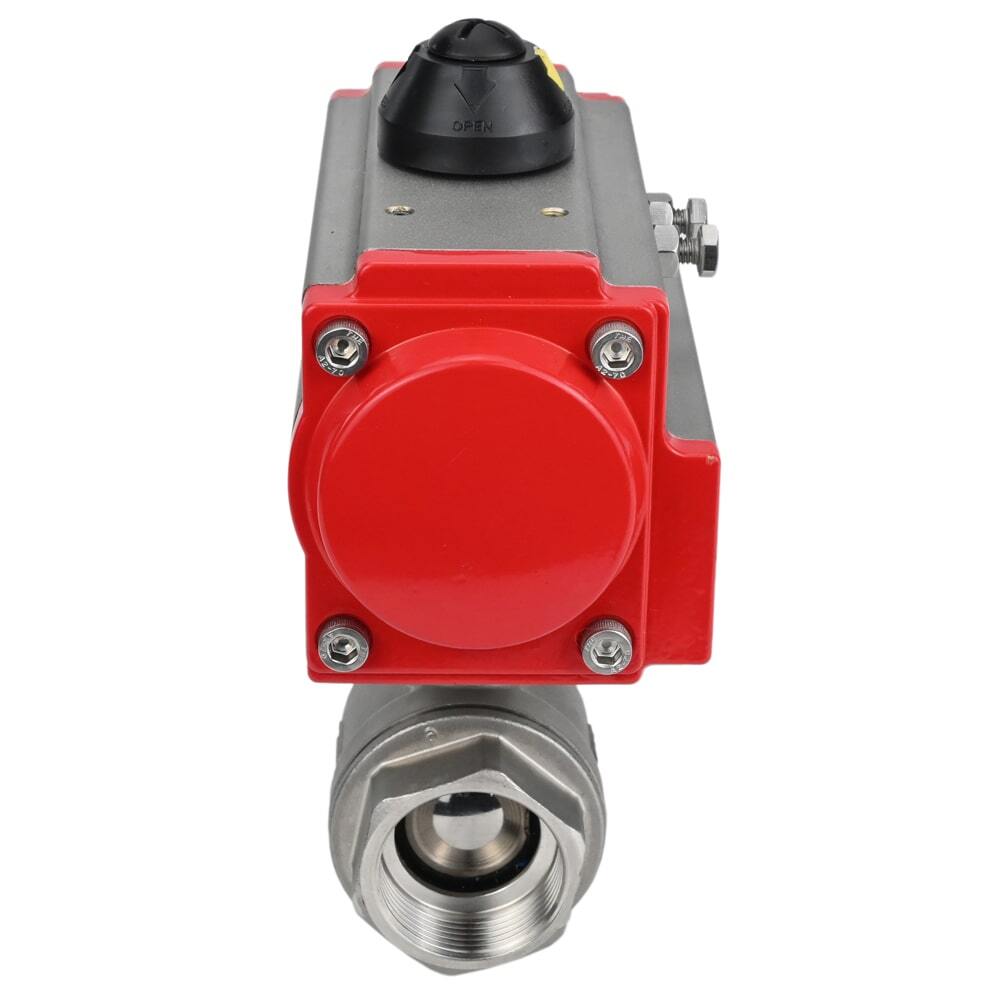

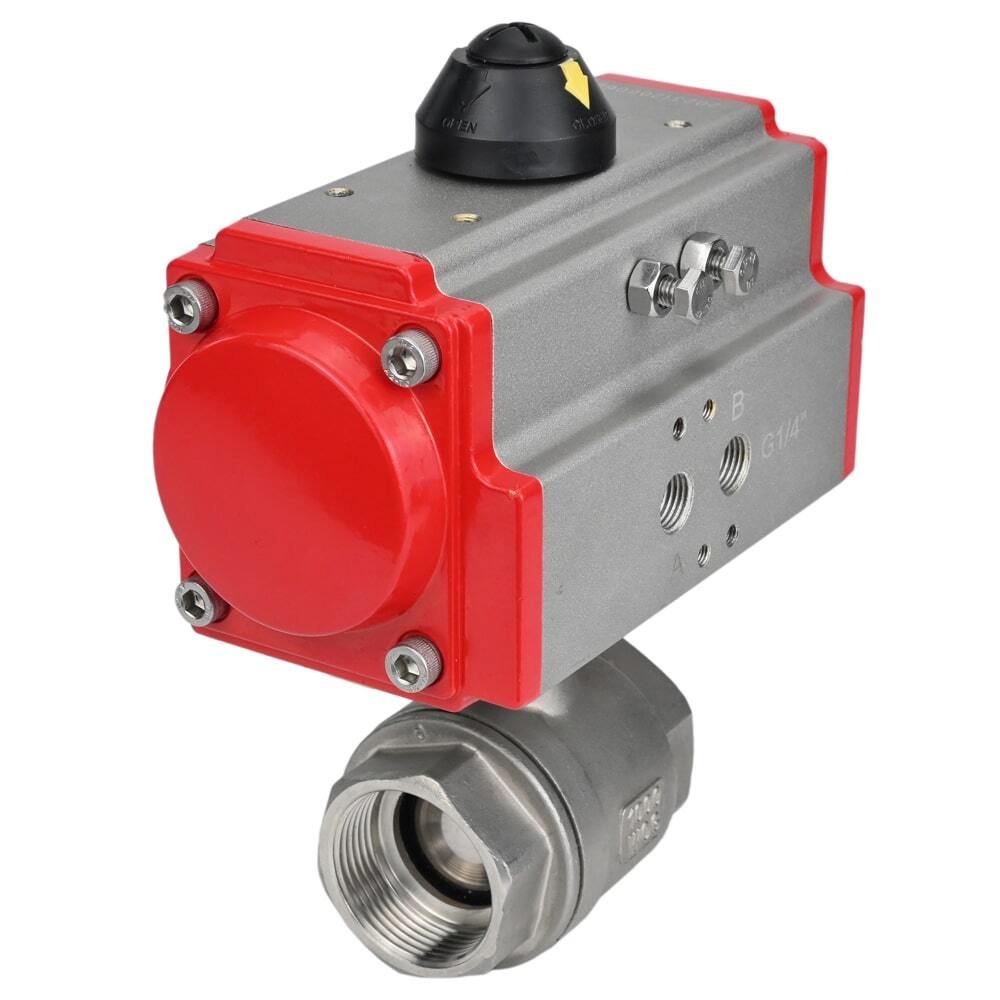

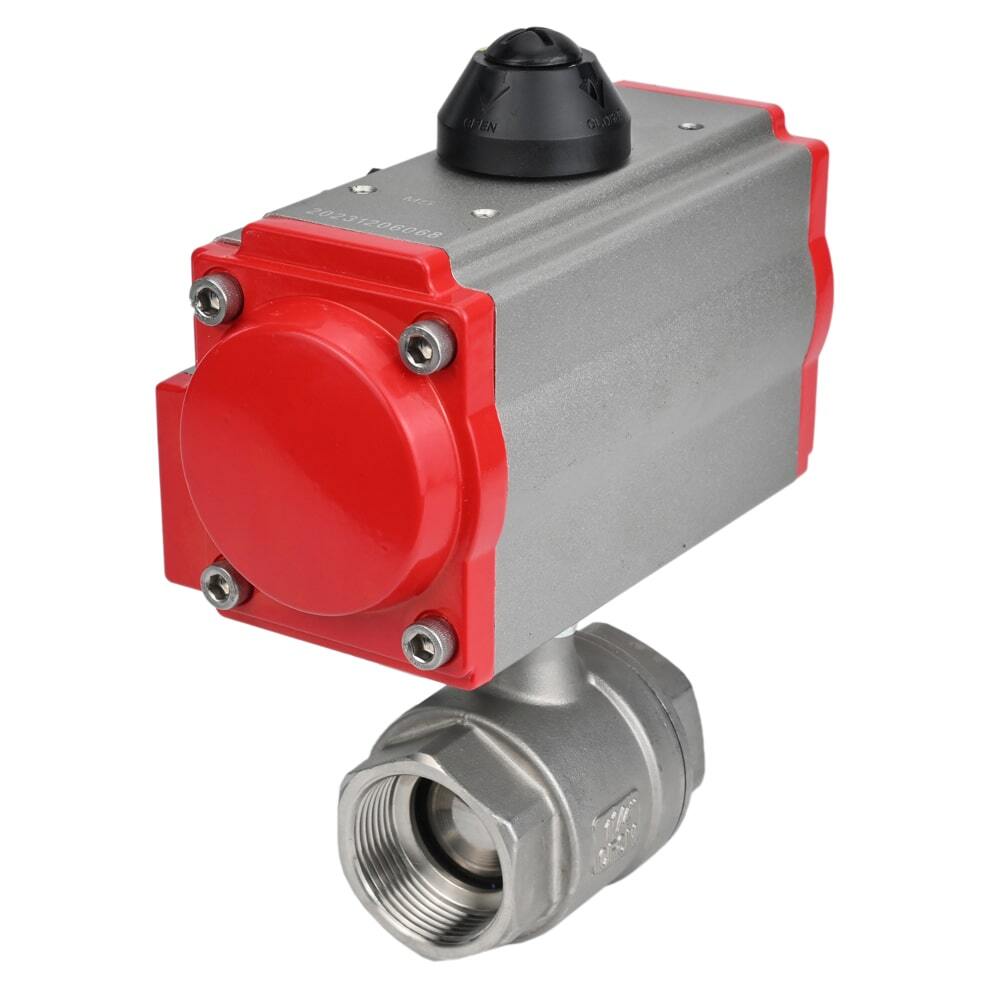

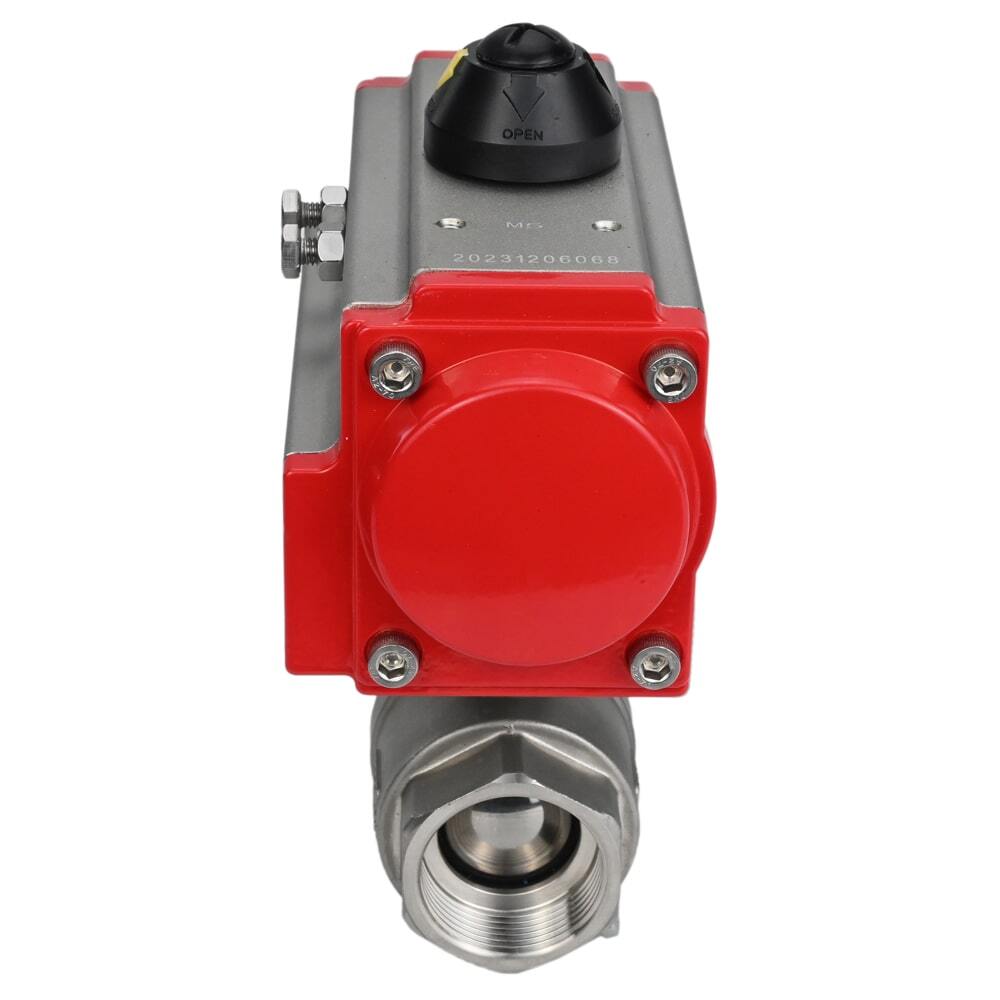

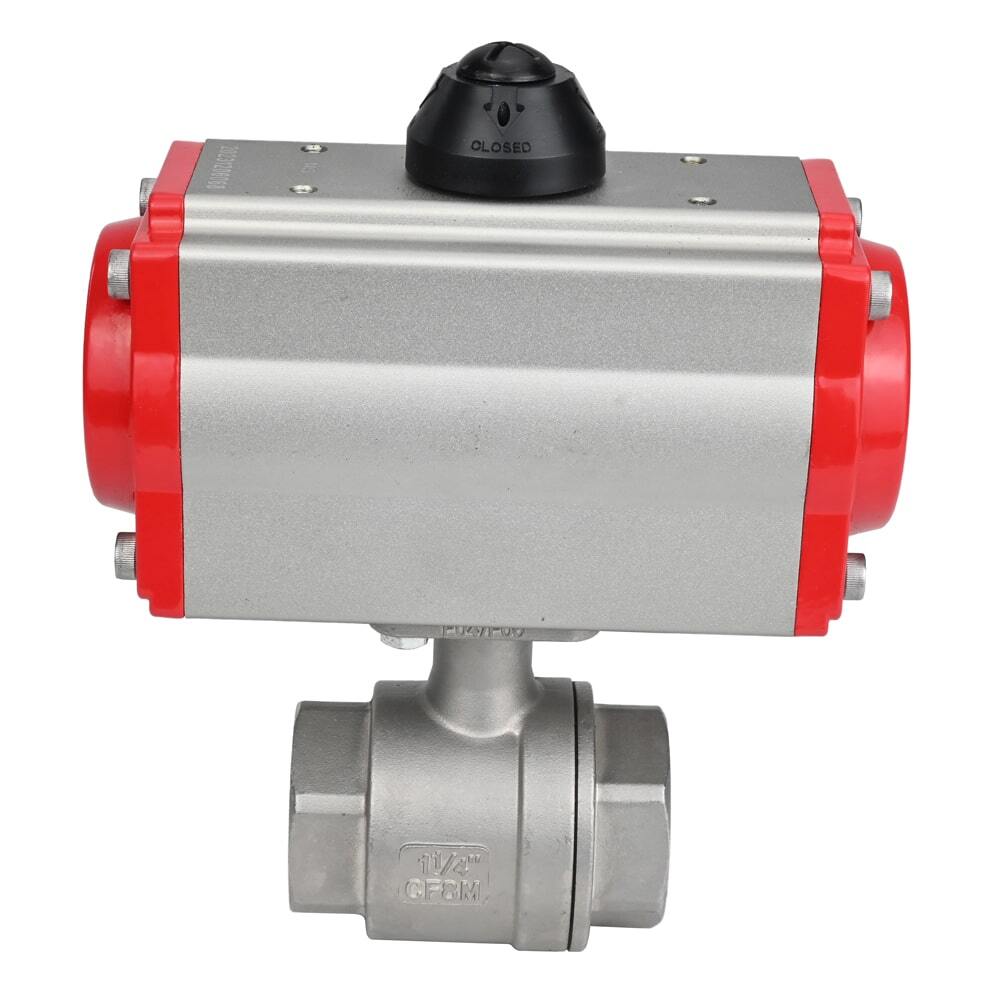

Stainless steel ball valve Elephant kshmp316-elephant-sa, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

€86,65
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.







Crane Dimensions:

DN, mm 15 20 25 32 40 50 65 80 100
PN, bar 40
L, mm 65 73 80 95 105 125 168 194 250
H, mm 138 142 152 170.5 179.5 208.7 226.7 263 285
A, mm 153 216 216 216 279 279 279 308 405
C, mm 95 95 95 95 107.5 128.7 128.7 153 153
kv, m³/hour 18.9 47.1 66 86.7 150.8 207.4 584.4 678.6 1545
ISO 5211 F03 F03 F04 F04 F05 F05 F07 F07 F07
Weight, kg 1.5 4 4.1 7.8 7.9 8.6 9.6 13.8 19











Parameters and sketch of the connection of the pneumatic drive Elephant:

  • Pneumatic actuator type - double acting
  • Working pressure of pneumatic drive - 6.0 bar
  • Drive rotation angle - 90°
  • Drive adjustment range - 5°
  • Country of origin - China
  • Operating environment - indoor and outdoor
  • Position indicator - open/closed
  • Coating - All internal and external parts have an anti-corrosion coating





No. Name Material Quantity
1 Frame extruded aluminum 1
2 Side plugs cast aluminum 2
3 Gear stainless steel 1
4 Piston steel/aluminum 2
5 Plugs stainless steel 8
6 Piston ring NBR 2
7 Springs spring steel 0-12
8 Piston bearing engineering plastic 2
9 Piston ring NBR 2
10 Plug NBR 2
11 Thrust ring engineering plastic 2
12 Ring engineering plastic 1
13 Washer stainless steel 1
14 Spring clamp stainless steel 2
15 Indicator plastic 1
16 Indicator housing plastic 1
17 Bearing engineering plastic 1
18 Cam steel 1
19 Bearing NBR 1
20 Bearing engineering plastic 1
21 Bearing engineering plastic 1
22 Sealing ring NBR 2
23 Sealing ring NBR 2
24 Bearing stainless steel 2
25 Adjusting nut stainless steel 2
26 Adjustment screw stainless steel 2
27 Sleeve aluminum 2





Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    230 °C
  • Connection type
    Threaded NPT/BSP
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Water Supply, Heat Supply
  • Valve feedback
    No
  • Explosion-proof
    No
  • Torque
    8 Nm
  • Electropneumatic positioner
    No
  • Manual override
    Yes
