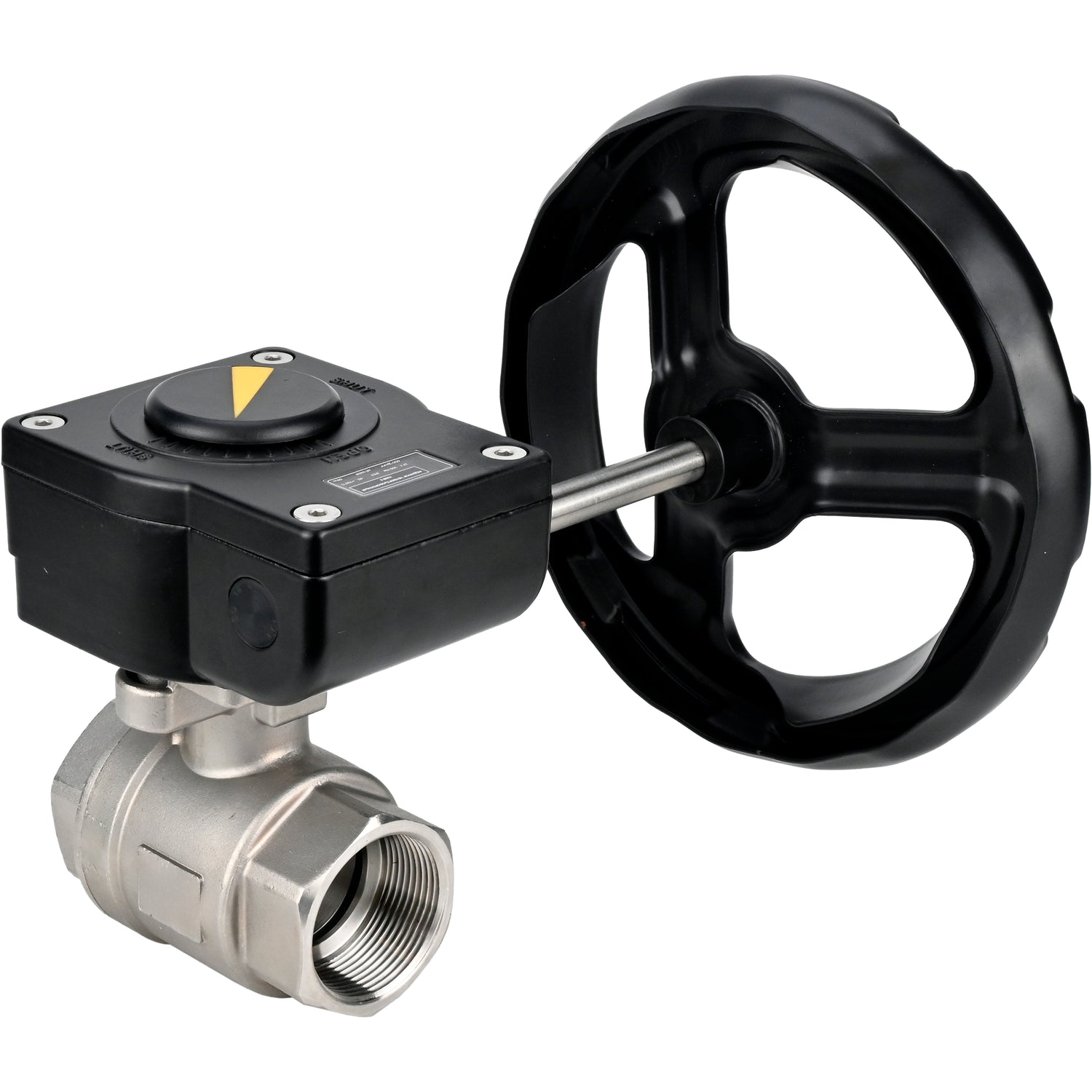

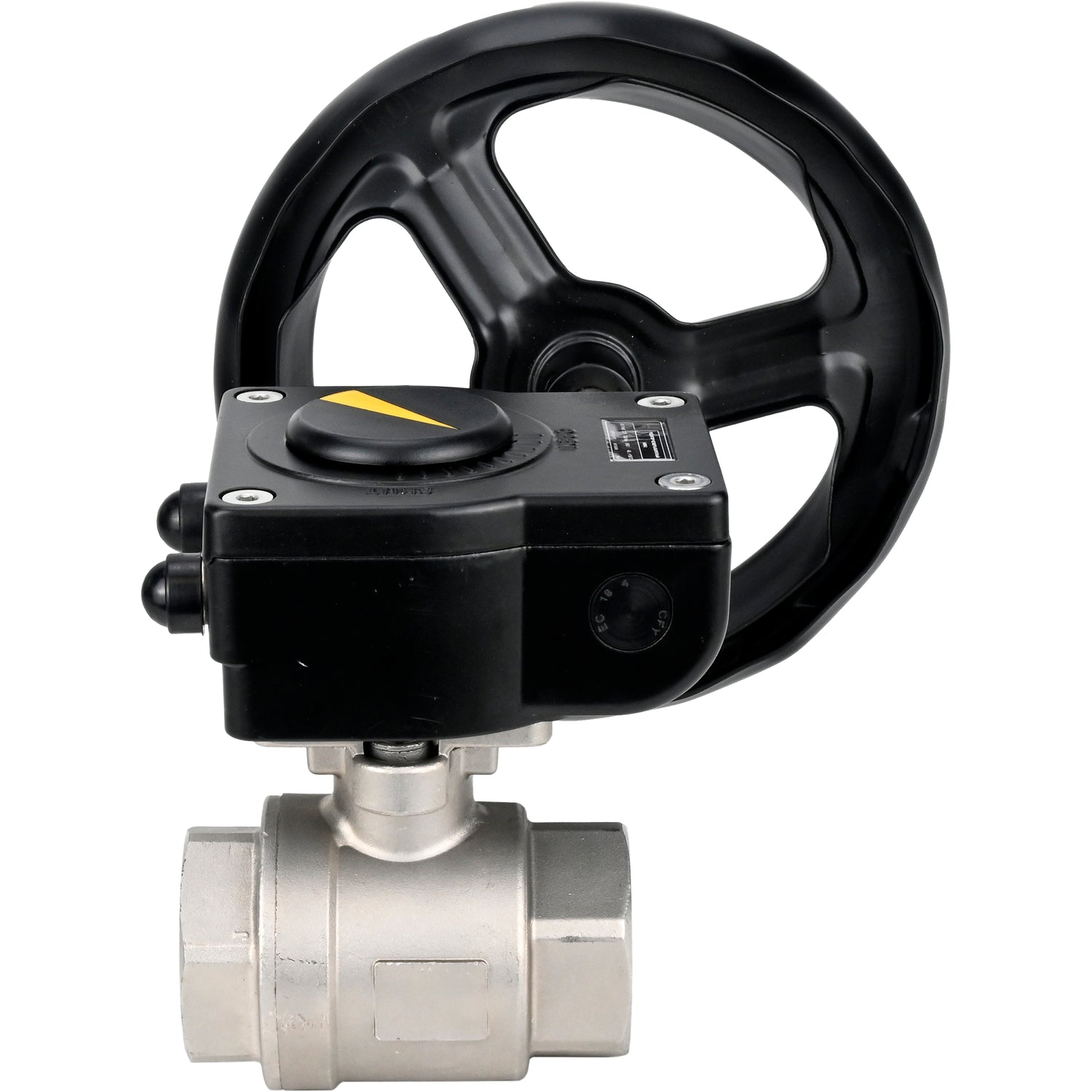

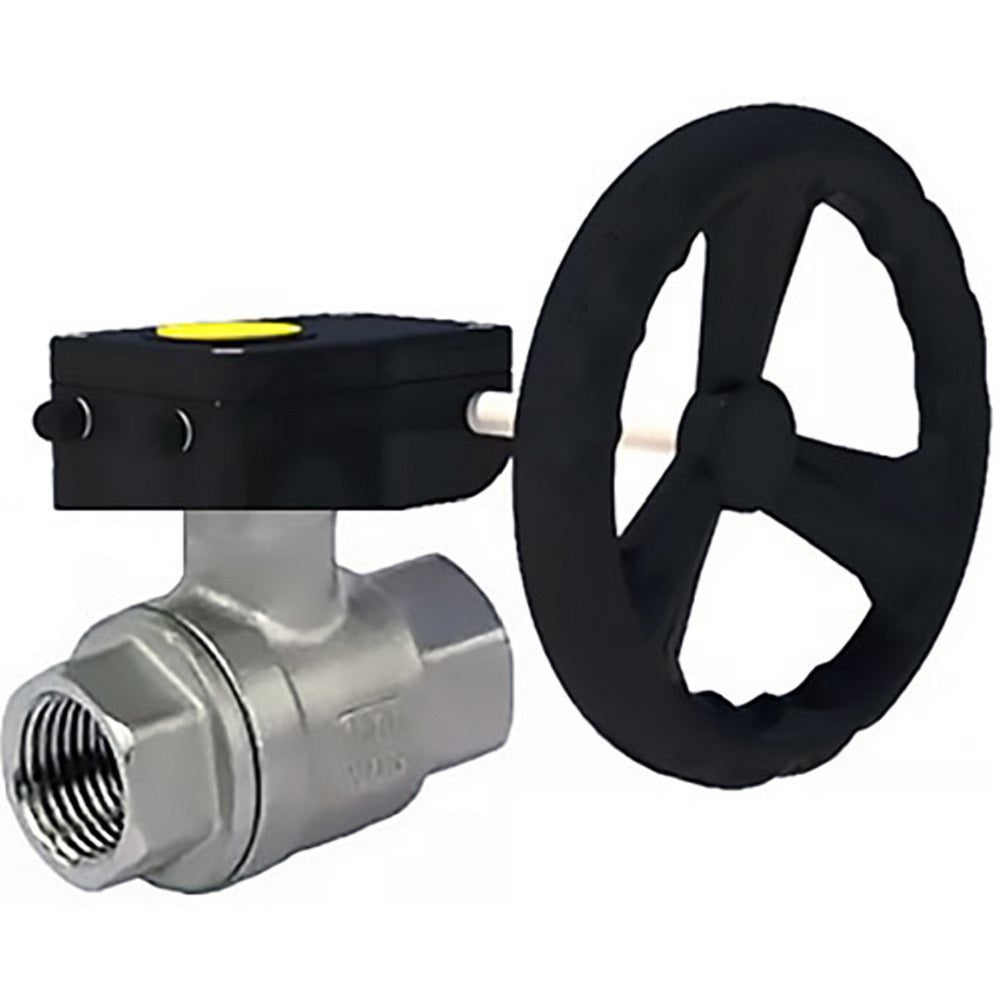

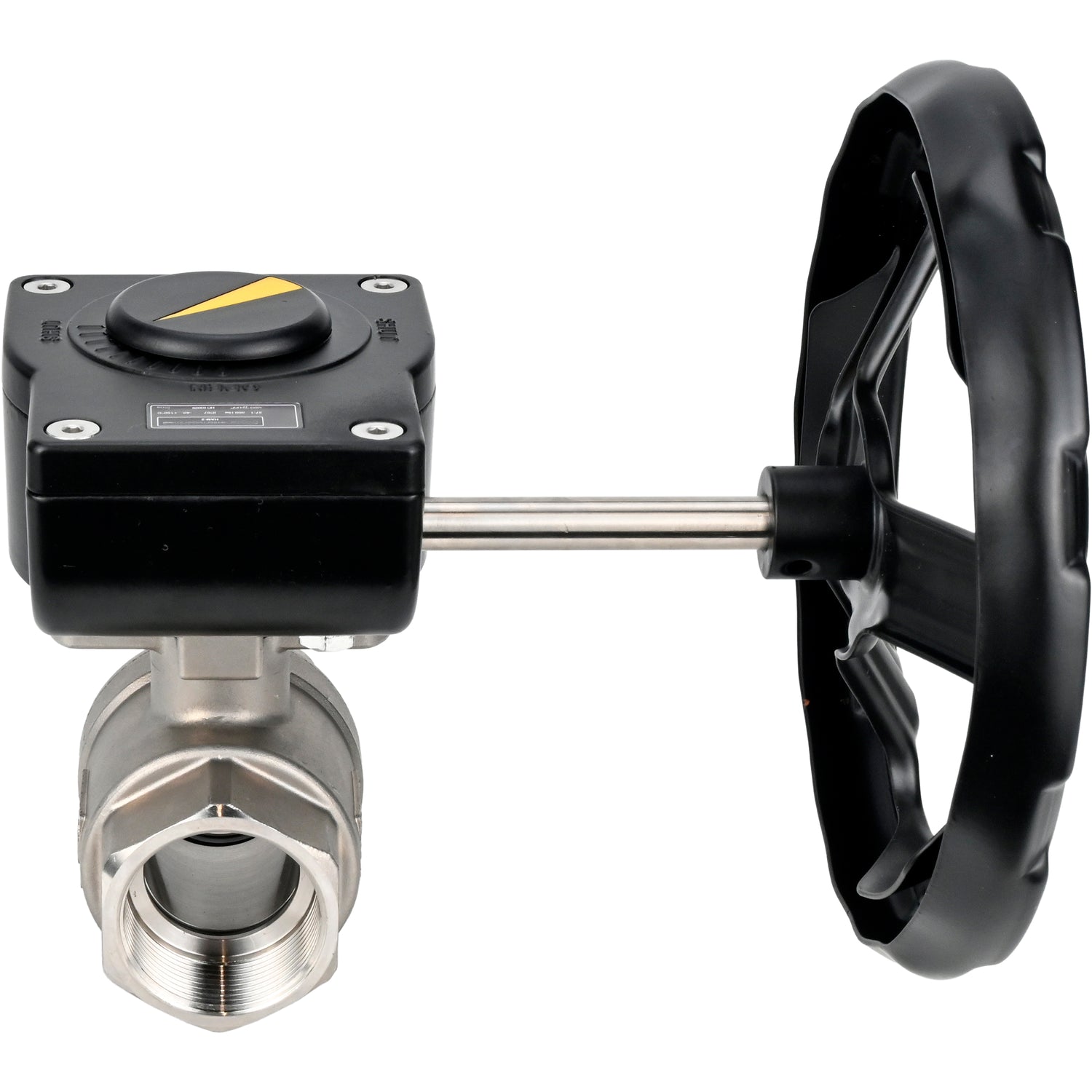

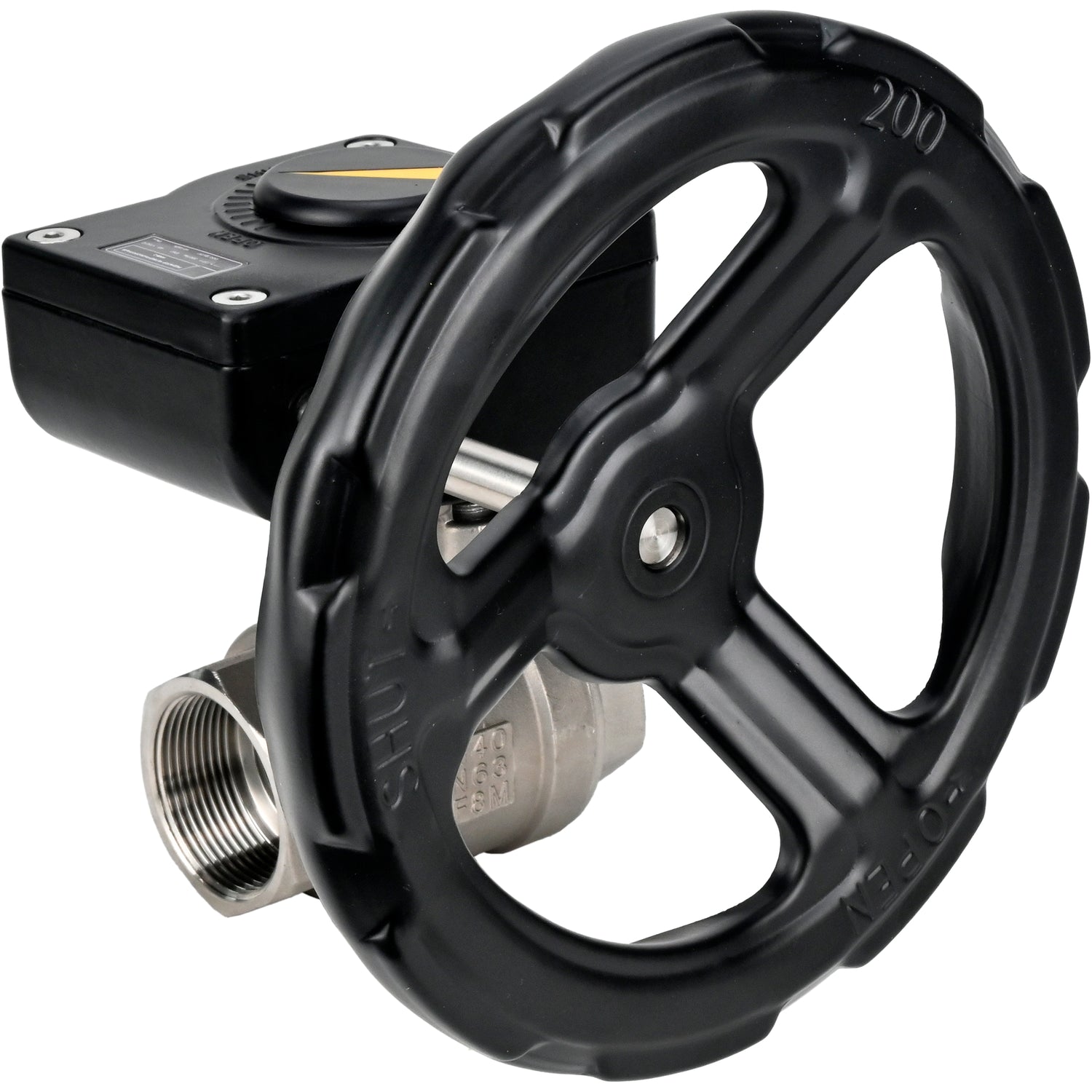

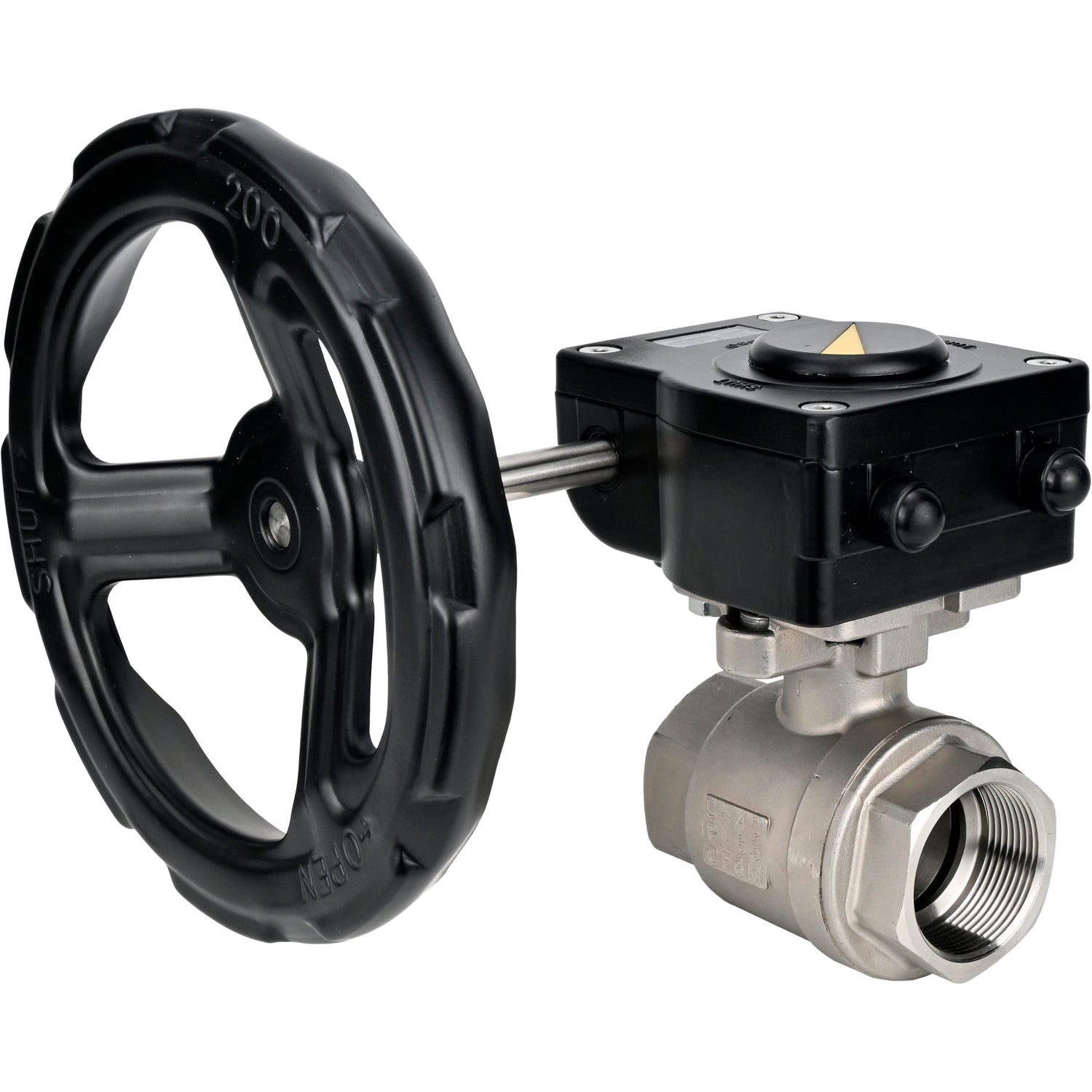

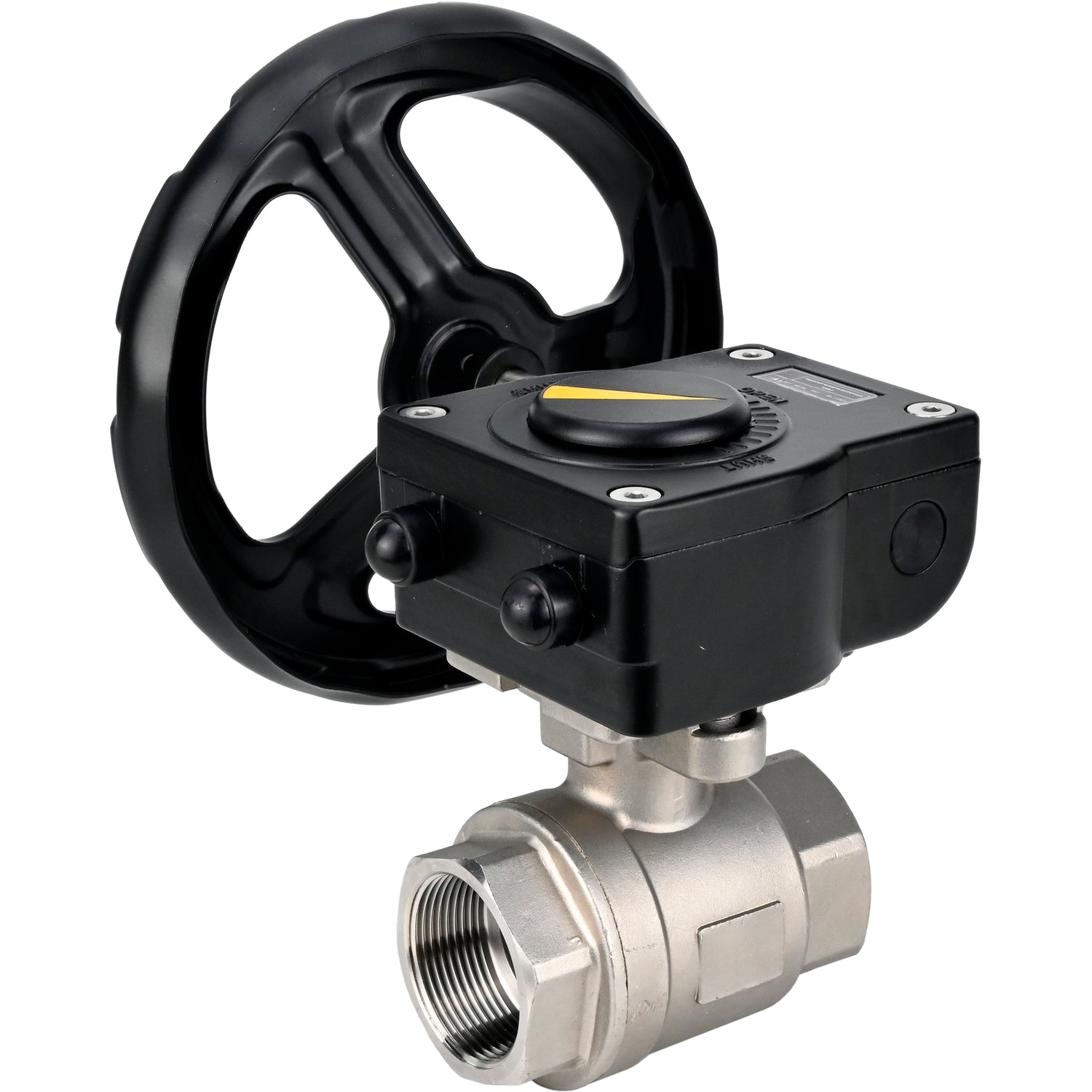

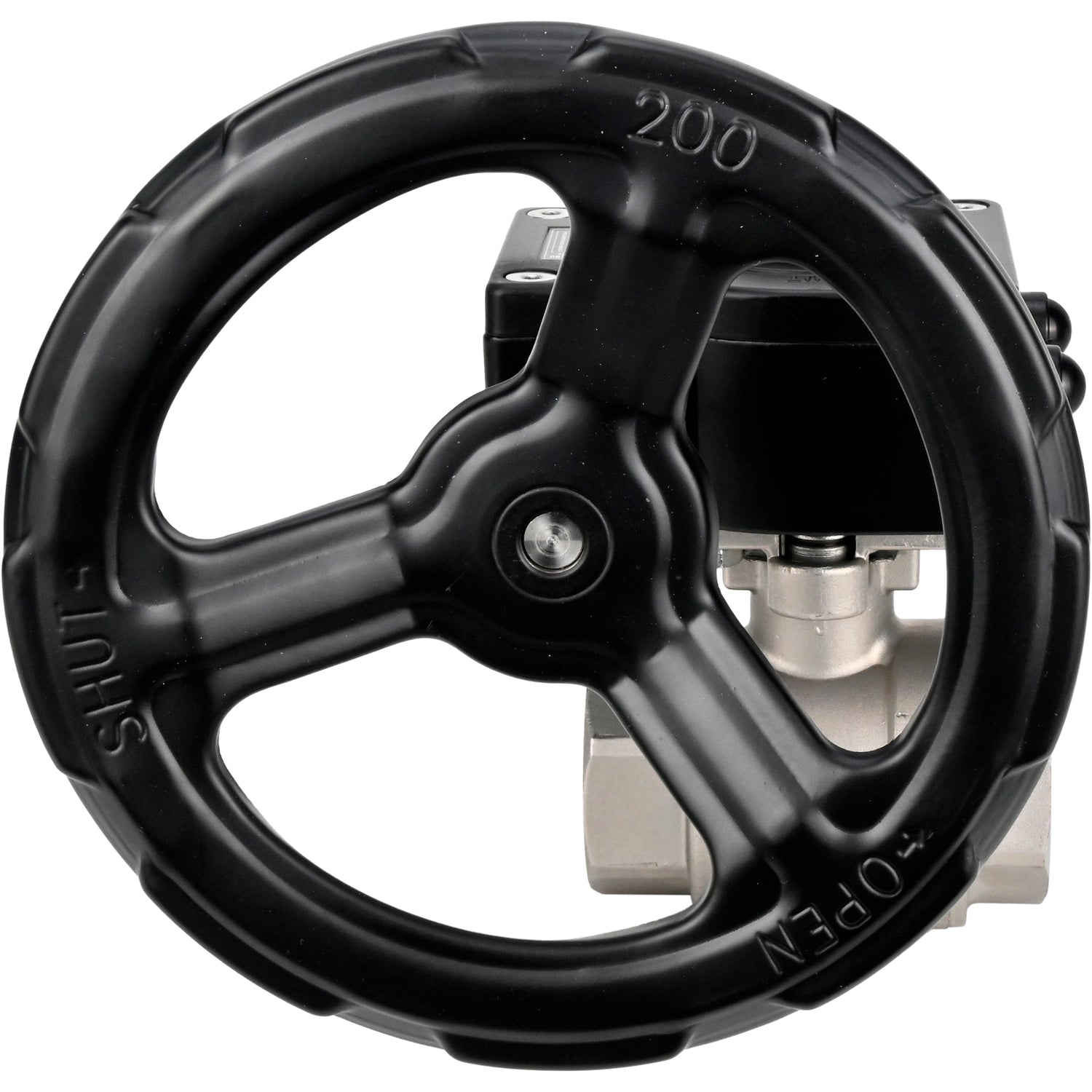

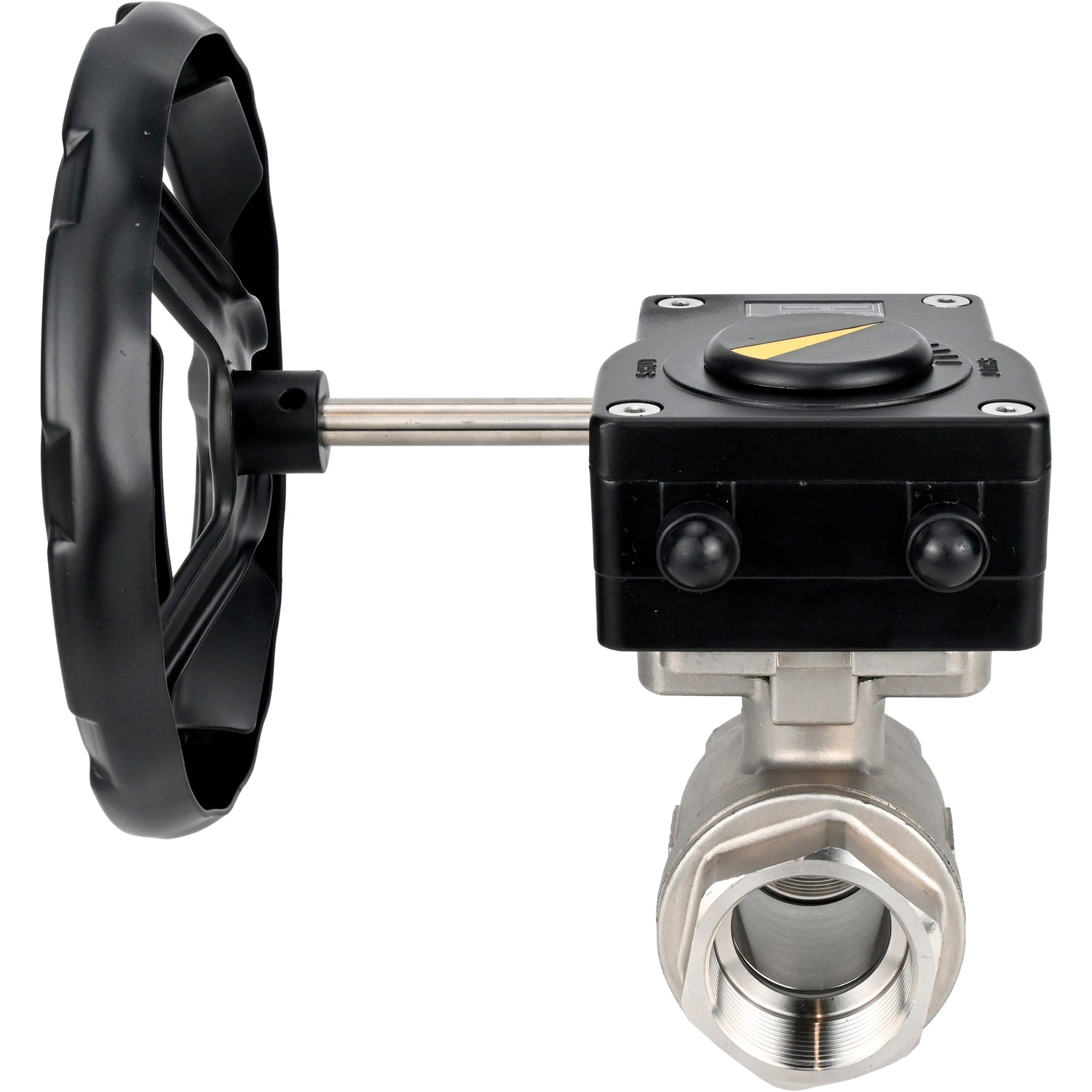

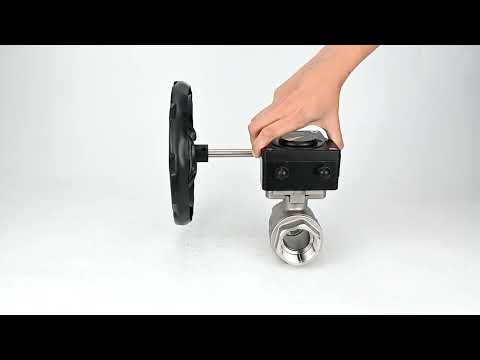

Stainless steel ball valve Elephant kshmp316-elephant-ham, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, gear operated
Stainless steel ball valve Elephant kshmp316-elephant-ham, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, gear operated - DN25 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Main parameters of ball valves Elephant KShMP.316.230-ISO DN10-100 RU63
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63/40 |
| Temperature of working environment t, ⁰C | up to +230 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials used |
| Connection to the pipeline | threaded |
| Body material | Stainless steel 316L |
| Shut-off valve material | Stainless steel 316L |
| Passage of the ball | full bore |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
Ball valve detail Elephant BV3232P(2pc)-FP-T-ISO-H
Materials of the parts of the ball valve Elephant BV3232P(2pc)-FP-T-ISO-H
| Item No. | Part name | Material |
| 1.6 | Frame | stainless steel SS316 |
| 2.4 | Ball seal | PTFE |
| 3 | Ball | stainless steel SS316 |
| 5 | Sealing ring | PTFE |
| 7 | Stock | stainless steel SS316 |
| 8 | Rod seal | VITON |
Main technical data and characteristics HAM RQNx-xZ-x gearboxes:
| Ambient temperature, ⁰C | -30 to +120 |
| Enclosure protection class | IP67 |
| Application | for various industries where fluid flow control is required |
| Mounting | horizontal/vertical |
| Stroke adjustment | 0 - 90° (adjustable ±5°) |
| Connection standard | ISO 5211 |
HAM gearboxes
Basic materials of HAM gearbox components:
| № | Name | Material |
| 1 | Bolt | stainless steel 304 |
| 2 | Index | ABS plastic |
| 3 | Cover | aluminum alloy |
| 4 | Sealing ring | NBR70 |
| 5 | Pin | black steel |
| 6 | Worm gear | ductile iron |
| 7 | Seal | NBR70 |
| 8 | Housing | aluminum alloy |
| 9 | Adjusting bolt | black steel |
| 10 | Gasket | stainless steel 304 |
| 11 | Adjusting nut | stainless steel 304 |
| 12 | Nut cover | NBR70 |
| 13 | Bearing | powder steel |
| 14 | Worm shaft | steel 45 |
| 15 | Seal | NBR70 |
| 16 | Drive shaft | stainless steel 304 |
| 17 | Handwheel | polyester coated carbon steel |
| 18 | Pin | black steel |
HAM sketch RQNx-xZ-x
Overall and mounting dimensions of HAM RQNx-xZ-x gearboxes:
| Model | HAM RQN1-180Z-T40 |
HAM RQN2-300Z- T37 |
HAM RQN3-540Z- T36 |
HAM RQN4-675Z- T36 |
HAM RQN5-1500Z- T50 |
| D, mm | 80 | 100 | 120 | 142 | 175 |
| D1, mm | 70 | 90 | 102 | 125 | 140 |
| D2, mm | 50 | 70 | 70 | 102 | 102 |
| n-M1 | 4-М6х10 | 4-М8х12 | 4-М8х10 | 4-М8х10 | 4-М8х10 |
| n-M2 | 4-М8х12 | 4-М10х12 | 4-М10х15 | 4-М12х18 | 4-М16х24 |
| S, mm | 17х17 | 17х17 | 22х22 | 24х24 | 27х27 |
| L, mm | 115 | 130 | 150 | 180 | 220 |
| L1, mm | 50 | 58 | 65 | 80 | 95 |
| L2, mm | 42 | 50 | 60 | 60 | 78 |
| H, mm | 48 | 58 | 58 | 74 | 84 |
| H1, mm | 19 | 18 | 18 | 21 | 51 |
| d1, mm | 20 | 20 | 20 | 20 | 25 |
| L3, mm | 160 | 160 | 215 | 225 | 325 |
| W, mm | 140 | 200 | 250 | 300 | 400 |
HAM sketch RQNx-xZ-x
Technical data of HAM RQNx-xZ-x gearboxes:
| Model | HAM RQN1-180Z-T40 |
HAM RQN2-300Z- T37 |
HAM RQN3-540Z- T36 |
HAM RQN4-675Z- T36 |
HAM RQN5-1500Z- T50 |
| Gear ratio | 40:1 | 37:1 | 36:1 | 36:1 | 50:1 |
| Torque, Nm | 180 | 300 | 540 | 675 | 1500 |
| ISO flange type | F05/F07 | F07/F09 | F07/F10 | F10/F12 | F10/F14 |
| Weight, kg | 1.2 | 2 |
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsWater Supply, Heat Supply
-
Valve feedback
-
Explosion-proof
-
Manual override
