Stainless steel ball valve Elephant kshmp316-elephant-da-yt1000rsn, bo – Valve Elephant
  • Pre-order now!

    Make sure you don't miss out! As soon as it's in stock, we will ship it to you.

Elephant  |  SKU: D160-13431

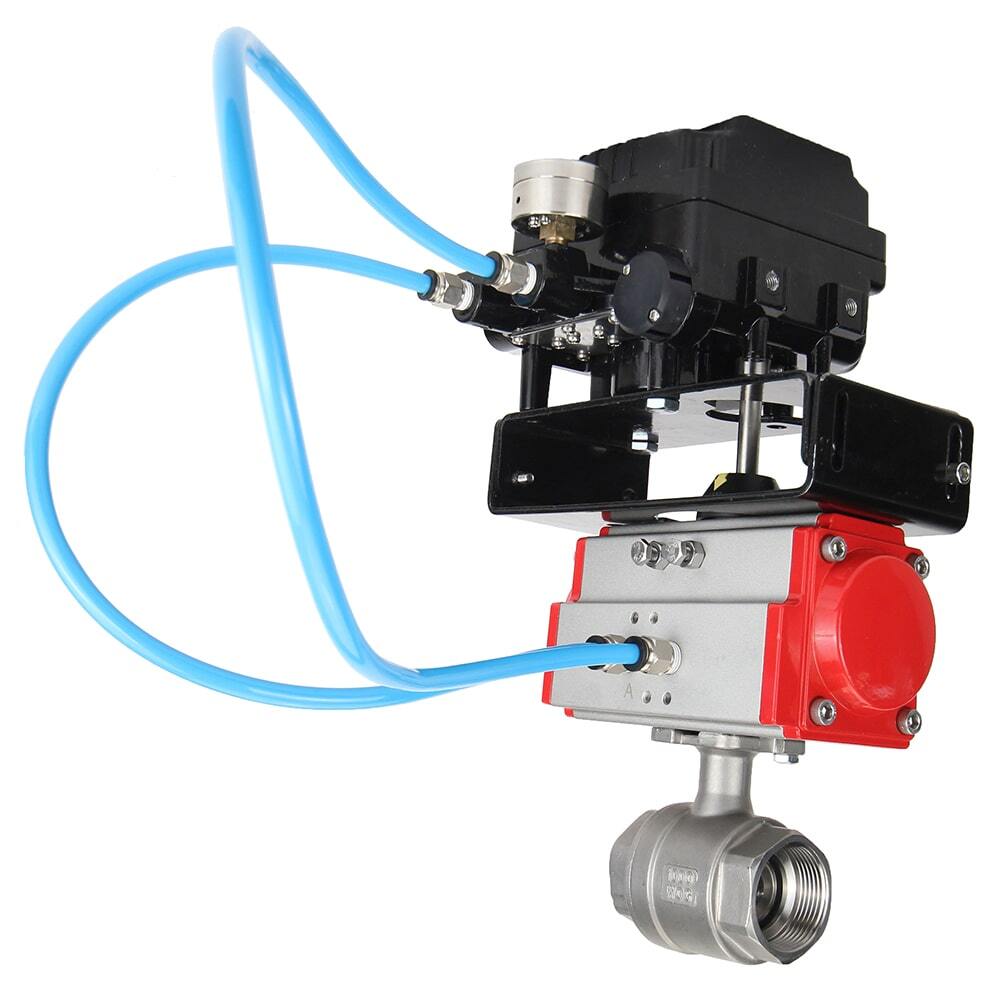

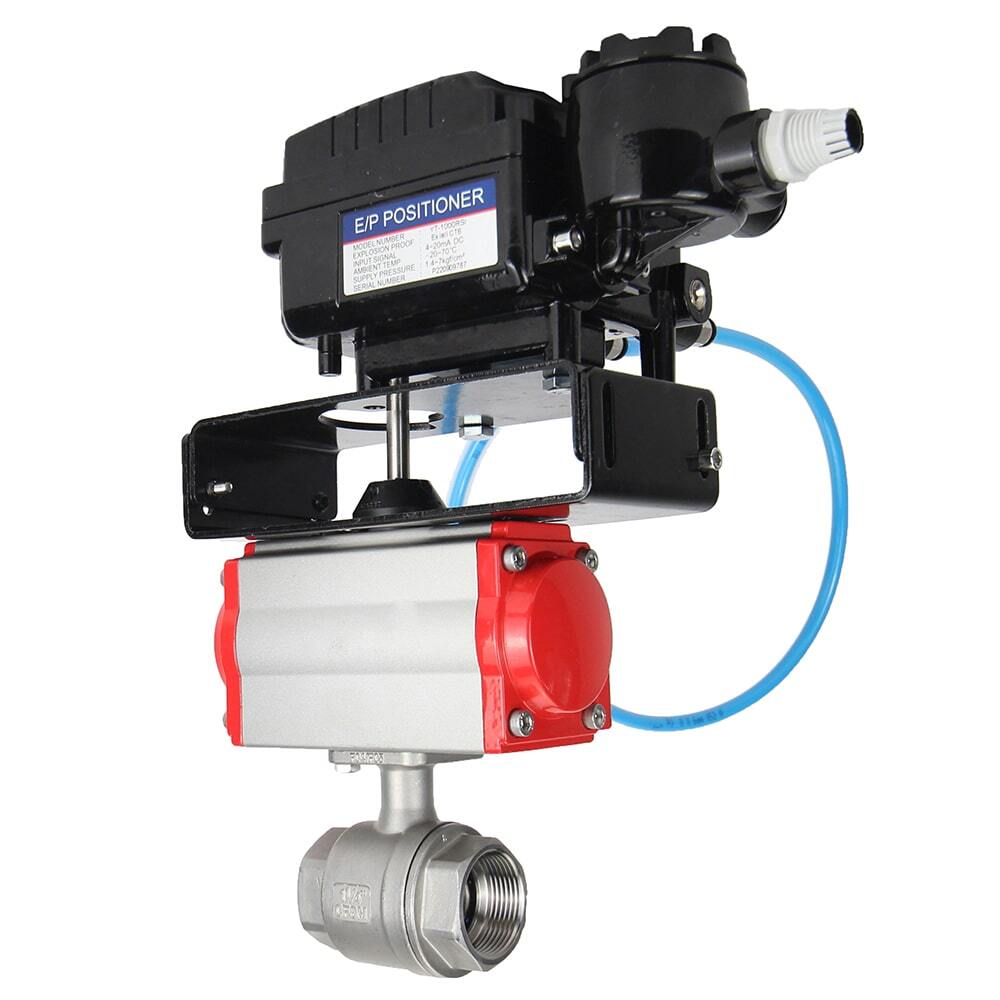

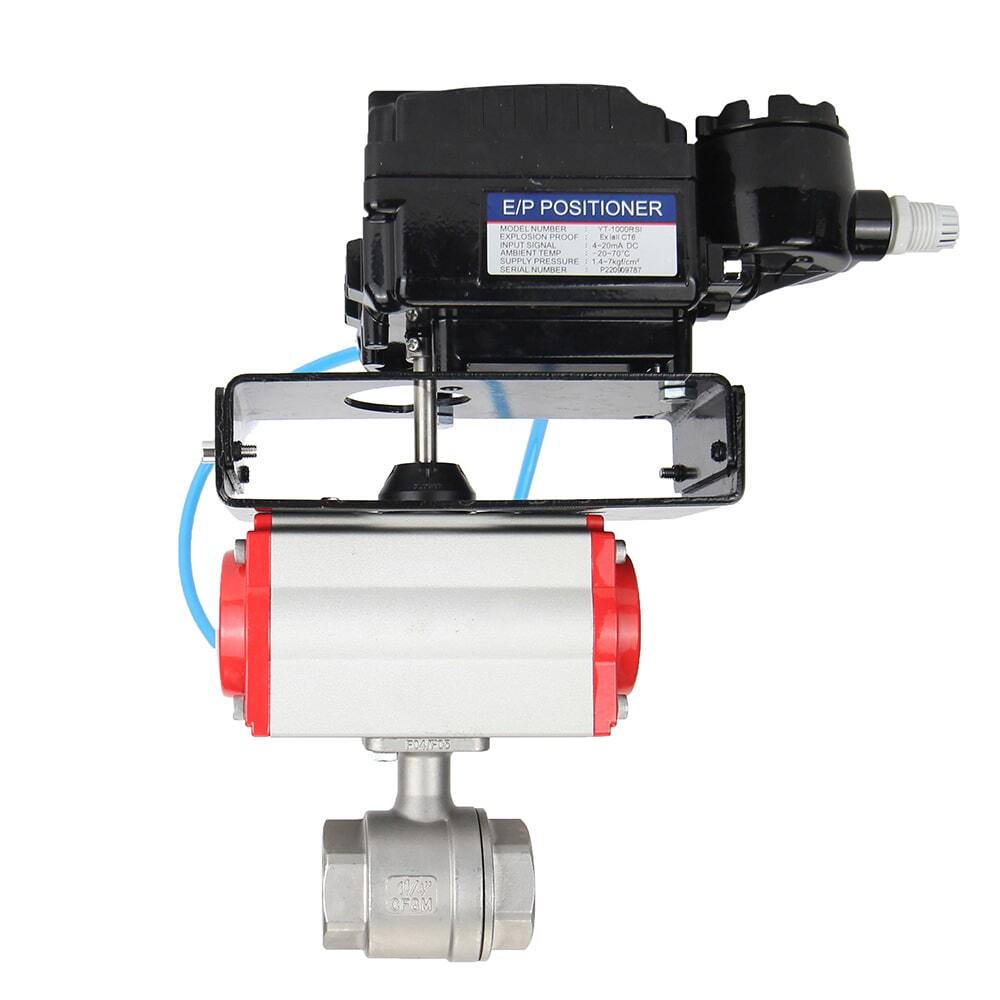

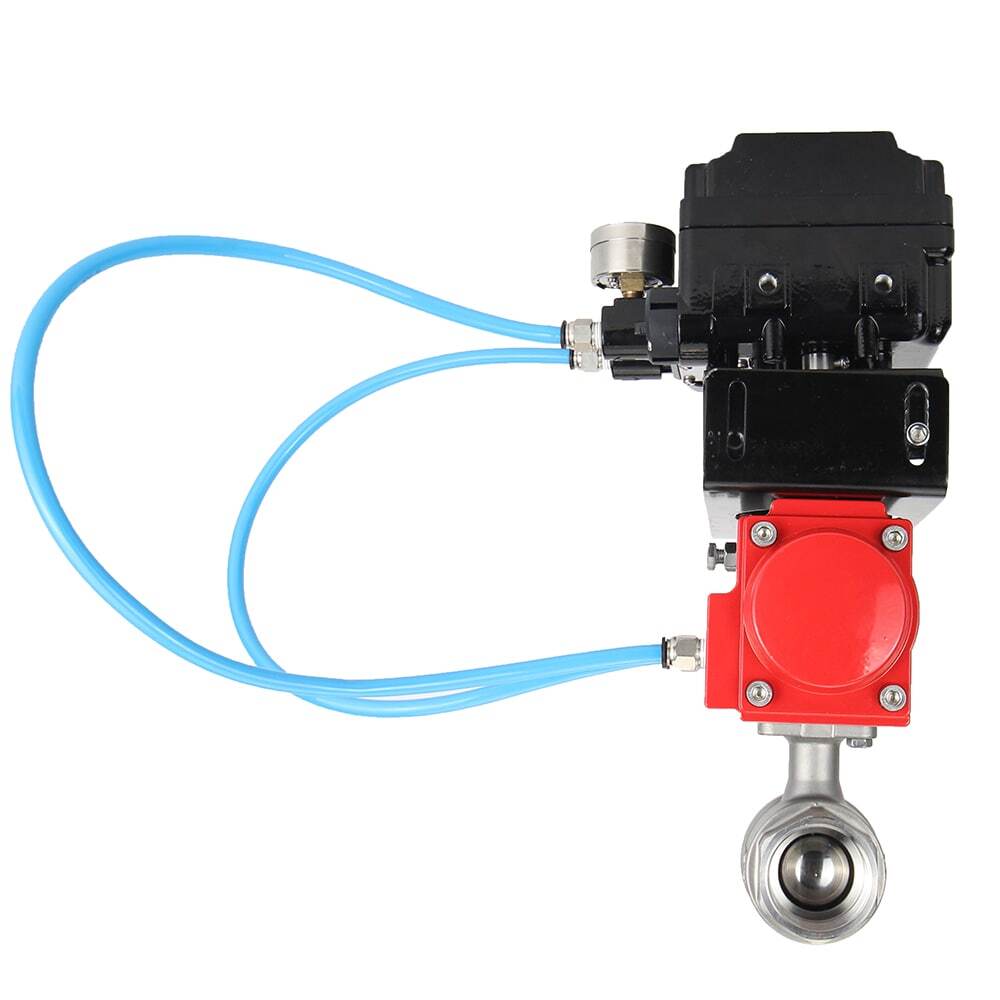

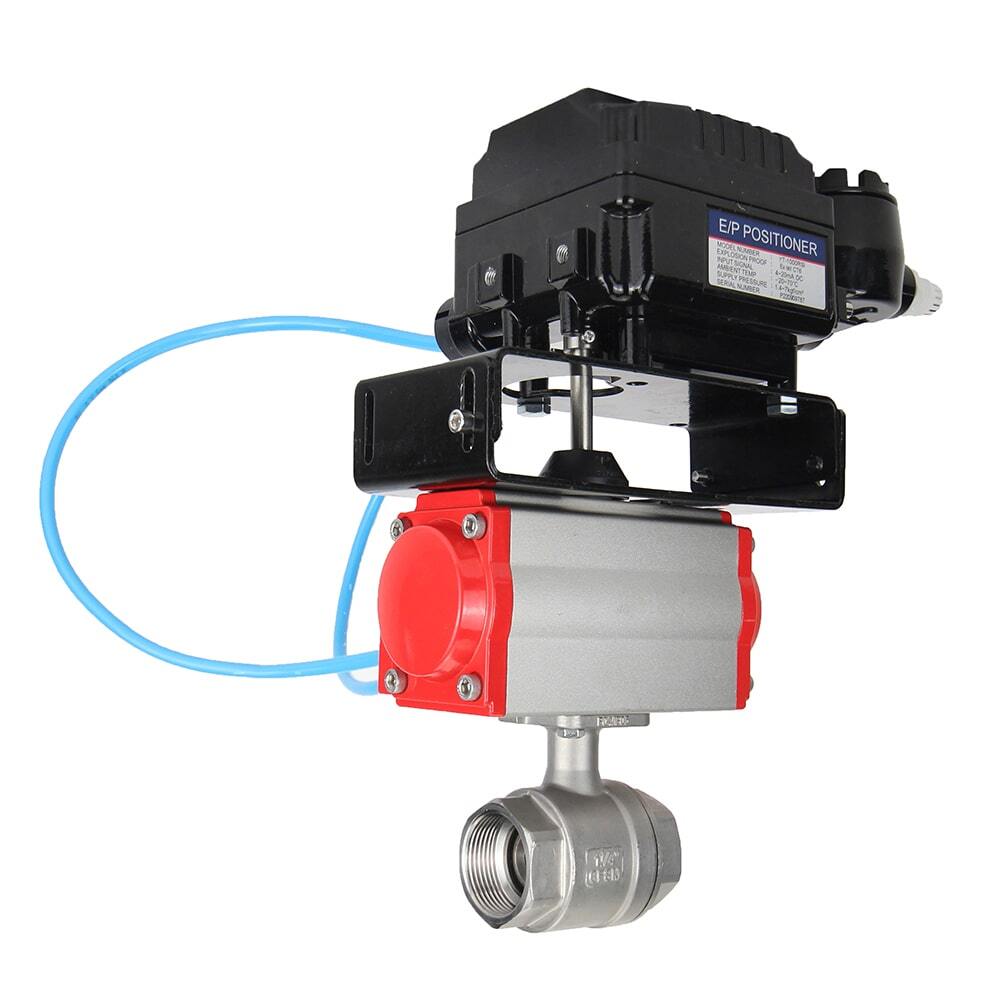

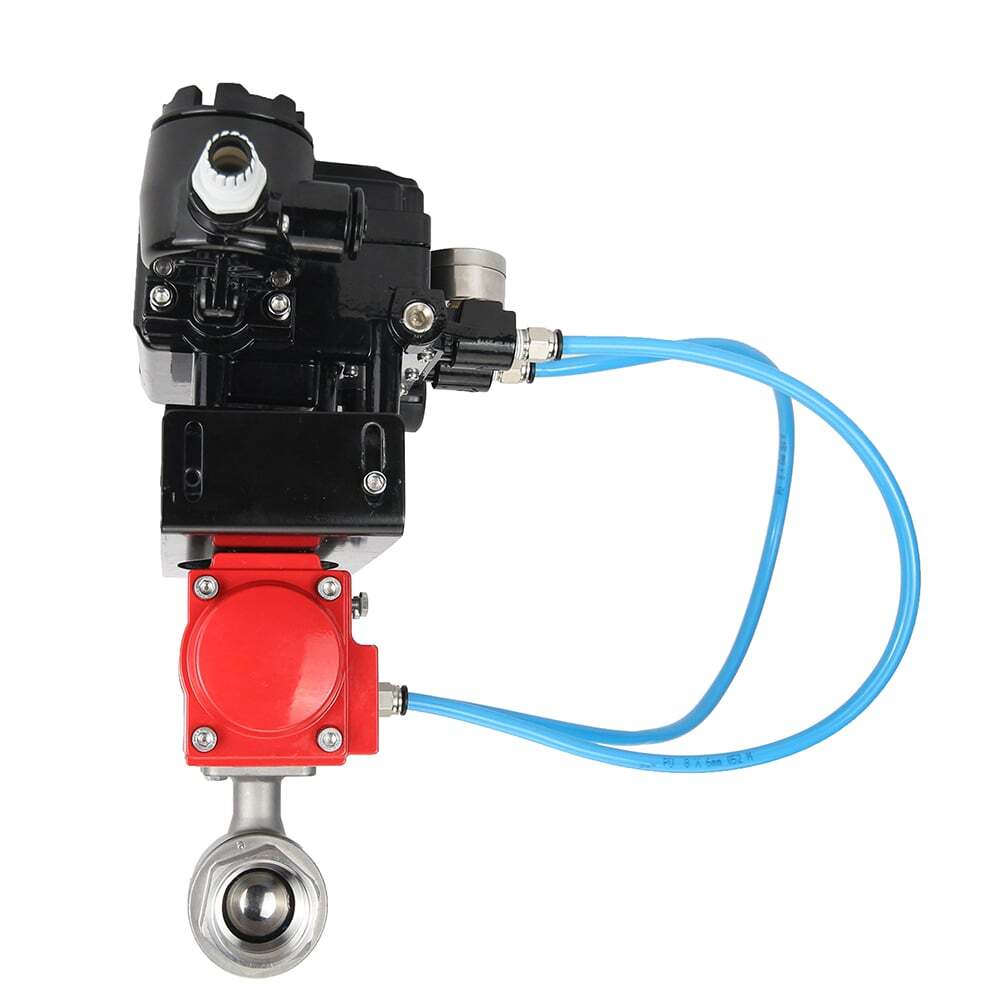

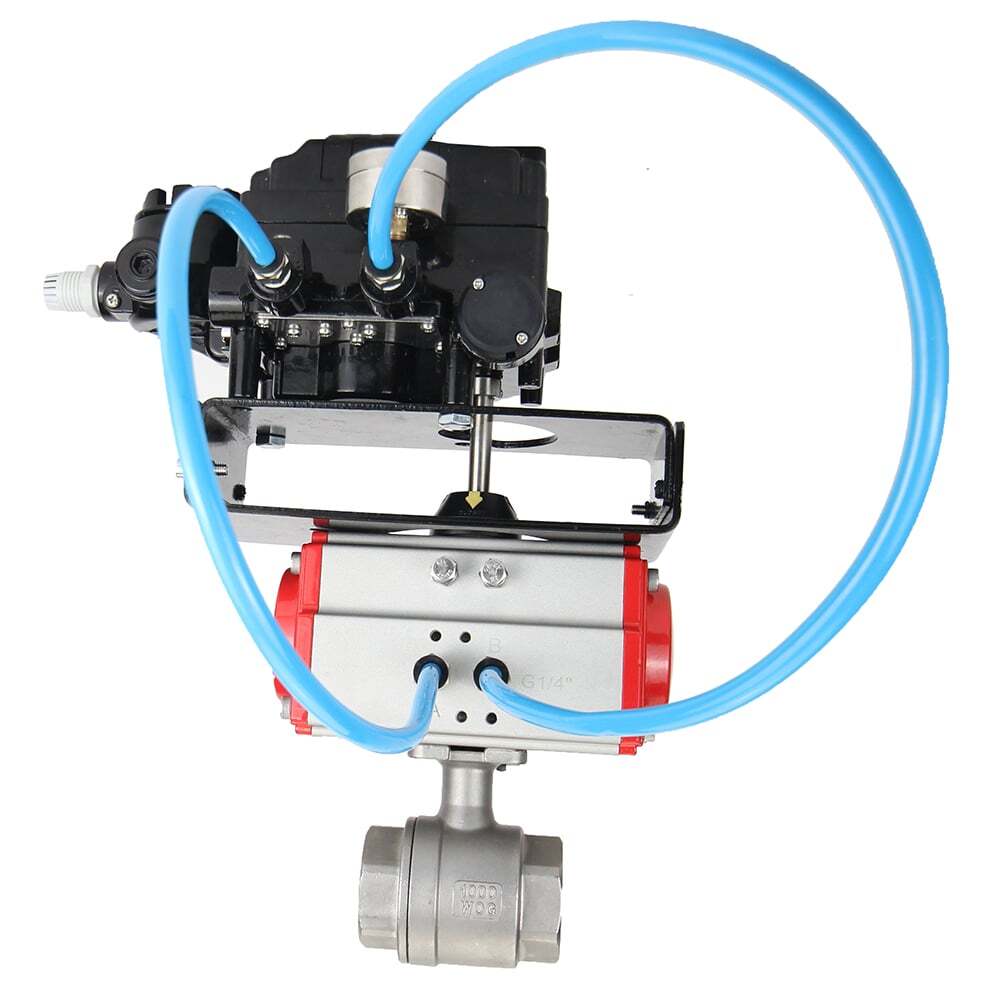

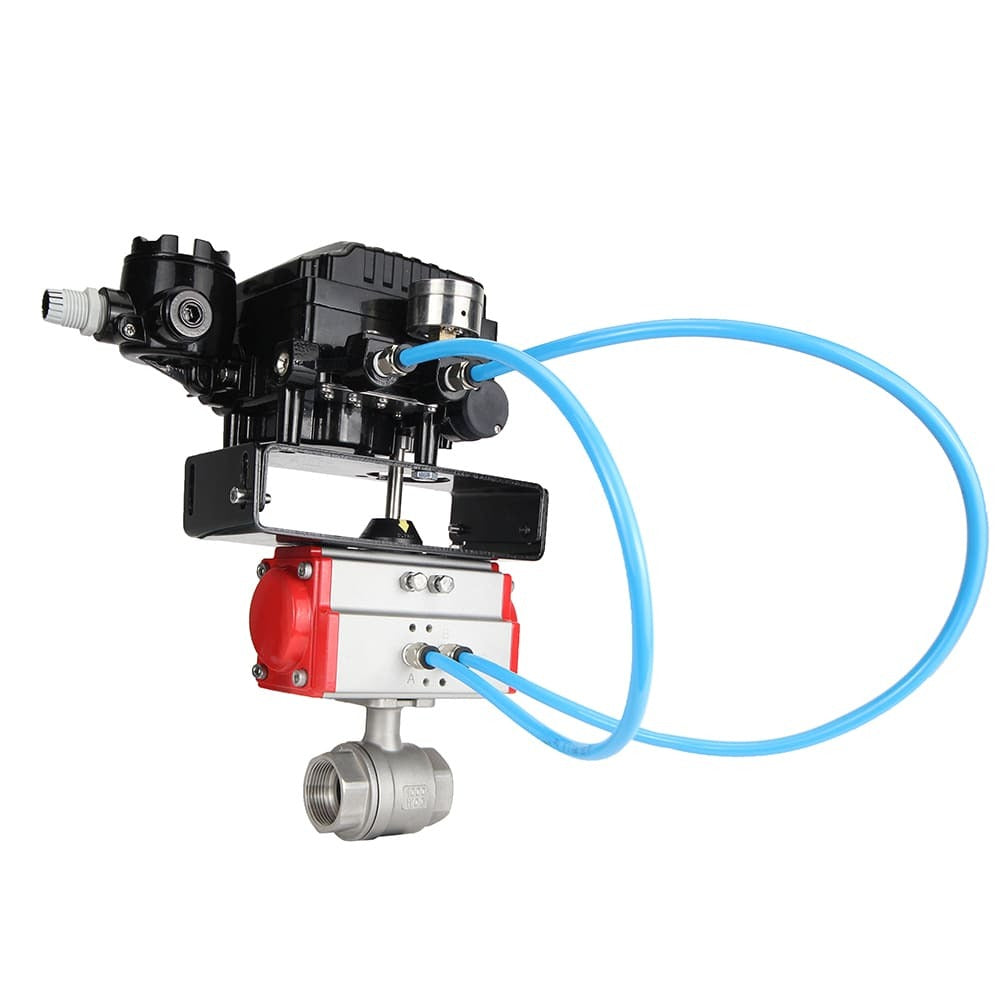

Stainless steel ball valve Elephant kshmp316-elephant-da-yt1000rsn, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

€500,00
Shipping calculated at checkout.

Connection size
Pressure

Leave your email

Get notified as soon as this product is available, along with the latest updates on new collections, sales, offers, and product arrival dates.

Secure Your Preorder

Please fill out the form to submit your preorder request. Include your full name, email, phone number, shipping address, product SKU, quantity, preferred payment method, and any additional notes or questions. Thank you!

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

Specifications

  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    230 °C
  • Connection type
    Threaded NPT/BSP
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply, Heat supply
  • Voltage
    110/220 V
  • Valve feedback
    No
  • Explosion-proof
    No
  • Torque
    24 Nm
  • Electropneumatic positioner
    Yes
  • Manual override
    Yes
  • Control signal
    4-20 mА

Reviews (0)

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Elephant

    Stainless steel ball valve Elephant kshmp316-elephant-da-yt1000rsn, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

    From €500,00

    A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

    Connection size

    • DN10
    • DN15
    • DN20
    • DN25
    • DN32
    • DN40
    • DN50
    • DN65
    • DN80
    • DN100

    Pressure

    • 63 bar
