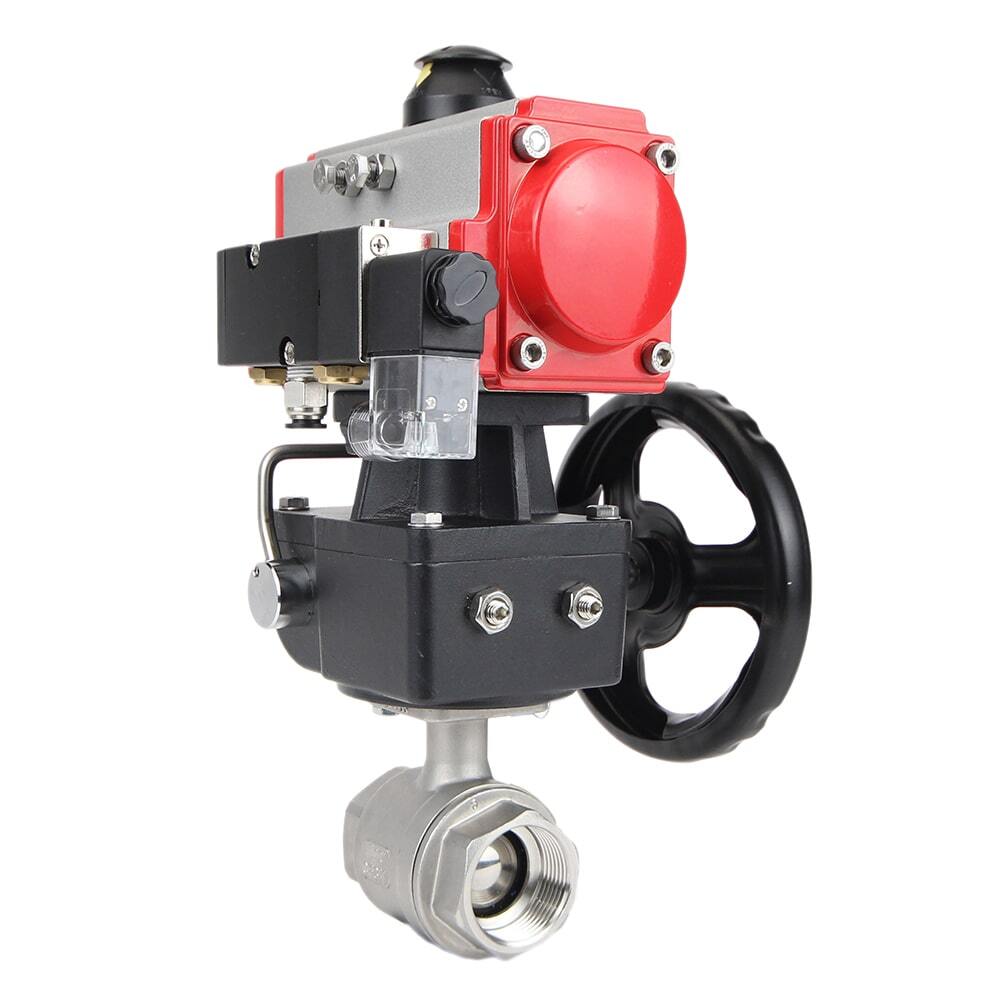

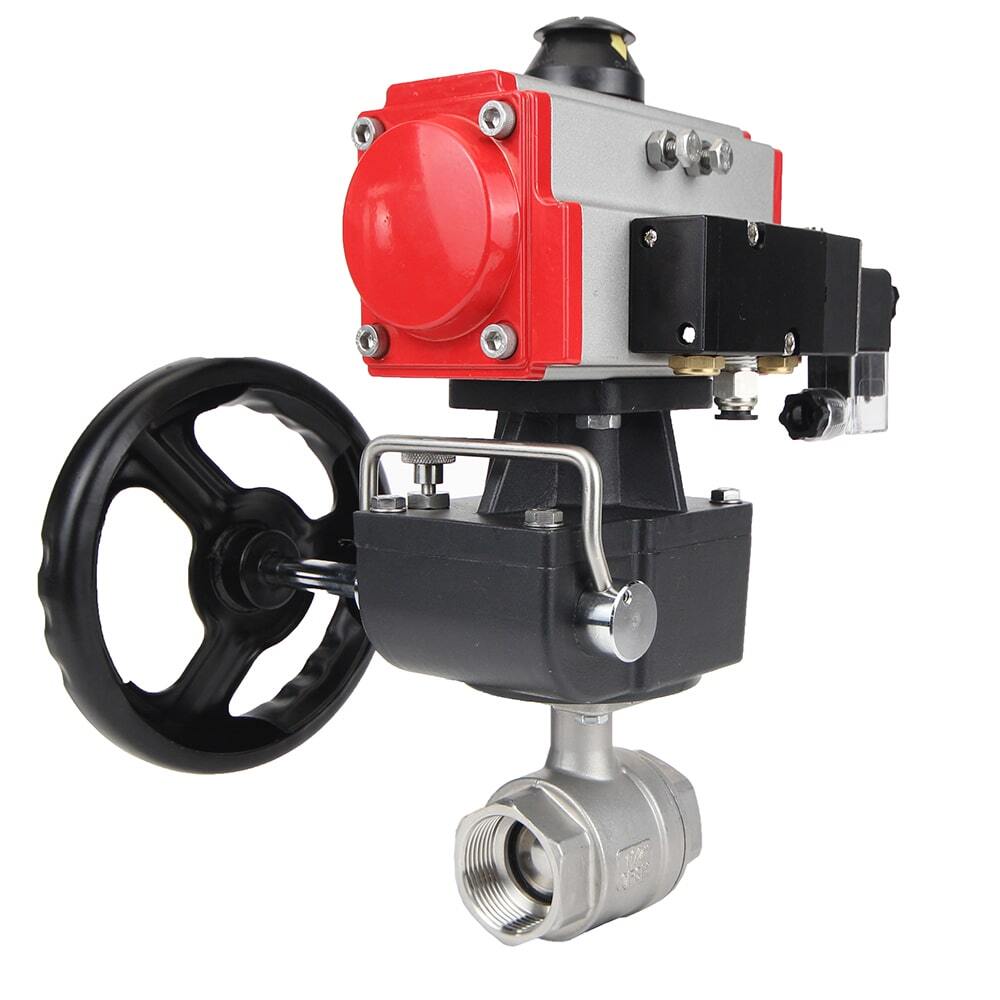

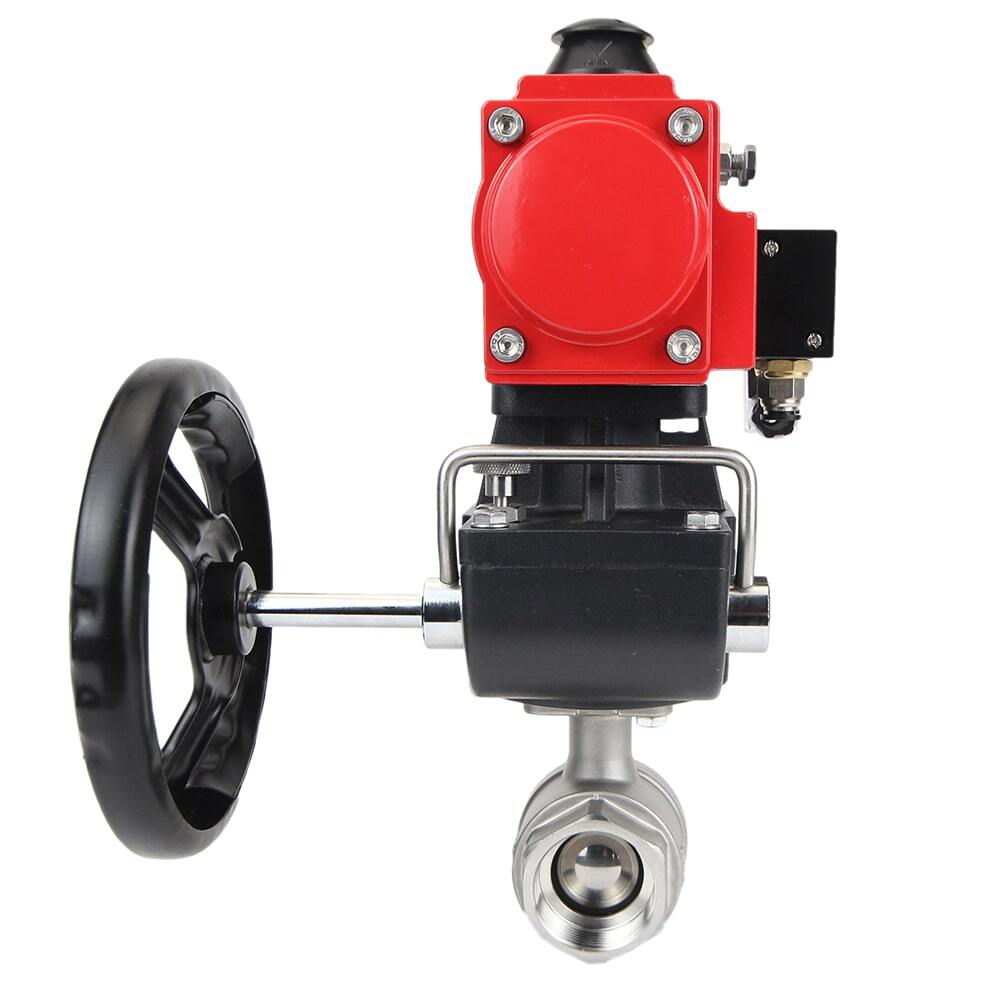

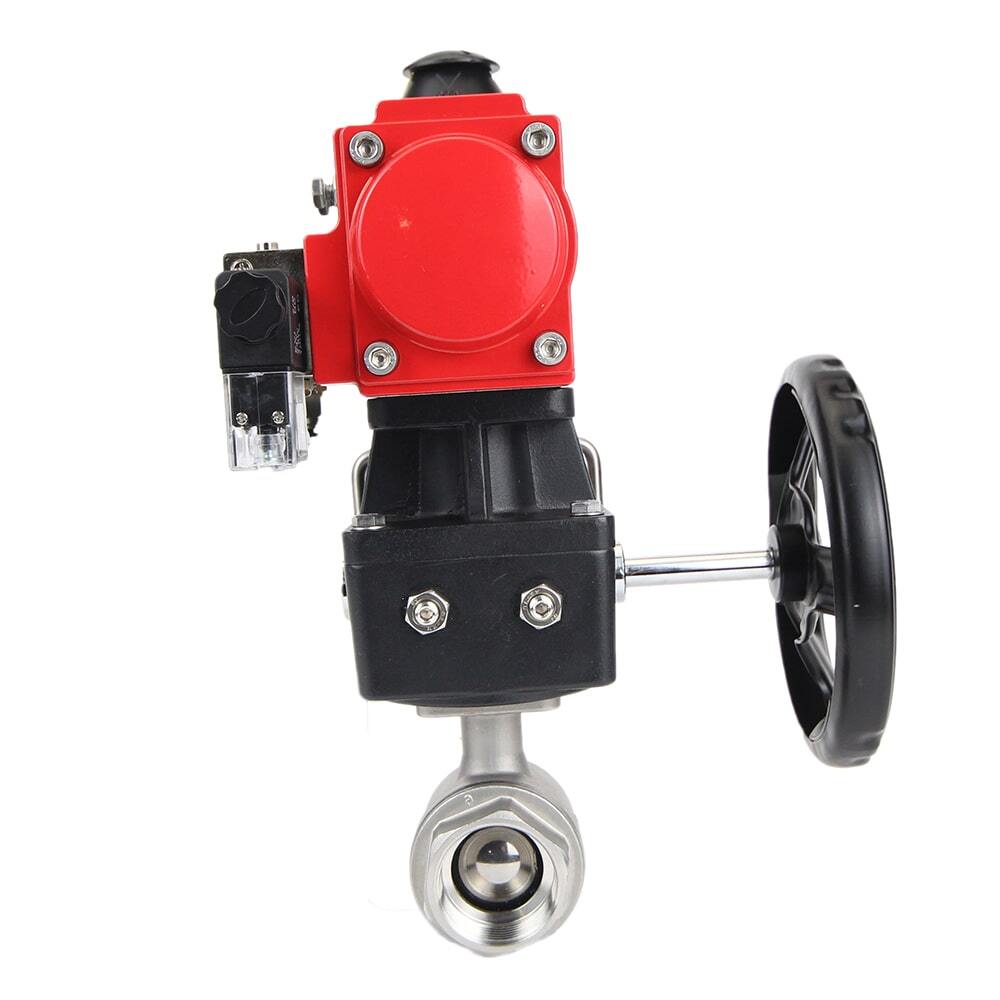

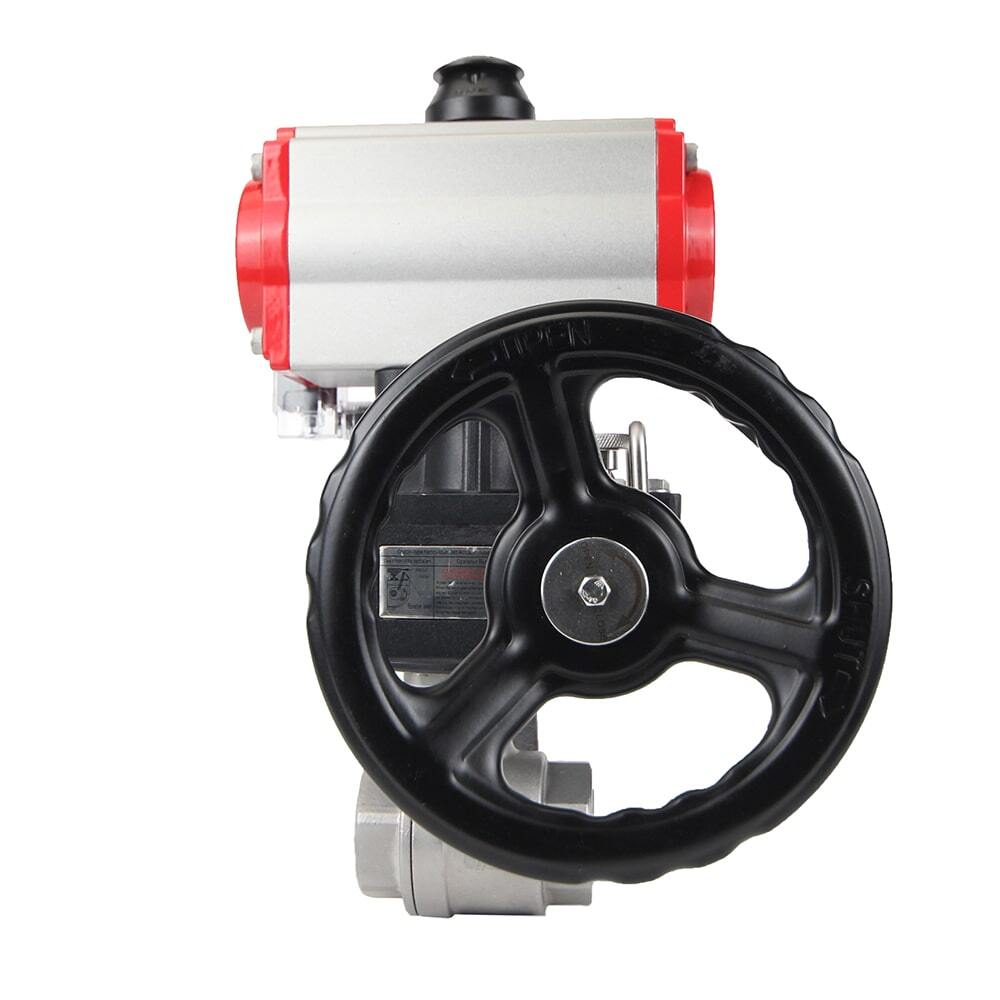

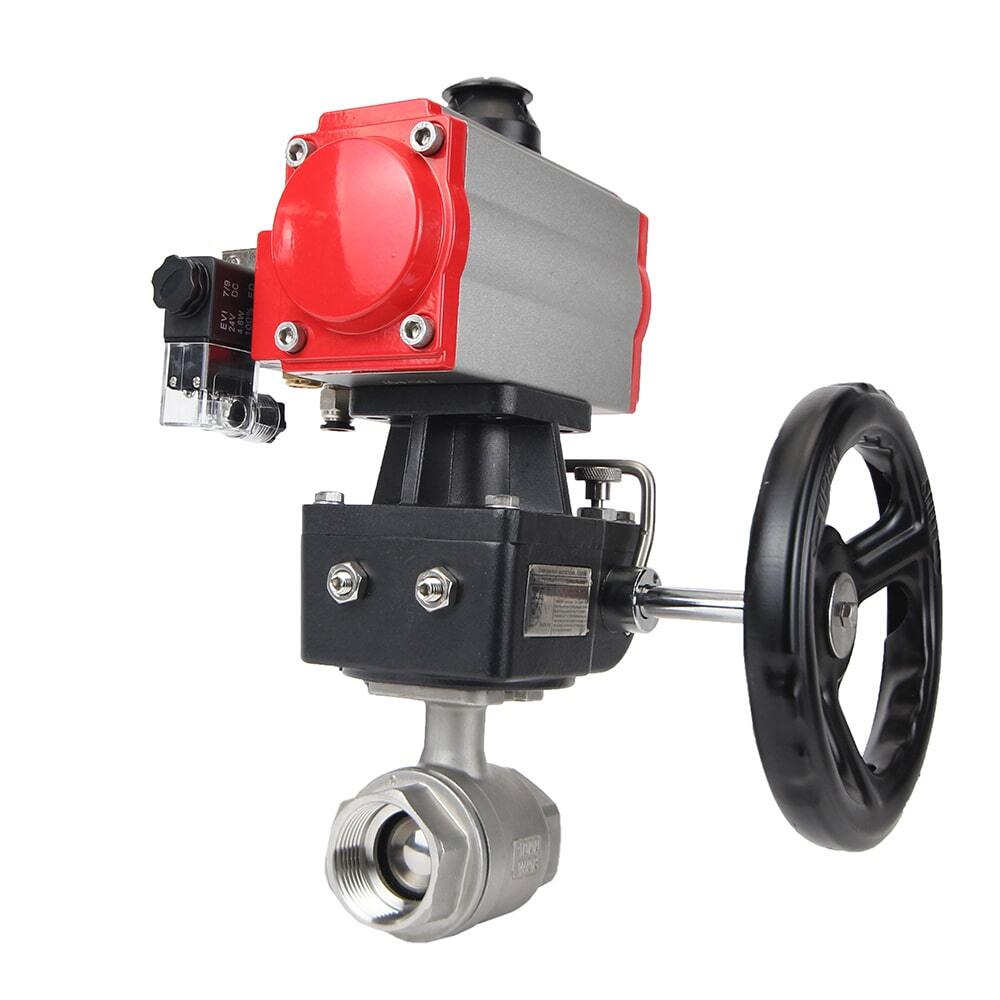

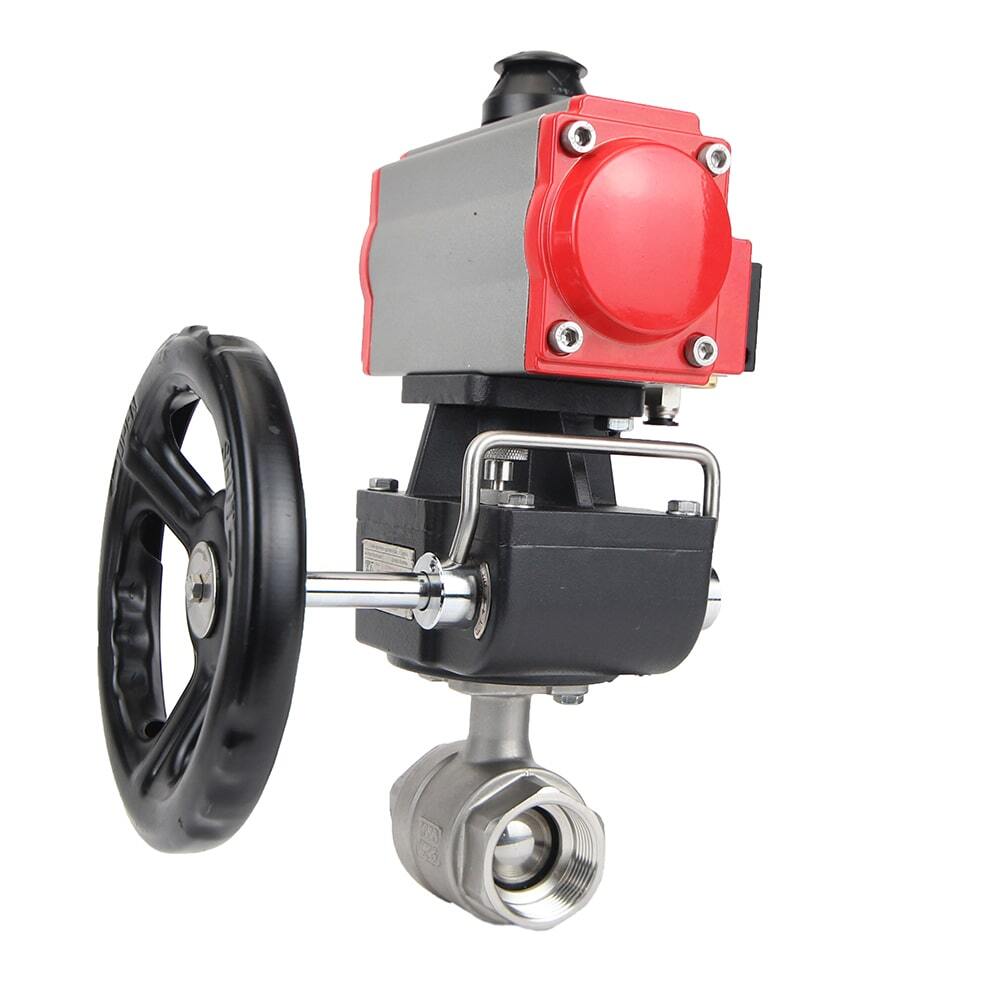

Stainless steel ball valve Elephant kshmp316-elephant-da-4m310-24-hdm, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated
Stainless steel ball valve Elephant kshmp316-elephant-da-4m310-24-hdm, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated - DN25 / 63 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Main parameters of ball valves Elephant KShMP.316.230-ISO DN10-100 RU63
| Nominal diameter DN, mm | 10-100 |
| Working pressure PN, bar | 63/40 |
| Temperature of working environment t, ⁰C | up to +230 |
| Working environment | water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials used |
| Connection to the pipeline | threaded |
| Body material | Stainless steel 316L |
| Shut-off valve material | Stainless steel 316L |
| Passage of the ball | full bore |
| Addition | installation of electric or pneumatic drive is possible (ISO 5211-2001) |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 2...8 |
| Working environment | Filtered compressed air or non-aggressive gases, oils |
| Maximum particle diameter | Less than 30 µm2 |
| Operating temperature, °C | from -20 to +80 |
| from -40 to +80 (low temperature version) | |
| from -20 to +160 (in dry air) | |
| Adjustment range | 5° for rotation at 0° and 90° |
| Manual duplication | There is |
| Position indicator | open/closed |
| Operating environment | indoors and outdoors (all internal and external parts have anti-corrosion coating). |
Main parameters of pneumatic valves
| Design | spool type |
| Nominal pressure PN, MPa (kg/cm2) | 1,2 (12) |
| Working pressure, bar | 1.5…8 |
| Working environment | filtered compressed air |
| Ambient temperature t, ⁰C | from +5 to +50 |
| Response frequency | 5 cycles/s |
| Manual duplication | There is |
| Degree of protection | IP 65 |
| Fastening | through through holes in the body |
| Body material | anodized aluminum |
| Response time | 0.05 sec. |
Basic parameters of handwheel doublers
| Model | Gear ratio | Torque, Nm | Weight, kg |
| HDM-1 | 26:1 | 250 | 3.0 |
| HDM-2 | 28:1 | 450 | 4.5 |
| HDM-3 | 38:1 | 700 | 6.9 |
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Applications
-
Explosion-proof
-
Torque
-
Pneumatic actuator
-
Manual override
