Stainless steel ball valve Elephant ksfpt-316-180-ham, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, handle operated
Stainless steel ball valve Elephant ksfpt-316-180-ham, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, handle operated - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Technical Data Ball Valve Elephant BV3232P(3pc)-FP-F-ISO-H HAM RQN-Z:
| Nominal diameter, mm | 15-100 |
| Working pressure PN, bar |
DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Sealing class | “A” according to GOST 9544-2015 |
| Control type | Double-acting pneumatic actuator Elephant-DA |

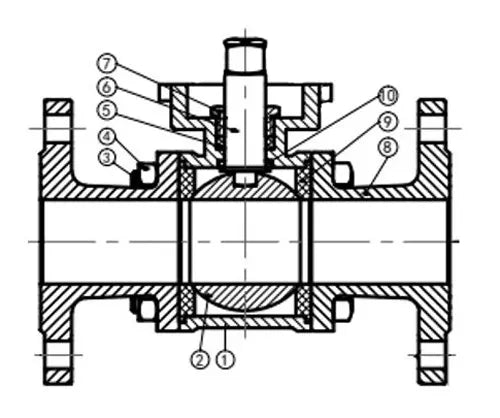

Ball Valve Detail Elephantu BV3232P(3pc)-FP-F-ISO-H HAM RQN-Z
Material specification ball valve Elephant BV3232P(3pc)-FP-F-ISO-H HAM RQN-Z:
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
Sketch of ball valve Elephant BV3232P(3pc)-FP-F-F-ISO-H HAM RQN-Z
Overall and installation dimensions of ball valve Elephant BV3232P(3pc)-FP-F-ISO-H HAM RQN-Z:
| DN, мм | d, мм | D, мм | L1, мм | L±1.5, мм | H, мм |
| 15 | 15 | 95 | 80 | 130 | 48 |
| 20 | 20 | 105 | 80 | 150 | 48 |
| 25 | 25 | 115 | 80 | 160 | 48 |
| 32 | 32 | 140 | 80 | 180 | 48 |
| 40 | 38 | 150 | 80 | 200 | 48 |
| 50 | 50 | 165 | 80 | 230 | 48 |
| 65 | 64 | 184 | 80 | 290 | 48 |
| 80 | 79 | 200 | 80 | 310 | 48 |
| 100 | 99 | 220 | 100 | 350 | 58 |
