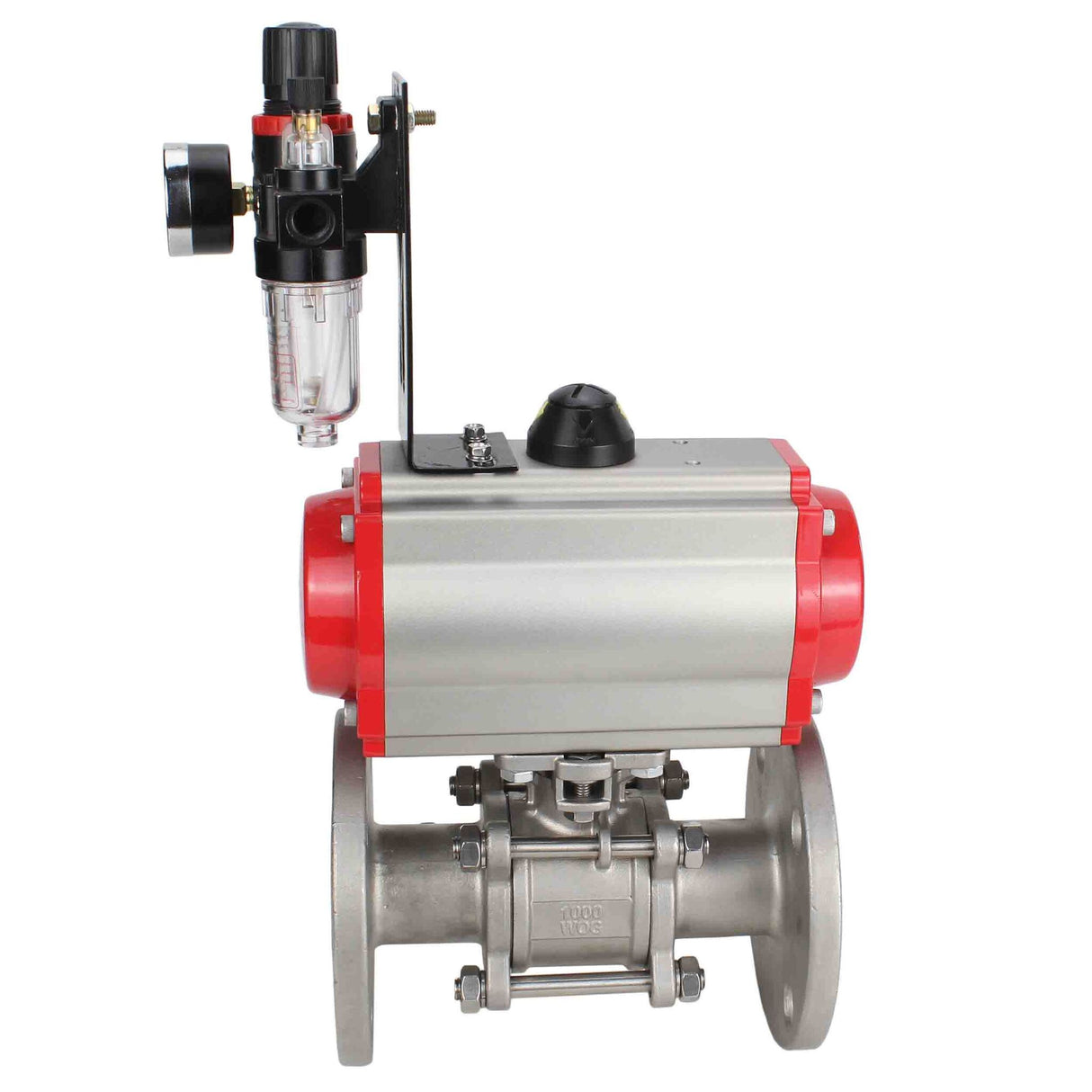

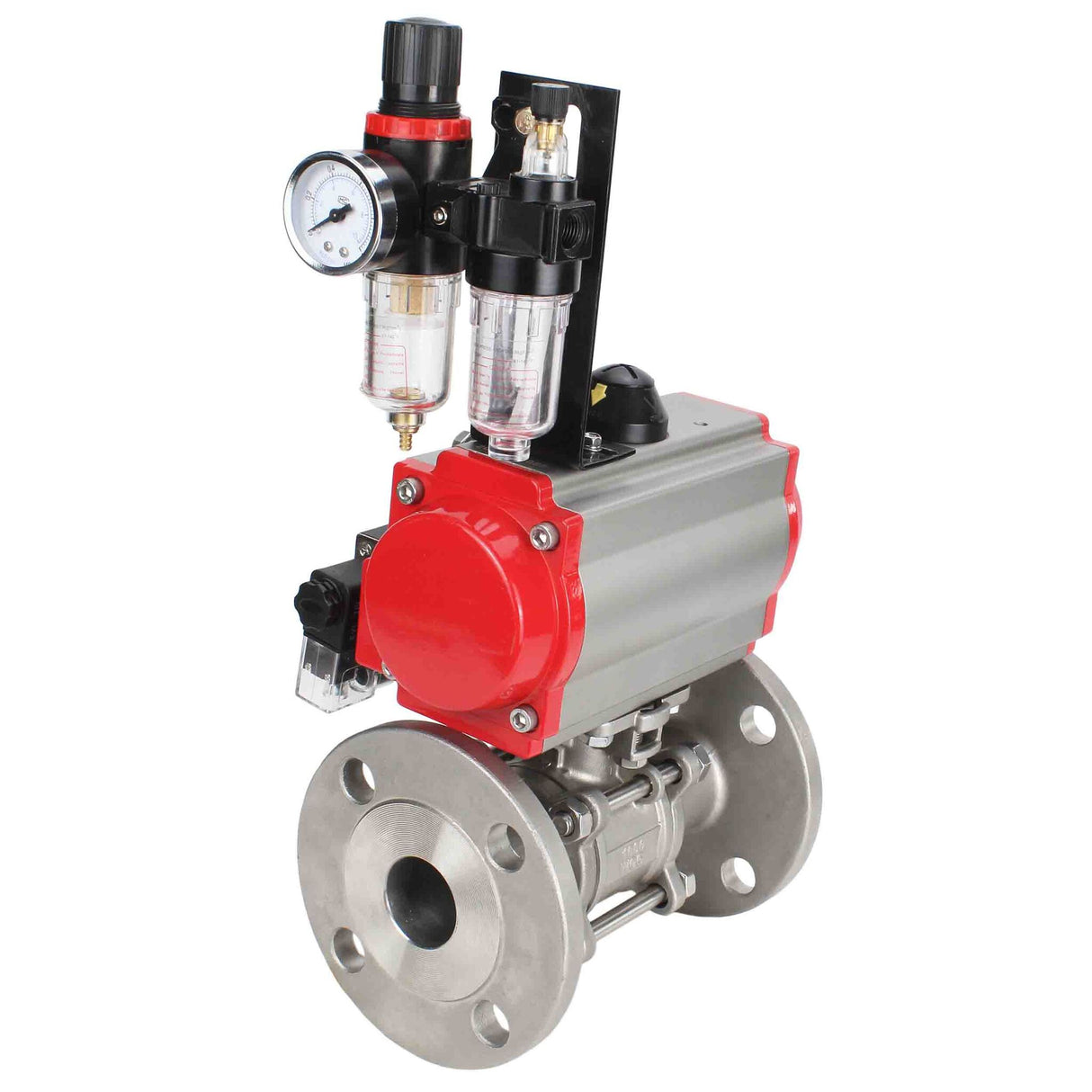

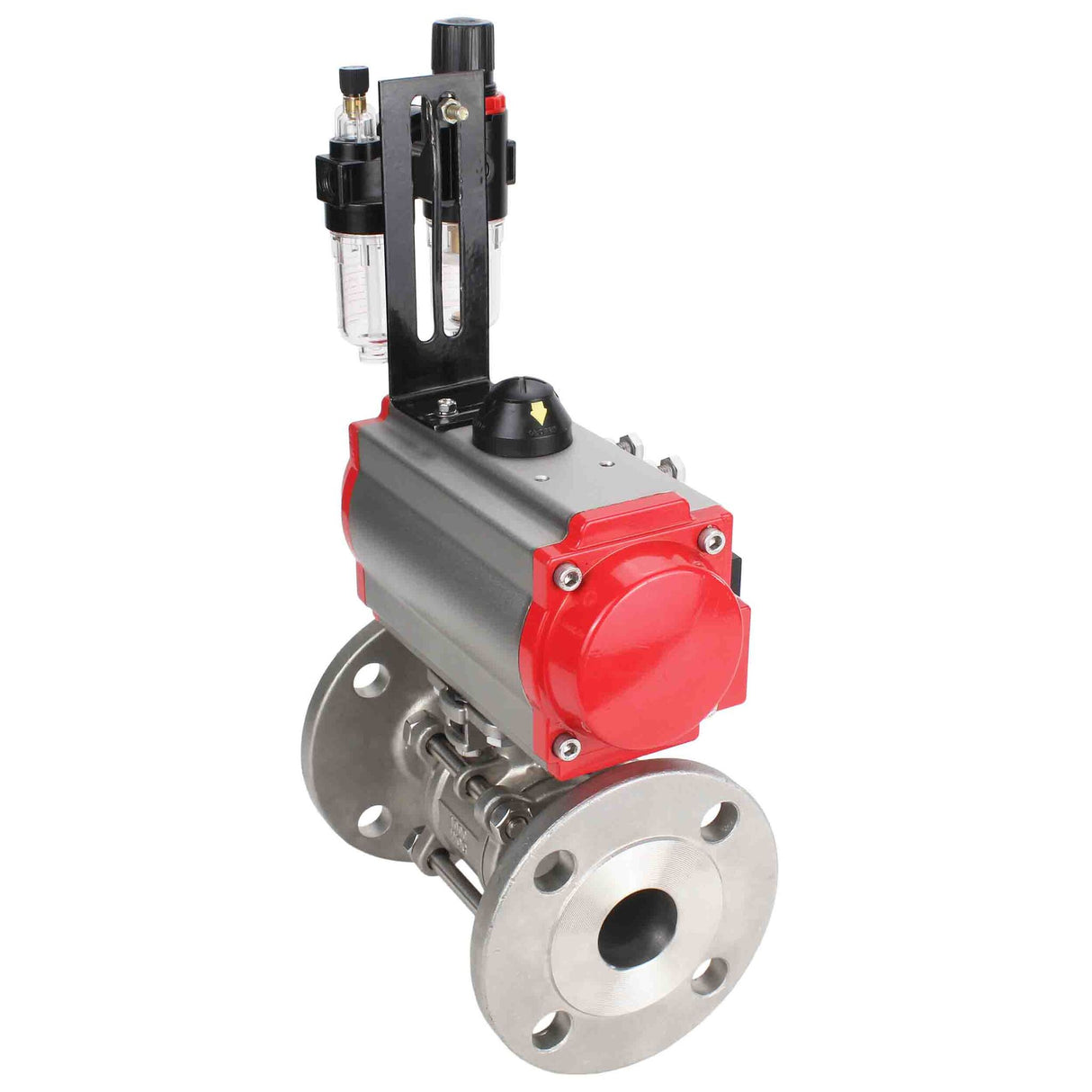

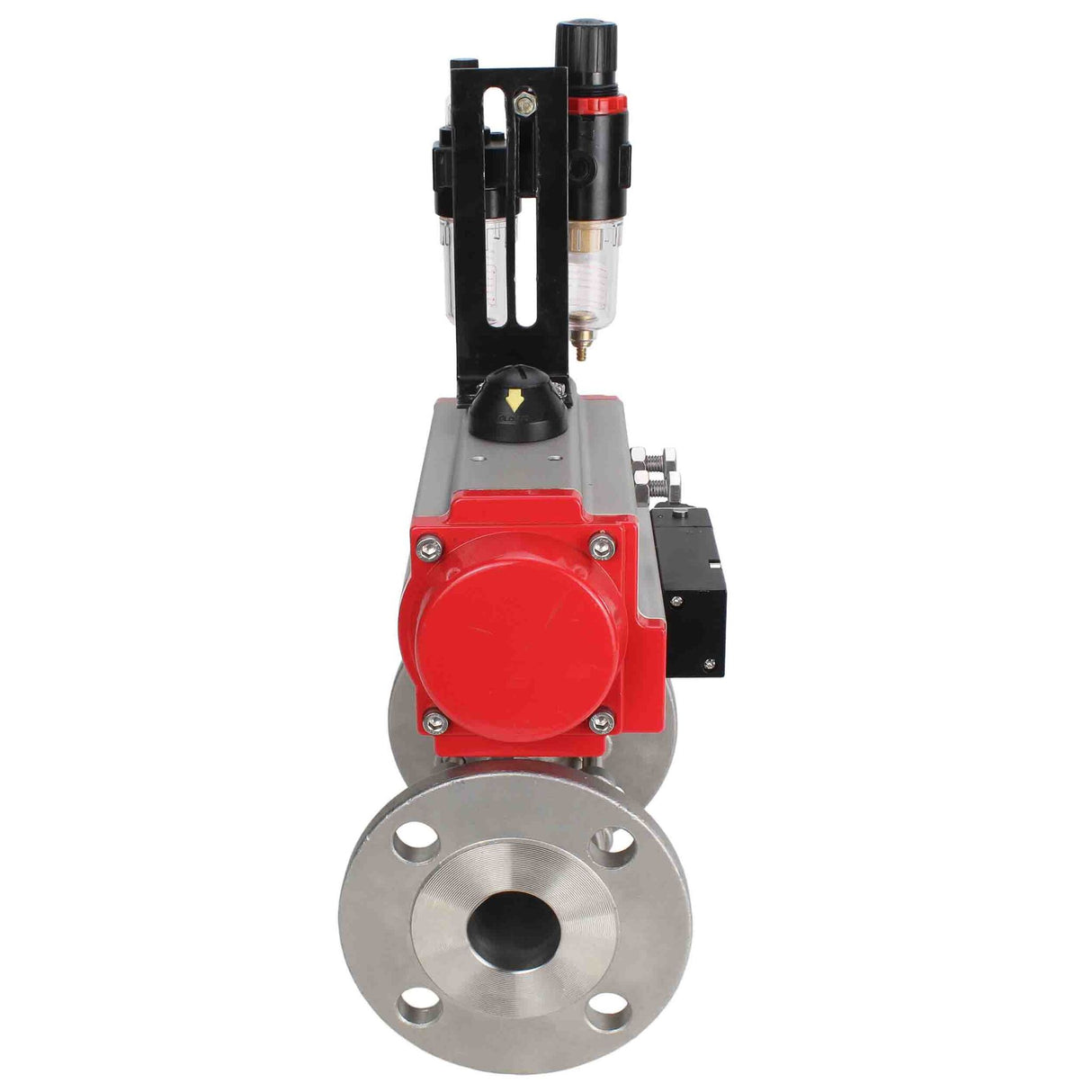

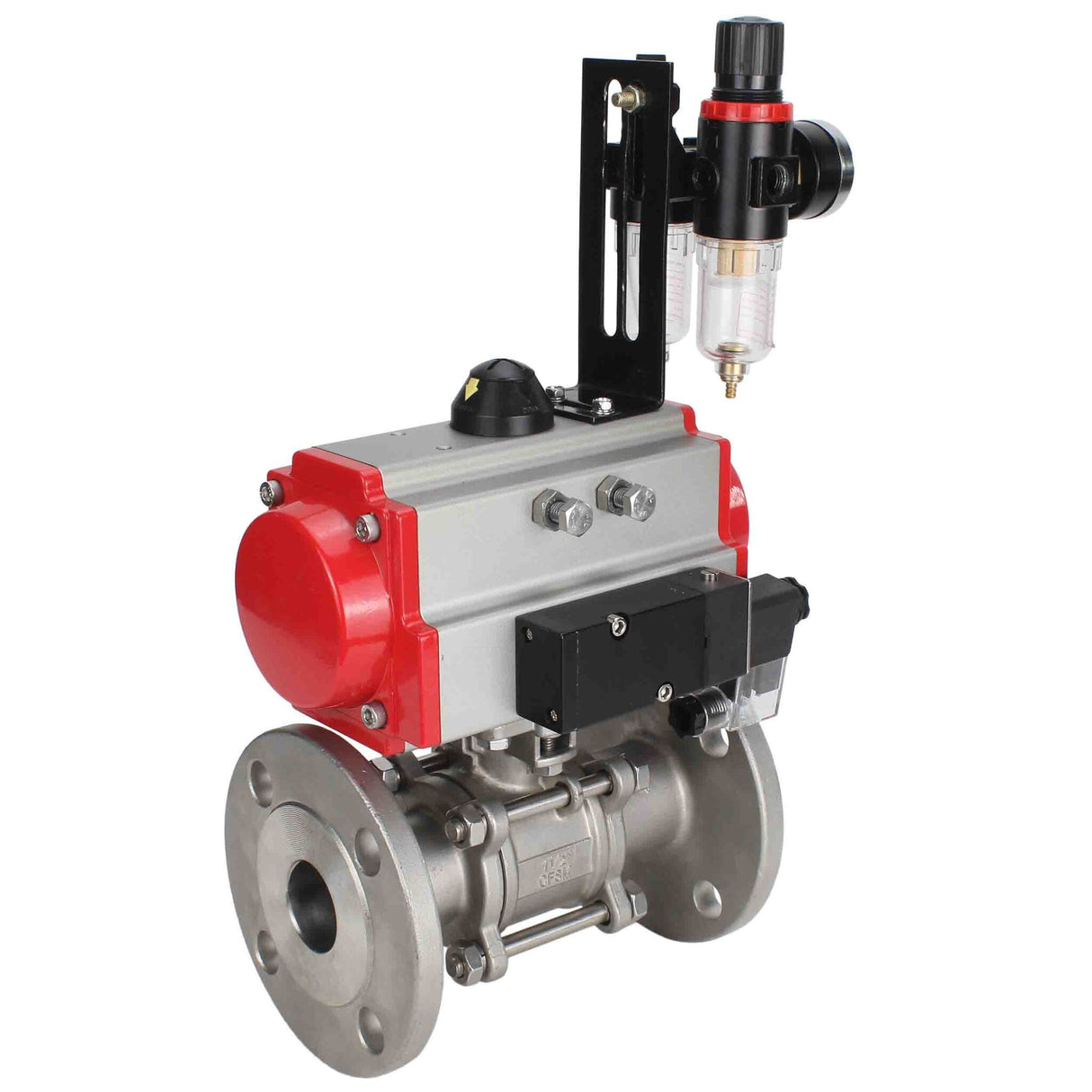

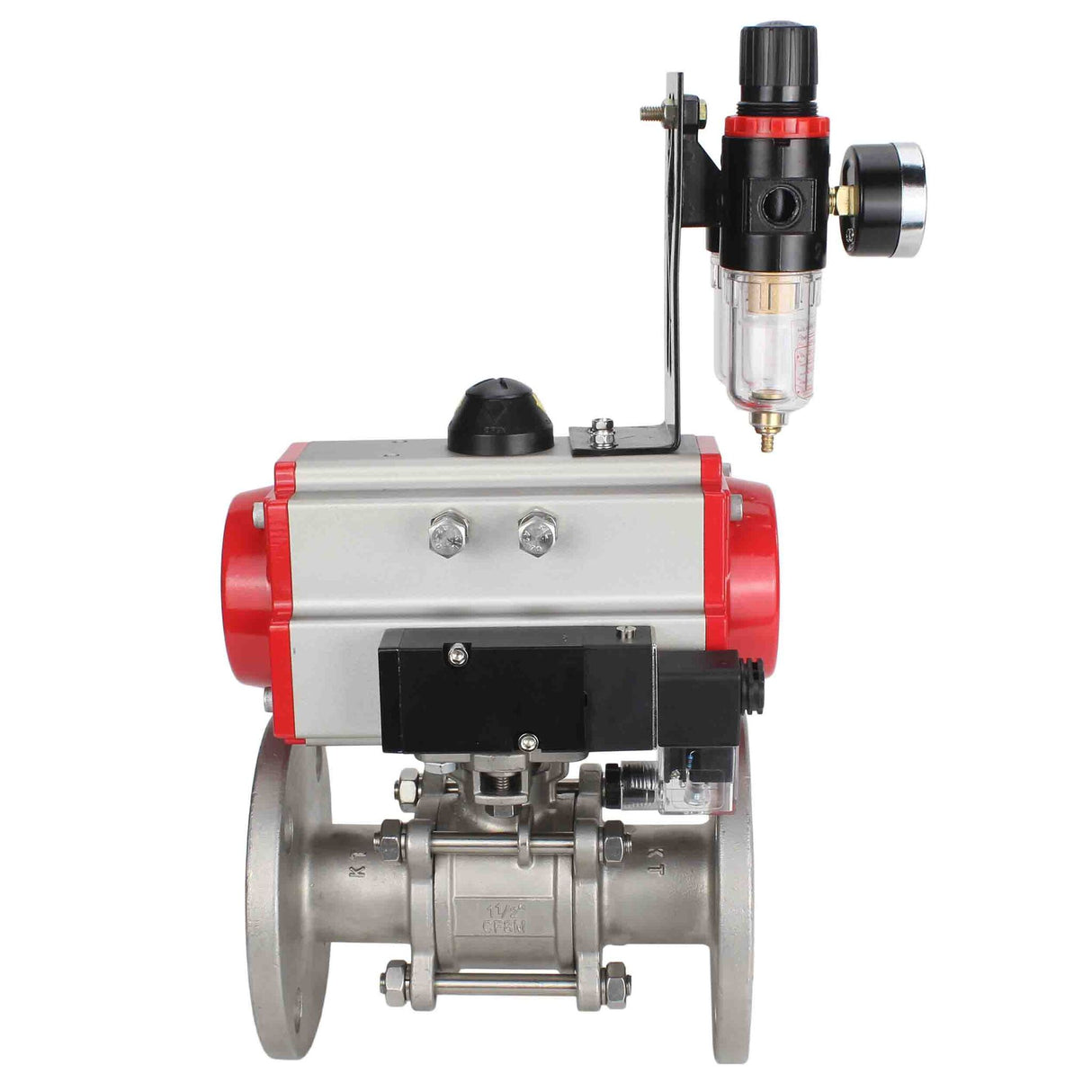

Stainless steel ball valve Elephant ksfpt-316-180-da-4m310-24v-afc2000, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

€151,70
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant ksfpt-316-180-da-4m310-24v-afc2000, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both hghi temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.





Ball Valve Technical Data Elephant BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V AFC2000:

Nominal diameter, mm 15-100
Working pressure PN, bar DN15-50 – 40
DN65-80 – 25
DN100 – 16
Temperature of working environment t, ⁰C from -20 to +180
Working environment Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline flanged
Type of flow section full bore
Control type Double-acting pneumatic actuator Elephant-DA





Ball Valve Detail Elephant BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V AFC2000



Elephant BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V AFC2000 ball valve material specification:

№ Name Material Quantity
1 Frame SS304/SS316 1
2 Ball valve SS304/SS316 1
3 Bolt SS201/SS304 4-6
4 screw SS201/SS304 6-12
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal SS201/SS304 1
8 Lid WCB/CF8/CF8M 2
9 Saddle rings PTFE 2
10 Thrust washer PTFE 1
11 screw SS201/SS304 1
12 Lever SS201/SS304 1
13 Handle shell PVC 1
14 Stopper SS201/SS304 1



Overall and installation dimensions of ball valve Elephant BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V AFC2000:

DN d D D1 D2 W f L±1.5 T H Z-øM Weight
mm pcs-mm kg
15 15 95 65 46 17 2 130 131 71 4-ø14 2,06
20 20 105 75 58 18 2 150 131 74 4-ø14 2,87
25 25 115 85 68 18 2 160 167 97 4-ø14 3,625
32 32 140 100 78 19 2 180 167 110 4-ø18 5,27
40 40 150 110 88 19 2 200 193 117 4-ø18 6,465
50 50 165 125 102 19 3 230 193 125,5 4-ø18 8,285
65 65 185 145 122 22 3 290 242 135,5 8-ø18 13
80 80 200 160 140 24 3 310 272 157 8-ø18 17,255
100 100 234 190 161 24 3 350 295 181 8-ø22 25,705

Sketch of ball valve Elephant BV3232P(3pc)-FP-F-ISO-H PA-DA 4M310-08 24V AFC2000





Pneumatic actuator Elephant

Parameters of pneumatic actuator Elephant:

  • Pneumatic actuator type - double acting
  • Working pressure of pneumatic drive - 6.0 bar
  • Drive rotation angle - 90°
  • Drive adjustment range - 5°
  • Country of origin - China
  • Operating environment - indoor and outdoor
  • Position indicator - open/closed
  • Coating - All internal and external parts have an anti-corrosion coating





Pneumatic distributor 4M310

Main parameters of pneumatic valves

Design spool type
Nominal pressure PN, MPa (kg/cm2) 1,2 (12)
Working pressure, bar 1.5…8
Working environment filtered compressed air
Ambient temperature t, ⁰C from +5 to +50
Response frequency 5 cycles/s
Manual duplication There is
Degree of protection IP 65
Fastening through through holes in the body
Body material anodized aluminum
Response time 0.05 sec.





Passports and certificates

Data sheet for Elephant DA/SA-xxx double-acting pneumatic actuator with return springs

Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Water Supply, Heat Supply
  • Voltage
    24 V
  • Valve feedback
    No
  • Explosion-proof
    No
  • Torque
    308 Nm
  • Electropneumatic positioner
    No
  • Pneumatic actuator
    Yes
