Elephant  |  SKU: D160-37953

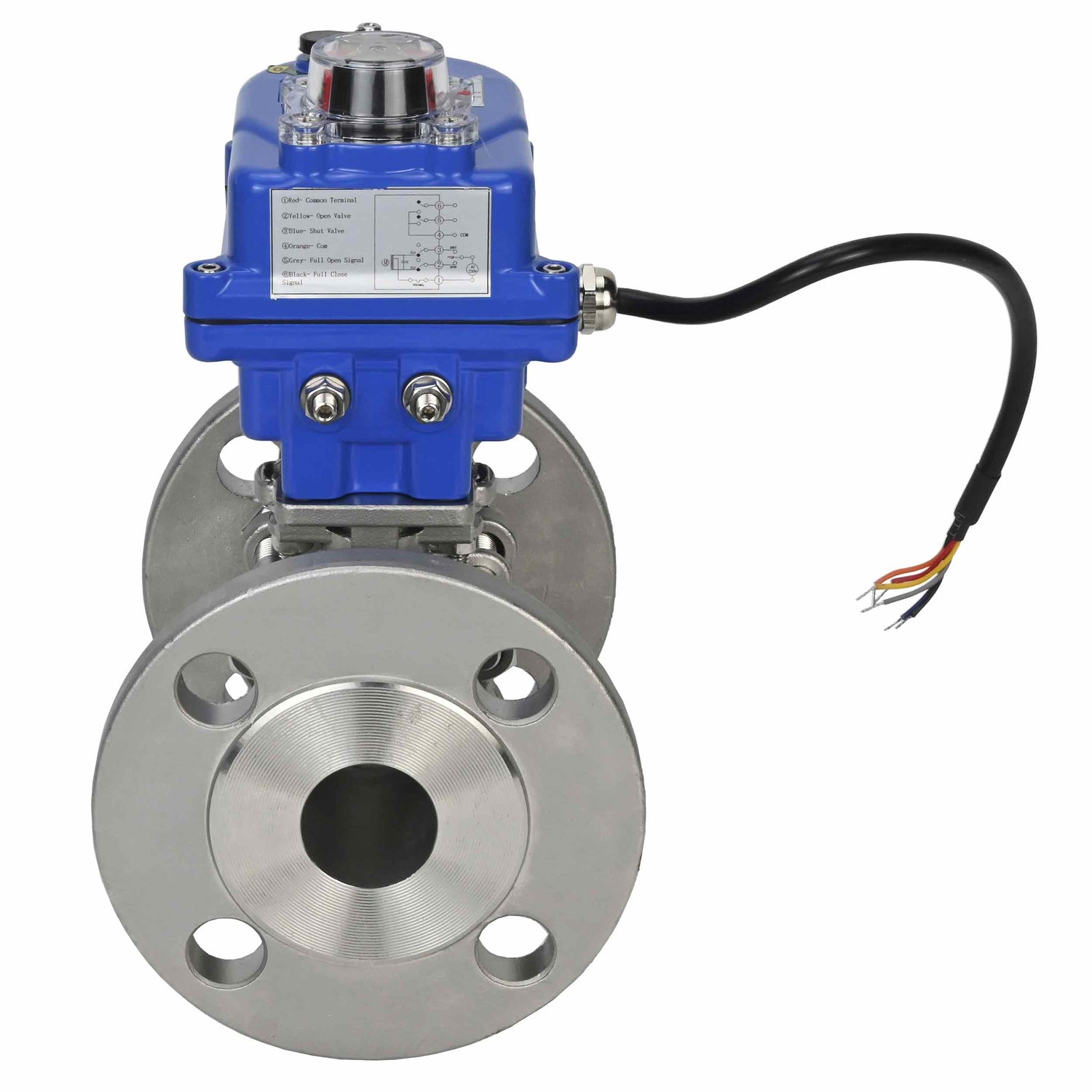

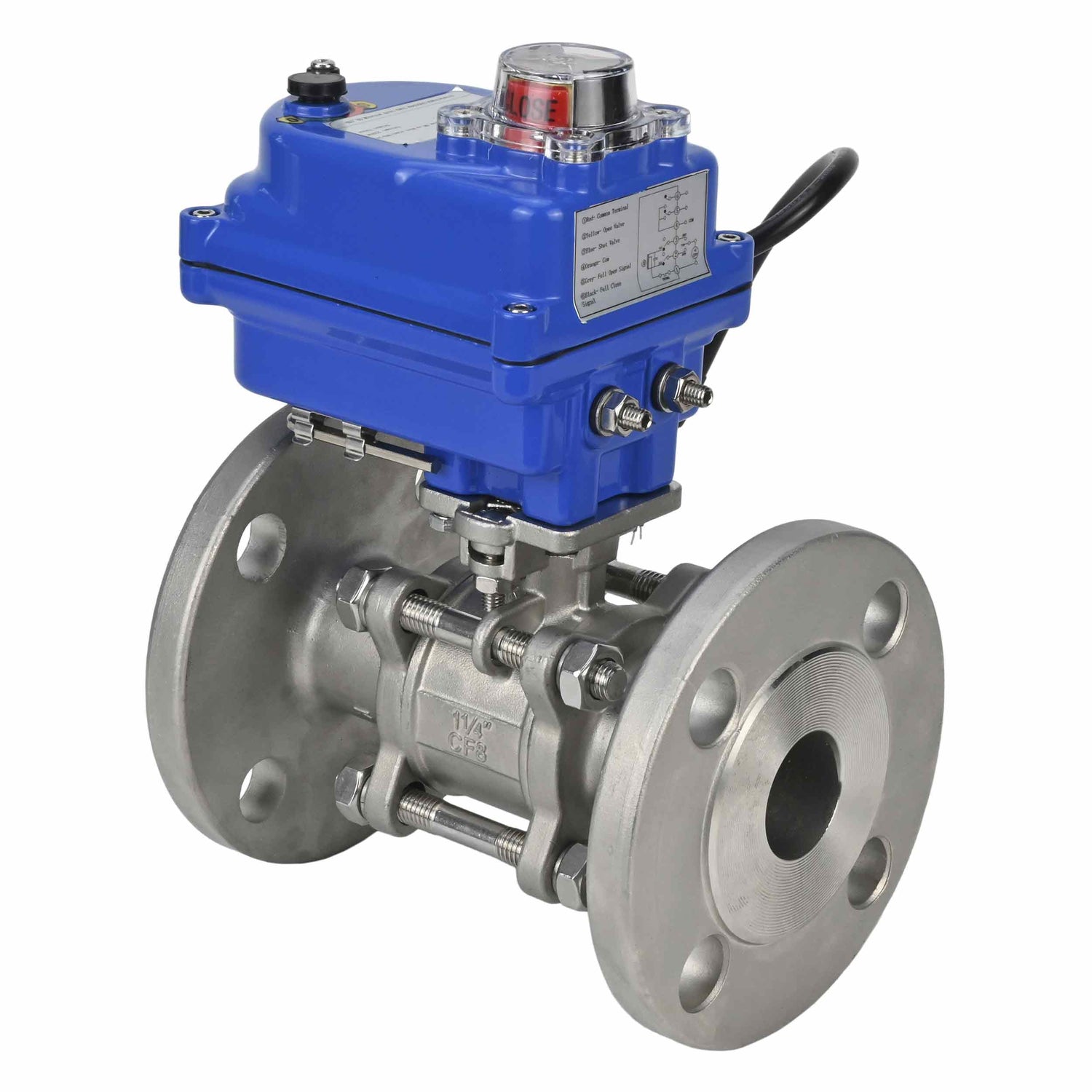

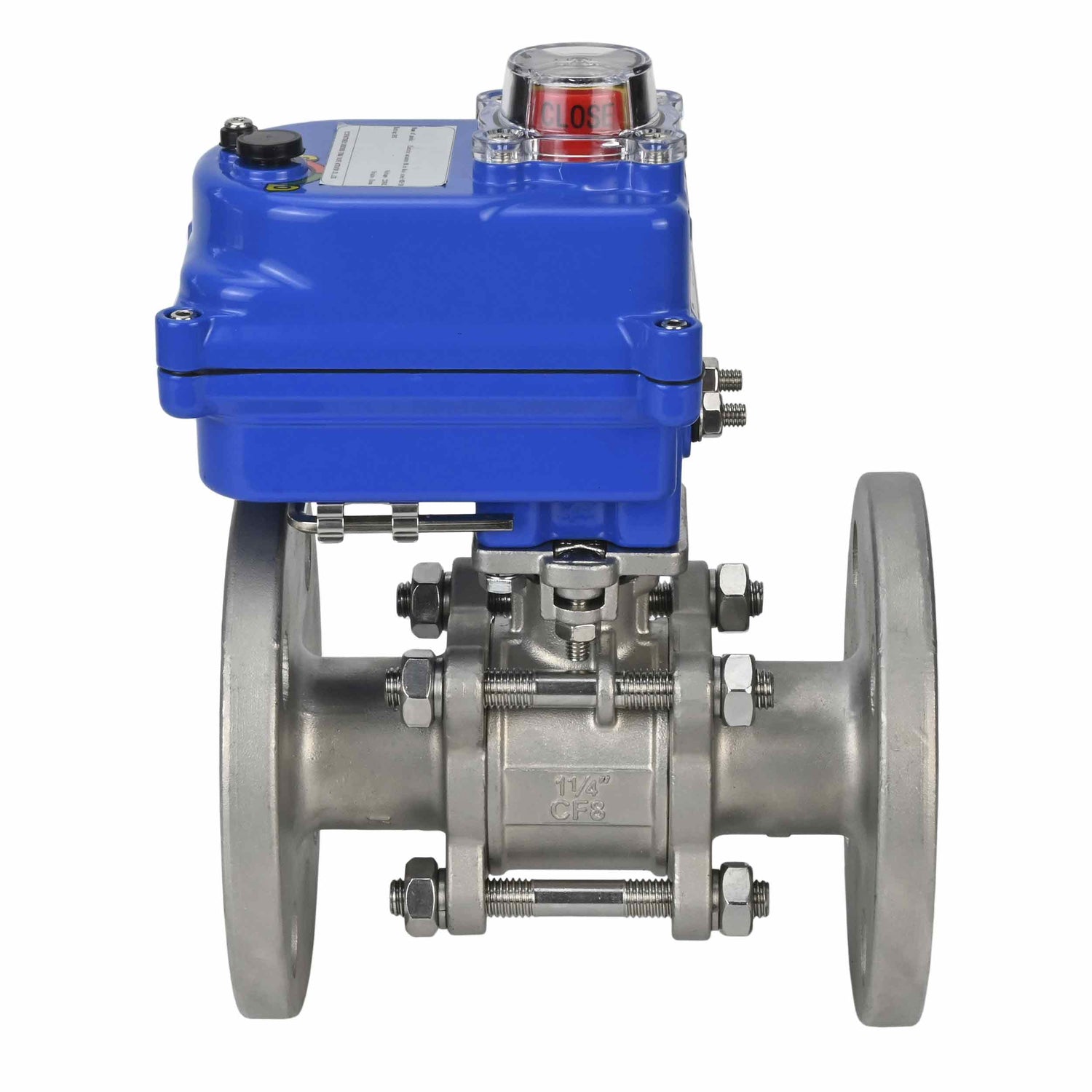

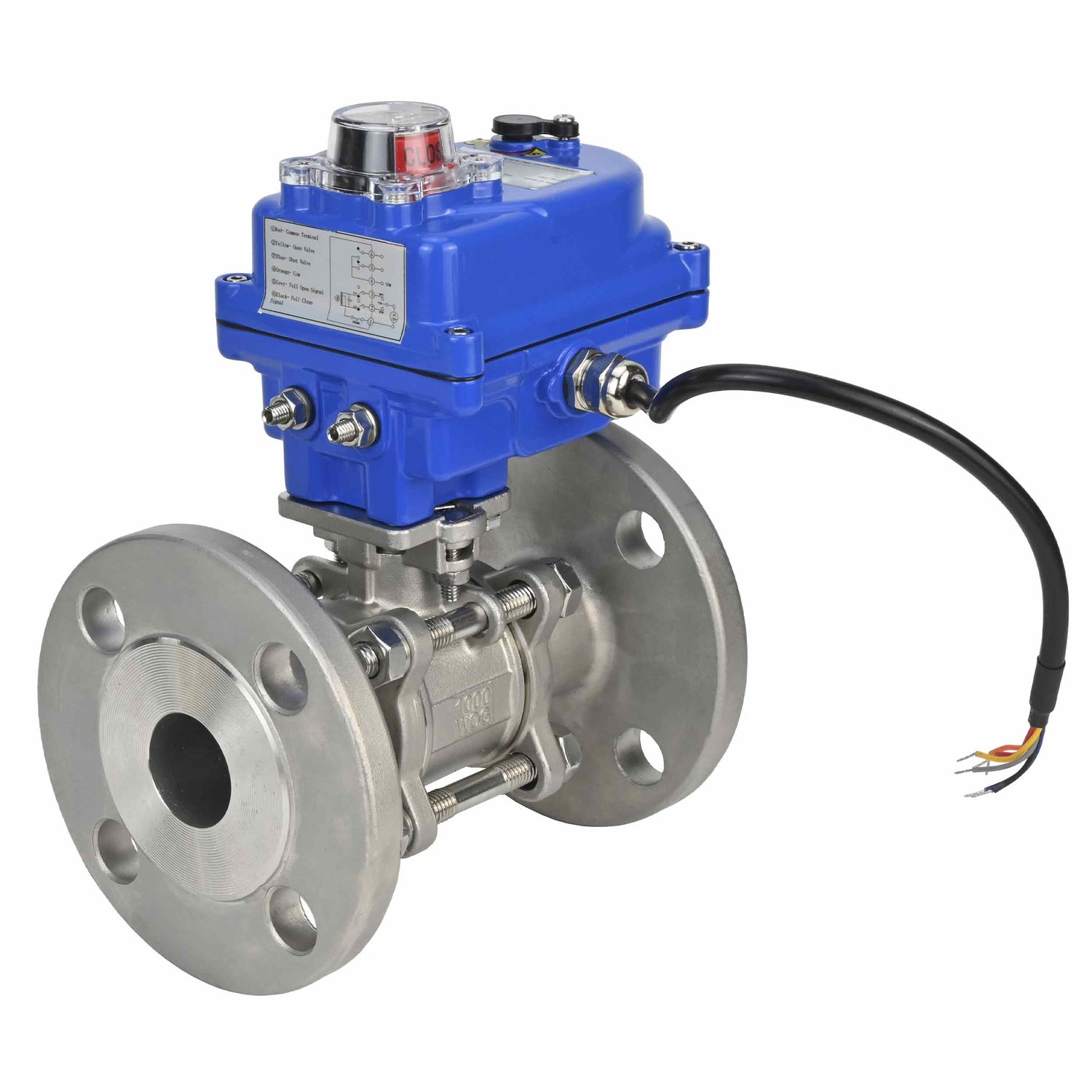

Stainless steel ball valve Elephant ksfpt-316-180-12v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, electric actuator operated

€193,45
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant ksfpt-316-180-12v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, electric actuator operated - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.





Technical data of ball valves Elephant BV3232P(3pc)-FP-F-ISO-H QT-N-003EM-O1-12VDC-U1 blue

Working pressure PN, bar 40
Temperature of working environment t, ⁰C from -20 to +180
Working environment Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline flanged
Type of flow section full bore





Characteristics of actuator QT-N-EM-O1-12VDC-U1 blue

Parameter Meaning
Electric drive type quarter turn
Engine type asynchronous
Rotation angle, ° 90 (±2)
Full rotation time, sec 25
Torque, Nm 30
Connection size (ISO5211) F03/F05
Nominal consumption current, A 0.10
Waterproof cable entry G1/2
Power, W 25
Limit switches correspond to the states of full opening and closing of the drive
Availability of manual backup hexagon
Visual indicator scale
Automatic shutdown in extreme positions Yes
Body material aluminum alloy
Housing protection class IP65
Power cord length, mm 200
Ambient temperature, °C from -30 to +60
Weight, kg 1.2





Wiring diagram for actuator QT-N-EM-O1-12VDC-U1 blue





Overall and installation dimensions of ball valve Elephant ksfpt-304-180-12v:

DN d D D1 D2 W f L±1.5 T H Z-øM Weight
mm pcs-mm kg
15 15 95 65 46 17 2 130 131 71 4-ø14 2,06
20 20 105 75 58 18 2 150 131 74 4-ø14 2,87
25 25 115 85 68 18 2 160 167 97 4-ø14 3,625
32 32 140 100 78 19 2 180 167 110 4-ø18 5,27
40 40 150 110 88 19 2 200 193 117 4-ø18 6,465
50 50 165 125 102 19 3 230 193 125,5 4-ø18 8,285
65 65 185 145 122 22 3 290 242 135,5 8-ø18 13
80 80 200 160 140 24 3 310 272 157 8-ø18 17,255
100 100 234 190 161 24 3 350 295 181 8-ø22 25,705

Sketch of ball valve Elephant ksfpt-304-180-12v



Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Electric actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Water Supply, Heat Supply
  • Voltage
    12 V
  • Actuator cycle time
    25s
  • Valve feedback
    Yes
  • Explosion-proof
    No
  • Torque
    30 Nm
  • Manual override
    Yes
  • Type of electric actuator
    Quarter-turn
  • Control signal
    ON/OFF
  • Rated current consumption
    0.1 A
  • Power consumption
    25 W

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-37953DN1540 bar €193,45 0 In stock
    D160-37952DN2040 bar €209,60 Sold out
    D160-37951DN2540 bar €216,68 Sold out
    D160-37950DN3240 bar €258,89 Sold out
