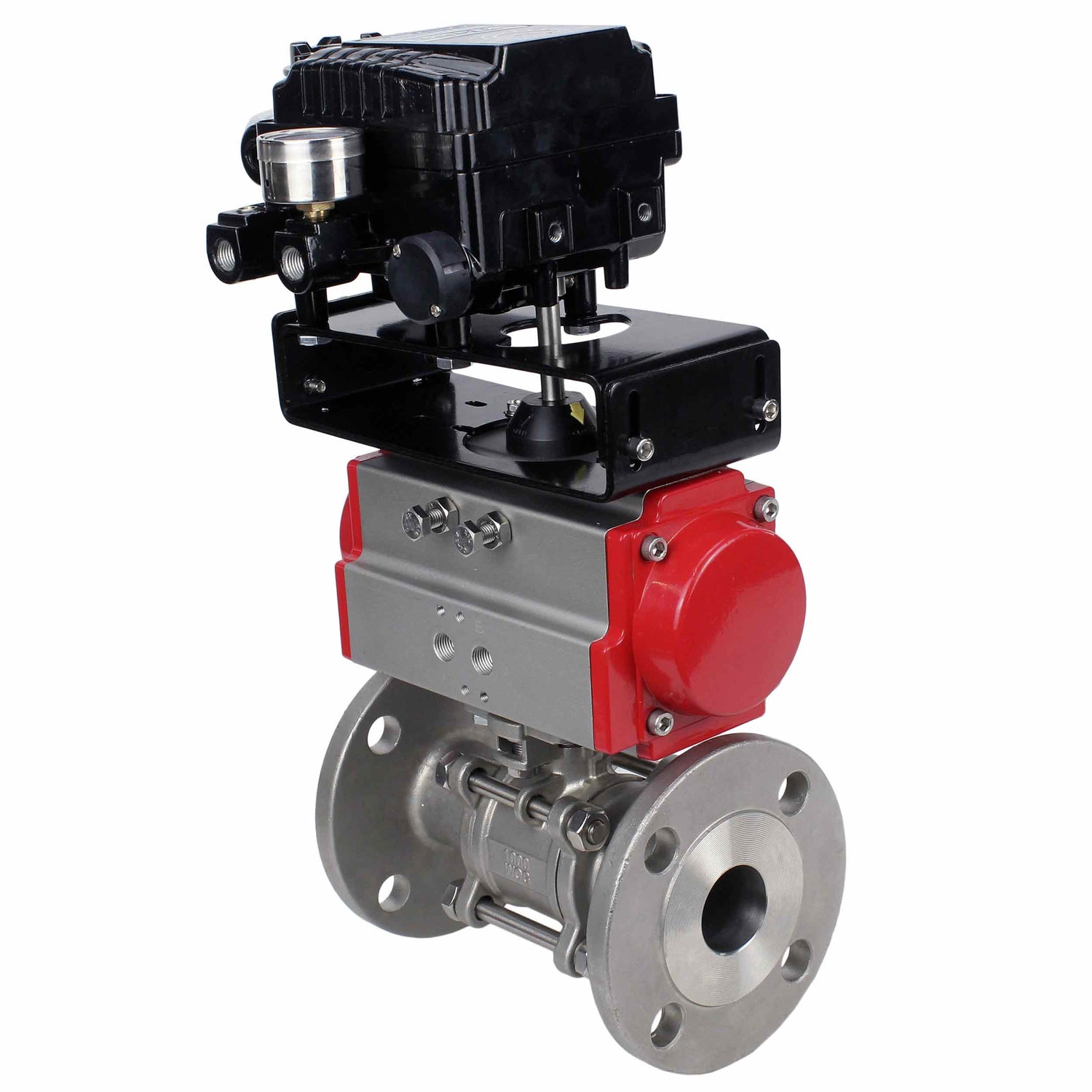

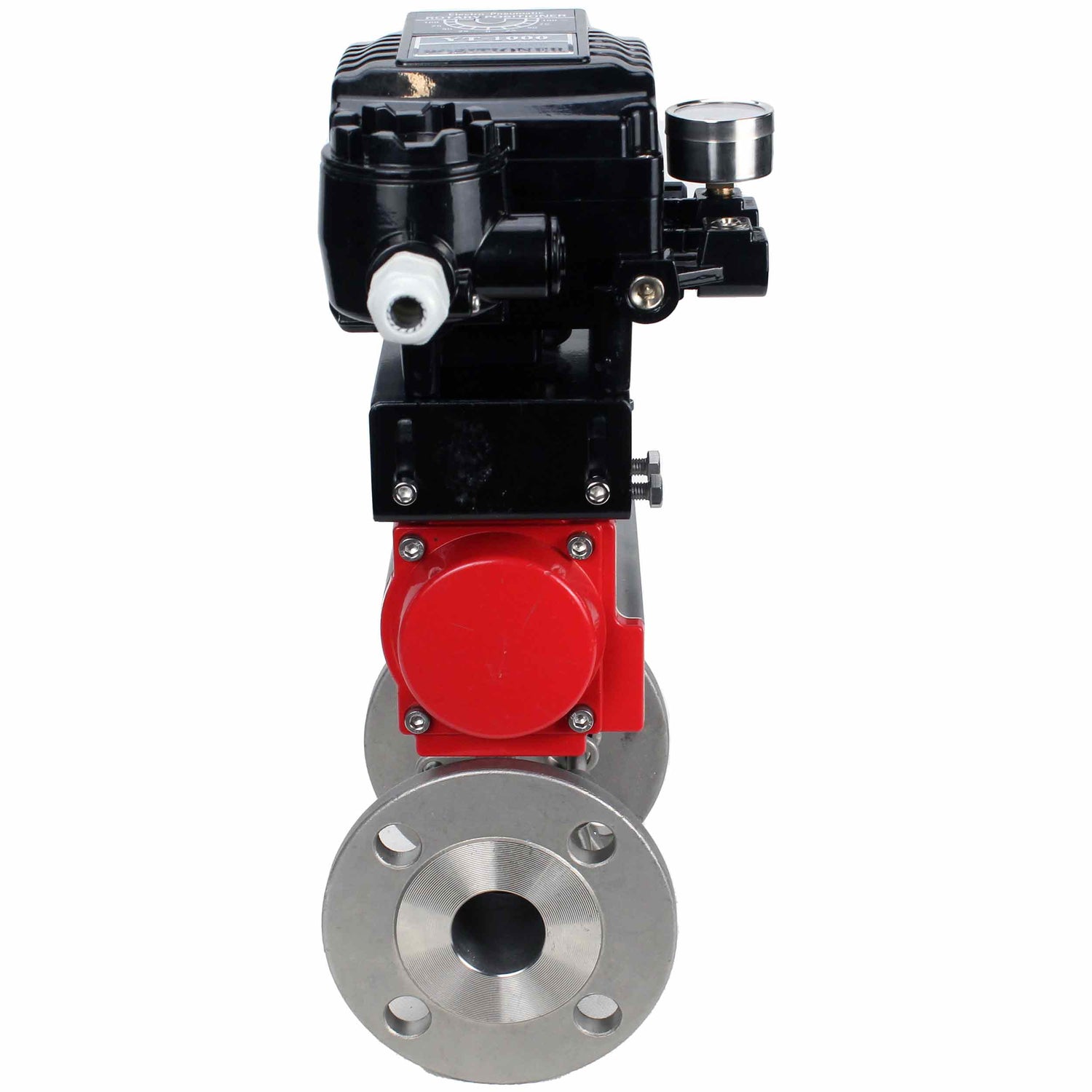

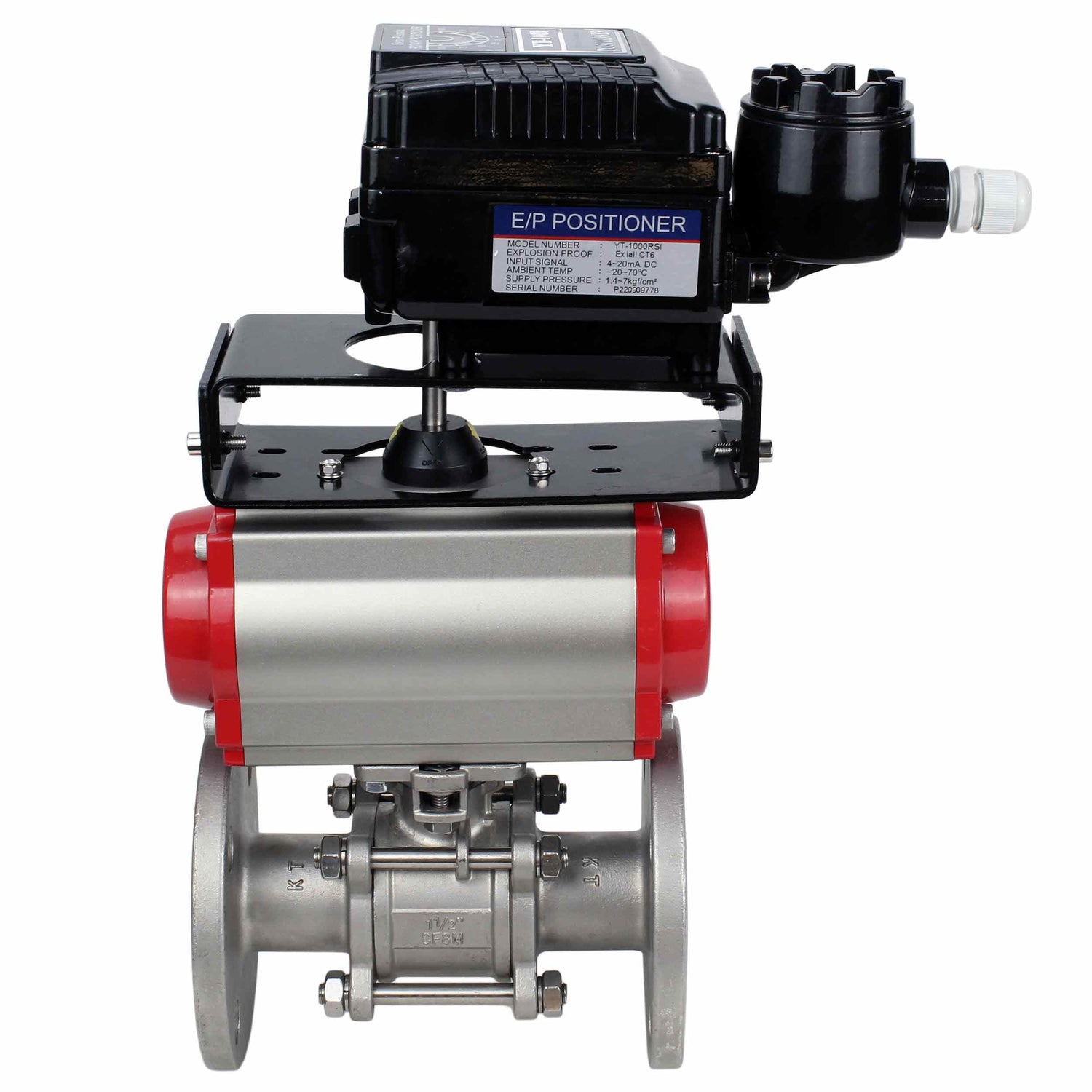

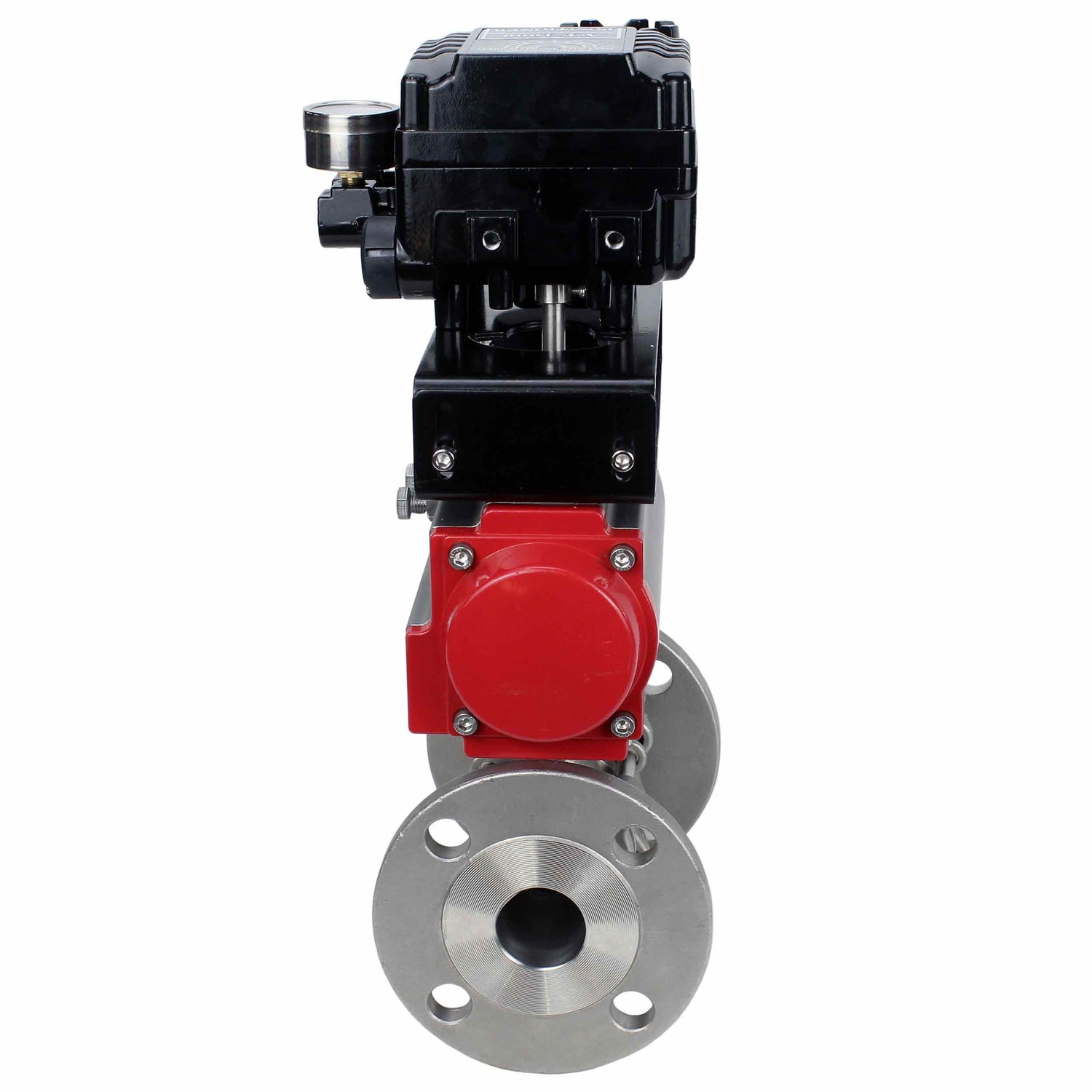

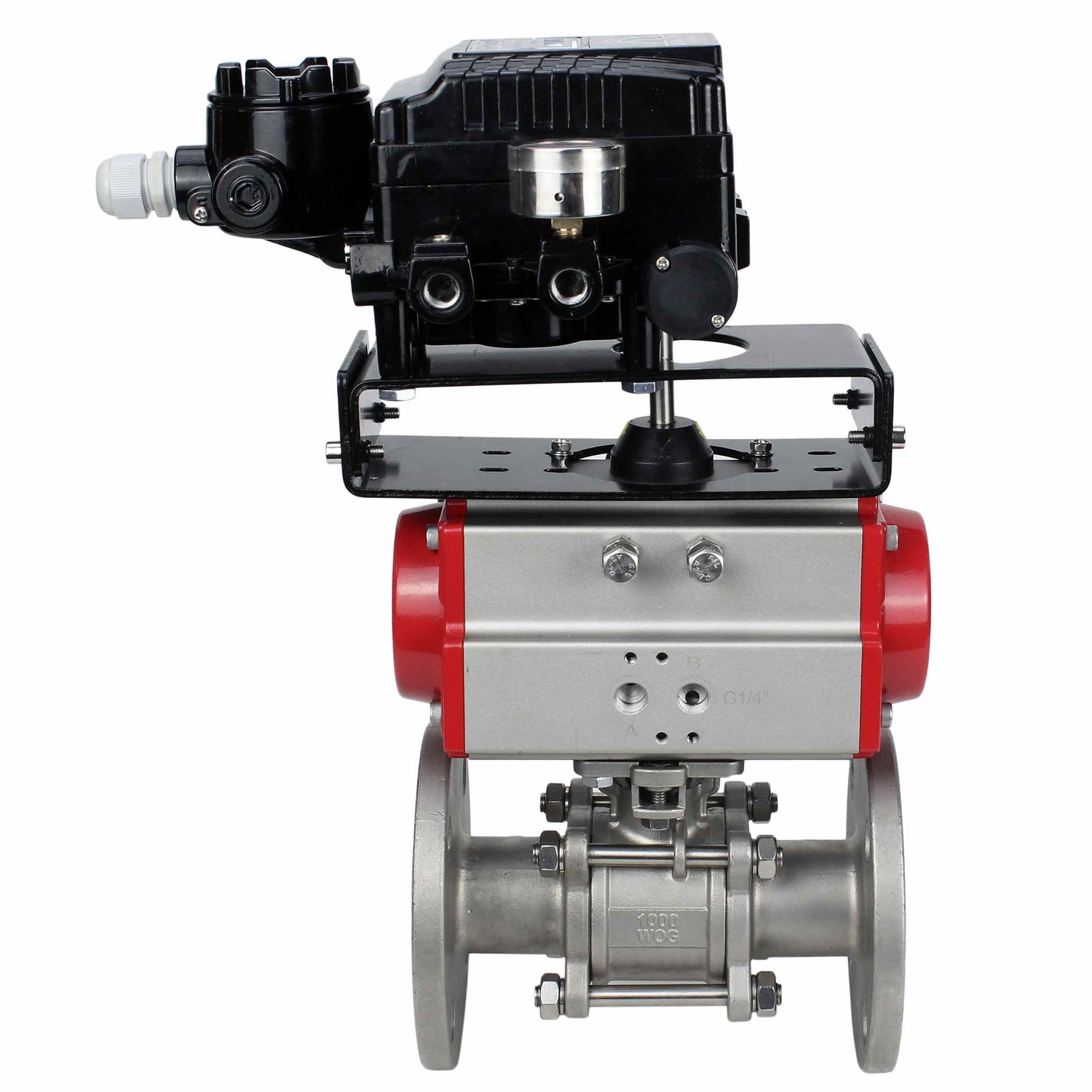

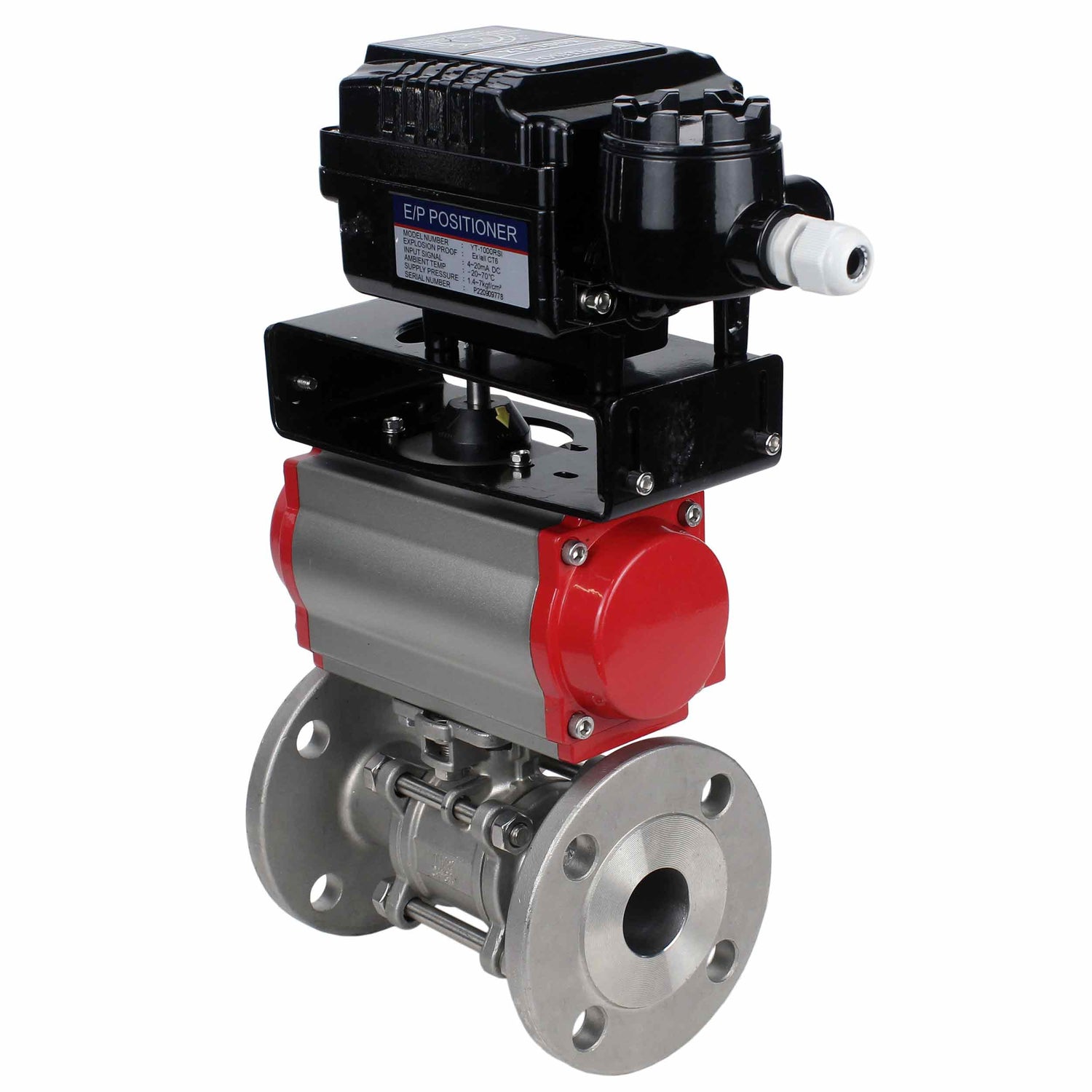

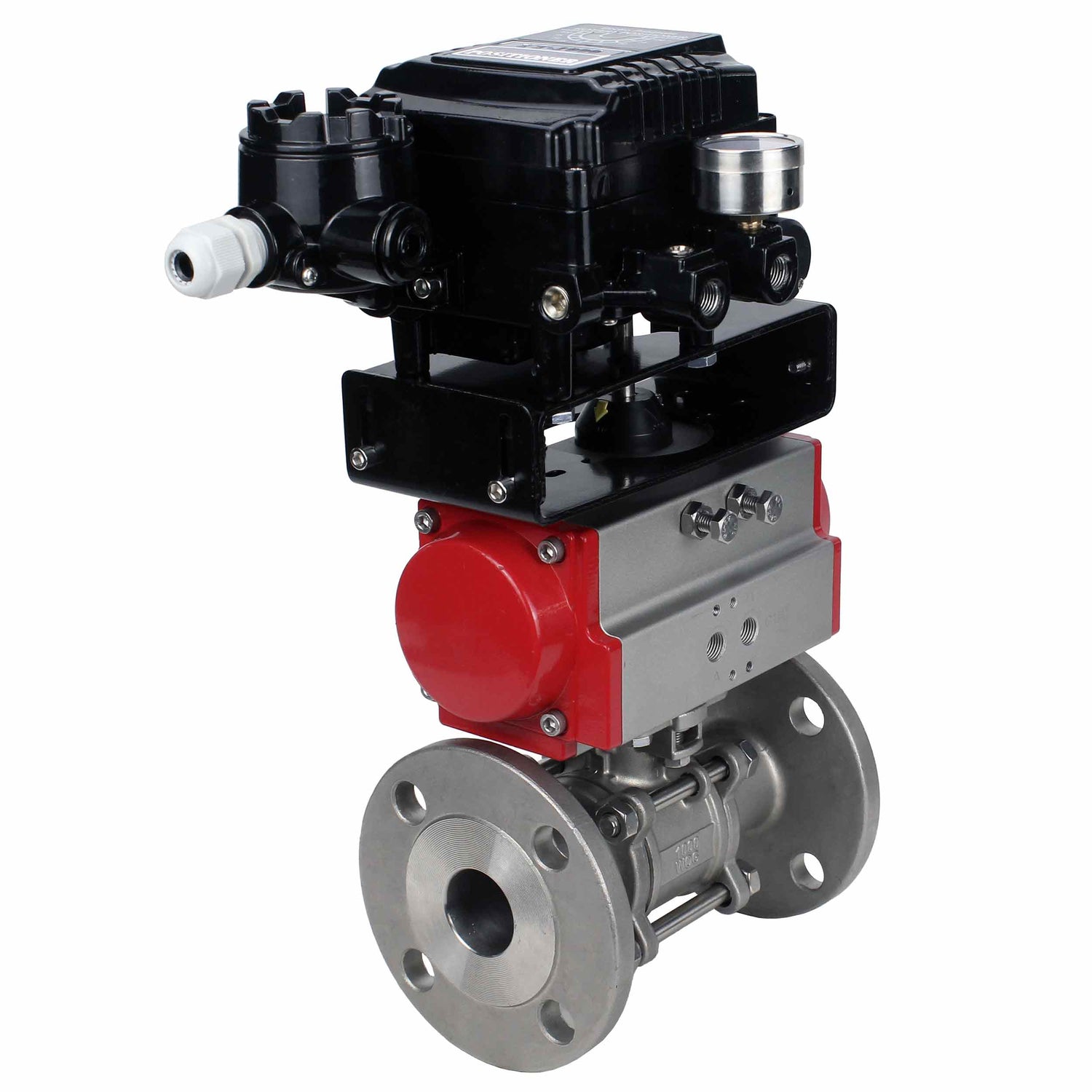

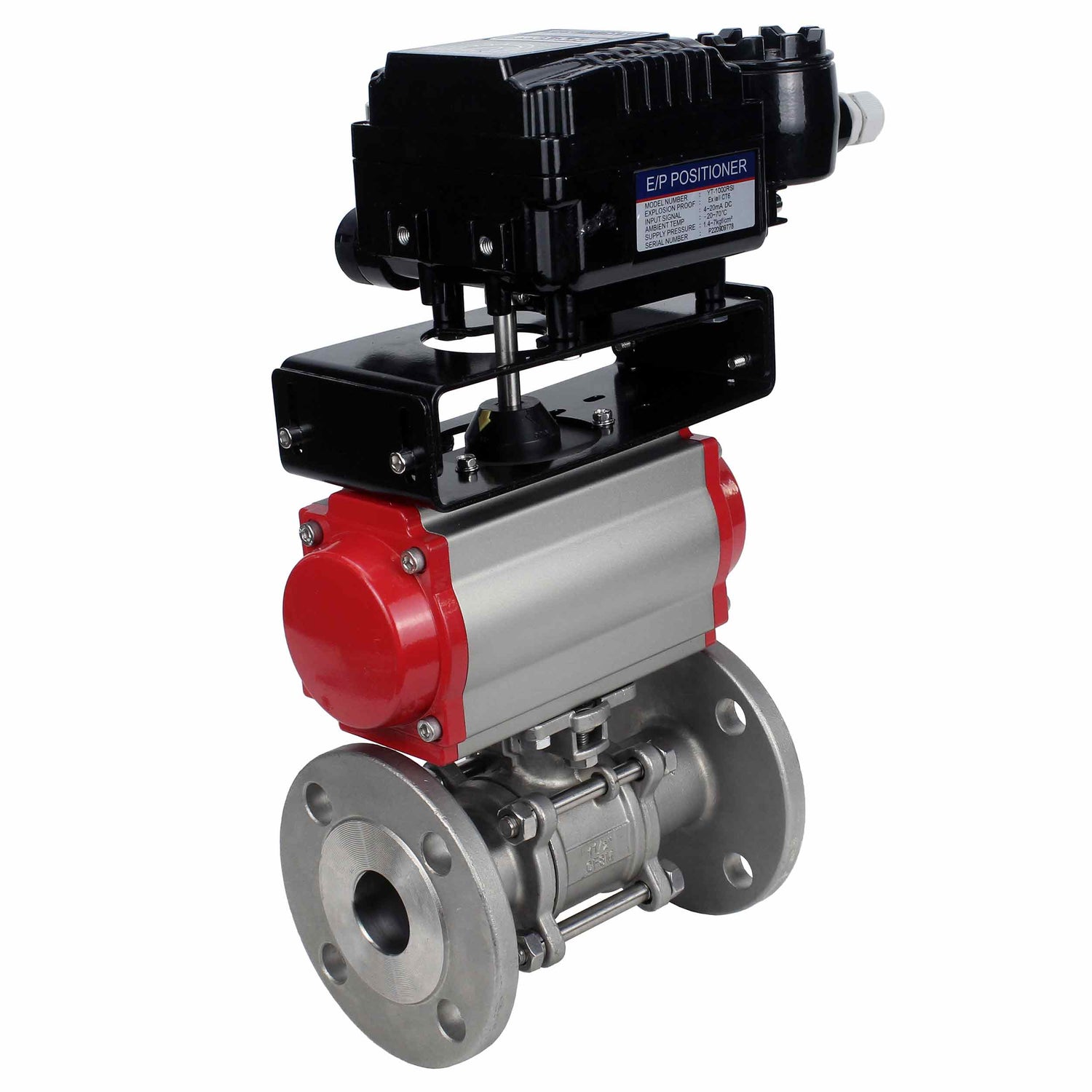

Stainless steel ball valve Elephant ksfpt-304-180-sa-yt1000rsi, body material - stainless steel AISI 304, ball material - stainless steel AISI 304, seal - PTFE, pneumatic actuator operated
Stainless steel ball valve Elephant ksfpt-304-180-sa-yt1000rsi, body material - stainless steel AISI 304, ball material - stainless steel AISI 304, seal - PTFE, pneumatic actuator operated - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Technical data for ball valve Elephant BV3131P(3pc)-FP-F-F-ISO-H PA-SA YT-1000RSN with feedback:
| Nominal diameter, mm | 15-100 |
| Working pressure PN, bar |
DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment | Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
| Control type | Double-acting pneumatic actuator Elephant-DA |
Detail of ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA YT-1000RSN ball valve with feedback
Material specification of ball valve Elephant BV3131P(3pc)-FP-F-F-ISO-H PA-SA YT-1000RSN ball valve with feedback:
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | SS304/SS316 | 1 |
| 3 | Bolt | SS201/SS304 | 4-6 |
| 4 | screw | SS201/SS304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201/SS304 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
| 11 | screw | SS201/SS304 | 1 |
| 12 | Lever | SS201/SS304 | 1 |
| 13 | Handle shell | PVC | 1 |
| 14 | Stopper | SS201/SS304 | 1 |
Overall and installation dimensions of the ball valve Elephant BV3131P(3pc)-FP-F-ISO-H PA-SA YT-1000RSN with feedback:
| DN | d | D | D1 | D2 | W | f | L±1.5 | T | H | Z-øM | Weight |
| mm | pcs-mm | kg | |||||||||
| 15 | 15 | 95 | 65 | 46 | 17 | 2 | 130 | 131 | 71 | 4-ø14 | 2,06 |
| 20 | 20 | 105 | 75 | 58 | 18 | 2 | 150 | 131 | 74 | 4-ø14 | 2,87 |
| 25 | 25 | 115 | 85 | 68 | 18 | 2 | 160 | 167 | 97 | 4-ø14 | 3,625 |
| 32 | 32 | 140 | 100 | 78 | 19 | 2 | 180 | 167 | 110 | 4-ø18 | 5,27 |
| 40 | 40 | 150 | 110 | 88 | 19 | 2 | 200 | 193 | 117 | 4-ø18 | 6,465 |
| 50 | 50 | 165 | 125 | 102 | 19 | 3 | 230 | 193 | 125,5 | 4-ø18 | 8,285 |
| 65 | 65 | 185 | 145 | 122 | 22 | 3 | 290 | 242 | 135,5 | 8-ø18 | 13 |
| 80 | 80 | 200 | 160 | 140 | 24 | 3 | 310 | 272 | 157 | 8-ø18 | 17,255 |
| 100 | 100 | 234 | 190 | 161 | 24 | 3 | 350 | 295 | 181 | 8-ø22 | 25,705 |
Sketch of ball valve Elephant BV3131P(3pc)-FP-F-F-ISO-H PA-SA YT-1000RSN with backflow preventer
Pneumatic actuator Elephant
Parameters of pneumatic actuator Elephant:
- Pneumatic actuator type - double acting
- Working pressure of pneumatic drive - 6.0 bar
- Drive rotation angle - 90°
- Drive adjustment range - 5°
- Country of origin - China
- Operating environment - indoor and outdoor
- Position indicator - open/closed
-
Coating - All internal and external parts have an anti-corrosion coating
Electropneumatic rotary positioner YT-1000RS
Basic parameters of electropneumatic rotary positioners:
| Type of action | One-sided/two-sided |
| Input pressure | from 1.7 to 7 bar |
| Compressed air consumption | 3 l/min |
| Operating temperature | from -20°C to 70°C |
| Explosion protection | No |
| Sealing class | IP66 |
| Frame | Aluminum casting |
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsWater Supply, Heat Supply
-
Valve feedback
-
Explosion-proof
-
Torque
-
Electropneumatic positioner
Reviews (0)
Reviews (0)
Documentation
Documentation
Electropneumatic rotary positioner ELEPHANT YT-1000RSN with without feedback for pneumatic rotary actuators control signal 4-20 mA without explosion protection
Electropneumatic rotary positioner ELEPHANT YT-1000RSN with or without feedback
Ball valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100Payment & Security
