Elephant  |  SKU: D160-37937

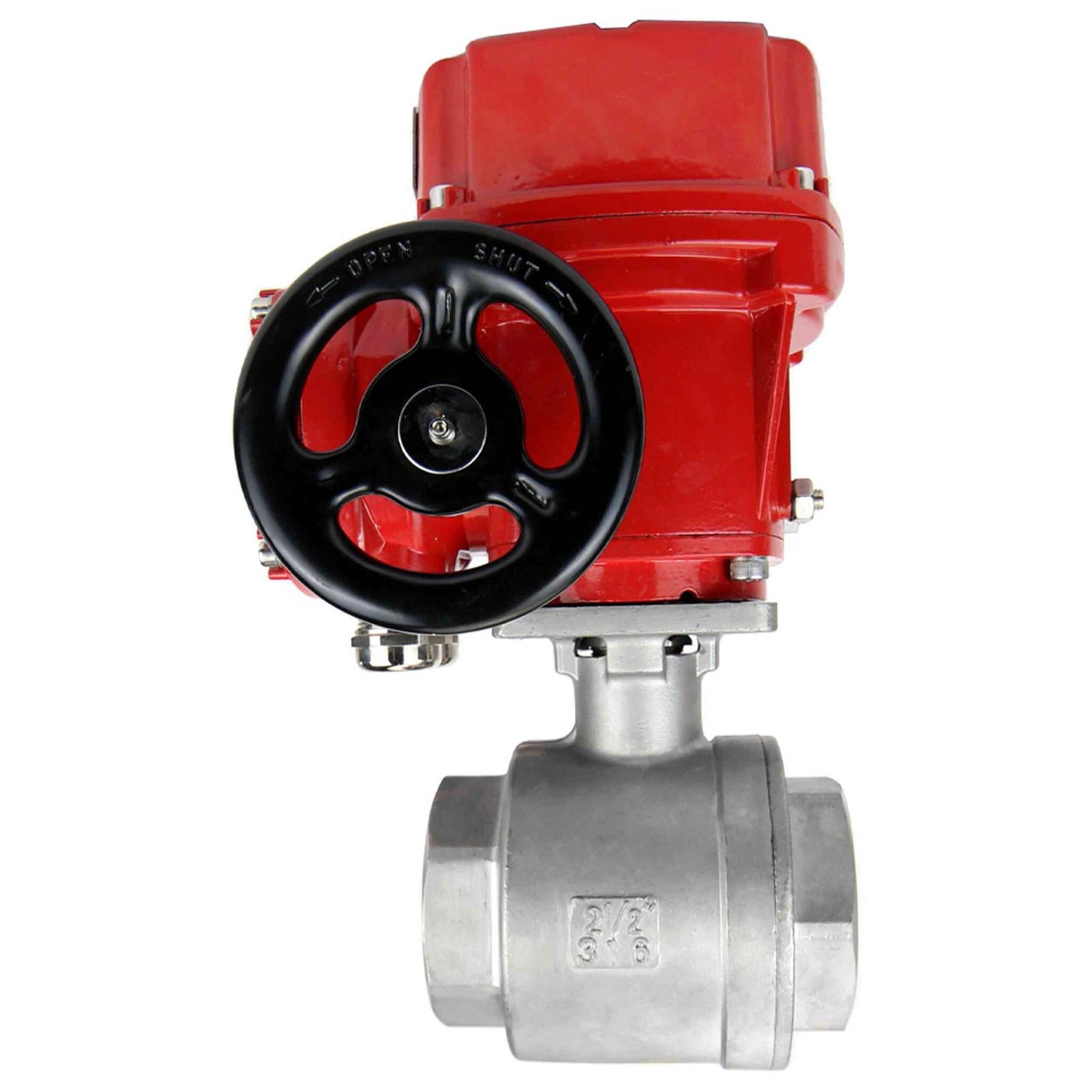

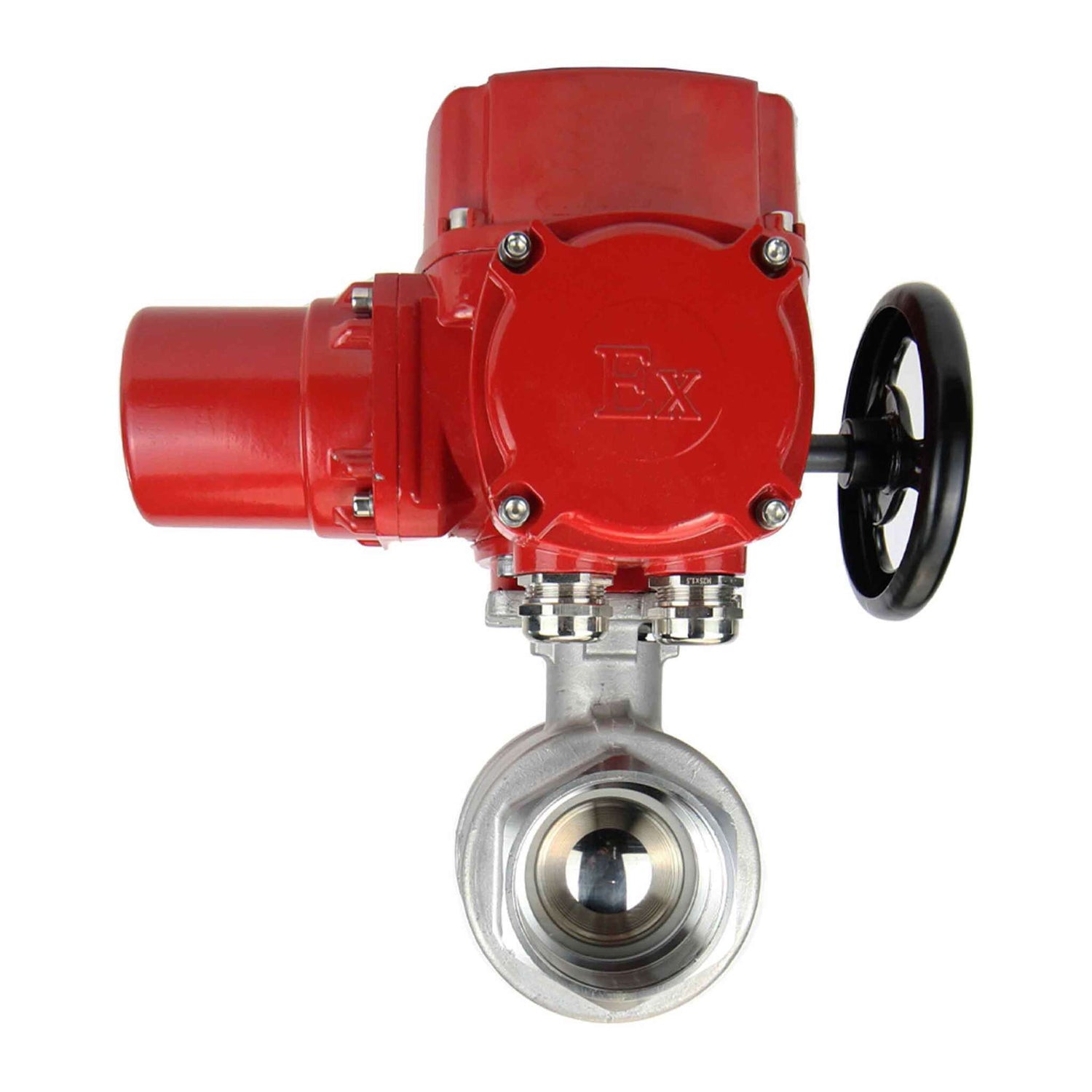

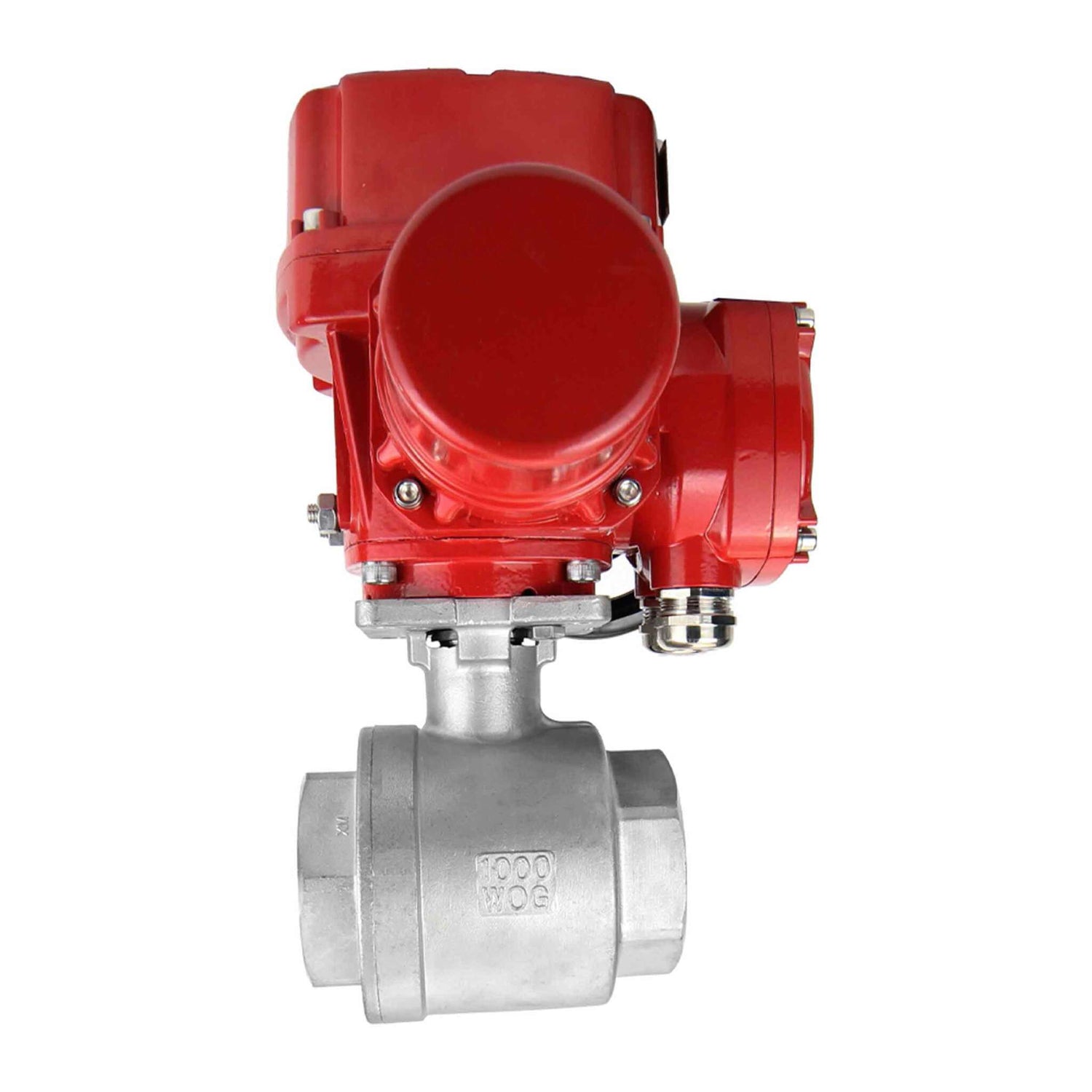

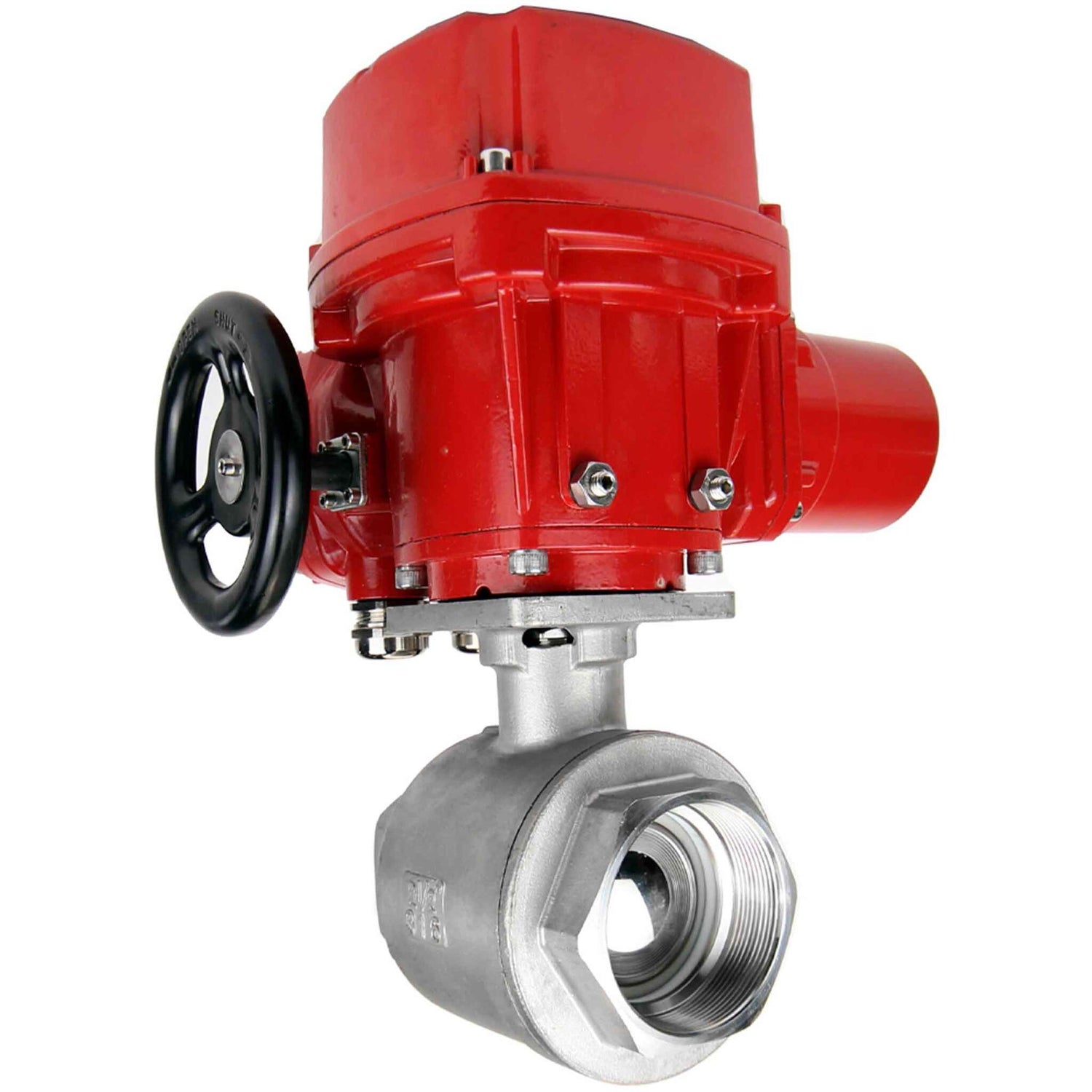

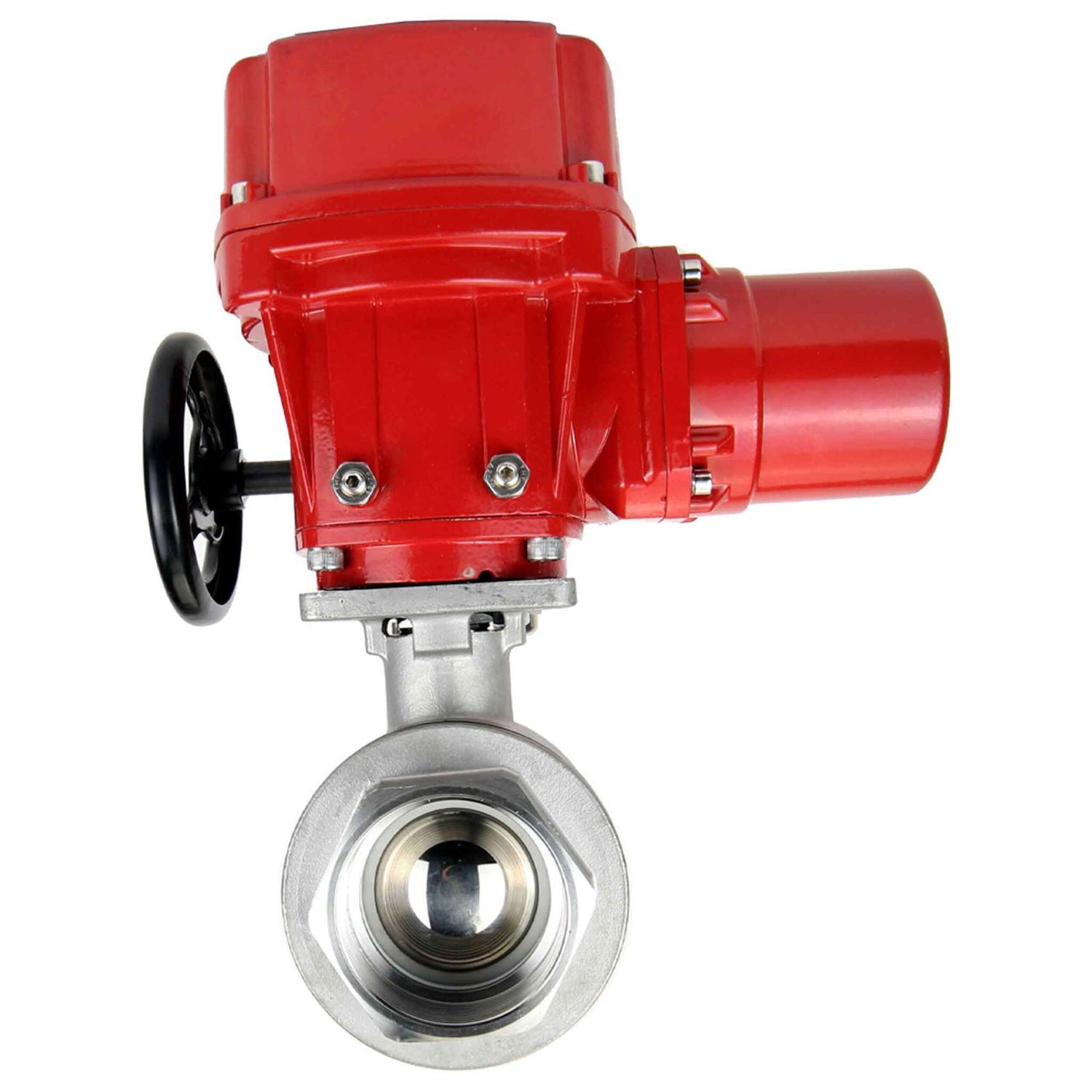

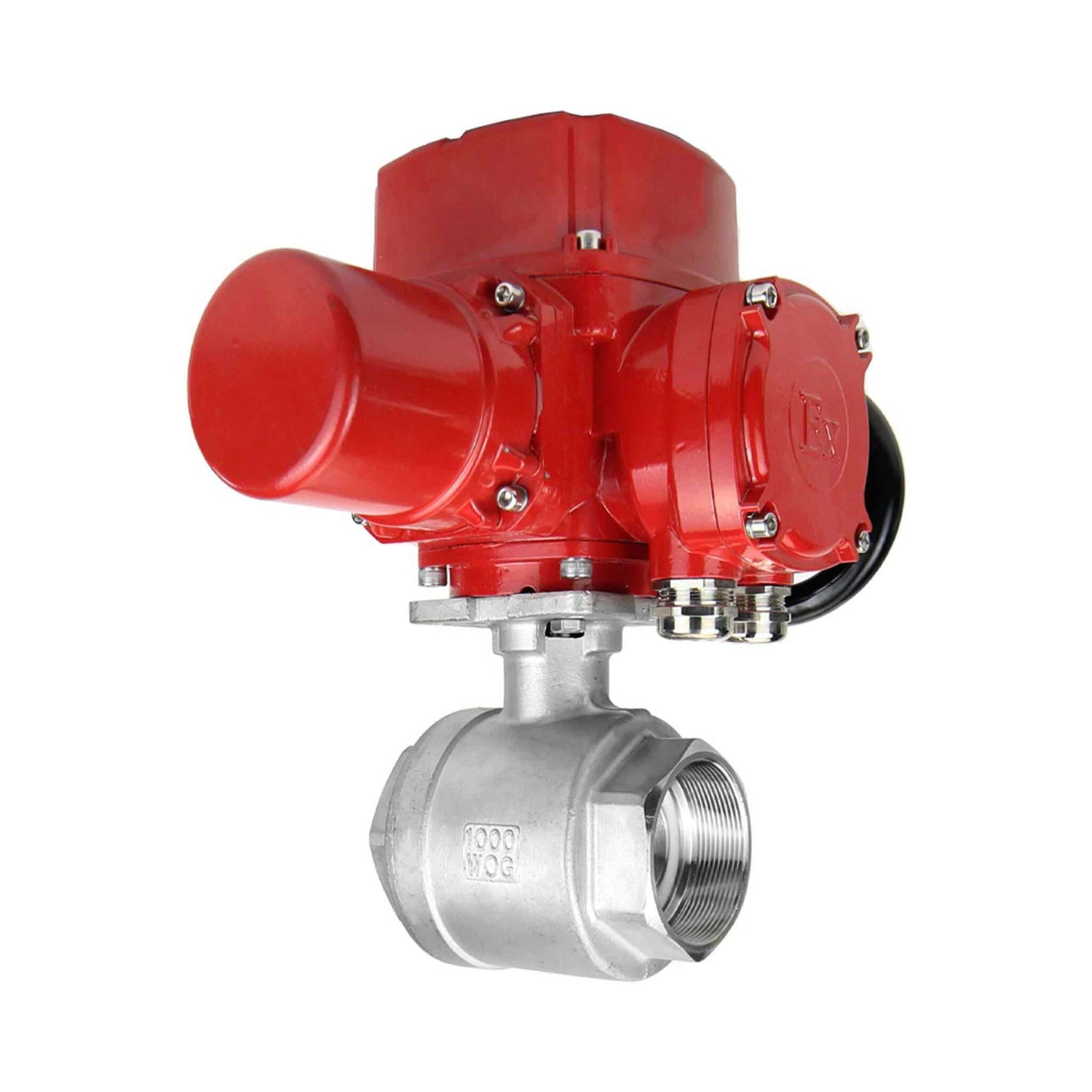

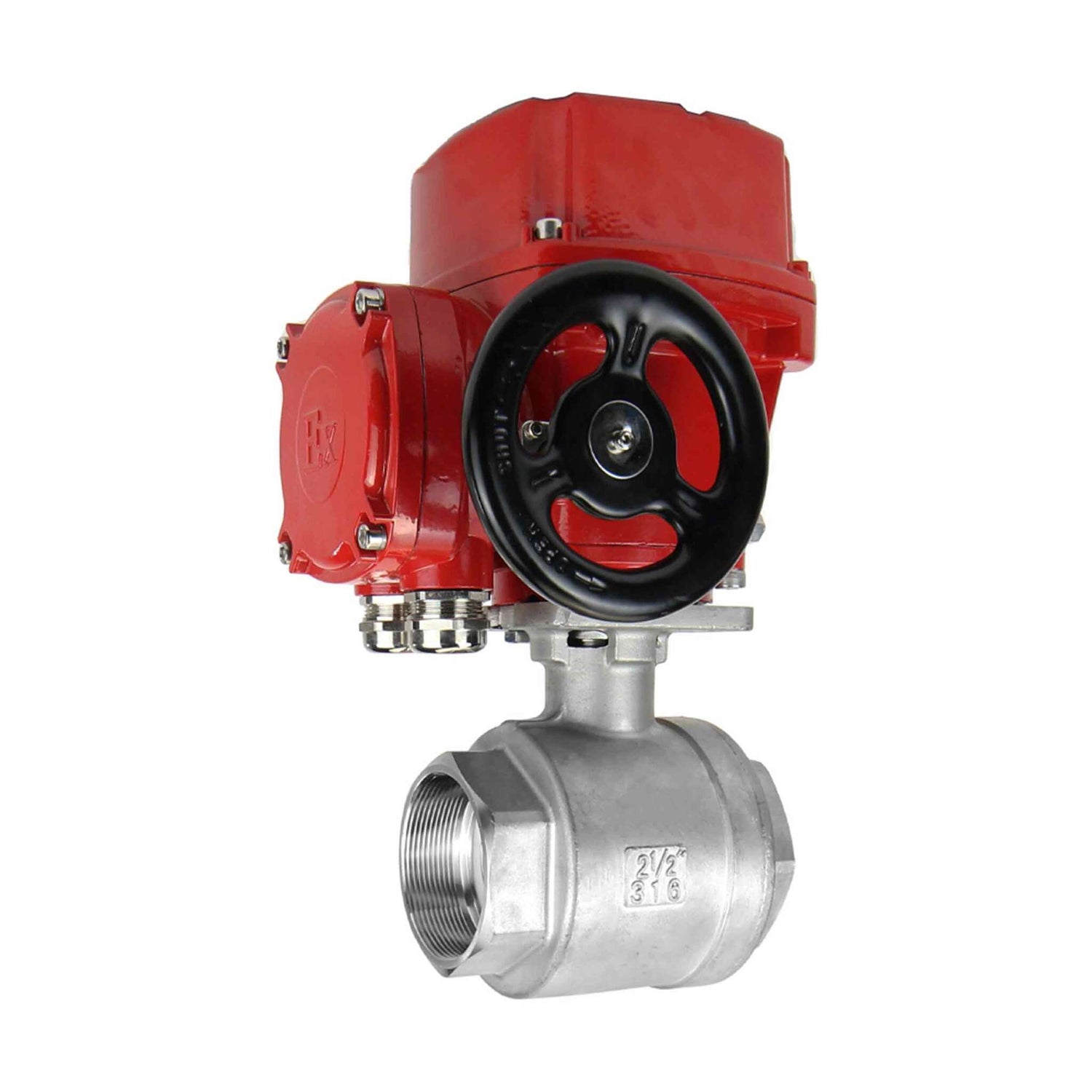

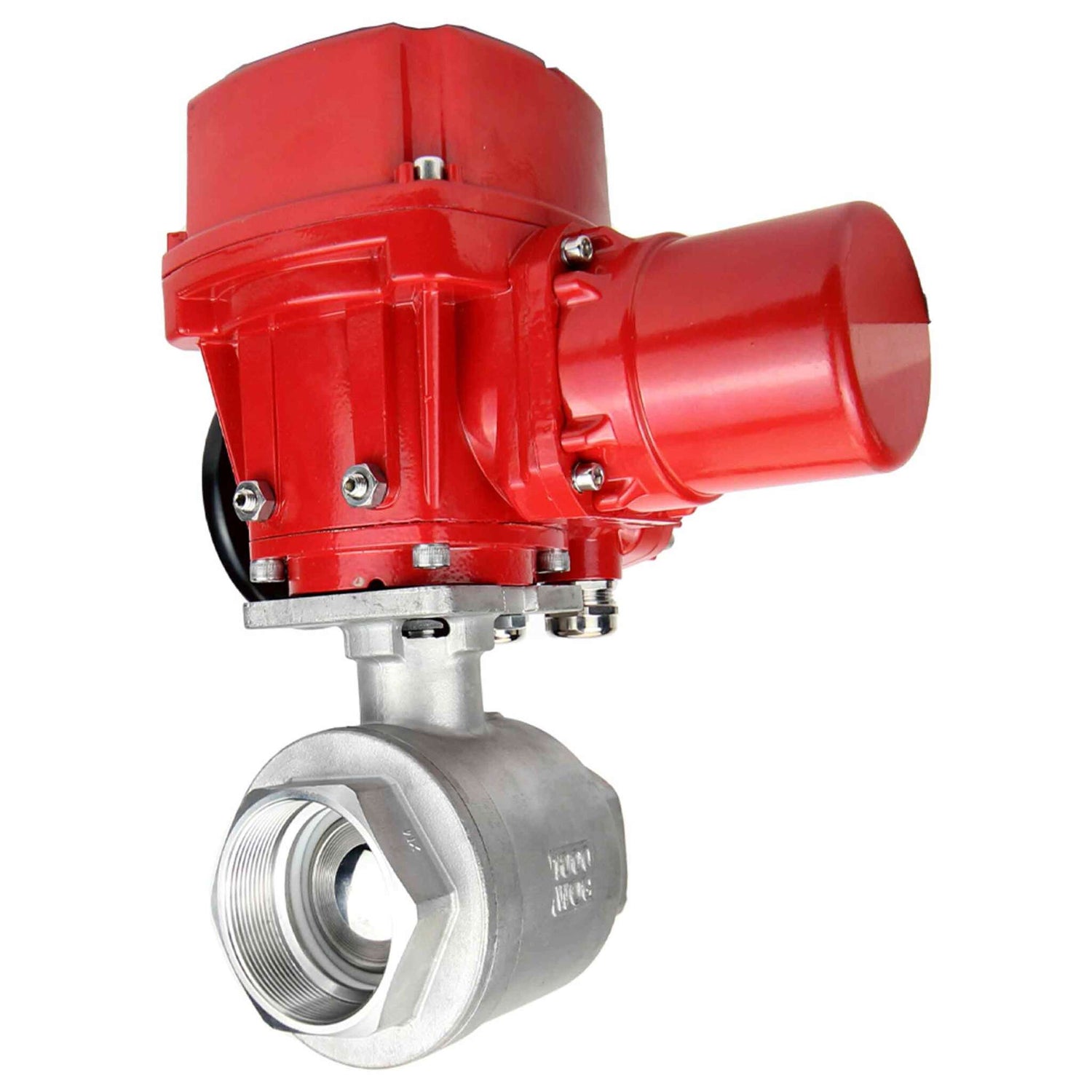

Stainless steel ball valve Elephant kchmp-elephant-ex-380v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, electric actuator operated

€893,69
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant kchmp-elephant-ex-380v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, electric actuator operated - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

Ball valve Elephant BV3232P(2pc)-FP-T-ISO-H QT-EX-EM-O2-24VDC-U1 is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), not aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.

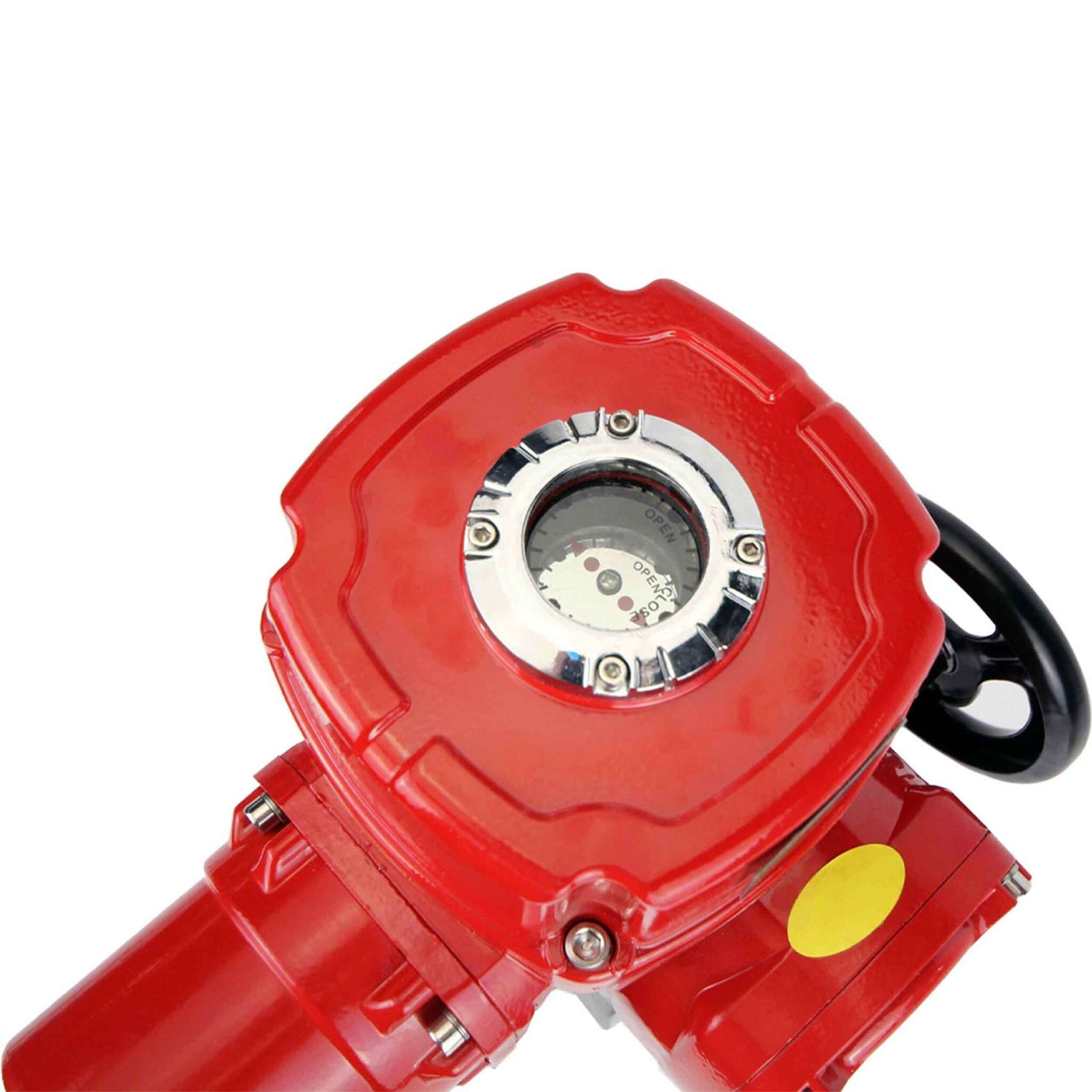

Electric actuators of explosion-proof version QT-EX-EM-O1-24VDC-U1 are used in industrial explosion hazardous areas to control butterfly valves, ball valves and other quarter-turn valves with ambient temperature -20...+60°C.



Materials of ball valve parts Elephant BV3232P(2pc)-FP-T-ISO-H QT-EX-EM-O2-380VAC-U1:



Overall and installation dimensions of ball valve Elephant BV3232P(2pc)-FP-T-ISO-H QT-EX-EM-O2-380VAC-U1:

DN, mm PN, bar L, mm H, mm D, mm D1, mm d, mm B, mm C, mm A, mm ØD2, mm ØD3, mm K, mm MAX □, MAX ○, mm Weight, kg
15 40 114 315 89 65 15 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.2
20 40 120 320 98 75 20 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.3
25 40 125 325 108 85 25 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.4
32 40 130 330 117 100 32 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.7
40 40 140 335 127 110 40 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.8
50 40 150 345 152 125 50 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 12.5
65 16 170 360 178 145 65 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 13.5
80 16 178 370 191 160 80 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 13.9
100 16 190 390 229 180 100 280 270 200 102 70 4-M10, depth 16 □ 31, ○ 17 22.8





Materials of parts of explosion-proof actuator Elephant-EX 380V:

No. Name Material
1.20 Housing, electric drive casing Aluminum
2.23, 33.38, 40.64 Shaft Steel 45
3.39, 46.48, 51.66 Sealing ring Oil resistant rubber
4.27 bracket Steel Q235
5 Insulation gasket Textolite
6,9,16 Bracket mounting screw Steel 1Cr18Ni9Ti
7.10 Plate Steel Q235
8 Screw plug Aluminum
11,14 Limit switch cam Steel Q235
12,13 Limit switch group XK06-101-2530
15.32 Sleeve Brass H62
16.30, 35.41, 44.61 Screw Steel 1Cr18Ni9Ti
17,18 Disk Steel Q235
19 Mechanical limiting cam Steel Q235
21.25 Mounting screw Steel 35
22 Sight glass seal Steel 1Cr18Ni9Ti
24 Indication plate Aluminum
26 Capacitor CEM 2GR 220nJ
28 Terminal block 1Pcs TX-1502 6
29 Heating element NTA-1/005
31,36 Washer Stainless steel
34 Through cover MHQ50
37,39 Lock washer, sealing ring Steel 1Cr18Ni9Ti
42 Torque switch group XK06-101-2530
43,48 Torque switch mechanism Steel Q235
45 Flywheel cover Aluminum
47.69 First stage gear Zinc alloy ZQAL10-5-5
49 Limit screw Steel 35
50 Hairpin Steel 1Cr18Ni9Ti
52 Clutch handle Steel 45
53 Fork block Aluminum
54 Thrust washer Zinc alloy ZQAL10-5-5
55,56 Separator fork Zinc alloy ZQAL10-5-5
57 Retaining ring Steel 1Cr18Ni9Ti
58,60 Disk, main gear Zinc alloy ZQAL10-5-5
59.68 Second and first stage worm Steel 40Cr
62,67 Seal Aluminum
63 Motor -
65 Clutch Steel ZG20





Main characteristics and wiring diagram of explosion-proof electric actuator Elephant-EX 380V:

DN, mm PN, bar L, mm H, mm D, mm D1, mm d, mm B, mm C, mm A, mm ØD2, mm ØD3, mm K, mm MAX □, MAX ○, mm Weight, kg
15 40 114 315 89 65 15 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.2
20 40 120 320 98 75 20 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.3
25 40 125 325 108 85 25 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.4
32 40 130 330 117 100 32 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.7
40 40 140 335 127 110 40 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 11.8
50 40 150 345 152 125 50 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 12.5
65 16 170 360 178 145 65 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 13.5
80 16 178 370 191 160 80 255 265 170 70 57 4-M8, depth 12 □ 20, ○ 14 13.9
100 16 190 390 229 180 100 280 270 200 102 70 4-M10, depth 16 □ 31, ○ 17 22.8







Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    230 °C
  • Connection type
    Threaded NPT/BSP
  • Control type
    Electric actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply, Heat supply
  • Voltage
    380 V
  • Actuator cycle time
    20s
  • Valve feedback
    Yes
  • Explosion-proof
    No
  • Torque
    200 Nm
  • Manual override
    Yes
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Control signal
    ON/OFF
  • Rated current consumption
    0.4 A
  • Power consumption
    40 W
