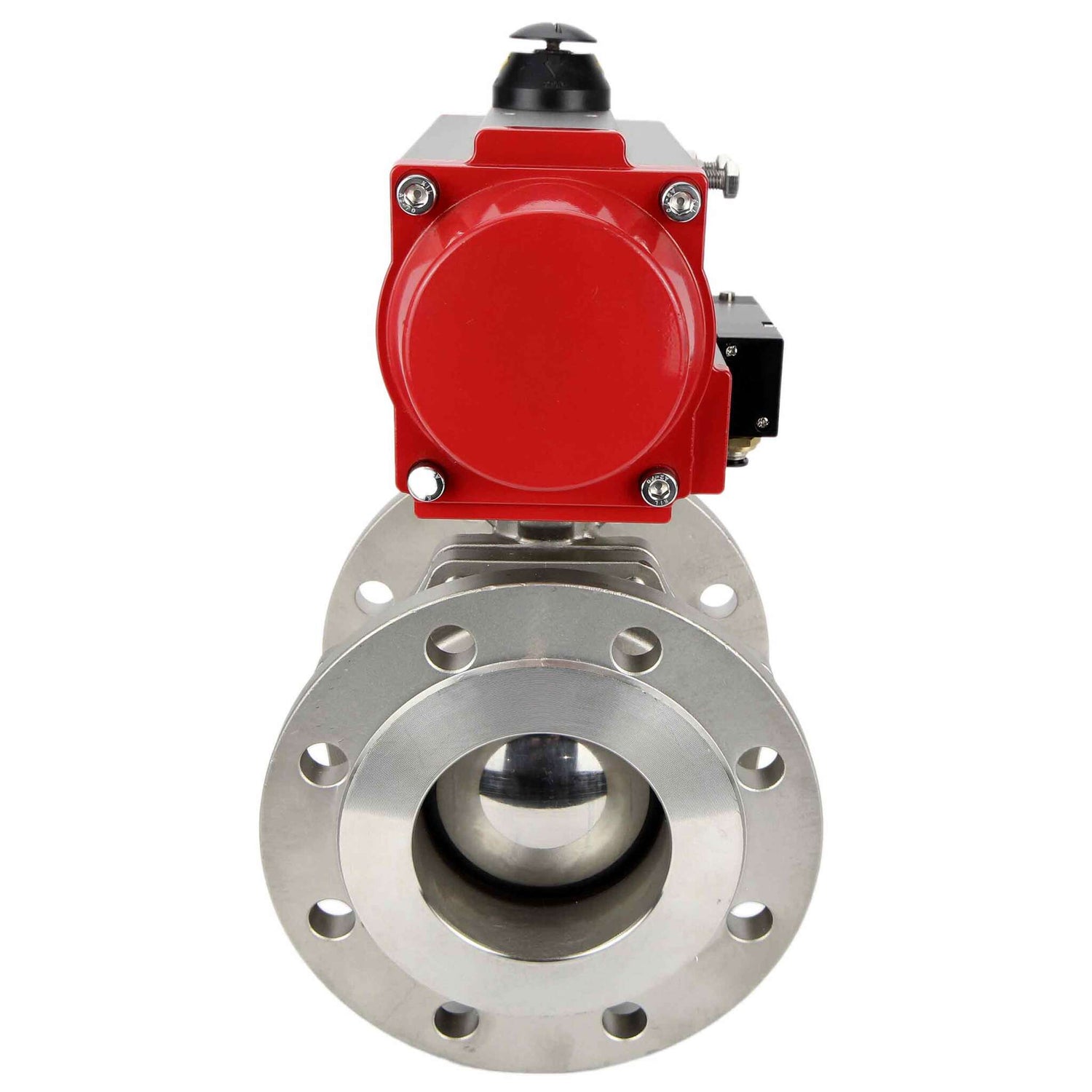

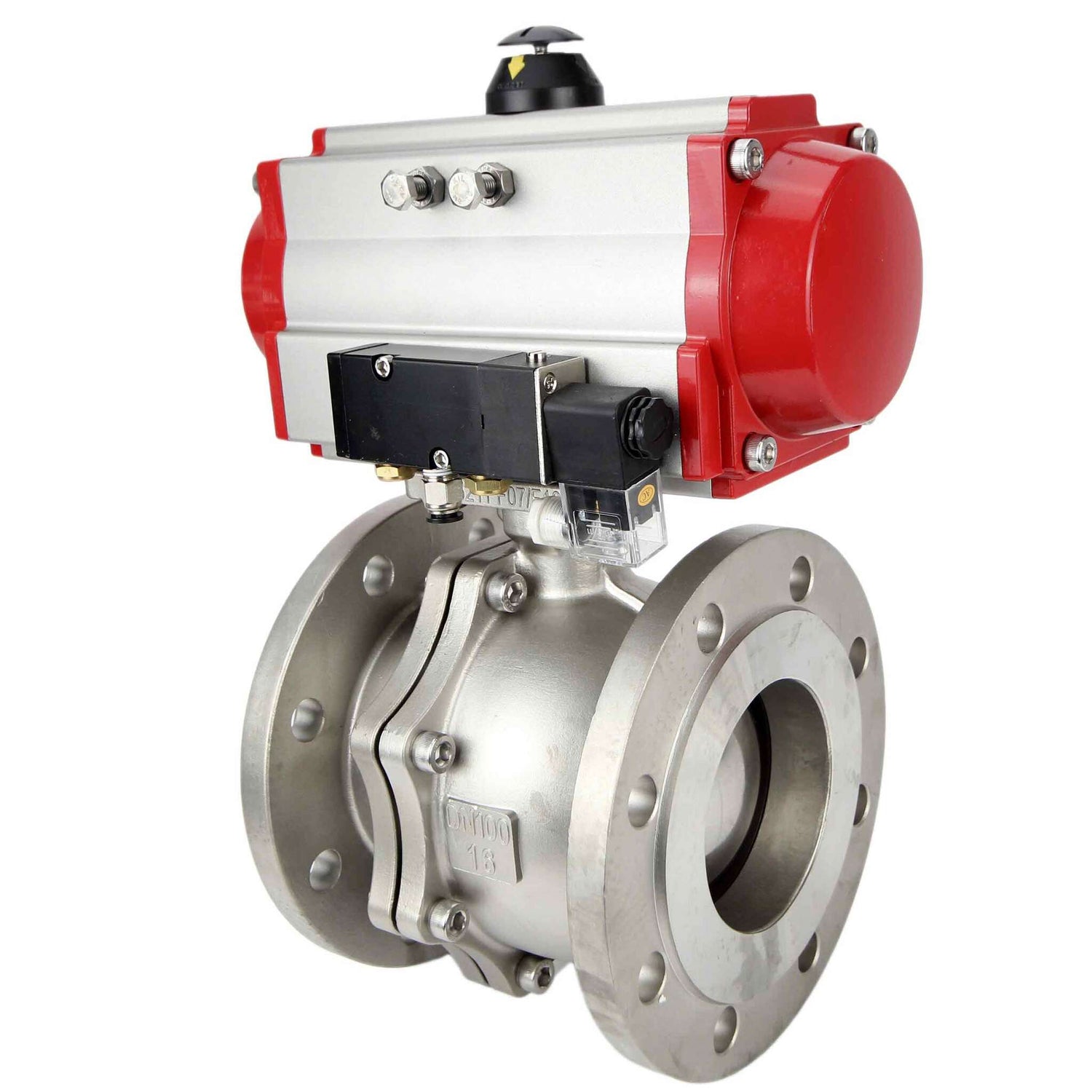

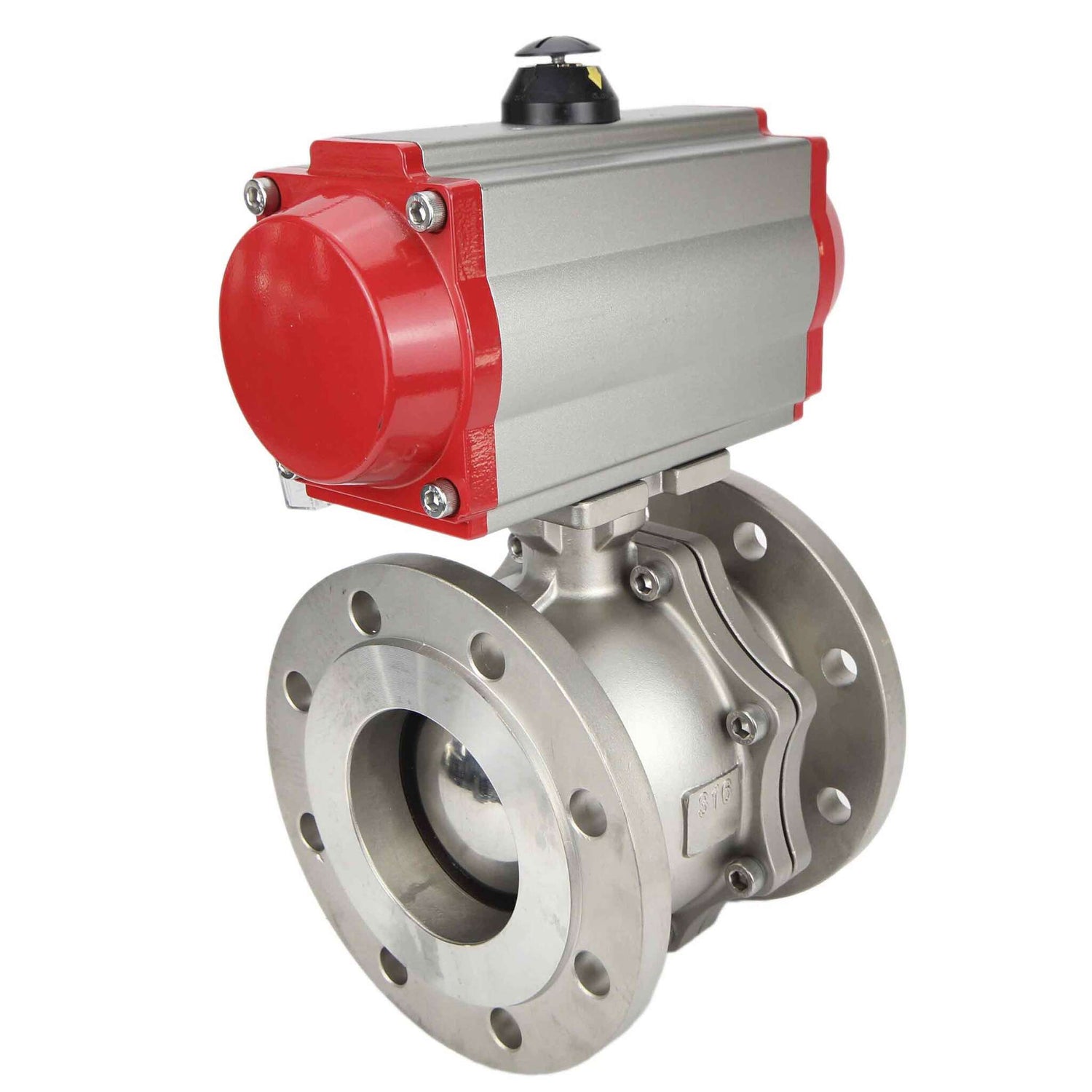

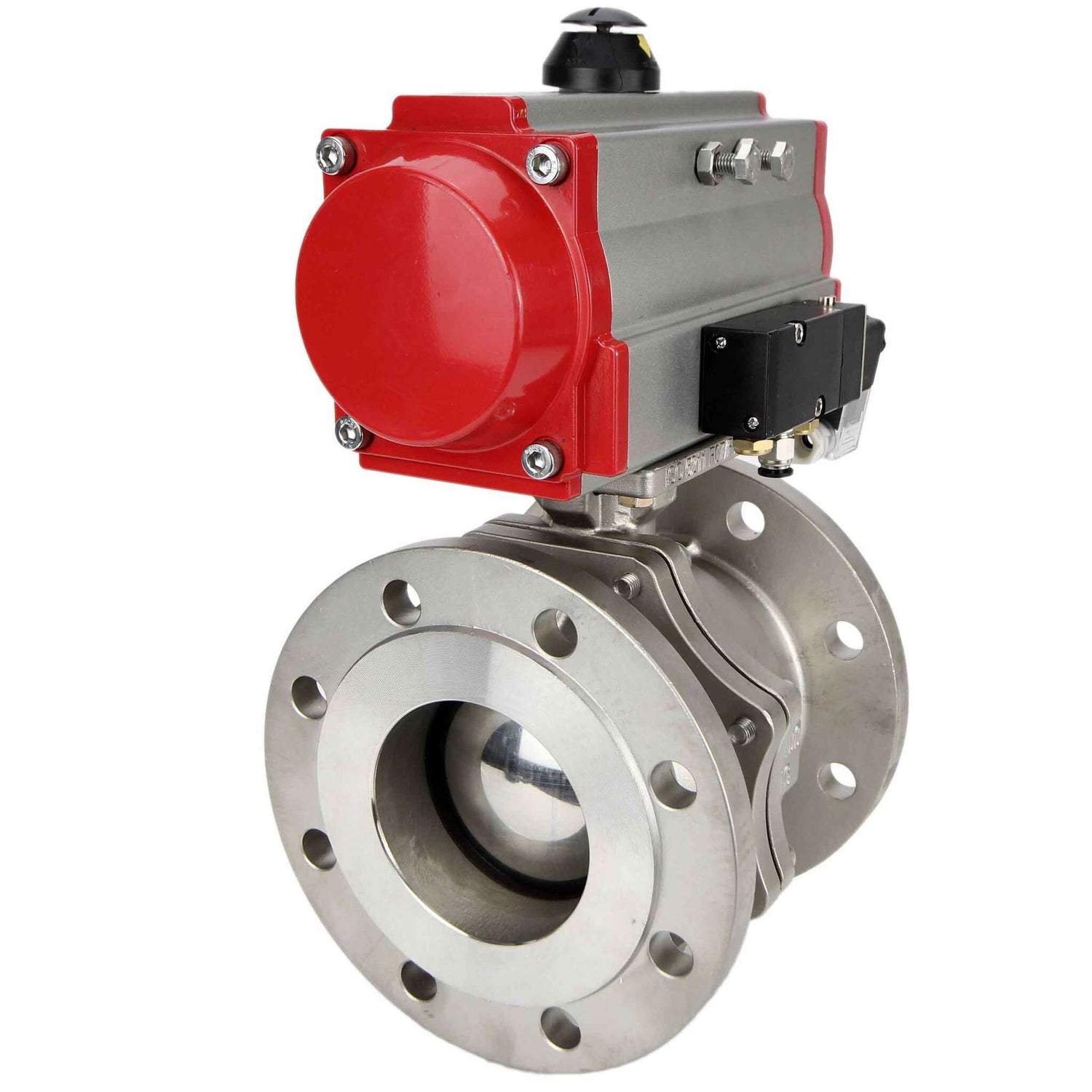

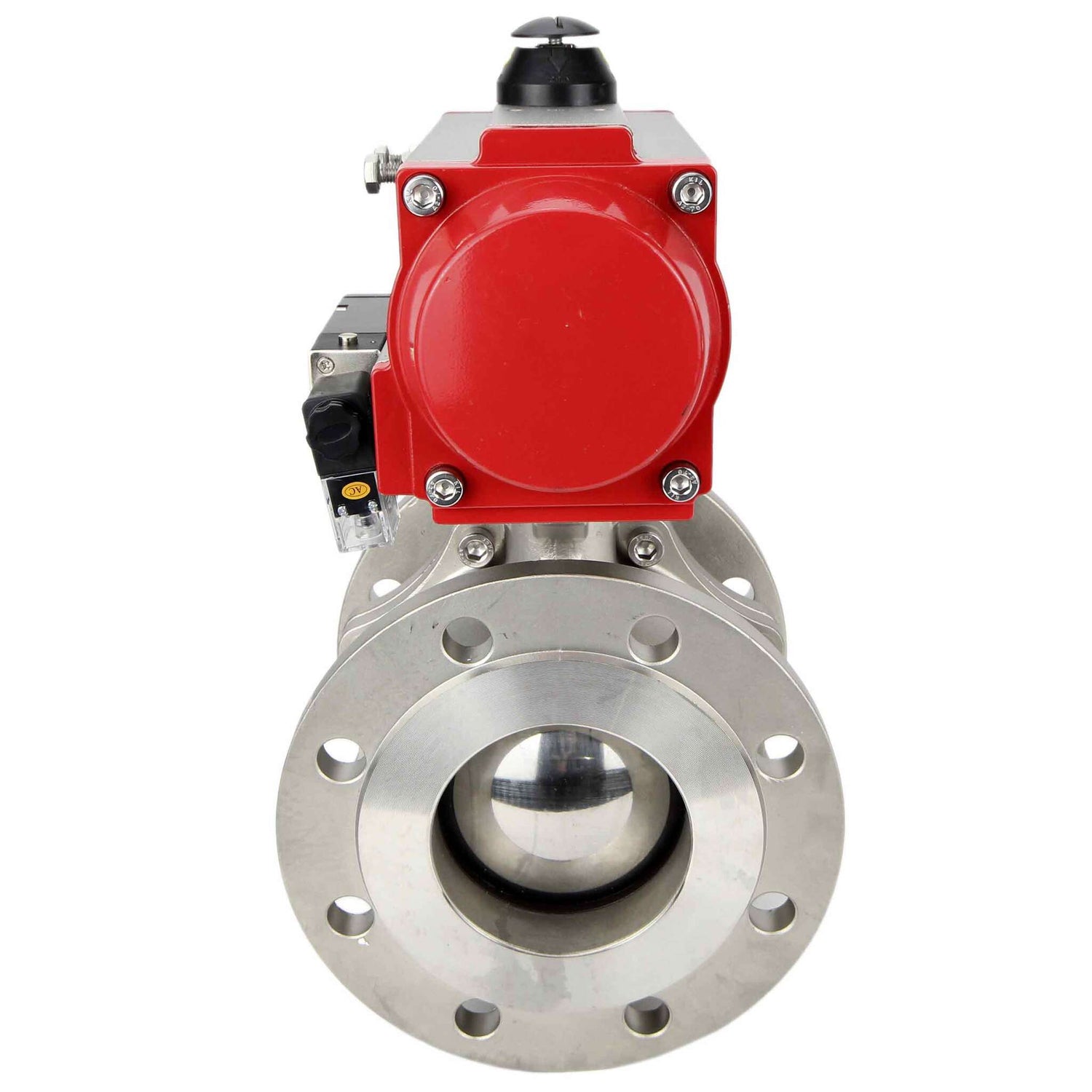

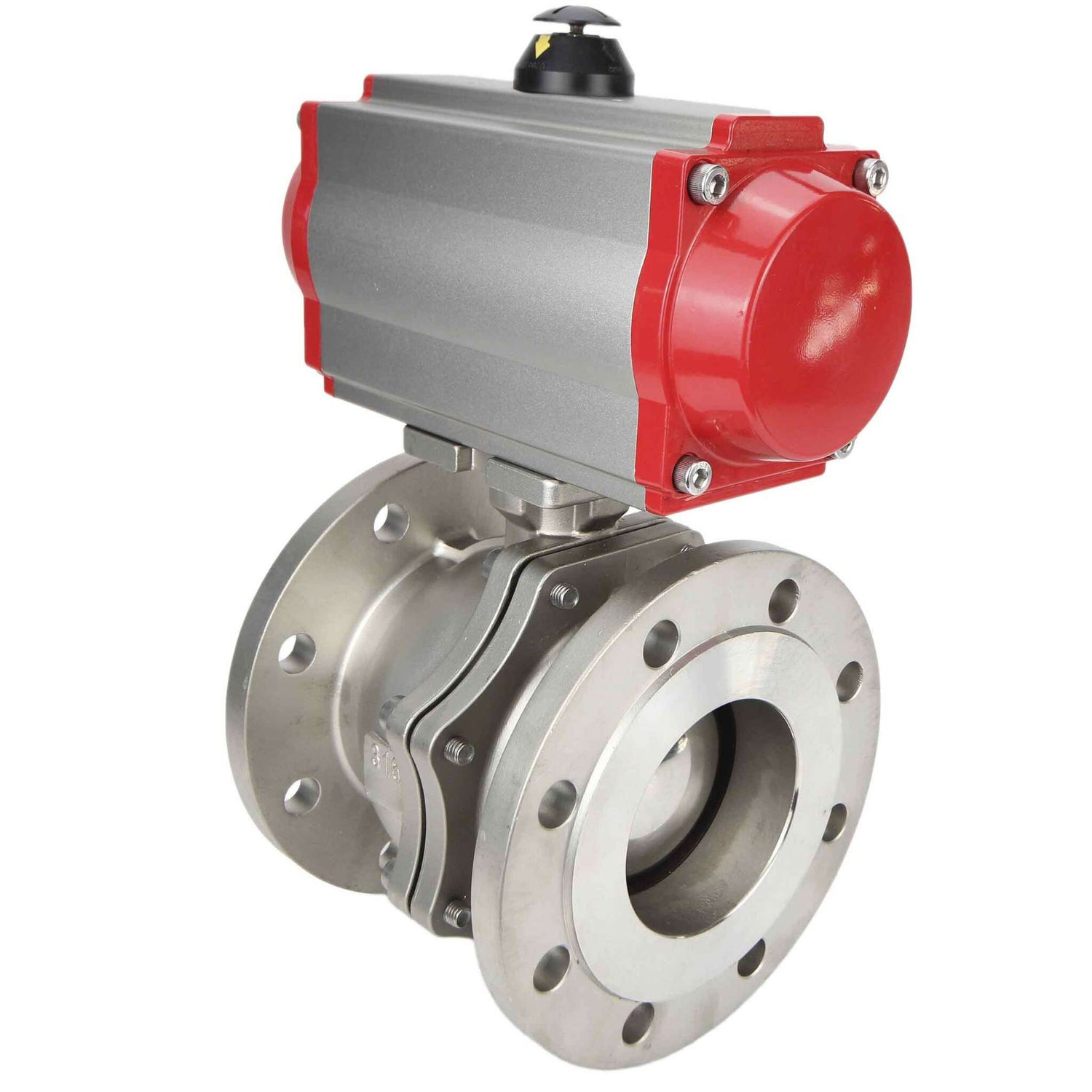

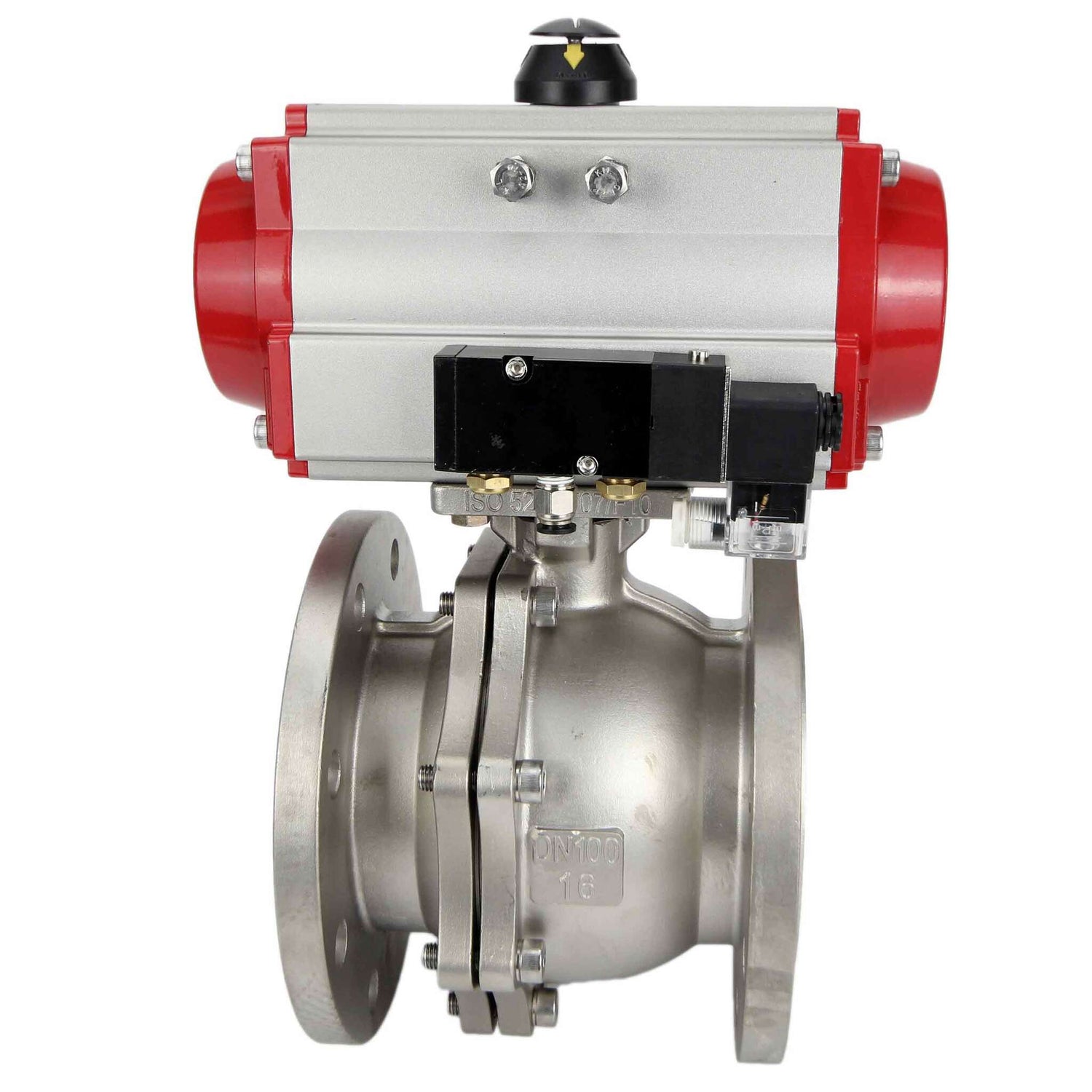

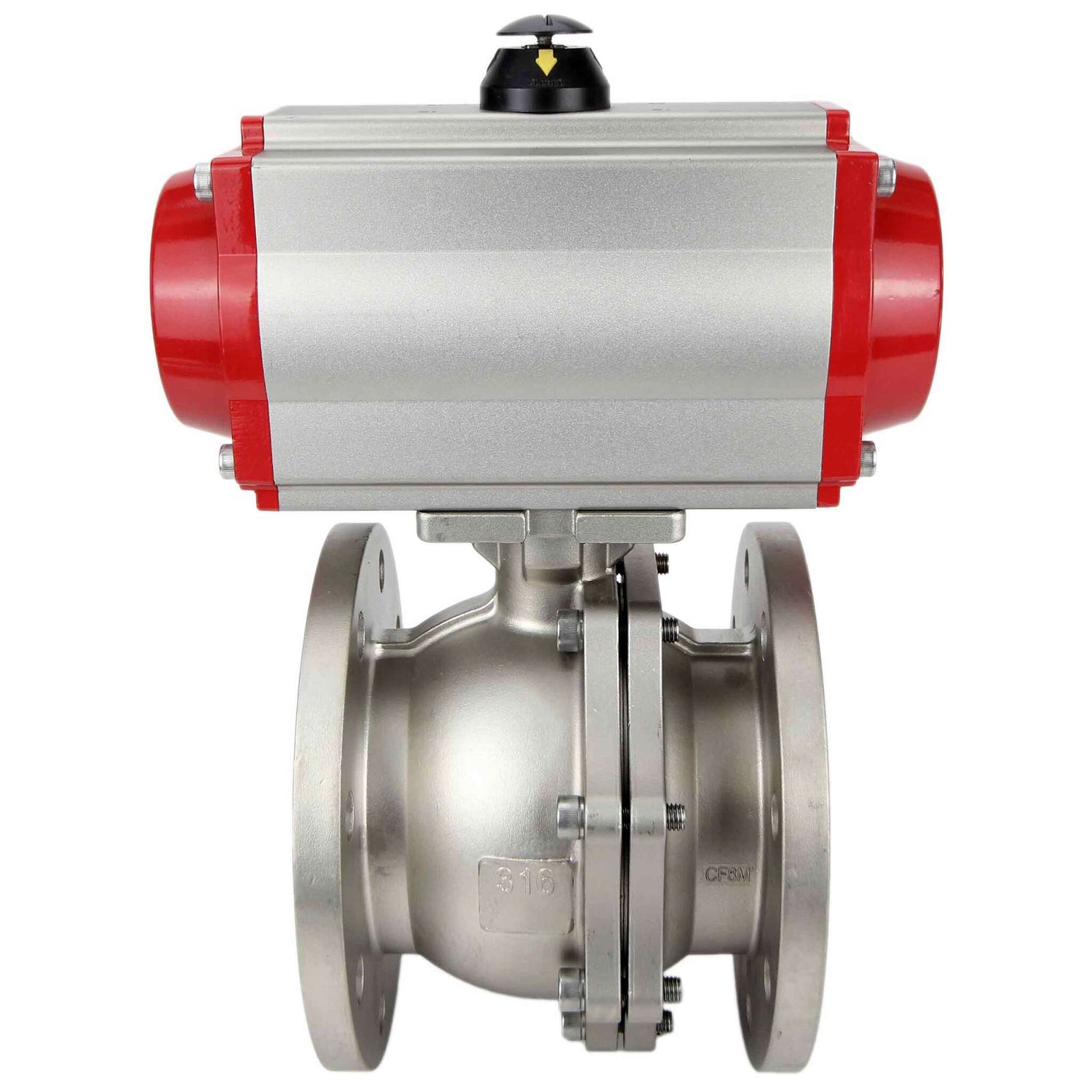

Stainless steel ball valve Elephant kchfp-elephant-da-4m310-110/220v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated
Stainless steel ball valve Elephant kchfp-elephant-da-4m310-110/220v, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Ball valve series Elephant-KShFP 316.200 is used as a shut-off valve in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases.
Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), non-aggressive to the materials of the valve. The use of ball valves as regulating valves is not allowed.
Dimensions
| DN, mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L, mm | 114 | 120 | 125 | 130 | 140 | 150 | 170 | 180 | 190 | 325 | 345 | 400 | 450 | 500 |
| H, mm | 50 | 55 | 60 | 65 | 70 | 80 | 95 | 105 | 120 | 206 | 223 | 215 | 215 | 215 |
| W, mm | 112 | 112 | 136 | 195 | 195 | 195 | 265 | 265 | 265 | 750 | 750 | 1000 | 1000 | 1000 |
| D, mm | 89 | 98 | 108 | 117 | 127 | 152 | 178 | 191 | 229 | 250 | 285 | 340 | 405 | 460 |
| f, mm | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 |
| N-ØM | 4- Ø 16 | 4- Ø 16 | 4- Ø 16 | 4- Ø 16 | 4- Ø 16 | 4- Ø 19 | 4- Ø 19 | 4- Ø 19 | 8- Ø 19 | 8- Ø 18 | 8- Ø 22 | 12- Ø22 | 12- Ø24 | 12- Ø26 |
Connection sketch of pneumatic actuator Elephant
Technical characteristics of the pneumatic distributor 4M310-08
| Design | Spool-type |
| Test pressure (body strength test. Not for operation!), bar | 10 |
| Working pressure (recommended range for normal operation), bar | 1.5 ÷ 8 |
| Valve type | 5/2 five-port, two-position |
| Working medium | purified air (40 µm filter fineness) |
| Operating temperature, °C | 0 to +60 |
| Actuation frequency | 5 cycles per second |
| Manual override | yes |
| Protection rating/insulation class | IP65/F |
| Connection to pneumatic actuator | NAMUR-compliant mounting surface (VDI/VDE3845) |
| Body material | anodized aluminum |
| Effective cross-sectional area, mm2 | 25 (Cv = 1.4) |
| Exhaust port dimensions (vent to atmosphere) | 2 - PT1/4” |
| Air inlet port size (to pneumatic valve) | G1/4” |
| Air outlet port size (to pneumatic actuator) | 2 x Ø19.2 mm |
| Response time, sec | 0.05 |
| Supply voltage, V | 220AC/24DC |
| Coil power | 220VAC – 5.5 VA/24VDC – 4.8 W |
| Weight, kg | 0.35 |
| Average service life, cycles | 10,000,000 |
Overall and installation dimensions of the pneumatic distributor 4M310-08
| A | C | D | E | F | G | H | I | K | L | J | N | M |
| mm | ||||||||||||
| 40 | 24 | 28 | 32 | 40 | 21,5 | 69 | 45 | 17,5 | 135 | 29,3 | 40 | 27 |
Sketch of the dimensions of the pneumatic distributor 4M310-08
Basic materials and parts of the pneumatic distributor 4M310-08
| № | Part Name | Material |
| 1 | Connector | Engineering plastic |
| 2 | Nut | POM + carbon steel |
| 3 | Coil | Copper |
| 4 | Control Elements | — |
| 5 | Plate | Carbon steel |
| 6 | Piston | POM |
| 7 | Control Valve Seat | Engineering plastic |
| 8 | Valve Body | Aluminum alloy |
| 9 | Spool | Aluminum alloy |
| 10 | O-Ring Seal | HNBR |
| 11 | Rear Cover | Engineering plastic |
| 12 | Filter | Synthetic material |
| 13 | Piston | POM |
| 14 | Spring | Stainless steel |
| 15 | Manual Override | Engineering plastic |
| 16 | Rear Seat | Aluminum alloy |
| 17 | Spring Seat | Aluminum alloy |
| 18 | Type C Towing Shackle | 65Mn |
Sketch of the dimensions of the pneumatic distributor 4M310-08
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsWater Supply, Heat Supply
-
Voltage
-
Explosion-proof
-
Torque
-
Electropneumatic positioner
-
Pneumatic actuator
