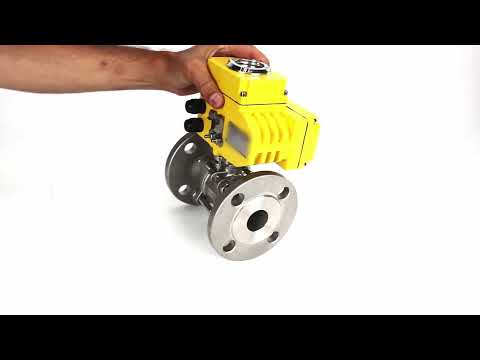

Stainless steel ball valve Elephant BVFPT-ISO.316.180 PSI580 three-part, body material - stainless steel SS316, seal - PTFE, flanged, full port, electric actuator Elephant-003 220 V

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.

The ball valve Elephant is used as a shut-off valve in heat and water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are not aggressive to valve materials.

Parameters of the Elephant three-piece ball valve BV3232P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1 DN15 with actuator QT-N-EM-O1-220VAC-U1:

• Nominal diameter DN - 15 mm
• Nominal pressure PN - 40 bar
• Sealing class according to GOST 54808-2011 - "A"
• Body material - Stainless steel AISI/SS 316/08Х17Н13М2
• ISO flange type of fittings - F03, F04
• The size of the reinforcement shaft (square) is 9x9 mm
• Ball material - Stainless steel AISI/SS 316/08Х17Н13М2
• Seal type - PTFE
• Connection - flanged
• The type of the tap device is two-way
• The valve ball passage is full bore
• Water tap - no
• Control type - Electric
• Working environment temperature: from -20 to 180 °C
• Environment - water, steam, petroleum products, liquid environment, neutral environment, gaseous environment
• Country of manufacture of the drive - China
• Application area - water supply, heat supply, pneumatic systems
• Weight of shut-off valves - 2.08 kg
• Drive weight - 2.1 kg
• Total weight - 4.18 kg

Sketch of ball valve Elephant BV3232P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1

Materials of parts of the Elephant three-piece ball valve BV3232P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1 DN15 with QT-N-EM-O1-220VAC-U1 actuator:

Sketch of ball valve Elephant BV3232P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1

Overall and installation dimensions of the three-piece ball valve Elephant BV3232P(3pc)-FP-F-ISO-H QT-N-EM-O1-220VAC-U1 DN15 with actuator QT-N-EM-O1-220VAC-U1:

• DN - 15 mm
• D - 95 mm
• d - 15 mm
• L±1.5 - 130 mm (construction length)
• L1 - 123 mm
• H - 113 mm

QT-N-EM-O1-220VAC-U1 - specifications

• Electric drive type - Quarter-turn
• Drive torque - 30 Nm
• Power supply voltage - 220 V
• Limit switches supply voltage - 220 V
• Nominal consumption current - 0.15A
• Opening/closing cycle time - 20 sec.
• Housing protection rating - IP67
• Availability of manual backup - Hexagon
• Explosion protection of the case - no
• Electric drive length - 123 mm
• Electric drive width - 123 mm
• Electric drive height - 113 mm
• Country of origin - China
• ISO drive flange type - F03, F05
• Rod size, mm - 11x11
