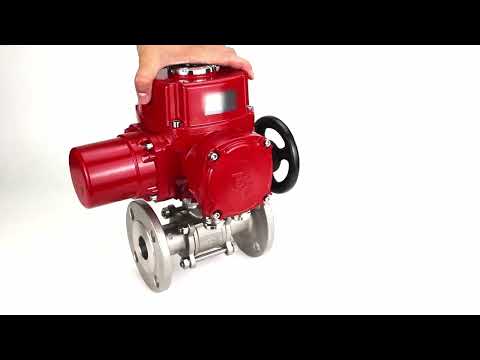

Stainless steel ball valve Elephant BVFPT.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, quarter-turn electric actuator Elephant QT-W (M) EX 380 V
Stainless steel ball valve Elephant BVFPT.304.180 three-part, body material - stainless steel SS304, seal - PTFE, flanged, full port, quarter-turn electric actuator Elephant QT-W (M) EX 380 V - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Ball valves Elephant BV3131P(3pc)-FP-F-ISO-H are used as shut-off valves in heat supply systems, water supply systems, in steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) not aggressive to valve materials.
Electric quarter-turn actuators Elephant are designed for remote and local control of shut-off pipeline valves having a quarter-turn shut-off valve. They are used in various branches of national economy: in gas, oil, metallurgical, food industries, housing and utilities, etc.
Technical data of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H QT-EX-M-O2-380VAC-U1
| Nominal diameter DN, mm | 15-100 |
| Working pressure PN, bar |
DN15-50 – 40 DN65-80 – 25 DN100 – 16 |
| Temperature of working environment t, ⁰C | from -20 to +180 |
| Working environment |
Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap |
| Connection to the pipeline | flanged |
| Type of flow section | full bore |
Sketch of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H QT-EX-M-O2-380VAC-U1
Overall and installation dimensions of ball valves Elephant BV3131P(3pc)-FP-F-ISO-H QT-EX-M-O2-380VAC-U1
| DN | Model | D, mm | L±1.5, mm | L1, mm | H, mm |
| 15 | QT-W (M)-005 | 95 | 130 | 215 | 281 |
| 20 | QT-W (M)-005 | 105 | 150 | 215 | 281 |
| 25 | QT-W (M)-005 | 115 | 160 | 215 | 281 |
| 32 | QT-W (M)-005 | 140 | 180 | 215 | 281 |
| 40 | QT-W (M)-005 | 150 | 200 | 215 | 281 |
| 50 | QT-W (M)-005 | 165 | 230 | 215 | 281 |
| 65 | QT-W (M)-010 | 185 | 290 | 215 | 281 |
| 80 | QT-W (M)-020 | 200 | 310 | 270 | 276 |
| 100 | QT-W (M)-030 | 234 | 350 | 270 | 276 |
| 100 22х22, F10 | QT-W (M)-020 | 220 | 350 | 260 | 280 |
Detail sketch of ball valves Elephant BV3131P(3pc)-FP-F-F-ISO-H QT-EX-M-O2-380VAC-U1
Materials of parts of ball valves Elephant BV3131P(3pc)-FP-F-F-ISO-H QT-EX-M-O2-380VAC-U1
| No. | Name | Material | Quantity |
| 1 | Frame | SS304/SS316 | 1 |
| 2 | Ball valve | S304/S316 | 1 |
| 3 | Bolt | S201/S304 | 4-6 |
| 4 | screw | S201/S304 | 6-12 |
| 5 | Sealing | PTFE | 1 |
| 6 | Stock | SS304/SS316 | 1 |
| 7 | Seal | SS201 | 1 |
| 8 | Lid | WCB/CF8/CF8M | 2 |
| 9 | Saddle rings | PTFE | 2 |
| 10 | Thrust washer | PTFE | 1 |
Characteristics of QT-EX-M-0-380VAC actuators
| Parameter | Value |
| Enclosure protection class | IP67 |
| Control type | ON / OFF |
| Rotation angle, ° | 90±10 |
| Power supply voltage | 220 VAC, 380 VAC, 24 VDC |
| Motor type | Asynchronous motor with squirrel cage rotor |
| Limit switches | 1xOpen/Close, SPDT, 250VAC 10A |
| Auxiliary limit switches | 1xOpen/Close, SPDT, 250VAC 10A |
| Torque switch | 1xOpen/Close, SPDT, 250VAC 10A (except QT-EX-010EM-O2-x-U1) |
| Internal thermal protection | Off at 115°C ±5°C, on at 97°C ±5°C |
| Visual position indicator | Available |
| Manual override | Handwheel |
| Electric actuator position self-locking | Self-locking by worm gear mechanism |
| Mechanical limit stops | Two external adjustable stops |
| Cable entry | M20×1.5 and M36×2 |
| Ambient temperature, °C | from -20 to +70 |
| Lubrication | Aluminum-based (EP type) |
| Explosion-proof standard | ExdIICT4 |
| Enclosure | Aluminum alloy with powder epoxy anti-corrosion coating |
| Max ambient humidity, % | 90 (non-condensing) |
| Average number of open/close cycles | 60 |
Wiring diagram for actuator QT-EX-M-0-380VAC
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environmentWater, Air, Oil Products
-
ApplicationsWater Supply, Heat Supply, Pneumatic Systems
-
Voltage
-
Actuator cycle time
-
Valve feedback
-
Explosion-proof
-
Torque
-
Type of electric actuator
-
Rated current consumption
-
Power consumption
Reviews (0)
Reviews (0)
Electric quarter-turn actuator ELEPHANT QT-EX-xEM-O2-x-U1 explosion-proof
