Stainless steel ball valve Elephant BVFP.316 PSI232, pneumatic actuato – Valve Elephant
Elephant  |  SKU: D160-01599

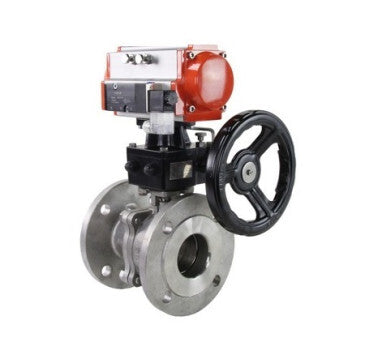

Stainless steel ball valve Elephant BVFP.316 PSI232, pneumatic actuator Elephant SA, manual override HDM, pneumatic distributor 4M310-08 220 V

€1.600,78
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Ball valve is used as a shut-off valve in heat supply systems, water supply systems, steam, fuel, and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.), which are non-aggressive to the valve materials. The use of ball valves as control valves is not allowed.
Double-acting pneumatic rotary actuators, pneumatic rotary actuators with return springs are designed to automate the process of controlling industrial shut-off valves - gate valves, ball valves. Elephant pneumatic actuators are designed for operation both indoors and outdoors. All internal and external parts have an anti-corrosion coating.

Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Heat Supply
  • Voltage
    220 V
  • Valve feedback
    No
  • Explosion-proof
    No
  • Torque
    272 Nm
  • Pneumatic actuator
    Yes
  • Manual override
    Yes
  • Limit switches
    No

Reviews (0)

Documentation
nullPneumatic valve ELEPHANT 4M310-08 spool type

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-01599DN12516 bar €1.600,78 88 In stock
    D160-01615DN20016 bar €2.313,36 88 In stock
