Stainless steel ball valve Elephant BV3232P-FP-Fb PSI232, body materia – Valve Elephant
Elephant  |  SKU: D160-22557

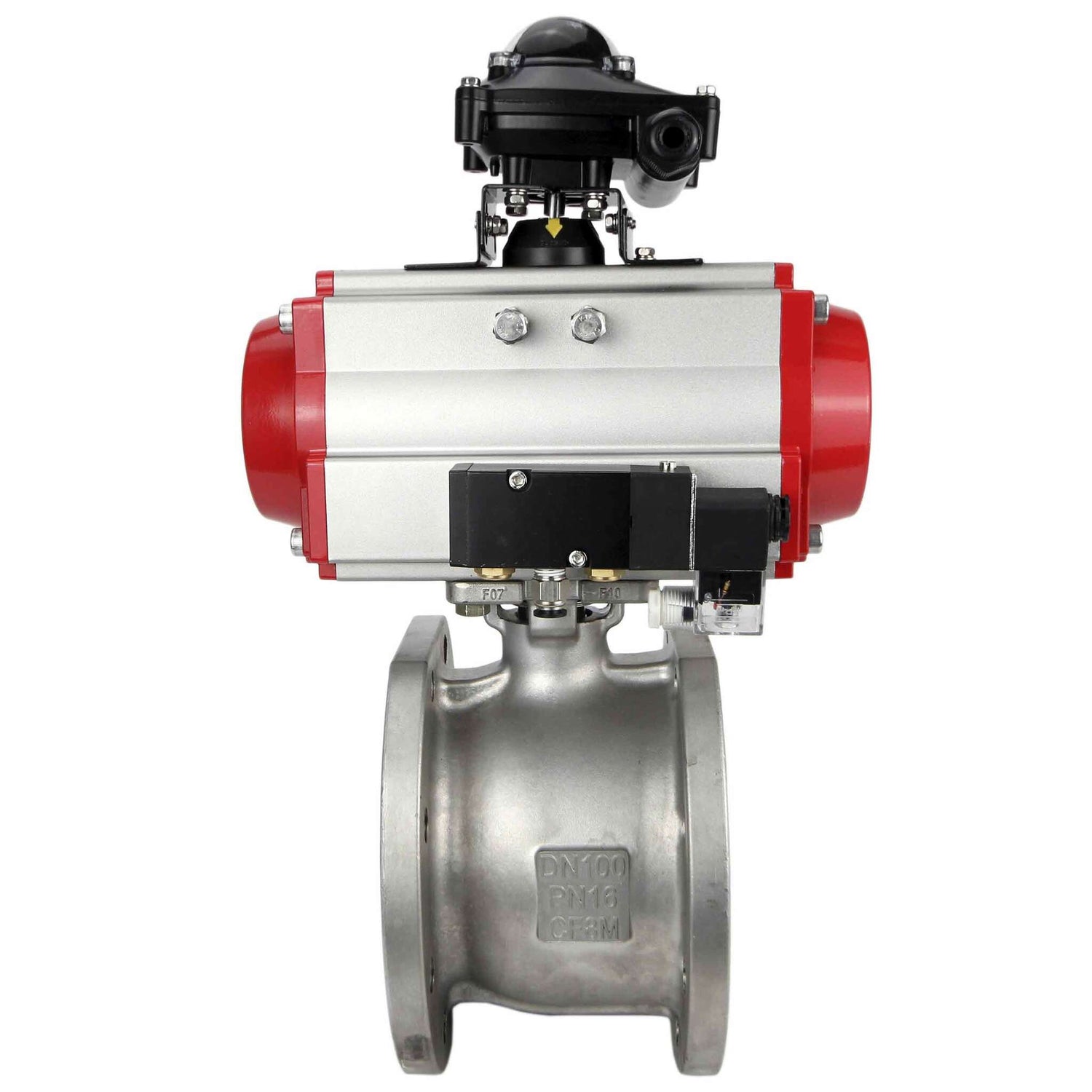

Stainless steel ball valve Elephant BV3232P-FP-Fb PSI232, body material - stainless steel AISI 316, seal - PTFE, full port, compact flanged, pneumatic actuator Elephant SA with return springs, pneumatic distributor 4M310-08 24 V, limit switch block

€699,56
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.







Materials

Item No. Details Material
1 screw Steel 304
2 Lever Steel 201+PVC
3 Washer Steel 304
4 Retaining ring Steel 304
5 Thrust washer Steel 304
6 Oil seal washer Steel 304
7 Seal PTFE
8 Thrust gasket PTFE
9 Stock Steel 316
10 Ball cap Steel 316
11 Ball Steel 316
12 Ball seal PTFE
13 Pad PTFE
14 Frame Steel 316





Parameters and sketch of pneumatic actuator connection Elephant:

  • Pneumatic drive type - with return springs
  • Working pressure of pneumatic drive - 6.0 bar
  • Drive rotation angle - 90°
  • Drive adjustment range - 5°
  • Country of origin - China
  • Operating environment - indoor and outdoor
  • Position indicator - open/closed
  • Coating - All internal and external parts have an anti-corrosion coating













Design of pneumatic actuator Elephant:

No. Name Material Quantity
1 Frame extruded aluminum 1
2 Side plugs cast aluminum 2
3 Gear stainless steel 1
4 Piston steel/aluminum 2
5 Plugs stainless steel 8
6 Piston ring NBR 2
7 Springs spring steel 0-12
8 Piston bearing engineering plastic 2
9 Piston ring NBR 2
10 Plug NBR 2
11 Thrust ring engineering plastic 2
12 Ring engineering plastic 1
13 Washer stainless steel 1
14 Spring clamp stainless steel 2
15 Indicator plastic 1
16 Indicator housing plastic 1
17 Bearing engineering plastic 1
18 Cam steel 1
19 Bearing NBR 1
20 Bearing engineering plastic 1
21 Bearing engineering plastic 1
22 Sealing ring NBR 2
23 Sealing ring NBR 2
24 Bearing stainless steel 2
25 Adjusting nut stainless steel 2
26 Adjustment screw stainless steel 2
27 Sleeve aluminum 2



Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Heat supply
  • Voltage
    24 V
  • Valve feedback
    No
  • Explosion-proof
    No
  • Torque
    214 Nm
  • Pneumatic actuator
    Yes
  • Manual override
    No
  • Limit switches
    Yes

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-22557DN8016 bar €699,56 5 in stock
