Elephant  |  SKU: D160-22772

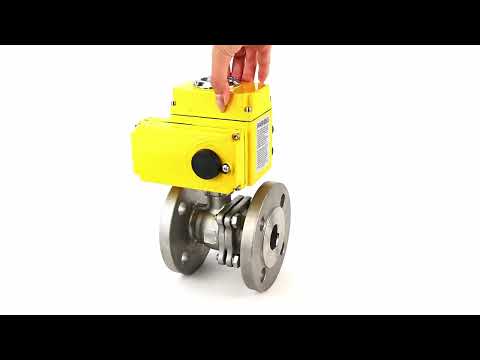

Stainless steel ball valve Elephant BV3232P-FP-F, body material - stainless steel AISI 316, seal - PTFE, full port, flanged, electric actuator Elephant 380 V

€304,02
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant BV3232P-FP-F, body material - stainless steel AISI 316, seal - PTFE, full port, flanged, electric actuator Elephant 380 V - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.





Detailed sketch of ball valve Elephant BV3232P(2pc)-FP-F-ISO-H DN15 Ru40

Crane parts and materials Elephant BV3232P(2pc)-FP-F-ISO-H DN15 Ru40

No. Name Material
1.3 Body, ball Stainless steel SS 316
2 Ball seal RPTFE
4,6,12 Bolt, nut Stainless steel SS 304
5 Sealing PTFE
7.8 Branch pipe, rod Stainless steel SS 316
9 Seal PTFE
10 Rod seal PTFE
11 Seal, lock Stainless steel SS 304





Main technical specifications of Elephant series QT electric actuators:

Power supply 220 VAC, 380 VAC, 24 VDC
Limit switches 2-Open/Closed 250V 10A
Additional limit switches 2 2-Open/Closed 250V 10A
Angle of rotation, ° 90±5
Internal thermal protection Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C
Visual position indicator is
Ambient temperature, °C -20 to +65
Manual doubler Hexagon (included)
Self-locking device self-locking with worm and worm gears
Mechanical limiter 2 external adjustable stops
Cable glands 2xM18
Enclosure protection class IP67
Lubrication aluminum-based (type EP)
Body material aluminum alloy with epoxy powder coating
Average life, closing/opening cycles 30 000







Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Electric actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Heat Supply
  • Voltage
    380 V
  • Actuator cycle time
    30s
  • Valve feedback
    Limit switches
  • Explosion-proof
    No
  • Torque
    50 Nm
  • Manual override
    No
  • Limit switches
    Yes
  • Type of electric actuator
    Quarter-turn
  • Control signal
    ON/OFF
  • Rated current consumption
    0.25 A
  • Power consumption
    10 W

Reviews (0)

Documentation
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 140 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 40 63 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-ISO-H

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-22772DN1540 bar €304,02 0 in stock
    D160-22165DN15016 bar €1.628,17 Out of stock
    D160-22654DN20016 bar €2.263,88 Out of stock
    D160-22702DN30016 bar €7.143,89 Out of stock
