Elephant  |  SKU: D160-22141

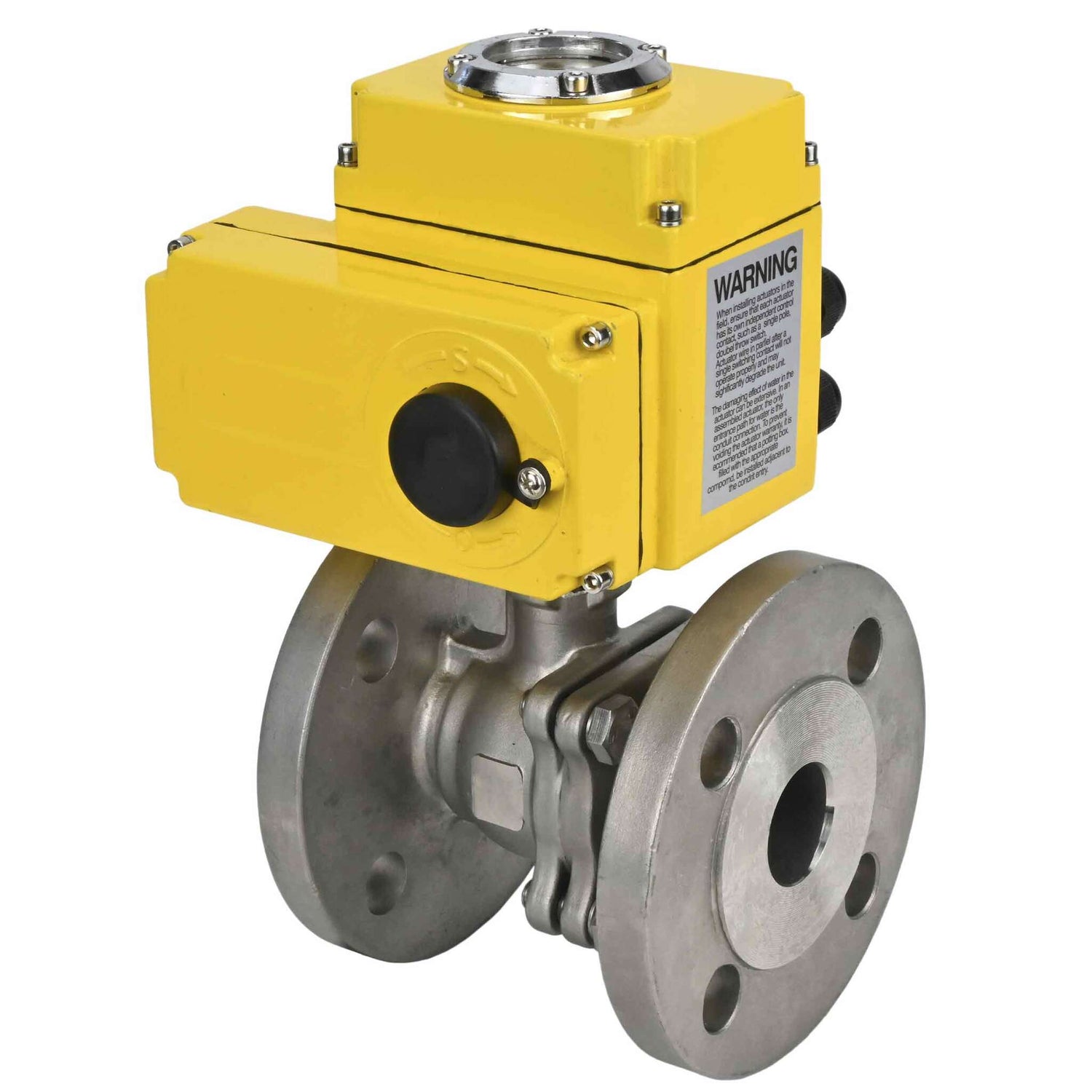

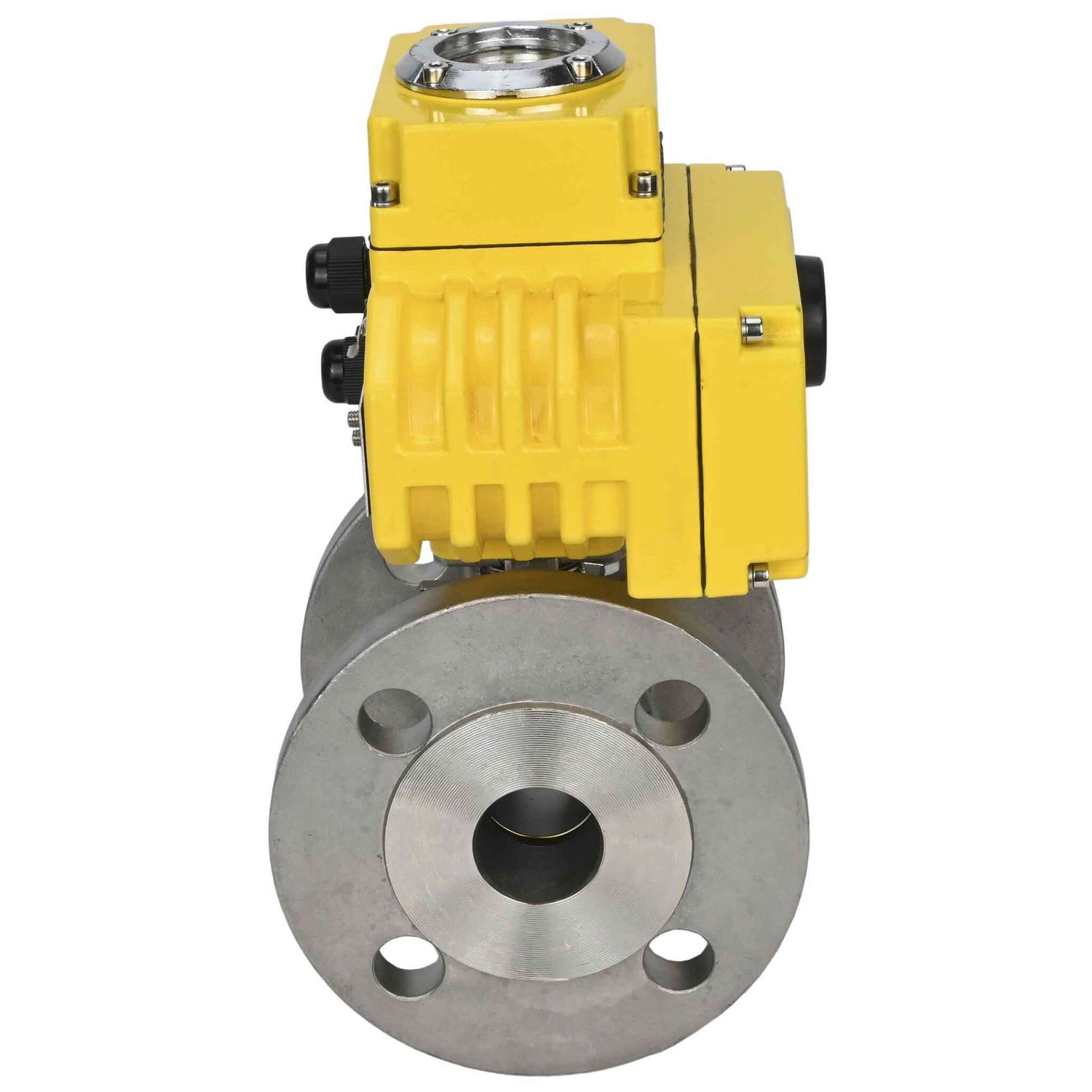

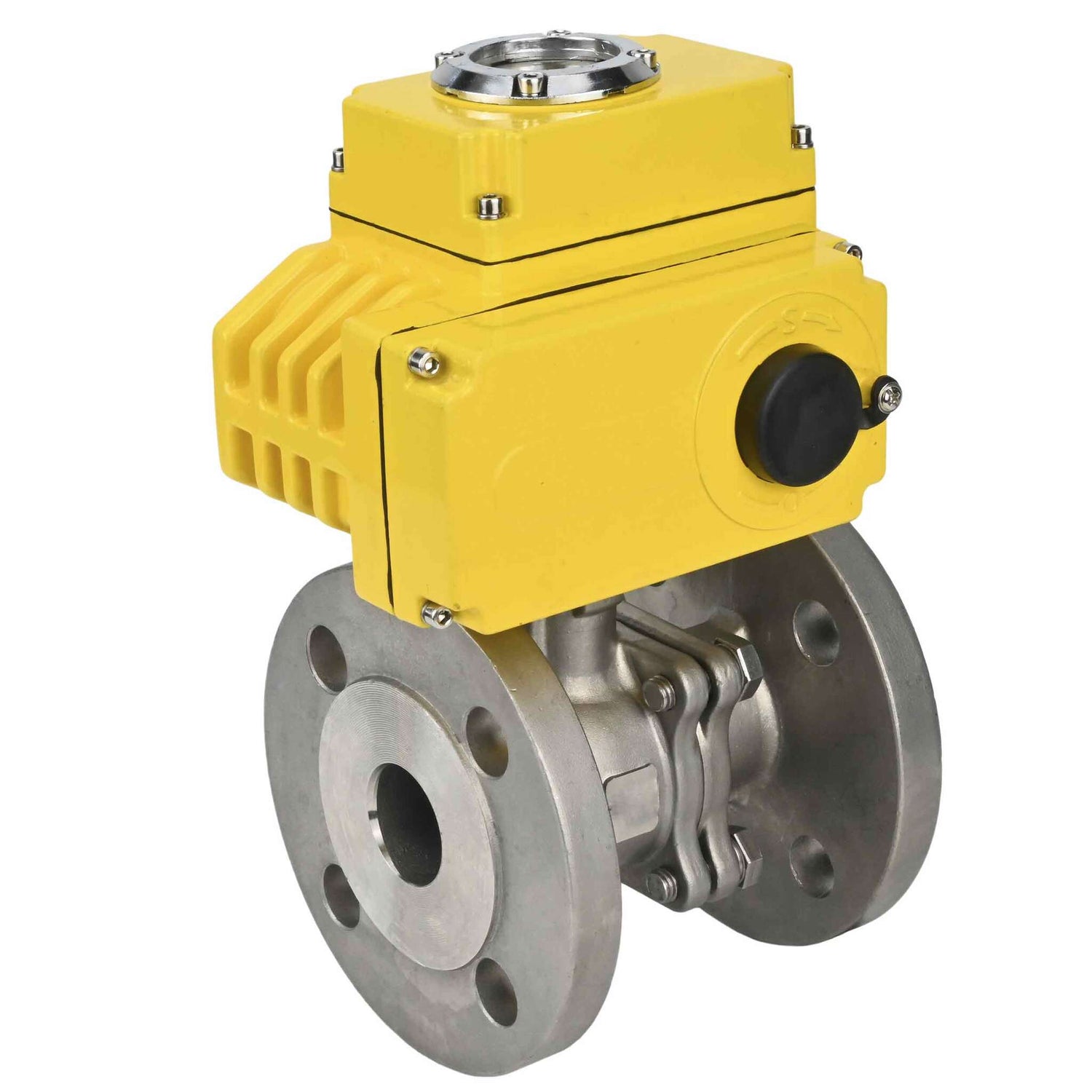

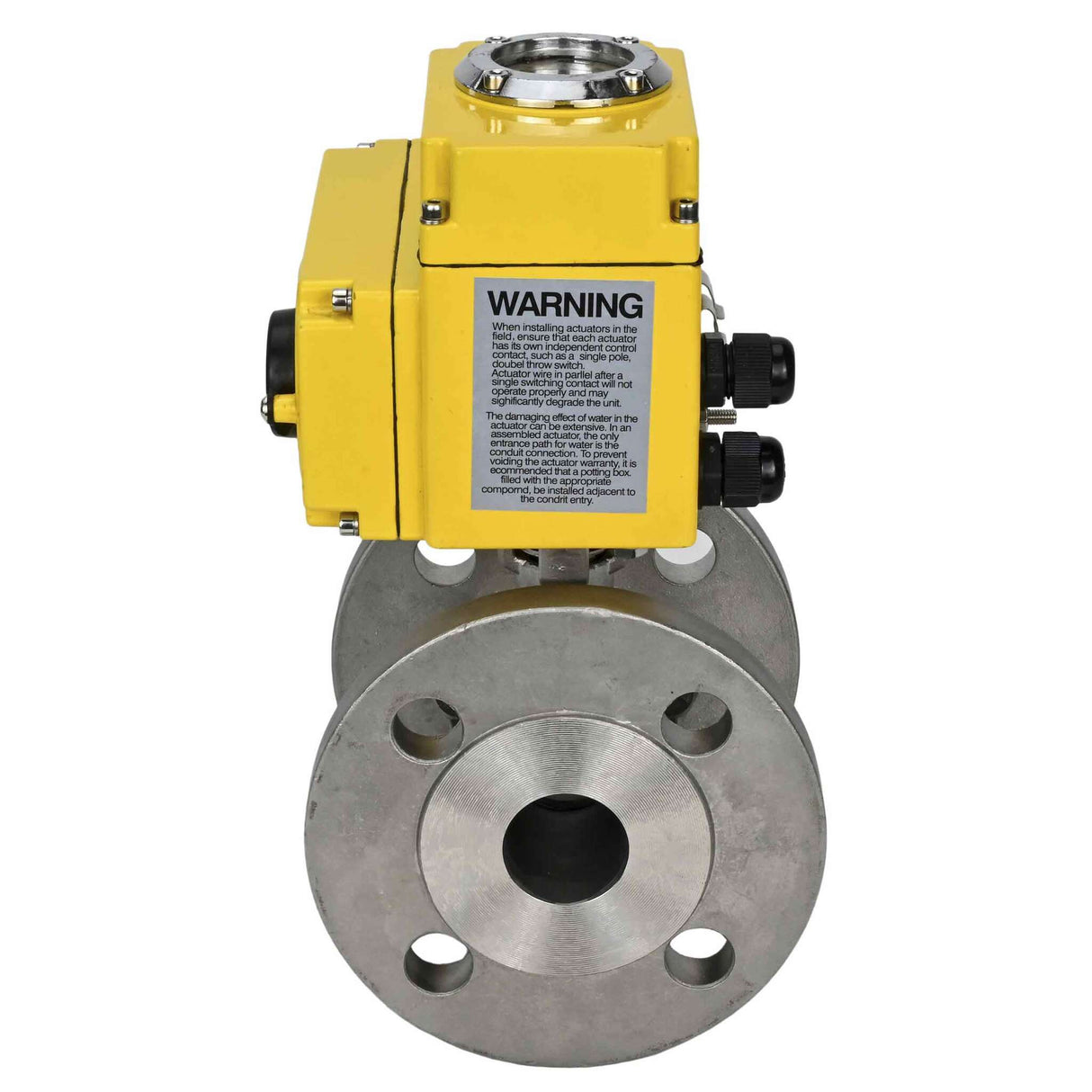

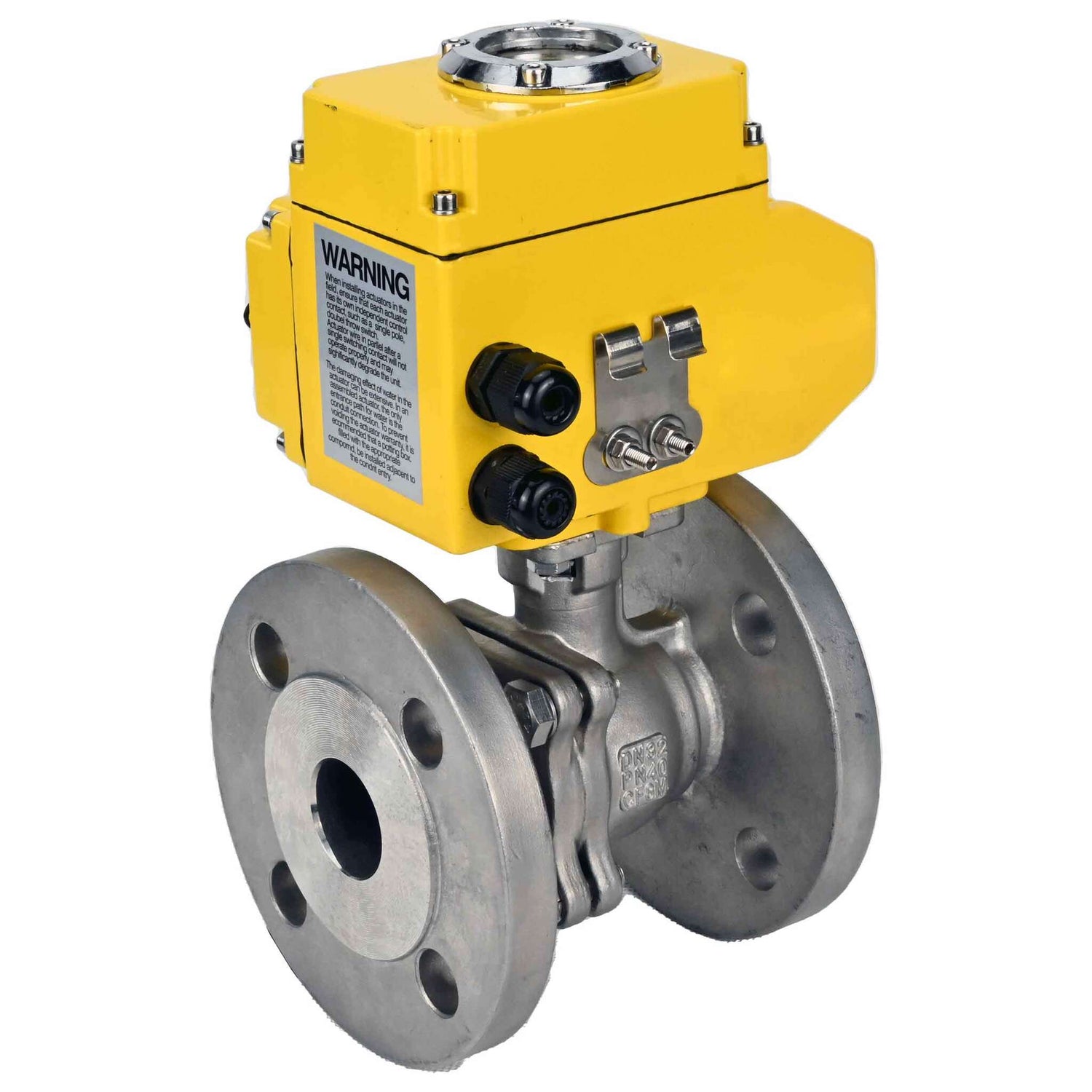

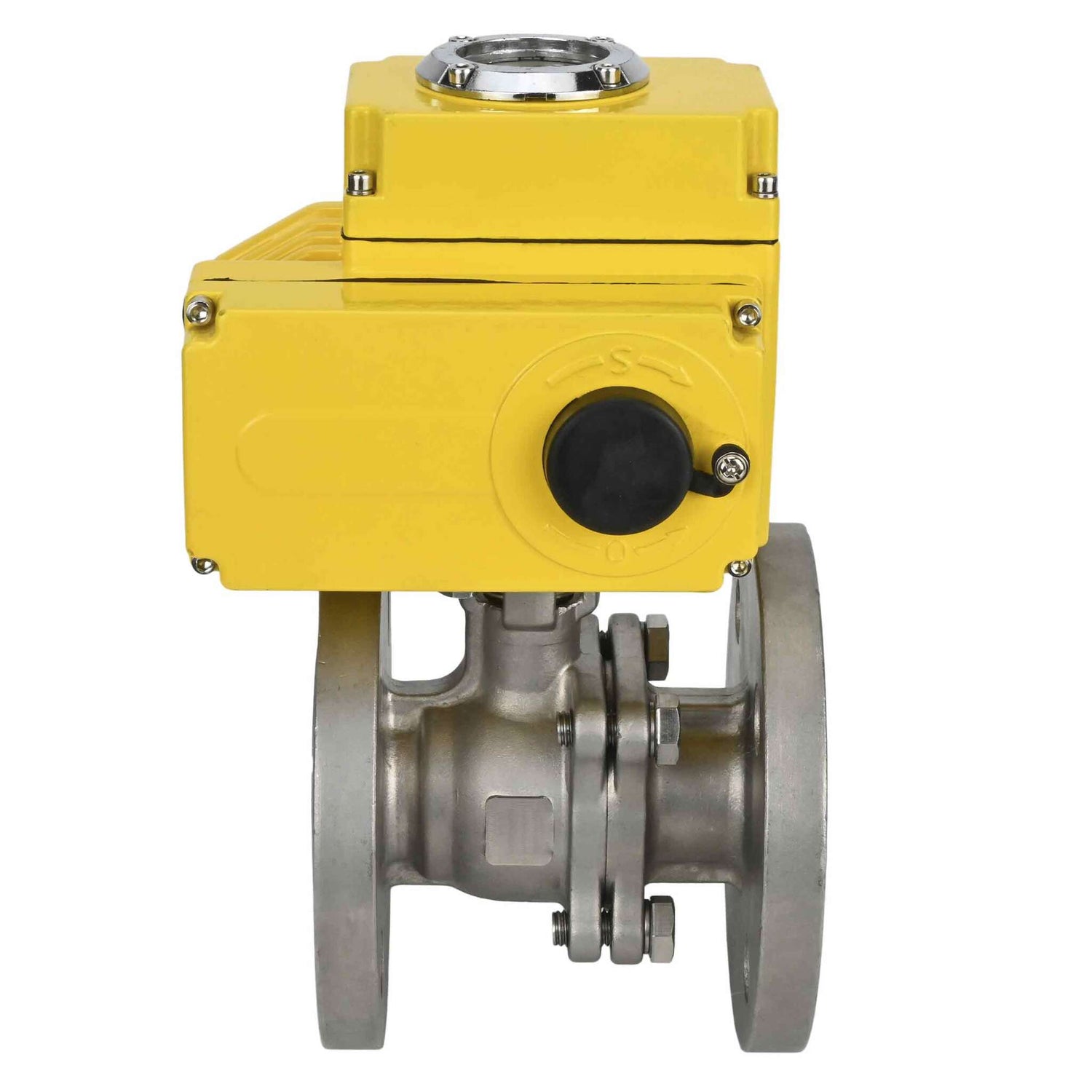

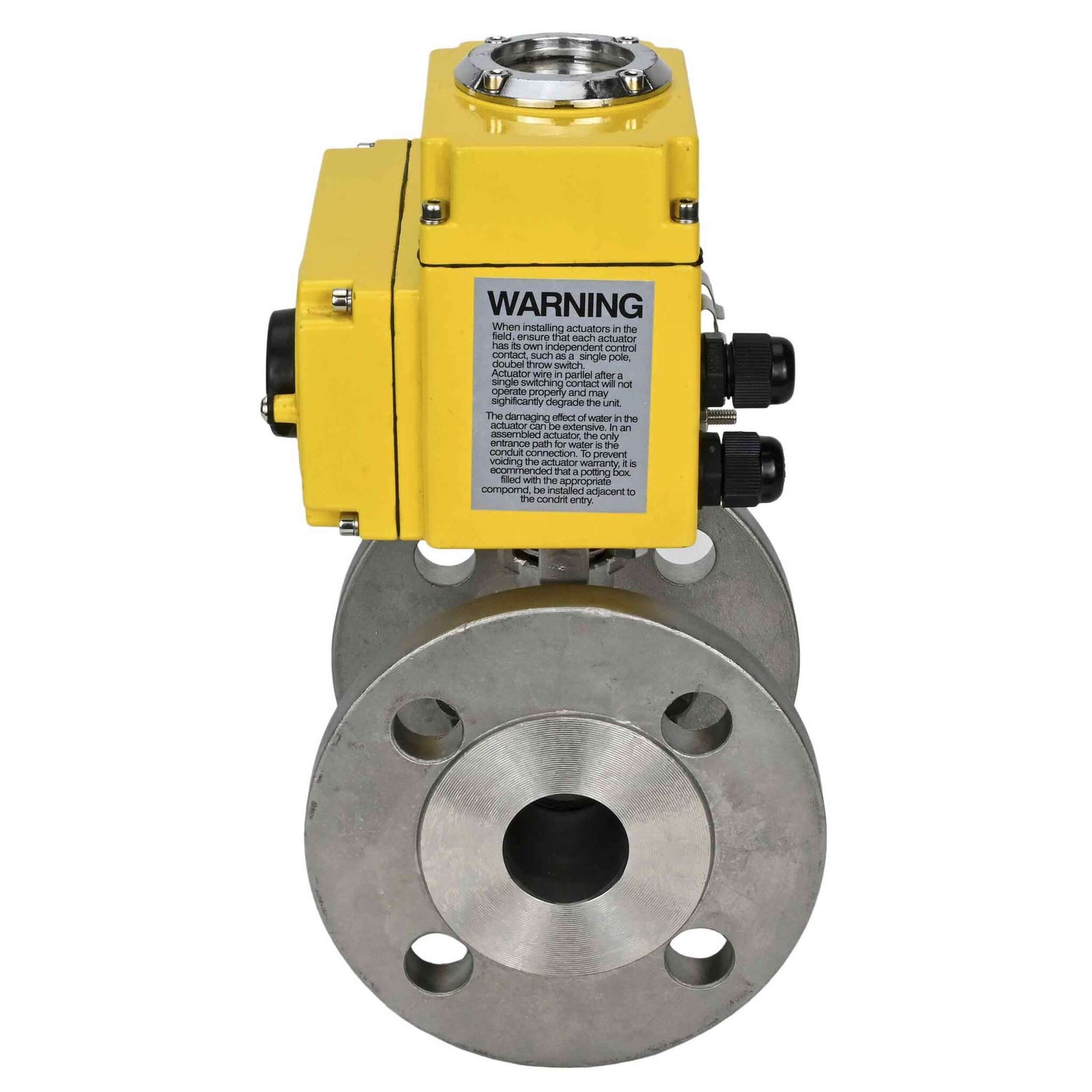

Stainless steel ball valve Elephant BV3232P-FP-F, body material - stainless steel AISI 316, seal - PTFE, full port, flanged, electric actuator Elephant 220 V

€435,71
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.





Sketch of dimensions of ball valve Elephant BV3232P(2pc)-FP-F-ISO-H DN50

Overall and installation dimensions of the ball valve Elephant BV3232P(2pc)-FP-F-ISO-H with electric drive Elephant-008

L (construction length)
 150 mm
H (construction height)
 226 mm
d
 50
E
 160
G
 121
D
 152 mm
D1
 50 mm





Detailed sketch of the ball valve Elephant BV3232P(2pc)-FP-F-ISO-H DN50

No. Name Material
1.3 Body, ball Stainless steel SS 316
2 Ball seal RPTFE
4,6,12 Bolt, nut Stainless steel SS 304
5 Sealing PTFE
7.8 Branch pipe, rod Stainless steel SS 316
9 Seal PTFE
10 Rod seal PTFE
11 Seal, lock Stainless steel SS 304





Main technical specifications of Elephant series QT electric actuators:

Power supply 220 VAC, 380 VAC, 24 VDC
Limit switches 2-Open/Closed 250V 10A
Additional limit switches 2 2-Open/Closed 250V 10A
Angle of rotation, ° 90±5
Internal thermal protection Switching off at 110°C ± 5°C, switching on at 97°C ± 5°C
Visual position indicator is
Ambient temperature, °C -20 to +65
Manual doubler Hexagon (included)
Self-locking device self-locking with worm and worm gears
Mechanical limiter 2 external adjustable stops
Cable glands 2xM18
Enclosure protection class IP67
Lubrication aluminum-based (type EP)
Body material aluminum alloy with epoxy powder coating
Average life, closing/opening cycles 30 000



Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    Flanged
  • Control type
    Electric actuator
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Heat Supply
  • Voltage
    220 V
  • Actuator cycle time
    30s
  • Valve feedback
    Limit switches
  • Torque
    80 Nm
  • Type of electric actuator
    Quarter-turn
  • Control signal
    ON/OFF
  • Rated current consumption
    0.25 A
  • Power consumption
    10 W

Reviews (0)

Documentation
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 140 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-H 40 63 bar
nullBall valve ELEPHANT BV3232P 2pc -FP-T-ISO-H

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-22141DN5040 bar €435,71 70 in stock
    D160-22179DN12516 bar €1.355,08 1 in stock
    D160-22142DN6516 bar €613,80 15 in stock
