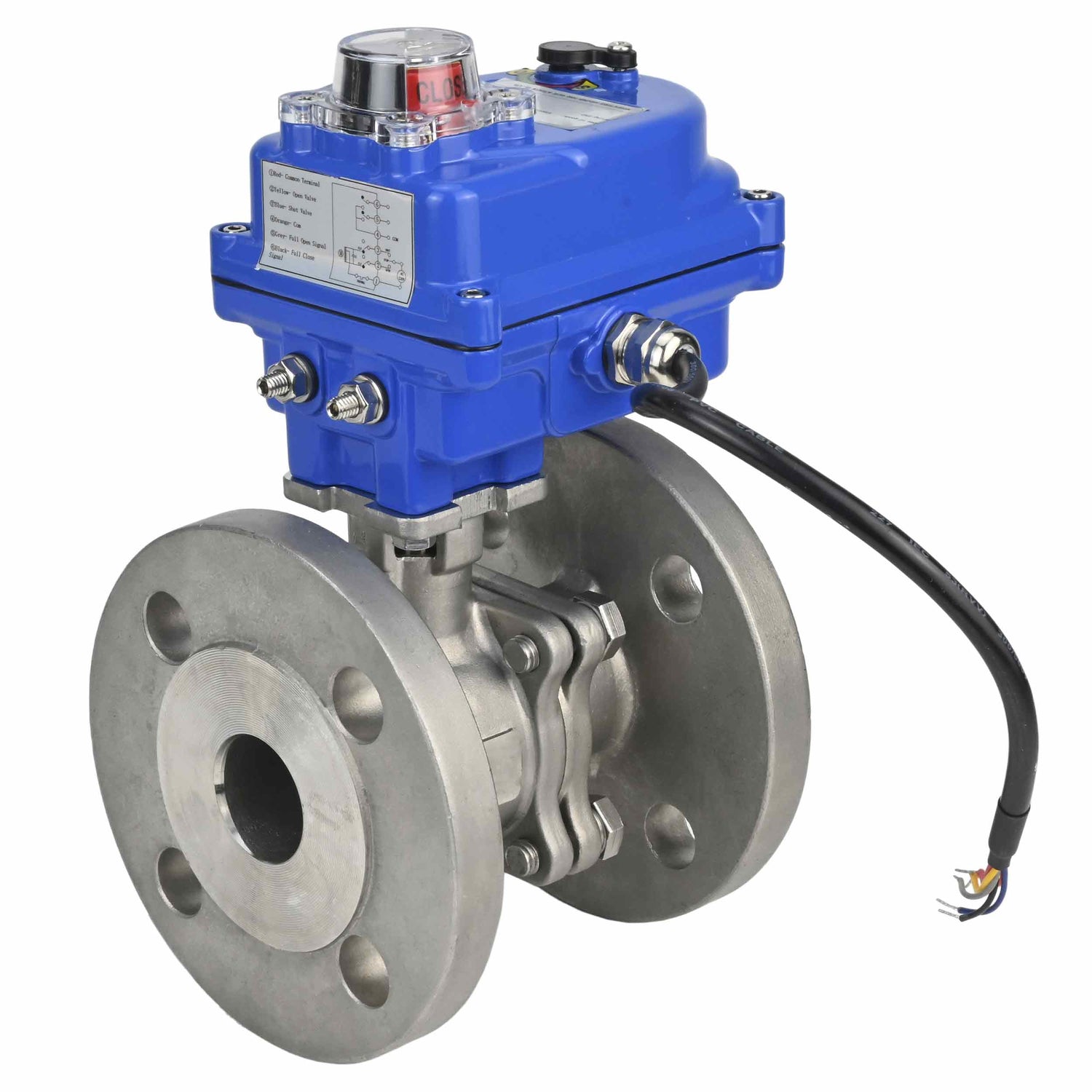

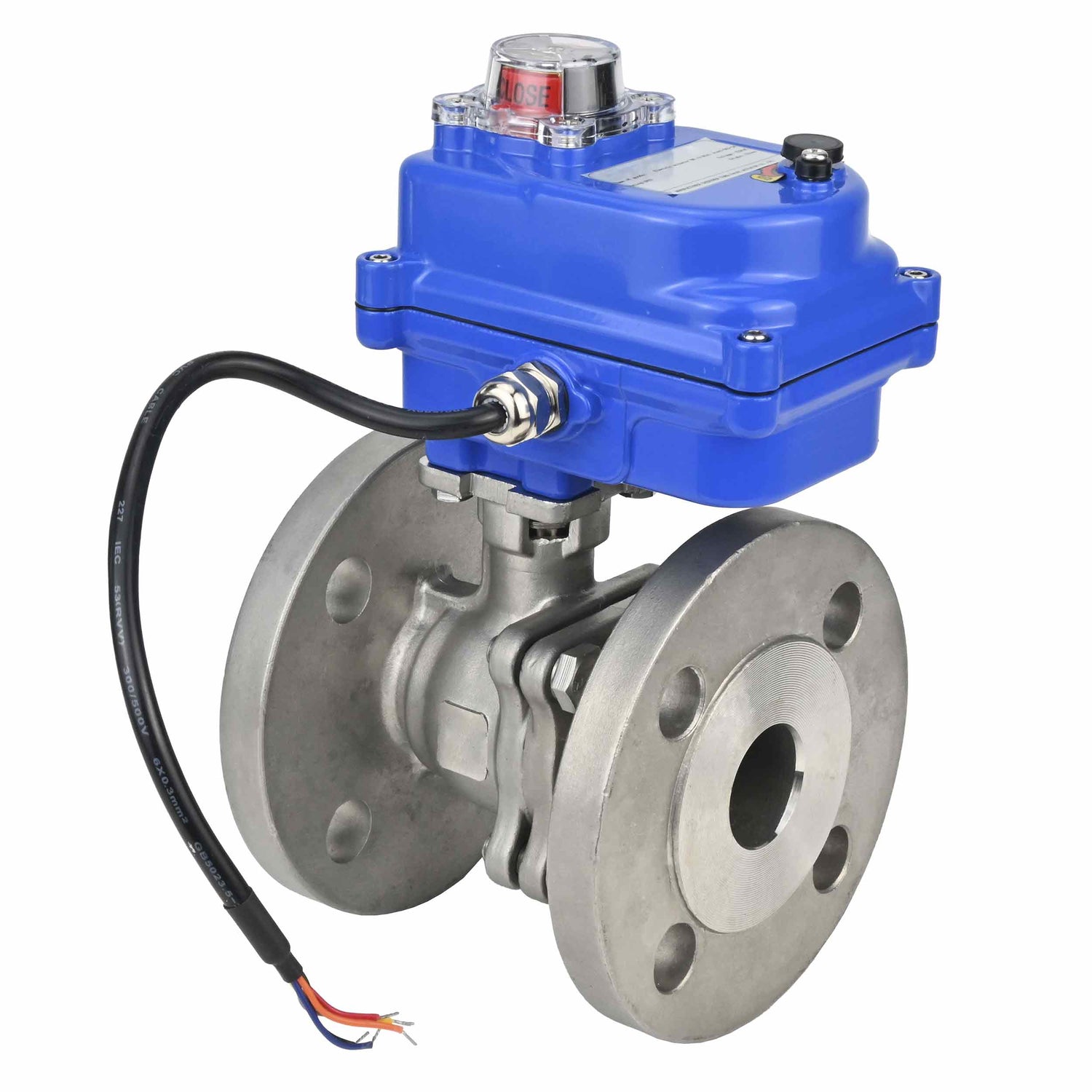

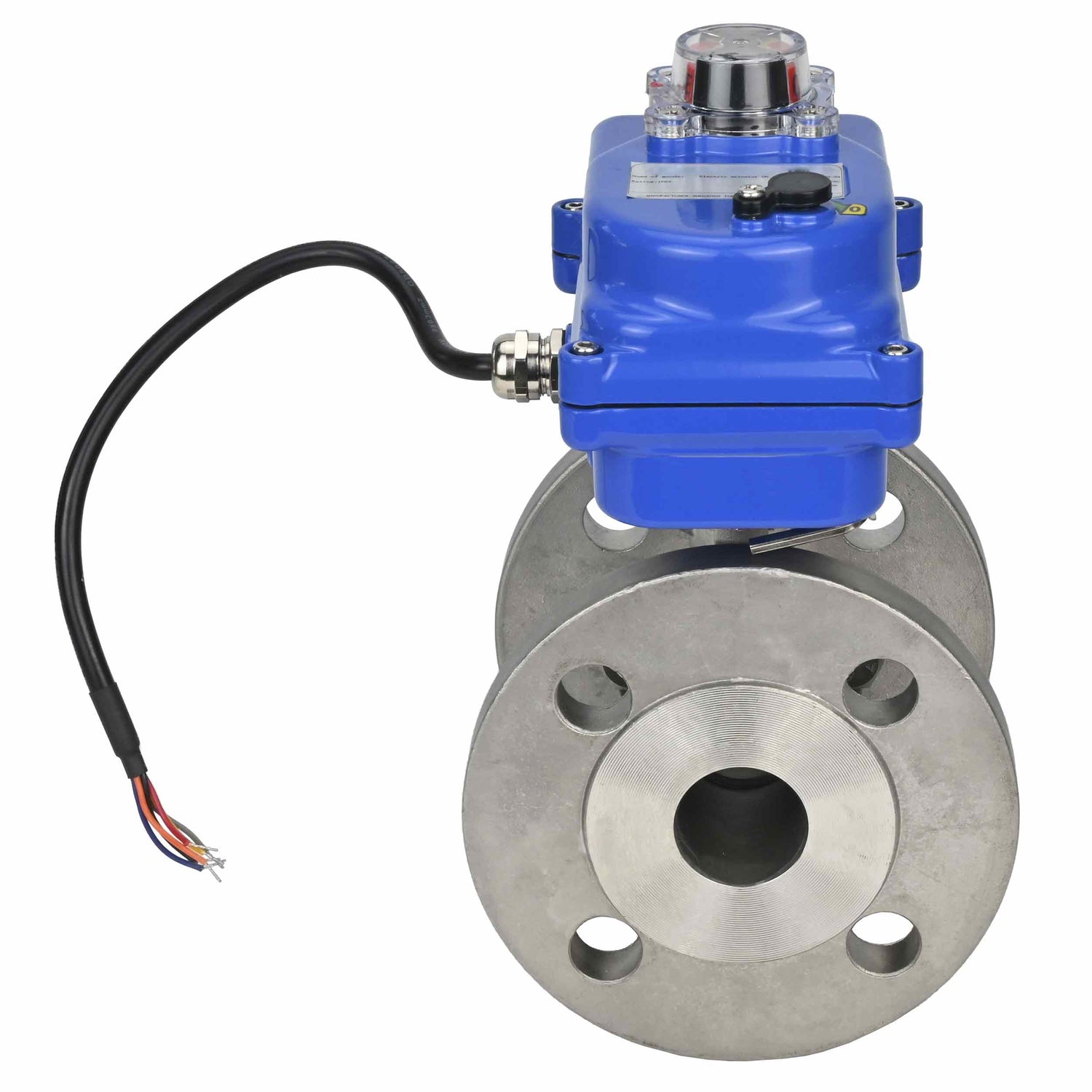

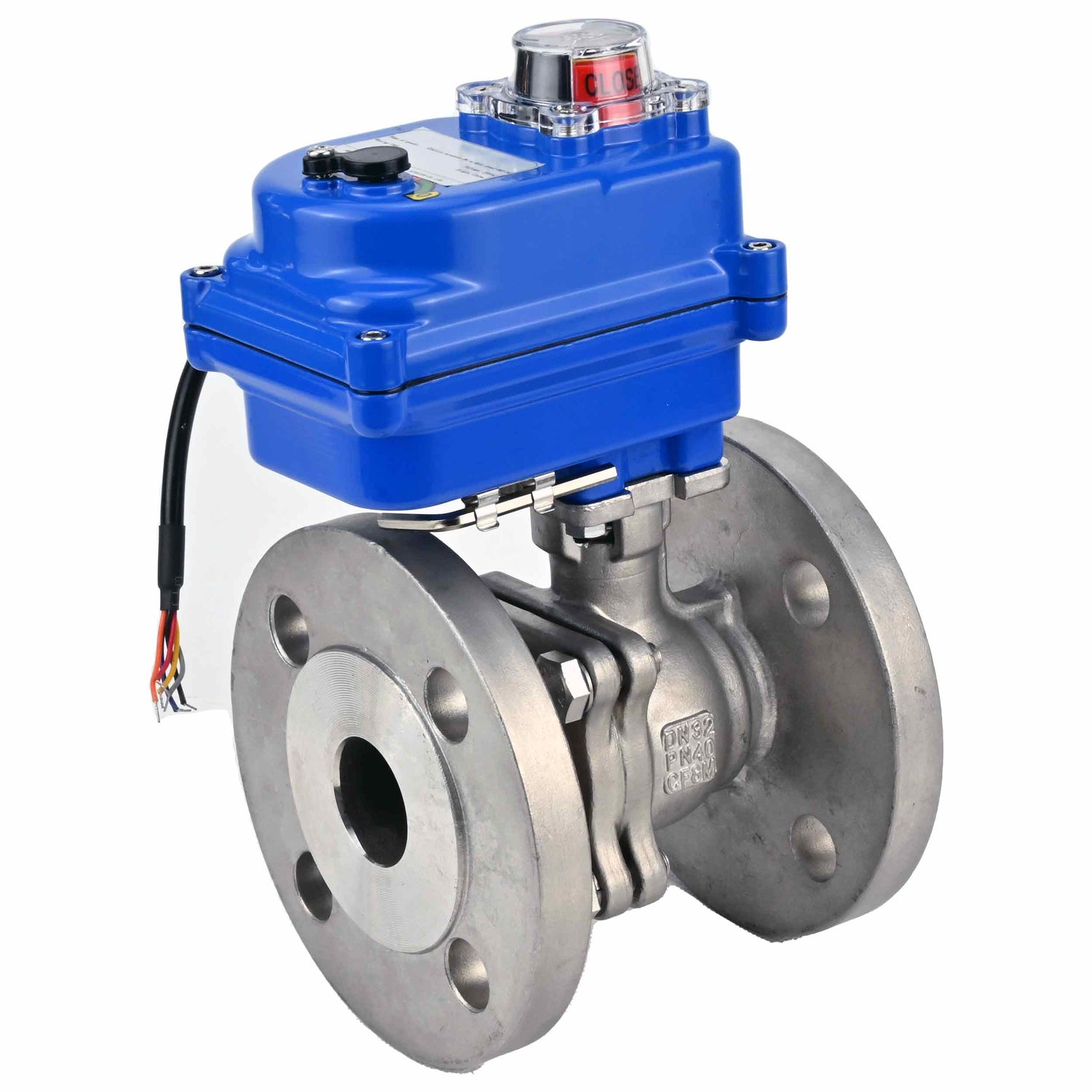

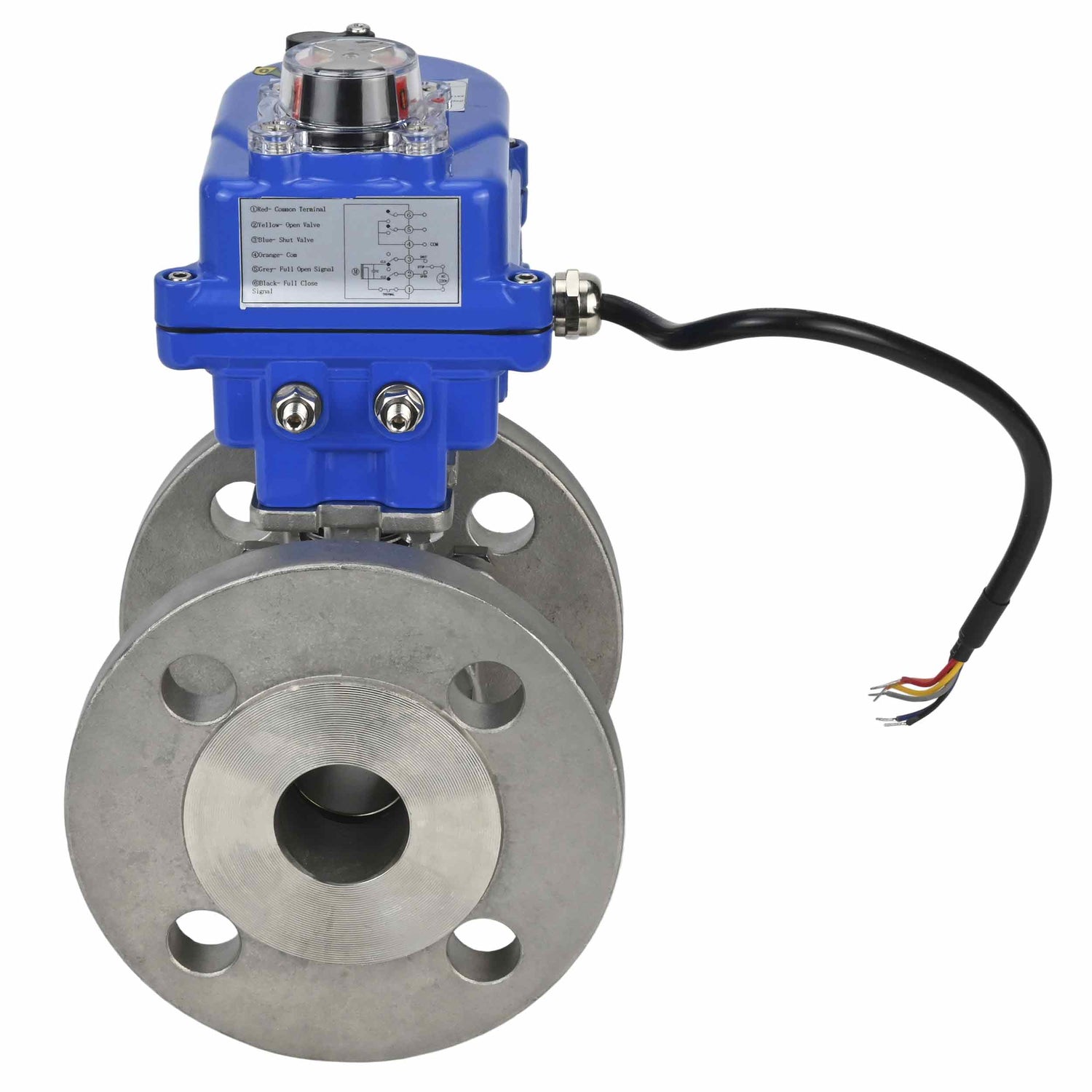

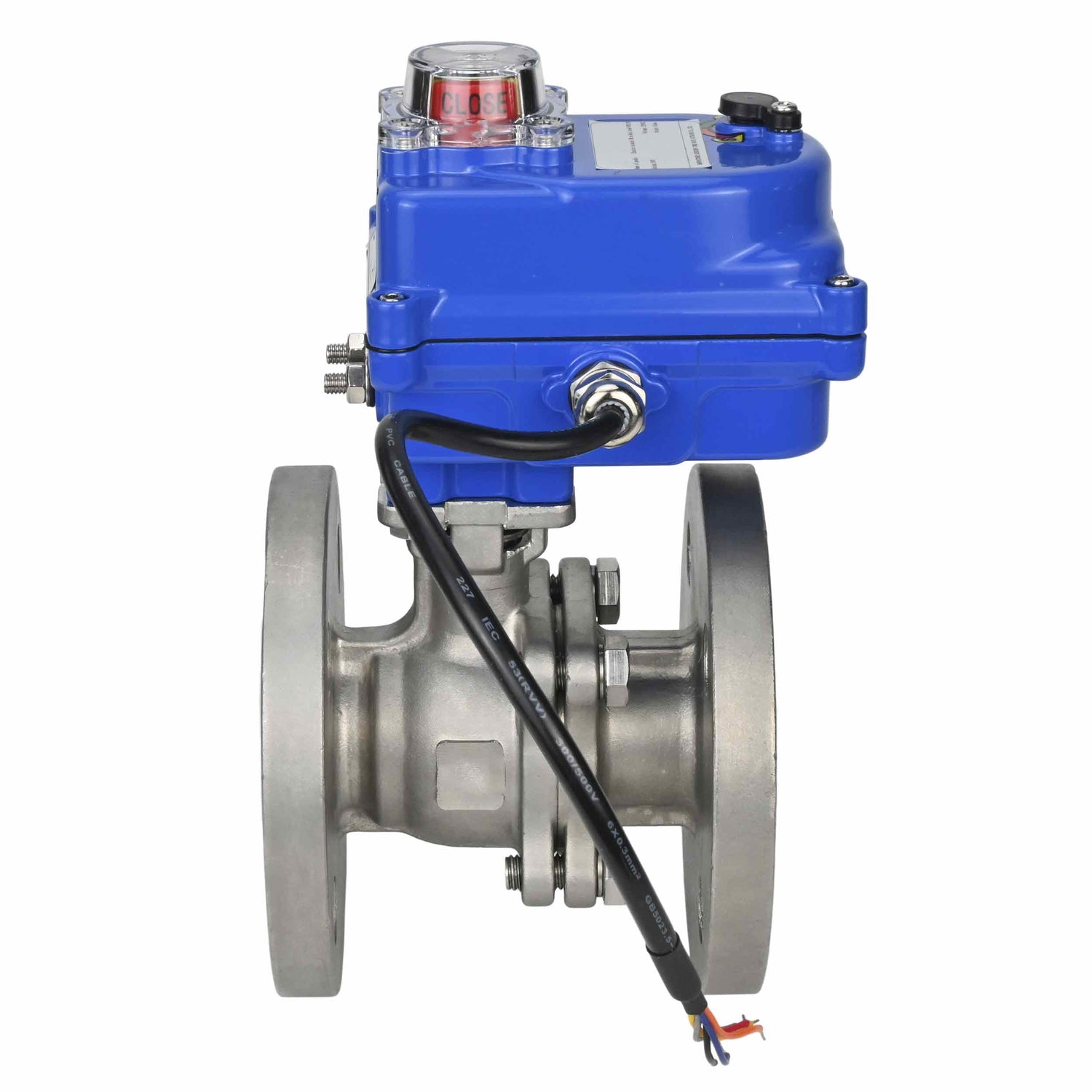

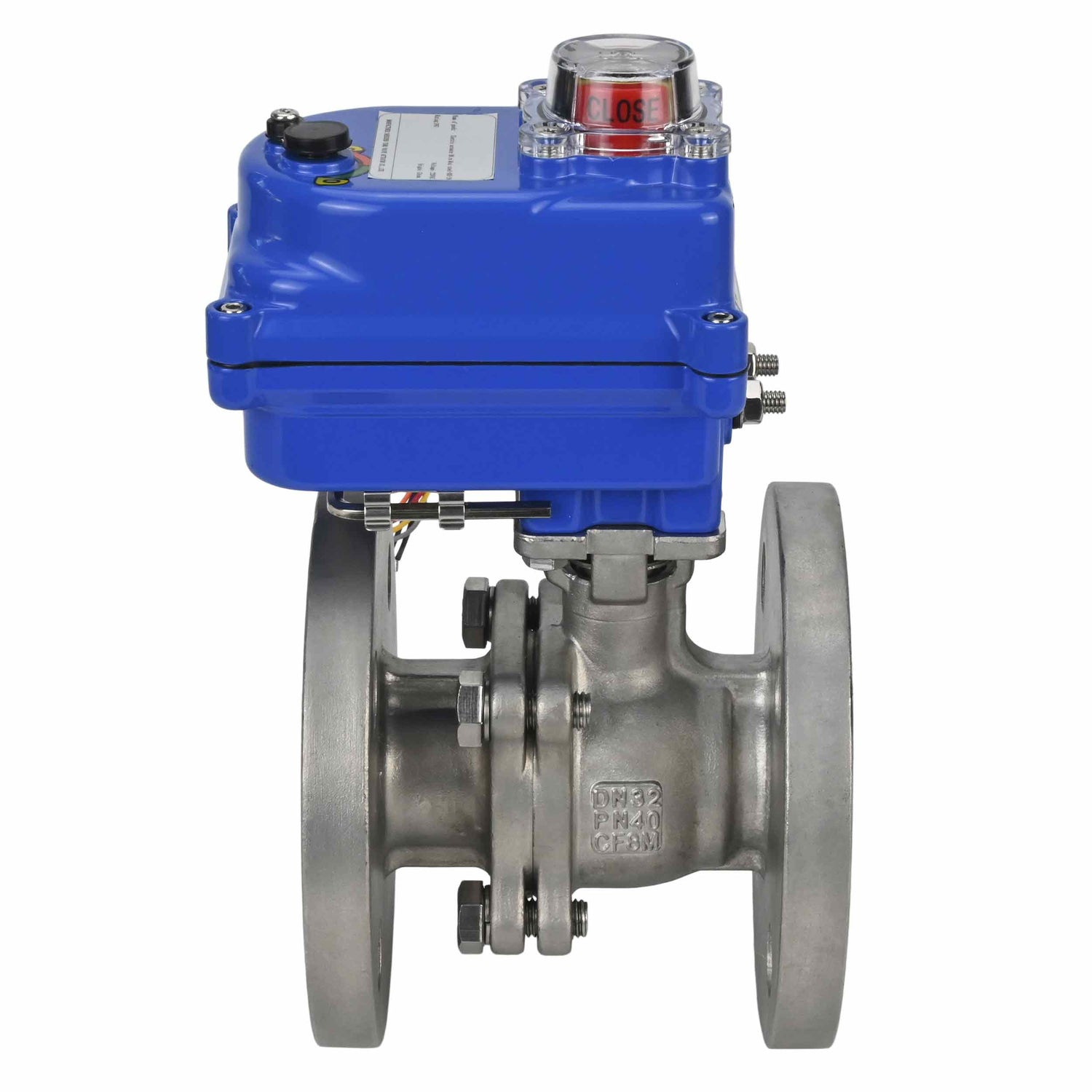

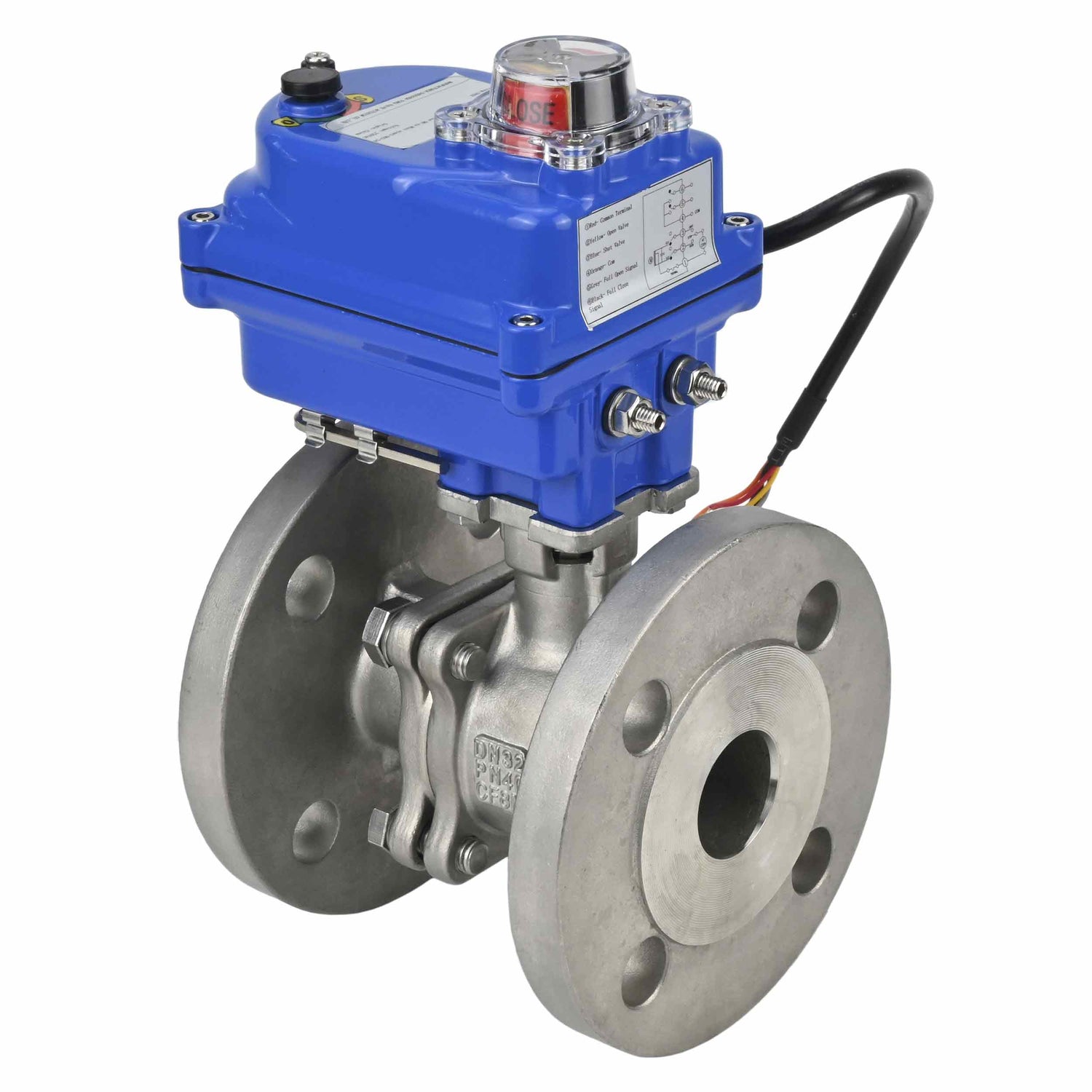

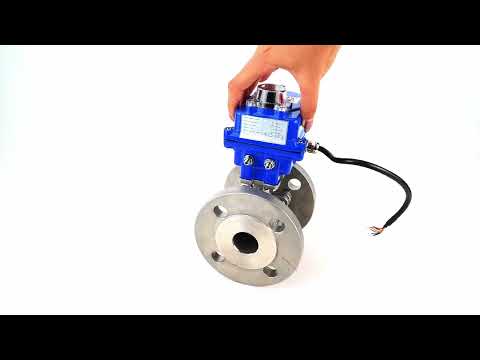

Stainless steel ball valve Elephant BV3232P-FP-F, body material - stainless steel AISI 316, seal - PTFE, full port, flanged, electric actuator Elephant 003 blue 24 V
Stainless steel ball valve Elephant BV3232P-FP-F, body material - stainless steel AISI 316, seal - PTFE, full port, flanged, electric actuator Elephant 003 blue 24 V - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both high temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.
Overall and installation dimensions of the ball valve Elephant BV3232P(2pc)-FP-F-ISO-H QT-N-EM-O1-24VDC-U1 DN15 Ru40
| DN |
15 mm |
| L |
114 mm |
| E |
121 mm |
| H |
160.2 mm |
| D |
89 mm |
| Number and diameter of bolt holes on flange N - ØM |
4 x 16 mm |
Elephant 003 blue 24V - characteristics
|
Electric drive type |
Quarter-turn |
|
Drive torque |
30 Nm |
|
Power supply voltage |
24 V |
|
Limit switches supply voltage |
24 V |
|
Nominal consumption current |
0.1A |
|
Electric motor power |
25 W |
|
Opening/closing cycle time |
25 sec. |
|
Housing protection rating |
IP67 |
|
Availability of manual backup |
Hexagon |
|
Explosion protection of the case |
no |
|
Electric drive length |
121 mm |
|
Electric drive width |
100 mm |
|
Electric drive height |
110.2 mm |
|
Country of origin |
China |
|
ISO drive flange type |
F03, F05 |
|
Rod size |
11x11 mm |
|
Drive weight |
1.2 kg |
Specifications
Specifications
-
Country of origin
-
Port opening
-
Configuration
-
Body material
-
Material ball seal
-
Maximum allowable temperature
-
Connection type
-
Control type
-
Operating environment
-
Applications
-
Voltage
-
Actuator cycle time
-
Valve feedback
-
Explosion-proof
-
Torque
-
Type of electric actuator
-
Control signal
-
Rated current consumption
-
Power consumption
