Elephant  |  SKU: D160-22801

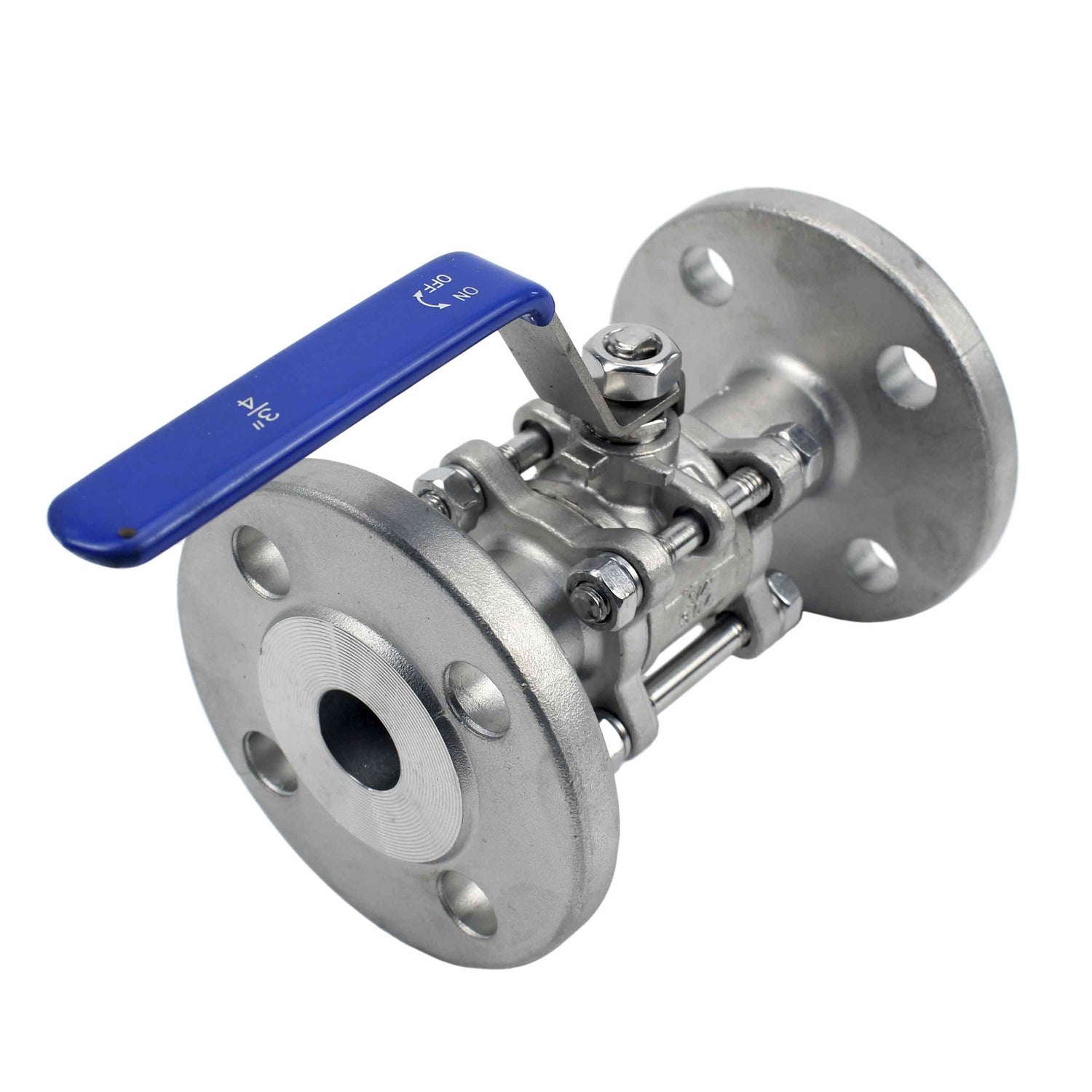

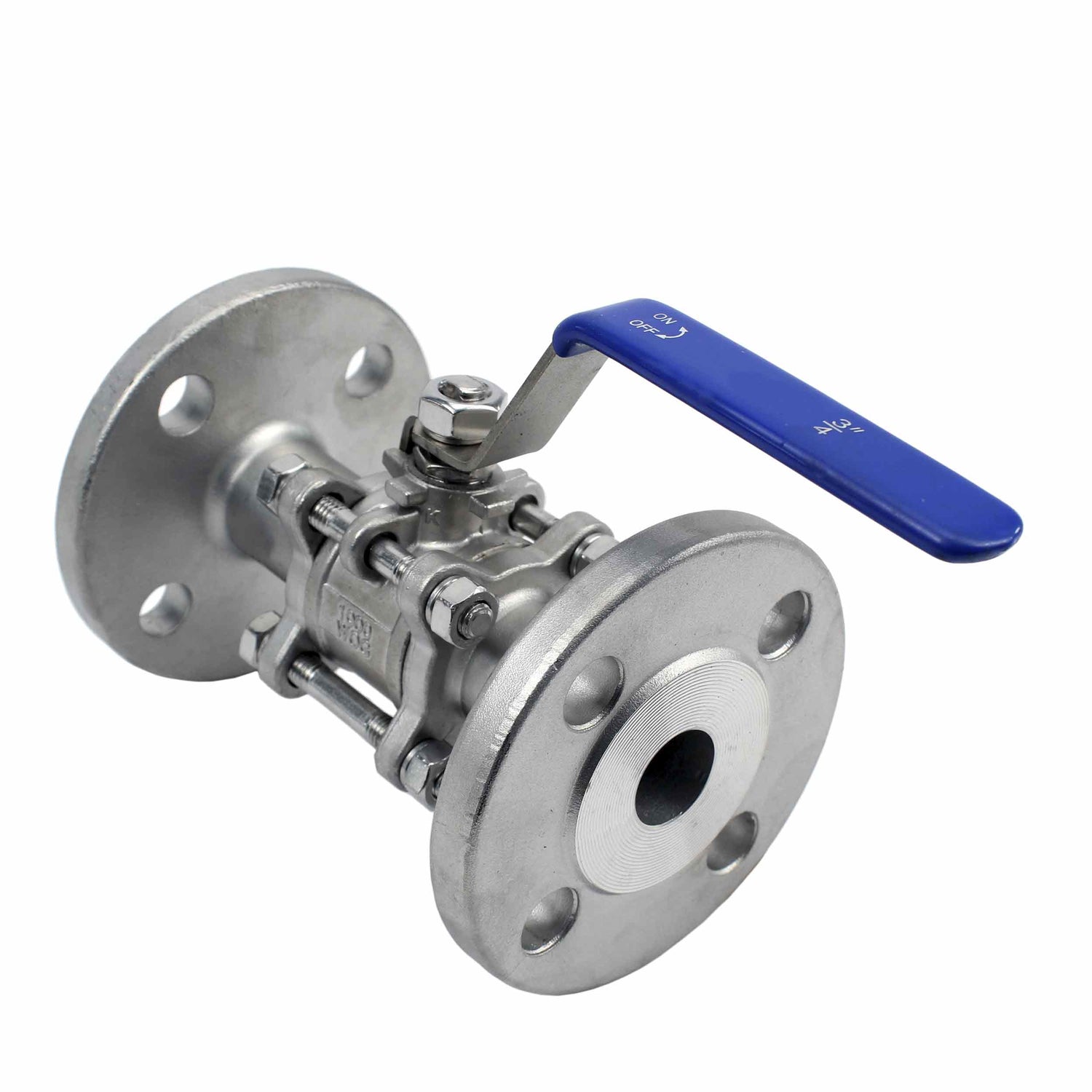

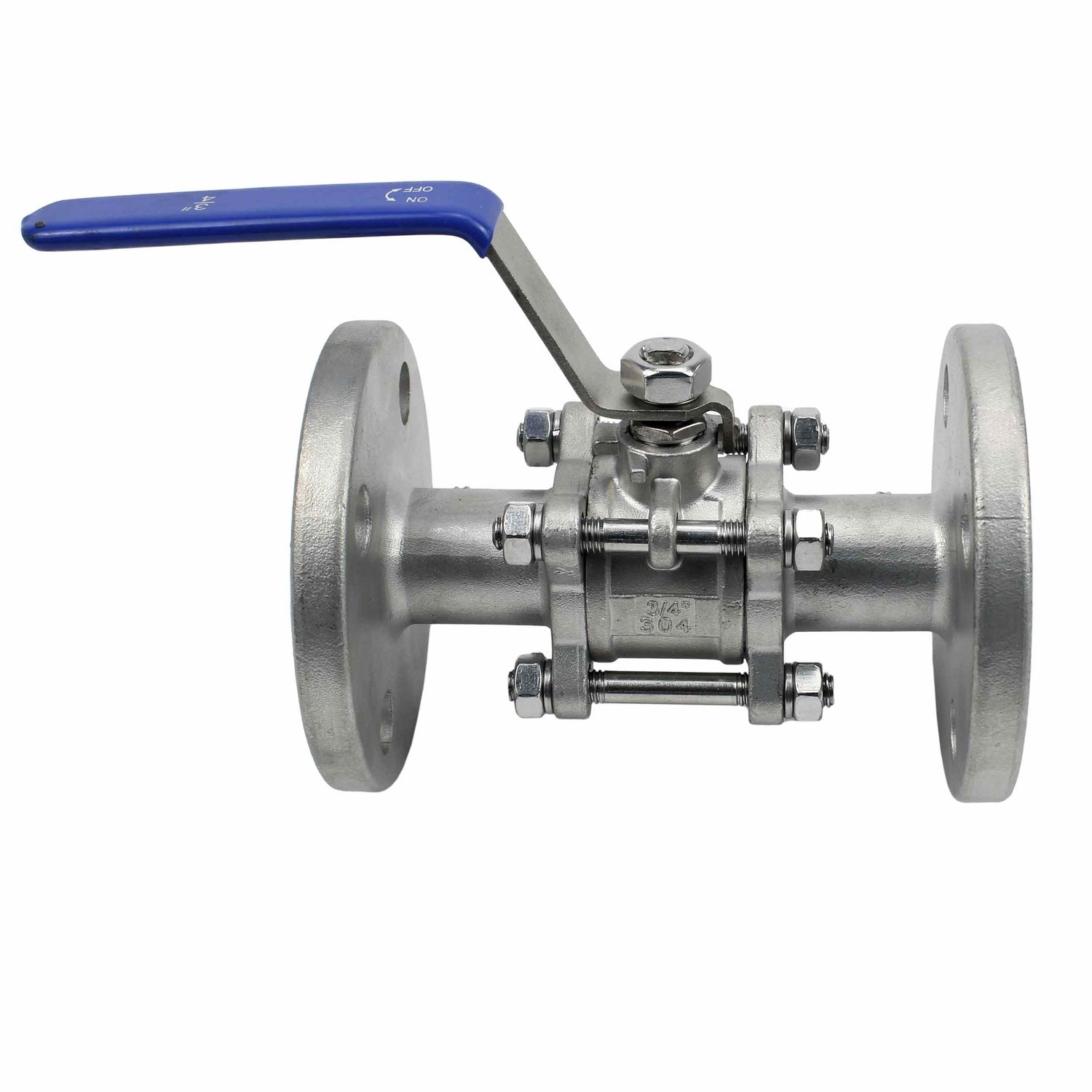

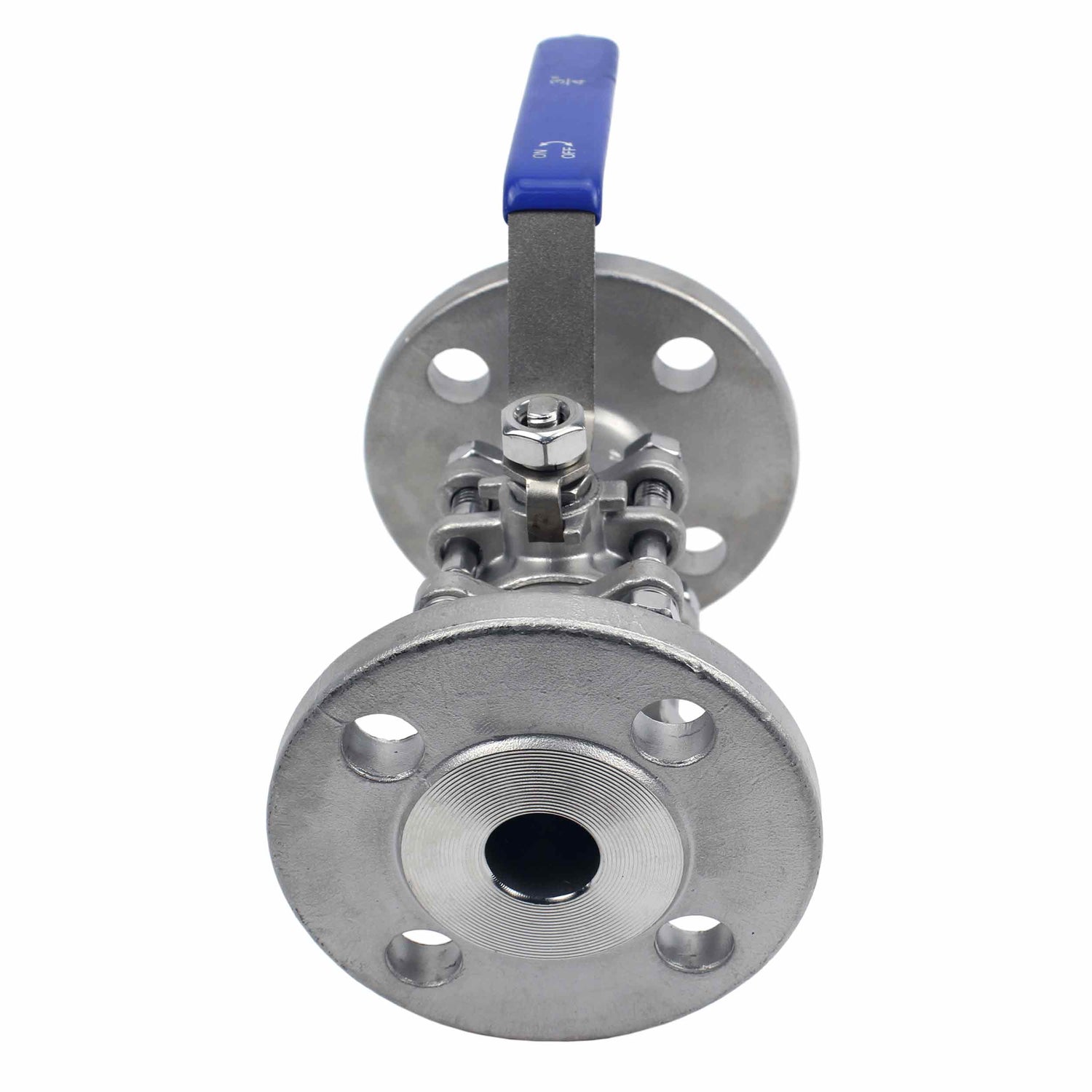

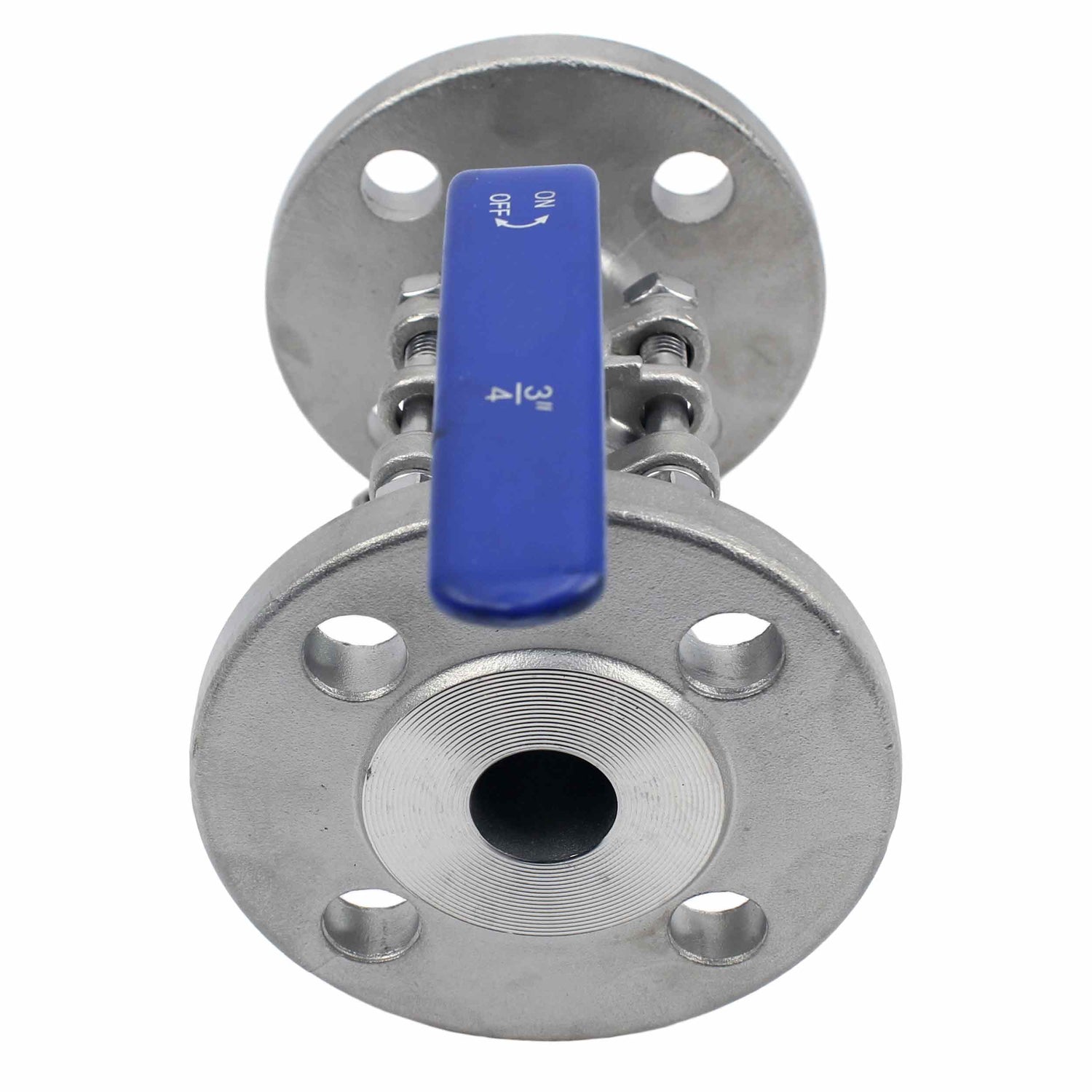

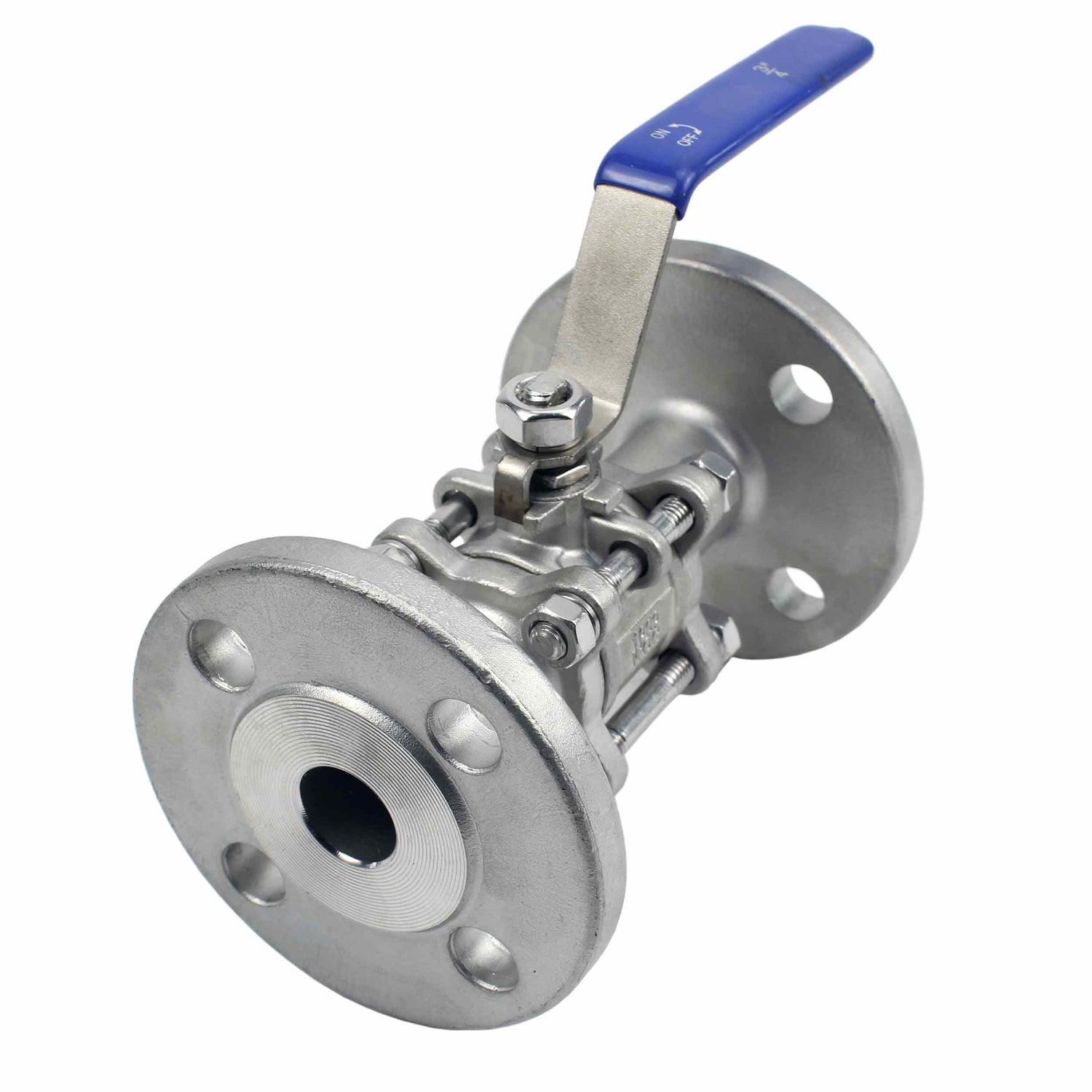

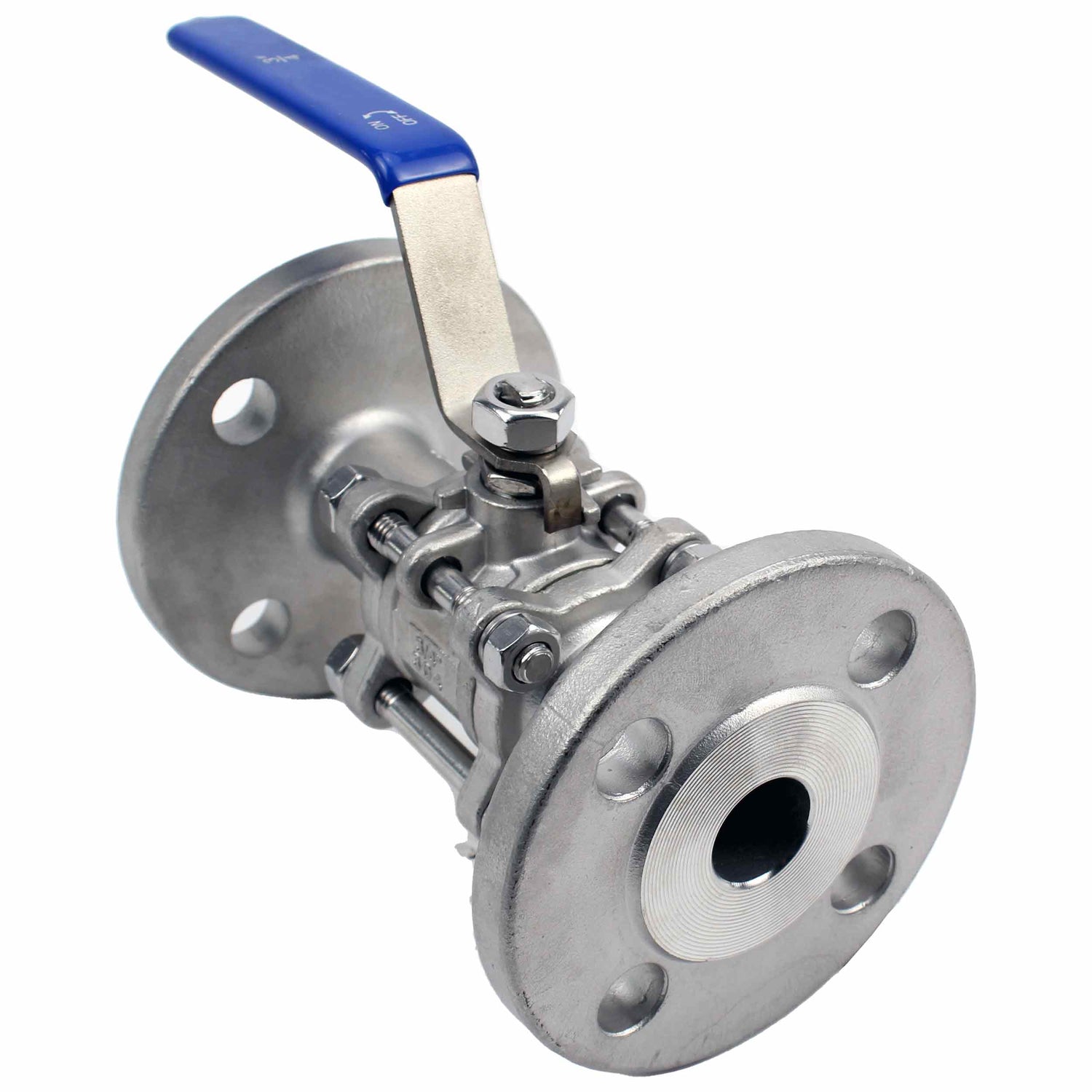

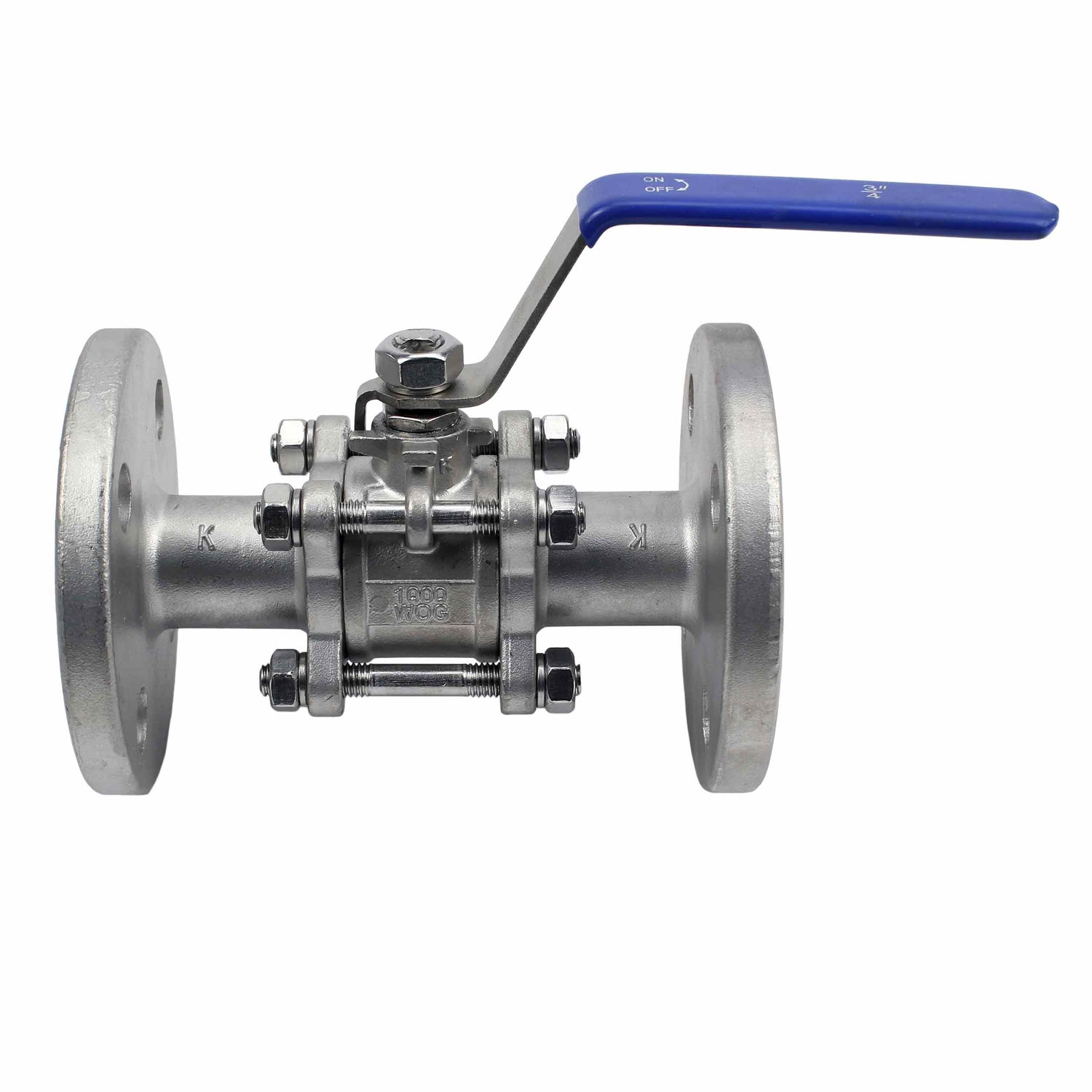

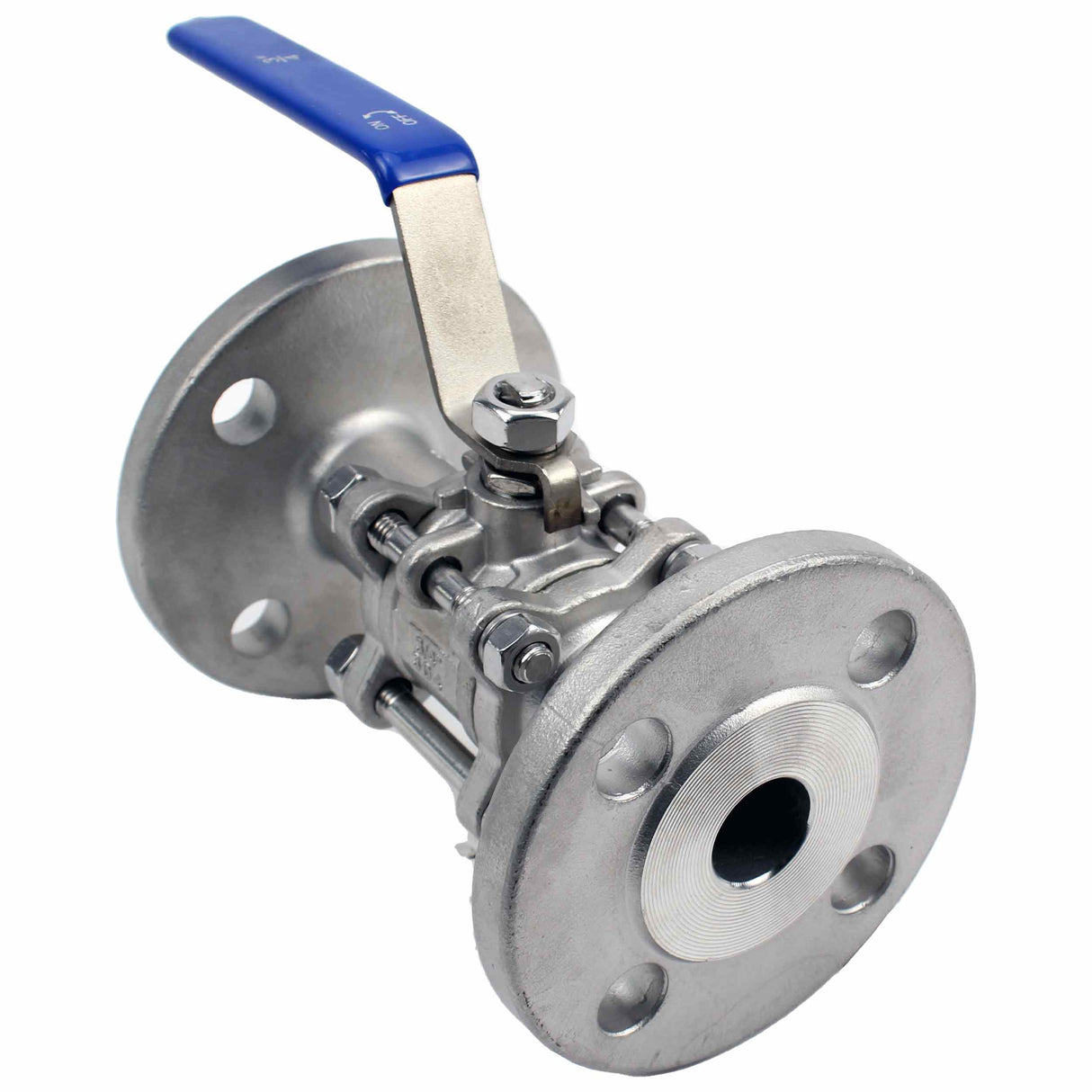

Stainless steel ball valve Elephant BV.F.Fp.T.316.180 40 bar, SS316, full port, flanged connection, with handle

€51,67
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant BV.F.Fp.T.316.180 40 bar, SS316, full port, flanged connection, with handle - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Stainless steel ball valve is used as a shut-off valve in heat and water supply systems, steam, fuel and pneumatic systems with compressed air and neutral gases. Installation of valves of this series is possible in systems transporting liquid and gaseous media (water, oil, oils, steam, air, alcohols, glycol, etc.) that are non-aggressive to the materials of the valve.





Weight and dimensional parameters of ball valves Elephant KSHFPT.304.180

DN Ød ØD ØD1 ØD2 T F L±1.5 W N-M Weight
mm
15 15 95 65 45 16 2 130 129 4-M14 1,985
20 20 105 75 58 18 2 150 132 4-M14 2,71
25 25 115 85 68 18 2 160 160 4-M14 3,43
32 32 140 100 78 18 2 180 160 4-M18 5,095
40 38 150 110 88 18 3 200 185 4-M18 6,105
50 49 165 125 102 20 3 230 185 4-M18 8,07
65 64 185 145 122 22 3 290 220 8-M18 12,445
80 80 200 160 138 24 3 310 220 8-M18 16,665
100 100 235 190 162 24 3 350 298 8-M22 25,675

Sketch of ball valves  Elephant KSHFPT.304.180





Materials of parts of ball valves Elephant KSHFPT.304.180

№ Part Description Material Qty
1 Body stainless steel CF8M/SS 316 or stainless steel CF8/SS 304 1
2 Ball stainless steel AISI 316 or stainless steel AISI 304 1
3 Screw stainless steel SS 201 or stainless steel AISI 304 4~6
4 Nut stainless steel SS 201 or stainless steel AISI 304 6~12
5 Seal PTFE/RPTFE 1
6 Stem stainless steel AISI 316 or stainless steel AISI 304 1
7 Gasket stainless steel SS 201 or stainless steel AISI 304 1
8 Cover stainless steel CF8M/SS 316 or stainless steel CF8/SS 304 2
9 Seat PTFE/RPTFE 2
10 Gasket PTFE/RPTFE 1
11 Nut stainless steel SS 201 or stainless steel AISI 304 1
12 Handle stainless steel SS 201 or stainless steel AISI 304 1
13 Handle Opening PVC 1

Sketch of ball valves  Elephant KSHFPT.304.180

Specifications
  • Country of origin
    China
  • Port opening
    Full Port
  • Configuration
    Two-way
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    180 °C
  • Connection type
    Flanged
  • Control type
    Lever handle
  • Operating environment
    Water, Air, Oil Products
  • Applications
    Water Supply, Heat Supply, Pneumatic Systems

Reviews (0)

Documentation
nullBall valve ELEPHANT BVxxP 3pc -FP-F-ISO-H DN15-100 40 25 16 bar three-piece stainless steel full bore flanged with ISO-flange and handle

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D160-22801DN1540 bar €51,67 0 In stock
    D160-22802DN2040 bar €67,80 Sold out
    D160-22803DN2540 bar €86,50 Sold out
    D160-22804DN3240 bar €151,17 Sold out
    D160-22805DN4040 bar €167,38 Sold out
    D160-22806DN5040 bar €219,48 Sold out
    D160-22807DN6540 bar €350,26 Sold out
    D160-22808DN8040 bar €414,82 Sold out
    D160-22809DN10040 bar €760,55 Sold out
