Elephant  |  SKU: D160-41443

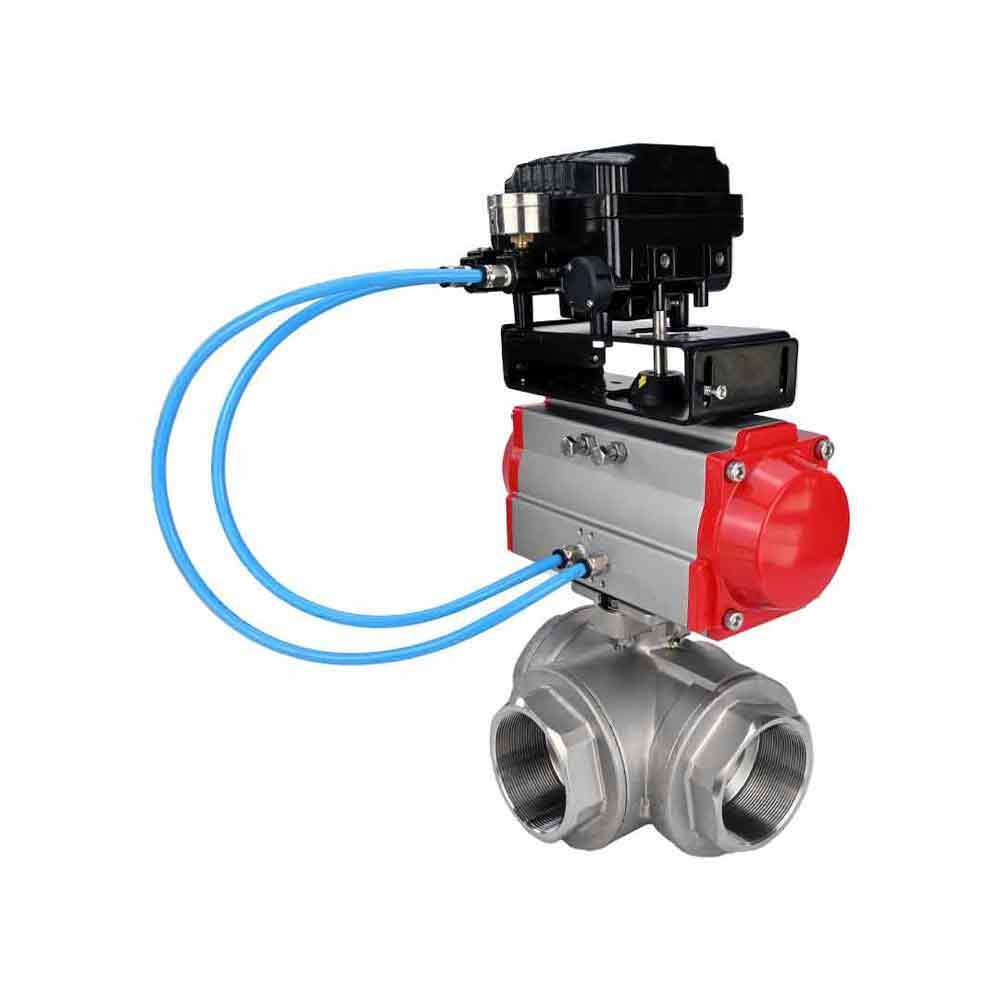

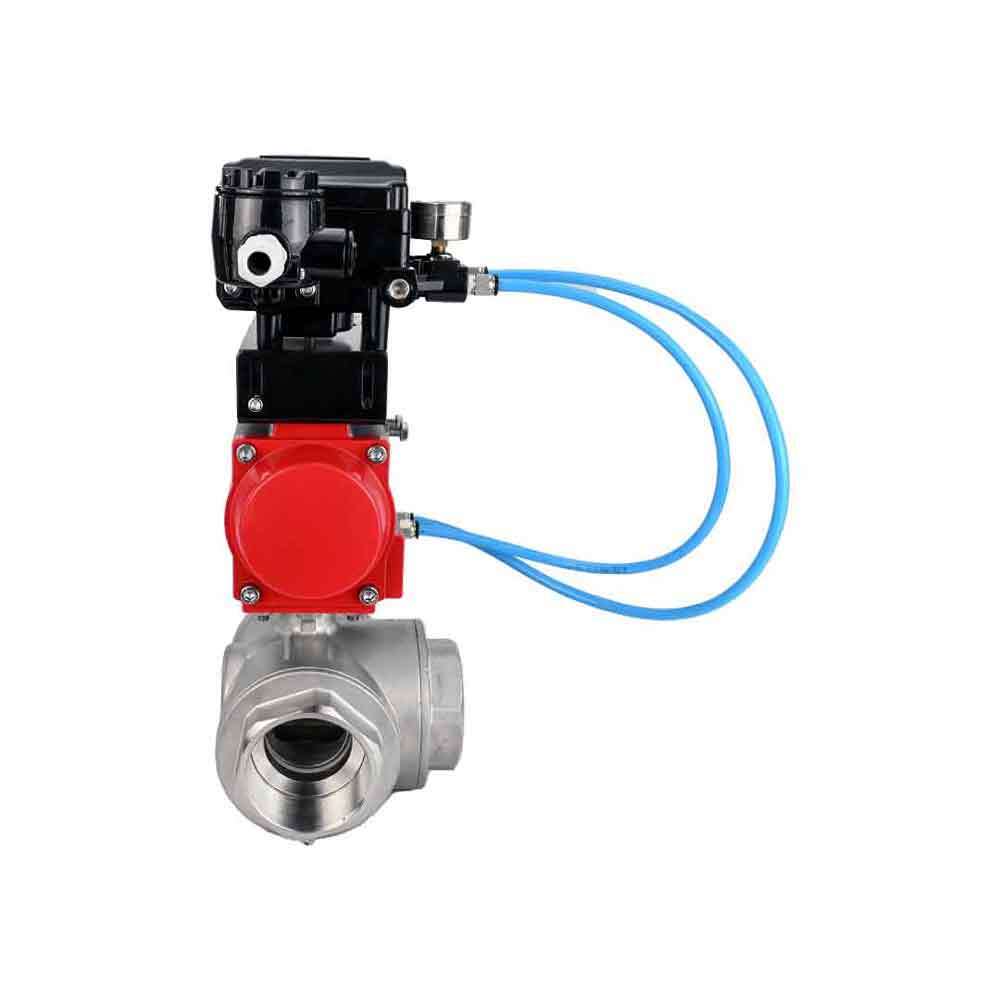

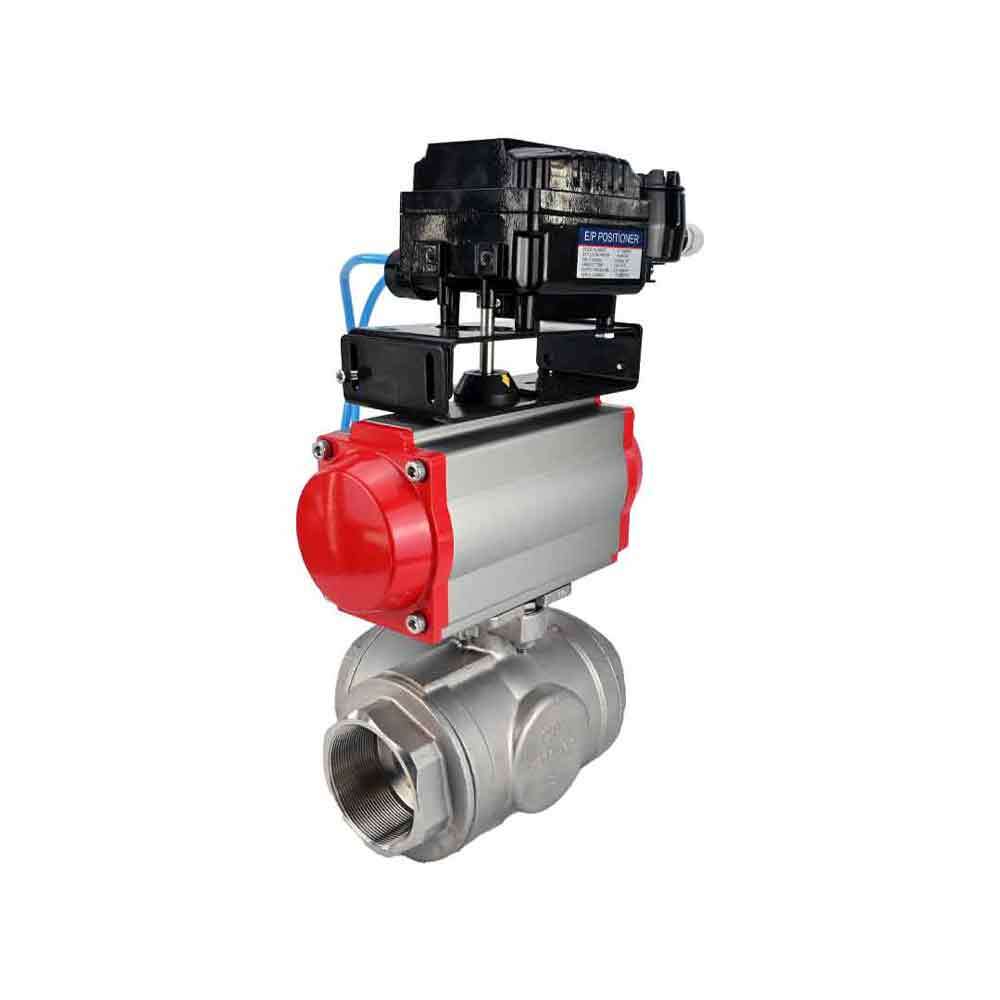

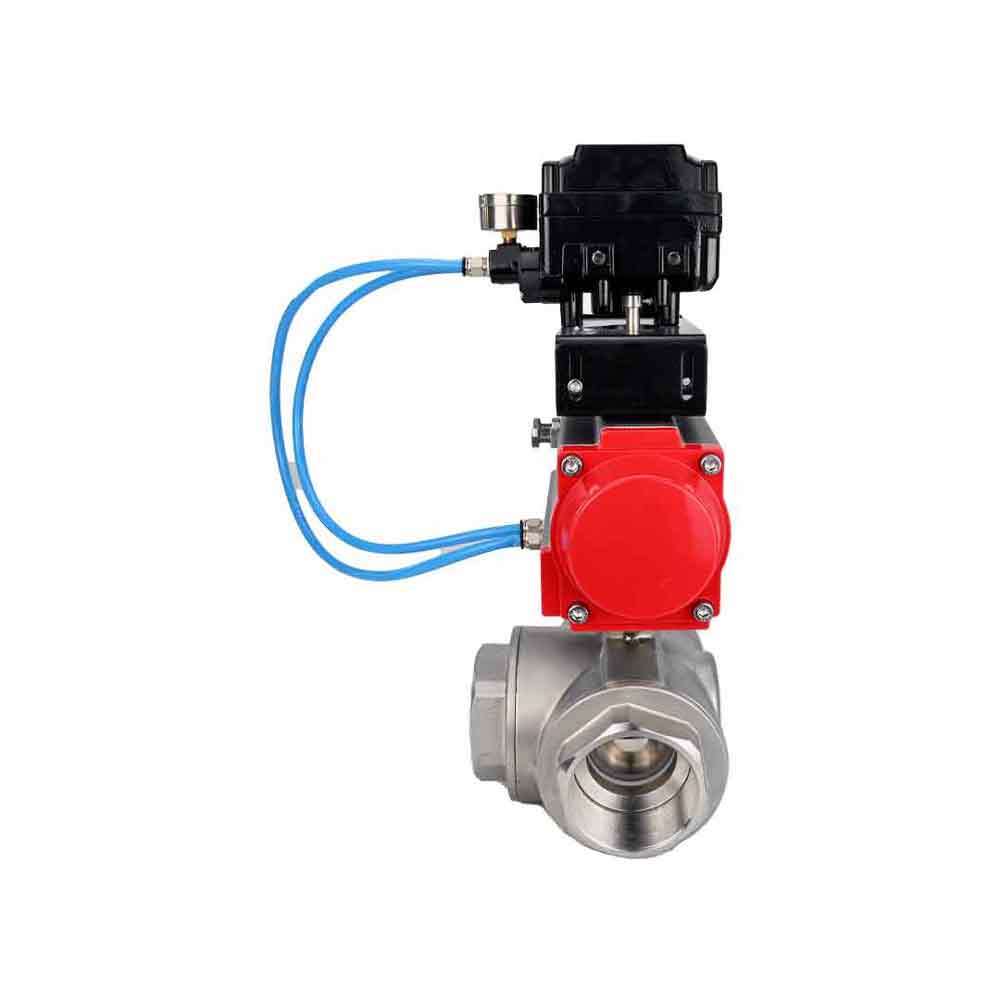

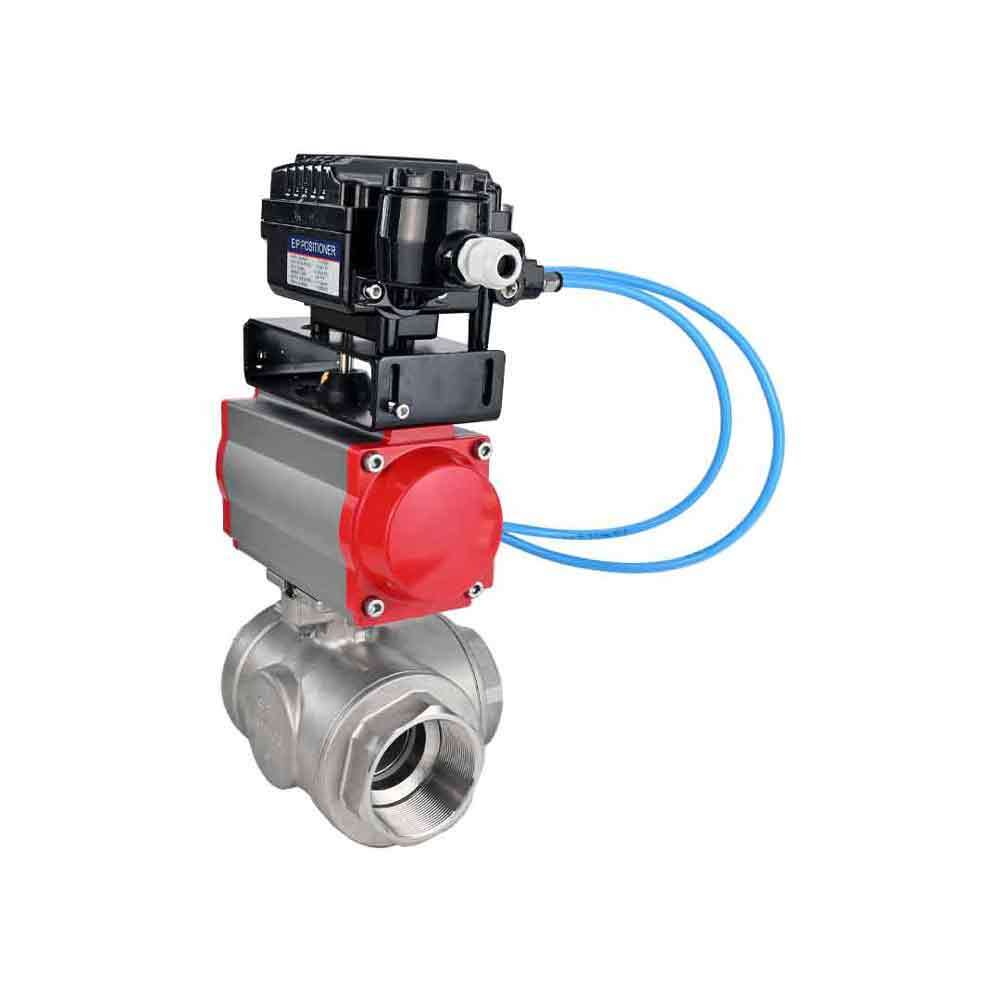

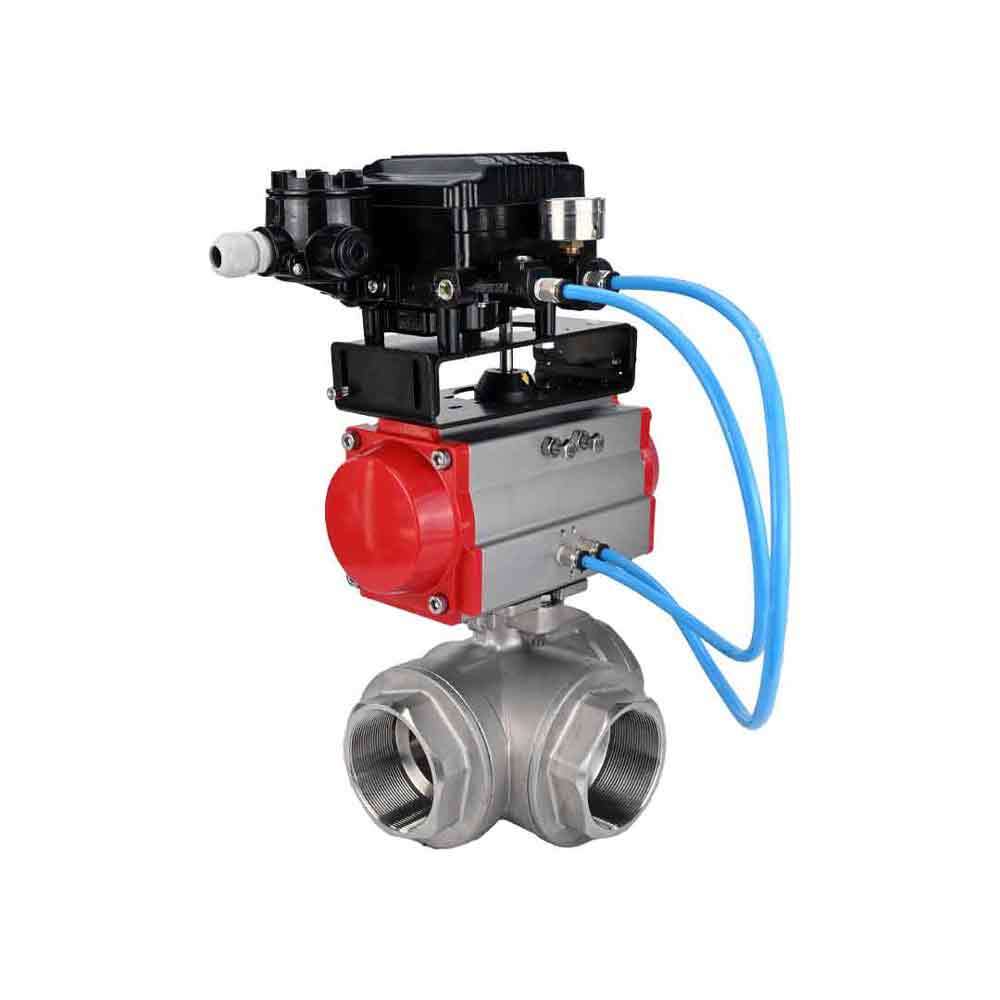

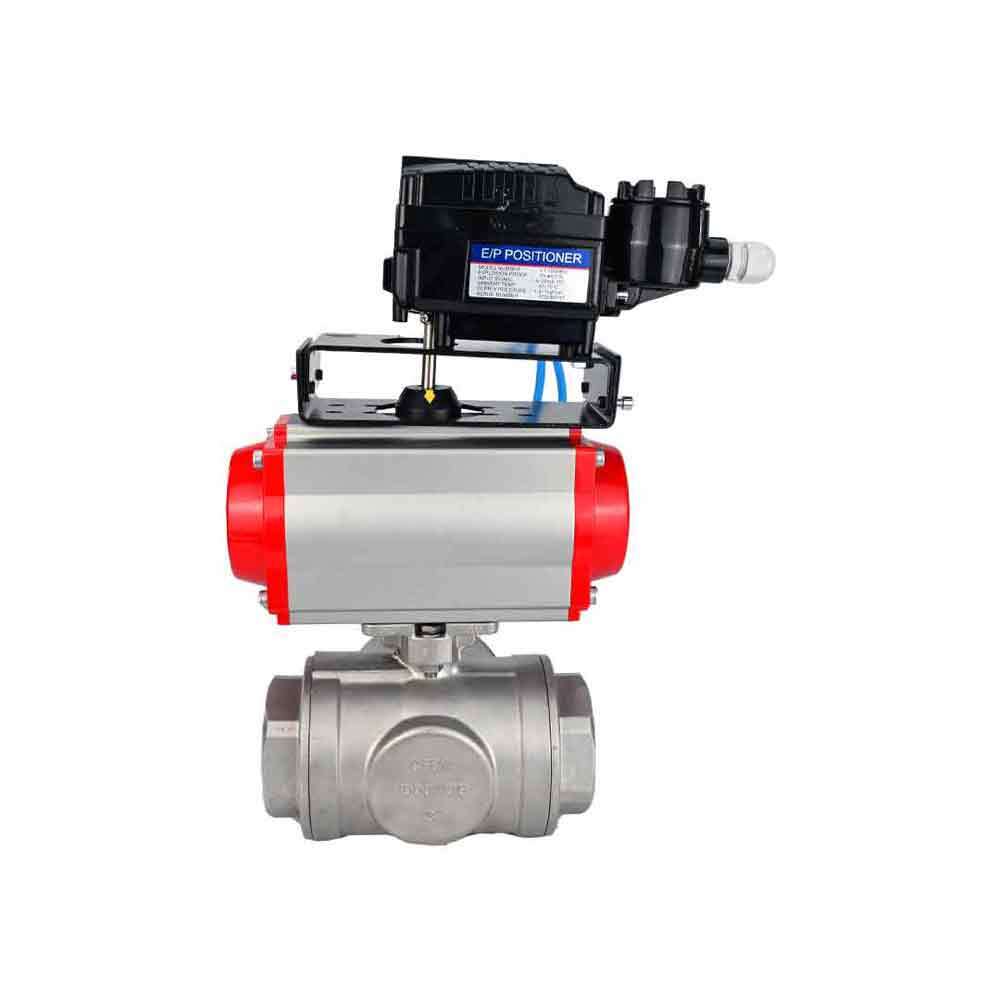

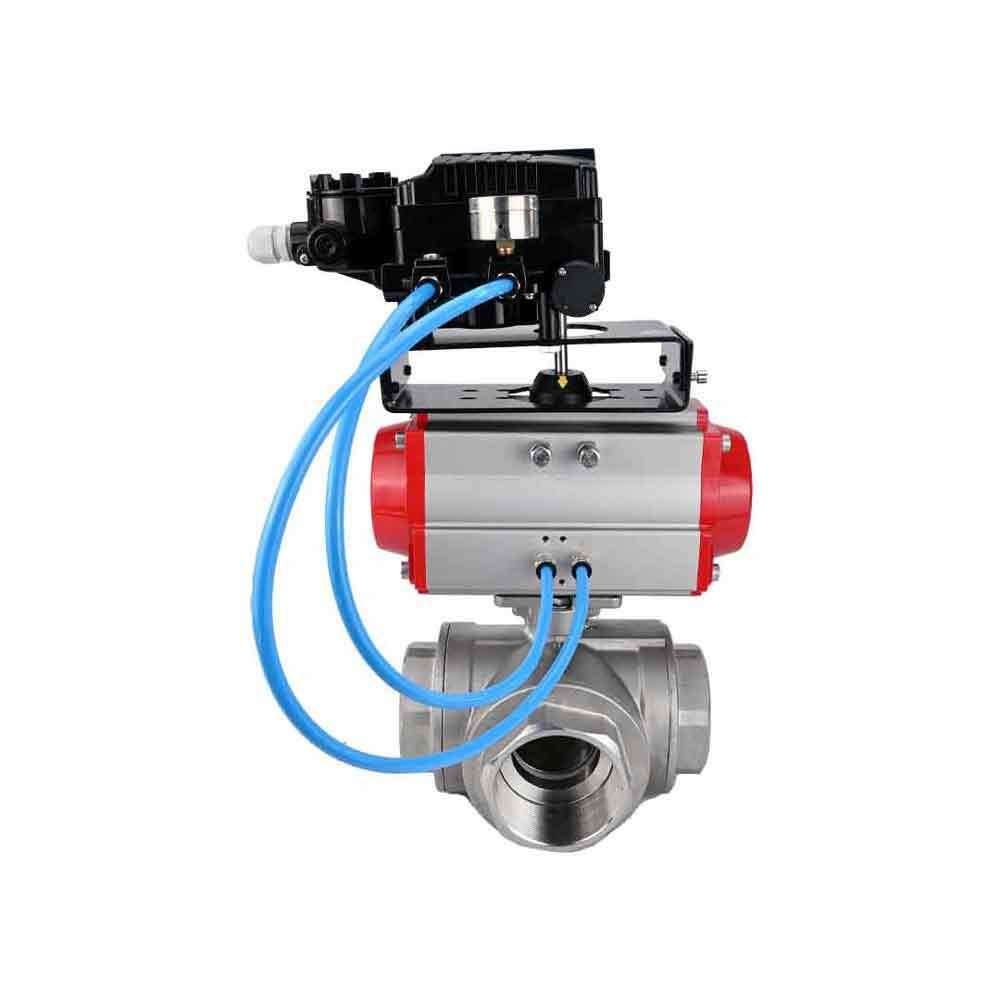

Stainless steel ball valve Elephant 3h-l-rpss316200mm-iso-pnevpr-sa-epp-soz, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated

€567,25
Tax included Shipping calculated at checkout.

Stainless steel ball valve Elephant 3h-l-rpss316200mm-iso-pnevpr-sa-epp-soz, body material - stainless steel AISI 316, ball material - stainless steel AISI 316, seal - PTFE, pneumatic actuator operated - DN10 / 63 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A stainless steel ball valve is a reliable and versatile device for controlling the flow of liquids and gases in various industrial sectors. Made from corrosion-resistant stainless steel, it possesses high strength and can withstand both hghi temperatures and pressures. Ball valves are easy to operate, provide secure sealing, and minimize the risk of leaks, making them an ideal choice for use in the oil and gas industry, water treatment plants, the food industry, and other areas where a reliable and durable valve is needed to regulate the flow of substances.





Technical data of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H PA-SA YT-1000RSN with feedback

Nominal diameter DN, mm 10-100
Working pressure PN, bar 63/40
Temperature of working environment t, ⁰C from -20 to +200
Working environment Water, steam, petroleum products and other liquid or gaseous media that are neutral to the materials of the tap
Connection to the pipeline threaded
Type of flow section standard pass
Ball valve tightness class “A” according to GOST 9544-2015
Control type Pneumatic drive





Sketch of overall and installation dimensions of ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H PA-SA YT-1000RSN with reverse linkage



Ball valves Elephant BV3232P(4pc)-SP-3WL-T-ISO-H PA-DA MON YT-1000RSN with feedback control

D.N. 10 15 20 25 32 40 50 65 80 100

Pneumatic drive model
Elephant DA-052 Elephant DA-052 Elephant DA-052 Elephant DA-052 Elephant DA-052 Elephant DA-065 Elephant DA-065 Elephant DA-083 Elephant DA-083 Elephant DA-083
D, mm 10 12 15 18 25 32 38 50 64 78
L±1.5, mm 71 71 82 98 118 122 150 178 202 231
L1, mm 319.8 319.8 319.8 319.8 319.8 352.8 352.8 352.8 352.8 352.8
Height of the tap stem, mm 13 13 10 13 12 20 19 20 18 25
Crane torque, Nm 2 1.6 3.1 4.5 11.5 19 24 41 58 64
ISO 5211 F03, F04 F03, F04 F03, F04 F04, F05 F04, F05 F05, F07 F05, F07 F07, F10 F07, F10 F07, F10
Weight, kg 0,530 0.475 0,800 1,165 2,255 3,555 4,730 7,000 9,970 14,245



Details of ball valves Elephant 3-way L-type RP.SS316.200.MM



Materials of parts for ball valves Elephant 3-way L-type RP.SS316.200.MM

Item No. Part name Material Quantity
1 Lid SS316 3
2 Saddle rings PPL 4
3 Laying the connection PTFE/RPTFE 3
4 Thrust washer PTFE/RPTFE 1
5 Sealing PTFE 1
6 Stock SS304/SS316 1
7 Seal SS304 1
8 Ball valve S304/S316 1
9 Frame SS316 1





Sketch of pneumatic actuators



Dimensions of pneumatic actuators

Drive model Type A, mm B, mm C, mm M, mm N, mm G, mm d1, mm d2, mm Weight, kg
052 SA 153 71 98 80 30 15 F03 F05 1.3
065 SA 174 82 115 80 30 15 F05 F07 2.1
083 SA 216 101 135 80 30 15 F05 F07 3.7
105 SA 279 119 160 80 30 25 F07 F10 7.1



Actuator shaft torque values as a function of system air pressure

Drive model Number of springs Air pressure in the system, bar Spring outlet
5 6 7 8
90° 90° 90° 90° 90°
Elephant SA-052 10 13.3 10.4 17.6 14.7 21.8 18.9 26.1 23.2 10.8 7.9
Elephant SA-065 12 21.1 13.5 28.6 21 36.1 28.5 43.6 36 23.9 16.3
Elephant SA-083 10 51.5 38.1 67.7 54.4 83.9 70.6 100.2 86.8 43.0 29.7
Elephant SA-083 12 45.5 29.5 61.8 45.8 78.0 62.0 94.2 78.2 51.6 35.6
Elephant SA-105 10 94.6 80.8 129.2 115.5 163.9 150.1 198.5 184.7 92.3 78.6
Elephant SA-105 12 78.9 62.4 113.5 97 148.1 131.6 182.8 166.3 110.8 94.3

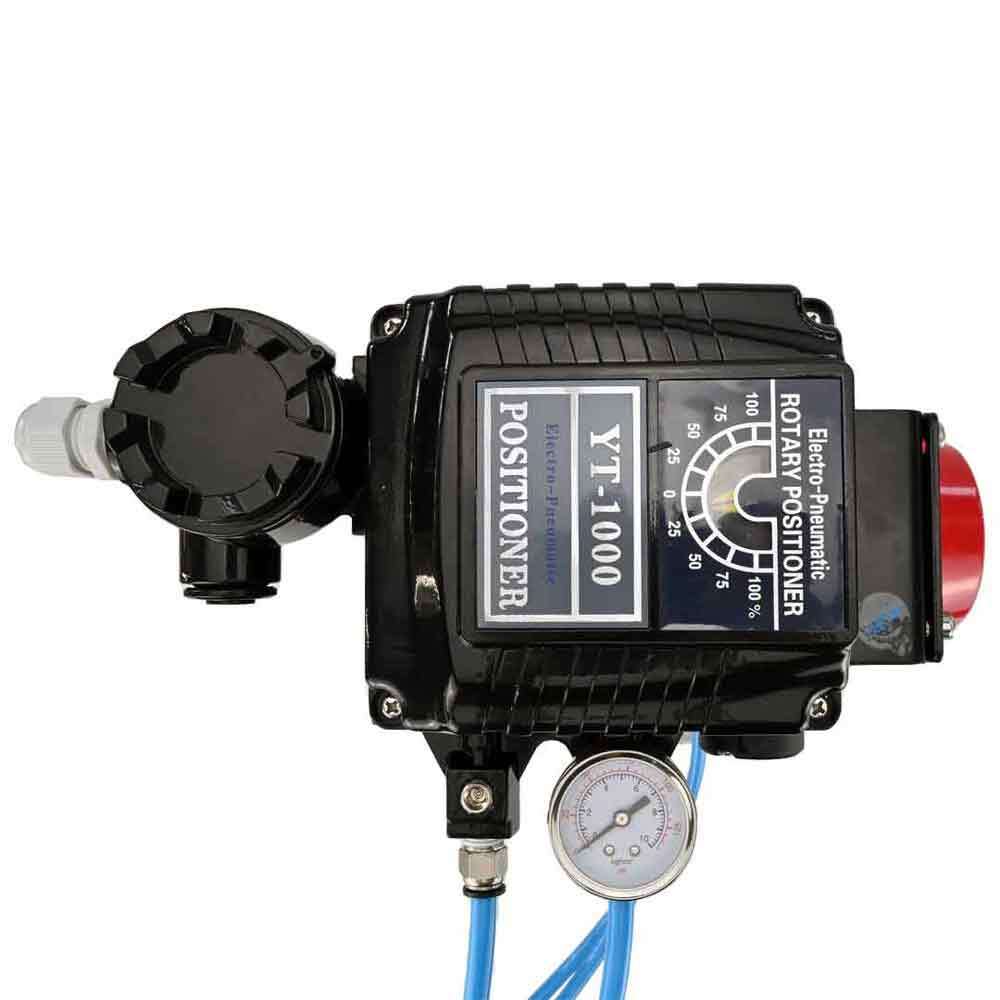

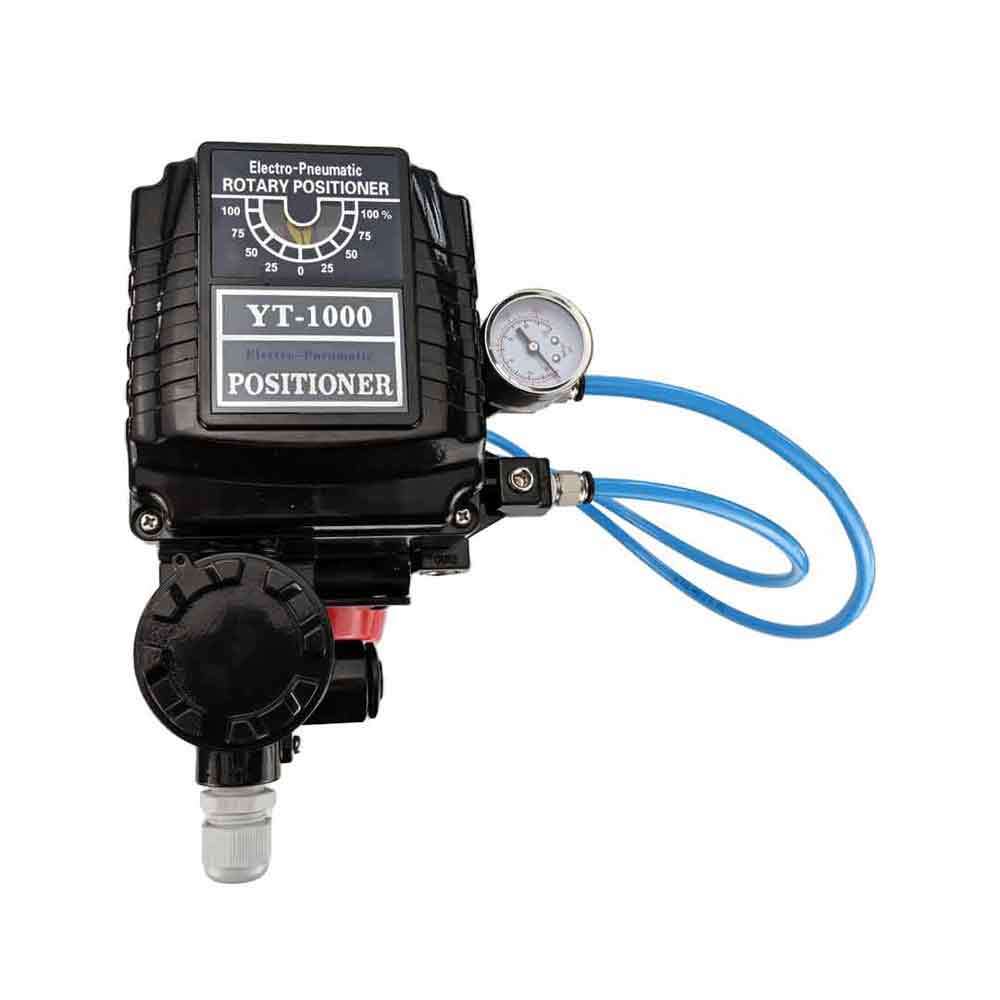

Electropneumatic positioner Elephant



Parameters of Elephant YT-1000RSN/YT-1000RSI electropneumatic rotary positioners

Feedback There is
Application water supply, heat supply, steam condensate systems

Specifications

  • Country of origin
    China
  • Port opening
    Standard Port
  • Configuration
    Three way Type T
  • Body material
    Stainless steel AISI 316
  • Material ball
    Stainless steel AISI 316
  • Material ball seal
    PTFE
  • Maximum allowable temperature
    200 °C
  • Connection type
    Threaded NPT/BSP
  • Control type
    Pneumatic actuator
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply, Heat supply
  • Valve feedback
    Yes
  • Explosion-proof
    No
  • Torque
    79 Nm
  • Electropneumatic positioner
    Yes
