Elephant  |  SKU: D120-01606

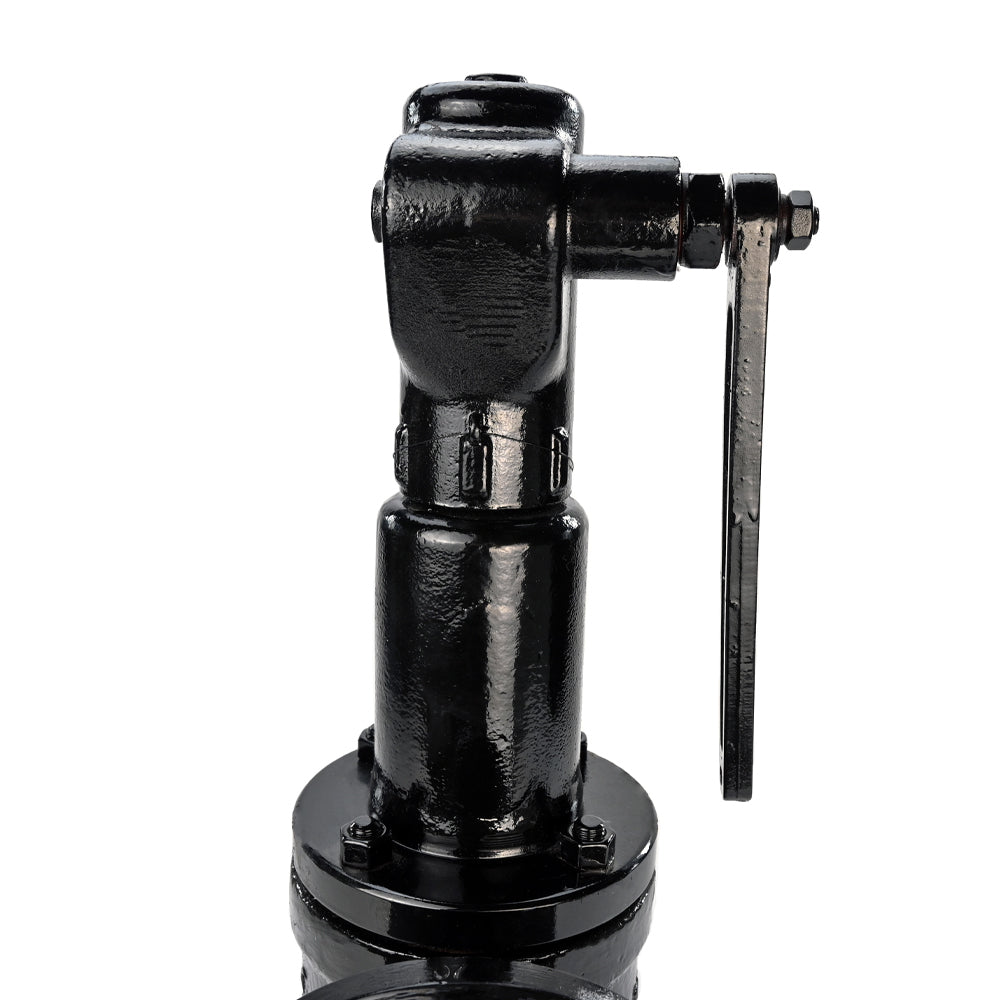

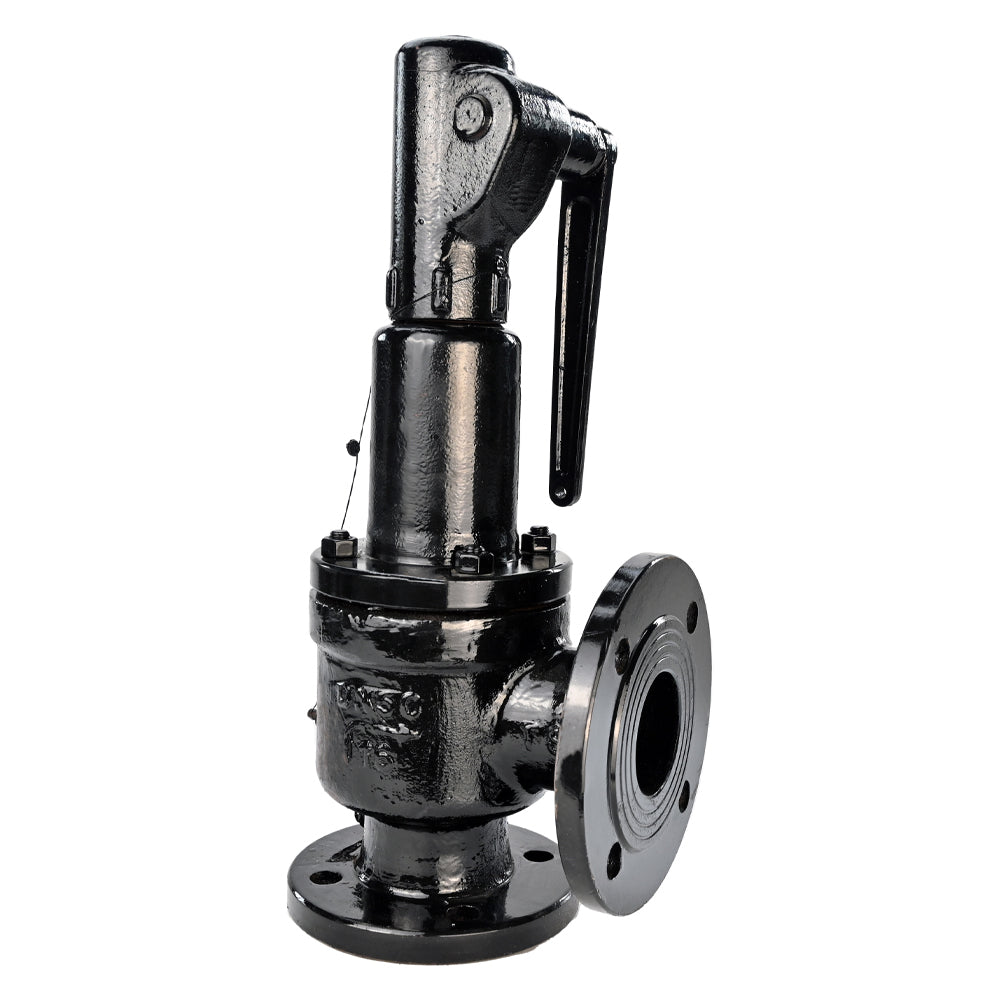

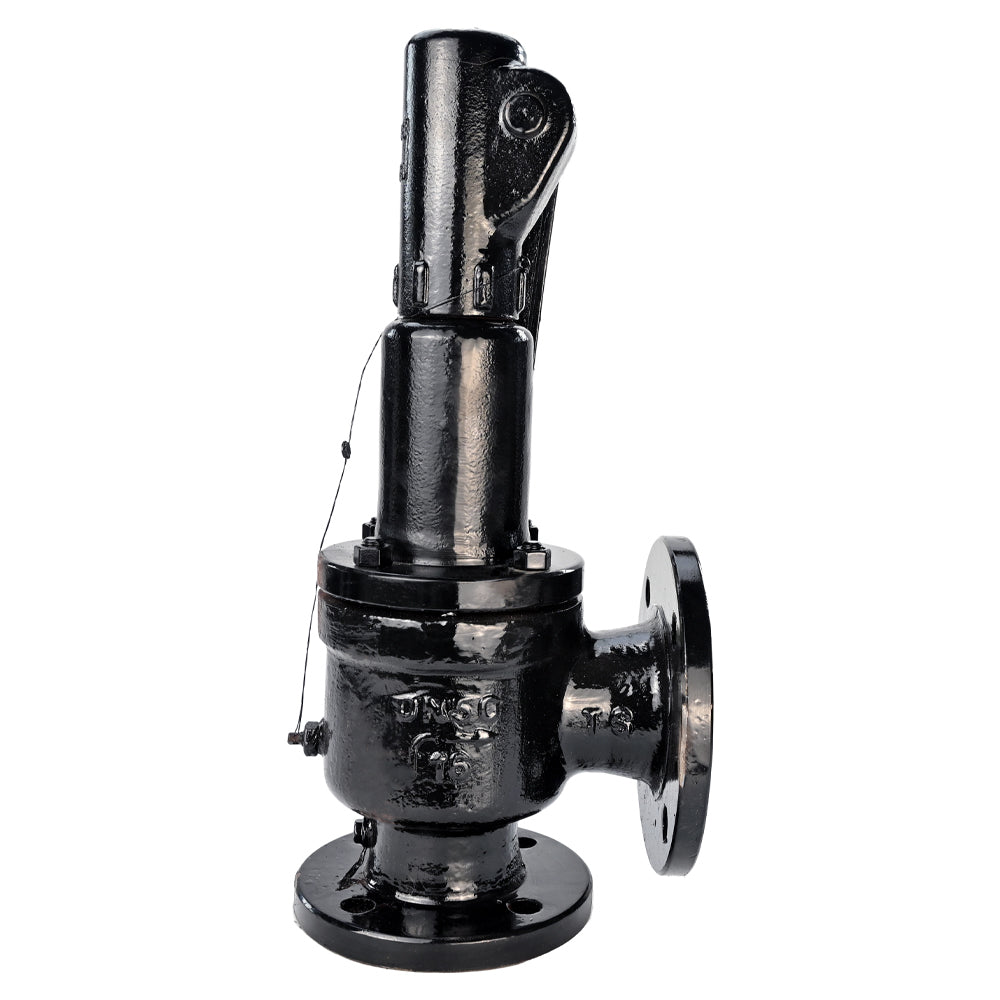

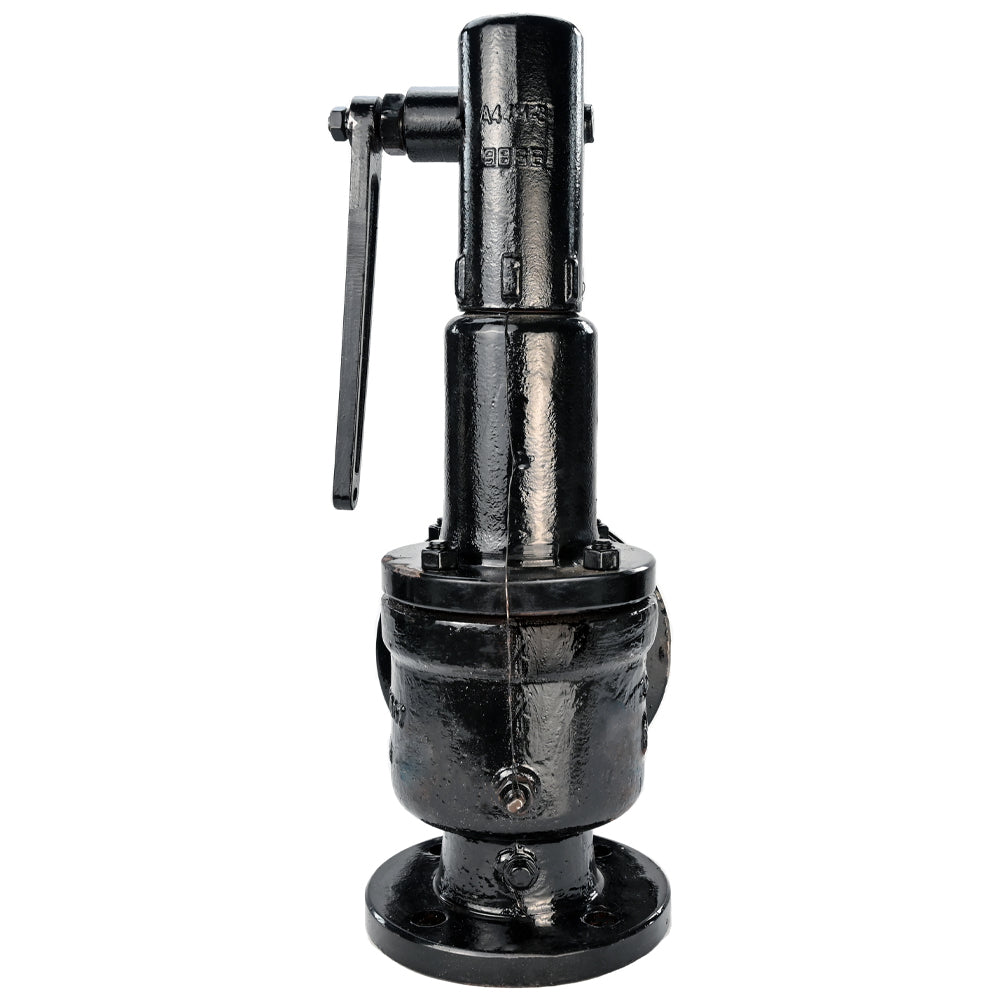

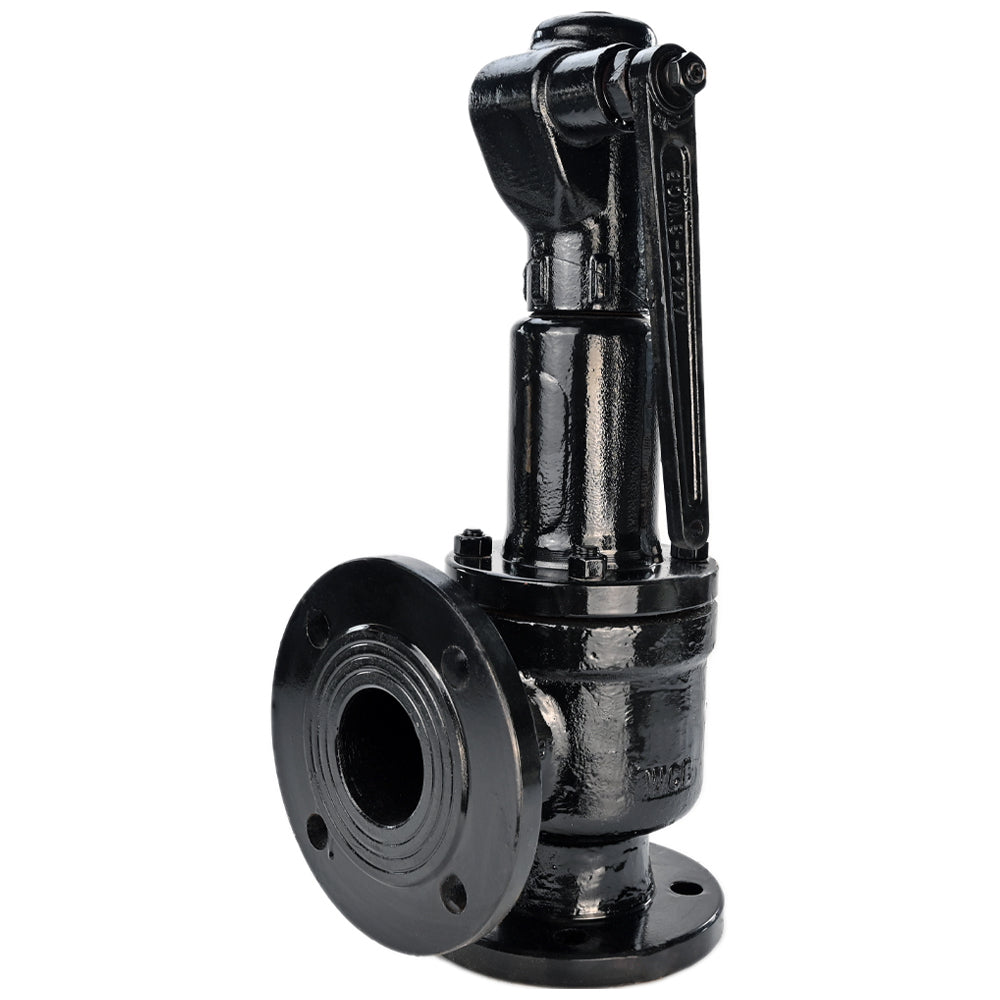

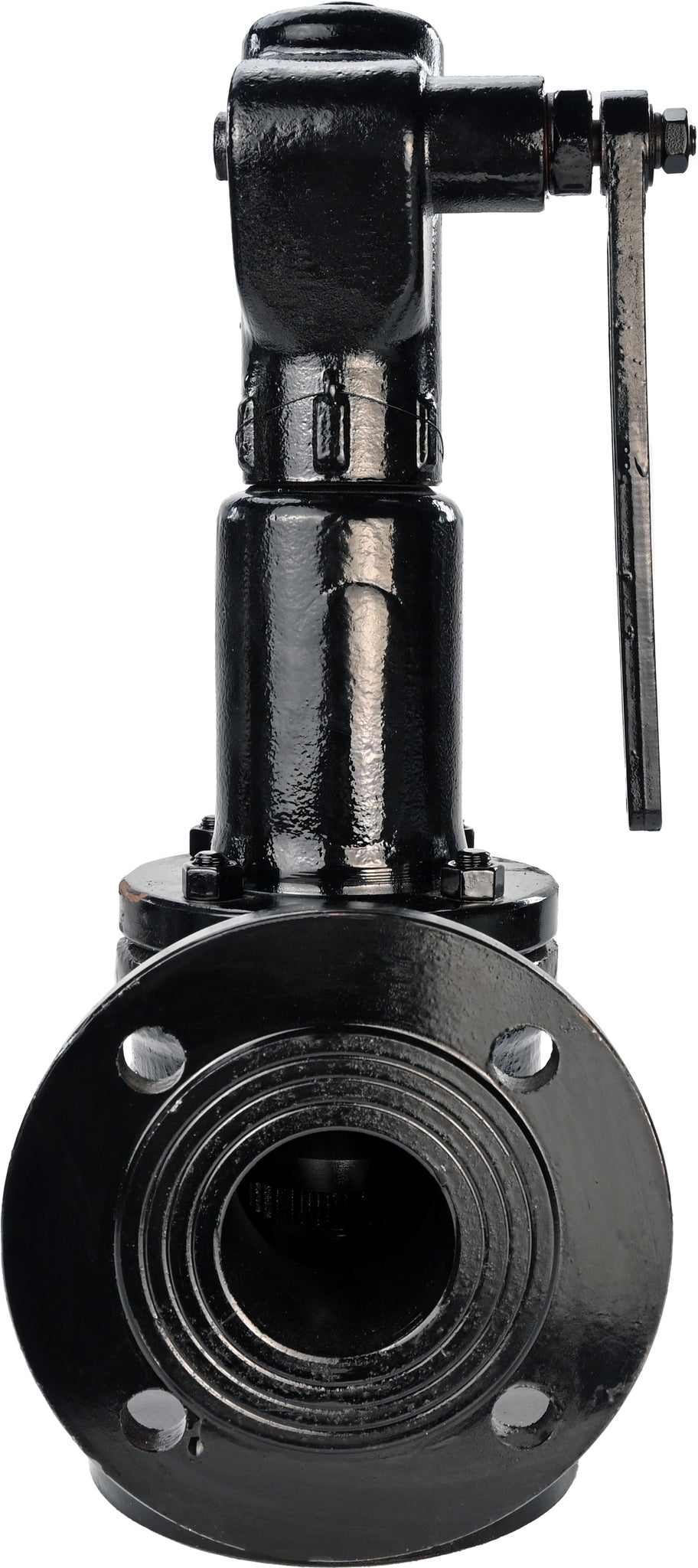

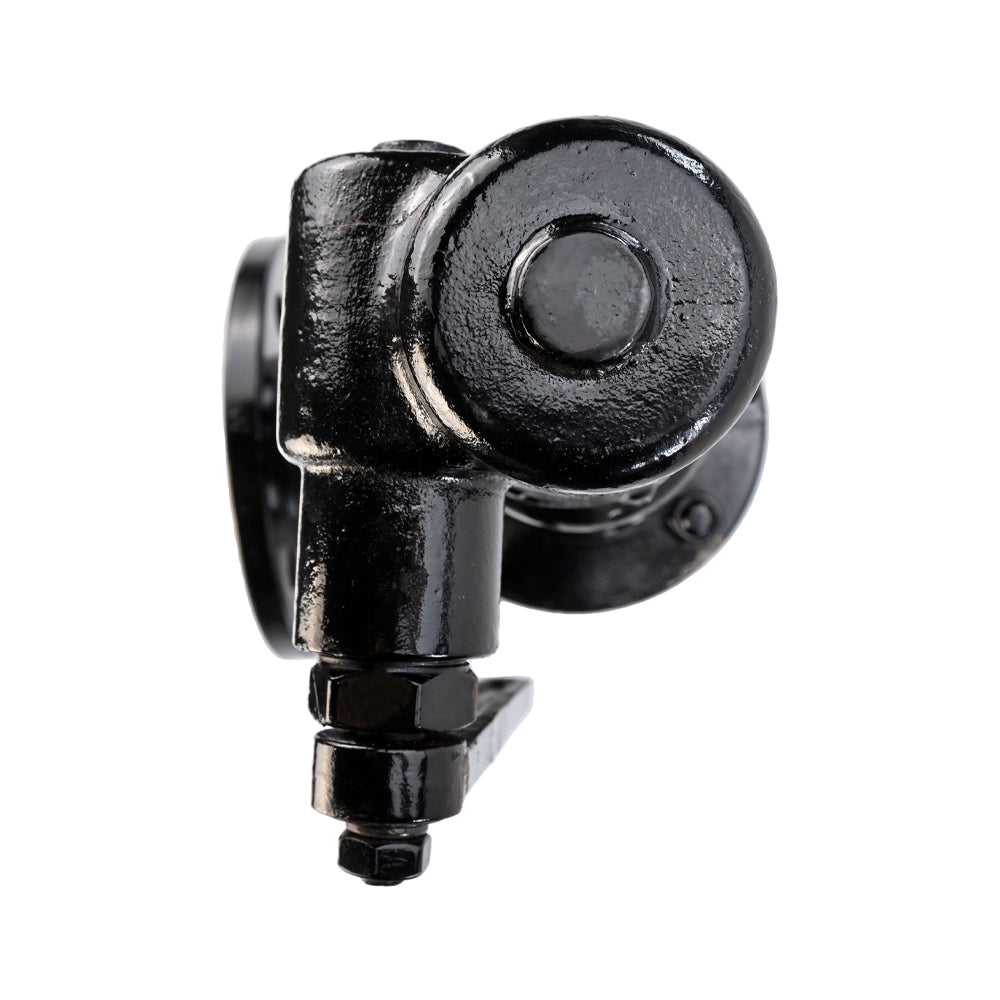

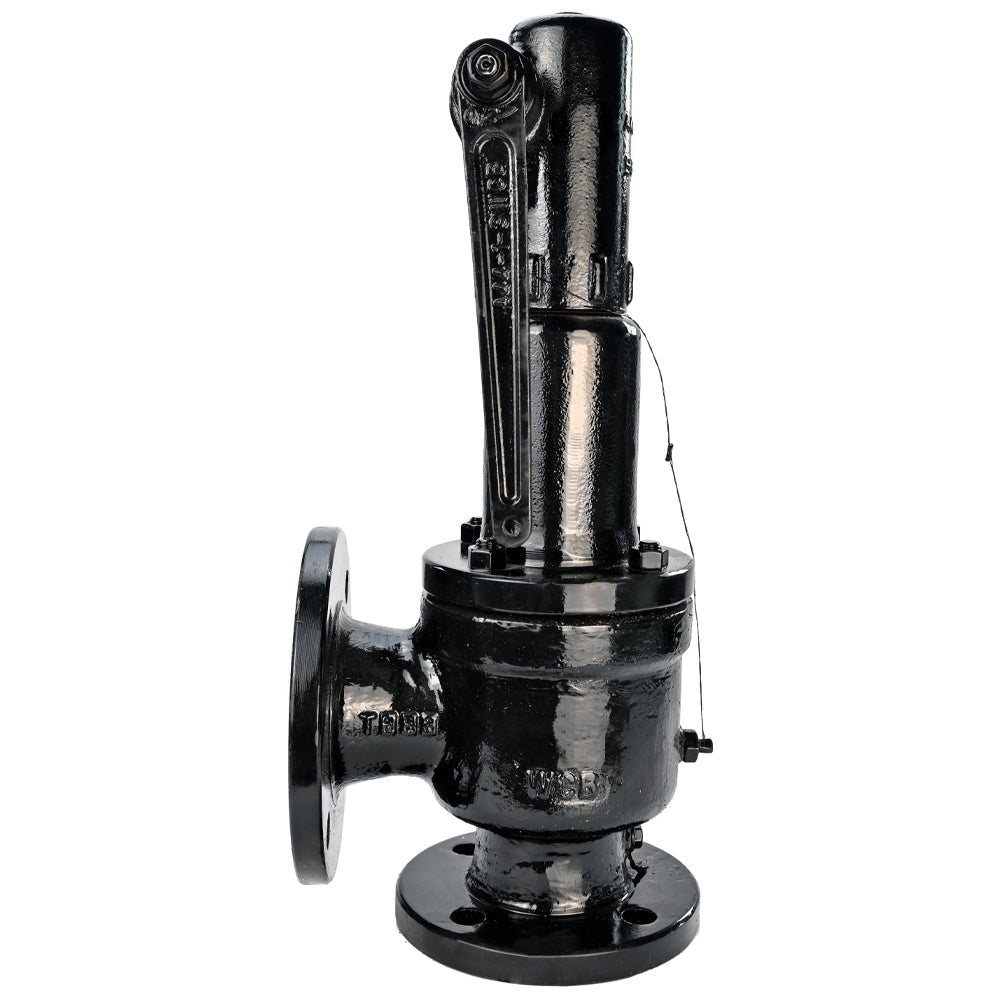

Spring safety valve Elephant SAFE 7011 0.6-1, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL

€244,51
Tax included Shipping calculated at checkout.

Spring safety valve Elephant SAFE 7011 0.6-1, body material - stainless steel AISI A10, closure element material - stainless steel AISI 420, seal - METAL - DN25xDN32 / 0.6 - 1 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A spring safety valve is a device used to automatically reduce excess pressure in systems, preventing it from exceeding established safety limits. It consists of a valve, a spring, and a setting that determines the valve's opening pressure.

When the pressure in the system reaches a certain level, the spring activates, opening the valve and allowing excess pressure to escape, preventing damage to equipment or the system due to overpressure. Spring safety valves are widely used in various industrial and technical systems to ensure their safety and reliability.






Technical data of safety valves Elephant VR2130M-F DN25х32-300х400 PN16

Nominal diameter DN, mm 25-300 (inlet);
32-400 (outlet)
Working pressure PN, bar 16
Setting pressure ranges, bar 0.6÷1; 1÷1.6; 1.6÷2.5; 2.5÷4;
4÷6; 6÷8; 8÷10; 10÷13; 13÷16
Permissible pressure behind the valve, bar 16
Temperature of working environment t, ⁰C ≤350
Working environment water, steam, air, ammonia, natural gas, fuel oil and other liquid petroleum products
Connection to the pipeline flanged
Body material steel 25L
Seal material steel 20X13
Application areas heating and water supply systems; compressed air pipelines; steam plants; industrial pipelines





Sketch of dimensions of safety valves Elephant VR2130M-F DN25х32-300х400 PN16






Weight and dimensions of safety valves Elephant VR2130M-F DN25х32-300х400 PN16

D.N. ØD, mm ØD1, mm ØD2, mm b, mm f, mm n-Ød, mm L, mm
25 115 85 65 16 2 4-14 110
32 140 100 78 18 2 4-18 115
40 150 110 85 18 2 4-18 120
50 165 125 100 18 2 4-18 135
65 185 145 120 20 2 8-18 160
80 200 160 135 20 2 8-18 170
100 220 180 155 20 2 8-18 195
125 250 210 185 22 2 8-18 210
150 285 240 210 24 2 8-23 255
200 340 295 265 26 2 12-23 300
250 405 355 320 30 2 12-26 350
300 460 410 375 30 2 12-26 370





DN ' ØD1', mm ØD2', mm ØD3', mm b ', mm f ', mm n-Ød ', mm L1, mm
32 140 100 78 18 2 4-18 95
40 150 110 85 18 2 4-18 100
50 165 125 100 18 2 4-18 110
65 185 145 120 20 2 4-18 120
80 200 160 135 20 2 8-18 140
100 220 180 155 20 2 8-18 135
125 250 210 185 22 2 8-18 175
150 285 240 210 24 2 8-23 190
175 310 270 240 26 2 8-23 230
250 405 355 320 30 2 12-26 260
300 460 410 375 30 2 12-26 320
400 580 525 485 36 2 16-30 350





DN - DN' Area of ​​the flow channel, mm2 Weight, kg
25-32 177 12
32-40 314 13
40-50 491 14
50-65 804 18
65-80 1256 26
80-100 1963 33
100-125 3317 45
125-150 5024 53
150-175 7850 78
200-250 12266 130
250-300 17663 360
300-400 24041 630





Sketch of detailing of safety valves Elephant VR2130M-F DN25х32-300х400 PN16


Materials of parts of safety valves Elephant VR2130M-F DN25х32-300х400 PN16

Item No. Part name Material
1 Inlet manifold steel 20X13
2 Frame steel 25L
3 Disk steel 20X13
4 Lid steel 25L
5 Spring steel 50KhFA
6 Stock steel 20X13

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI A10
  • Maximum allowable temperature
    350 °C
  • Connection type
    Flanged
  • Operating environment
    Water, Air, Steam, Petroleum Products, Fuel Oil
  • Applications
    Heating Systems, Water Supply, Oil And Gas Industry
  • Nominal pressure
    16 bar
  • Type of seal
    Metal
  • Locking material
    Stainless steel AISI 420/1.4031

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressure rangePrice AvailabilityQuantity Add to cart
    D120-01606DN25xDN320.6 - 1 bar €244,51 0 in stock
    D120-01607DN32xDN400.6 - 1 bar €286,10 0 in stock
    D120-01608DN40xDN500.6 - 1 bar €330,95 0 in stock
    D120-01609DN50xDN650.6 - 1 bar €300,15 0 in stock
    D120-01610DN65xDN800.6 - 1 bar €522,73 0 in stock
    D120-01611DN80xDN1000.6 - 1 bar €446,35 0 in stock
    D120-01612DN100xDN1250.6 - 1 bar €694,45 0 in stock
    D120-01613DN125xDN1500.6 - 1 bar €1.447,68 0 in stock
    D120-01615DN200xDN2500.6 - 1 bar €2.248,58 0 in stock
    D120-01616DN250xDN3000.6 - 1 bar €4.567,68 0 in stock
    D120-01617DN300xDN4000.6 - 1 bar €7.997,97 0 in stock
    D120-01614DN150xDN1750.6 - 1 bar €1.349,01 0 in stock
