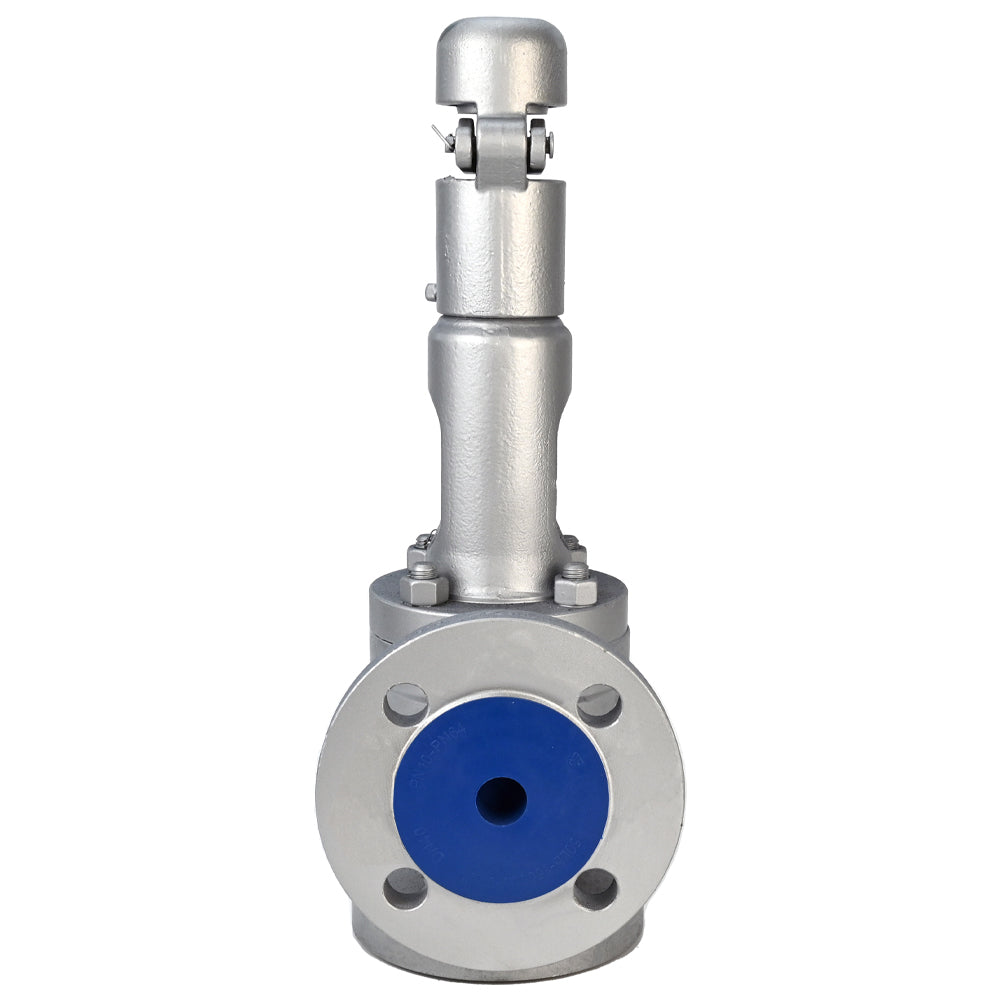

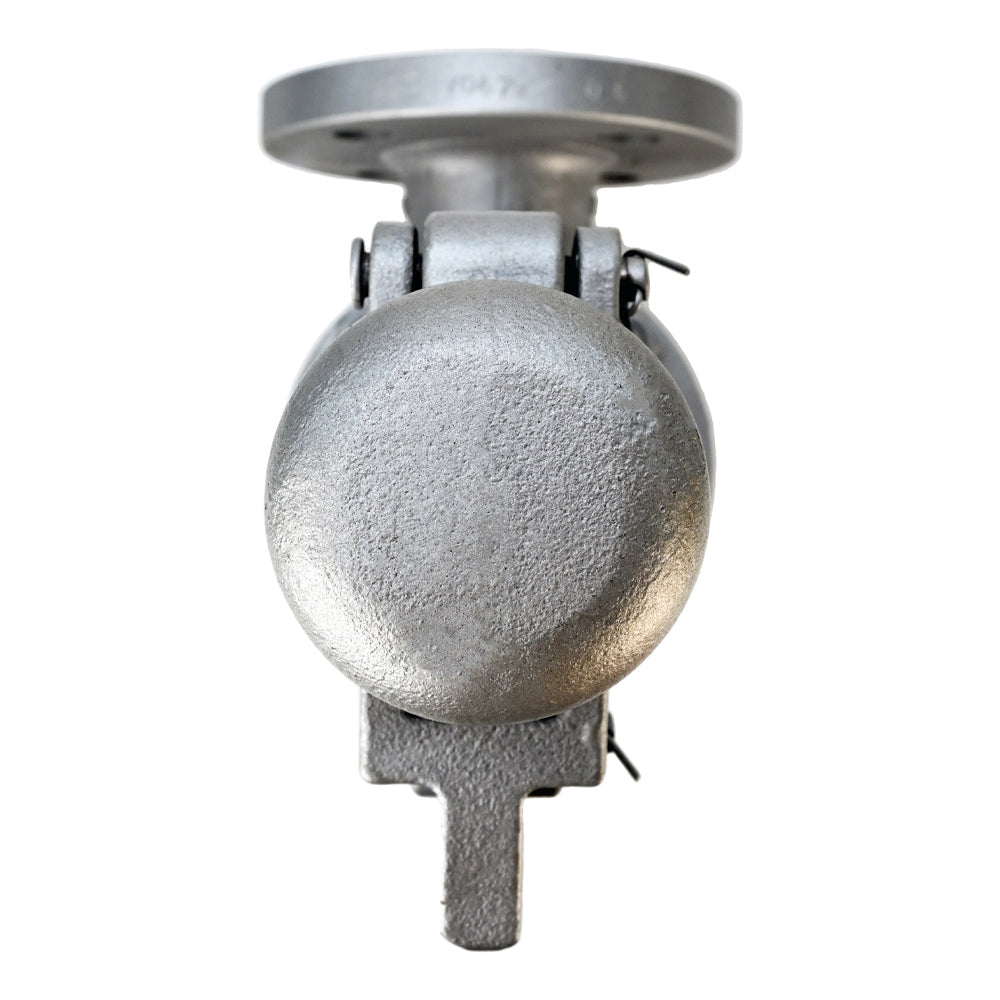

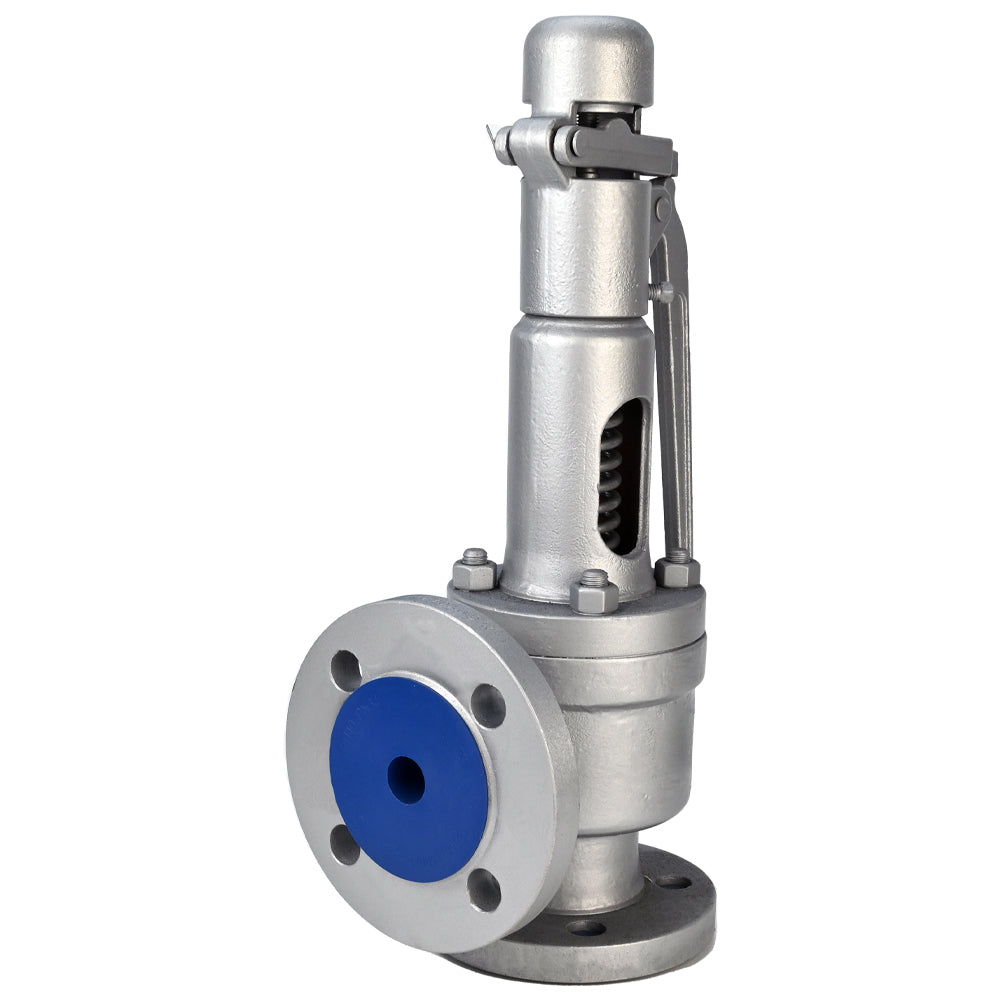

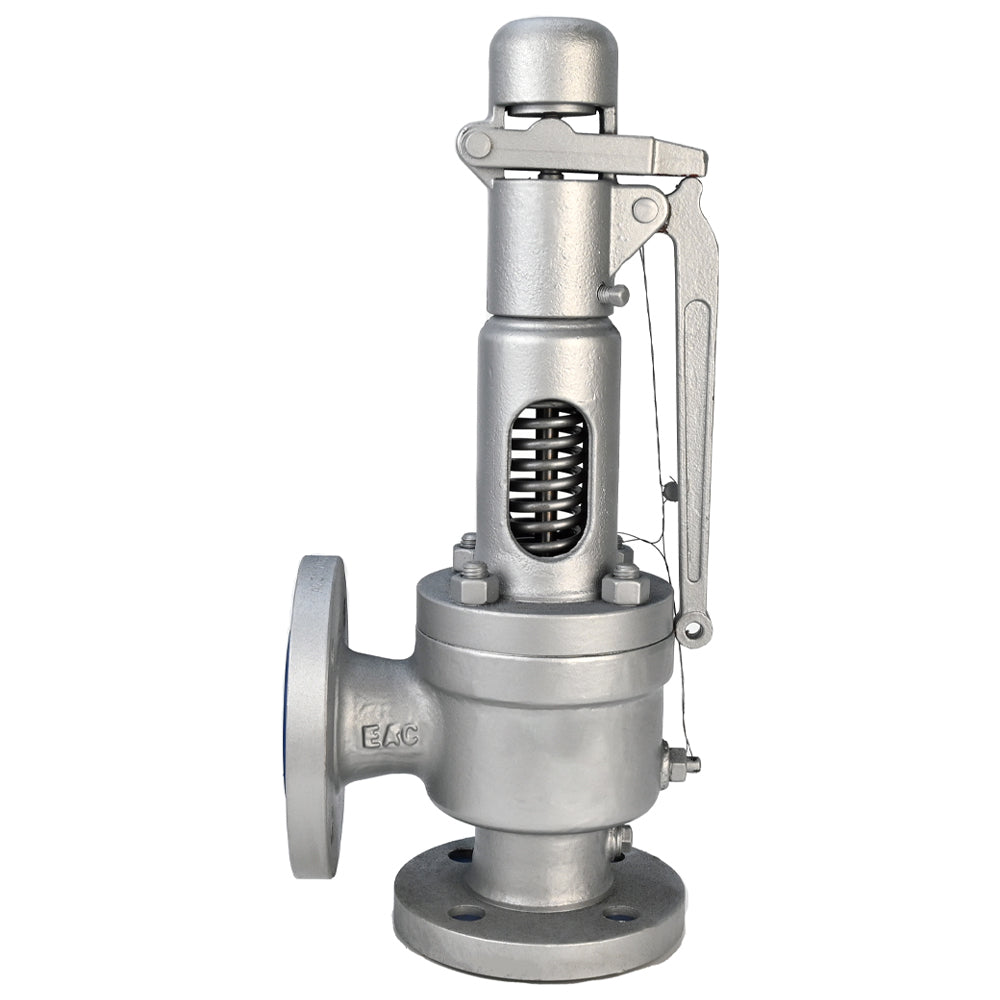

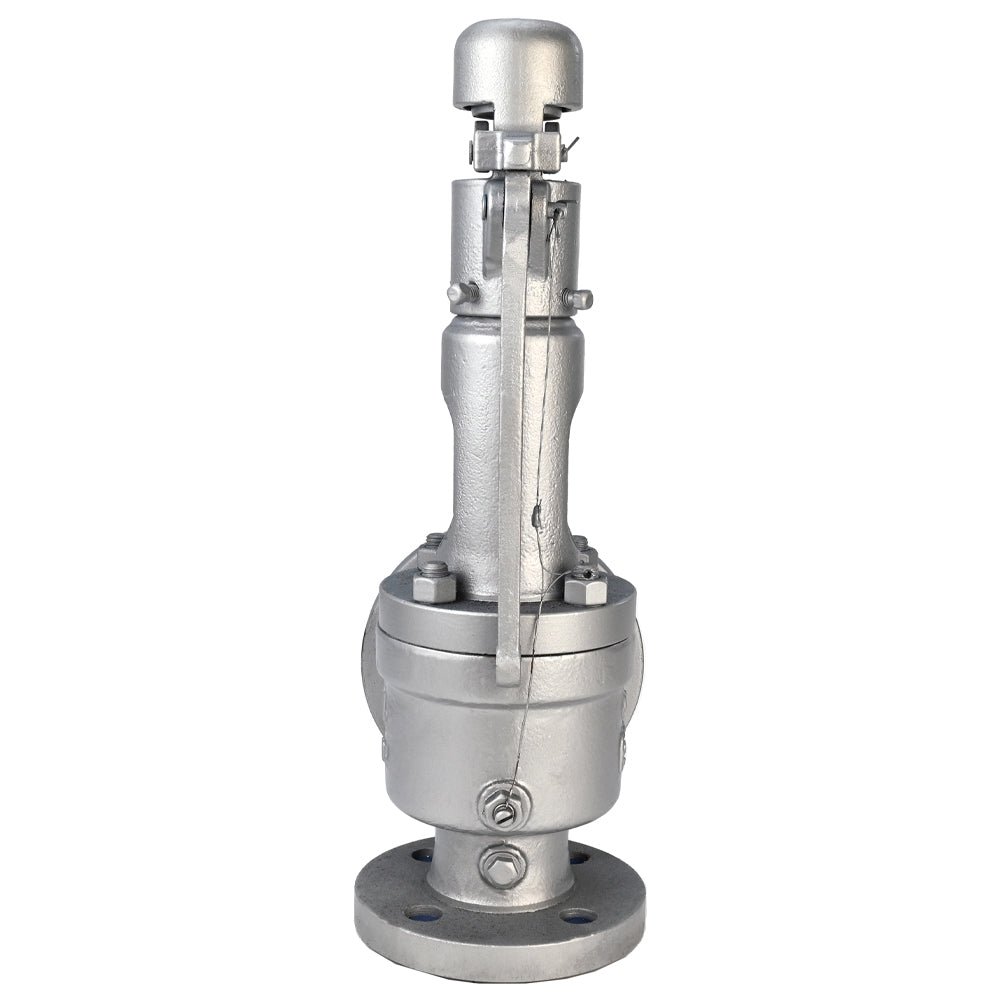

Spring safety valve Elephant SAFE 7001 1.6-2.5, body material - stainless steel WCB, closure element material - stainless steel AISI 420, seal - METAL

€164,29
Tax included Shipping calculated at checkout.

Spring safety valve Elephant SAFE 7001 1.6-2.5, body material - stainless steel WCB, closure element material - stainless steel AISI 420, seal - METAL - DN25xDN32 / 1.6 - 2.5 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A spring safety valve is a device used to automatically reduce excess pressure in systems, preventing it from exceeding established safety limits. It consists of a valve, a spring, and a setting that determines the valve's opening pressure.

When the pressure in the system reaches a certain level, the spring activates, opening the valve and allowing excess pressure to escape, preventing damage to equipment or the system due to overpressure. Spring safety valves are widely used in various industrial and technical systems to ensure their safety and reliability.






Technical data of safety valves Elephant VR3430M-F DN25х32/300х400 PN16

Nominal diameter DN, mm 25-300 (inlet);
32-400 (outlet)
Working pressure PN, bar 16
Setting pressure ranges, bar 0.6÷1; 1÷1.6; 1.6÷2.5; 2.5÷4;
4÷6; 6÷8; 8÷10; 10÷13; 13÷16
Allowable pressure behind the valve, bar 16
Temperature of working environment t, ⁰C ≤300
Working environment water, steam, air, ammonia, natural gas
Connection to the pipeline flanged
Body material WCB steel
Seal material steel 20X13
Application areas heating and water supply systems; compressed air pipelines; steam plants; industrial pipelines





Sketch of dimensions of safety valves Elephant VR3430M-F DN25х32/300х400 PN16




Weight and dimensions of safety valves Elephant VR3430M-F DN25х32/300х400 PN16

D.N. ØD1, mm ØD2, mm ØD3, mm b, mm f, mm n-Ød, mm L, mm
25 115 85 65 14 2 4-14 110
32 140 100 78 16 2 4-18 115
40 150 110 85 16 3 4-18 120
50 165 125 100 16 3 4-18 135
65 185 145 120 18 3 4-18 160
80 200 160 135 20 3 8-18 170
100 220 180 155 20 3 8-18 195
125 250 210 185 22 3 8-18 210
150 285 240 210 24 3 8-23 255
200 340 295 265 26 3 12-23 300
250 405 355 320 30 3 12-26 350
300 460 410 375 30 4 12-26 380





DN ' ØD1', mm ØD2', mm ØD3', mm b ', mm f ', mm n-Ød ', mm L1, mm
32 140 100 78 16 2 4-18 95
40 150 110 85 16 3 4-18 100
50 165 125 100 16 3 4-18 110
65 185 145 120 18 3 4-18 120
80 200 160 135 20 3 8-18 135
100 220 180 155 20 3 8-18 135
125 250 210 185 22 3 8-18 175
150 285 240 210 24 3 8-23 190
200 340 295 265 26 3 12-23 230
250 405 355 320 30 3 12-26 260
300 460 410 375 30 4 12-26 320
400 580 525 485 36 4 16-30 350





DN - DN' H, mm Area of ​​the flow channel, mm2 Weight, kg
25-32 315 177 11
32-40 315 314 13
40-50 325 491 15
50-65 335 804 20
65-80 420 1256 30
80-100 435 1963 32
100-125 565 3317 60
125-150 640 5024 75
150-200 665 7850 90
200-250 800 12266 160
250-300 975 17663 360
300-400 1170 24041 630





Sketch of detailing of safety valves Elephant VR3430M-F DN25х32/300х400 PN16




Materials of parts of safety valves Elephant VR3430M-F DN25х32/300х400 PN16

Item No. Part name Material
1 Frame WCB steel
2 Adjusting screw steel 20X13
3 Disk steel 20X13
4 Guide bushing steel 20X13
5 Lid WCB steel
6 Spring steel 50KhFA
7 Lever steel 20X13

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel WCB
  • Maximum allowable temperature
    300 °C
  • Connection type
    Flanged
  • Operating environment
    Water, Air, Steam, Petroleum Products, Fuel Oil
  • Applications
    Heating Systems, Water Supply, Oil And Gas Industry
  • Nominal pressure
    16 bar
  • Type of seal
    Metal
  • Locking material
    Stainless steel AISI 420/1.4031
