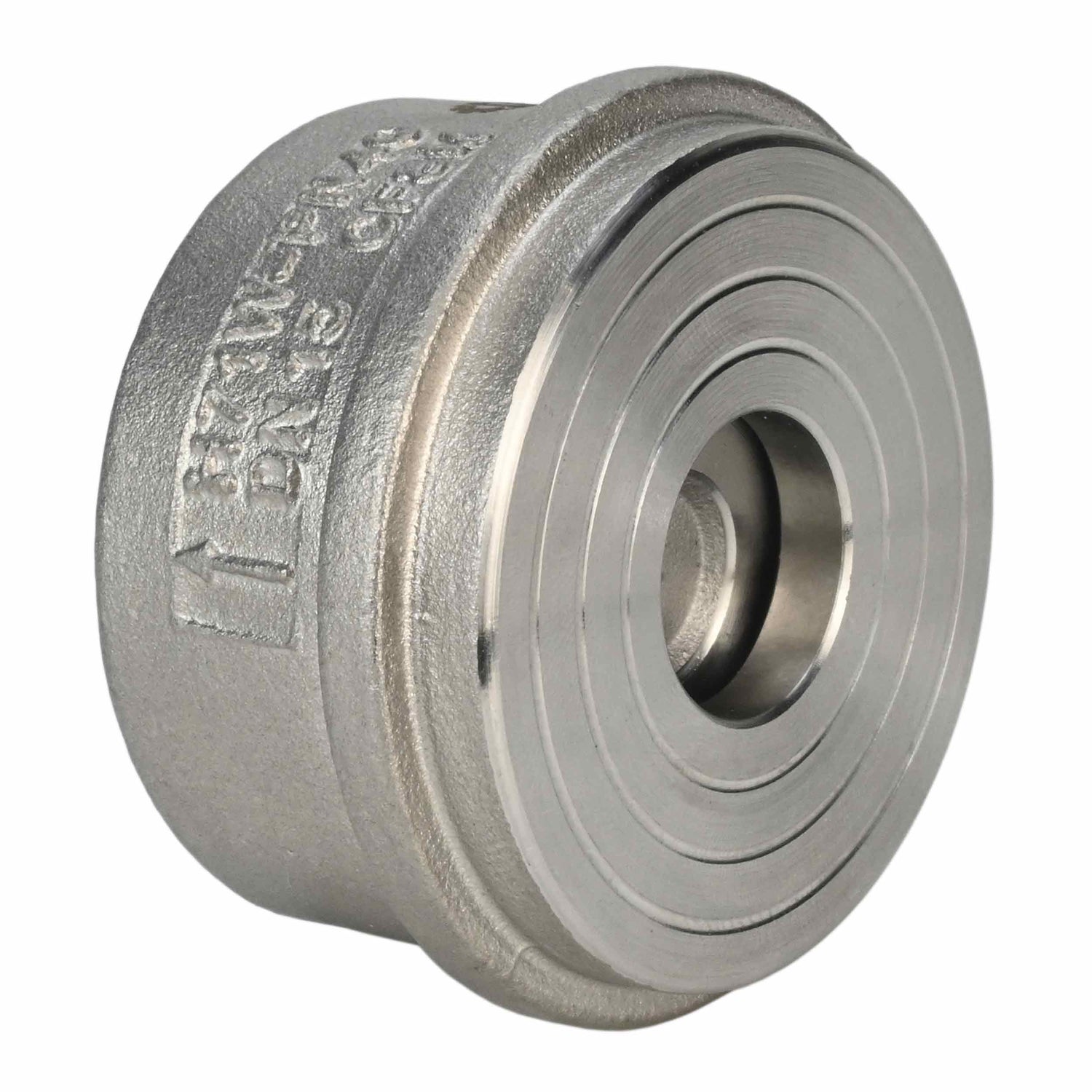

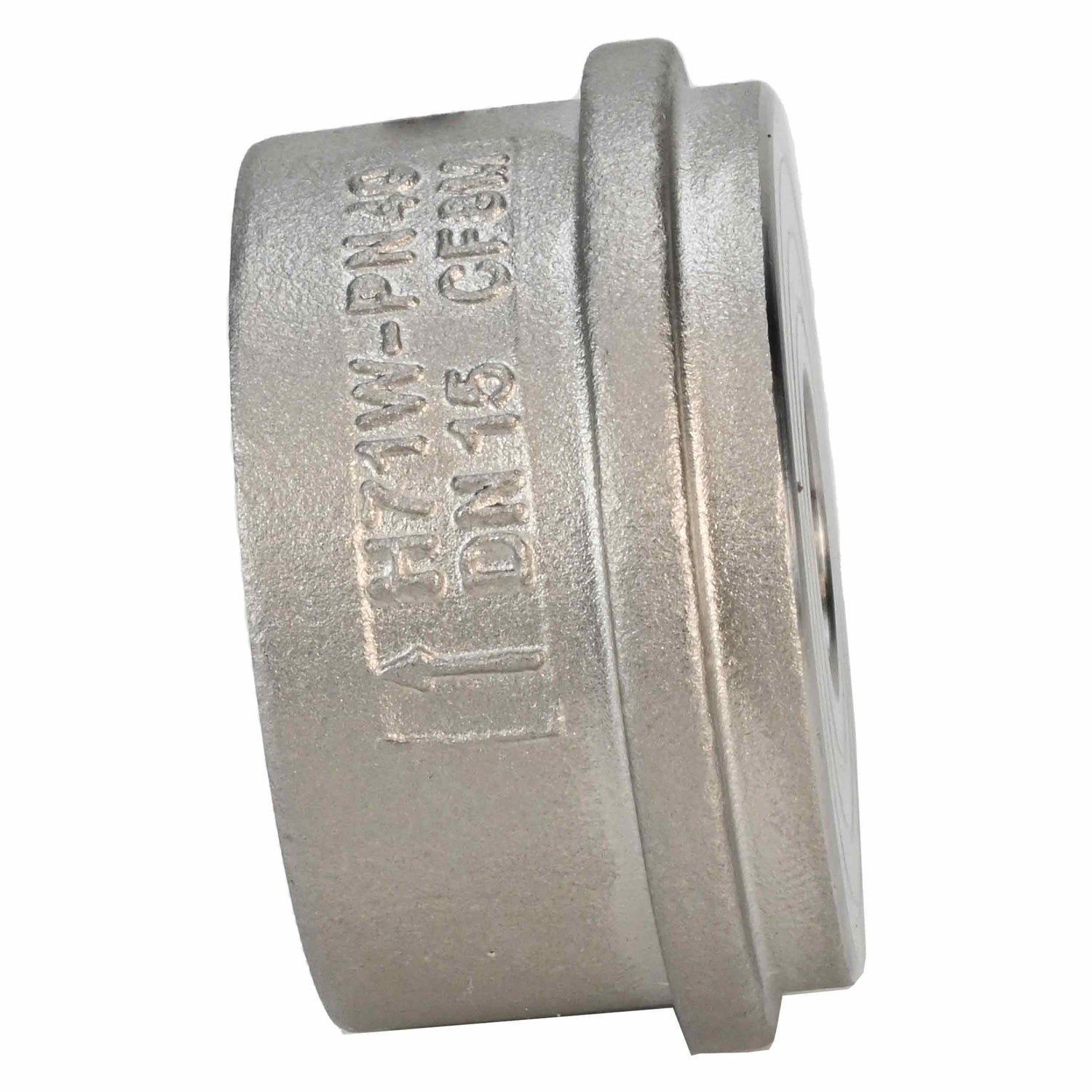

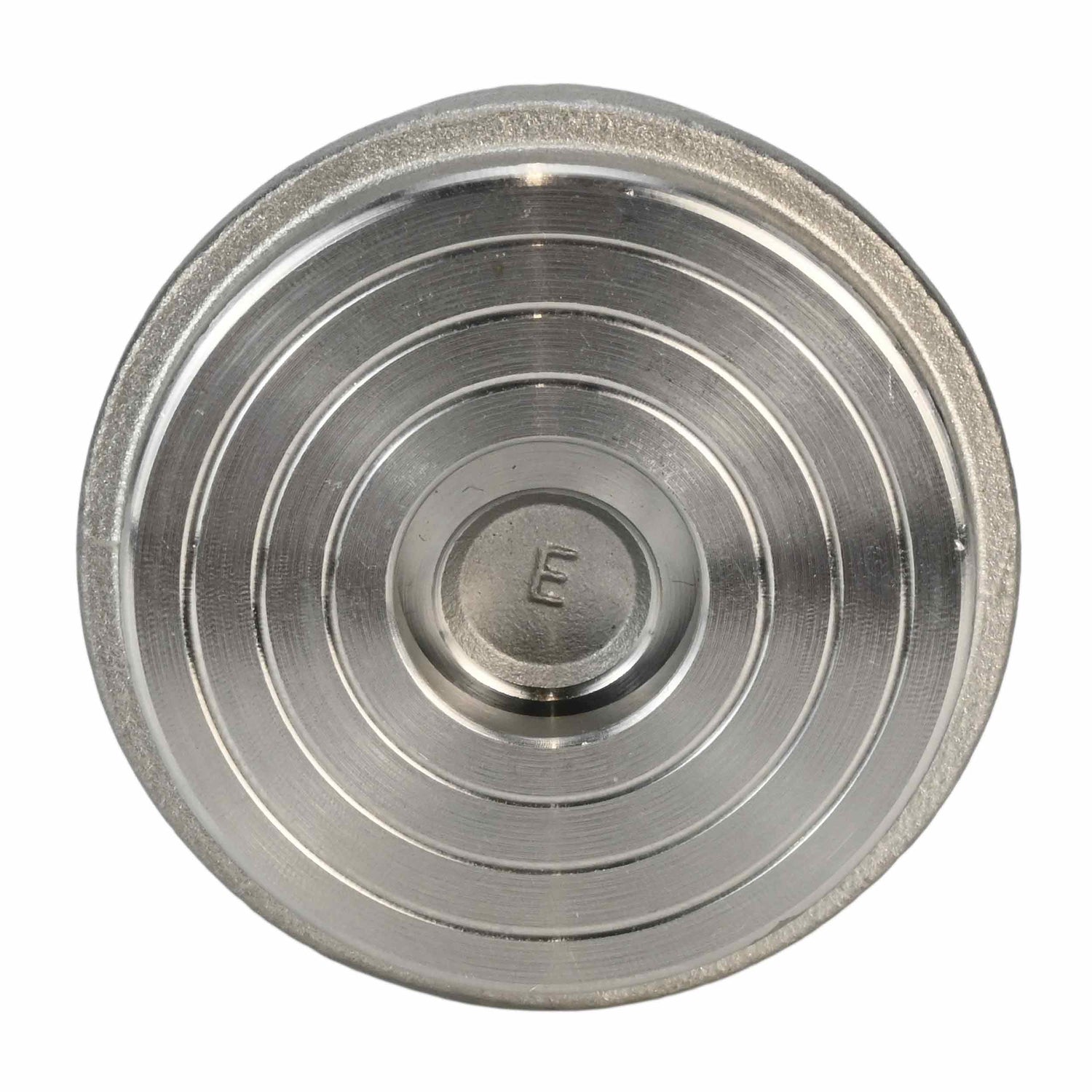

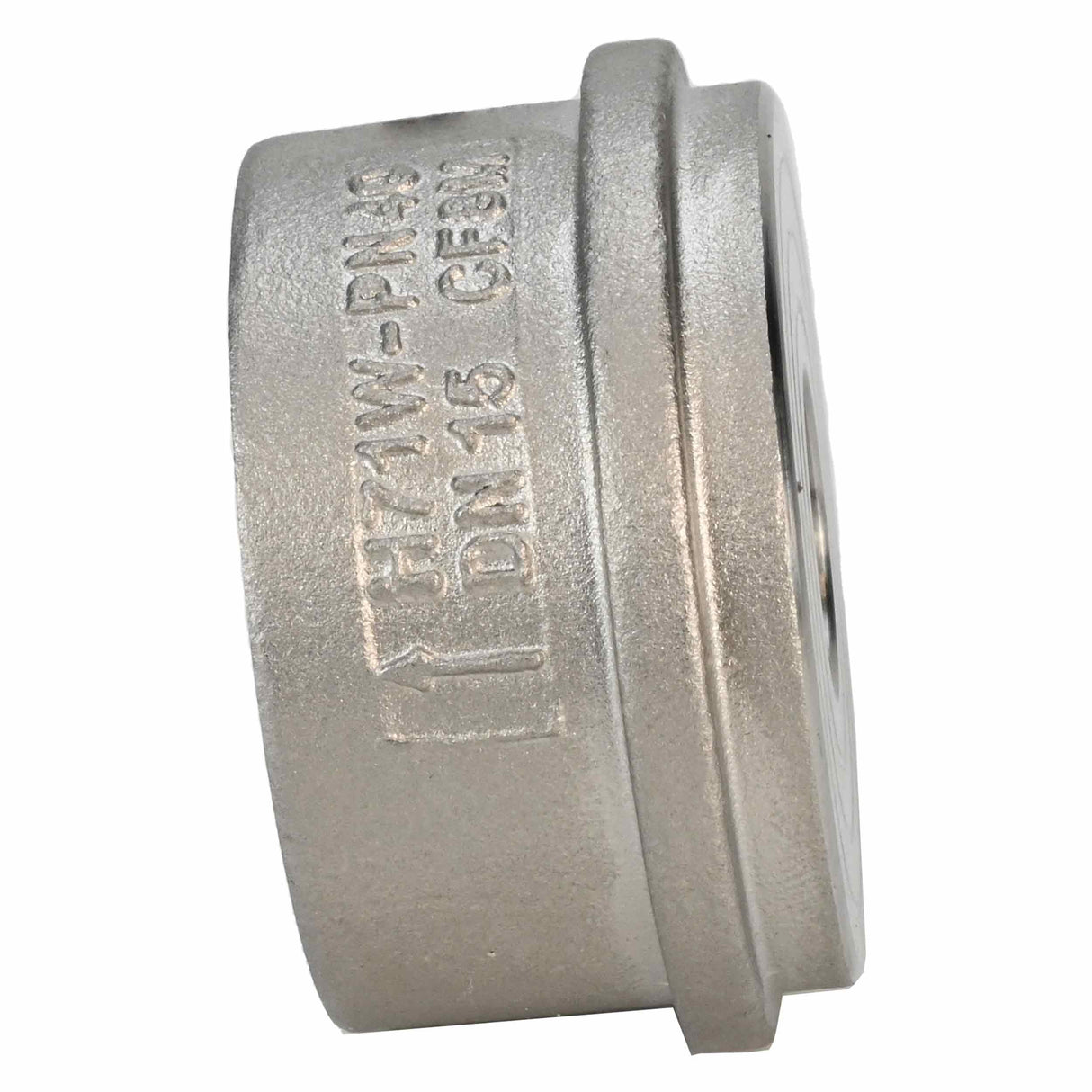

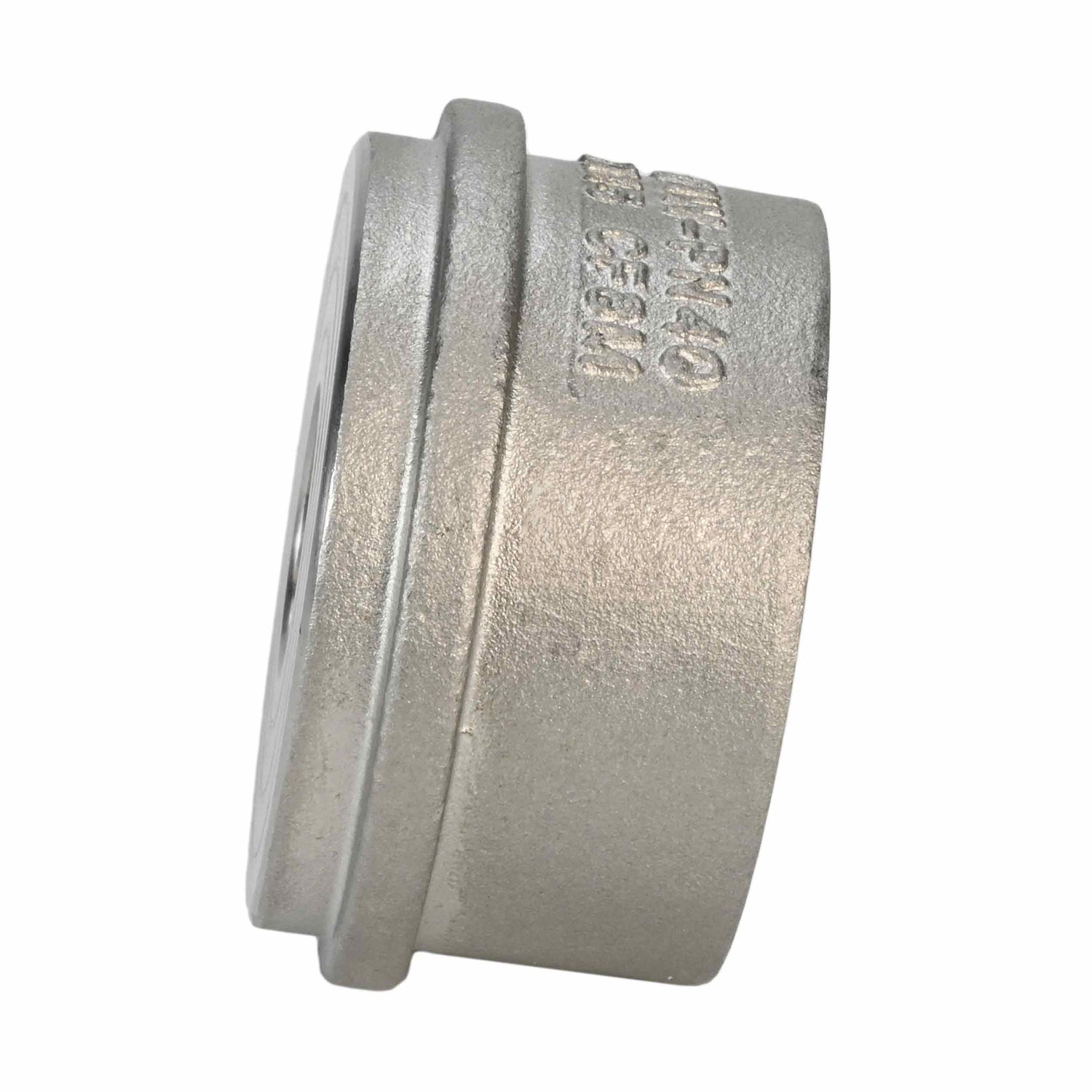

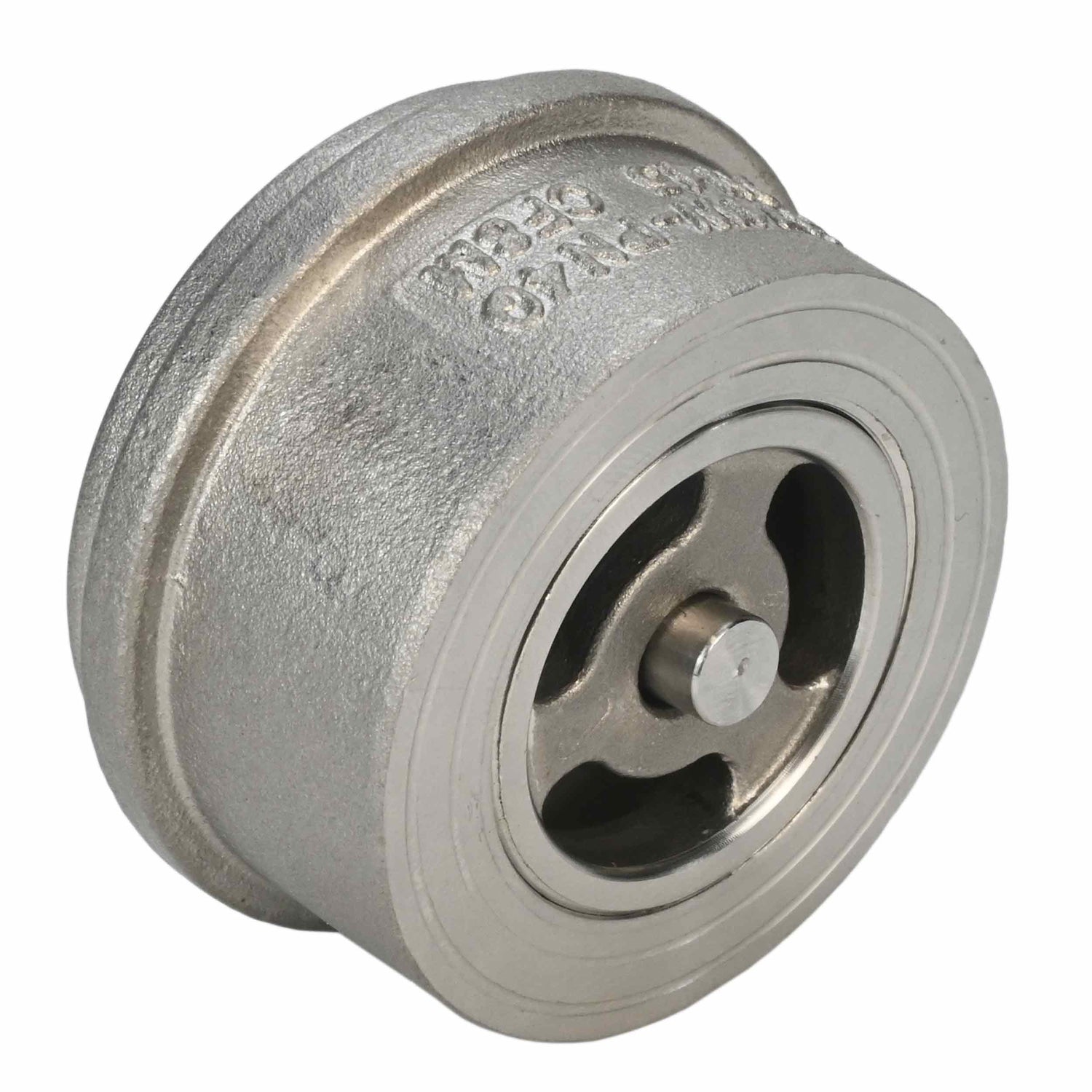

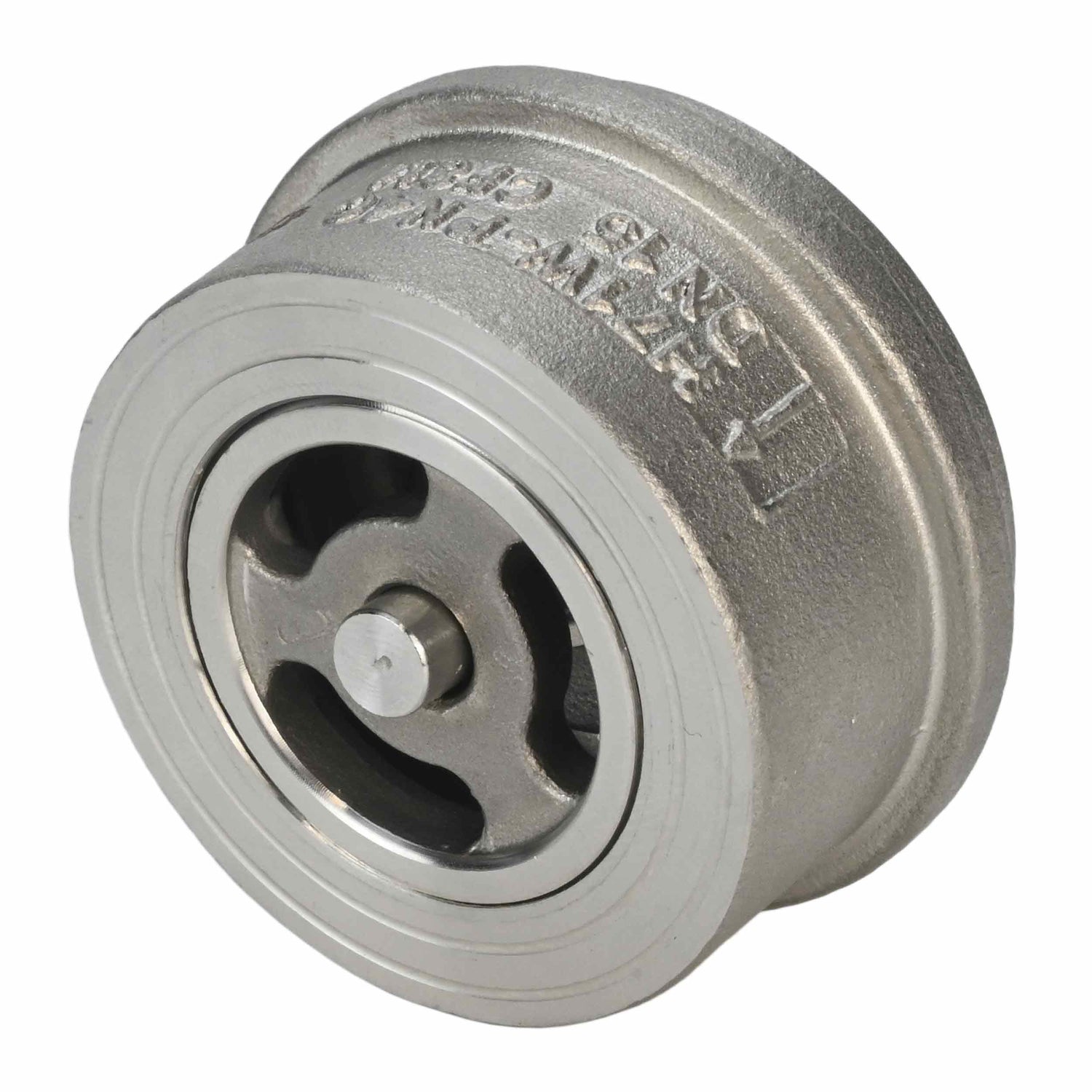

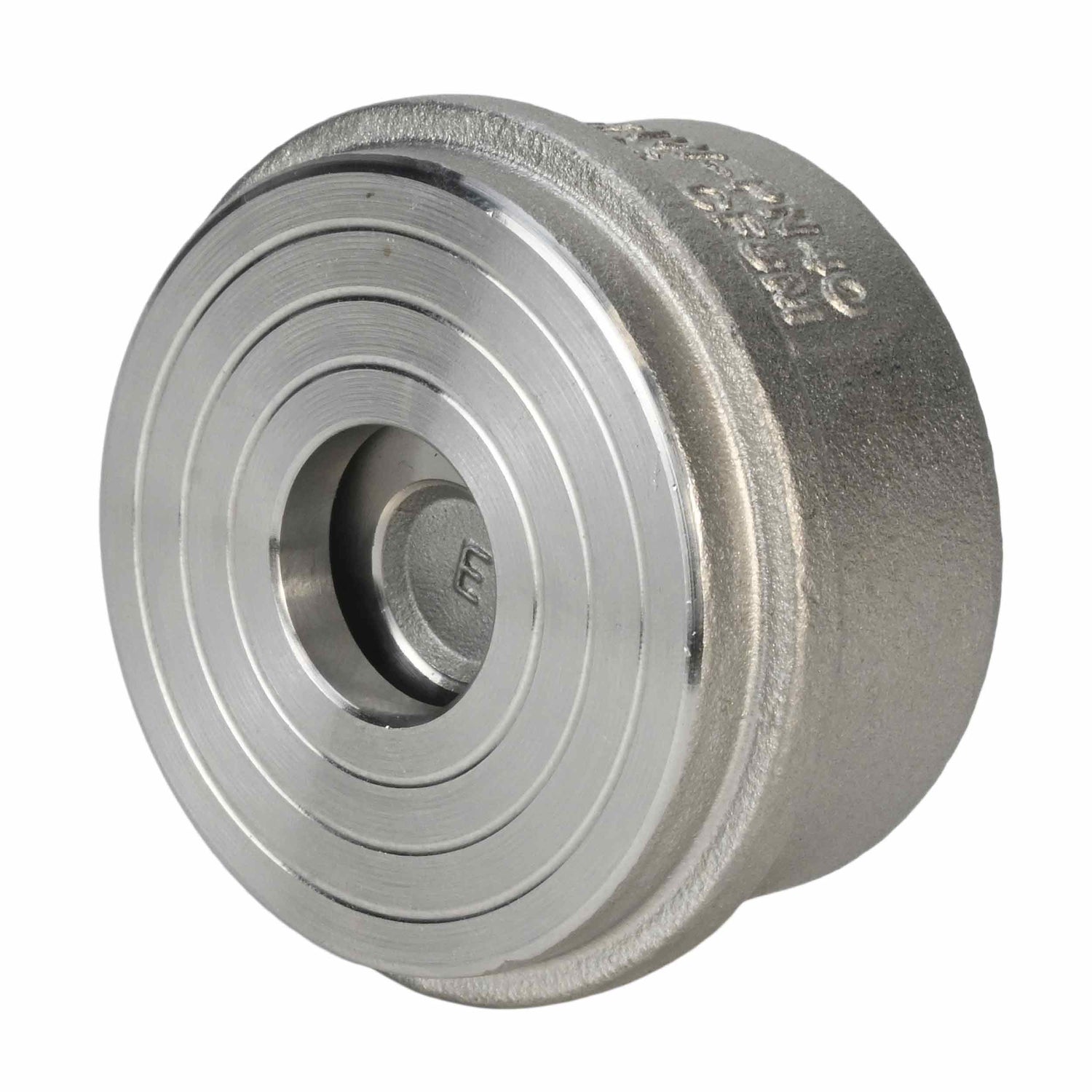

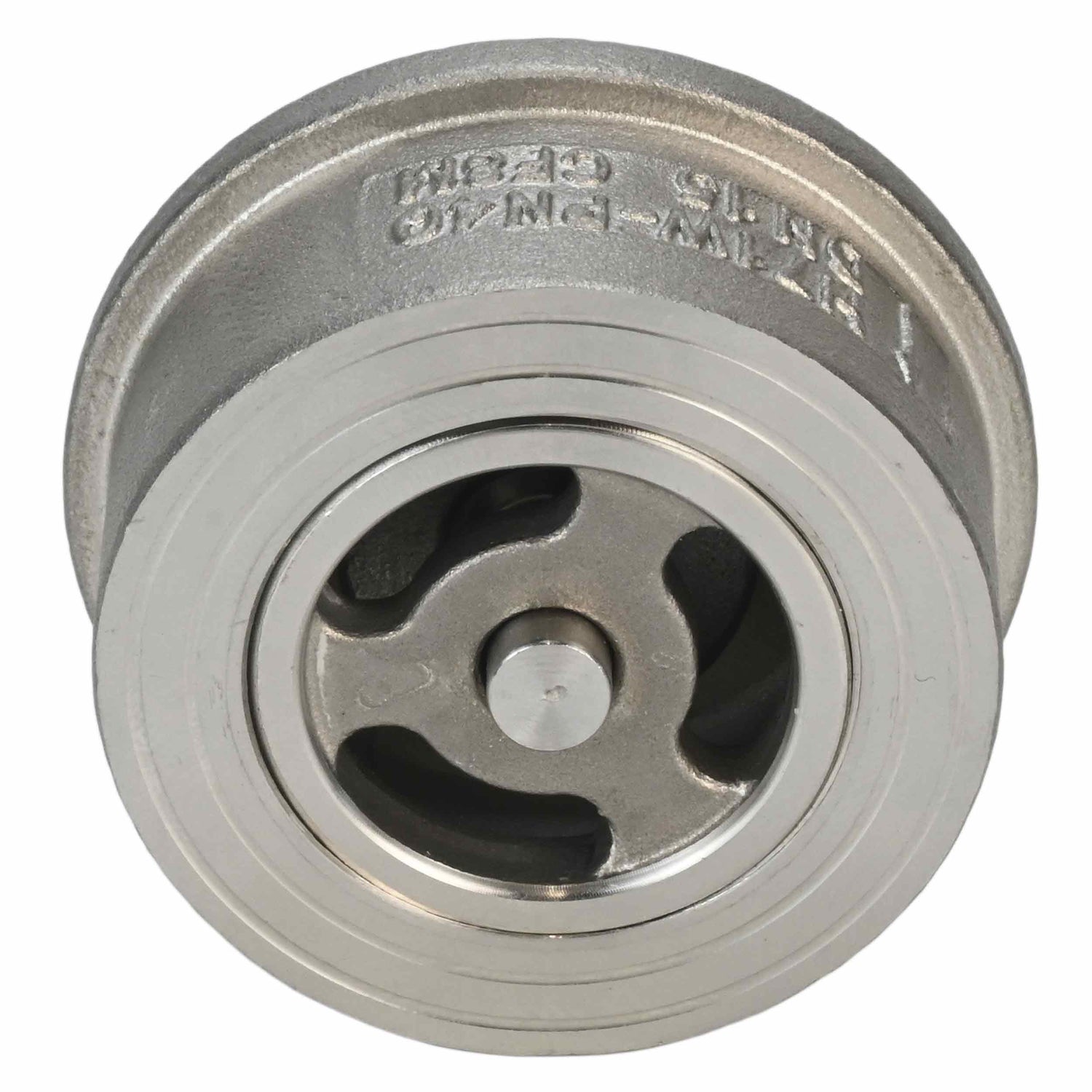

Spring check valve Elephant VCS3232-Fb 40 bar body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged
Spring check valve Elephant VCS3232-Fb 40 bar body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged - DN15 / 40 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A spring check valve is designed to prevent the reverse flow of the working medium in the pipeline. The reverse flow is blocked by pressing the valve disc against its seat under the action of the spring and the reverse flow pressure. The valve opens due to the pressure differential of the medium flow in the required direction, with the valve disc moving and compressing the spring.
Dimensions and installation dimensions of spring check valves Elephant VCS3232-Fb body material - stainless steel AISI 316
|
Model |
d, mm |
D, mm |
D1, mm |
D2, mm |
L, mm |
H, mm |
Weight, kg |
|
DN15 |
15 |
39 |
28,5 |
32 |
16 |
3 |
0.09 |
|
DN20 |
20 |
46 |
36,2 |
40 |
19 |
3 |
0.12 |
|
DN25 |
25 |
54 |
43,3 |
46 |
21 |
3 |
0.16 |
|
DN32 |
32 |
70 |
56,0 |
60 |
27 |
3,5 |
0.31 |
|
DN40 |
40 |
83 |
68,5 |
72 |
31 |
3,5 |
0.43 |
|
DN50 |
49 |
96 |
80,5 |
84 |
40 |
4 |
0.78 |
|
DN65 |
62 |
115 |
99 |
103 |
46 |
5 |
1.03 |
|
DN80 |
75 |
135 |
117 |
123 |
50 |
5 |
1.54 |
|
DN100 |
85 |
153 |
135 |
140 |
60 |
6 |
2.25 |
Dimensional sketch of spring check valves Elephant VCS3232-Fb body material - stainless steel AISI 316
Materials of spring check valves Elephant VCS3232-Fb body material - stainless steel AISI 316
|
№ |
Part name |
Material |
|
1 |
Case |
stainless steel 316 |
|
2 |
Back cover |
stainless steel 316 |
|
3 |
Spring |
stainless steel 316 |
|
4 |
Disk |
stainless steel 316 |
Material sketch of spring check valves Elephant VCS3232-Fb body material - stainless steel AISI 316
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Locking material
-
Check valve type
