Spring check valve Elephant VCS3232-Fb 40 bar, body material - stainle – Valve Elephant
Elephant  |  SKU: D100-03887

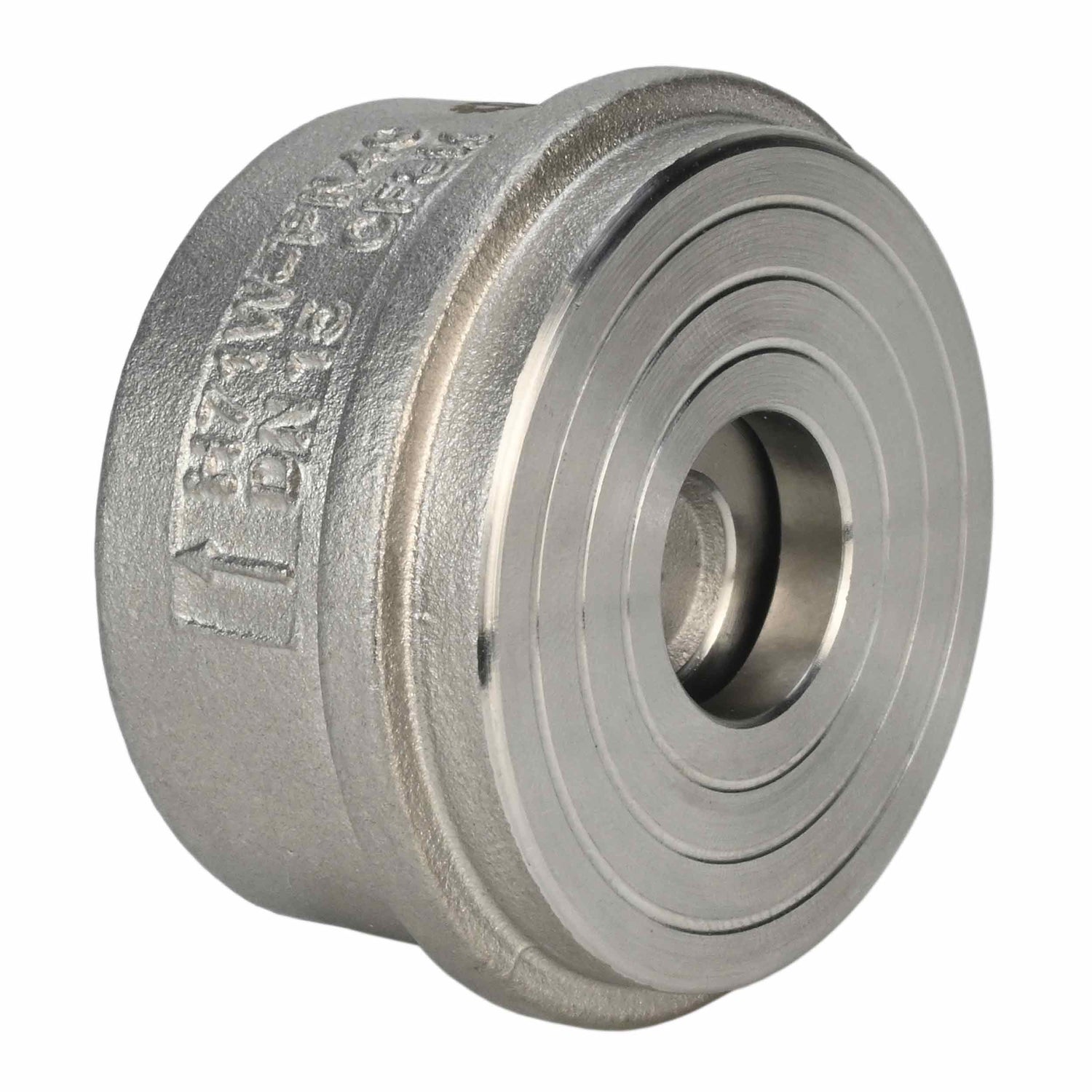

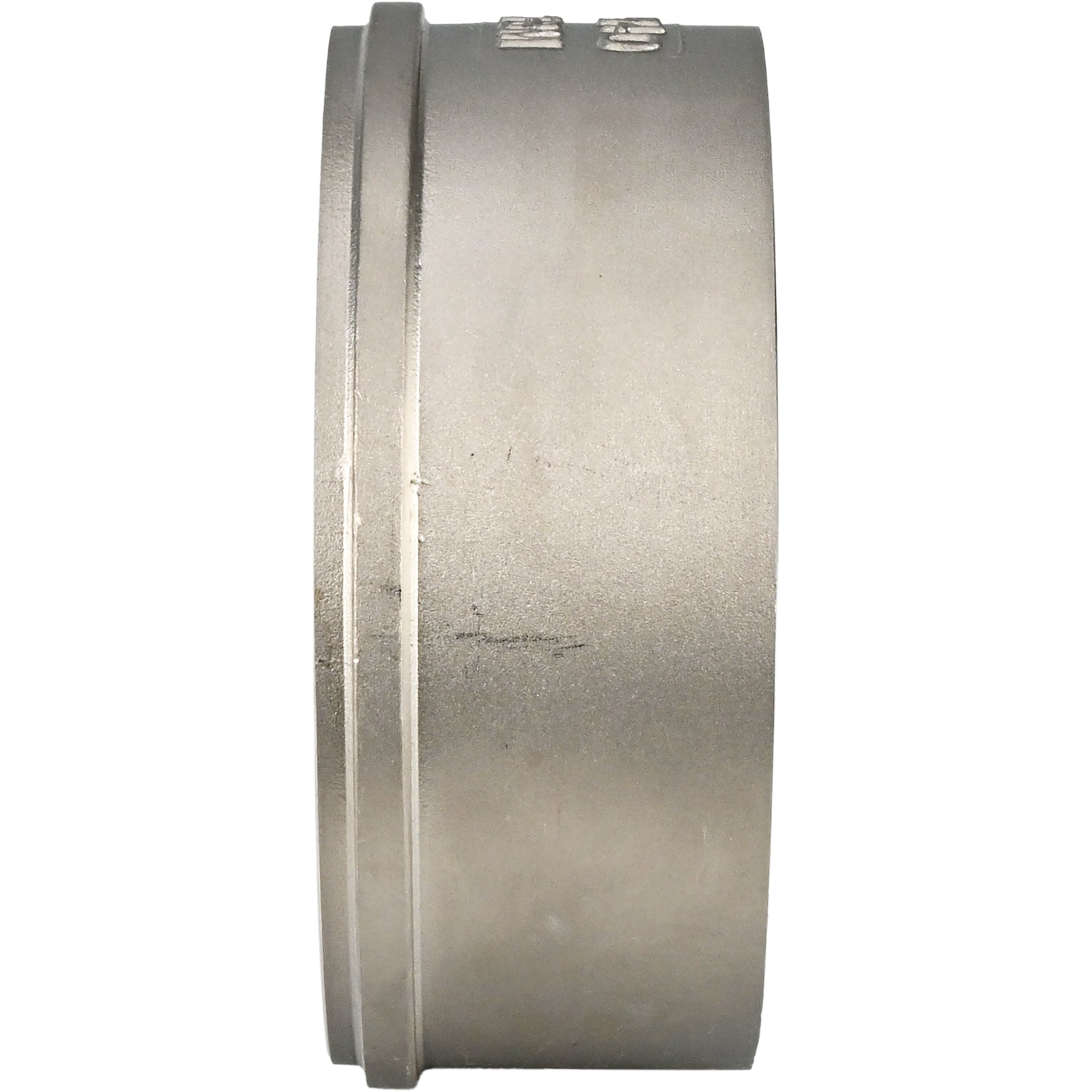

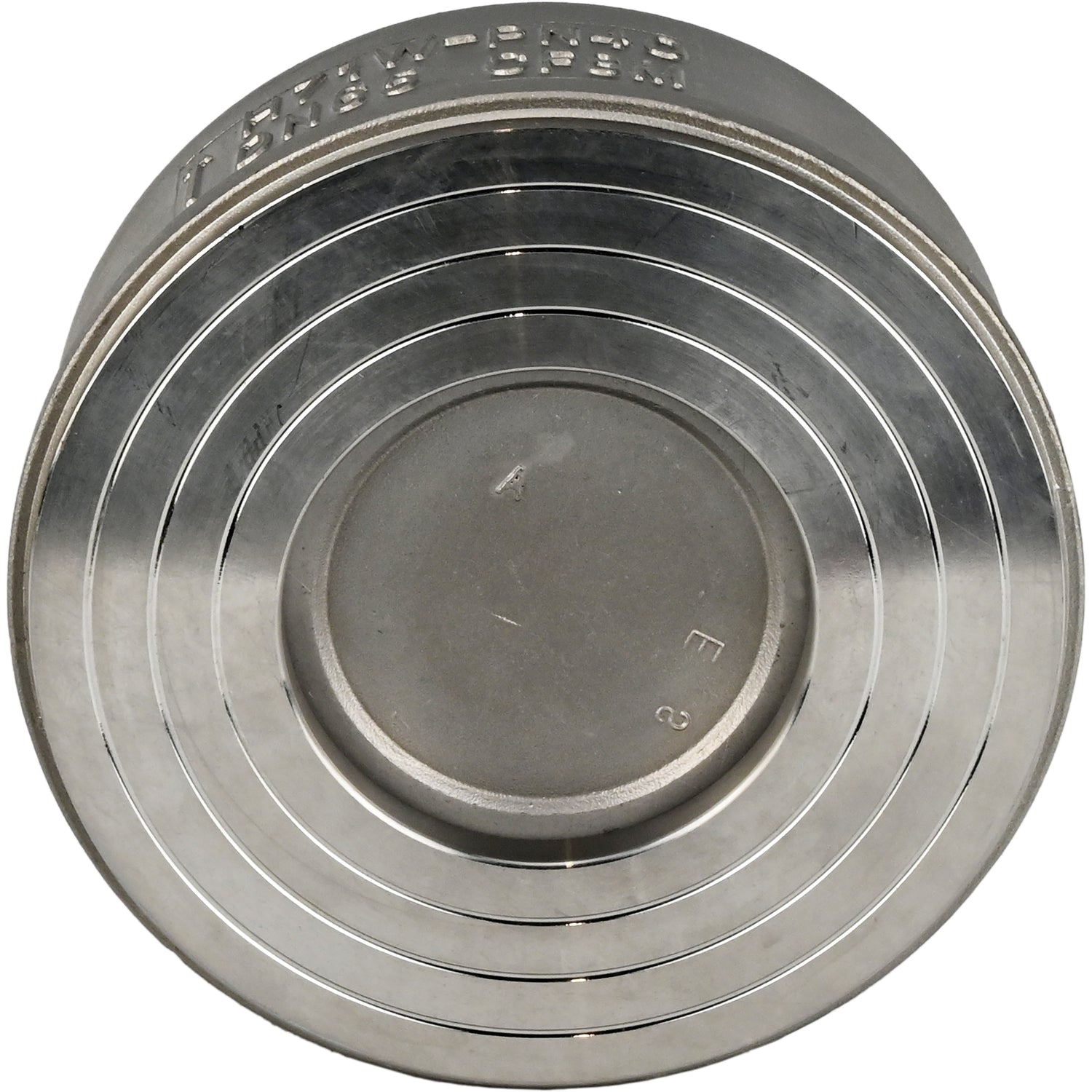

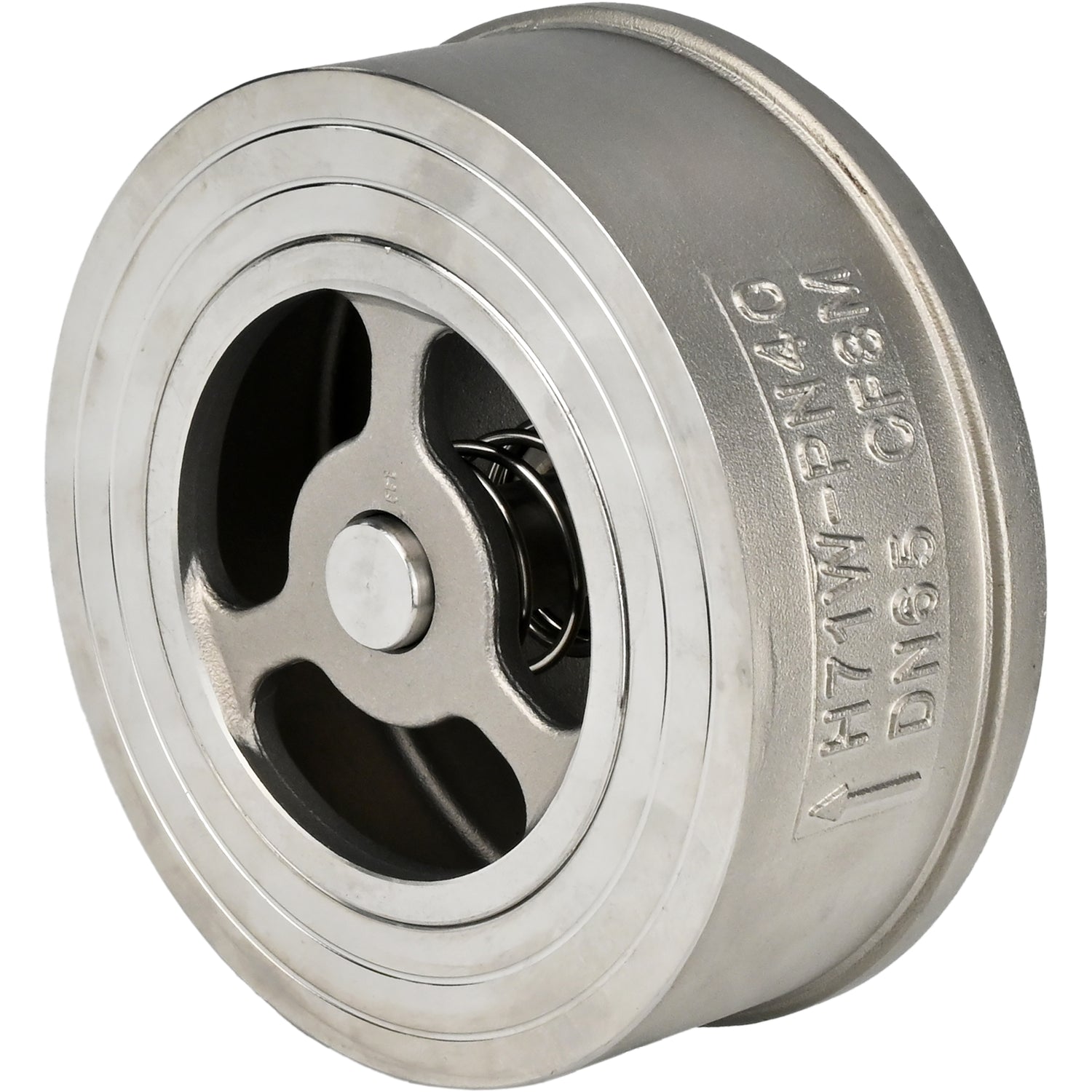

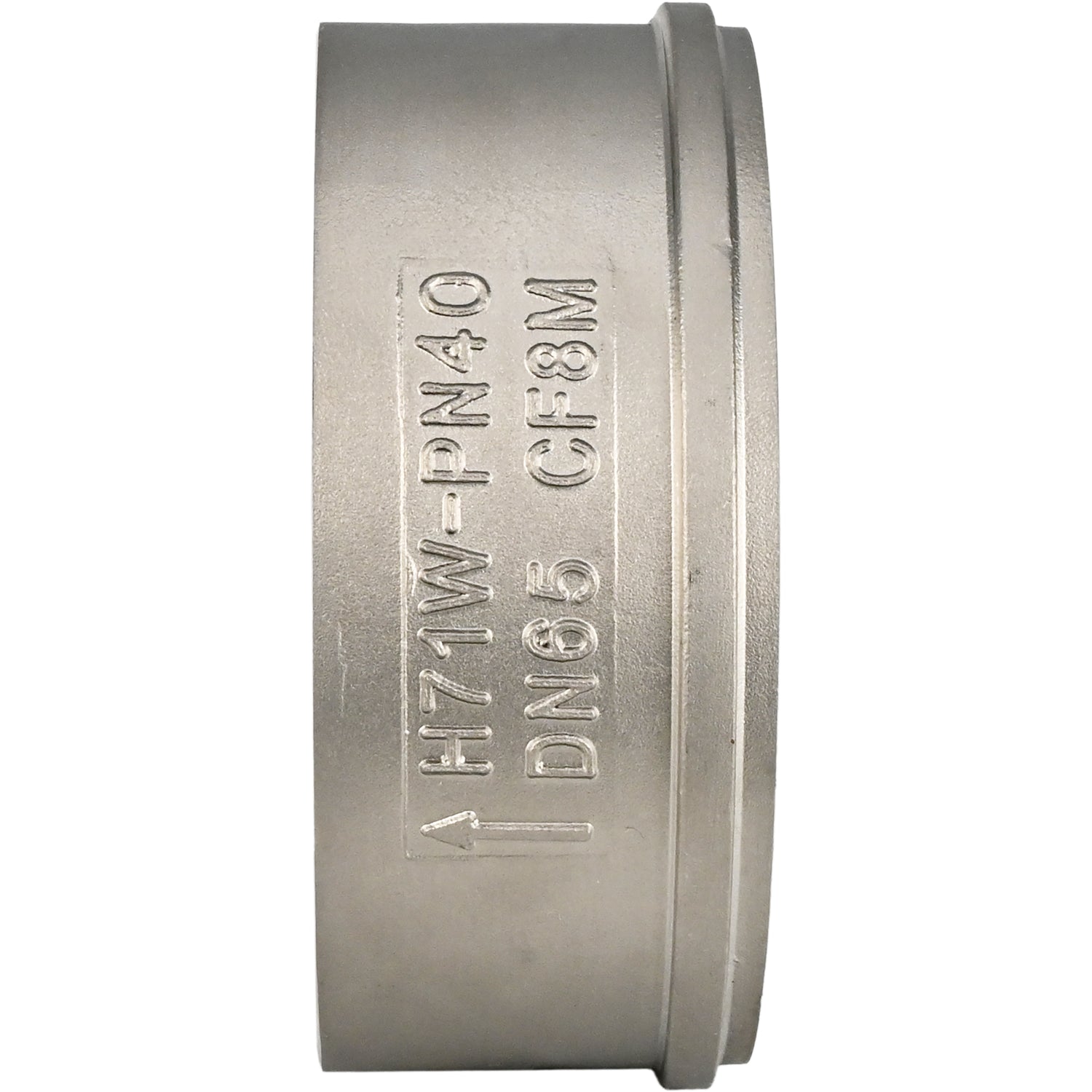

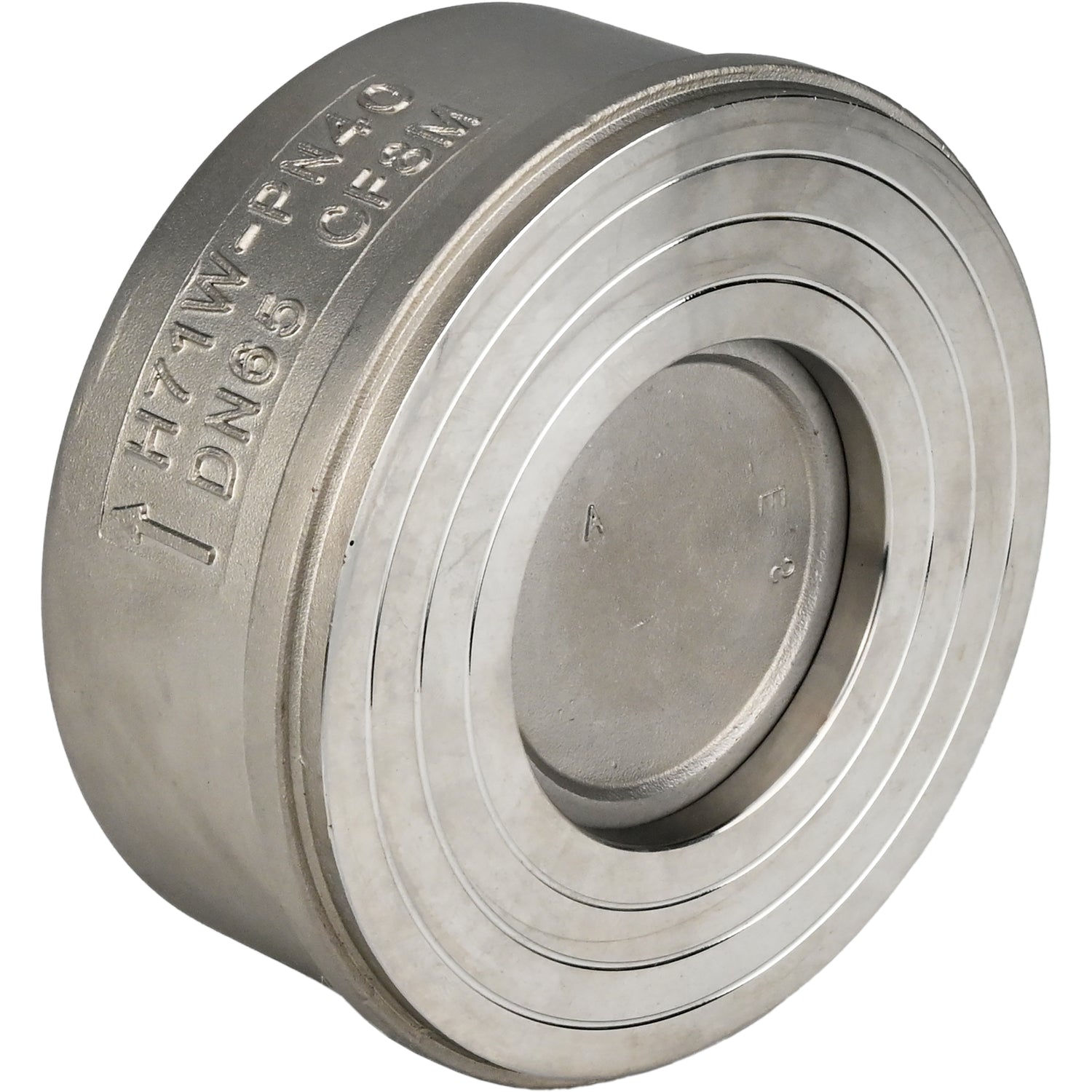

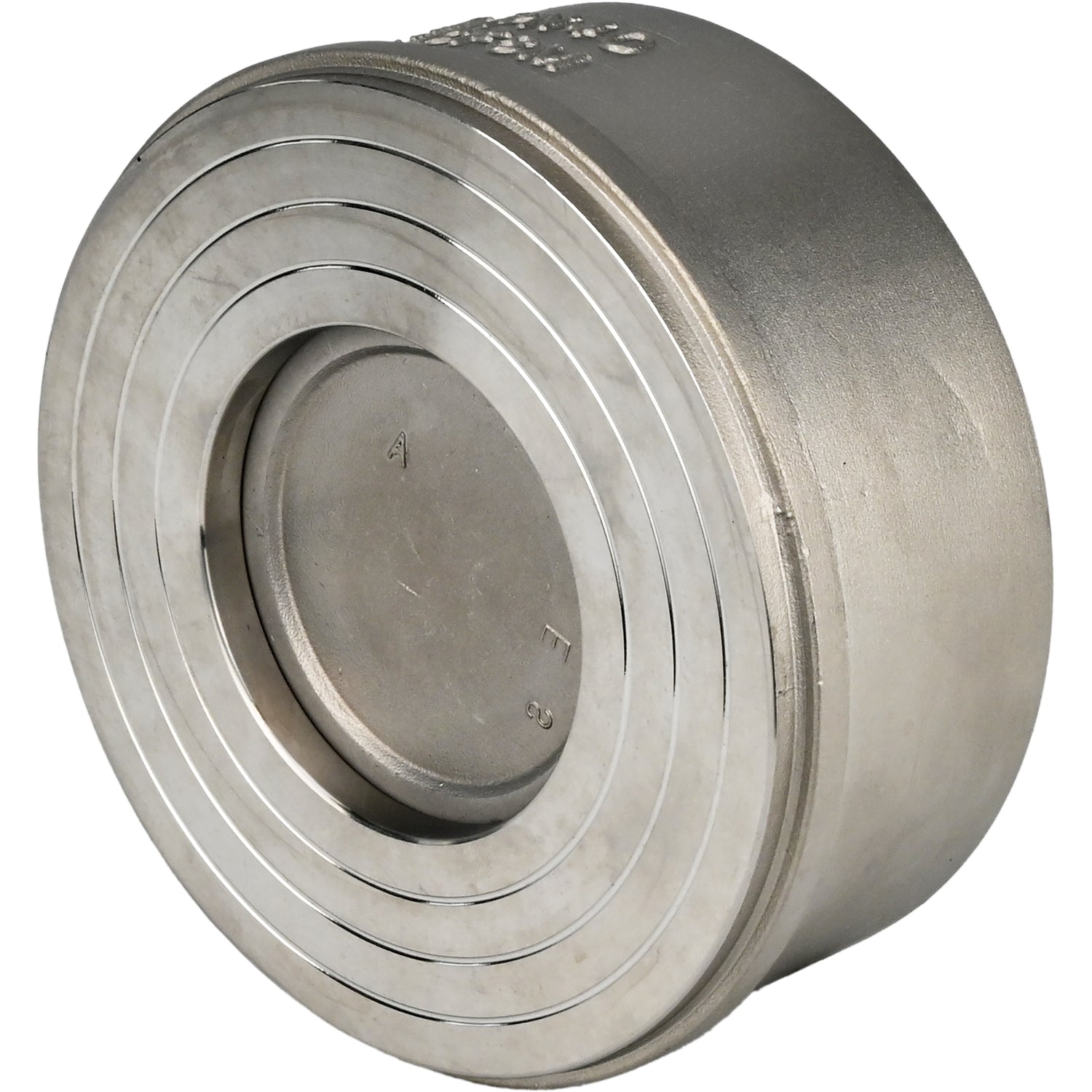

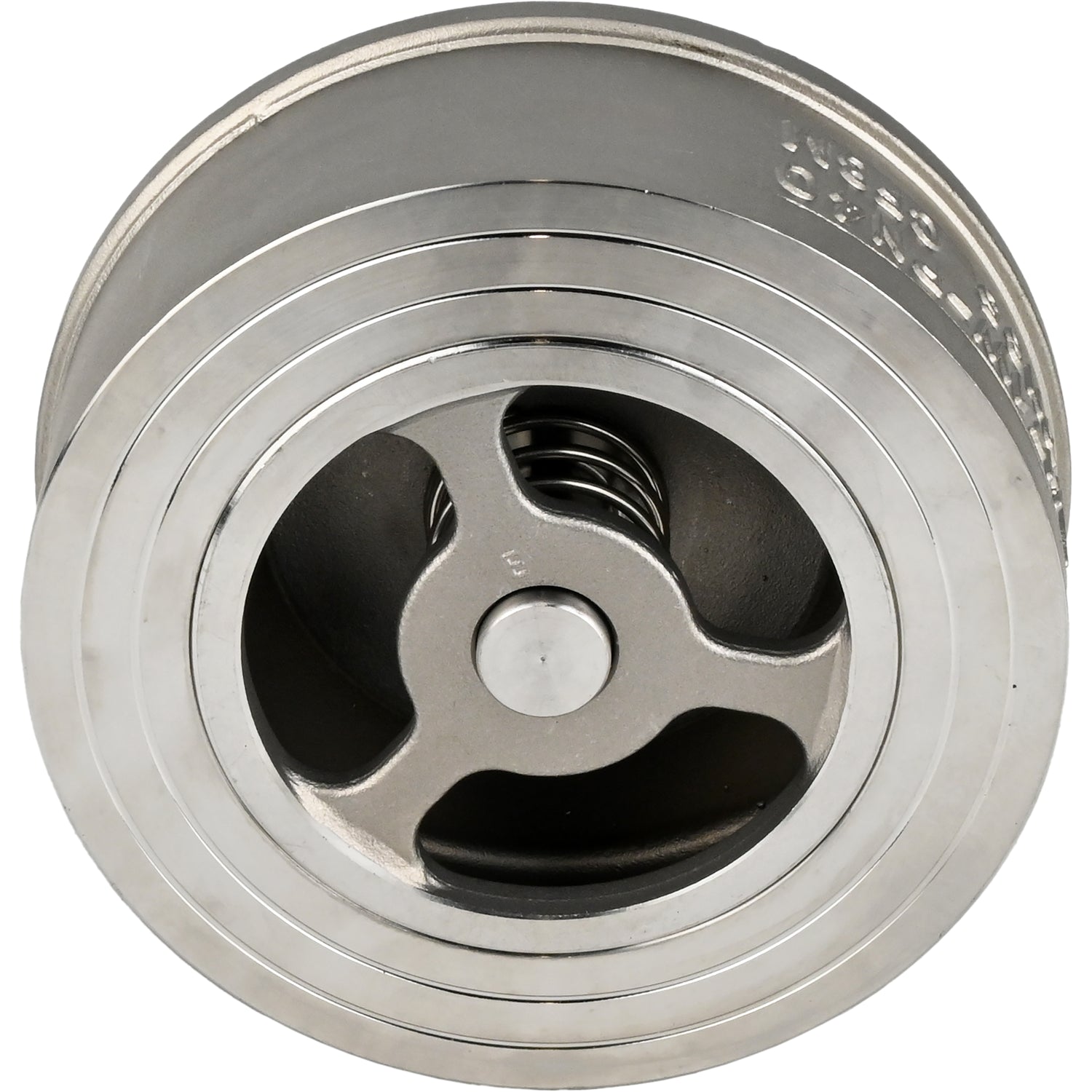

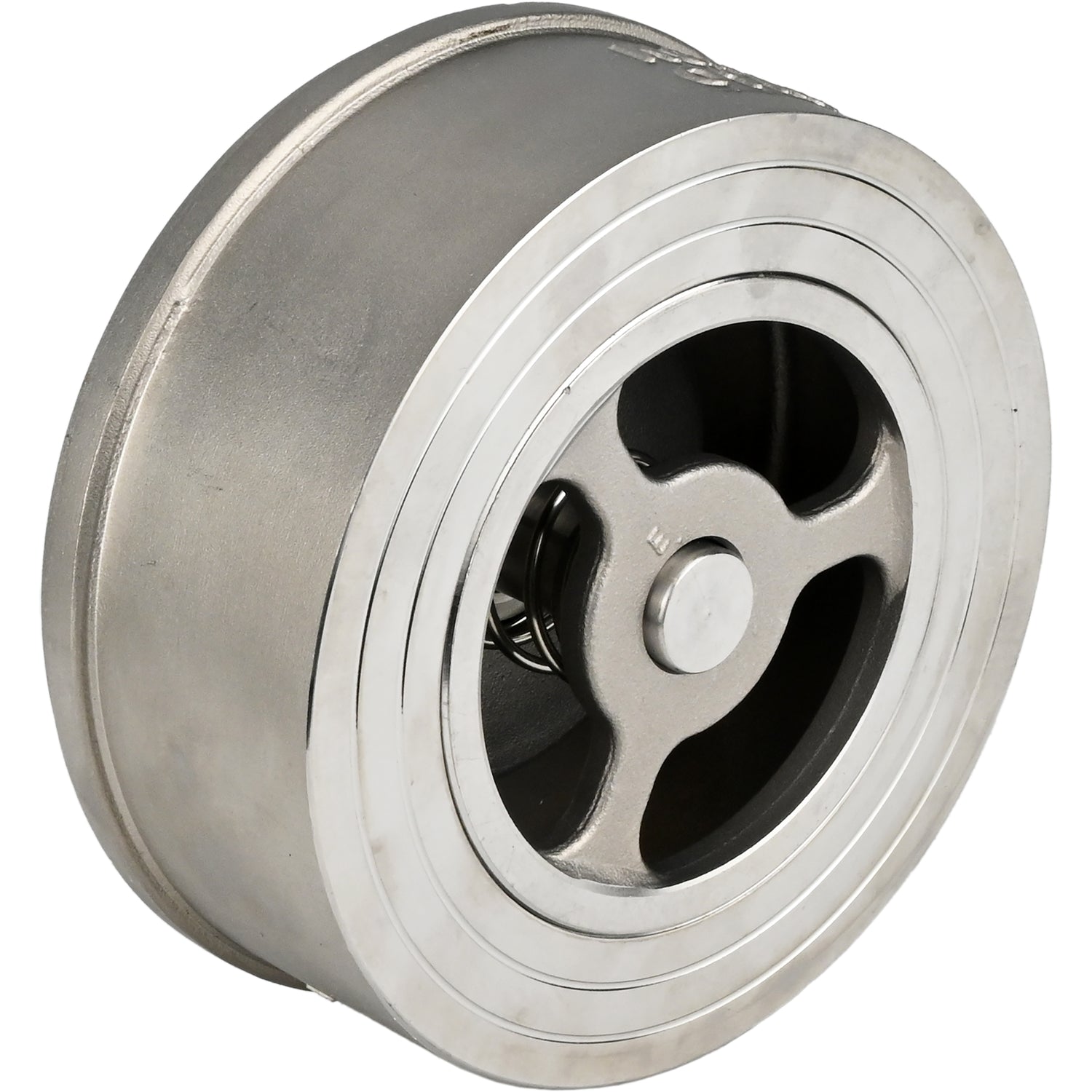

Spring check valve Elephant VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF

€12,35
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

The spring check valve is designed to prevent the flow direction of the working medium in the pipeline from changing in the opposite direction.

Technical parameters of Elephant spring check valve VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF:

Characteristic Meaning
Device type axial
Diameter 20-100 mm
Nominal pressure 40 bar
Working medium temperature from -29 to +425°C
Application pumping systems, water supply and
distribution systems,
industrial processes
Operating environment hot and cold water, waste water,
mineral and synthetic oils, unleaded gasoline,
methane, propane, vegetable and animal oils
and fats, refrigerants of the HFA, HFB, HFC
groups and etc.
Connection type compact flanged
Service life 10 yers
Tightness class «В» - EN-12266-1
Manufacturer's country China
Warranty 12 months

Spring check valve Elephant VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF



Dimensions of Elephant spring check valve VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF:

d,
mm		 D,
mm		 L,
mm		 Weight,
kg
DN20 19 58 28 0.25
DN25 24 68 28 0.36
DN32 31 78 30 0.47
DN40 38 88 36 0.61
DN50 48 102 40 0.94
DN100 91 158 68 3.00

Sketch Spring check valve Elephant VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF





Materials of parts Elephant spring check valve VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF:

№ Part Name Material
1 Body stainless steel AISI 316
2 Disc stainless steel AISI 316
3 Spring stainless steel AISI 316
4 Back cover stainless steel AISI 316

Sketch of parts and materials Spring check valve Elephant VCS3232-Fb 40 bar, body material - stainless steel AISI 316, locking material - stainless steel AISI 316, compact flanged, WDVF

Specifications
  • Country of origin
    China
  • Body material
    Stainless steel AISI 316
  • Maximum allowable temperature
    425 °C
  • Connection type
    Compact flanged
  • Operating environment
    Water, Gas, Cold And Hot Water, Wastewater, Oils, Water-Glycol Solutions, Fuels, Hfa Hfb Hfc Refrigerants
  • Applications
    Water Supply, Industry, Pumping Systems
  • Nominal pressure
    40 bar
  • Locking material
    Stainless steel AISI 316
  • Check valve type
    Spring

Reviews (0)

Documentation
nullSpring check valve ELEPHANT VCS3232-Fb 40 bar WDVF

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D100-03887DN2040 bar €12,35 Sold out
    D100-03888DN2540 bar €18,55 Sold out
    D100-03889DN3240 bar €30,88 Sold out
    D100-03890DN4040 bar €27,78 Sold out
    D100-03891DN5040 bar €44,29 Sold out
    D100-03898DN10040 bar €122,70 Sold out
