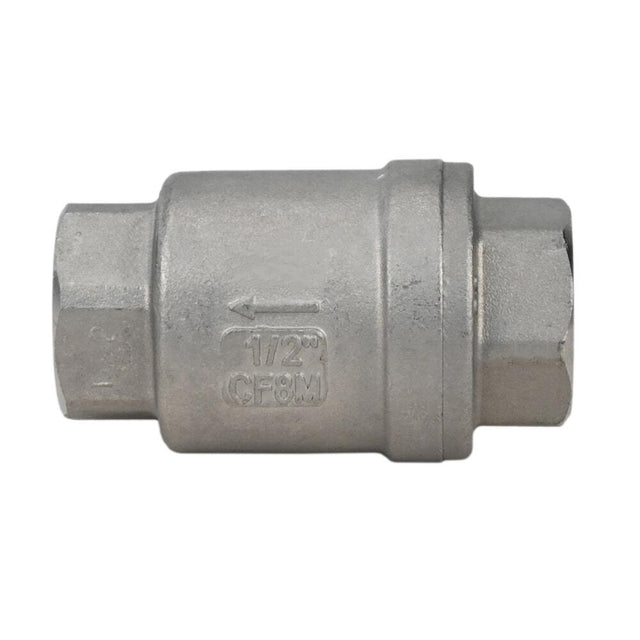

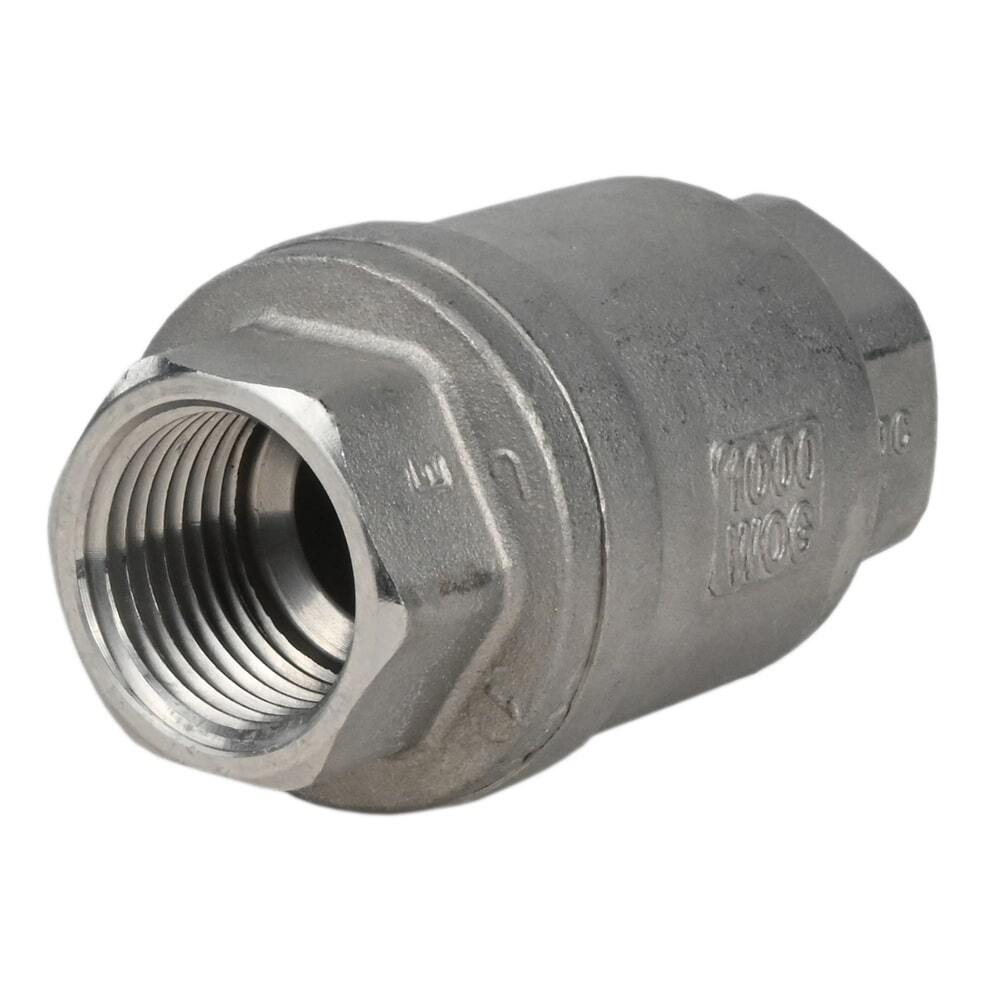

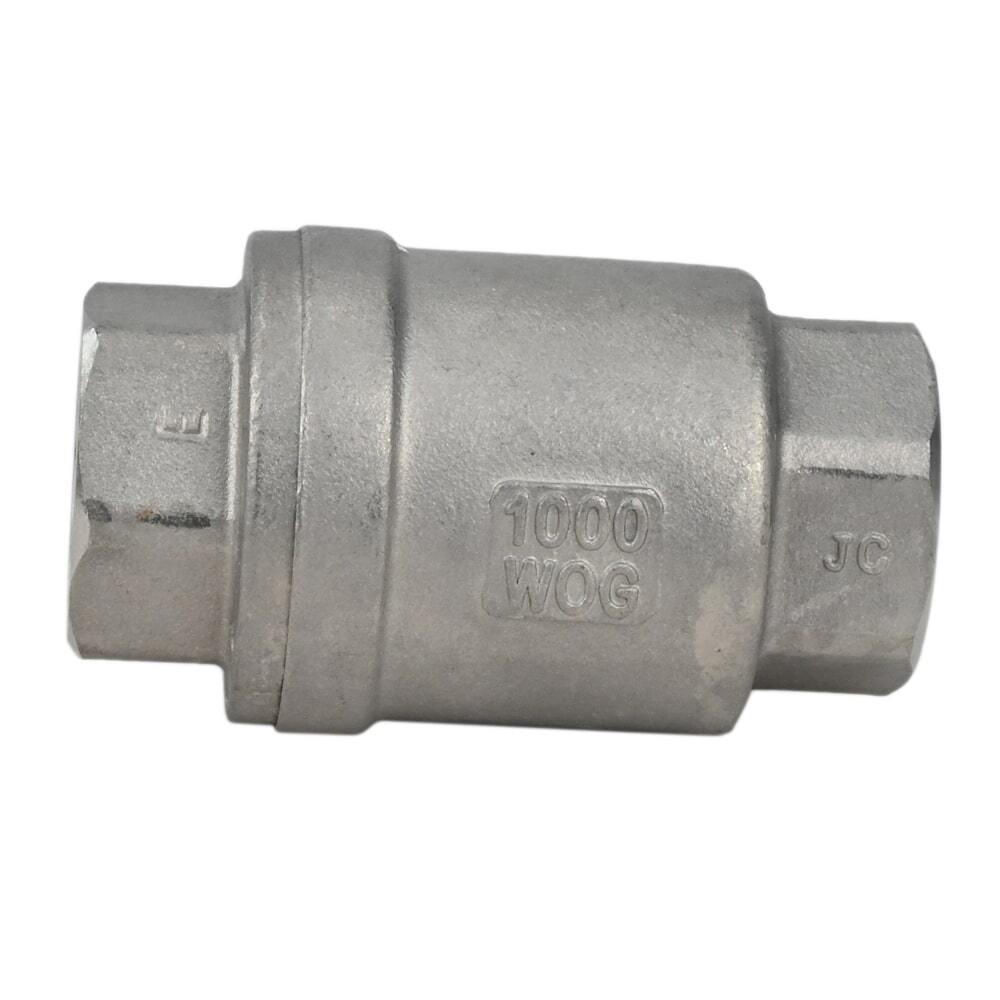

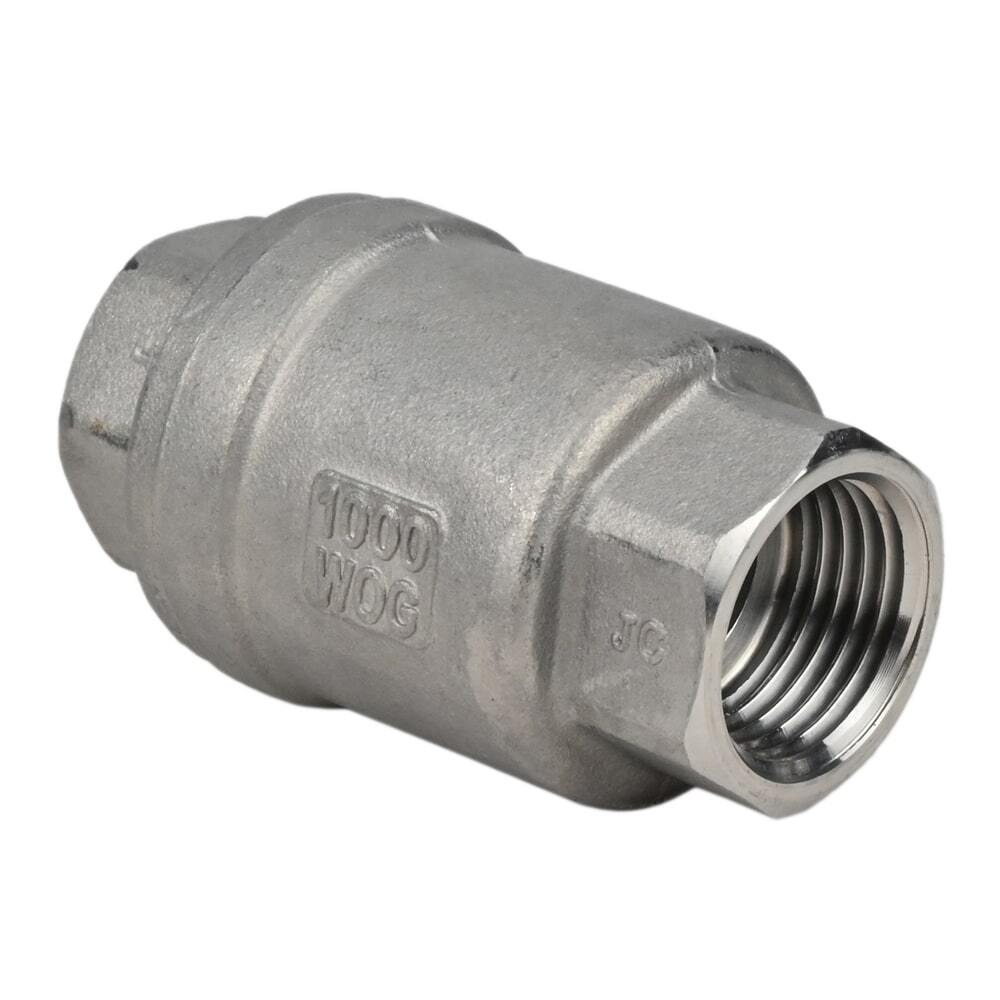

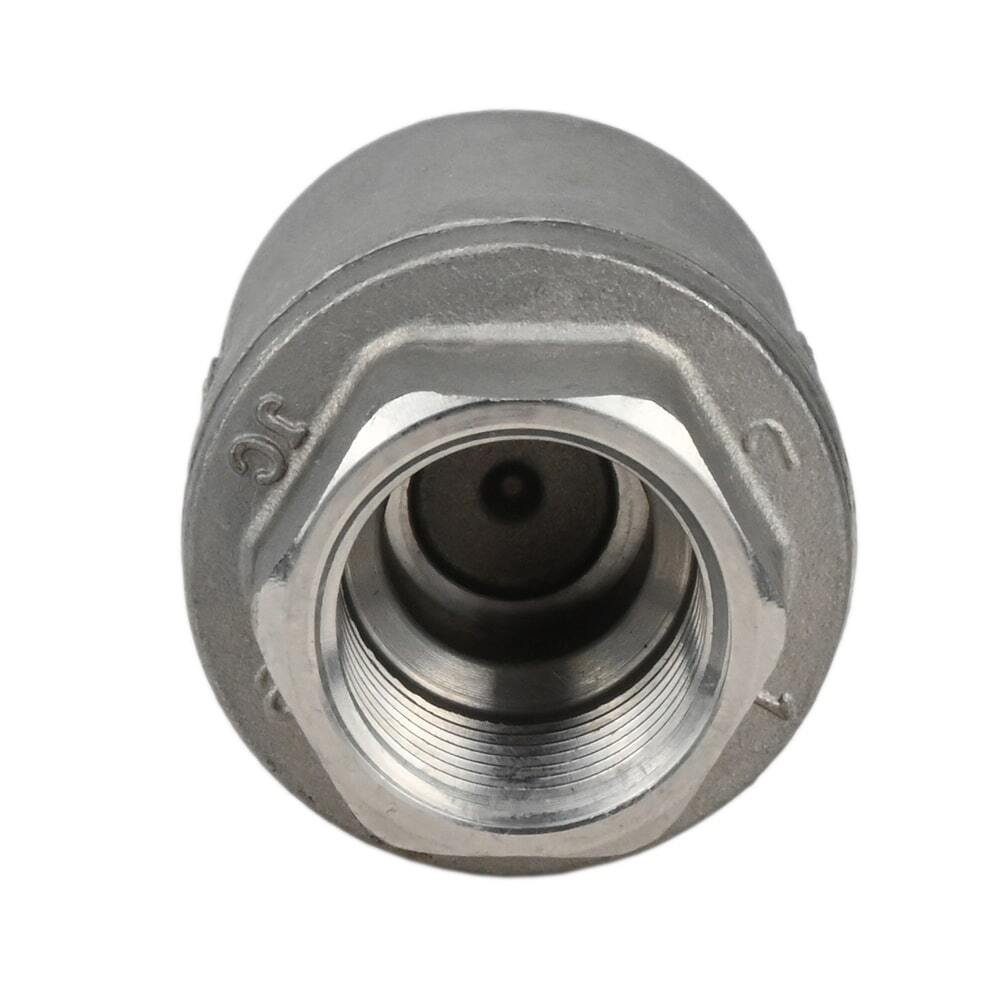

Spring check valve Elephant LSCV, body material - stainless steel AISI 316, closure element material - stainless steel AISI 316, seal - PTFE
Spring check valve Elephant LSCV, body material - stainless steel AISI 316, closure element material - stainless steel AISI 316, seal - PTFE - DN15 / 16 bar is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Spring check valve Elephant LSCV, body material - stainless steel A...
Description
Description
Check valve is a device in a pipeline that allows fluids or gases to flow in only one direction. When the pressure of the fluid or gas in the pipeline exceeds a certain value, the valve opens, allowing the substance to pass through. However, when the pressure drops or tries to move in the opposite direction, the valve closes, preventing backflow. Check valves are widely used in various industrial and commercial applications to ensure safety and control the flow in pipeline systems.
Dimensions of the spring check valve Elephant LSCV, body material - stainless steel AISI 316
Sketch of spring check valve Elephant LSCV, body material - stainless steel AISI 316, closure element material - stainless steel AISI 316, seal - PTFE
| DN | D | L | Weight |
| mm | kg | ||
| 15 | 14 | 61 | 0.1 |
| 20 | 20 | 65 | 0.2 |
| 25 | 25 | 78 | 0.3 |
| 32 | 32 | 88 | 0.5 |
| 40 | 36 | 100 | 0.6 |
| 50 | 50 | 110 | 1 |
Spring check valve specification Elephant LSCV, body material - stainless steel AISI 316
Material sketch of spring check valve Elephant LSCV, body material - stainless steel AISI 316, closure element material - stainless steel AISI 316, seal - PTFE
| № | Part name | Material |
| 1,3 | Body | CF8/CF8M steel |
| 2 | Gasket | PTFE |
| 4 | Disk | steel SS304 / SS316 |
| 5 | Spring | steel SS304 / SS316 |
Specifications
Specifications
-
Country of origin
-
Body material
-
Maximum allowable temperature
-
Connection type
-
Operating environment
-
Applications
-
Nominal pressure
-
Type of seal
-
Locking material
-
Check valve type
