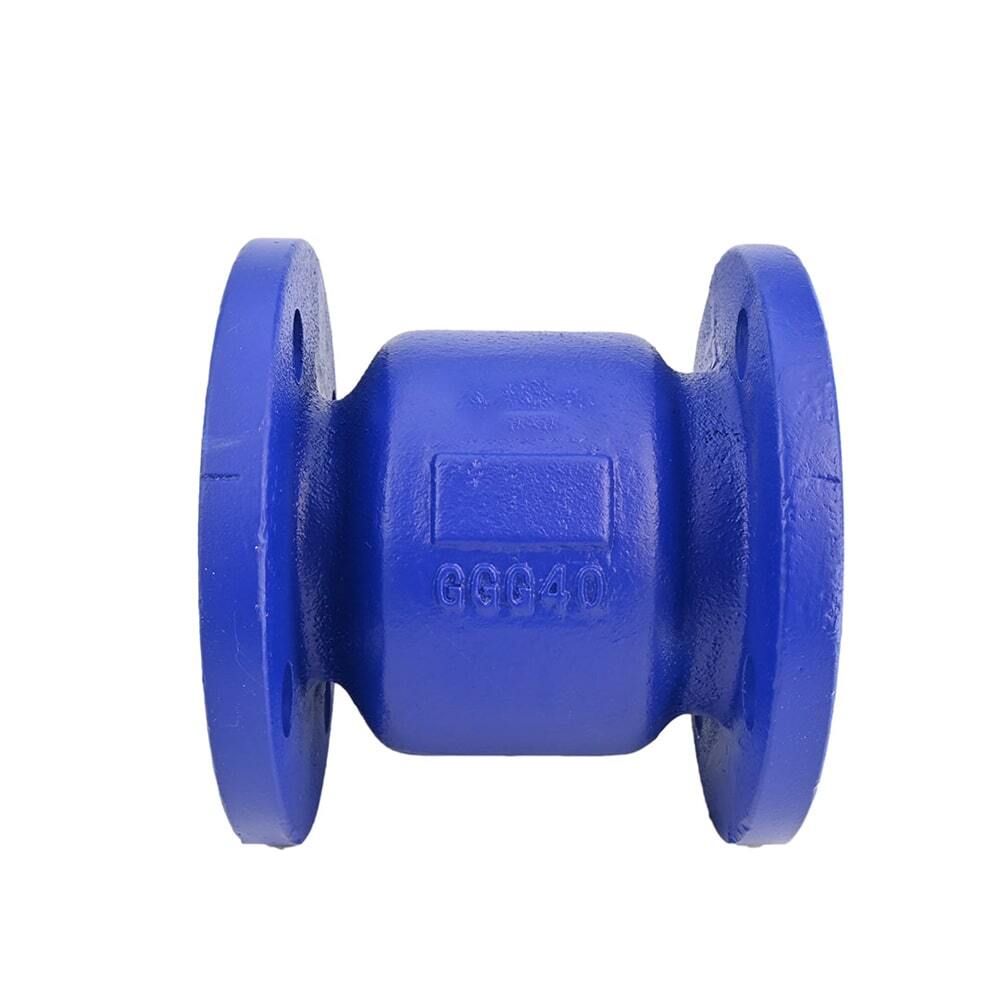

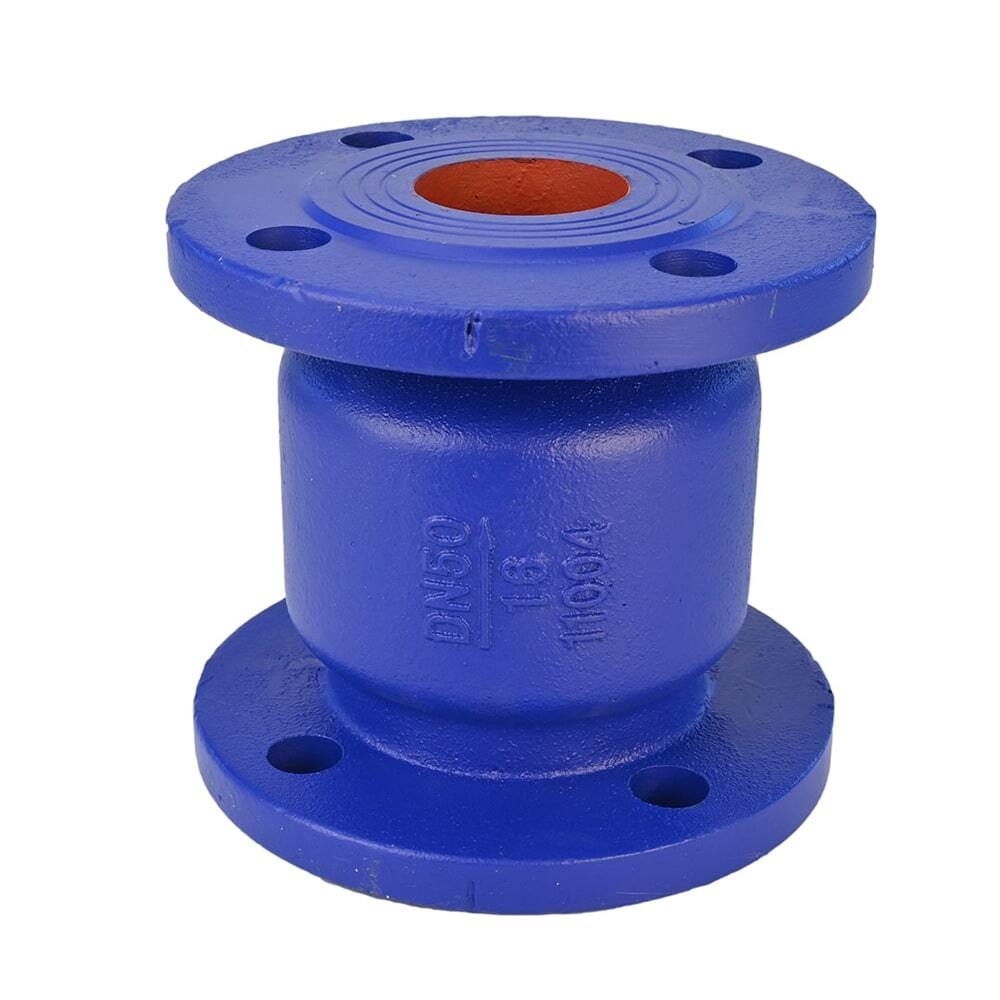

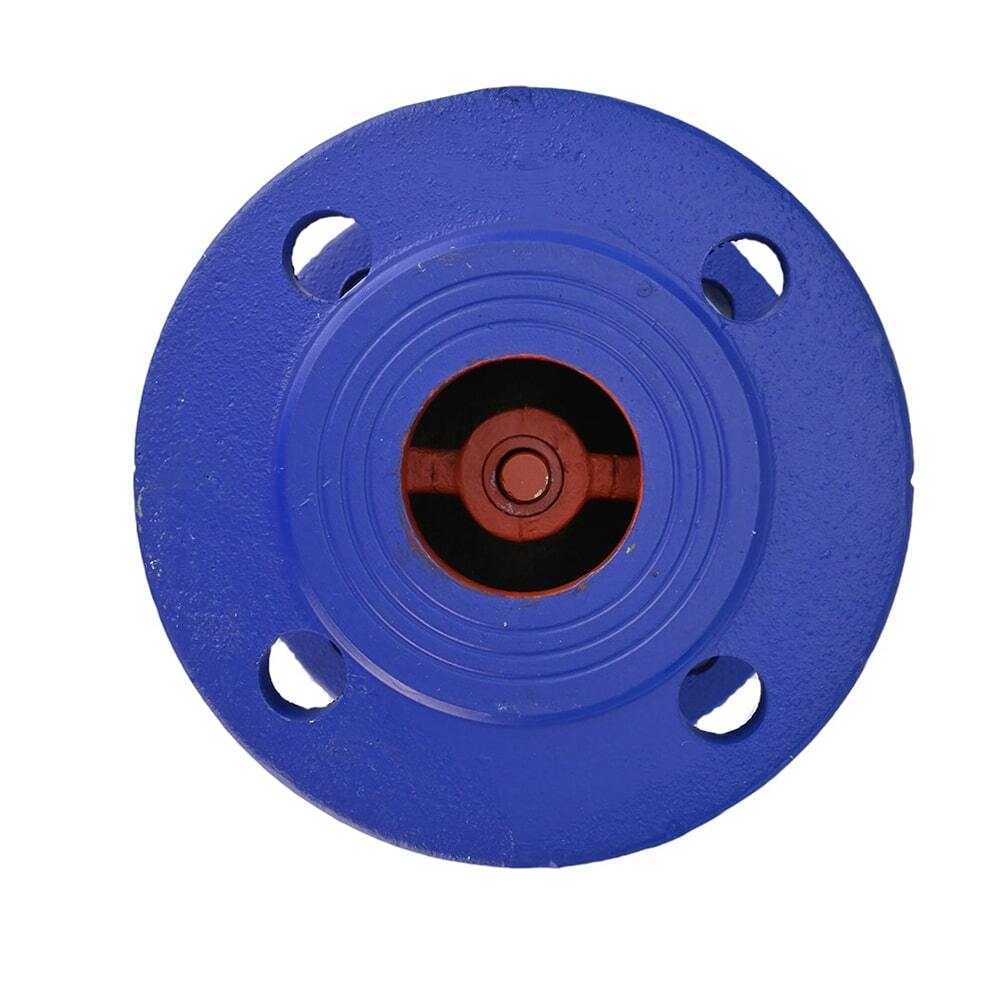

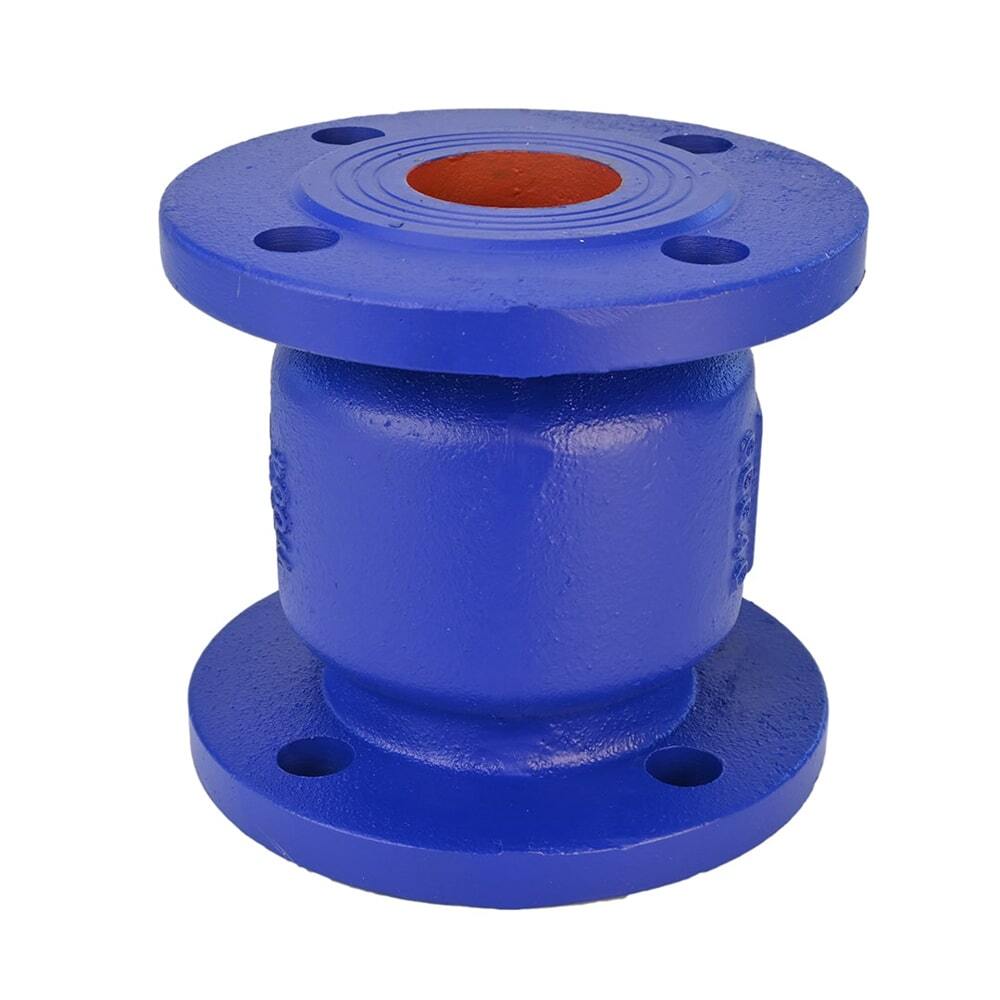

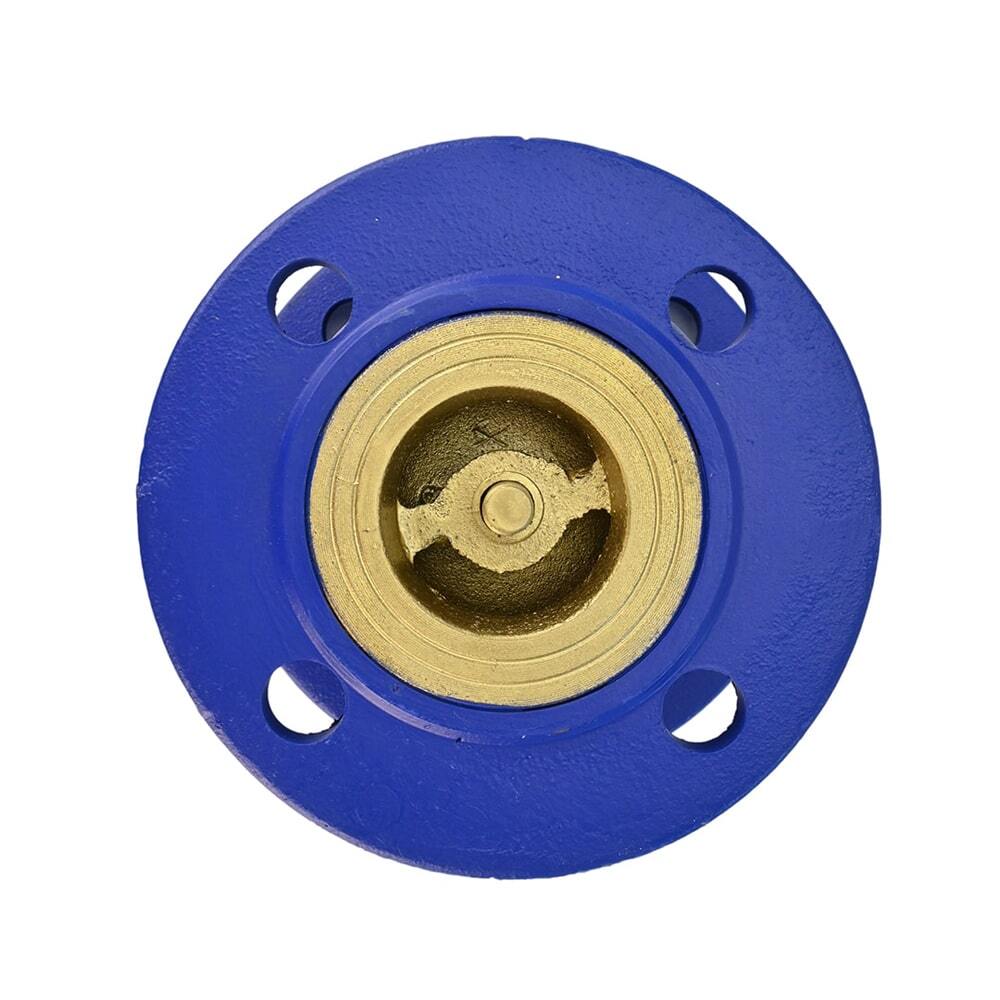

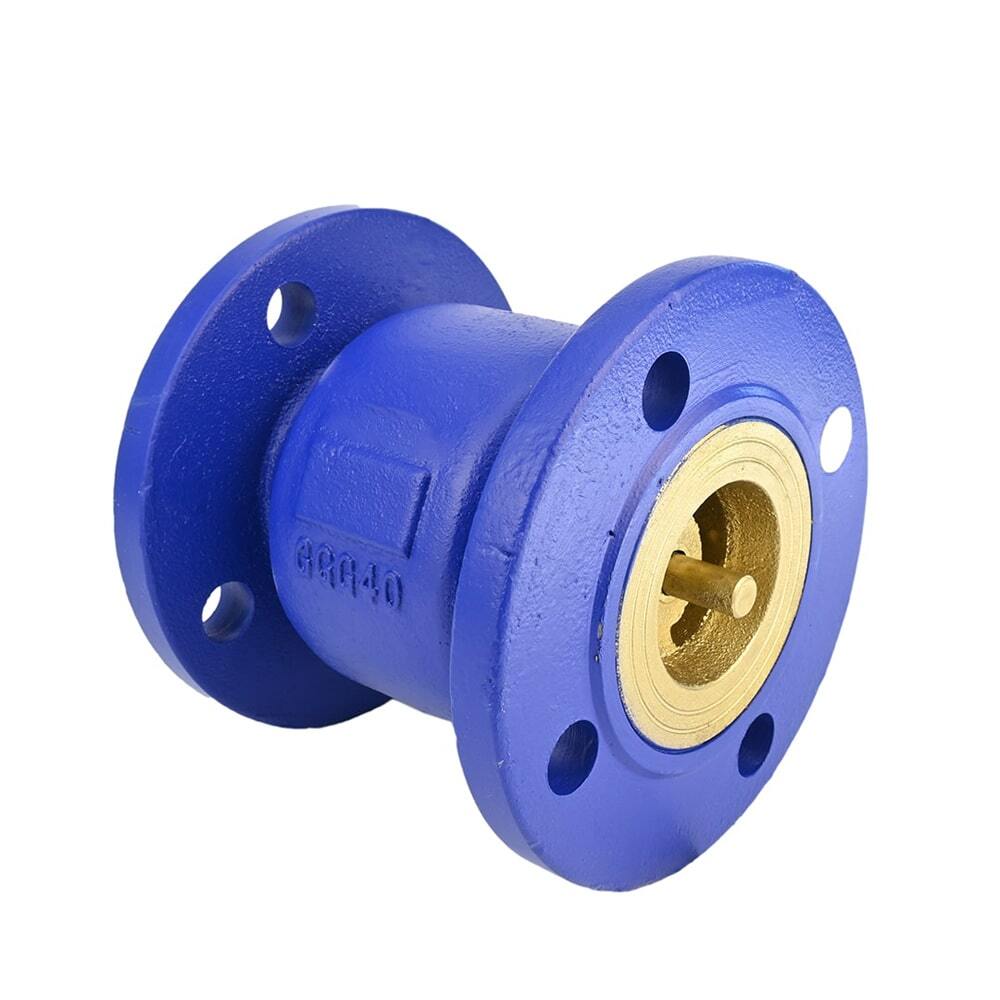

Spring check valve Elephant 402A PSI232 body material - cast iron GGG5 – Valve Elephant
1 6
Elephant  |  SKU: D100-03694

Spring check valve Elephant 402A PSI232 body material - cast iron GGG50, flanged

€66,54
Tax included Shipping calculated at checkout.

Spring check valve Elephant 402A PSI232 body material - cast iron GGG50, flanged - DN50 / 16 bar is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Spring check valves are designed to prevent changes in the direction of flow of the working medium in the pipeline in the opposite direction. Operating principle: blocking the reverse flow of the medium is done by pressing the soft seal of the valve shutter to its seat under the action of a spring and the pressure of the reverse flow. The valve is opened by a pressure difference in the flow of the medium in the desired direction, while the valve shutter moves, compressing the spring.





Weight and dimensional parameters of check valves Elephant 402A PSI232 body material - cast iron GGG50, flanged

DN L D D1 D2 b - f Z - Ød Weight, kg
50 150 165 125 100 19 - 3 4 – Ø19 6.4
65 170 185 145 120 19 - 3 4 – Ø19 8.8
80 180 200 160 135 19 - 3 8 – Ø19 11.9
100 190 220 180 155 21 - 3 8 – Ø19 15.4
125 200 250 210 185 22 - 3 8 – Ø19 22.2
150 210 285 240 210 22 - 3 8 – Ø23 31.6

Sketch overall and installation dimensions of check valves Elephant 402A PSI232 body material - cast iron GGG50, flanged





Materials of check valve parts Elephant 402A PSI232 body material - cast iron GGG50, flanged

№ Name Material
1 Case cast iron GGG40
2 Disk cast iron GGG40
3 Sealing NBR
4 Stem cast iron GGG40
5 Gasket NBR
6 Spring steel SS304
7 Guide bushing PTFE

Check valves detail Elephant 402A PSI232 body material - cast iron GGG50, flanged

Specifications
  • Country of origin
    China
  • Body material
    Cast iron GGG50/EN-GJS-500-7
  • Maximum allowable temperature
    80 °C
  • Connection type
    Flanged
  • Operating environment
    Water, air, oil products
  • Applications
    Water supply
  • Nominal pressure
    16 bar
  • Type of seal
    NBR
  • Check valve type
    Spring

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUConnection sizePressurePrice AvailabilityQuantity Add to cart
    D100-03694DN5016 bar €66,54 0 in stock
    D100-03695DN6516 bar €88,16 0 in stock
    D100-03696DN8016 bar €99,84 0 in stock
    D100-03697DN10016 bar €123,81 0 in stock
    D100-03698DN12516 bar €164,95 0 in stock
    D100-03699DN15016 bar €213,02 0 in stock
