Elephant  |  SKU: D300-04878

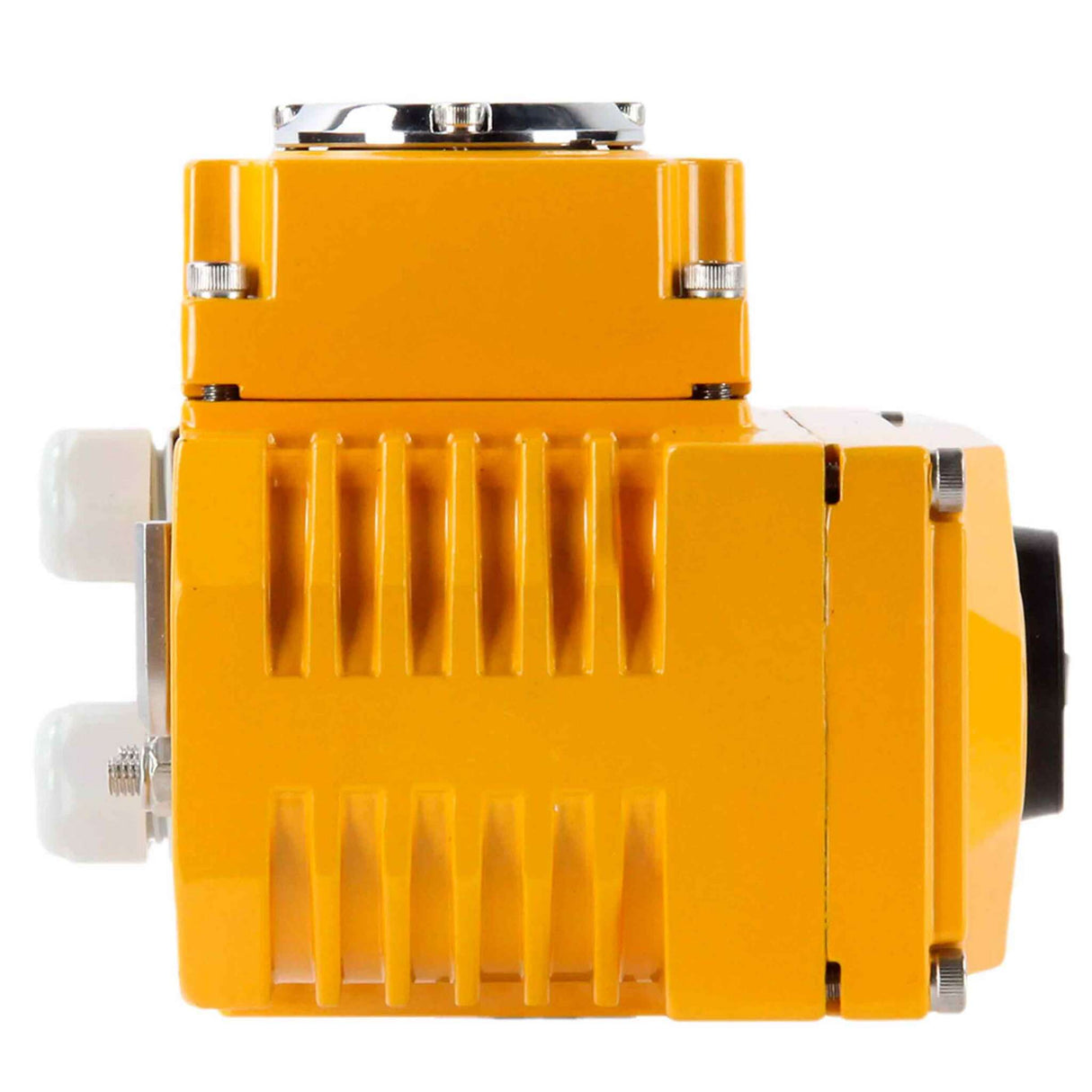

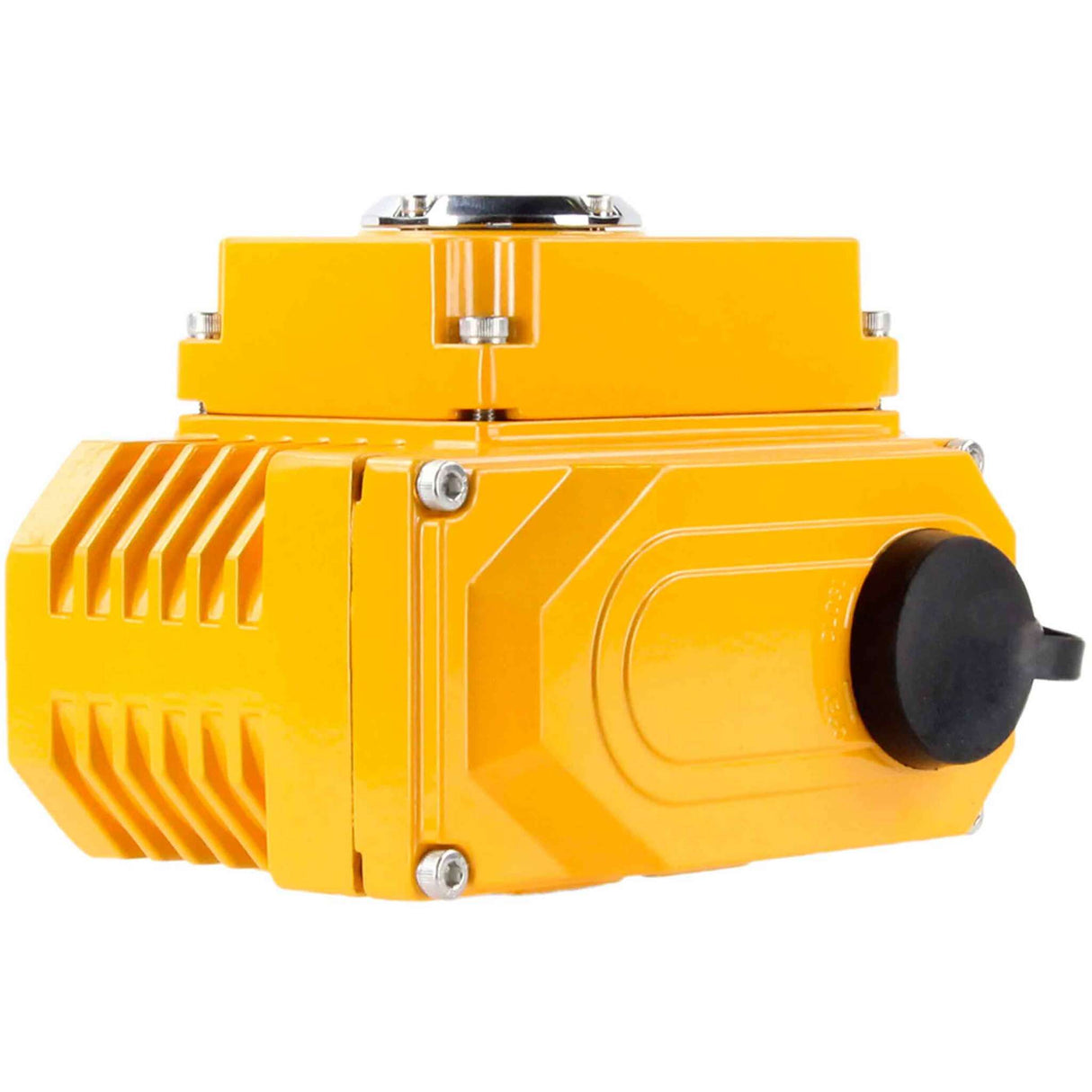

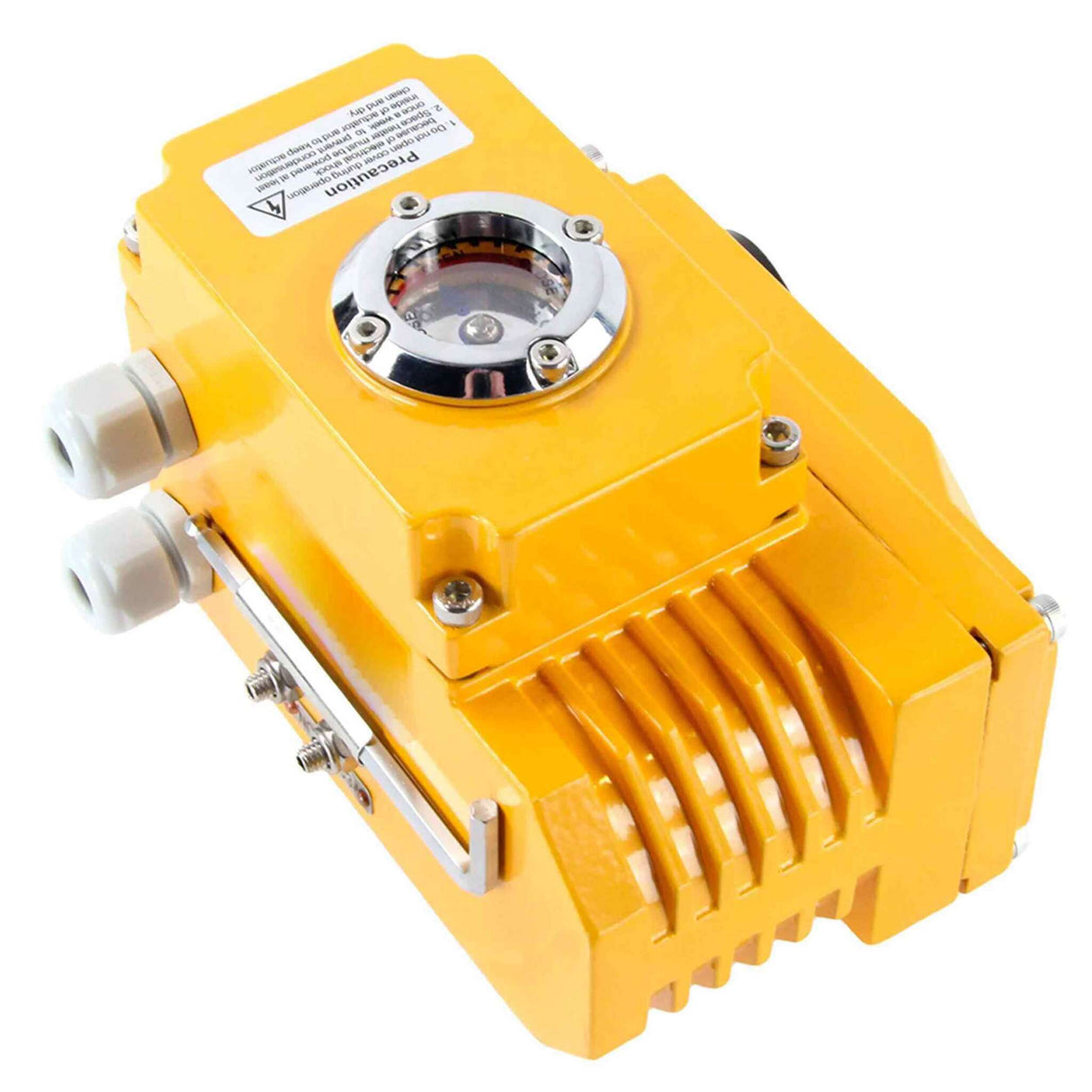

Single-turn electric actuator Elephant ST 003-060 220V

€194,33
Tax included Shipping calculated at checkout.

Single-turn electric actuator Elephant ST 003-060 220V - 50 Nm is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Single-turn electric actuator Elephant ST 003-060 220V is designed for remote and local control of shut-off valves. Widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperatures from -4°…+158°F. The case is equipped with a heater (7-10W 220V) and has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Installation dimensions comply with international standard ISO05211 / DIN3337. The electric drive is equipped with an asynchronous motor with a squirrel-cage rotor, automatic locking of the electric drive position, a mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in intermittent S2 mode. The electric drive stroke is 270° with an adjustment range of ±10°. Limiting the stroke of the electric drive - limit switches. Cable connection 2 x M18. Power is supplied by alternating voltage 220 V with a frequency of 50 Hz.





Overall and installation dimensions of the actuator Elephant ST 003-060 220V

ST-003 ST-005 ST-008 ST- 010 ST- 015 ST-020 ST-030 ST-040 ST-060 ST-080 ST-100
X 123 160 160 189 189 268 268 268 268 268 268
Y 123 146 146 163 163 212 212 212 212 212 212
Z 113 121 121 129 129 164 164 164 164 164 164
ФА Ф50 Ф70 Ф70 Ф70 Ф70 Ф125 Ф125 Ф125 Ф125 Ф125 Ф125
N-B 4-M6 4-M8 4-M8 4-M8 4-M8 4-M12 4-M12 4-M12 4-M12 4-M12 4-M12
N-D 8-M5 4-M6 4-M6 4-M6 4-M6 8-M10 8-M10 8-M10 8-M10 8-M10 8-M10
E 50 66 66 100 100 140 140 140 140 140 140
F 50 66 66 90 90 130 130 130 130 130 130
G - 114 114 114 114 114 114 114 114 114 114
H - 40 40 40 40 40 40 40 40 40 40
I - 100 100 100 100 100 100 100 100 100 100
M x M 11 x 11 14 x 14 14 x 14 17 x
17		 17 x
17		 22 x 22 22 x 22 22 x 22 27 x 27 27 x 27 27 x 27

Overall and installation dimensions of the actuator Elephant ST-003/060 110/220V

Dimensional sketch of the actuator Elephant ST 003-060 220V





Drive design Elephant ST 003-060 220V

№ Part name
1 output shaft
2 cable lock
3 mechanical stop
4 hand wrench
5 body
6 modular box
7 cover
8 viewing window
9 dust protection

Drive design Elephant ST-003/060 110/220V

Drive detail sketch Elephant ST 003-060 220V

Specifications
  • Country of origin
    China
  • Actuator cycle time
    30s
  • Explosion-proof
    No
  • Thermal protection
    Yes
  • Type of electric actuator
    Single-turn
  • Feedback sensor
    Limit switches
  • Control signal
    ON/OFF
  • ISO - flange type
    F04,F05
  • Rated current consumption
    0.15 A
  • Power consumption
    80 W
  • Supply voltage
    220 V
