Shut-off valves with gland packing Elephant VSO3131M-F-S DN15-100 16 b – Valve Elephant
Elephant  |  SKU: D090-02946

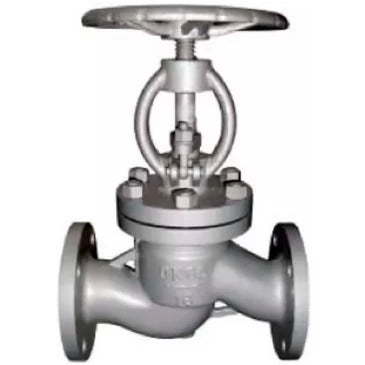

Shut-off valves with gland packing Elephant VSO3131M-F-S DN15-100 16 bar flanged, body - stainless steel 304 (CF8), disc - stainless steel 304 (CF8), seal - metal, with handwheel

€89,00
Tax included Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

A shut-off valve is designed to completely shut off the flow of the working fluid in a pipeline. When the handwheel is rotated clockwise or counterclockwise, the rotational motion is transmitted to the spindle, and the disk attached to it closes or opens the flow hole in the body. VSO3131M-F-S shut-off valves are not permitted for use as control devices; that is, the disk must be in the full up or full down position.





Technical characteristics of shut-off valves with gland packing Elephant VSO3131M-F-S DN15-100 16 bar flanged, body - stainless steel 304 (CF8), disc - stainless steel 304 (CF8), seal - metal, with handwheel

Characteristics Value
Diameter, DN 15-100 mm
Nominal pressure 16 bar
Mediation water, steam, gas, oil products, aggressive liquids
Maximum allowable temperature +425°C
Control type handle
Connection type flanged
Application industry, heating systems, water supply
Country of origin China





Overall and installation dimensions of shut-off valves with gland packing Elephant VSO3131M-F-S DN15-100 16 bar flanged, body - stainless steel 304 (CF8), disc - stainless steel 304 (CF8), seal - metal, with handwheel

Model L
D
D1
H
n-Ød
DN15 130 95 65 185 4-14
DN20 150 105 75 200 4-14
DN25 160 115 85 200 4-14
DN32 180 135 100 230 4-18
DN40 200 145 110 250 4-18
DN50 230 160 125 270 4-18
DN65 290 180 145 290 4-18
DN80 310 195 160 320 8-18
DN100 350 215 180 360 8-18

Sketch of the dimensions of the shut-off valves with gland packing Elephant VSO3131M-F-S DN15-100 16 bar flanged





Materials of parts of shut-off valves Elephant VSO3131M-F-S DN15-100 16 bar flanged, body - stainless steel 304 (CF8), disc - stainless steel 304 (CF8), seal - metal, with handwheel

Name Material
1 Body AISI 304 stainless steel
2 Cover AISI 304 stainless steel
3 Shut-off element AISI 304 stainless steel
4 Rod AISI 304 stainless steel
5 Disc AISI 304 stainless steel
6 Bushing SS 201 stainless steel
7 Seal Graphite
8 Gasket Graphite + stainless steel
9 Bolt AISI 304 stainless steel
10 Nut AISI 304 stainless steel
11 Steering wheel WCB carbon steel

Sketch of materials for shut-off valves with gland packing Elephant VSO3131M-F-S DN15-100 16 bar flanged, body - stainless steel 304 (CF8), disc - stainless steel 304 (CF8), seal - metal, with handwheel

Specifications

  • Operating environment
    Water, Steam, Gas, Petroleum products, Aggressive liquid

Reviews (0)

Documentation

Payment & Security

Payment methods

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    Available Variants

    SKUSizePressurePrice AvailabilityQuantity Add to cart
    D090-02946DN1516 bar €89,00 Sold out
    D090-02947DN2016 bar €89,08 Sold out
    D090-02948DN2516 bar €102,43 Sold out
    D090-02949DN3216 bar €140,27 Sold out
    D090-02950DN4016 bar €154,93 Sold out
    D090-02951DN5016 bar €193,54 Sold out
    D090-02952DN6516 bar €332,87 Sold out
    D090-02953DN8016 bar €394,24 Sold out
    D090-02954DN10016 bar €506,29 Sold out
