Elephant  |  SKU: D240-00393

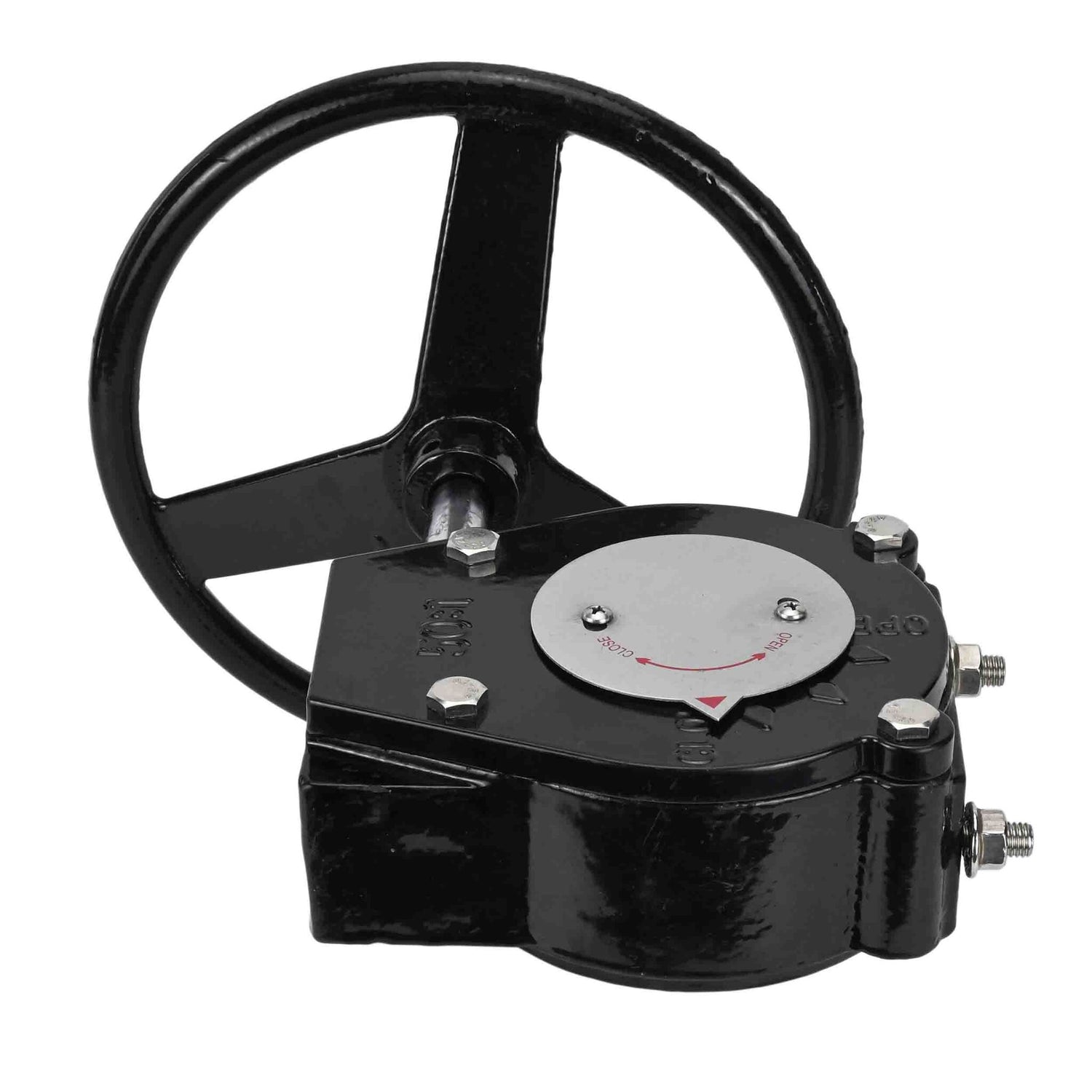

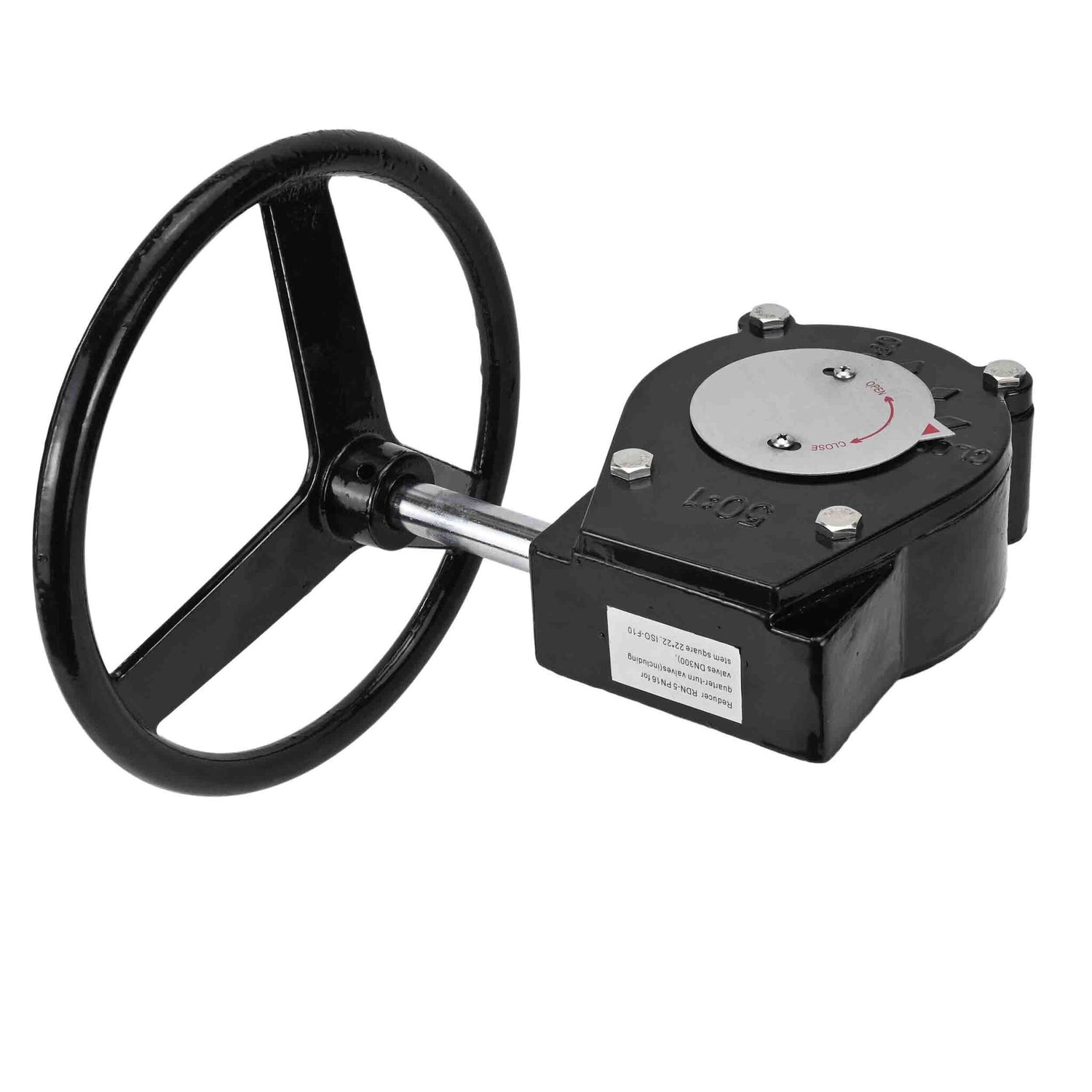

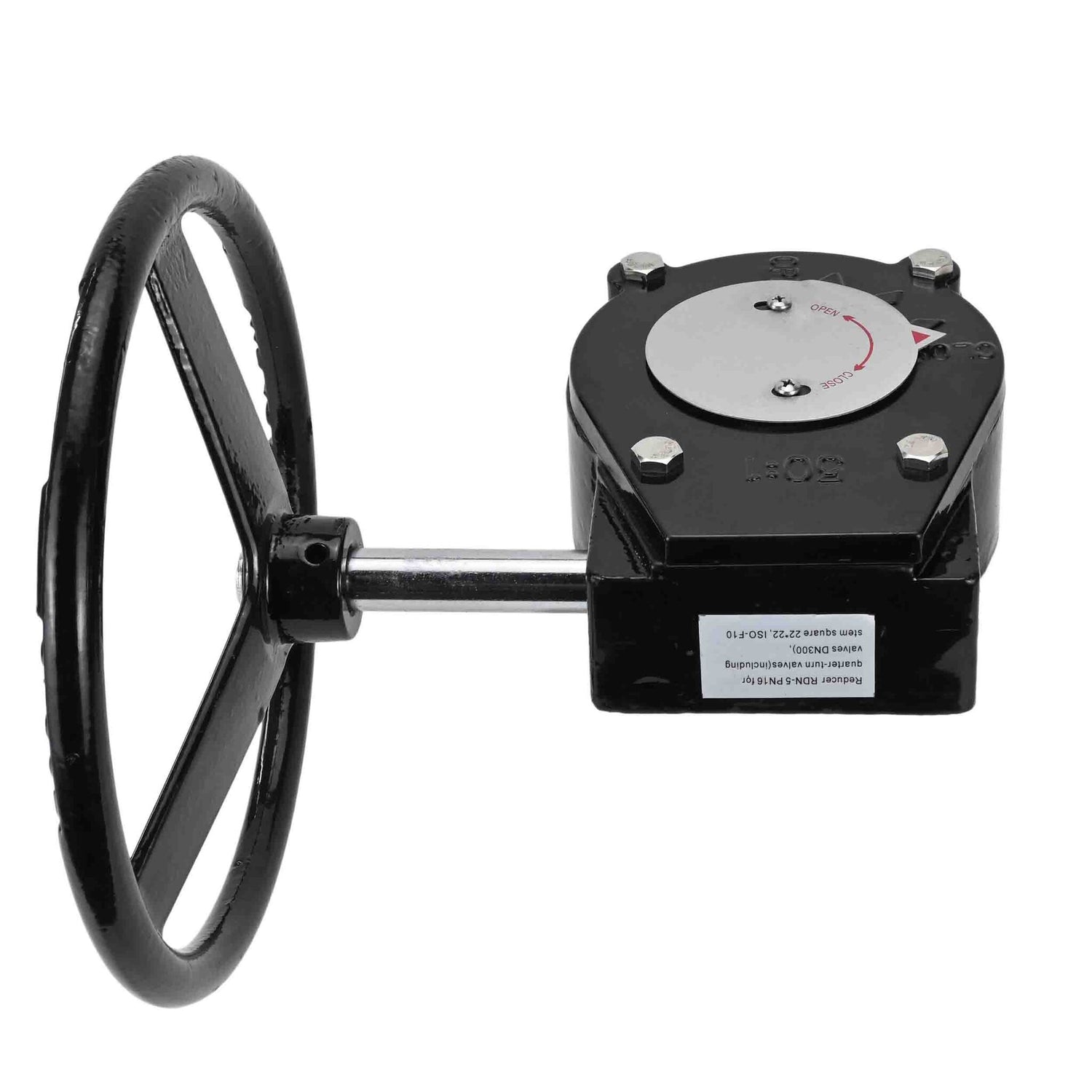

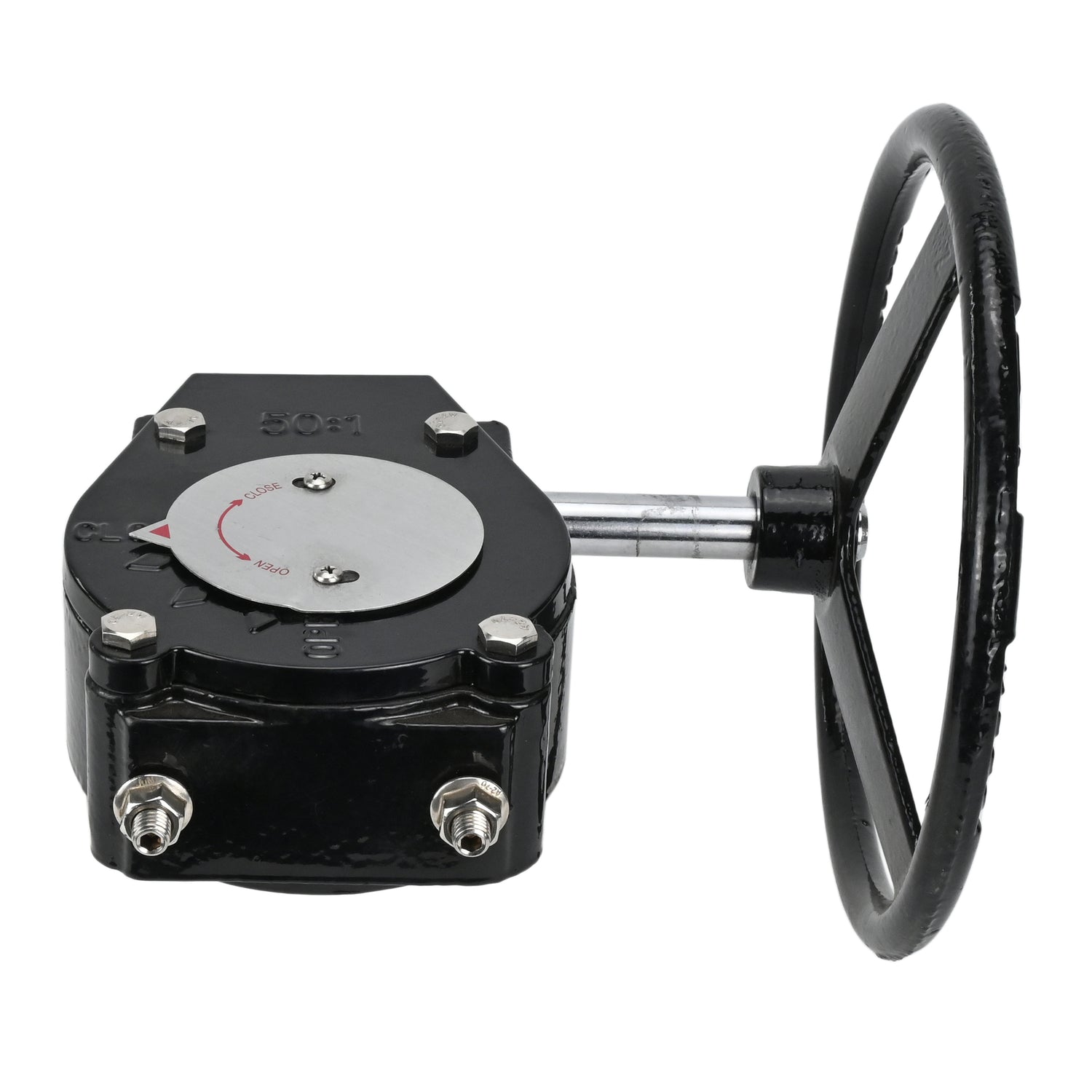

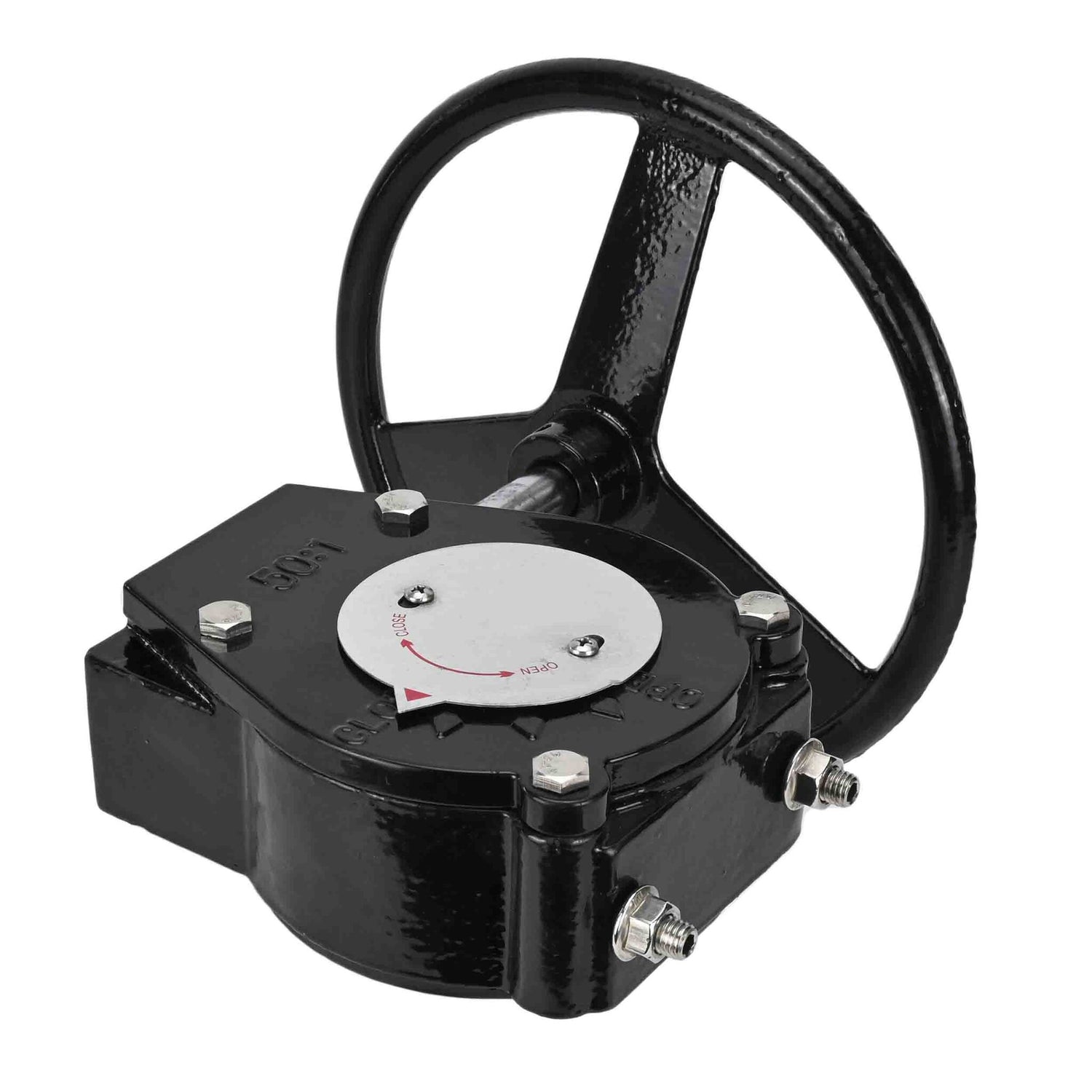

Quarter-turn gearbox Elephant RDN, body material - aluminium alloy

€9,00
Tax included Shipping calculated at checkout.

Pressure
Gearbox model

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

Add a stand out message for your customers

Description

A quarter-turn gearbox is a mechanical device designed to provide a 90-degree rotation (or a quarter turn) to an input shaft, converting rotary motion into a different angular direction. These gearboxes are commonly used in various industrial applications, such as valve automation, where a quarter-turn motion is required to control the flow of fluids or gases. They are essential components in systems where precise and controlled rotational movement is necessary. Quarter-turn gearboxes come in different types, such as worm gear, bevel gear, or spur gear configurations, each suited for specific applications based on their design and efficiency requirements.

Specifications

  • Country of origin
    China
  • Body material
    Aluminium alloy
  • Maximum allowable temperature
    248 °F / 120 °C
  • Connection type
    Flanged
  • Nominal pressure
    16 bar
  • Type of seal
    PTFE
  • Torque
    680 Nm
  • Shaft shape square
    22x22 mm
  • ISO - flange type
    F10
