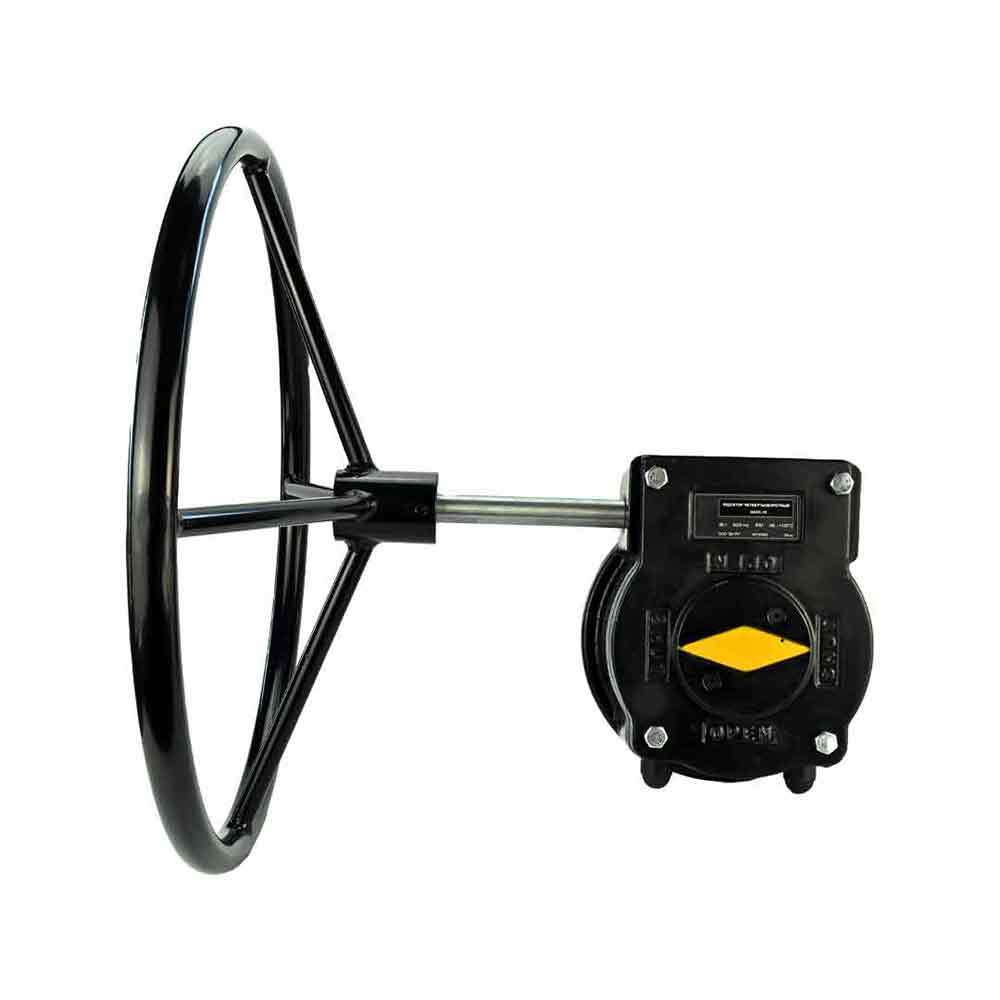

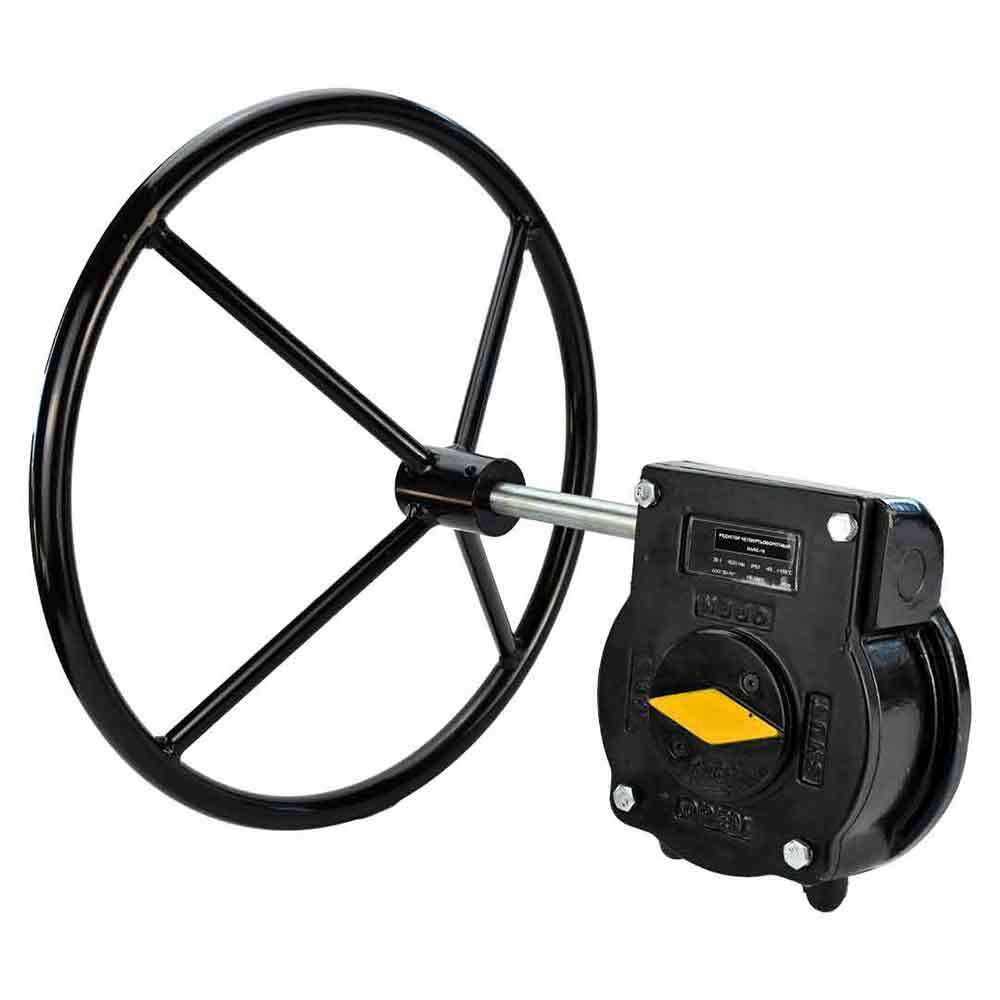

Quarter-turn gearbox Elephant HARC, body material - aluminium alloy
Quarter-turn gearbox Elephant HARC, body material - aluminium alloy - 16 bar / HARC-11 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.
Description
Description
A quarter-turn gearbox is a mechanical device designed to provide a 90-degree rotation (or a quarter turn) to an input shaft, converting rotary motion into a different angular direction. These gearboxes are commonly used in various industrial applications, such as valve automation, where a quarter-turn motion is required to control the flow of fluids or gases. They are essential components in systems where precise and controlled rotational movement is necessary. Quarter-turn gearboxes come in different types, such as worm gear, bevel gear, or spur gear configurations, each suited for specific applications based on their design and efficiency requirements.
Overall and mounting dimensions of the gearbox Elephant HARC, body material - aluminium alloy
| Model | HARC 11 | HARC 10 |
| Gear ratio | 38:1 | 55:1 |
| Torque, Nm | 1620 | 2640 |
| d, mm | 50 | 50 |
| Weight, kg | 19.9 | 26.4 |
| D, mm | 200 | 285 |
| D1 (ISO5211) | 140 | 140 |
| Number and size of bolt holes | 4-М16 | 4-М20 |
| S, mm | 36 | 42 |
| L, mm | 226 | 258 |
| L1, mm | 100 | 110 |
| L2, mm | 86 | 105 |
| H, mm | 93 | 102 |
| H1, mm | 42 | 48 |
| d1, mm | 20 | 20 |
| L3, mm | 381 | 402 |
| W, mm | 600 | 600 |
Number and size of bolt holes Elephant HARC, body material - aluminium alloy
