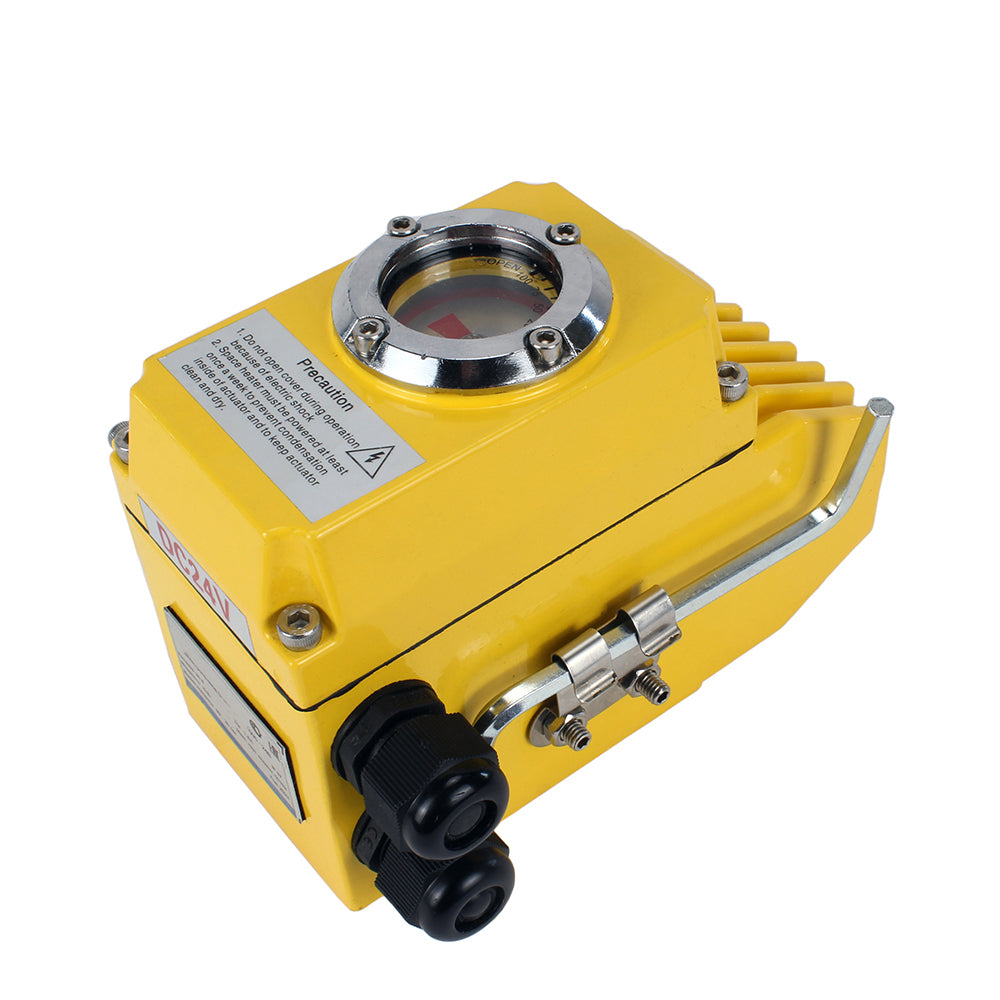

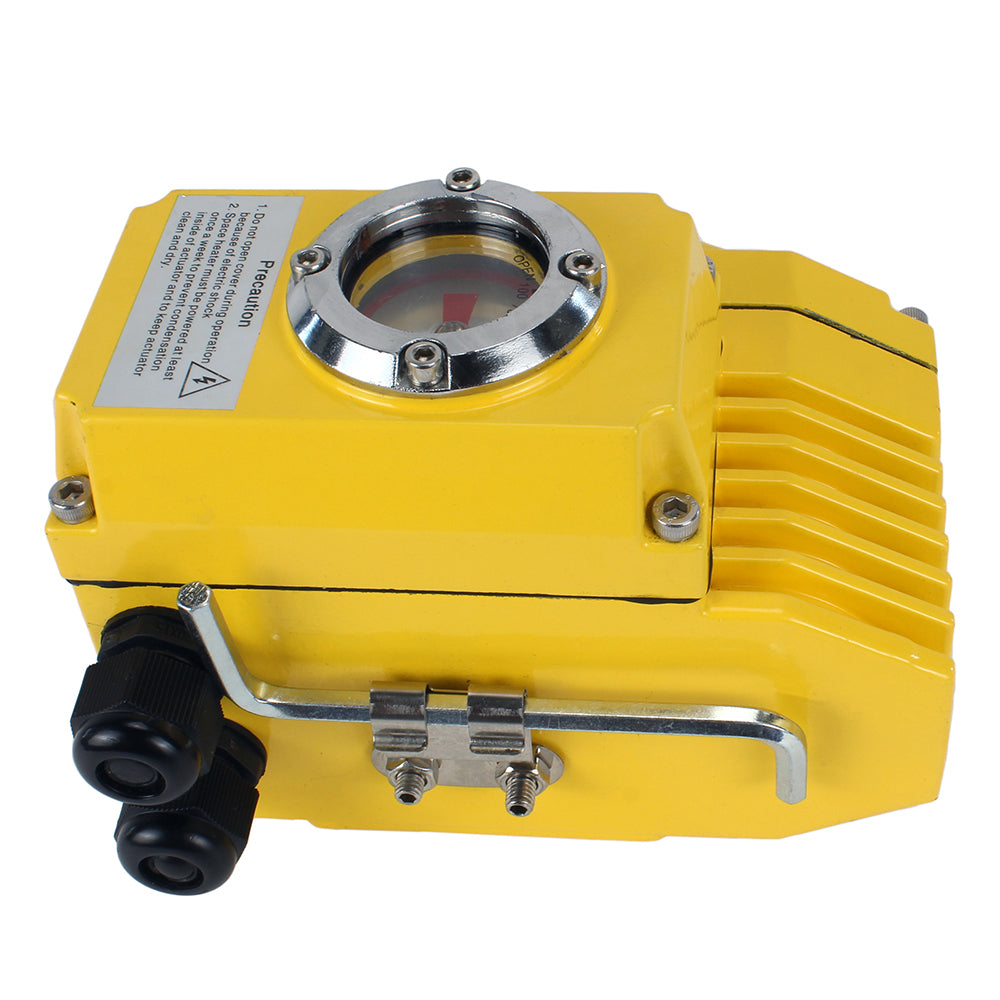

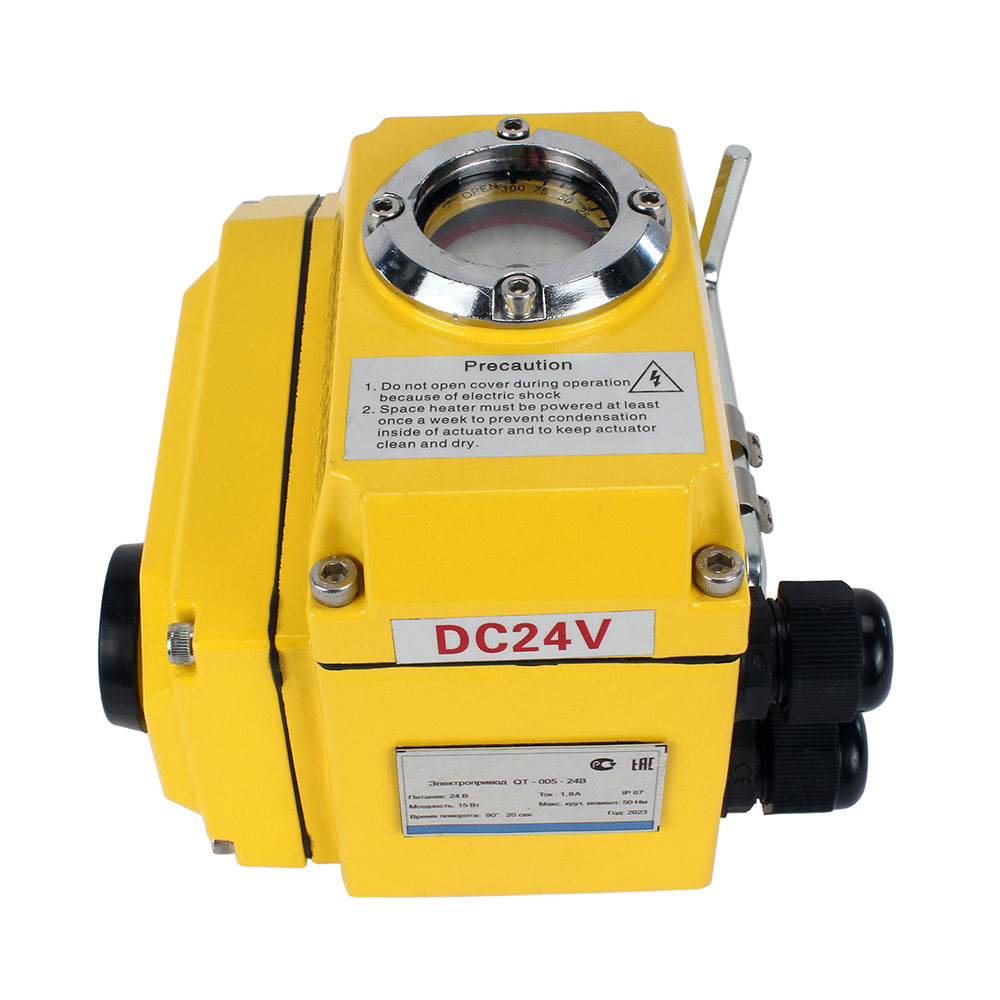

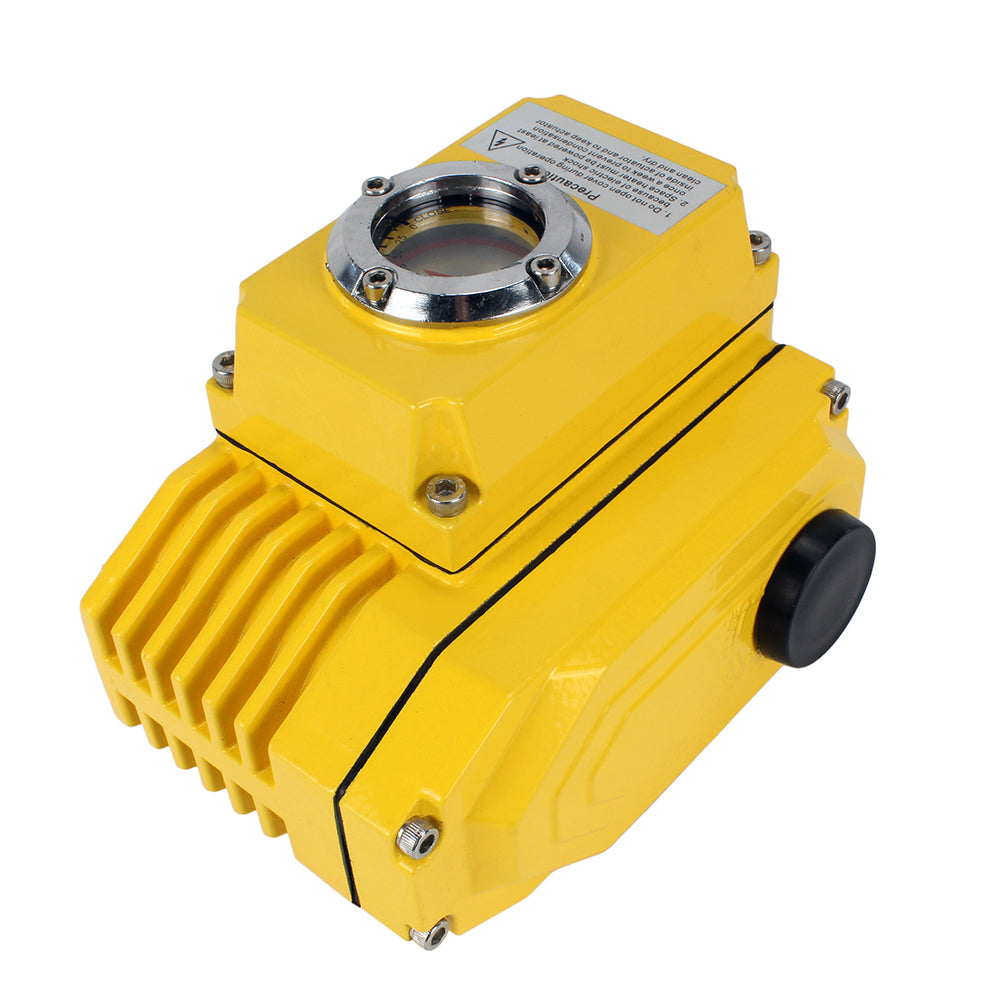

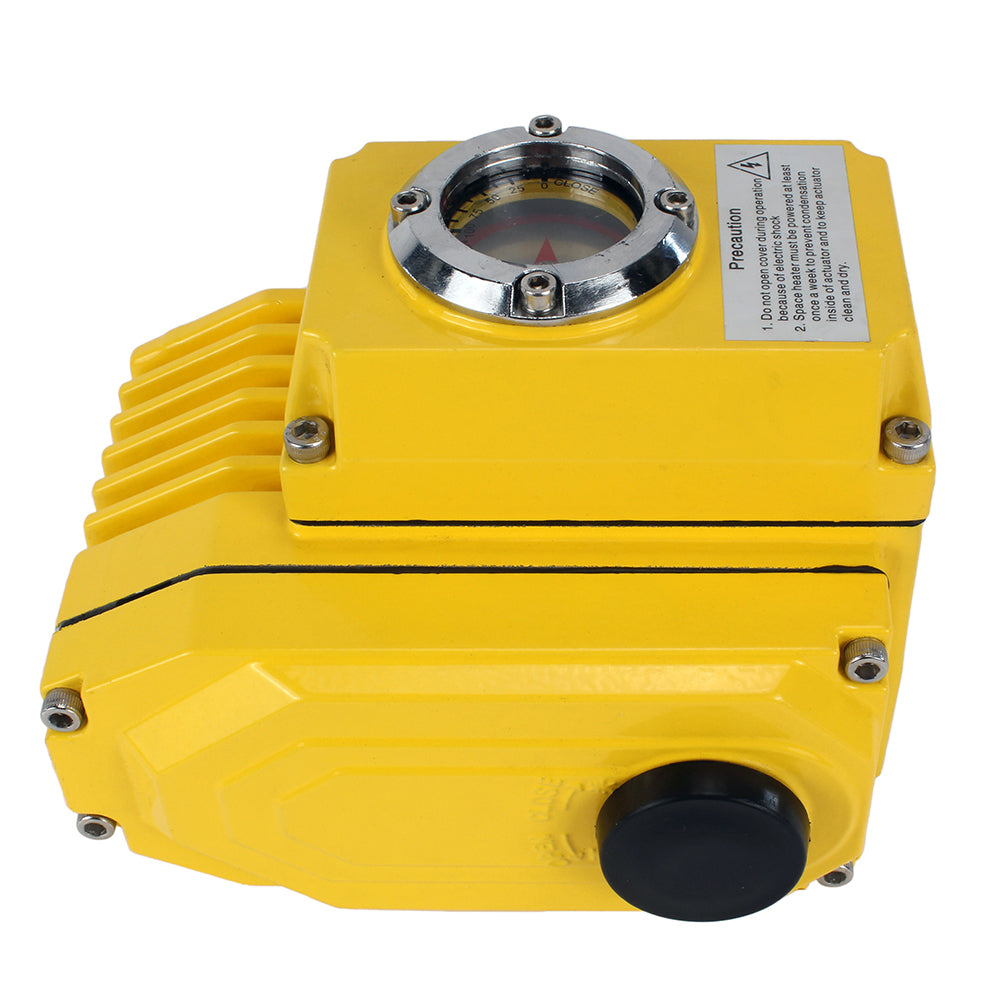

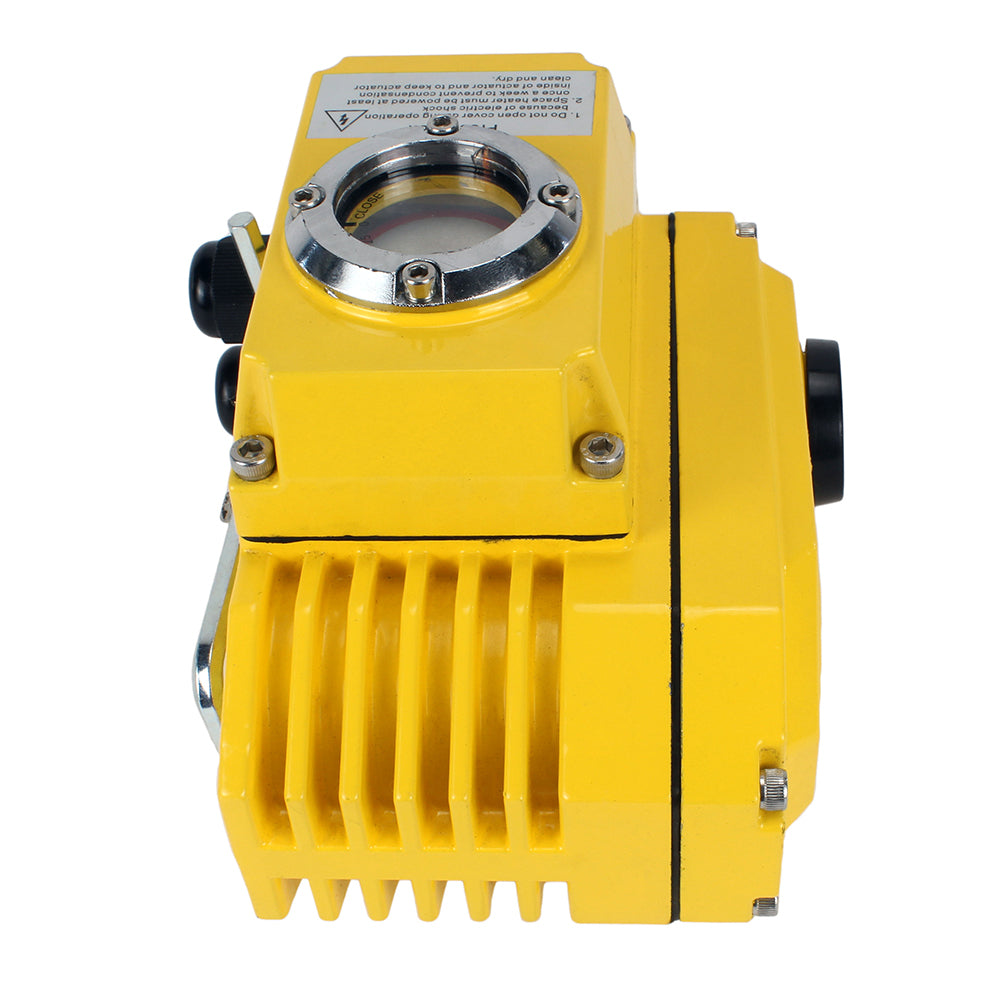

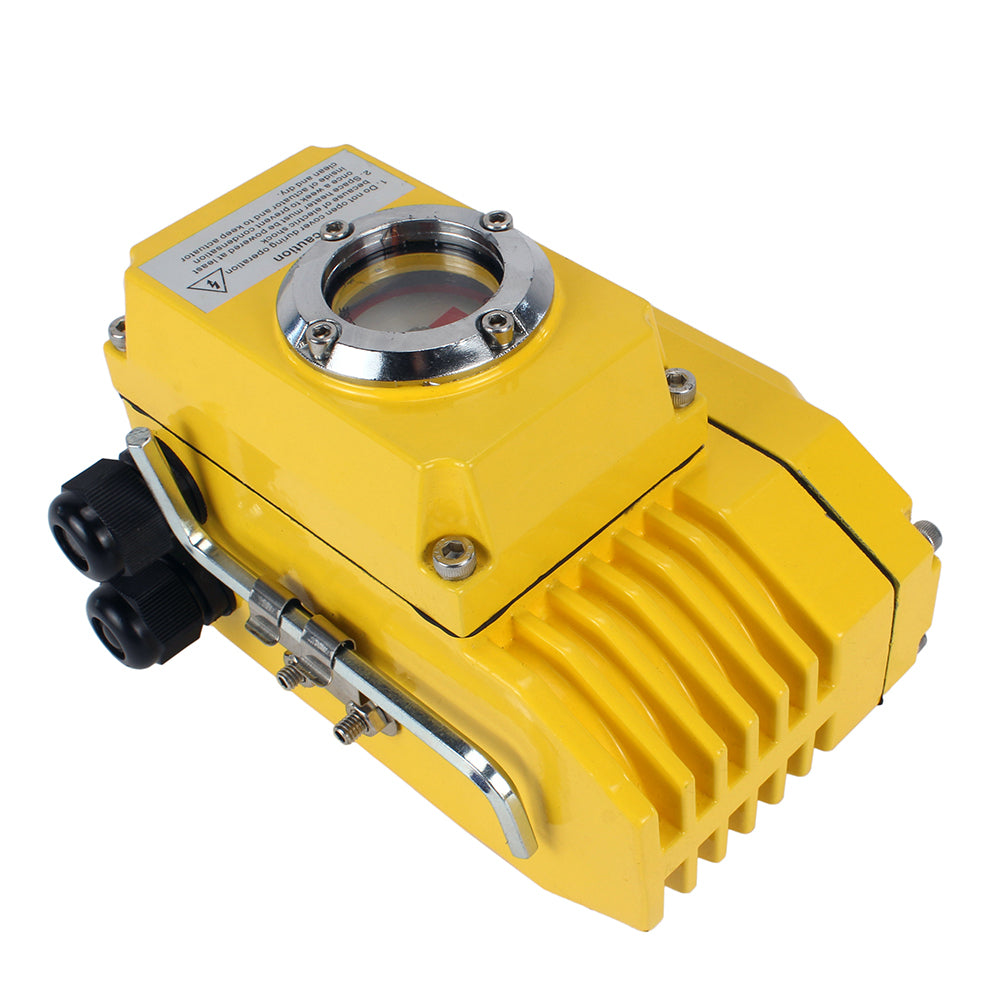

Quarter-turn electric actuator Elephant 005-060 24V

€40,00
Shipping calculated at checkout.

Delivery and Shipping

The delivery cost is determined during the checkout process and varies based on several factors, including the product type, delivery time, service provider, and destination country.

If you have any questions about our products, delivery options, or anything else, feel free to reach out.

Description

Quarter-turn electric actuator Elephant 005-060 24V is designed for remote and local control of valves. It is widely used in the gas, oil, metallurgical and food industries, housing and communal services, etc. with ambient temperature from -4…+158°F. The housing has the following degrees of protection: IP67, NEME 4 and 6, anti-corrosion coating. Mounting dimensions comply with the international standard ISO05211 / DIN3337. The electric drive is equipped with a squirrel-cage induction motor, automatic position locking of the electric drive, mechanical handle, thermal protection, vibration protection X Y Z 10g (0.2-34 Hz, 30 minutes) and is designed for operation in intermittent duty S2. Actuator stroke 90° with adjustment range ±10°. Restriction of the course of the electric drive - trailer switches. Power is supplied by a constant voltage of 24 V.

Overall and installation dimensions of the actuator Elephant 005-060 24V

Overall and installation dimensions of the actuator Elephant 005-060 24V

Dimensional sketch of the actuator Elephant 005-060 24V

Model L H A
QT-003 140 118 109
QT-005 166 122 118
QT-008 200 128 133
QT-010 200 128 133
QT-015 200 128 133
QT-020 269 155 174
QT-030 269 155 174
QT-040 269 155 174
QT-060 269 155 174
QT-080 268 212 164
QT-100 309 178 200
QT-200 309 178 200

Drive design Elephant 005-060 24V

Drive design Elephant 005-060 24V

Drive detail sketch Elephant 005-060 24V

Part name
1 output shaft
2 cable lock
3 mechanical stop
4 hand wrench
5 body
6 cover
7 viewing window
8 dust protection

Specifications

  • Country of origin
    China
  • Actuator cycle time
    30s
  • Explosion-proof
    No
  • Thermal protection
    No
  • Type of electric actuator
    Quarter-turn
  • Feedback sensor
    Limit switches
  • Control signal
    ON/OFF
  • Shaft shape rod
    13 mm
  • Shaft shape square
    14х14 mm
  • ISO - flange type
    F05,F07
  • Rated current consumption
    0.5 A
  • Power consumption
    10 W
  • Supply voltage
    24 V
